FlySpark FW-10 Delta Long-Endurance Fixed-Wing UAV Platform

FlySpark FW-10 Delta Long-Endurance Fixed-Wing UAV Platform

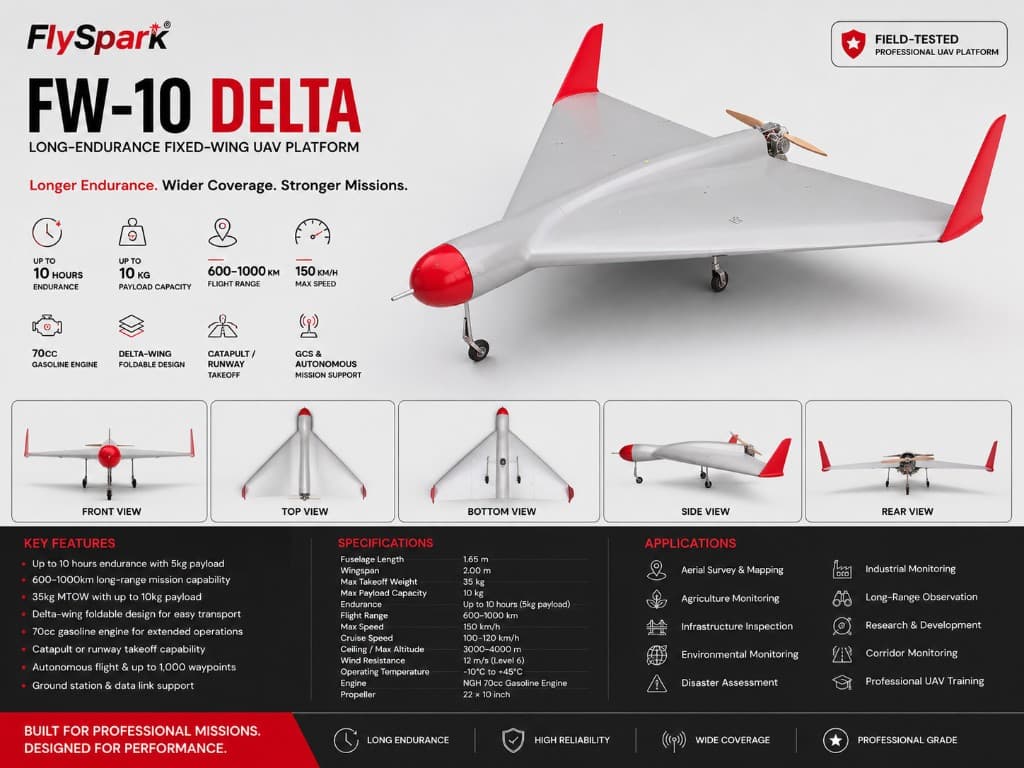

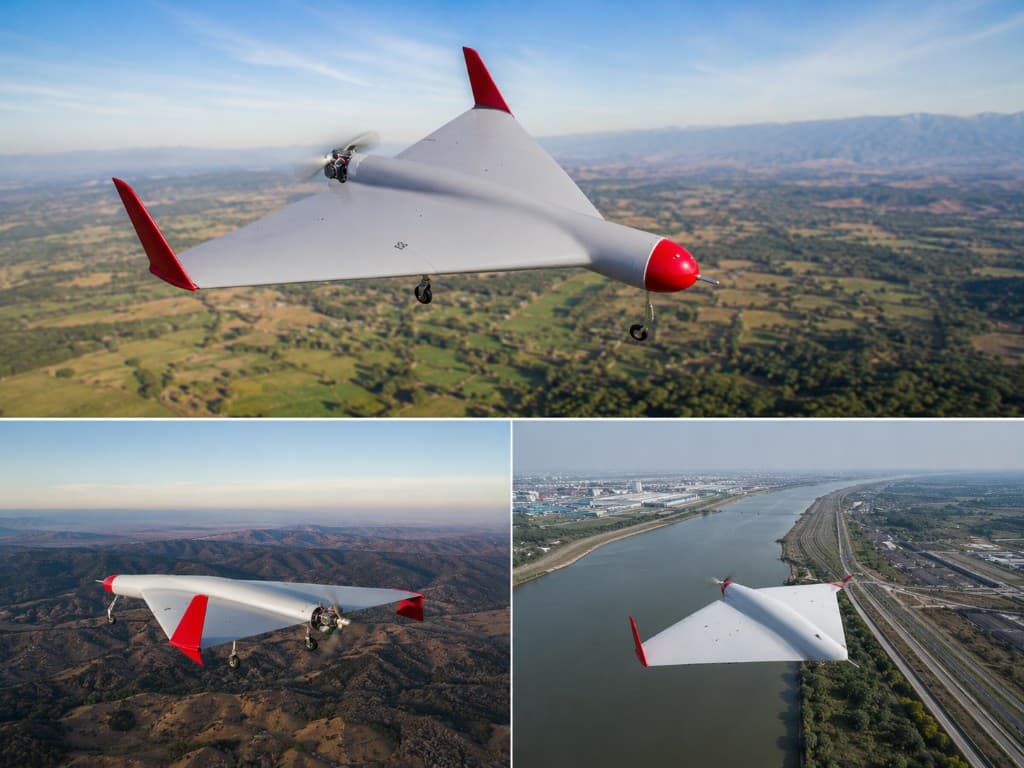

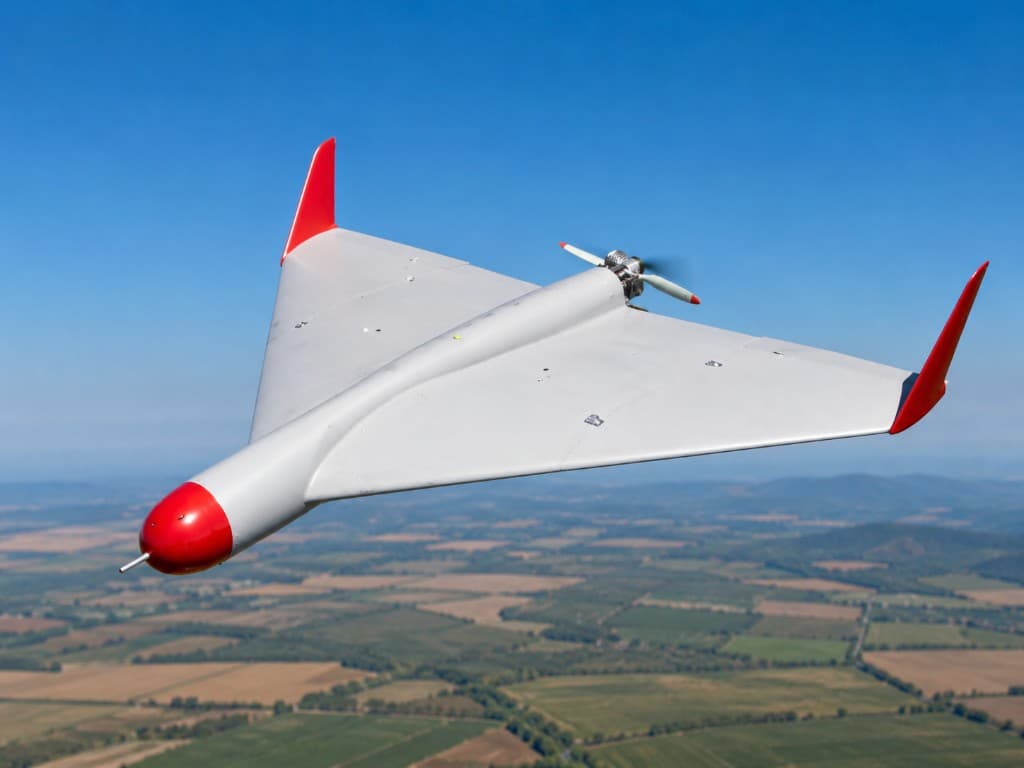

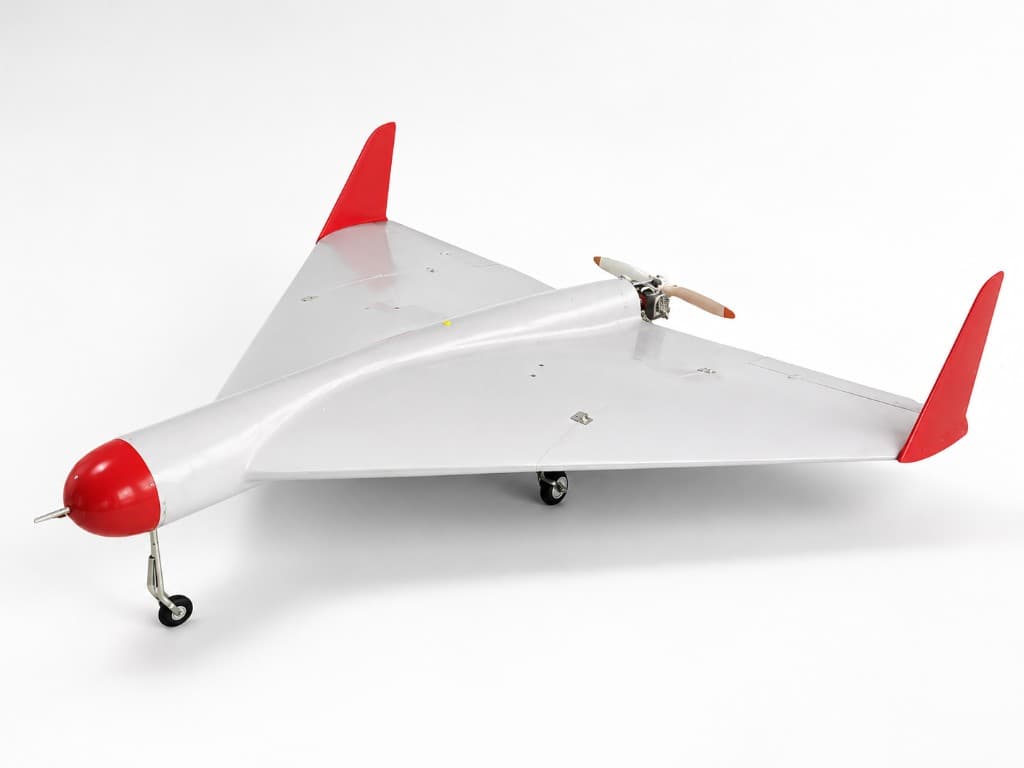

The FlySpark FW-10 Delta is a professional gasoline-powered long-endurance fixed-wing UAV platform designed for extended aerial operations, survey missions, mapping, agriculture assessment, infrastructure inspection, environmental monitoring, disaster assessment, research and long-range observation where legally permitted. Its efficient delta-wing airframe supports stable cruise, long flight duration and reliable field performance for organizations that require dependable fixed-wing UAV capability.

KEY FEATURES & BENEFITS:

• Long-Endurance Gasoline UAV Platform:
• • Up to 10 hours endurance with 5kg payload under suitable configuration
• • Flight range of approximately 600–1000km depending on fuel load, payload and mission profile
• • Gasoline engine platform for longer operating time compared to many battery-only drone systems
• • Maximum speed up to 150km/h with cruise speed around 100–120km/h
• • Suitable for wide-area monitoring, survey and professional aerial data collection

• Delta-Wing Fixed-Wing Design:
• • Efficient delta-wing structure for stable cruising and high-speed coverage
• • 2m wingspan with 1.65m fuselage length

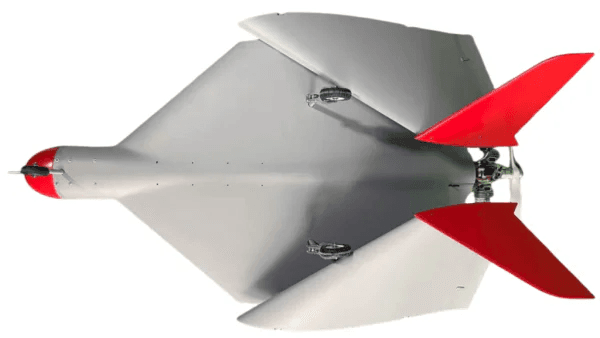

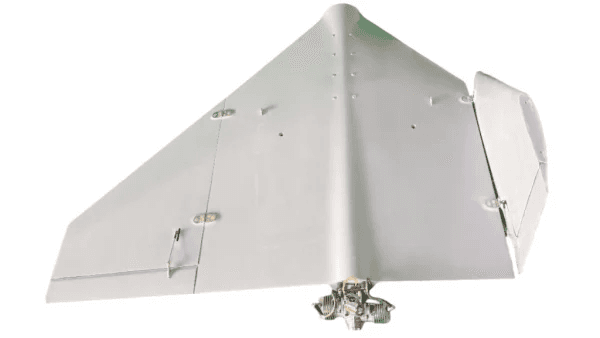

• • Foldable wing design for easier transportation and storage
• • Designed for catapult or runway takeoff workflows
• • Built for professional operators requiring long-distance field deployment

• Professional Payload & Mission Flexibility:
• • Maximum takeoff weight up to 35kg
• • Payload capacity up to 10kg depending on aircraft configuration
• • Supports mapping cameras, survey cameras, environmental monitoring sensors, inspection payloads and custom professional payloads
• • Supports autonomous flight planning, waypoint missions and ground station operation when equipped with compatible flight-control and navigation systems
• • Suitable for institutional, industrial, research and field-monitoring programs

APPLICATIONS: Aerial survey and mapping, agriculture assessment and crop monitoring, infrastructure inspection, environmental monitoring, disaster assessment, industrial monitoring, long-range observation, research and development, corridor monitoring, professional fixed-wing UAV training and integration.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark FW-10 Delta used for? A: The FlySpark FW-10 Delta is a gasoline-powered long-endurance fixed-wing UAV platform used for aerial survey, mapping, agriculture assessment, infrastructure inspection, environmental monitoring, disaster assessment, industrial monitoring, research and long-range observation where legally permitted.

Q: What is the price of the FlySpark FW-10 Delta? A: The listed base price is 65,00,000 ₹ for the standard platform package. Final pricing may vary if payloads, flight controllers, telemetry, ground stations, cameras or custom integration services are added.

Q: What is the maximum endurance? A: The FW-10 Delta is listed with up to 10 hours endurance with a 5kg payload. Actual endurance depends on fuel load, payload weight, engine condition, wind, altitude, cruise speed and mission profile.

Q: What is the flight range? A: The listed flight range is approximately 600–1000 km depending on fuel load and mission configuration. Real-world range should be validated with the final aircraft setup, payload and safety reserve requirements.

Q: What is the maximum payload capacity? A: The FW-10 Delta supports up to 10kg maximum payload capacity depending on configuration. Payload planning must consider center of gravity, mounting strength, vibration, power requirement and flight safety limits.

Q: What is the maximum takeoff weight? A: The listed maximum takeoff weight is 35kg. Final takeoff weight depends on airframe setup, fuel, engine, electronics, payload, communication system and mission accessories.

• Q: What type of engine does it use?
• A: The platform supports 70CC–125CC gasoline engine configurations. The standard package includes one NGH 70cc engine.

• Q: What propeller is included?
• A: The standard package includes one 22 × 10 inch high-power propeller. Propeller selection and replacement should follow the final engine and aircraft setup.

• Q: What is the cruise speed?
• A: The listed cruise speed is 100–120 km/h. Final cruise speed depends on payload, engine tuning, altitude, wind and mission planning.

• Q: What is the maximum speed?
• A: The listed maximum speed is up to 150 km/h. Operators should follow final configured aircraft limits, safety margins and regulatory requirements.

• Q: What is the wingspan?
• A: The FW-10 Delta has a 2m wingspan. The foldable wing design helps make transportation and storage easier for field teams.

• Q: What is the fuselage length?
• A: The fuselage length is listed as 1.65m. The compact delta-wing design supports efficient high-speed cruise and long-endurance operation.

Q: Does the FW-10 Delta require a runway? A: The listed takeoff/landing method is catapult or runway takeoff. Final launch and recovery workflow depends on the selected configuration, operating site and pilot/operator procedure.

Q: What is the manual control distance? A: The listed manual remote-control distance is up to 1km. Manual control performance depends on radio system, antenna setup, terrain and line-of-sight conditions.

Q: What is the ground station control range? A: The listed ground station control range is up to 30km with a standard data link. Extended communication setups may be possible through custom integration depending on mission and regulatory requirements.

Q: Does it support autonomous missions? A: Yes, the platform can support autonomous flight planning, waypoint missions and ground station operation when equipped with compatible flight controller, navigation system and data link. Autonomy must be configured and operated by trained professionals under applicable aviation rules.

Q: What comes in the standard package? A: The standard purchase includes the Aerostrike-10 Delta Wing UAV Platform x 1, NGH 70cc Engine x 1, Savox 1256 Servo x 4, 22 × 10 inch High Power Propeller x 1 and Wires & Accessories x 1.

Q: Are camera, payload, flight controller and GCS included? A: Camera, mission payload, flight controller, telemetry, video link and ground control station may not be included unless specifically added in the final quotation. These components can be customized according to mission requirements.

Q: Can mapping cameras be integrated? A: Yes, mapping and survey cameras can be integrated depending on payload weight, size, mounting, vibration isolation, trigger control and mission accuracy requirements.

Q: Can the platform be used for agriculture assessment? A: Yes, the FW-10 Delta is suitable for agriculture assessment, crop monitoring and large-area field observation when paired with appropriate imaging payloads and mission planning tools.

Q: Can it be used for infrastructure inspection? A: Yes, the platform can support infrastructure inspection, corridor monitoring, environmental assessment and disaster-response observation when configured with suitable camera, telemetry and ground station systems.

Q: What is the operating temperature range? A: The listed operating temperature range is -10°C to +45°C. Engine performance, payload operation and flight safety should be reviewed for extreme hot or cold environments.

Q: What wind conditions can it handle? A: The platform is listed with 12 m/s wind resistance, equivalent to Level 6 wind. Operators should evaluate local weather, takeoff site, payload loading and safety margins before flight.

Q: Is the FW-10 Delta suitable for beginners? A: No. This is a professional gasoline-powered fixed-wing UAV platform and should be assembled, configured, operated and maintained by trained UAV pilots, technicians and system integrators.

Q: What customization options are available? A: Customization is available for flight controller, telemetry, ground control station, mapping payloads, survey cameras, monitoring sensors, video transmission, communication links and mission-specific payload integration.

Q: What maintenance is required? A: Maintenance should include inspection of the engine, fuel system, propeller, servos, control surfaces, wiring, airframe, wing locks, payload mounts and avionics. Professional pre-flight and post-flight checklists are recommended.

Q: What warranty is included? A: Warranty support generally covers manufacturing defects under approved use and normal operating conditions. Crash damage, fuel-system misuse, incorrect integration, overloading, unauthorized modification or operation outside safe limits may not be covered.
