UAVMODEL X2400 VTOL Fixed Wing Long-Endurance UAV Platform | Up To 240 Minutes Flight Time | 210km Range | 2kg Payload Capacity

UAVMODEL X2400 VTOL Fixed Wing Long-Endurance UAV Platform

The UAVMODEL X2400 is a professional industrial-grade VTOL fixed-wing UAV platform designed for mapping, surveying, inspection, surveillance, agriculture, environmental monitoring, border security and long-range aerial data collection. By combining fixed-wing cruise efficiency with Vertical Take-Off & Landing capability, the X2400 can operate without a runway while delivering exceptional endurance, long-range coverage and flexible payload integration.

KEY FEATURES & BENEFITS:

• Long-Endurance VTOL Performance:
• • Up to 240 minutes flight time for extended professional missions
• • Up to 210 km mission range for large-area coverage
• • Cruise speed of approximately 60 km/h for efficient long-distance operation
• • Level 6 wind resistance for stronger field reliability
• • VTOL deployment allows operation from confined or remote locations

• Industrial-Grade Airframe:
• • Large 2400 mm wingspan for stable long-endurance flight
• • Aircraft size of 2400 × 1200 × 380 mm
• • Lightweight modular airframe for single-person deployment

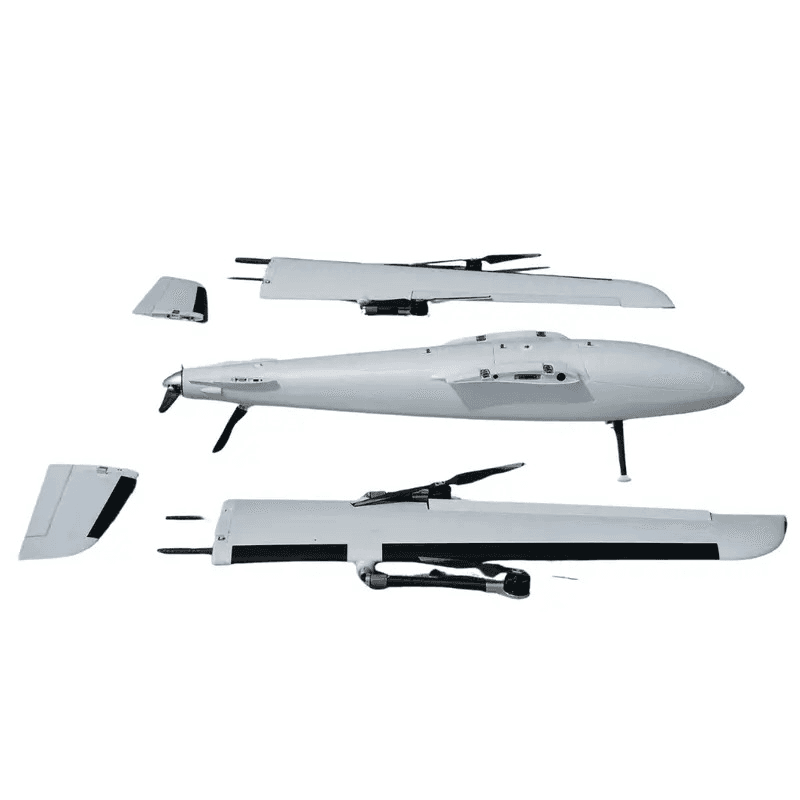

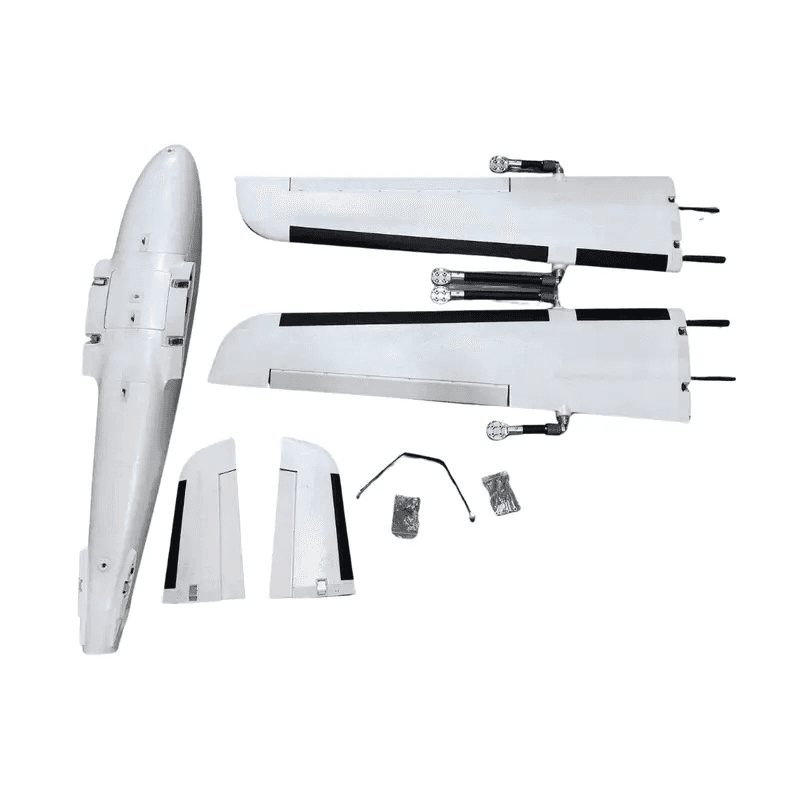

• • Rapid one-minute assembly design for faster field operations
• • High-density composite foam with carbon fiber reinforcement

Mission Payload Flexibility: • Supports payloads up to 2 kg depending on configuration • Compatible with mapping cameras, survey cameras, EO/IR systems, thermal cameras, LiDAR sensors, environmental sensors, inspection equipment, communication systems and research payloads • Suitable for hand-launch and VTOL configurations • Customizable with telemetry, video transmission, ground control stations, flight controllers and mission-specific sensor packages

APPLICATIONS: Land surveying and mapping, precision agriculture, construction monitoring, powerline/railway/pipeline inspection, forestry and environmental monitoring, border surveillance and security operations, industrial inspection and long-range observation, UAV research/payload testing and professional field missions.

FREQUENTLY ASKED QUESTIONS:

Q: What is the UAVMODEL X2400 used for? A: The UAVMODEL X2400 is used for long-endurance aerial mapping, surveying, infrastructure inspection, agriculture, environmental monitoring, border surveillance and industrial data collection. It is designed for professional teams that need extended flight time, long range and reliable field performance.

Q: What is the maximum flight time? A: The X2400 can achieve up to 240 minutes of flight time under suitable battery, payload and mission conditions. Actual endurance depends on payload weight, battery health, wind, altitude, cruise profile and aircraft configuration.

Q: What is the maximum range? A: The platform can achieve up to approximately 210 km mission range. Real-world range depends on battery selection, payload, operating speed, wind, altitude, flight route and safety reserve planning.

Q: What is the payload capacity? A: The X2400 supports payloads up to 2 kg depending on configuration. Payload selection should consider weight, size, power draw, cooling, vibration isolation and center-of-gravity balance.

Q: What is the difference between Hand Launch and VTOL versions? A: The Hand Launch version is a fixed-wing configuration designed for launch without VTOL lift hardware. The VTOL version adds vertical take-off and landing capability, allowing deployment from confined areas without a runway.

Q: Which version should I choose for remote field operations? A: The VTOL Version is better for remote locations, farms, forests, mountains, border areas and industrial sites where runway or launch space is limited. The Hand Launch Version is useful when the team prefers lighter fixed-wing efficiency and has suitable launch/recovery conditions.

Q: What is the difference between PNP and PRO versions? A: PNP versions generally include the airframe, motors, ESCs, propellers, servos, wiring harness and hardware kit. PRO versions may add professional avionics, telemetry systems, communication equipment, flight controllers and mission integration depending on customer requirements.

Q: Does the PNP version include a flight controller? A: PNP versions normally focus on the airframe and power system package. Flight controller, battery, telemetry, payload, GCS and mission electronics should be confirmed before order because they may be selected separately.

Q: Does the PRO version include long-range communication? A: PRO versions are positioned for mission-ready operation and may include professional avionics, long-range communication, flight controller and integration components depending on final configuration. Exact contents should be confirmed during quotation.

Q: What battery is recommended? A: A 6S 30000mAh battery is recommended for long-endurance configuration. Final battery choice should match aircraft version, payload weight, center of gravity, flight time target and operational safety margin.

Q: What motors are used in the propulsion system? A: The listed propulsion configuration includes Sunnysky 4112-KV485 VTOL motors and a Sunnysky 3525-KV465 fixed-wing cruise motor. Final motor/ESC configuration may depend on the selected package and build version.

• Q: What is the cruise speed?
• A: The cruise speed is approximately 60 km/h. This speed supports efficient long-distance survey, mapping and inspection missions.

Q: How fast can the X2400 be assembled? A: The modular design supports rapid one-minute assembly under trained field conditions. Actual setup time depends on operator experience, payload installation, battery mounting, pre-flight checks and mission planning.

Q: Can one operator deploy the aircraft? A: Yes, the X2400 is designed for lightweight modular handling and single-person deployment. Professional operations should still include proper pre-flight inspection, mission planning and safety checks.

Q: Is the X2400 suitable for mapping? A: Yes, the platform is suitable for aerial mapping, survey cameras, large-area orthomosaic collection and corridor mapping. Payload and camera selection should be matched to required ground sampling distance, altitude and coverage target.

Q: Can it carry thermal or EO/IR cameras? A: Yes, thermal cameras and EO/IR payloads can be integrated if they fit within the 2 kg payload limit and system power requirements. Integration should include mount design, vibration isolation, wiring and balance checks.

Q: Can LiDAR be integrated? A: Yes, lightweight LiDAR systems may be integrated if weight, power draw, size and endurance requirements are compatible. PRO configurations are recommended for complex LiDAR or industrial sensor integration.

Q: Is the X2400 suitable for agriculture? A: Yes, it can support precision agriculture, crop monitoring, field mapping and multispectral imaging. The long endurance and range make it suitable for large farms and regional agriculture survey missions.

Q: Can it be used for border surveillance? A: Yes, the X2400 can support long-range observation and border surveillance when used by authorized teams under applicable regulations. Payload, telemetry, video link and mission planning should be configured according to operational needs.

Q: What is the wind resistance? A: The X2400 is rated for Level 6 wind resistance. Operators should still evaluate local weather, launch/landing safety, aircraft loading and regulatory limits before every mission.

Q: Is this aircraft suitable for beginners? A: No. The UAVMODEL X2400 is a professional long-endurance UAV platform and should be operated by trained UAV pilots, survey teams or experienced system integrators.

Q: Can the X2400 be customized? A: Yes, the platform can be customized with mapping payloads, EO/IR cameras, thermal sensors, long-range telemetry, video transmission systems, GCS, flight-controller options, industrial solutions and security-focused configurations.

Q: What support does FlySpark provide? A: FlySpark can support variant selection, payload planning, flight-controller configuration, telemetry selection, long-range video-link planning, GCS integration and mission-specific customization for professional customers.

Q: What warranty is included? A: Warranty support covers manufacturing defects under normal approved use. Crash damage, overloading, incorrect wiring, battery misuse, unauthorized modification, water damage or operation outside safe limits may not be covered.
