FlySpark YS-F100A Heavy-Lift Transport UAV | 30kg-100kg Payload Cargo Drone with RTK, C12 Dual-Light Gimbal & G20 Remote Controller

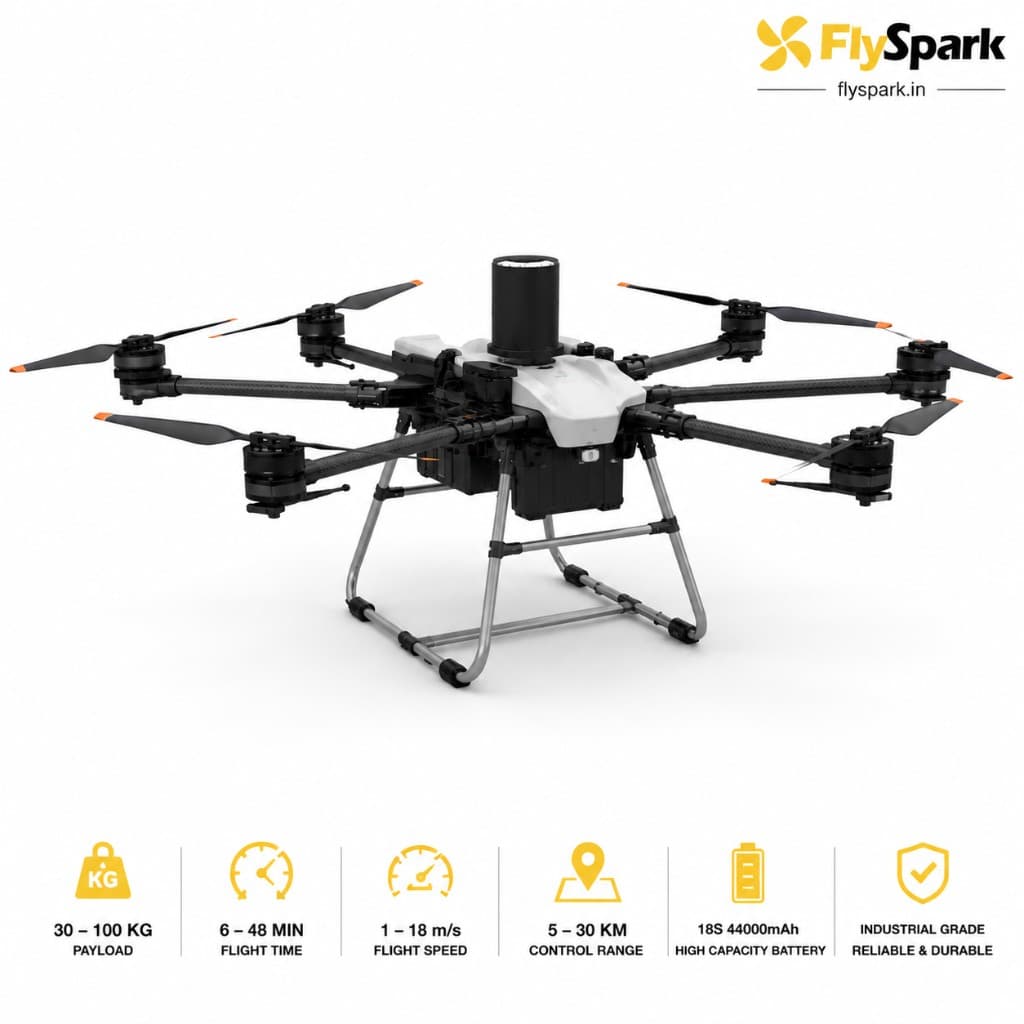

FlySpark YS-F100A Heavy-Lift Transport UAV is a professional high-payload industrial drone designed for demanding cargo transport, remote-area logistics, emergency supply movement, industrial material carrying, inspection support, large-site operations and UAV R&D. Built on a large 2590mm wheelbase platform, the YS-F100A supports a listed payload range of 30kg to 100kg and a maximum takeoff weight of 165kg.

The aircraft is designed with a modular structure for quick disassembly, quick assembly, easier maintenance and easier replacement of parts. The standard aircraft uses a QS10 power plug architecture, industrial flight control system and XRotor X13 power system with 56-inch propellers. The standard package includes the YS-F100A frame, industrial flight controller, X13 power system x6, C12 compact HD three-axis dual-light gimbal, G20 remote controller, 18S 44000mAh lithium battery x4, 18S lithium battery charger x2 and wooden packing box.

The YS-F100A is built for customers who need a complete heavy-lift UAV package, not just a bare frame. It combines payload capacity, foldable structure, modular maintenance, dual-light observation, long-distance controller capability, high-voltage battery architecture and industrial-grade flight components. The included C12 gimbal provides visible-light and thermal imaging capability, while the G20 controller offers a 7-inch display, Android 13 system, 2.4GHz / 5.8GHz communication, automatic frequency hopping and 5km to 30km open line-of-sight control range.

This UAV is suitable for lawful professional use in industrial logistics, emergency response, inspection support, remote supply movement, infrastructure operations, large-area monitoring, agriculture support, disaster response and professional heavy-lift UAV development. Final flight time depends on payload, battery configuration, weather, altitude, wind, temperature, mission profile, flight speed and pilot operation.

• PRODUCT POSITIONING:
• • 30kg to 100kg payload-class transport UAV
• • 165kg maximum takeoff weight platform
• • Foldable heavy-lift drone
• • Modular structure for quick assembly and maintenance
• • Industrial flight controller
• • XRotor X13 power system with 56-inch propellers
• • Six-power-system heavy-lift architecture
• • 18S high-voltage power system
• • Four standard 18S 44000mAh batteries
• • Two standard 18S chargers
• • G20 industrial remote controller
• • GR01 receiver system
• • C12 dual-light gimbal included
• • Visible-light and thermal imaging support

• BEST USE CASES:
• • Heavy-lift drone transport
• • 100kg payload drone mission
• • Industrial material movement
• • Emergency supply transport
• • Disaster-relief logistics
• • Remote-area logistics
• • Mountain-area delivery
• • Infrastructure inspection
• • Thermal observation
• • High-payload UAV R&D

• STANDARD PACKAGE INCLUDED:
• • YS-F100A frame with industrial flight controller and X13 power system x6
• • C12 compact HD three-axis dual-light gimbal
• • G20 remote controller
• • 18S 44000mAh lithium battery x4
• • 18S lithium battery charger x2
• • Wooden packing box

IMPORTANT USE NOTE: This is a professional heavy-lift UAV for lawful industrial, emergency-response, government and authorized defense logistics. Operators must follow DGCA/local aviation rules, UAV registration, flight permissions, payload rules, site permissions, privacy regulations, insurance and safety procedures. Do not exceed 165kg MTOW. Endurance depends on payload, batteries, wind, altitude and temperature.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark YS-F100A? A: FlySpark YS-F100A is a heavy-lift transport UAV designed for professional cargo transport, industrial logistics, emergency supply movement, inspection support and high-payload UAV missions.

• Q: What is the selling price of FlySpark YS-F100A?
• A: The listed selling price is ₹75,45,510 for the standard package.

Q: What is included in the standard package? A: The standard package includes the YS-F100A frame, industrial flight controller, X13 power system x6, C12 dual-light gimbal, G20 remote controller, 18S 44000mAh lithium battery x4, 18S lithium battery charger x2 and wooden packing box.

• Q: What is the payload capacity?
• A: The listed payload capacity is 30kg to 100kg.

• Q: What is the maximum takeoff weight?
• A: The listed maximum takeoff weight is 165kg.

• Q: What is the aircraft weight without batteries?
• A: The aircraft weight without batteries is 54kg.

• Q: What is the wheelbase?
• A: The symmetric wheelbase is 2590mm.

• Q: What is the expanded size?
• A: The expanded size is 2854mm x 2416mm x 1060mm.

• Q: What is the folded size?
• A: The folded size is 1689mm x 878mm x 1075mm.

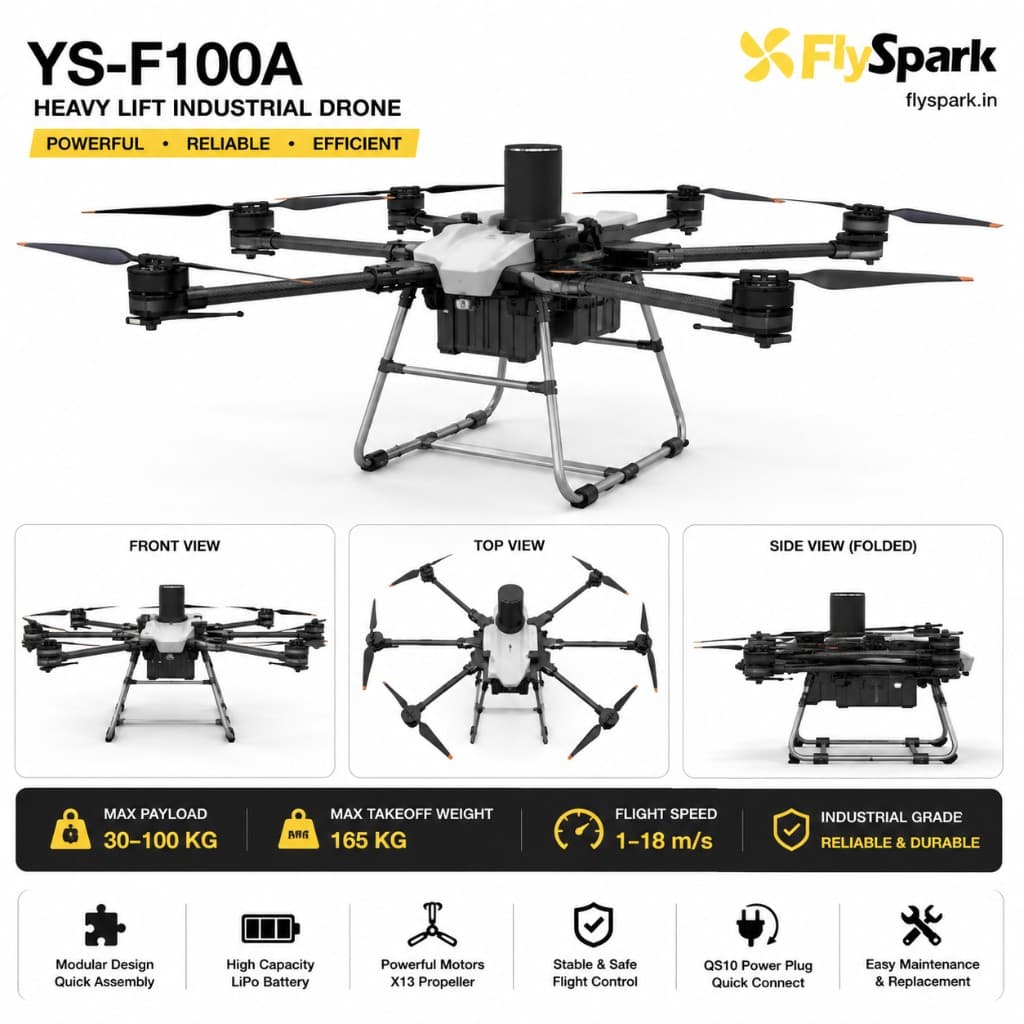

• Q: Is the YS-F100A foldable?
• A: Yes. It has a folded size of 1689mm x 878mm x 1075mm.

• Q: Is the structure modular?
• A: Yes. The aircraft has a modular structure designed for quick disassembly, assembly, maintenance and replacement of parts.

• Q: What power plug is used?
• A: The listed power plug is QS10.

• Q: What battery is included in the standard package?
• A: The standard package includes 18S 44000mAh lithium battery x4.

• Q: What is the battery weight?
• A: Each battery is listed as 11500g plus/minus 300g.

• Q: What is the operating voltage?
• A: The operating voltage is 67.5V to 70.2V.

• Q: What is the charging time?
• A: The listed charging time is 30 to 60 minutes.

• Q: What is the recharge cycle range?
• A: The listed recharge cycle range is 300 to 500 cycles.

• Q: What flight speed is listed?
• A: The listed flight speed is 1m/s to 18m/s.

• Q: What power system is used?
• A: The listed dynamic system is XRotor X13 with 56-inch propeller.

• Q: How many X13 power systems are included?
• A: The standard package lists X13 power system x6.

• Q: What is the flight time with 100kg payload?
• A: The listed time is 6 to 8 minutes with 100kg payload using 18S 30000mAh x2 configuration in the endurance table.

• Q: What is the flight time with 80kg payload?
• A: The listed time is 15 to 18 minutes with 80kg payload using 18S 30000mAh x4 configuration in the endurance table.

• Q: What is the flight time with 60kg payload?
• A: The listed time is 20 to 23 minutes with 60kg payload using 18S 44000mAh x4.

• Q: What is the flight time with 50kg payload?
• A: The listed time is 30 to 35 minutes with 50kg payload using 18S 44000mAh x4.

• Q: What is the flight time with 30kg payload?
• A: The listed time is 45 to 48 minutes with 30kg payload using 18S 44000mAh x4.

• Q: Why do the endurance rows mention different battery capacities?
• A: The endurance table lists different battery configurations for different payload examples. The standard package itself includes 18S 44000mAh x4 batteries.

• Q: What remote controller is included?
• A: The package includes the G20 remote controller.

• Q: What display does the G20 controller have?
• A: It has a 7-inch industrial touch display with 1920 x 1080 resolution.

• Q: What operating system does the G20 controller use?
• A: The G20 controller uses Android 13.

• Q: What processor is listed for the G20 controller?
• A: The controller is listed with a Qualcomm 6nm processor.

• Q: What is the G20 controller battery capacity?
• A: The controller battery capacity is 20000mAh.

• Q: What is the G20 controller endurance?
• A: The listed controller endurance is 6 to 8 hours.

• Q: What is the G20 remote-control distance?
• A: The listed control distance is 5km to 30km in open ground-to-air visual line-of-sight conditions.

• Q: What frequencies does the G20 controller support?
• A: The G20 controller supports 2.4GHz and 5.8GHz.

• Q: What is the GR01 receiver?
• A: GR01 is the receiver used with the system. It supports 2.4GHz / 5.8GHz, multiple serial baud rates, network port, SBUS output and PWM interface.

• Q: What gimbal is included?
• A: The standard package includes the C12 compact HD three-axis dual-light gimbal.

• Q: What does dual-light gimbal mean?
• A: It means the gimbal includes both visible-light camera and thermal imaging capability.

• Q: What is the C12 gimbal weight?
• A: The C12 gimbal weighs 117g.

• Q: What is the C12 gimbal working voltage?
• A: The working voltage is 7.2V to 72V.

• Q: What is the visible camera resolution?
• A: The visible camera has a 5MP sensor, 1280 x 720 image transmission resolution, 2560 x 1440 recording resolution and 2560 x 1440 photo resolution.

• Q: Does the visible camera support zoom?
• A: Yes. It supports 30x digital zoom.

• Q: What is the thermal camera resolution?
• A: The thermal camera resolution is 384 x 288.

• Q: What is the thermal spectral range?
• A: The thermal spectral range is 8 to 14 micrometer.

• Q: Does the C12 support MicroSD storage?
• A: Yes. It supports MicroSD storage up to 256GB with FAT32 file system.

• Q: What are the optional accessory prices?
• A: The optional 18S 44000mAh lithium battery is ₹4,61,970 and the optional 18S lithium battery charger is ₹4,46,571.

• Q: Is this drone suitable for heavy cargo delivery?
• A: Yes. It is listed for 30kg to 100kg payload capacity, making it suitable for heavy cargo transport within legal and operational limits.

• Q: Is this drone suitable for industrial logistics?
• A: Yes. It can support industrial material movement, field logistics, remote-area supply and large-site transport tasks.

• Q: Is this drone suitable for emergency response?
• A: Yes. It can support emergency supply delivery, relief material movement and remote access operations where UAV flight is legally permitted.

• Q: Can FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support payload planning, training, field deployment and integration packages.

Q: What legal rules must be followed? A: Operators must follow DGCA/local aviation rules, UAV registration requirements, payload permissions, site approvals, privacy laws, insurance requirements and safety procedures.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, water ingress, payload overload, wrong charging, battery abuse, unauthorized modification, unsafe operation and misuse may not be covered.
