FlySpark YS-F40 Heavy-Lift Transport UAV | 10kg-40kg Payload Cargo Drone with RTK, X11 Max Power System, C12 Dual-Light Gimbal & G20 Remote Controller

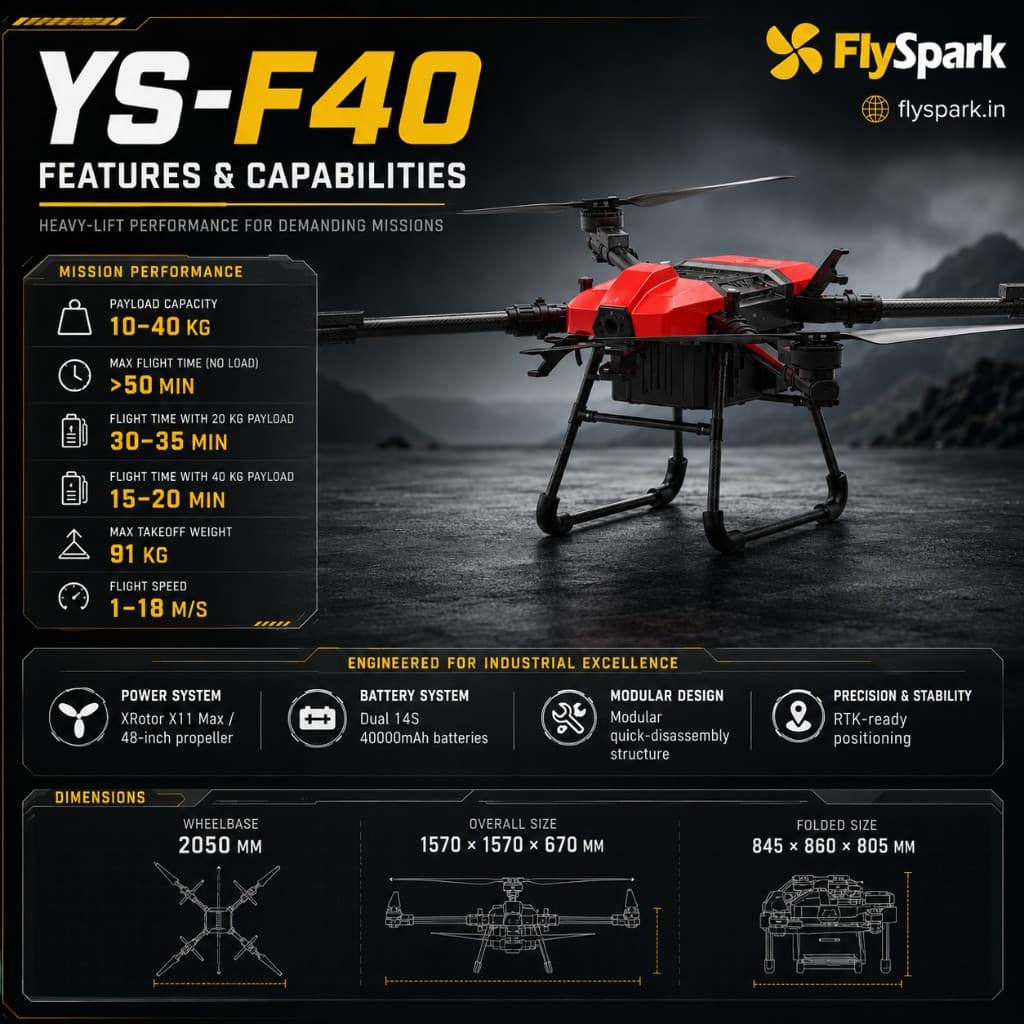

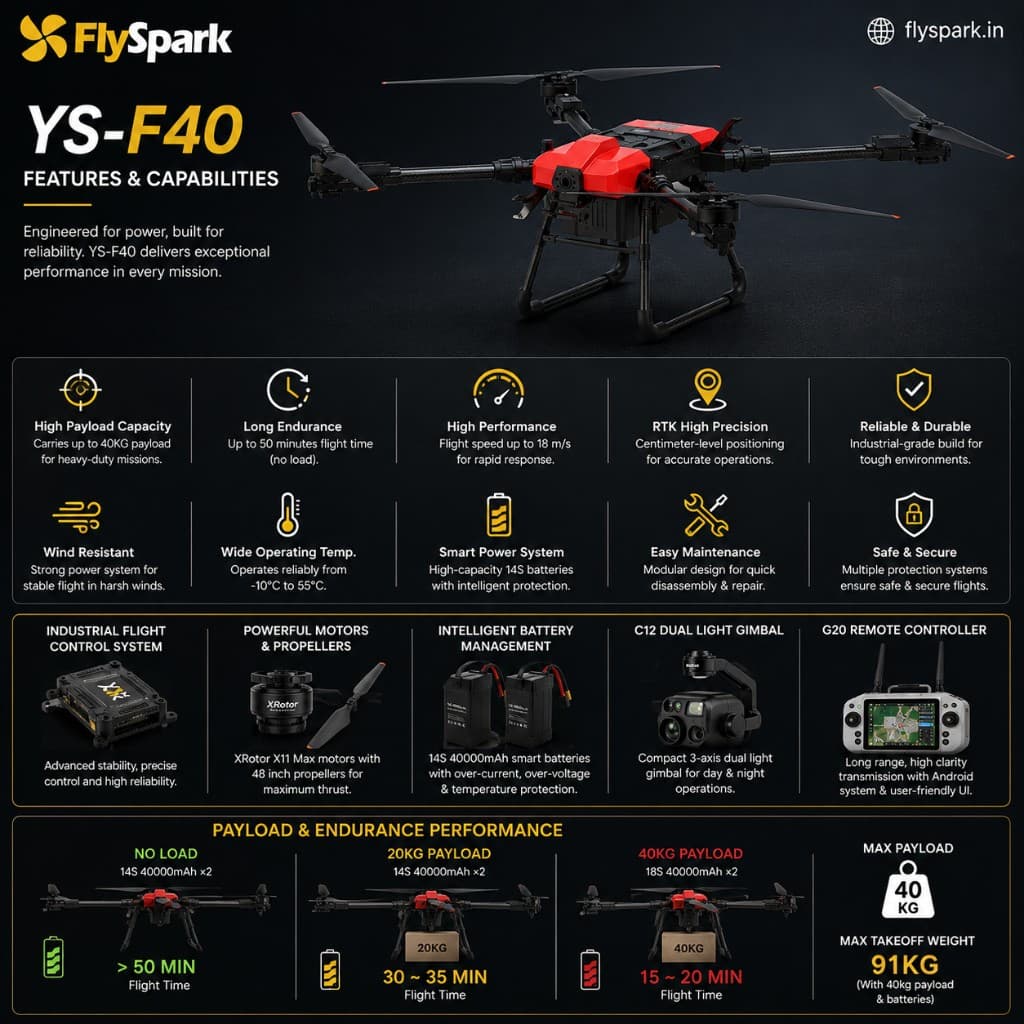

FlySpark YS-F40 Heavy-Lift Transport UAV is a professional 40kg-class industrial cargo drone designed for high-payload transport, emergency supply movement, industrial material carrying, agriculture support, remote-area logistics, inspection support and professional UAV service operations. Built around a 2050mm symmetric wheelbase, the YS-F40 provides a listed payload range of 10kg to 40kg and a maximum takeoff weight of 91kg when configured with 40kg payload and two batteries.

The aircraft has an expanded size of 1570mm x 1570mm x 670mm and folds down to 845mm x 860mm x 805mm for easier storage, handling and transport. The structure is modular, making the aircraft easier to disassemble, assemble, maintain and service. The airframe weight is listed as 24.5kg without battery, and the battery system is listed as 14S 40000mAh x2 with 11000g plus/minus 300g battery weight.

The standard package includes the FlySpark YS-F40 frame, industrial flight controller, X11 Max power system x4, RTK, C12 compact HD three-axis dual-light gimbal, G20 remote controller, 14S 40000mAh lithium battery x2, 14S lithium battery charger and wooden packing box. The dynamic system is listed as XRotor X11 Max with 48-inch propellers.

The included C12 gimbal gives the UAV visible-light and thermal imaging capability in a compact three-axis stabilized payload. The G20 controller adds a 7-inch Android-based control interface, 2.4GHz / 5.8GHz operation, automatic frequency hopping, 16-channel control and 5km to 30km open ground-to-air visual line-of-sight control reference.

FlySpark YS-F40 is ideal for users who need more payload capacity than a 30kg-class drone but do not require a 100kg-class platform. It is well suited for field teams that need a complete ready package with UAV, controller, batteries, charger, RTK, imaging payload and packing box.

• PRODUCT POSITIONING:
• • 10kg to 40kg payload-class transport UAV
• • 91kg maximum takeoff weight platform
• • 2050mm wheelbase industrial UAV
• • Foldable heavy-lift cargo drone
• • Modular aircraft structure
• • 14S high-voltage battery system
• • 14S 40000mAh battery x2 included
• • X11 Max power system x4
• • 48-inch propeller setup
• • Industrial flight controller
• • RTK included in standard package
• • C12 dual-light gimbal included
• • G20 Android remote controller included
• • GR01 receiver system included
• • Wooden packing box included

• BEST USE CASES:
• • 40kg payload drone mission
• • 20kg payload drone mission
• • 10kg payload drone mission
• • Cargo UAV delivery
• • Industrial material movement
• • Emergency supply transport
• • Remote-area logistics
• • Infrastructure inspection
• • Thermal observation
• • Foldable cargo UAV deployment

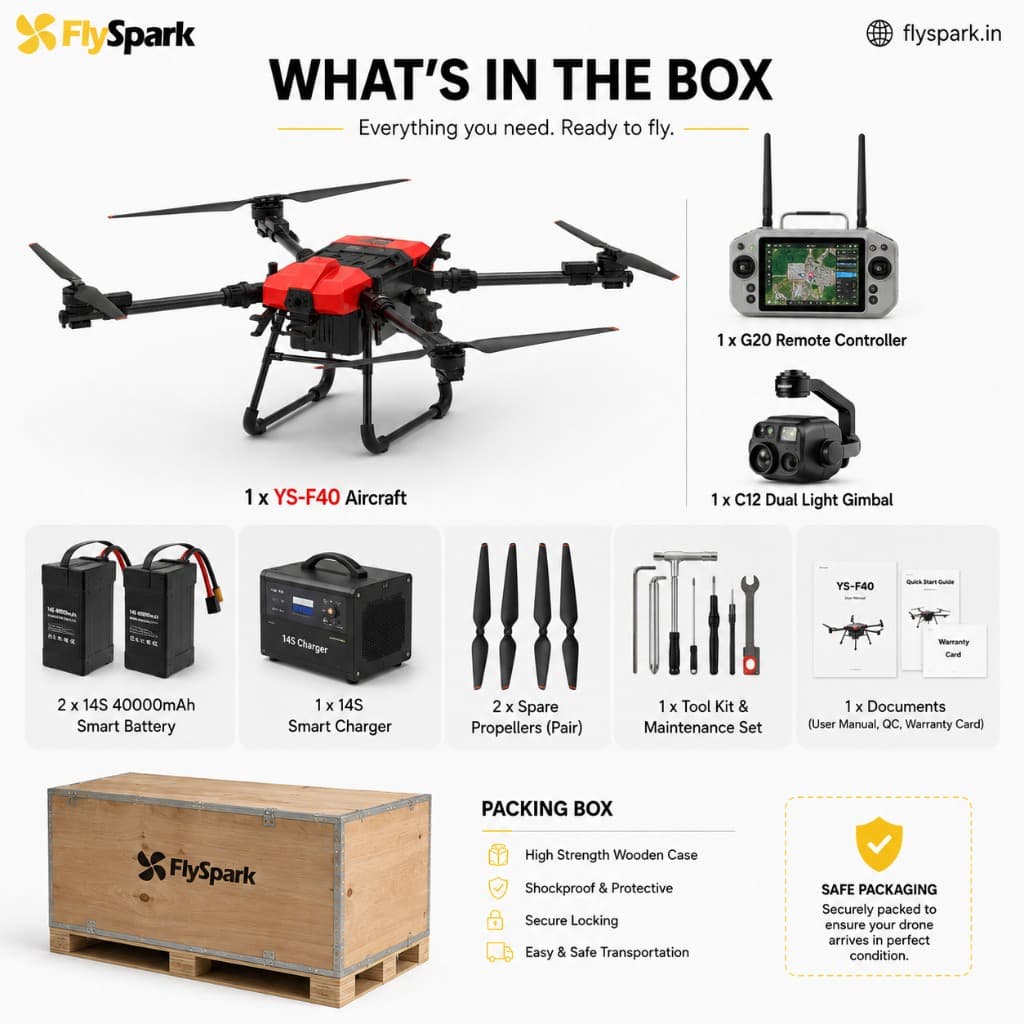

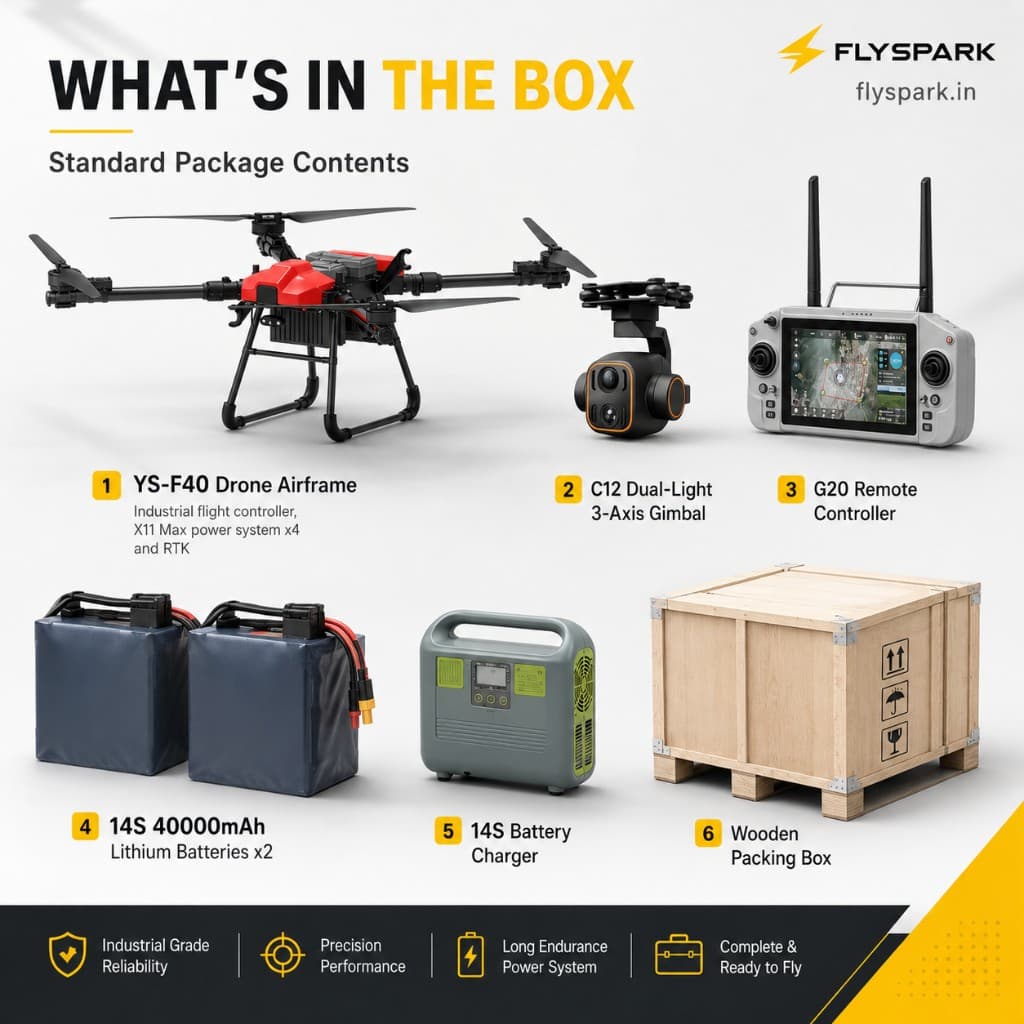

• STANDARD PACKAGE INCLUDED:
• • YS-F40 frame with industrial flight controller, X11 Max power system x4 and RTK
• • C12 compact HD three-axis dual-light gimbal
• • G20 remote controller
• • 14S 40000mAh lithium battery x2
• • 14S lithium battery charger
• • Wooden packing box

IMPORTANT USE NOTE: This is a professional heavy-lift UAV for lawful industrial, emergency-response, government and authorized defense logistics. Operators must follow DGCA/local aviation rules, UAV registration, flight permissions, payload rules, site permissions, privacy regulations, insurance and safety procedures. Do not exceed listed MTOW. Endurance depends on payload, batteries, wind, altitude and temperature. The 40kg payload endurance row in the source table mentions 18S 40000mAh x2; the standard package battery remains 14S 40000mAh x2.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark YS-F40? A: FlySpark YS-F40 is a heavy-lift transport UAV designed for 10kg to 40kg payload missions, cargo transport, inspection support, emergency supply movement and professional UAV operations.

• Q: What is the selling price of FlySpark YS-F40?
• A: The listed selling price is ₹43,73,316 for the standard package.

Q: What is included in the standard package? A: The standard package includes the YS-F40 frame, industrial flight controller, X11 Max power system x4, RTK, C12 dual-light gimbal, G20 remote controller, 14S 40000mAh lithium battery x2, 14S lithium battery charger and wooden packing box.

• Q: Does the standard package include RTK?
• A: Yes. The standard package includes the frame, industrial flight controller, X11 Max power system x4 and RTK.

• Q: What is the payload capacity?
• A: The listed payload capacity is 10kg to 40kg.

• Q: What is the maximum takeoff weight?
• A: The listed maximum takeoff weight is 91kg with 40kg payload and two batteries.

• Q: What is the aircraft weight without batteries?
• A: The aircraft weight without batteries is 24.5kg.

• Q: What is the wheelbase?
• A: The symmetric wheelbase is 2050mm.

• Q: What is the expanded size?
• A: The expanded size is 1570mm x 1570mm x 670mm.

• Q: What is the folded size?
• A: The folded size is 845mm x 860mm x 805mm.

• Q: Is the YS-F40 foldable?
• A: Yes. It has a folded size of 845mm x 860mm x 805mm.

• Q: Is the structure modular?
• A: Yes. The aircraft structure is modular for quick disassembly, assembly, maintenance and replacement of parts.

• Q: What battery is included in the standard package?
• A: The standard package includes 14S 40000mAh lithium battery x2.

• Q: What is the battery weight?
• A: Each battery is listed as 11000g plus/minus 300g.

• Q: What is the operating voltage?
• A: The operating voltage is 42V to 58.8V.

• Q: What is the charging time?
• A: The listed charging time is 15 to 25 minutes.

• Q: What is the recharge cycle range?
• A: The listed recharge cycle range is 300 to 500 cycles.

• Q: What is the flight speed?
• A: The listed flight speed is 1m/s to 18m/s.

• Q: What power system is used?
• A: The listed dynamic system is XRotor X11 Max with 48-inch propeller.

• Q: How many power systems are included?
• A: The standard package lists X11 Max power system x4.

• Q: What is the no-load flight time?
• A: More than 50 minutes with 14S 40000mAh x2.

• Q: What is the flight time with 20kg payload?
• A: 30 to 35 minutes with 20kg payload using 14S 40000mAh x2.

• Q: What is the flight time with 40kg payload?
• A: 15 to 20 minutes for 40kg payload using the battery configuration shown in the flight-time row. The standard package battery is 14S 40000mAh x2.

Q: Why does the 40kg flight-time row mention a different battery architecture? A: The source table lists 14S 40000mAh x2 as the standard battery, but the 40kg flight-time row mentions 18S 40000mAh x2. This listing preserves that difference and treats the standard package battery as 14S 40000mAh x2.

• Q: What remote controller is included?
• A: The standard package includes the G20 remote controller.

• Q: What display does the G20 controller have?
• A: It has a 7-inch industrial touch display with 1920 x 1080 resolution.

• Q: What operating system does the G20 controller use?
• A: The G20 controller uses Android 13.

• Q: What processor is listed for the G20 controller?
• A: The controller is listed with a Qualcomm 6nm processor.

• Q: What is the G20 controller battery capacity?
• A: The controller battery capacity is 20000mAh.

• Q: What is the G20 controller endurance?
• A: The listed controller endurance is 6 to 8 hours.

• Q: What is the G20 remote-control distance?
• A: The listed control distance is 5km to 30km in open ground-to-air visual line-of-sight conditions.

• Q: What frequencies does the G20 controller support?
• A: The G20 controller supports 2.4GHz and 5.8GHz.

• Q: What is the GR01 receiver?
• A: GR01 is the receiver used with the system. It supports 2.4GHz / 5.8GHz, multiple serial baud rates, network port and SBUS output.

• Q: What gimbal is included?
• A: The standard package includes the C12 compact HD three-axis dual-light gimbal.

• Q: What does dual-light gimbal mean?
• A: It means the gimbal includes both visible-light camera and thermal imaging capability.

• Q: What is the C12 gimbal weight?
• A: The C12 gimbal weighs 117g.

• Q: What is the C12 gimbal working voltage?
• A: The working voltage is 7.2V to 72V.

• Q: What is the visible camera resolution?
• A: The visible camera has a 5MP sensor, 1280 x 720 image transmission, 2560 x 1440 recording and 2560 x 1440 photo resolution.

• Q: Does the visible camera support zoom?
• A: Yes. It supports 30x digital zoom.

• Q: What is the thermal camera resolution?
• A: The thermal camera resolution is 384 x 288.

• Q: What is the thermal spectral range?
• A: The thermal spectral range is 8 to 14 micrometer.

• Q: Does the C12 support MicroSD storage?
• A: Yes. It supports MicroSD storage up to 256GB with FAT32 file system.

• Q: Is this drone suitable for cargo delivery?
• A: Yes. It is listed for 10kg to 40kg payload capacity, making it suitable for professional cargo missions within legal and operational limits.

• Q: Is this drone suitable for emergency response?
• A: Yes. It can support emergency supply movement, medical material delivery and field logistics where UAV operations are legally permitted.

• Q: Is this drone suitable for inspection?
• A: Yes. The included C12 dual-light gimbal supports visible and thermal observation for inspection, search and monitoring tasks.

• Q: Can FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support payload planning, training, deployment guidance and integration packages.

Q: What legal rules must be followed? A: Operators must follow DGCA/local aviation rules, UAV registration requirements, payload permissions, site approvals, privacy laws, insurance requirements and safety procedures.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, water ingress, payload overload, wrong charging, battery abuse, unauthorized modification, unsafe operation and misuse may not be covered.
