FlySpark YS-30 Six-Axis Heavy-Lift Transport UAV | 10kg-30kg Payload Cargo Drone with X9plus Power System, C12 Dual-Light Gimbal & G20 Remote Controller

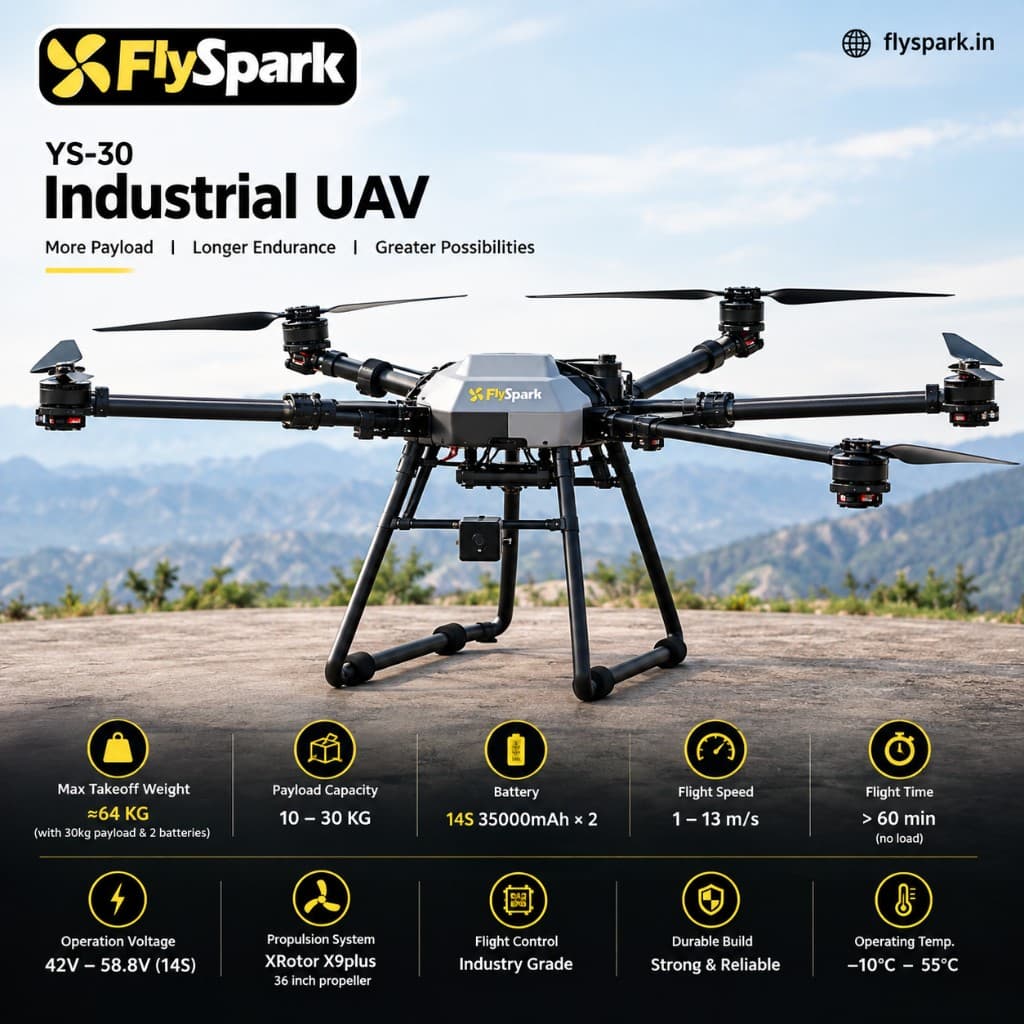

FlySpark YS-30 Six-Axis Heavy-Lift Transport UAV is a professional 30kg-class cargo drone designed for industrial logistics, inspection support, emergency supply movement, agriculture support, utility operations, remote-area delivery and professional UAV field service. Built around a 2050mm symmetric wheelbase and six-axis power architecture, this YS-30 configuration is designed for customers who want a stronger multi-motor layout while keeping the same practical 10kg to 30kg payload class.

The aircraft has an expanded size of 1572mm x 1572mm x 660mm and folds down to 846mm x 881mm x 795mm for transport and storage. The body weight is listed as 22.8kg without batteries, and the maximum takeoff weight is approximately 64kg when configured with 30kg payload and dual batteries. The platform uses a 14S high-voltage system with an operating voltage range of 42V to 58.8V.

The standard package includes the FlySpark YS-30 frame, industrial flight controller, X9plus power system x6, C12 compact HD three-axis dual-light gimbal, G20 remote controller, 14S 35000mAh lithium battery x2, 14S lithium battery charger and aviation case. The dynamic system is listed as XRotor X9plus with 36-inch propellers. The included C12 payload adds visible-light and thermal imaging capability, while the G20 controller provides a 7-inch Android-based control interface with long-distance open line-of-sight communication support.

This six-axis YS-30 configuration is suitable for customers who require a compact heavy-lift UAV with improved multi-motor redundancy potential, professional control hardware, thermal observation, complete field accessories and practical payload support for transport, inspection and emergency missions. Final flight time depends on payload weight, battery condition, wind, altitude, route profile, speed, hover time, temperature and operator configuration.

• PRODUCT POSITIONING:
• • 10kg to 30kg payload-class transport UAV
• • Six-axis / six-motor heavy-lift configuration
• • 2050mm wheelbase industrial UAV platform
• • Foldable medium heavy-lift cargo drone
• • 14S high-voltage battery system
• • 14S 35000mAh battery x2 included in standard package
• • X9plus power system x6
• • 36-inch propeller setup
• • Industrial flight controller
• • C12 dual-light gimbal included
• • G20 Android remote controller included
• • GR01 receiver system included
• • Quick-detachable battery compartment
• • Aviation case included in standard package

• BEST USE CASES:
• • 30kg payload drone mission
• • 20kg payload drone mission
• • 10kg payload drone mission
• • Cargo UAV delivery
• • Six-axis transport UAV operation
• • Industrial material movement
• • Emergency supply transport
• • Remote-area logistics
• • Infrastructure inspection
• • Thermal observation
• • Foldable cargo UAV deployment

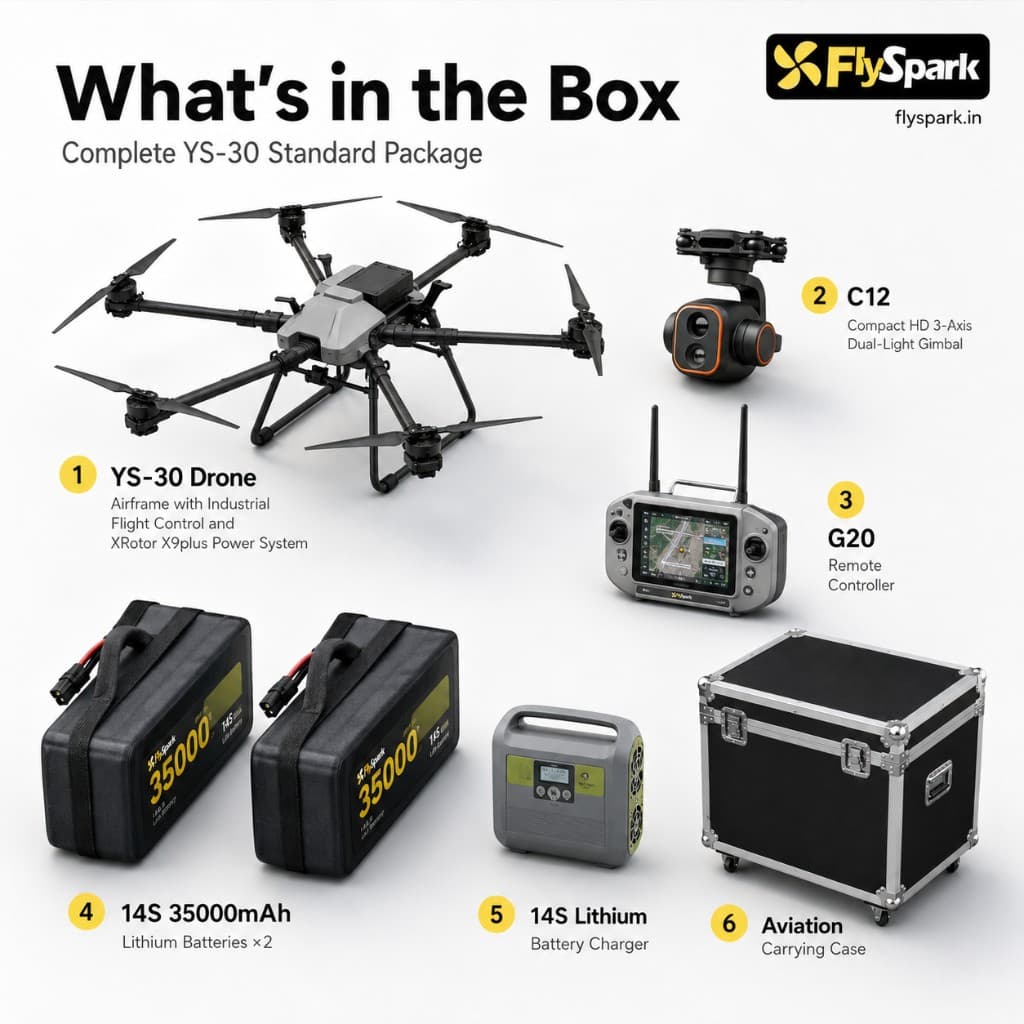

• STANDARD PACKAGE INCLUDED:
• • YS-30 six-axis frame with industrial flight controller and X9plus power system x6
• • C12 compact HD three-axis dual-light gimbal
• • G20 remote controller
• • 14S 35000mAh lithium battery x2
• • 14S lithium battery charger
• • Aviation case

IMPORTANT USE NOTE: This is a professional heavy-lift UAV for lawful industrial, emergency-response, government and authorized defense logistics. Operators must follow DGCA/local aviation rules, UAV registration, flight permissions, payload rules, site permissions, privacy regulations, insurance and safety procedures. Do not exceed listed MTOW. Endurance depends on payload, batteries, wind, altitude and temperature.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark YS-30 Six-Axis? A: FlySpark YS-30 Six-Axis is a medium heavy-lift transport UAV designed for 10kg to 30kg payload missions, cargo transport, inspection support, emergency supply movement and professional UAV operations.

• Q: What is the selling price of FlySpark YS-30 Six-Axis?
• A: The listed selling price is ₹36,03,366 for the standard package.

Q: What is included in the standard package? A: The standard package includes the YS-30 six-axis frame, industrial flight controller, X9plus power system x6, C12 dual-light gimbal, G20 remote controller, 14S 35000mAh lithium battery x2, 14S lithium battery charger and aviation case.

Q: What is the main difference between this and the four-axis YS-30? A: This version uses an X9plus power system x6 with 36-inch propellers, while the four-axis version uses X11plus power system x4 with 43-inch propellers. This product is the six-axis YS-30 standard configuration.

• Q: What is the payload capacity?
• A: The listed payload capacity is 10kg to 30kg.

• Q: What is the maximum takeoff weight?
• A: The listed maximum takeoff weight is approximately 64kg with 30kg payload and dual batteries.

• Q: What is the aircraft weight without batteries?
• A: The aircraft weight without batteries is 22.8kg.

• Q: What is the wheelbase?
• A: The symmetric wheelbase is 2050mm.

• Q: What is the expanded size?
• A: The expanded size is 1572mm x 1572mm x 660mm.

• Q: What is the folded size?
• A: The folded size is 846mm x 881mm x 795mm.

• Q: Is the YS-30 Six-Axis foldable?
• A: Yes. The folded size is 846mm x 881mm x 795mm.

• Q: What battery is included in the standard package?
• A: The standard package includes 14S 35000mAh lithium battery x2.

Q: Why does the overview page mention 14S 70000mAh x1? A: The overview page includes a 14S 70000mAh x1 battery reference, while the detailed technical table and standard package list 14S 35000mAh x2. The standard package basis used for this listing is 14S 35000mAh x2.

• Q: What is the battery weight?
• A: Each battery is listed as 13000g plus/minus 200g.

• Q: What is the operating voltage?
• A: The operating voltage is 42V to 58.8V.

• Q: What is the charging time?
• A: The listed charging time is 30 to 60 minutes.

• Q: What is the recharge cycle range?
• A: The listed recharge cycle range is 300 to 500 cycles.

• Q: What is the flight speed?
• A: The detailed technical table lists 1m/s to 13m/s. The overview page also lists a maximum flying speed reference of 10m/s to 20m/s.

• Q: What power system is used?
• A: The listed dynamic system is XRotor X9plus with 36-inch propeller.

• Q: How many power systems are included?
• A: The standard package lists X9plus power system x6.

• Q: What is the no-load flight time?
• A: More than 60 minutes with 14S 35000mAh x2.

• Q: What is the flight time with 20kg payload?
• A: 30 to 35 minutes with 20kg payload using 14S 35000mAh x2.

• Q: What is the flight time with 10kg payload?
• A: 40 to 45 minutes with 10kg payload using 14S 35000mAh x2.

• Q: What remote controller is included?
• A: The standard package includes the G20 remote controller.

• Q: What display does the G20 controller have?
• A: It has a 7-inch industrial touch display with 1920 x 1080 resolution.

• Q: What operating system does the G20 controller use?
• A: The G20 controller uses Android 13.

• Q: What processor is listed for the G20 controller?
• A: The controller is listed with a Qualcomm 6nm processor.

• Q: What is the G20 controller battery capacity?
• A: The controller battery capacity is 20000mAh.

• Q: What is the G20 controller endurance?
• A: The listed controller endurance is 6 to 8 hours.

• Q: What is the G20 remote-control distance?
• A: The listed control distance is 5km to 30km in open ground-to-air visual line-of-sight conditions.

• Q: What frequencies does the G20 controller support?
• A: The G20 controller supports 2.4GHz and 5.8GHz.

• Q: What is the GR01 receiver?
• A: GR01 is the receiver used with the system. It supports 2.4GHz / 5.8GHz, multiple serial baud rates, network port and SBUS output.

• Q: What gimbal is included?
• A: The standard package includes the C12 compact HD three-axis dual-light gimbal.

• Q: What does dual-light gimbal mean?
• A: It means the gimbal includes both visible-light camera and thermal imaging capability.

• Q: What is the C12 gimbal weight?
• A: The C12 gimbal weighs 117g.

• Q: What is the C12 gimbal working voltage?
• A: The working voltage is 7.2V to 72V.

• Q: What is the visible camera resolution?
• A: The visible camera has a 5MP sensor, 1280 x 720 image transmission, 2560 x 1440 recording and 2560 x 1440 photo resolution.

• Q: Does the visible camera support zoom?
• A: Yes. It supports 30x digital zoom.

• Q: What is the thermal camera resolution?
• A: The thermal camera resolution is 384 x 288.

• Q: What is the thermal spectral range?
• A: The thermal spectral range is 8 to 14 micrometer.

• Q: Does the C12 support MicroSD storage?
• A: Yes. It supports MicroSD storage up to 256GB with FAT32 file system.

• Q: Are optional accessory prices listed?
• A: The PDF shows optional 14S 35000mAh battery and 14S charger, but prices are not listed in the supplied file.

• Q: Is this drone suitable for cargo delivery?
• A: Yes. It is listed for 10kg to 30kg payload capacity, making it suitable for medium heavy-lift cargo missions within legal and operational limits.

• Q: Is this drone suitable for emergency response?
• A: Yes. It can support emergency supply movement, medical material delivery and field logistics where UAV operations are legally permitted.

• Q: Is this drone suitable for inspection?
• A: Yes. The included C12 dual-light gimbal supports visible and thermal observation for inspection, search and monitoring tasks.

• Q: Can FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support payload planning, training, deployment guidance and integration packages.

Q: What legal rules must be followed? A: Operators must follow DGCA/local aviation rules, UAV registration requirements, payload permissions, site approvals, privacy laws, insurance requirements and safety procedures.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, water ingress, payload overload, wrong charging, battery abuse, unauthorized modification, unsafe operation and misuse may not be covered.
