FlySpark YS-F50 Heavy-Lift Transport UAV | 30kg-50kg Payload Cargo Drone with RTK, C12 Dual-Light Gimbal & G20 Remote Controller

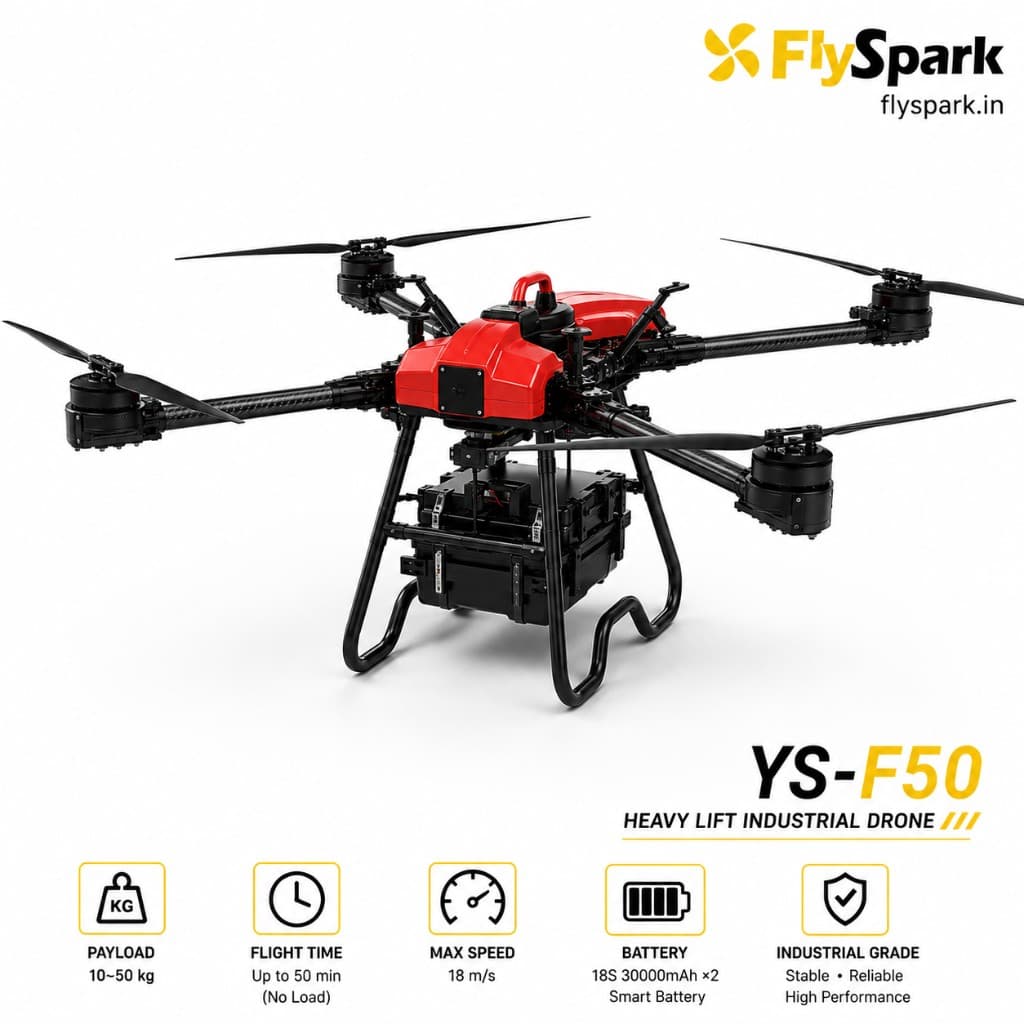

FlySpark YS-F50 Heavy-Lift Transport UAV is a professional cargo and payload transport drone designed for industrial logistics, emergency supply delivery, remote-area transport, defense logistics, agriculture support, inspection missions and high-payload UAV operations. Built around a large 2280mm wheelbase airframe, the YS-F50 supports a payload range of 30kg to 50kg and a maximum takeoff weight of approximately 107.6kg when configured with 50kg payload and dual batteries.

The standard package includes the aircraft frame, industrial flight controller, X13 power system x4, RTK module, C12 compact HD three-axis dual-light gimbal, G20 remote controller, 18S 30000mAh lithium battery x2, 18S lithium battery charger and wooden packing box. The aircraft uses an 18S high-voltage power architecture with an operating voltage range of 67.5V to 70.2V and is powered by an XRotor X13 dynamic system with 56-inch propellers.

The FlySpark YS-F50 is designed for serious field work. It provides a large foldable structure, quick-detachable battery compartment, high payload capability, industrial-grade remote controller, long-distance communication capability, RTK positioning support and a dual-light payload camera system with both visible-light and thermal imaging. The C12 gimbal adds 3-axis stabilized imaging, network video output, network control, visible camera recording, thermal imaging, digital zoom and MicroSD storage support.

This platform is suitable for customers who require a complete heavy-lift UAV package instead of a bare frame. It can be used for supply transport, payload delivery, emergency response, industrial carrying, surveillance support, terrain inspection, disaster-relief material movement, remote-area logistics and professional UAV R&D. Final endurance depends on payload weight, battery configuration, wind, altitude, temperature, flying style and mission profile.

• PRODUCT POSITIONING:
• • Heavy-lift transport UAV
• • 30kg to 50kg payload carrying class
• • Foldable industrial cargo drone
• • RTK-supported UAV platform
• • Dual 18S battery architecture
• • X13 power system with 56-inch propellers
• • C12 dual-light gimbal included
• • G20 industrial Android remote controller included
• • Suitable for transport, inspection, security and emergency response
• • Complete standard package with charger and packing box

• Core Value:
• • Carries heavy payloads up to 50kg class
• • Offers foldable transport-friendly structure
• • Includes high-end remote controller with built-in display
• • Includes dual-light camera gimbal for visible and thermal observation
• • Supports long-distance control in open line-of-sight conditions
• • Provides RTK support in standard package
• • Comes with batteries, charger and packing box
• • Reduces integration effort for industrial buyers

• BEST USE CASES:
• • Heavy-lift drone transport
• • Cargo UAV delivery
• • 30kg payload drone mission
• • 50kg payload drone mission
• • Emergency supply transport
• • Medical supply movement
• • Industrial material movement
• • Remote-area logistics
• • Disaster-relief logistics
• • Mountain-area delivery
• • Agricultural material transport
• • Defense field logistics under authorization
• • Border post supply under authorization
• • Infrastructure inspection with dual-light camera
• • Thermal observation
• • Professional drone service operations

• STANDARD PACKAGE INCLUDED:
• • Aircraft frame with industrial flight control, X13 power system x4 and RTK
• • C12 compact HD three-axis dual-light gimbal
• • G20 remote controller
• • 18S 30000mAh lithium battery x2
• • 18S lithium battery charger
• • Wooden packing box

IMPORTANT USE NOTE: This is a professional heavy-lift UAV for lawful industrial, emergency-response, government and authorized defense logistics. Operators must follow DGCA/local aviation rules, UAV registration, flight permissions, payload rules, site permissions, privacy regulations, insurance and safety procedures. Do not overload the airframe. Endurance depends on payload, batteries, wind, altitude and temperature.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark YS-F50? A: FlySpark YS-F50 is a heavy-lift transport UAV designed for professional cargo carrying, industrial logistics, emergency supply movement, inspection support and high-payload UAV missions.

• Q: What is the selling price of FlySpark YS-F50?
• A: The listed selling price is ₹48,35,286 for the standard package.

Q: What is included in the standard package? A: The standard package includes the aircraft frame, industrial flight controller, X13 power system x4, RTK, C12 dual-light gimbal, G20 remote controller, 18S 30000mAh battery x2, 18S charger and wooden packing box.

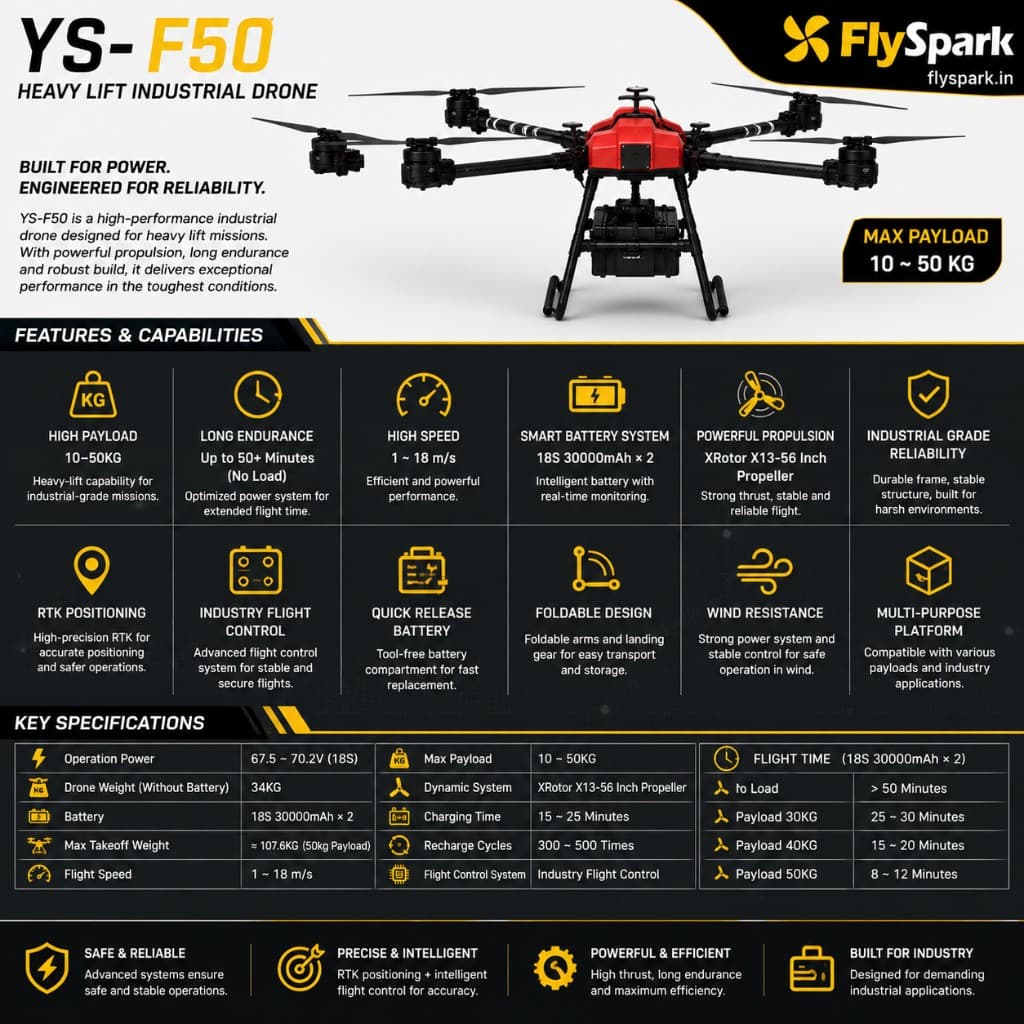

• Q: What is the payload capacity?
• A: The listed payload capacity is 30kg to 50kg.

• Q: What is the maximum takeoff weight?
• A: The listed maximum takeoff weight is approximately 107.6kg with 50kg payload and dual batteries.

• Q: What is the aircraft weight without battery?
• A: The aircraft weight without battery is 34kg.

• Q: What is the wheelbase?
• A: The symmetric wheelbase is 2280mm.

• Q: What is the expanded size?
• A: The expanded size is 1783mm x 1783mm x 729mm.

• Q: What is the folded size?
• A: The folded size is 950mm x 910mm x 923mm.

• Q: Is the aircraft foldable?
• A: Yes. The folded size is 950mm x 910mm x 923mm.

• Q: What battery is included in the standard package?
• A: The standard quoted package includes 18S 30000mAh lithium battery x2.

• Q: What is the operating voltage?
• A: The operation voltage is 67.5V to 70.2V.

• Q: What is the charging time?
• A: The listed charging time is 15 to 25 minutes.

• Q: What is the battery cycle life?
• A: The listed recharge cycle range is 300 to 500 cycles.

• Q: What is the flight speed?
• A: The detailed technical table lists 1m/s to 18m/s. The overview page also lists a maximum flying speed reference of 10m/s to 15m/s.

Q: What is the no-load flight time? A: The detailed technical table lists more than 50 minutes with 18S 30000mAh x2. The overview page also mentions an empty-flight reference of about 70 minutes, likely based on a different battery/runtime configuration.

• Q: What is the flight time with 30kg payload?
• A: The detailed technical table lists 25 to 30 minutes with 30kg payload.

• Q: What is the flight time with 40kg payload?
• A: The detailed technical table lists 15 to 20 minutes with 40kg payload.

• Q: What is the flight time with 50kg payload?
• A: The detailed technical table lists 8 to 12 minutes with 50kg payload.

• Q: What power system is used?
• A: The listed dynamic system is XRotor X13 with 56-inch propeller.

• Q: Does it include RTK?
• A: Yes. The standard package line includes RTK.

• Q: What remote controller is included?
• A: The package includes the G20 remote controller.

• Q: What display does the G20 controller have?
• A: It has a 7-inch industrial touch display with 1920 x 1080 resolution.

• Q: What operating system does the G20 controller use?
• A: The G20 controller uses Android 13.

• Q: What processor does the G20 controller use?
• A: The controller is listed with a Qualcomm 6nm processor.

• Q: What is the G20 controller battery capacity?
• A: The controller battery capacity is 20000mAh.

• Q: What is the G20 controller endurance?
• A: The listed controller endurance is 6 to 8 hours.

• Q: What is the remote control distance?
• A: The listed control distance is 5km to 30km in open-air, line-of-sight conditions.

• Q: What communication frequencies does the G20 controller use?
• A: It supports 2.4GHz and 5.8GHz.

• Q: What gimbal is included?
• A: The package includes the C12 compact HD three-axis dual-light gimbal.

• Q: What does dual-light mean?
• A: Dual-light means the gimbal has both visible-light camera capability and thermal imaging capability.

• Q: What is the C12 gimbal weight?
• A: The C12 gimbal weight is 117g.

• Q: What is the C12 gimbal working voltage?
• A: The working voltage is 7.2V to 72V.

• Q: What is the C12 visible camera resolution?
• A: The visible camera has a 5MP sensor, 1280 x 720 image transmission resolution, 2560 x 1440 video recording resolution and 2560 x 1440 photo resolution.

• Q: Does the C12 camera support zoom?
• A: Yes. It supports 30x digital zoom.

• Q: What is the C12 thermal camera resolution?
• A: The thermal camera resolution is 384 x 288.

• Q: What is the C12 thermal spectral range?
• A: The listed thermal spectral range is 8 to 14 micrometer.

• Q: What storage does the C12 support?
• A: It supports MicroSD storage up to 256GB and FAT32 file system.

Q: What is the use of this drone? A: It can be used for cargo transport, industrial payload movement, emergency supply delivery, remote-area logistics, inspection support, thermal observation, defense logistics under lawful authorization and UAV R&D.

• Q: Is this suitable for heavy cargo delivery?
• A: Yes. The payload range is 30kg to 50kg, making it suitable for heavy cargo and transport missions within its flight-time limits.

• Q: Is this suitable for emergency response?
• A: Yes. It can support delivery of emergency supplies, medical materials, tools and essential equipment where UAV operation is legally permitted.

• Q: Can FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can provide integration support, payload planning, deployment guidance and training packages.

Q: What legal rules must be followed? A: Operators must follow DGCA/local aviation rules, UAV registration requirements, flight permissions, payload rules, site permissions, privacy regulations, insurance requirements and safety procedures.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, water ingress, misuse, incorrect charging, unauthorized modification, payload overload, battery abuse and unsafe operation may not be covered.
