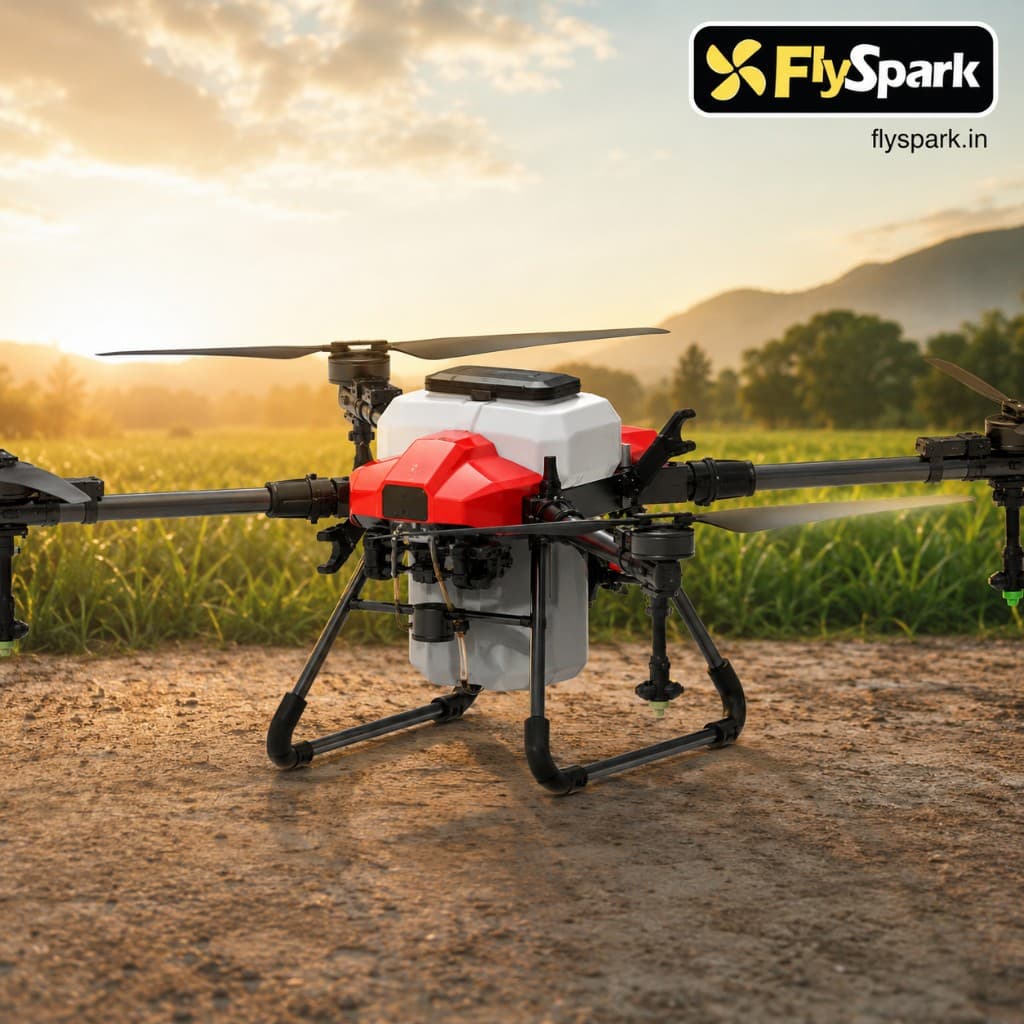

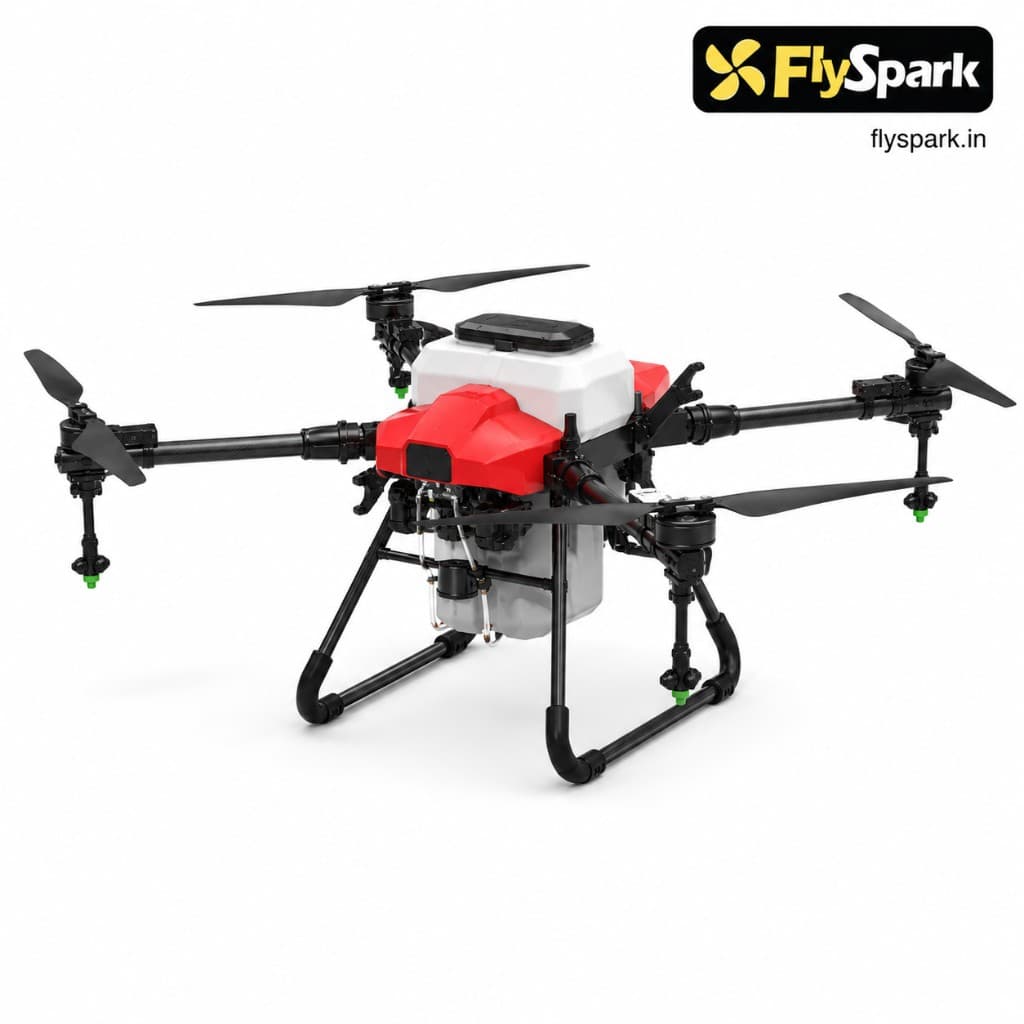

FlySpark X4-40 Agriculture Spraying UAV | 40L Crop Spraying Drone with GPS / RTK Options, 18S Battery, 8-10m Spray Width & Obstacle Avoidance

FlySpark X4-40 Agriculture Spraying UAV is a professional 40L crop-spraying drone designed for agricultural spraying, plant protection, pesticide spraying, liquid fertilizer application, orchard operations, field spraying, plantation work and precision agriculture service businesses. The aircraft uses a 2050mm symmetric wheelbase, 18S high-voltage battery architecture, XRotor X11 Max dynamic system with 48-inch propellers, and JIYI K++V2 flight-control system.

The X4-40 is available in GPS and RTK versions. The GPS complete package includes two batteries and one charger as per the package quotation, while the RTK version adds the online RTK option for higher-precision agriculture operation. The standard system supports a 40L container capacity, 40kg loading capacity, 81.7kg maximum takeoff weight, 8-10m spraying range, maximum 16L/min spraying flow, 1-13m/s flight speed, empty-tank flight time of 15-25 minutes, and full-tank flight time of 8-12 minutes.

The aircraft supports both pressure spray and centrifugal spray workflows. The package includes the complete ARF aircraft with X11 Max power, two 18S 8L water pumps, four centrifugal nozzles, H12 remote controller, ground-height radar, obstacle avoidance radar, CAN HUB module and wooden packing box. Optional accessories include 18S 30000mAh battery, 18S 7000W smart charger and RTK online version.

FlySpark X4-40 is positioned for farmers, agriculture contractors, crop-spraying service providers, government agriculture departments, farm-tech companies, plantation teams, fertilizer operators, seed companies, rural service entrepreneurs and precision agriculture integrators who need a complete high-capacity spraying drone with autonomous operation, route planning, A/B point spraying, terrain-following support, liquid detection, low-battery return, obstacle avoidance and breakpoint resume spraying.

• PRODUCT POSITIONING:
• • 40L agriculture spraying drone
• • 40kg loading capacity
• • GPS and RTK version options
• • 2050mm wheelbase UAV platform
• • Foldable agricultural drone body
• • 18S 30000mAh battery architecture
• • XRotor X11 Max dynamic system with 48-inch propellers
• • JIYI K++V2 flight-control system
• • Pressure spray and centrifugal spray support
• • Dual water pump setup
• • 8-10m spraying range
• • Max 16L/min spraying flow
• • Terrain-following support
• • Height-control radar support
• • Obstacle avoidance radar support
• • Autonomous route spraying
• • A/B point operation
• • Breakpoint resume spraying
• • Low-battery return
• • Liquid-finish return

• BEST USE CASES:
• • Crop spraying
• • Pesticide spraying
• • Liquid fertilizer spraying
• • Plant protection operation
• • Farm spraying service
• • Autonomous field spraying
• • A/B point spraying
• • GPS-based spraying
• • RTK-based precision spraying
• • Terrain-following spraying
• • 40L high-capacity spraying operation

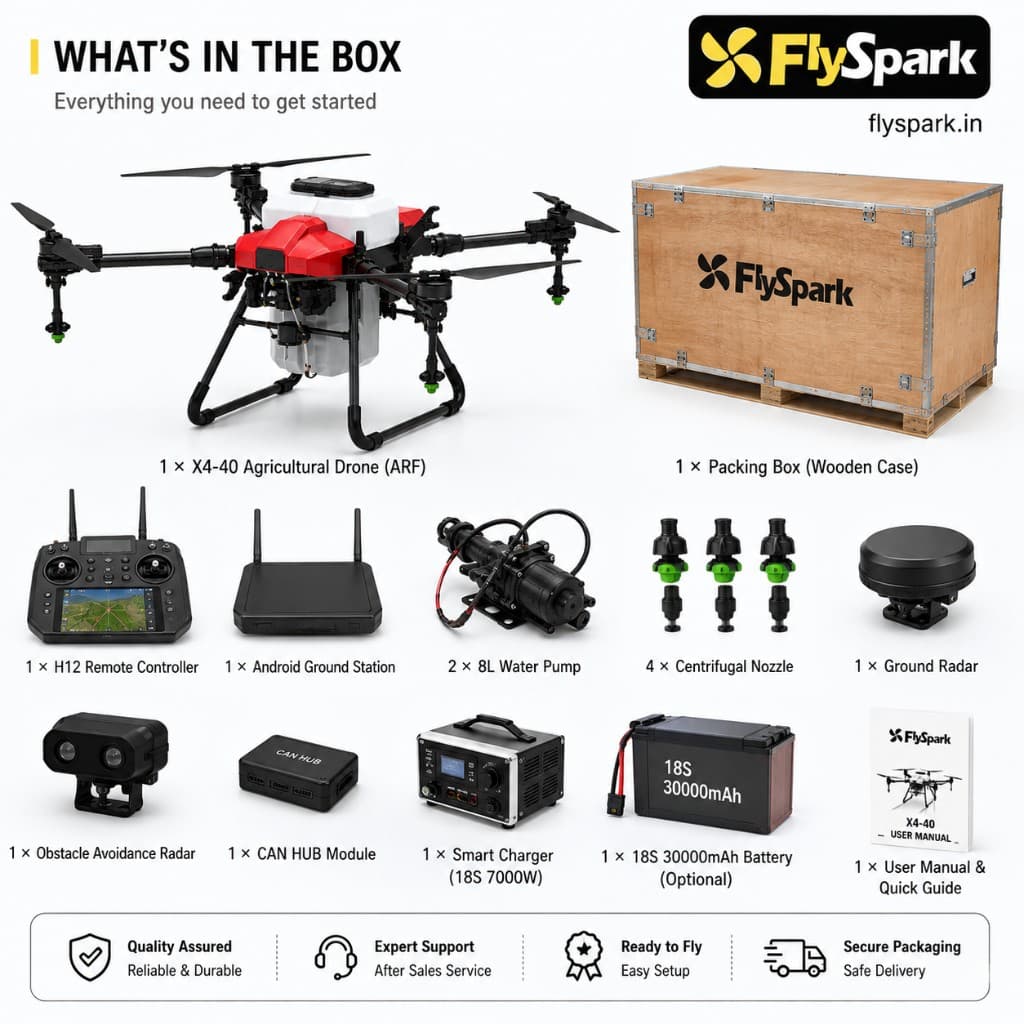

• STANDARD ARF PACKAGE INCLUDED:
• • FlySpark X4-40 complete ARF aircraft with X11 Max power system
• • 18S 8L water pump x2
• • Centrifugal nozzle x4
• • H12 remote controller
• • Ground-height / terrain radar
• • Obstacle avoidance radar
• • CAN HUB module
• • Wooden packing box

• GPS COMPLETE PACKAGE:
• • Standard spraying UAV configuration plus 2 batteries and 1 charger — ₹32,79,987

• RTK COMPLETE PACKAGE:
• • GPS complete package plus RTK online version — ₹36,26,465

IMPORTANT USE NOTE: This is a professional agriculture spraying UAV for lawful farm, contractor and authorized plant-protection work. Operators must follow DGCA/local drone rules, agricultural spraying regulations, pesticide handling rules, PPE requirements, site permissions, crop safety guidelines, environmental regulations and safe UAV operation practices. Do not exceed listed MTOW. Endurance depends on tank load, batteries, wind, altitude and temperature.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark X4-40? A: FlySpark X4-40 is a 40L agriculture spraying UAV designed for crop spraying, plant protection, farm spraying service work and precision agriculture operations.

• Q: What is the selling price of FlySpark X4-40 GPS complete package?
• A: The listed selling price of the GPS complete package is ₹32,79,987.

• Q: What is the selling price of FlySpark X4-40 RTK complete package?
• A: The listed selling price of the RTK complete package is ₹36,26,465.

• Q: What is the selling price of the standard ARF package?
• A: The listed selling price of the standard ARF package is ₹21,40,461.

• Q: What is the container capacity?
• A: The listed container capacity is 40L.

• Q: What is the loading capacity?
• A: The listed loading capacity is 40kg.

• Q: What is the maximum takeoff weight?
• A: The listed maximum takeoff weight is 81.7kg.

• Q: What is the wheelbase?
• A: The symmetric wheelbase is 2050mm.

• Q: What is the expanded size?
• A: The expanded size is 1570mm x 1570mm x 735mm.

• Q: What is the folded size?
• A: The folded size is 845mm x 860mm x 810mm.

• Q: What is the aircraft weight with battery?
• A: The listed total weight with battery is 41.7kg.

• Q: What battery does it use?
• A: The listed battery is 18S 30000mAh x1.

• Q: What is the battery weight?
• A: The battery weight is listed as 15000g plus/minus 300g.

• Q: What is the operating voltage?
• A: The operating voltage is 67.5V to 70.2V.

• Q: What is the charging time?
• A: The listed charging time is 15 to 25 minutes.

• Q: What is the recharge cycle range?
• A: The listed recharge cycle range is 300 to 500 cycles.

• Q: What is the flight speed?
• A: The listed flight speed is 1m/s to 13m/s.

• Q: What is the spraying width?
• A: The listed spraying width is 8 to 10m.

• Q: What is the maximum spraying flow?
• A: The listed maximum spraying flow is 16L/min.

• Q: What spraying systems are supported?
• A: The platform lists pressure spray and centrifugal spray.

• Q: How many centrifugal nozzles are included?
• A: The standard package lists four centrifugal nozzles.

• Q: What pump is included?
• A: The standard package lists two 18S 8L water pumps.

• Q: What is the empty tank flight time?
• A: The listed empty tank flight time is 15 to 25 minutes.

• Q: What is the full tank flight time?
• A: The listed full tank flight time is 8 to 12 minutes.

• Q: What is the hover time reference?
• A: The overview page lists an 8-minute hover time reference.

• Q: What is the operational efficiency?
• A: The listed operational efficiency is 1 to 3 mu per minute.

• Q: What flight controller is used?
• A: The listed flight controller is JIYI K++V2.

• Q: What dynamic system is used?
• A: The listed dynamic system is XRotor X11 Max with 48-inch propeller.

• Q: What remote controller is included?
• A: The standard package lists an H12 remote controller.

• Q: Does the drone support autonomous route spraying?
• A: Yes. Standard features include route planning, fully automatic flight operation and A/B point operation.

• Q: Does the drone support one-button takeoff and landing?
• A: Yes. One-button takeoff and landing are listed as standard configuration features.

• Q: Does the drone support breakpoint resume spraying?
• A: Yes. Continue spraying at break point is listed as a standard feature.

• Q: Does it return automatically when liquid is finished?
• A: Yes. Auto return when liquid is finished is listed as a standard feature.

• Q: Does it return automatically on low battery?
• A: Yes. Low-battery return and record-point setting are listed as standard features.

• Q: Does it have liquid detection?
• A: Yes. Liquid detection and break-point record setting are listed.

• Q: Does it support terrain following?
• A: Yes. Height-control radar, stable altitude setting and terrain-following function are listed.

• Q: Does it have obstacle avoidance?
• A: Yes. Obstacle avoidance and surrounding obstacle detection are listed.

• Q: Does it support dual pump mode?
• A: Yes. Dual pump mode is listed as a standard configuration feature.

• Q: Does it have motor sequence detection?
• A: Yes. Motor sequence detection and direction detection are listed.

Q: Does it support camera recording? A: The standard configuration list mentions camera recorder and real-time transmission availability, but camera hardware is not separately specified in the supplied quotation.

Q: What is included in the standard ARF package? A: The standard ARF package includes the aircraft with X11 Max power, two 18S 8L water pumps, four centrifugal nozzles, H12 remote controller, ground-height radar, obstacle avoidance radar, CAN HUB module and wooden packing box.

• Q: What is included in the GPS complete package?
• A: The GPS complete quotation includes two batteries and one charger in addition to the spraying UAV configuration.

• Q: What is different in the RTK version?
• A: The RTK complete package includes the RTK online version for higher-precision positioning.

• Q: Are optional accessories available?
• A: Yes. Optional accessories include 18S 30000mAh battery, 18S 7000W smart charger and RTK online version.

• Q: What is the converted price of an extra 18S 30000mAh battery?
• A: The listed selling price is ₹4,23,473.

• Q: What is the converted price of an extra 18S 7000W smart charger?
• A: The listed selling price is ₹2,92,581.

• Q: What is the converted price of the RTK online option?
• A: The listed selling price is ₹3,46,478.

Q: Is this suitable for pesticide spraying? A: Yes. It is designed for agricultural spraying workflows, subject to approved chemicals, correct nozzle selection, crop requirements and local agricultural rules.

• Q: Is this suitable for fertilizer spraying?
• A: Yes. It can be used for liquid fertilizer spraying where material compatibility, flow rate and field conditions are suitable.

Q: Is this better for larger fields than a 30L drone? A: The 40L tank capacity allows more liquid per sortie than a 30L platform, which can improve efficiency for larger fields depending on spray rate, flight path and refill workflow.

• Q: Can FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support configuration, deployment planning, training and after-sales integration support.

Q: What legal and operational precautions are required? A: Operators must follow DGCA/local drone rules, agricultural spraying regulations, pesticide handling rules, PPE requirements, site permissions, crop safety guidelines, environmental regulations and safe UAV operation practices.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, wrong charging, battery abuse, chemical corrosion, pump clogging, nozzle damage, water ingress, unauthorized modification, overload and unsafe operation may not be covered.
