FlySpark X4-30 Agriculture Spraying UAV | 30L Crop Spraying Drone with GPS / RTK Options, 8-10m Spray Width, Terrain Radar & Obstacle Avoidance

FlySpark X4-30 Agriculture Spraying UAV is a professional 30L crop-spraying drone designed for agricultural spraying, plant protection, farm productivity improvement, fertilizer application, pesticide spraying, orchard and field operations, and precision agriculture workflows. The aircraft uses a 2050mm symmetric wheelbase, 14S battery architecture, XRotor X11 dynamic system with 41-inch propellers, and JIYI K++V2 flight-control system.

The X4-30 is available in GPS and RTK versions. The GPS complete package includes two batteries and one charger as per the quotation package, while the RTK version adds the online RTK option for higher-precision agricultural operation. The standard system supports a 30L container capacity, 30kg loading capacity, 65.5kg maximum takeoff weight, 8-10m spraying range, maximum 16L/min spraying flow, 1-13m/s flight speed, empty-tank flight time of 15-25 minutes, and full-tank flight time of 8-12 minutes.

The aircraft supports both pressure spray and centrifugal spray workflows. The package includes the complete ARF X11 power aircraft, 14S 8L water pump, four centrifugal nozzles, H12 remote controller, ground-height radar, obstacle avoidance radar, CAN HUB module, and wooden packing box. Optional accessories include 14S 28000mAh battery, 14S smart charger, RTK online version, and 40L spreader.

FlySpark X4-30 is positioned for farmers, agriculture contractors, crop-spraying service providers, government agriculture departments, farm-tech companies, seed and fertilizer operators, plantation teams, and precision agriculture integrators who need a complete field-ready spraying drone with autonomous operation, route planning, A/B point spraying, terrain-following support, liquid detection, low-battery return, obstacle avoidance and breakpoint resume spraying.

• PRODUCT POSITIONING:
• • 30L agriculture spraying drone
• • 30kg loading capacity
• • GPS and RTK version options
• • 2050mm wheelbase UAV platform
• • Foldable agricultural drone body
• • 14S 28000mAh battery architecture
• • XRotor X11 dynamic system with 41-inch propellers
• • JIYI K++V2 flight-control system
• • Pressure spray and centrifugal spray support
• • 8-10m spraying range
• • Max 16L/min spraying flow
• • Terrain-following support
• • Height-control radar support
• • Obstacle avoidance radar support
• • Autonomous route spraying
• • A/B point operation
• • Breakpoint resume spraying
• • Low-battery return
• • Liquid-finish return
• • Dual-pump mode

• BEST USE CASES:
• • Crop spraying
• • Pesticide spraying
• • Liquid fertilizer spraying
• • Plant protection operation
• • Farm spraying service
• • Autonomous field spraying
• • A/B point spraying
• • GPS-based spraying
• • RTK-based precision spraying
• • Terrain-following spraying
• • Optional granular spreading with spreader accessory

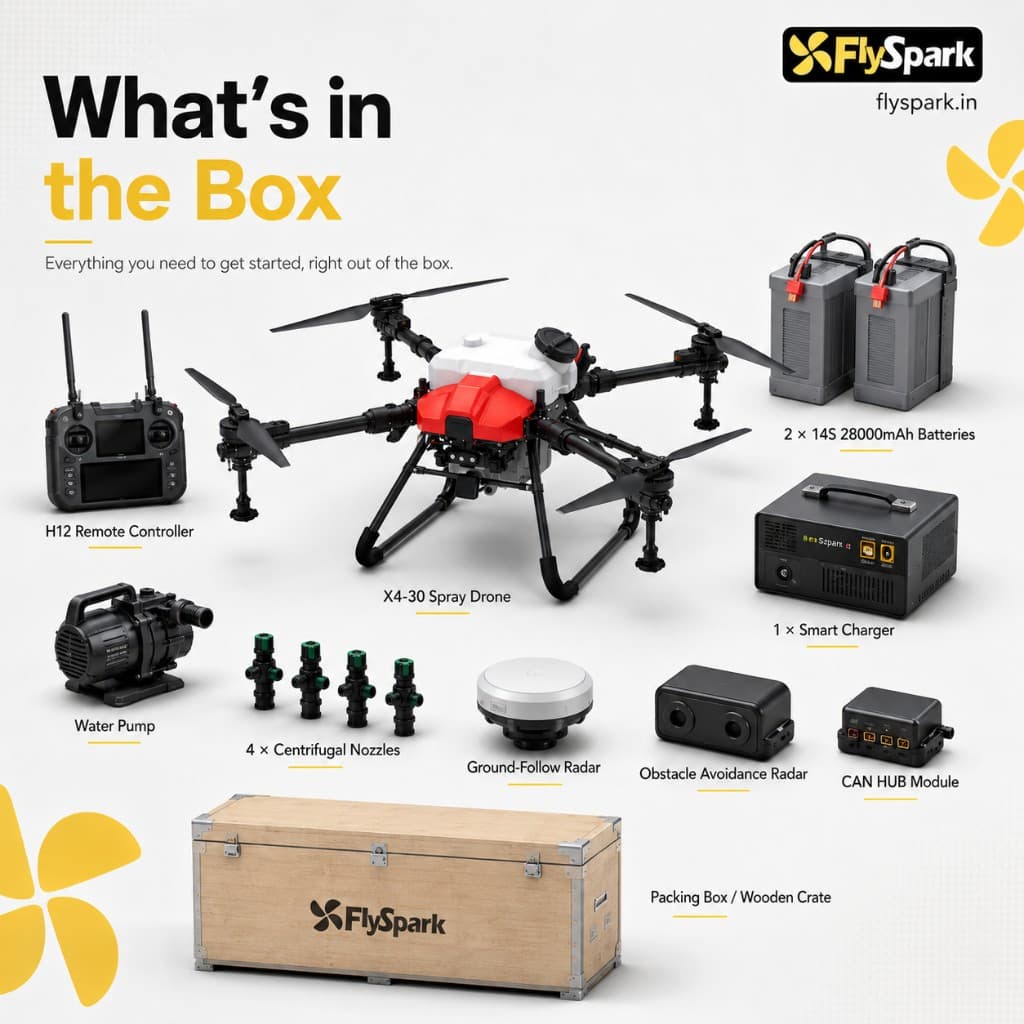

• STANDARD ARF PACKAGE INCLUDED:
• • FlySpark X4-30 complete ARF aircraft with X11 power system
• • 14S 8L water pump x1
• • Centrifugal nozzle x4
• • H12 remote controller
• • Ground-height / terrain radar
• • Obstacle avoidance radar
• • CAN HUB module
• • Wooden packing box

• GPS COMPLETE PACKAGE:
• • Standard spraying UAV configuration plus 2 batteries and 1 charger — ₹25,40,835

• RTK COMPLETE PACKAGE:
• • GPS complete package plus RTK online version — ₹28,87,313

IMPORTANT USE NOTE: This is a professional agriculture spraying UAV for lawful farm, contractor and authorized plant-protection work. Operators must follow DGCA/local drone rules, agricultural spraying regulations, pesticide handling rules, PPE requirements, site permissions, crop safety guidelines, environmental regulations and safe UAV operation practices. Do not exceed listed MTOW. Endurance depends on tank load, batteries, wind, altitude and temperature.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark X4-30? A: FlySpark X4-30 is a 30L agriculture spraying UAV designed for crop spraying, plant protection, farm spraying service work and precision agriculture operations.

• Q: What is the selling price of FlySpark X4-30 GPS complete package?
• A: The listed selling price of the GPS complete package is ₹25,40,835.

• Q: What is the selling price of FlySpark X4-30 RTK complete package?
• A: The listed selling price of the RTK complete package is ₹28,87,313.

• Q: What is the selling price of the standard ARF package?
• A: The listed selling price of the standard ARF package is ₹18,32,481.

• Q: What is the container capacity?
• A: The listed container capacity is 30L.

• Q: What is the loading capacity?
• A: The listed loading capacity is 30kg.

• Q: What is the maximum takeoff weight?
• A: The listed maximum takeoff weight is 65.5kg.

• Q: What is the wheelbase?
• A: The symmetric wheelbase is 2050mm.

• Q: What is the expanded size?
• A: The expanded size is 1570mm x 1570mm x 715mm.

• Q: What is the folded size?
• A: The folded size is 845mm x 860mm x 775mm.

• Q: What is the aircraft weight with battery?
• A: The listed total weight with battery is 35.5kg.

• Q: What battery does it use?
• A: The listed battery is 14S 28000mAh x1.

• Q: What is the battery weight?
• A: The battery weight is listed as 9100g plus/minus 200g.

• Q: What is the operating voltage?
• A: The operating voltage is 51.8V to 54.6V.

• Q: What is the charging time?
• A: The listed charging time is 15 to 25 minutes.

• Q: What is the recharge cycle range?
• A: The listed recharge cycle range is 300 to 500 cycles.

• Q: What is the flight speed?
• A: The listed flight speed is 1m/s to 13m/s.

• Q: What is the spraying width?
• A: The listed spraying width is 8 to 10m.

• Q: What is the maximum spraying flow?
• A: The listed maximum spraying flow is 16L/min.

• Q: What spraying systems are supported?
• A: The platform lists pressure spray and centrifugal spray.

• Q: How many centrifugal nozzles are included?
• A: The standard package lists four centrifugal nozzles.

• Q: What pump is included?
• A: The standard package lists one 14S 8L water pump.

• Q: What is the empty tank flight time?
• A: The listed empty tank flight time is 15 to 25 minutes.

• Q: What is the full tank flight time?
• A: The listed full tank flight time is 8 to 12 minutes.

• Q: What is the hover time reference?
• A: The overview page lists an 8-minute hover time reference.

• Q: What is the operational efficiency?
• A: The listed operational efficiency is 1 to 3 mu per minute.

• Q: What flight controller is used?
• A: The listed flight controller is JIYI K++V2.

• Q: What dynamic system is used?
• A: The listed dynamic system is XRotor X11 with 41-inch propeller.

• Q: What remote controller is included?
• A: The standard package lists an H12 remote controller.

• Q: Does the drone support autonomous route spraying?
• A: Yes. Standard features include route planning, fully automatic flight operation and A/B point operation.

• Q: Does the drone support one-button takeoff and landing?
• A: Yes. One-button takeoff and landing are listed as standard configuration features.

• Q: Does the drone support breakpoint resume spraying?
• A: Yes. Continue spraying at break point is listed as a standard feature.

• Q: Does it return automatically when liquid is finished?
• A: Yes. Auto return when liquid is finished is listed as a standard feature.

• Q: Does it return automatically on low battery?
• A: Yes. Low-battery return and record-point setting are listed as standard features.

• Q: Does it have liquid detection?
• A: Yes. Liquid detection and break-point record setting are listed.

• Q: Does it support terrain following?
• A: Yes. Height-control radar, stable altitude setting and terrain-following function are listed.

• Q: Does it have obstacle avoidance?
• A: Yes. Obstacle avoidance and surrounding obstacle detection are listed.

• Q: Does it support dual pump mode?
• A: Yes. Dual pump mode is listed as a standard configuration feature.

• Q: Does it have motor sequence detection?
• A: Yes. Motor sequence detection and direction detection are listed.

Q: Does it support camera recording? A: The standard configuration list mentions camera recorder and real-time transmission availability, but camera hardware is not separately specified in the supplied quotation.

Q: What is included in the standard ARF package? A: The standard ARF package includes the aircraft with X11 power, 14S 8L water pump, four centrifugal nozzles, H12 remote controller, ground-height radar, obstacle avoidance radar, CAN HUB module and wooden packing box.

• Q: What is included in the GPS complete package?
• A: The GPS complete quotation includes two batteries and one charger in addition to the spraying UAV configuration.

• Q: What is different in the RTK version?
• A: The RTK complete package includes the RTK online version for higher-precision positioning.

• Q: Are optional accessories available?
• A: Yes. Optional accessories include 14S 28000mAh battery, 14S smart charger, RTK online version and 40L spreader.

• Q: What is the converted price of an extra 14S 28000mAh battery?
• A: The listed selling price is ₹2,61,783.

• Q: What is the converted price of an extra 14S smart charger?
• A: The listed selling price is ₹1,84,788.

• Q: What is the converted price of the RTK online option?
• A: The listed selling price is ₹3,46,478.

• Q: What is the converted price of the 40L spreader?
• A: The listed selling price is ₹1,81,708.

Q: Is this suitable for pesticide spraying? A: Yes. It is designed for agricultural spraying workflows, subject to approved chemicals, correct nozzle selection, crop requirements and local agricultural rules.

• Q: Is this suitable for fertilizer spraying?
• A: Yes. It can be used for liquid fertilizer spraying where material compatibility, flow rate and field conditions are suitable.

• Q: Can it be used for spreading dry material?
• A: A 40L spreader is listed as an optional accessory, so spreading workflows can be configured separately.

• Q: Can FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support configuration, deployment planning, training and after-sales integration support.

Q: What legal and operational precautions are required? A: Operators must follow DGCA/local drone rules, agricultural spraying regulations, pesticide handling rules, PPE requirements, site permissions, crop safety guidelines, environmental regulations and safe UAV operation practices.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, wrong charging, battery abuse, chemical corrosion, pump clogging, nozzle damage, water ingress, unauthorized modification, overload and unsafe operation may not be covered.
