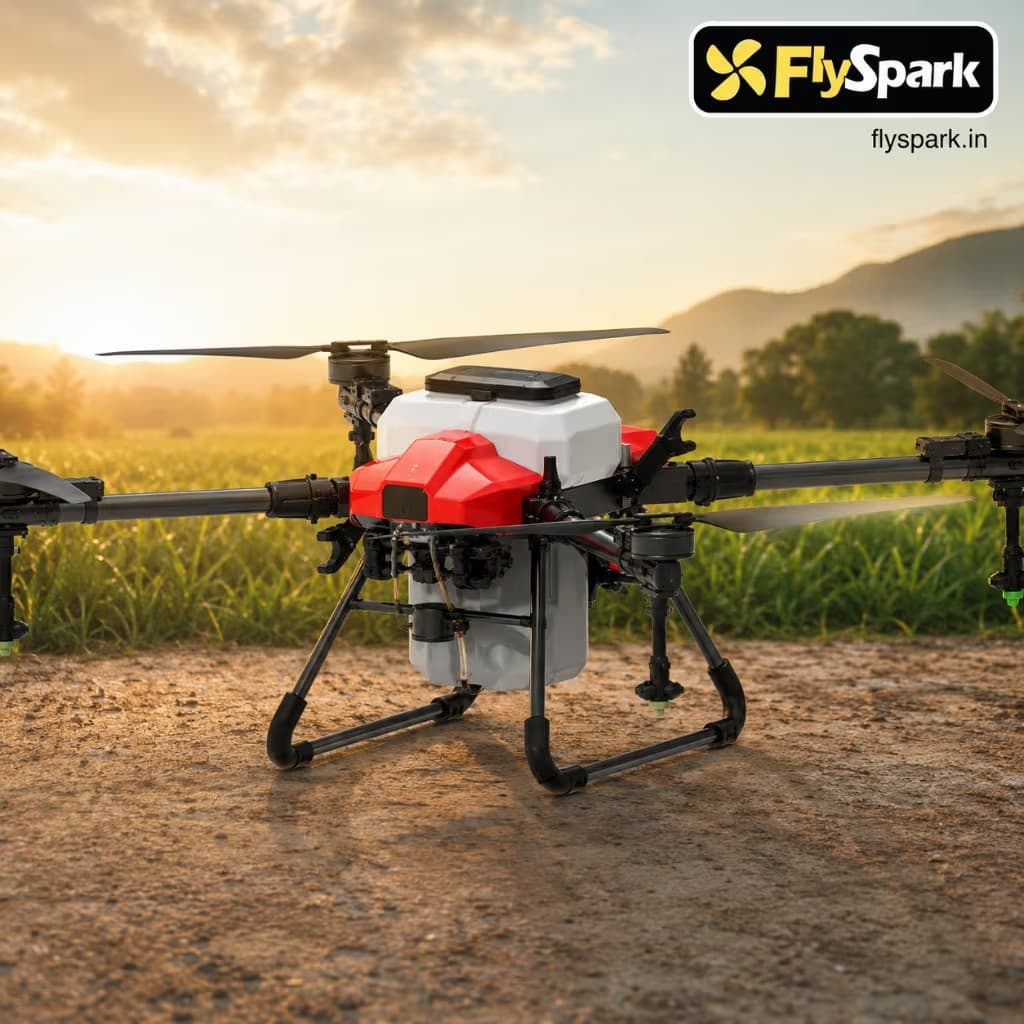

FlySpark X4-20 Agriculture Spraying UAV | 20L Crop Spraying Drone with GPS / RTK Options, 25L Spreader Support, 14S Battery, 5-8m Spray Width & Obstacle Avoidance

FlySpark X4-20 Agriculture Spraying UAV is a professional 20L crop-spraying and spreading drone designed for farm spraying, plant protection, pesticide spraying, liquid fertilizer application, orchard operation, vegetable field spraying, plantation work, precision agriculture and rural spraying service businesses. It is positioned between compact 15L drones and larger 30L / 40L / 50L spraying platforms, giving operators a balanced combination of portability, useful tank capacity, autonomous flight features and professional field performance.

The aircraft uses an 1810mm symmetric wheelbase, 14S high-voltage battery architecture, XRotor X9 Plus dynamic system with 46-inch propellers and JIYI K++V2 flight-control system. The spraying configuration supports a 20L container capacity, 20kg loading capacity, 50.5kg maximum takeoff weight, 5-8m spraying range, maximum 8L/min spraying flow, 1-13m/s flight speed, empty-tank flight time of 15-25 minutes and full-tank flight time of 10-12 minutes. Page 1 also lists a hover time reference of 10 minutes.

The standard ARF package includes the complete aircraft frame with X9 Plus power system, 200A spark-proof module, K++V2 flight controller, one 14S 8L water pump, four centrifugal nozzles, H12 remote controller, front obstacle avoidance radar, CAN HUB module, ground-height radar and wooden packing box. Complete GPS and RTK packages include two batteries and one charger, with the RTK package adding the online RTK version for higher-precision mapped field operation.

FlySpark X4-20 is suitable for farmers, crop-spraying contractors, agriculture drone service providers, farm equipment dealers, agri-tech teams, farmer producer organizations, orchards, nurseries, plantations and training centers that need a practical 20L spraying drone with autonomous route planning, A/B point operation, terrain-following support, liquid detection, low-battery return, obstacle avoidance, breakpoint resume spraying and optional 25L spreading workflow.

• PRODUCT POSITIONING:
• • 20L agriculture spraying drone
• • 25L optional spreader support
• • 20kg loading capacity
• • 50.5kg maximum takeoff weight
• • GPS and RTK version options
• • 1810mm wheelbase agriculture UAV platform
• • Foldable agricultural drone body
• • 14S 19000mAh / 28000mAh battery support
• • XRotor X9 Plus dynamic system
• • 46-inch propeller setup
• • JIYI K++V2 flight-control system
• • Pressure spray and centrifugal spray support
• • 14S 8L water pump and four centrifugal nozzles in ARF package
• • 5-8m spraying range
• • Max 8L/min spraying flow
• • Terrain-following support
• • Obstacle avoidance radar support
• • Autonomous route spraying and A/B point operation
• • Breakpoint resume spraying
• • Low-battery and liquid-finish return

• BEST USE CASES:
• • Crop spraying
• • Pesticide spraying
• • Liquid fertilizer spraying
• • Mid-size farm spraying service
• • Orchard spraying
• • Nursery spraying
• • Vegetable field spraying
• • GPS-based spraying
• • RTK-based precision spraying
• • Optional seed spreading
• • Optional granular material spreading

• STANDARD ARF PACKAGE INCLUDED:
• • FlySpark X4-20 complete ARF aircraft frame
• • XRotor X9 Plus power system
• • 200A spark-proof module
• • JIYI K++V2 flight controller
• • 14S 8L water pump x1
• • Centrifugal nozzle x4
• • H12 remote controller
• • Front obstacle avoidance radar
• • CAN HUB module
• • Ground-height radar
• • Wooden packing box

• GPS COMPLETE PACKAGE:
• • Standard spraying UAV configuration plus 2 batteries and 1 charger — ₹23,86,845

• RTK COMPLETE PACKAGE:
• • GPS complete package plus RTK online version — ₹27,33,323

IMPORTANT USE NOTE: This is a professional agriculture spraying UAV for lawful farm, contractor and authorized plant-protection work. Operators must follow DGCA/local drone rules, agricultural spraying regulations, pesticide handling rules, PPE requirements, site permissions, crop safety guidelines, environmental regulations and safe UAV operation practices. Do not exceed listed MTOW. Endurance depends on tank load, batteries, wind, altitude and temperature.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark X4-20? A: FlySpark X4-20 is a 20L agriculture spraying UAV designed for crop spraying, plant protection, pesticide spraying, liquid fertilizer application and optional spreading workflows.

• Q: What is the selling price of FlySpark X4-20 GPS complete package?
• A: The listed selling price of the GPS complete package is ₹23,86,845.

• Q: What is the selling price of FlySpark X4-20 RTK complete package?
• A: The listed selling price of the RTK complete package is ₹27,33,323.

• Q: What is the selling price of the standard ARF package?
• A: The listed selling price of the standard ARF package is ₹16,78,491.

• Q: What is the container capacity?
• A: The listed container capacity is 20L.

• Q: Does it support spreading?
• A: Yes. The optional accessories list a 25L spreader.

• Q: What is the loading capacity?
• A: The listed loading capacity is 20kg.

• Q: What is the maximum takeoff weight?
• A: The listed maximum takeoff weight is 50.5kg.

• Q: What is the wheelbase?
• A: The symmetric wheelbase is 1810mm.

• Q: What is the expanded size?
• A: The expanded size is 1385mm x 1385mm x 763mm.

• Q: What is the folded size?
• A: The folded size is 770mm x 790mm x 780mm.

• Q: What is the aircraft weight with battery?
• A: The total aircraft weight with battery is listed as 30.5kg.

• Q: What battery does it use?
• A: The technical table lists 14S 19000mAh / 28000mAh x1 battery support.

• Q: What is the battery weight?
• A: The battery weight is listed as 9100g plus/minus 200g.

• Q: What is the operating voltage?
• A: The operating voltage is 52.5V to 54.6V.

• Q: What is the charging time?
• A: The listed charging time is 15 to 25 minutes.

• Q: What is the recharge cycle range?
• A: The listed recharge cycle range is 300 to 500 cycles.

• Q: What is the flight speed?
• A: The listed flight speed is 1m/s to 13m/s.

• Q: What is the spraying width?
• A: The listed spraying width is 5 to 8m.

• Q: What is the maximum spraying flow?
• A: The listed maximum spraying flow is 8L/min.

• Q: What spraying systems are supported?
• A: The platform lists pressure spray and centrifugal spray.

• Q: What pump is included?
• A: The standard ARF package lists one 14S 8L water pump.

• Q: What nozzles are included?
• A: The standard ARF package lists four centrifugal nozzles.

• Q: What is the empty tank flight time?
• A: The listed empty tank flight time is 15 to 25 minutes.

• Q: What is the full tank flight time?
• A: The listed full tank flight time is 10 to 12 minutes.

• Q: What is the hover time reference?
• A: The overview page lists 10 minutes hover time.

• Q: What is the operational efficiency?
• A: The listed operational efficiency is 1 to 3 mu per minute.

• Q: What flight controller is used?
• A: The listed flight controller is JIYI K++V2.

• Q: What dynamic system is used?
• A: The listed dynamic system is XRotor X9 Plus with 46-inch propeller.

• Q: What remote controller is included?
• A: The standard ARF package lists an H12 remote controller.

• Q: Does the drone support autonomous route spraying?
• A: Yes. Standard features include route setting, fully automatic flight operation and A/B point operation.

• Q: Does the drone support one-button takeoff and landing?
• A: Yes. One-button takeoff and landing are listed as standard configuration features.

• Q: Does the drone support breakpoint resume spraying?
• A: Yes. Continue spraying at break point is listed as a standard feature.

• Q: Does it return automatically when liquid is finished?
• A: Yes. Auto return when liquid is finished is listed as a standard feature.

• Q: Does it return automatically on low battery?
• A: Yes. Low-battery return and record-point setting are listed as standard features.

• Q: Does it have liquid detection?
• A: Yes. Liquid detection and break-point record setting are listed.

• Q: Does it support terrain following?
• A: Yes. Height-control radar, stable altitude setting and terrain-following function are listed.

• Q: Does it have obstacle avoidance?
• A: Yes. Front obstacle avoidance radar and surrounding obstacle detection are listed.

• Q: Does it support dual pump mode?
• A: Yes. Dual pump mode is listed as a standard configuration feature.

• Q: Does it have motor sequence detection?
• A: Yes. Motor sequence detection and direction detection are listed.

Q: Does it support camera recording? A: The standard configuration list mentions camera recording and real-time transmission availability, but camera hardware is not separately specified in the supplied quotation.

Q: What is included in the standard ARF package? A: The standard ARF package includes aircraft frame with X9 Plus power, 200A spark-proof module, K++V2 flight controller, 14S 8L water pump, four centrifugal nozzles, H12 remote controller, front obstacle avoidance radar, CAN HUB module, ground-height radar and wooden box.

• Q: What is included in the GPS complete package?
• A: The GPS complete quotation includes two batteries and one charger in addition to the spraying UAV configuration.

• Q: What is different in the RTK version?
• A: The RTK complete package includes the RTK online version for higher-precision positioning.

• Q: Are optional accessories available?
• A: Yes. Optional accessories include 14S 28000mAh battery, TA3200 smart charger, RTK online version and 25L spreader.

• Q: What is the converted price of an extra 14S 28000mAh battery?
• A: The listed selling price is ₹2,61,783.

• Q: What is the converted price of the TA3200 smart charger?
• A: The listed selling price is ₹1,84,788.

• Q: What is the converted price of the RTK online option?
• A: The listed selling price is ₹3,46,478.

• Q: What is the converted price of the 25L spreader?
• A: The listed selling price is ₹1,60,150.

Q: Is this suitable for pesticide spraying? A: Yes. It is designed for agricultural spraying workflows, subject to approved chemicals, correct nozzle selection, crop requirements and local agricultural rules.

• Q: Is this suitable for fertilizer spraying?
• A: Yes. It can be used for liquid fertilizer spraying where material compatibility, flow rate and field conditions are suitable.

• Q: Can it be used for spreading dry material?
• A: Yes, with the optional 25L spreader, subject to material compatibility and approved farm requirement.

Q: Is this better for mid-size farms than a 15L drone? A: Yes. The 20L tank capacity and 5-8m spray width make it more productive for mid-size fields than a compact 15L platform, while still being easier to manage than larger 30L / 40L / 50L drones.

• Q: Can FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support configuration, deployment planning, training and after-sales integration support.

Q: What legal and operational precautions are required? A: Operators must follow DGCA/local drone rules, agricultural spraying regulations, pesticide handling rules, PPE requirements, site permissions, crop safety guidelines, environmental regulations and safe UAV operation practices.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, wrong charging, battery abuse, chemical corrosion, pump clogging, nozzle damage, water ingress, unauthorized modification, overload and unsafe operation may not be covered.
