FlySpark X4-15 Agriculture Spraying UAV | 15L Crop Spraying Drone with GPS / RTK Options, 25L Spreader Support, 12S Battery, 3-6m Spray Width & Obstacle Avoidance

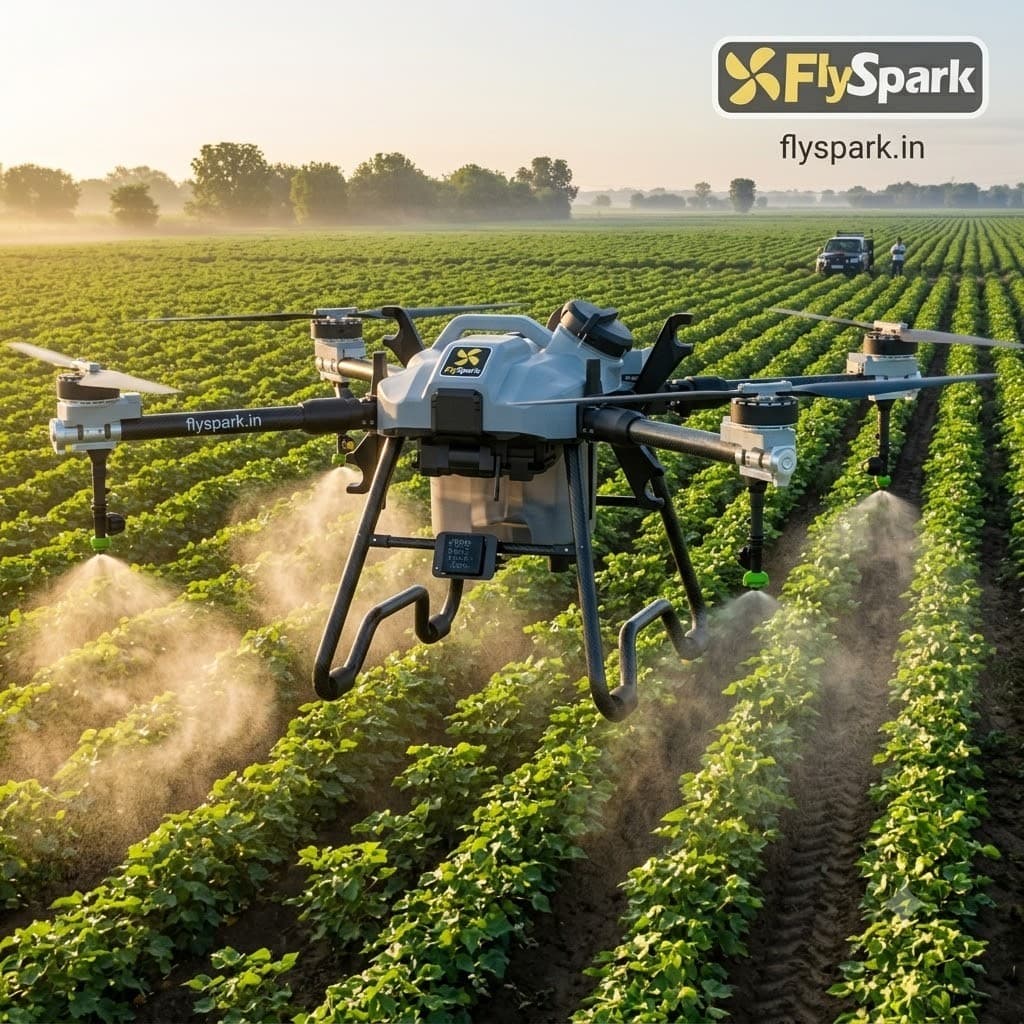

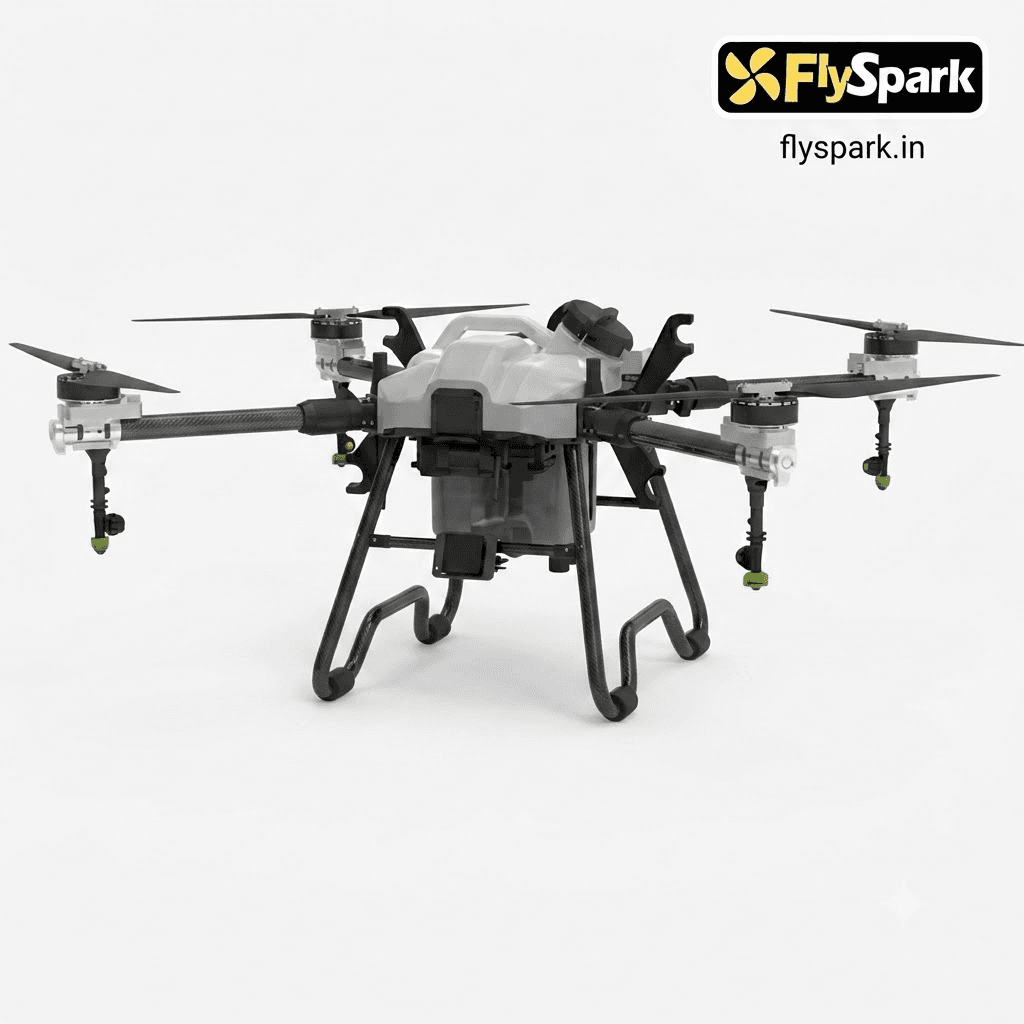

FlySpark X4-15 Agriculture Spraying UAV is a compact professional crop-spraying and spreading drone designed for small farms, orchards, vegetable fields, plantations, seed plots, experimental agriculture, precision spraying, pesticide application, liquid fertilizer spraying and rural agriculture service businesses. It is a lighter and more portable agriculture UAV platform compared with 30L, 40L and 50L spraying drones, while still providing autonomous route operation, terrain-following support, liquid detection, obstacle avoidance, GPS / RTK package options and optional 25L spreading capability.

The aircraft uses a 1625mm symmetric wheelbase, 12S high-voltage battery architecture, XRotor X9 dynamic system with 34-inch propellers and JIYI K++V2 flight-control system. The spraying configuration supports a 15L medicine tank, 15kg loading capacity with support up to 20kg, 3-6m spraying range, maximum 5L/min spraying flow, 1-13m/s flight speed, empty-tank flight time of 15-25 minutes and full-tank flight time of 8-12 minutes. The overview page also lists hover time reference of 8-12 minutes.

The standard ARF package includes the aircraft frame with X9 power system, spark-proof module and K++V2 flight controller, one 12S 5L water pump, four Teejet high-pressure nozzles, H12 remote controller, front obstacle avoidance radar, CAN HUB module, ground-height radar and wooden packing. Complete GPS and RTK packages include two batteries and one charger, with the RTK package adding the online RTK version for higher-precision field operation.

FlySpark X4-15 is suitable for farmers, crop-spraying contractors, agriculture drone service providers, farm equipment dealers, agri-tech teams, farmer producer organizations, research farms, plantations and training centers that need a manageable, compact, lower-capacity spraying platform with professional autonomous spraying features. The optional 25L spreader allows the platform to support compatible dry-material spreading workflows where approved.

• PRODUCT POSITIONING:
• • 15L agriculture spraying drone
• • 25L optional spreading box support
• • 15kg standard loading capacity, up to 20kg as per technical sheet
• • GPS and RTK version options
• • 1625mm wheelbase compact UAV platform
• • Foldable agricultural drone body
• • 12S 16000mAh / 22000mAh battery support
• • XRotor X9 dynamic system
• • 34-inch propeller setup
• • JIYI K++V2 flight-control system
• • Pressure spray and centrifugal spray support
• • 12S 5L water pump and four Teejet nozzles in ARF package
• • 3-6m spraying range
• • Max 5L/min spraying flow
• • Terrain-following support
• • Obstacle avoidance radar support
• • Autonomous route spraying and A/B point operation
• • Breakpoint resume spraying
• • Low-battery and liquid-finish return

• BEST USE CASES:
• • Crop spraying
• • Pesticide spraying
• • Liquid fertilizer spraying
• • Small-farm spraying service
• • Orchard spraying
• • Nursery spraying
• • Vegetable field spraying
• • GPS-based spraying
• • RTK-based precision spraying
• • Optional seed spreading
• • Optional granular material spreading

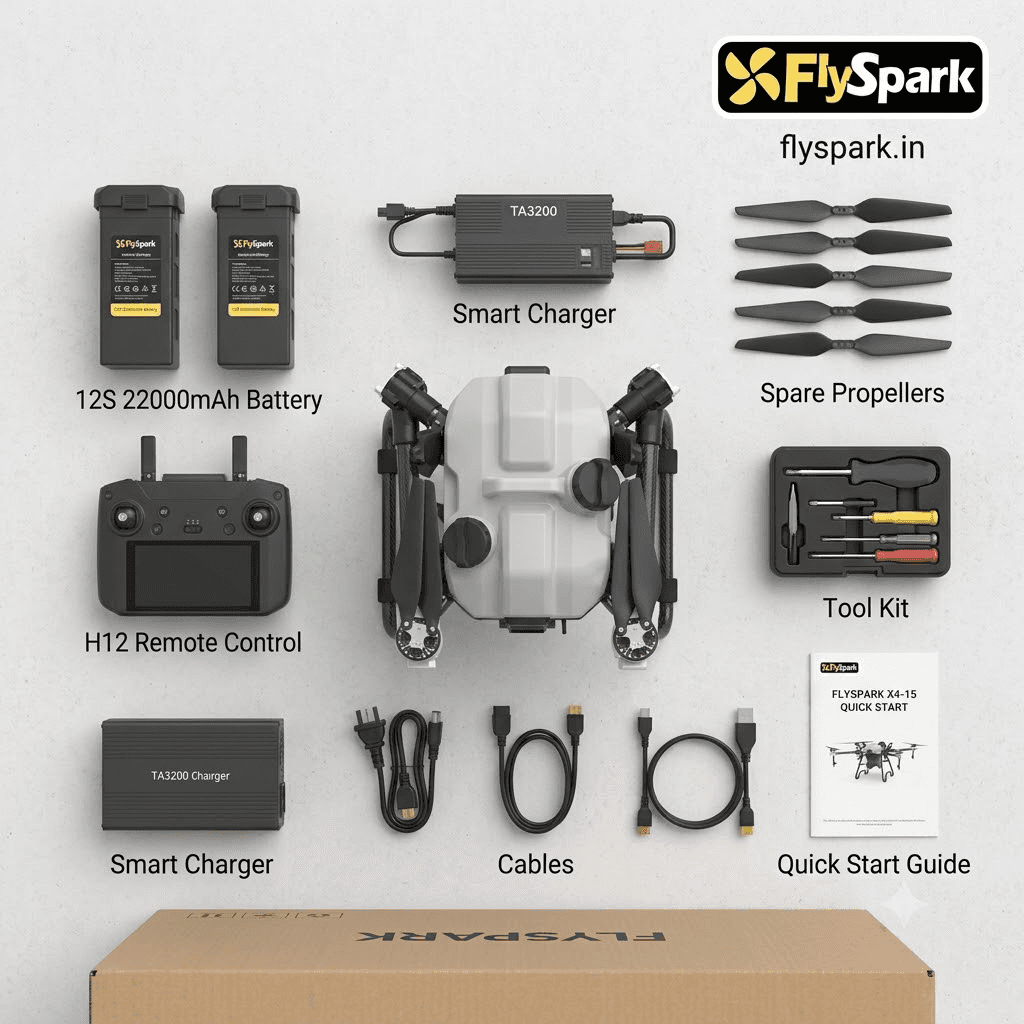

• STANDARD ARF PACKAGE INCLUDED:
• • FlySpark X4-15 complete ARF aircraft frame
• • XRotor X9 power system
• • Spark-proof module
• • JIYI K++V2 flight controller
• • 12S 5L water pump x1
• • Teejet high-pressure nozzle x4
• • H12 remote controller
• • Front obstacle avoidance radar
• • CAN HUB module
• • Ground-height radar
• • Wooden packing box

• GPS COMPLETE PACKAGE:
• • Standard spraying UAV configuration plus 2 batteries and 1 charger — ₹21,09,663

• RTK COMPLETE PACKAGE:
• • GPS complete package plus RTK online version — ₹24,56,141

SOURCE LABEL NOTE: The source file introduction and technical pages identify the product as X4-15. Quotation rows in that file are labelled X4-20 GPS and X4-20 RTK. This listing uses the X4-15 product identity and the quoted prices from that quotation section.

IMPORTANT USE NOTE: This is a professional agriculture spraying UAV for lawful farm, contractor and authorized plant-protection work. Operators must follow DGCA/local drone rules, agricultural spraying regulations, pesticide handling rules, PPE requirements, site permissions, crop safety guidelines, environmental regulations and safe UAV operation practices. Do not exceed listed MTOW. Endurance depends on tank load, batteries, wind, altitude and temperature.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark X4-15? A: FlySpark X4-15 is a compact agriculture spraying UAV designed for crop spraying, plant protection, pesticide spraying, liquid fertilizer application and optional spreading workflows.

• Q: What is the selling price of FlySpark X4-15 GPS complete package?
• A: The listed selling price of the GPS complete package is ₹21,09,663.

• Q: What is the selling price of FlySpark X4-15 RTK complete package?
• A: The listed selling price of the RTK complete package is ₹24,56,141.

• Q: What is the selling price of the standard ARF package?
• A: The listed selling price of the standard ARF package is ₹15,24,501.

Q: Why does the quotation row mention X4-20? A: The source file introduction and technical pages identify the product as X4-15, while the quotation rows mention X4-20. This listing uses the X4-15 product identity and the quoted prices from that quotation section.

• Q: What is the medicine tank capacity?
• A: The listed medicine tank capacity is 15L.

• Q: Does it support spreading?
• A: Yes. The overview lists a 25L sowing/spreading box capacity, and the optional accessories list a 25L spreader.

• Q: What is the loading capacity?
• A: The listed loading capacity is 15kg, with support for 20kg mentioned in the technical table.

• Q: What is the empty takeoff weight?
• A: The listed empty takeoff weight reference is 21kg.

• Q: What is the loaded takeoff weight?
• A: The listed loaded takeoff weight is 36kg with 15kg load.

• Q: What is the wheelbase?
• A: The symmetric wheelbase is 1625mm.

• Q: What is the expanded size?
• A: The expanded size is 1265mm x 1265mm x 686mm.

• Q: What is the folded size?
• A: The folded size is 712mm x 810mm x 766mm.

• Q: What is the aircraft weight without battery?
• A: The aircraft weight without battery is 16.5kg.

• Q: What is the frame weight reference?
• A: The overview page lists a frame weight reference of 8.88kg.

• Q: What battery does it use?
• A: The technical table lists 12S 16000mAh / 22000mAh battery support.

• Q: What is the battery weight?
• A: The 12S 16000mAh battery is listed as 4650g plus/minus 100g, and the 12S 22000mAh battery is listed as 5850g plus/minus 100g.

• Q: What is the operating voltage?
• A: The operating voltage is 44.4V to 50.4V.

• Q: What is the charging time?
• A: The listed charging time is 15 to 25 minutes.

• Q: What is the recharge cycle range?
• A: The listed recharge cycle range is 300 to 500 cycles.

• Q: What is the flight speed?
• A: The listed flight speed is 1m/s to 13m/s.

• Q: What is the spraying width?
• A: The listed spraying width is 3 to 6m.

• Q: What is the maximum spraying flow?
• A: The listed maximum spraying flow is 5L/min.

• Q: What spraying systems are supported?
• A: The platform lists pressure spray and centrifugal spray.

• Q: What pump is included?
• A: The standard ARF package lists one 12S 5L water pump.

• Q: What nozzles are included?
• A: The standard ARF package lists four Teejet high-pressure nozzles.

• Q: What is the empty tank flight time?
• A: The listed empty tank flight time is 15 to 25 minutes.

• Q: What is the full tank flight time?
• A: The listed full tank flight time is 8 to 12 minutes.

• Q: What is the hover time reference?
• A: The overview page lists 8 to 12 minutes hover time.

• Q: What is the operational efficiency?
• A: The listed operational efficiency is 1 to 2 mu per minute.

• Q: What flight controller is used?
• A: The listed flight controller is JIYI K++V2.

• Q: What dynamic system is used?
• A: The listed dynamic system is XRotor X9 with 34-inch propeller.

• Q: What remote controller is included?
• A: The standard ARF package lists an H12 remote controller.

• Q: Does the drone support autonomous route spraying?
• A: Yes. Standard features include route setting, fully automatic flight operation and A/B point operation.

• Q: Does the drone support one-button takeoff and landing?
• A: Yes. One-button takeoff and landing are listed as standard configuration features.

• Q: Does the drone support breakpoint resume spraying?
• A: Yes. Continue spraying at break point is listed as a standard feature.

• Q: Does it return automatically when liquid is finished?
• A: Yes. Auto return when liquid is finished is listed as a standard feature.

• Q: Does it return automatically on low battery?
• A: Yes. Low-battery return and record-point setting are listed as standard features.

• Q: Does it have liquid detection?
• A: Yes. Liquid detection and break-point record setting are listed.

• Q: Does it support terrain following?
• A: Yes. Height-control radar, stable altitude setting and terrain-following function are listed.

• Q: Does it have obstacle avoidance?
• A: Yes. Front obstacle avoidance radar and surrounding obstacle detection are listed.

• Q: Does it support dual pump mode?
• A: Yes. Dual pump mode is listed as a standard configuration feature.

• Q: Does it have motor sequence detection?
• A: Yes. Motor sequence detection and direction detection are listed.

Q: Does it support camera recording? A: The standard configuration list mentions camera recording and real-time transmission availability, but camera hardware is not separately specified in the supplied quotation.

Q: What is included in the standard ARF package? A: The standard ARF package includes aircraft frame with X9 power, spark-proof module, K++V2 flight controller, 12S 5L water pump, four Teejet nozzles, H12 remote controller, front obstacle avoidance radar, CAN HUB module, ground-height radar and wooden box.

• Q: What is included in the GPS complete package?
• A: The GPS complete quotation includes two batteries and one charger in addition to the spraying UAV configuration.

• Q: What is different in the RTK version?
• A: The RTK complete package includes the RTK online version for higher-precision positioning.

• Q: Are optional accessories available?
• A: Yes. Optional accessories include 12S 22000mAh battery, TA3200 smart charger, RTK online version and 25L spreader.

• Q: What is the converted price of an extra 12S 22000mAh battery?
• A: The listed selling price is ₹2,00,187.

• Q: What is the converted price of the TA3200 smart charger?
• A: The listed selling price is ₹1,84,788.

• Q: What is the converted price of the RTK online option?
• A: The listed selling price is ₹3,46,478.

• Q: What is the converted price of the 25L spreader?
• A: The listed selling price is ₹1,60,150.

Q: Is this suitable for pesticide spraying? A: Yes. It is designed for agricultural spraying workflows, subject to approved chemicals, correct nozzle selection, crop requirements and local agricultural rules.

• Q: Is this suitable for fertilizer spraying?
• A: Yes. It can be used for liquid fertilizer spraying where material compatibility, flow rate and field conditions are suitable.

• Q: Can it be used for spreading dry material?
• A: Yes, with the optional 25L spreader, subject to material compatibility and approved farm requirement.

• Q: Is this better for small farms than a 30L or 40L drone?
• A: Yes. The compact 15L platform is easier to manage for small fields, orchards, nurseries and lower-volume spraying operations.

• Q: Can FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support configuration, deployment planning, training and after-sales integration support.

Q: What legal and operational precautions are required? A: Operators must follow DGCA/local drone rules, agricultural spraying regulations, pesticide handling rules, PPE requirements, site permissions, crop safety guidelines, environmental regulations and safe UAV operation practices.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, wrong charging, battery abuse, chemical corrosion, pump clogging, nozzle damage, water ingress, unauthorized modification, overload and unsafe operation may not be covered.
