FlySpark M18ZD1 Single-Channel Drone Smoke Canister Dropper | M18-Class Canister, 48×48×88mm, 5V, PWM / Light-Sensor Trigger, DJI Air & Mavic & Quick-Release Versions

FlySpark M18ZD1 Single-Channel Drone Smoke Canister Dropper is a compact drone payload release unit that carries one M18-class smoke canister under a small multirotor and releases it on command. The dropper body measures just 48 × 48 × 88mm, runs on 5V and weighs approx. 77g in the LED version including its strap, so it fits under DJI Air and Mavic camera drones as well as FPV-class and custom-built aircraft.

The M18ZD1 is part of the FlySpark UAV Payload Droppers & Release Systems range, supplied and supported in India by AnuShakti Infotech Pvt. Ltd., with export enquiries welcome. It is offered in three versions: M18ZD1-LED-V1 with a light-sensor trigger for DJI Air 2 / Air 3 and Mavic 2 / 3 / 4, M18ZD1-PWM-V1 for PWM-signal aircraft, and M18ZD1-SQ-V1 with a quick-release mount.

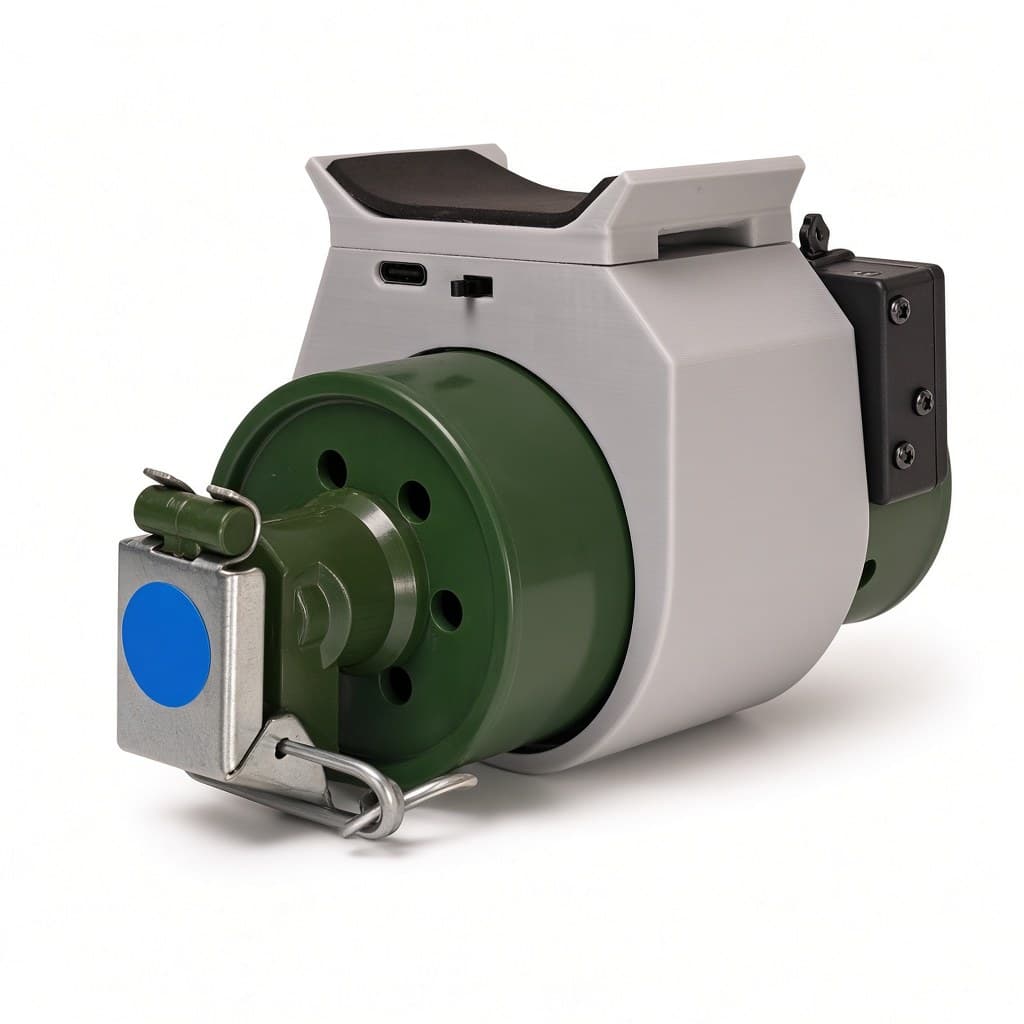

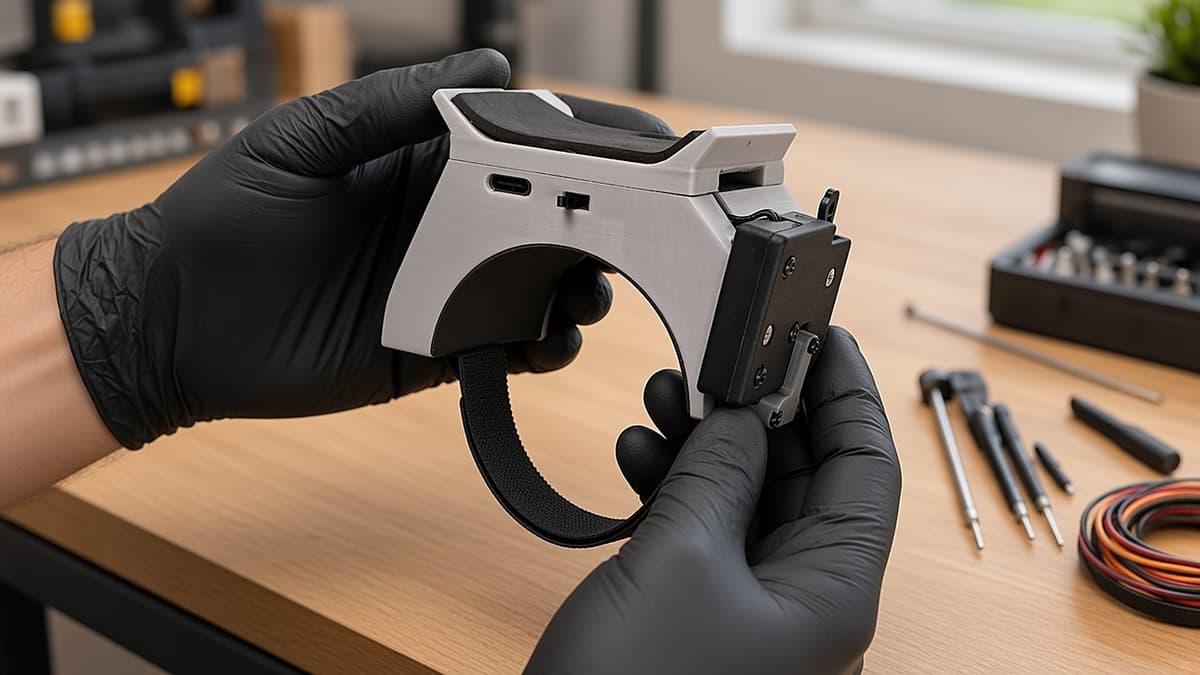

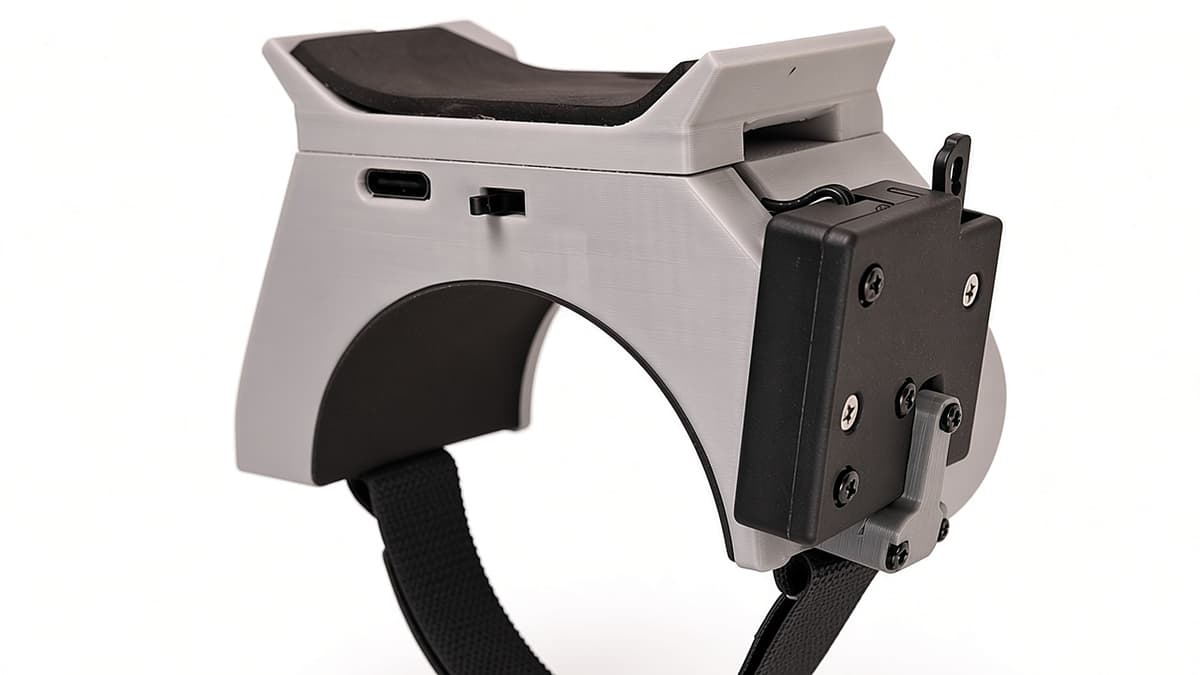

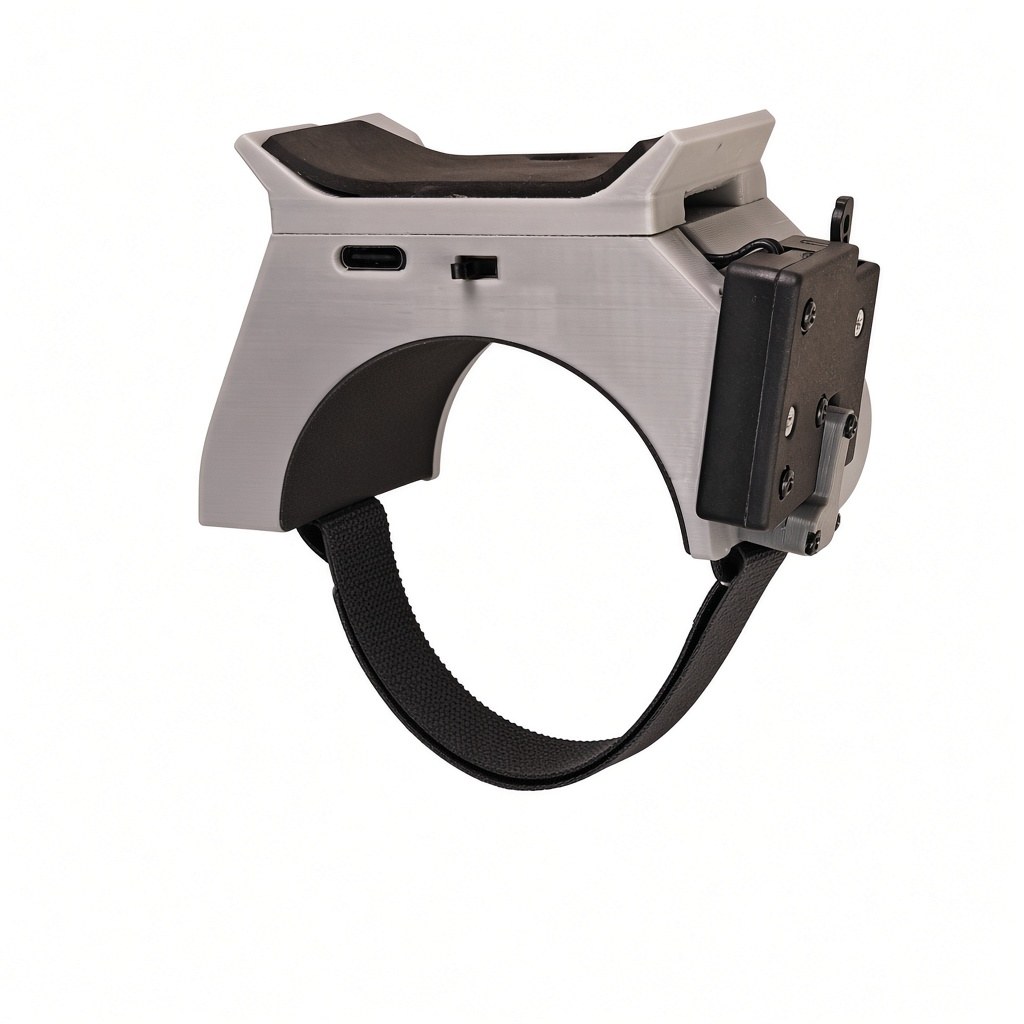

A curved cradle conforms to the canister body and a side-mounted servo latch holds it securely in flight. A foam saddle on top seats firmly against the aircraft belly, and the unit is fixed with a strap or zip-ties, with no drilling or permanent modification to the drone.

WHY CHOOSE THE M18ZD1 DRONE SMOKE DROPPER

Smoke is still the fastest way to show a ground team, boat crew or helicopter pilot exactly where to go and which way the wind is blowing. The M18ZD1 lets a small drone place that marker precisely, from a safe stand-off, in seconds. Because the LED version is triggered by the drone’s own auxiliary light, it can be fitted to a standard DJI Air or Mavic in minutes without opening the aircraft or adding any wiring.

For FPV-class and custom-built aircraft, the PWM version connects to a spare servo output so the release can be mapped to any transmitter switch, and the SQ version adds a quick-release mount so a crew can swap or reload droppers quickly between sorties.

M18ZD1 KEY FEATURES

• • Single-channel release for one M18-class smoke canister

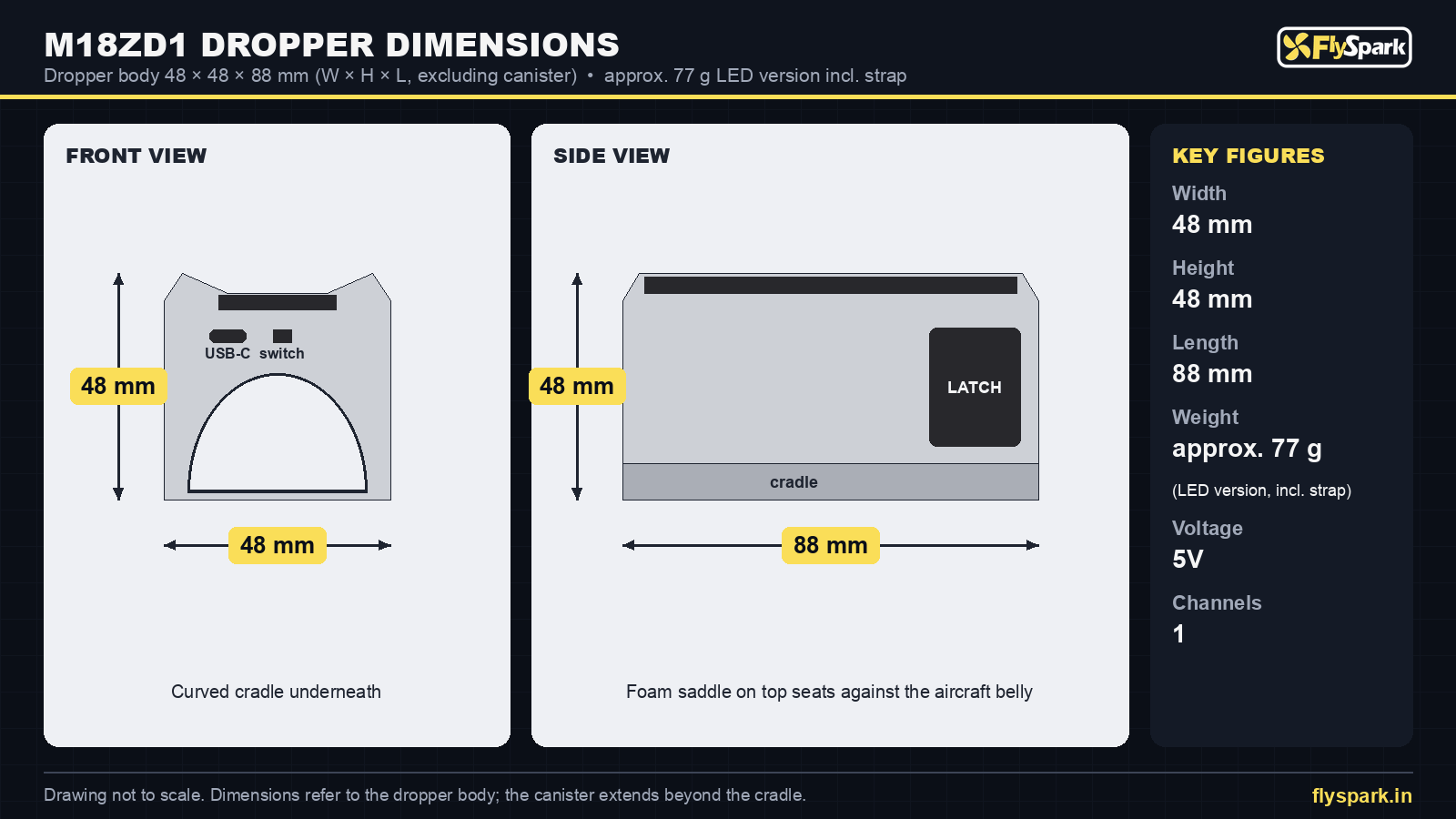

• • Compact 48 × 48 × 88mm dropper body
• • Approx. 77g (LED version, including strap)
• • 5V operation on all versions
• • LED version: light-sensor trigger from the drone’s bottom auxiliary light, no wiring
• • PWM version: servo signal from flight controller or receiver
• • SQ version: quick-release mount for fast swaps and reloads
• • Curved cradle conforms to the canister for a secure hold in flight
• • Foam saddle on top seats firmly against the aircraft belly
• • Side-mounted servo latch for a clean, single-action release
• • USB-C port and on/off slide switch on the housing
• • Strap / zip-tie mounting, no tools or drilling needed
• • Fits DJI Air 2 / Air 3 and Mavic 2 / 3 / 4 (LED version)
• • Fits FPV-class and custom-built PWM drones (PWM / SQ versions)

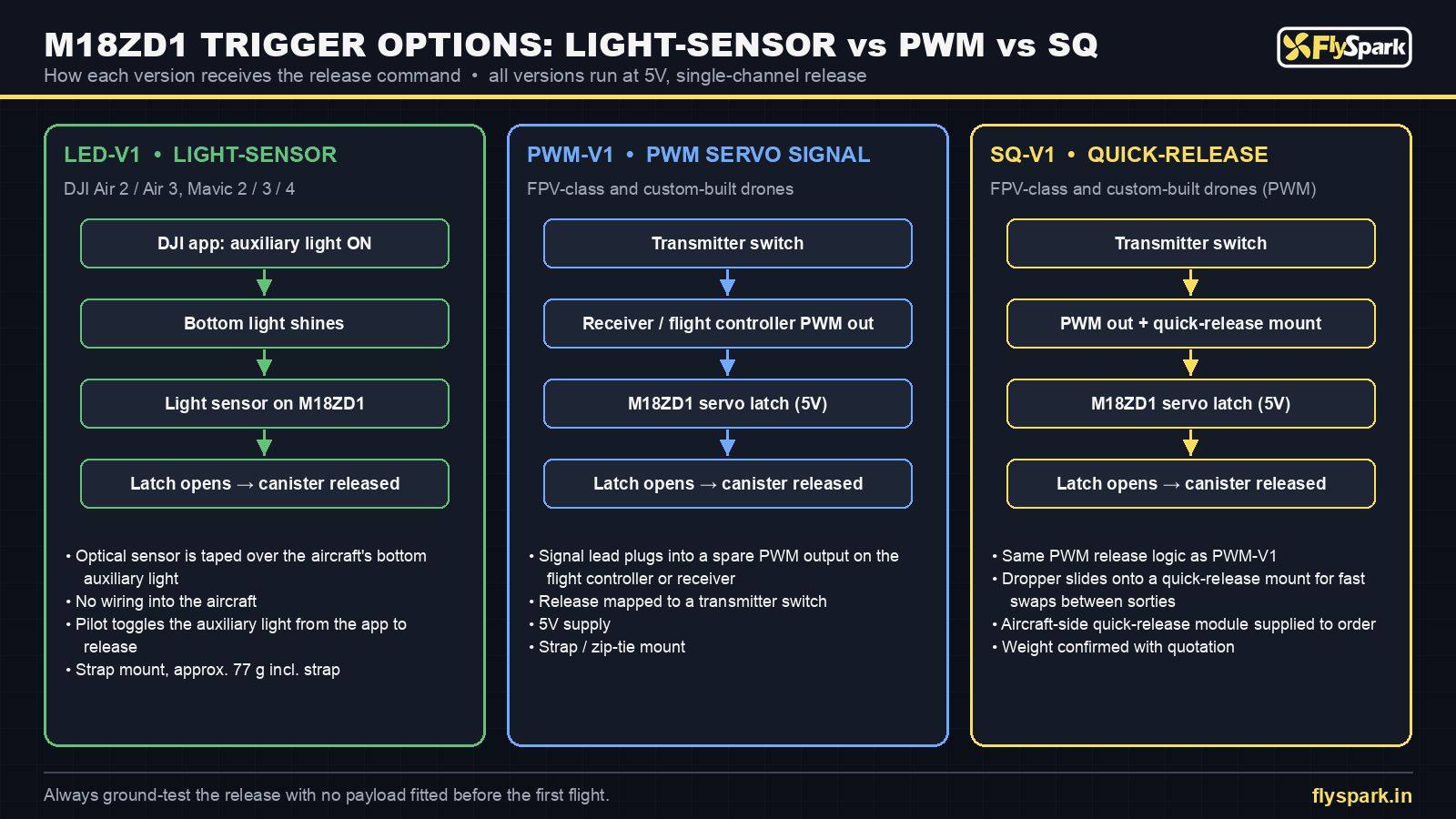

HOW THE M18ZD1 DROPPER WORKS

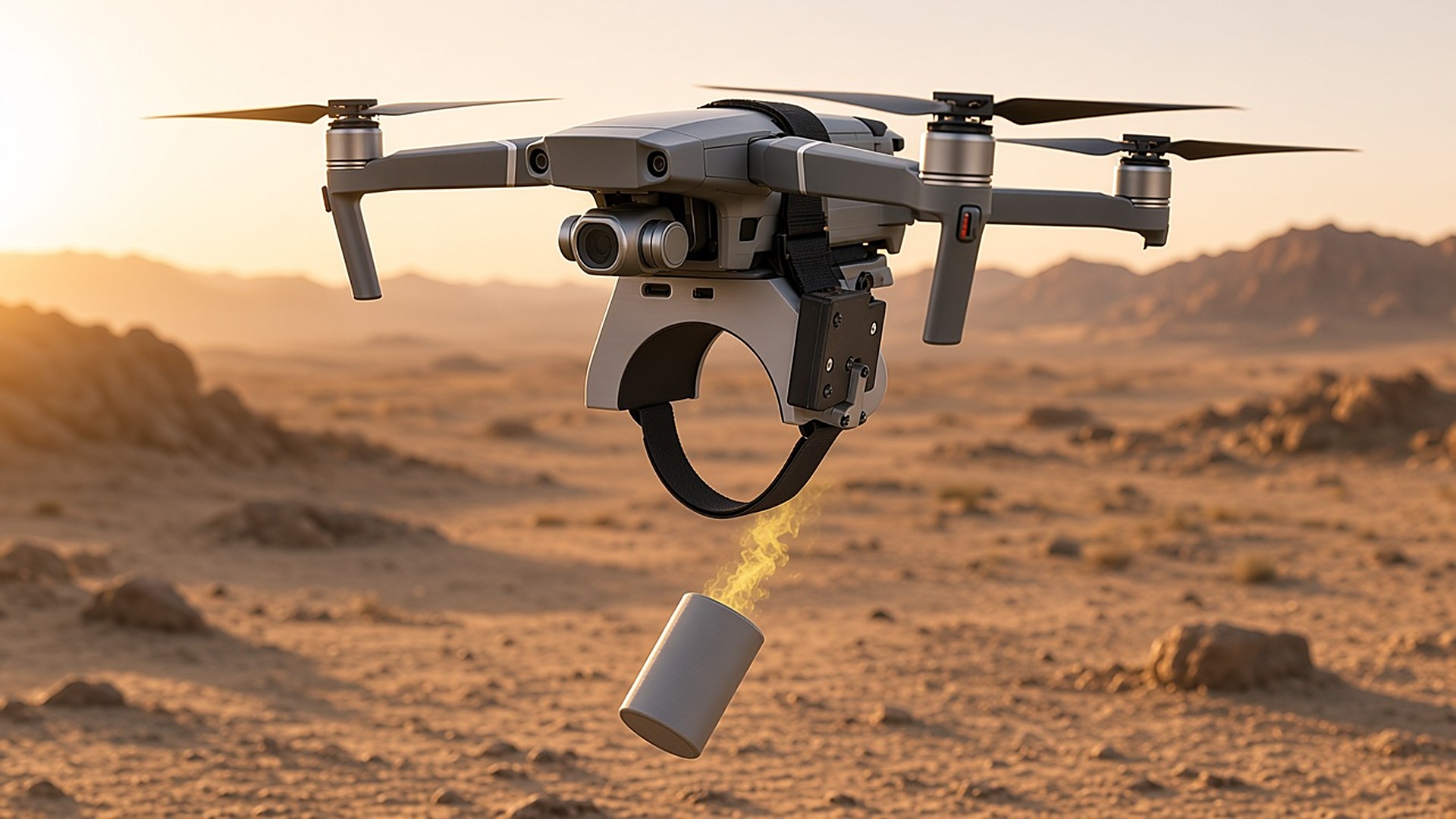

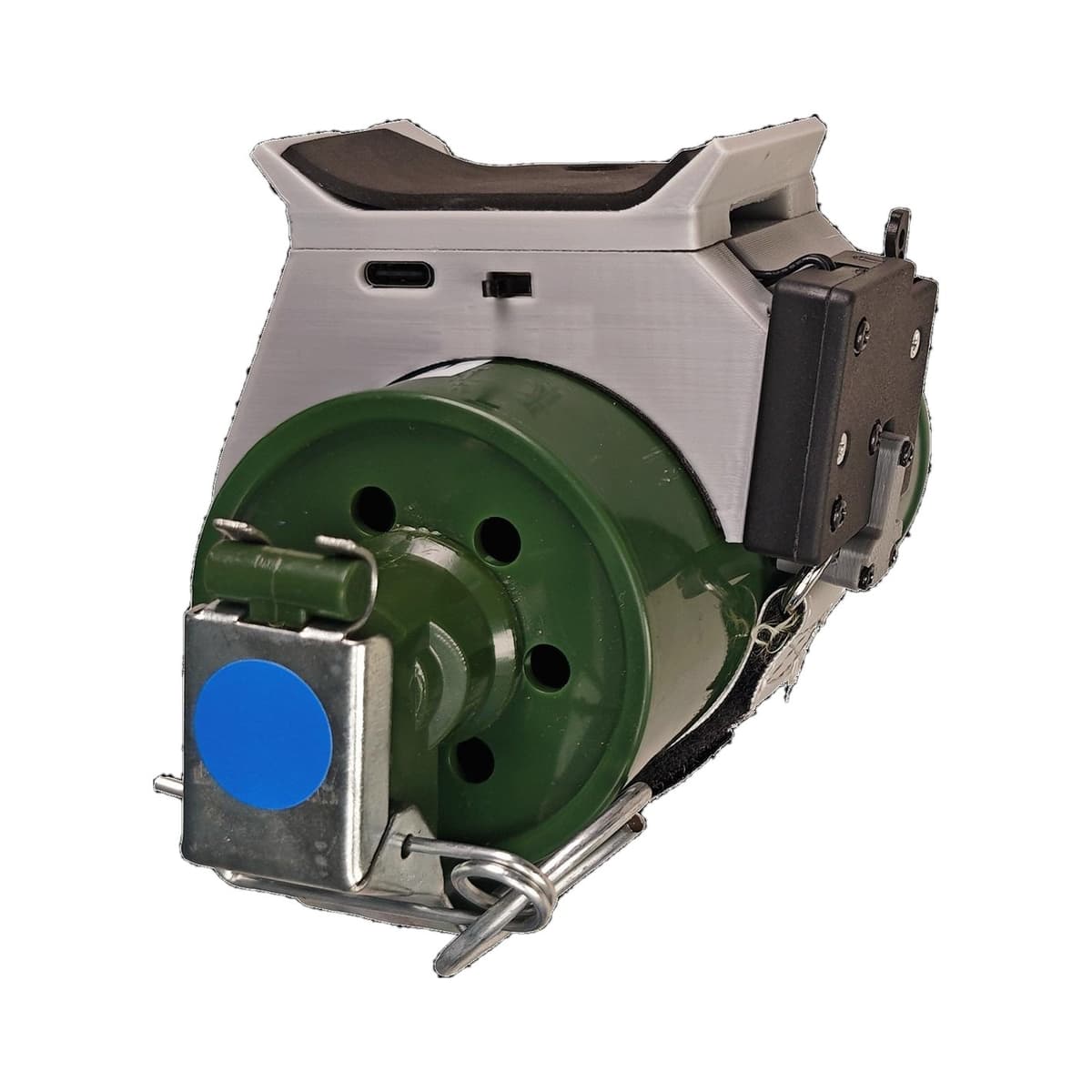

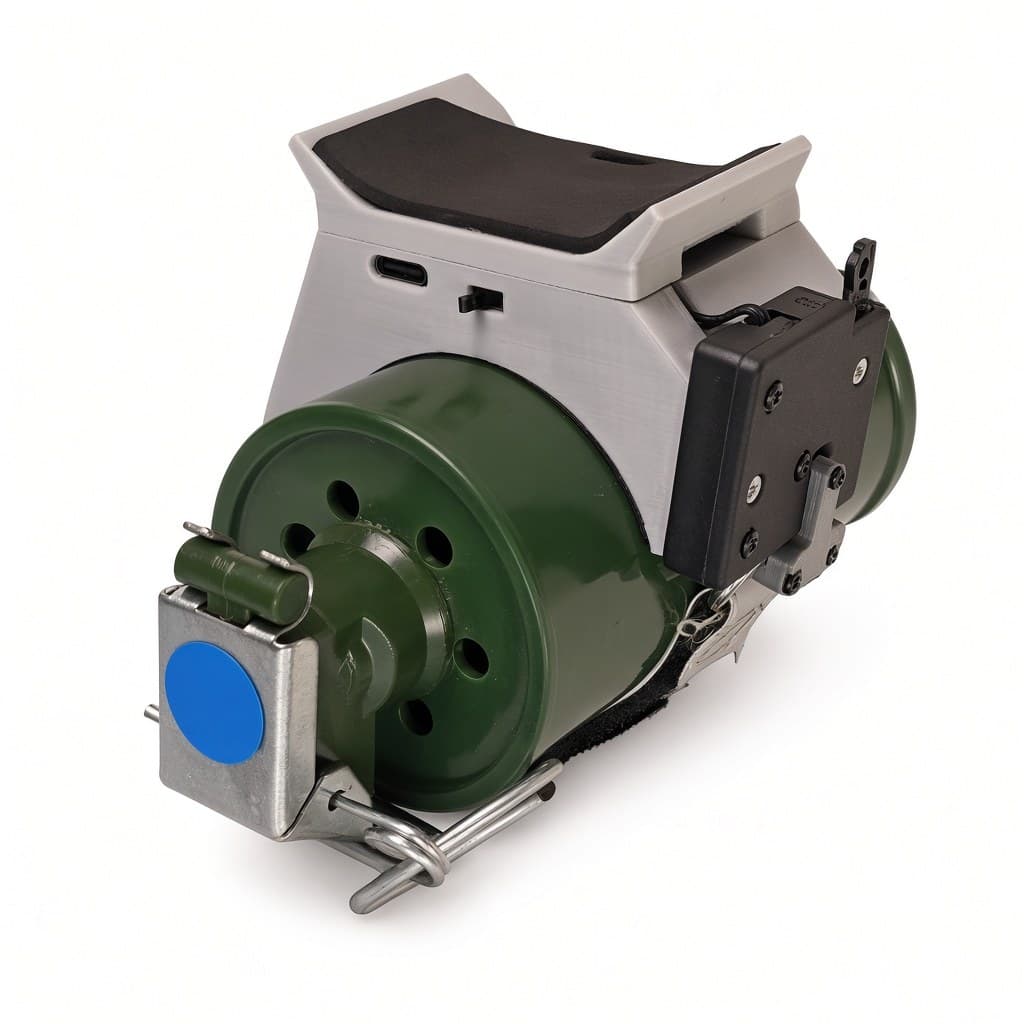

The M18ZD1 holds the canister in its curved cradle with a single servo-driven latch. When the release command arrives, the latch opens and the canister falls clear in one action.

• • LED-V1: the optical sensor is taped over the drone’s bottom auxiliary light; switching the light on from the flight app triggers the release
• • PWM-V1: a 5V PWM servo signal from the flight controller or receiver drives the latch
• • SQ-V1: the same PWM release, with the dropper fitted on a quick-release mount

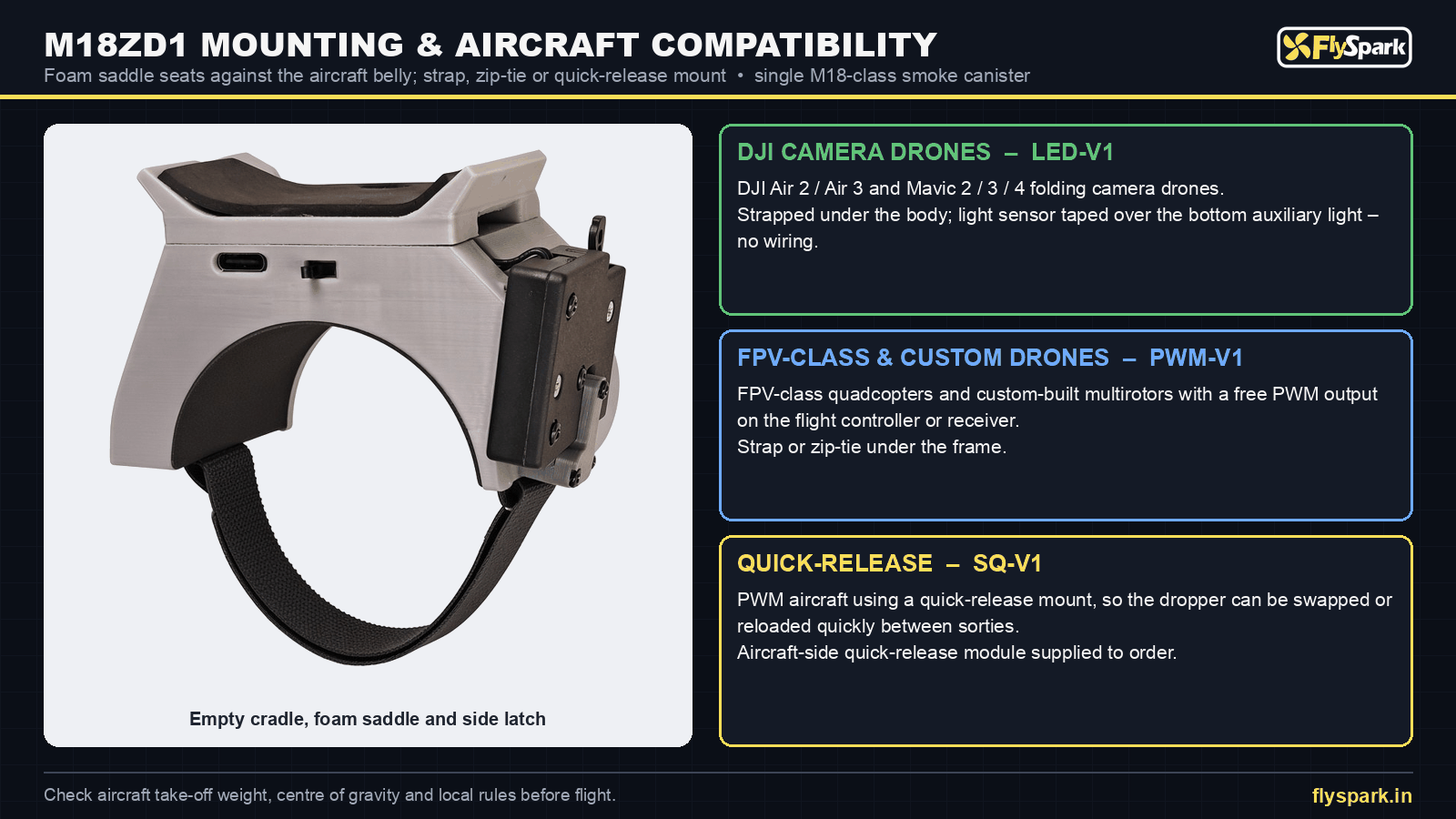

COMPATIBLE AIRCRAFT & MOUNTING

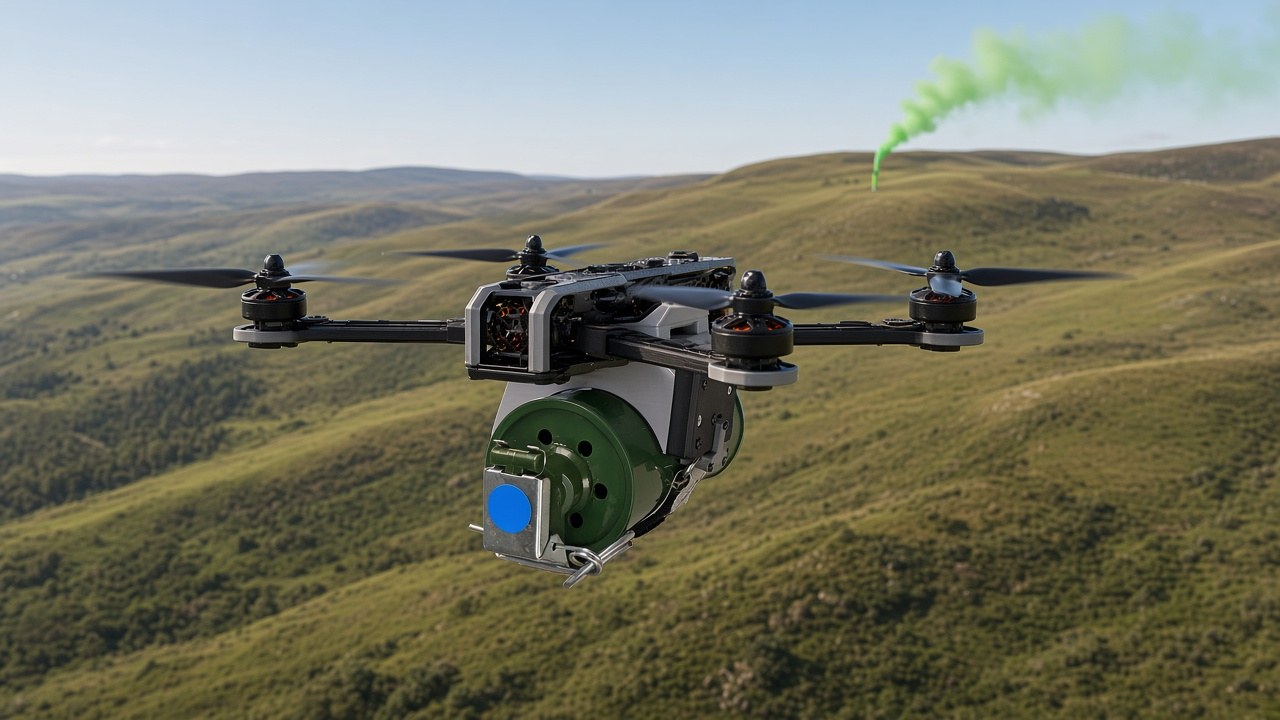

The LED version is listed for DJI Air 2 / Air 3 and DJI Mavic 2 / 3 / 4 folding camera drones and needs no electrical connection to the aircraft. The PWM and SQ versions suit FPV-class quadcopters and custom-built multirotors with a free PWM output. Always confirm that the aircraft’s take-off weight and balance remain within limits with the canister fitted.

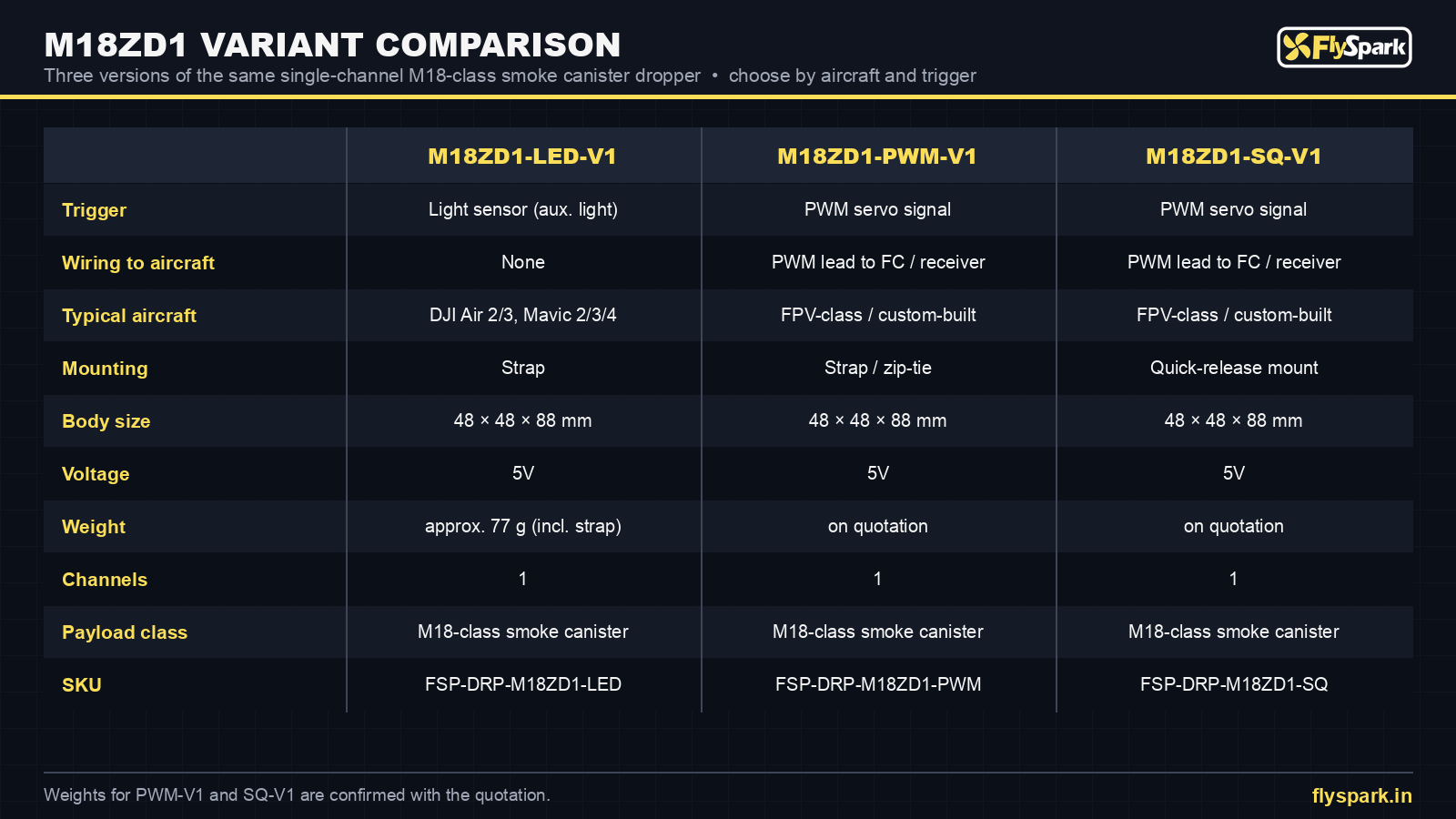

M18ZD1 VARIANTS

• • M18ZD1-LED-V1 – light-sensor trigger, DJI Air 2 / Air 3, Mavic 2 / 3 / 4, approx. 77g incl. strap
• • M18ZD1-PWM-V1 – PWM servo signal, FPV-class and custom-built drones, strap / zip-tie mount
• • M18ZD1-SQ-V1 – PWM servo signal with quick-release mount, FPV-class and custom-built drones

DEFENCE & MILITARY APPLICATIONS

For armed forces, paramilitary, police and government security units, the M18ZD1 is a light, quick-fit aerial smoke marking tool for signalling, marking and training tasks.

• • Marker and screening smoke for landing zones, drop zones and rally points
• • Signalling and wind-direction indication for helicopter and UAV recovery
• • Inert training payload drops for UAV operator and payload-release training
• • Marking search positions during search and rescue of personnel
• • Emergency resupply marking for tourniquet kits, batteries, radios and water purification tabs
• • Sensor, beacon and relay emplacement drills on light airframes
• • Decoy and reflector release trials
• • EOD and CBRN team training: marking hazard areas and safe lanes
• • Perimeter-sensor seeding exercises
• • Integration of other authorised payloads by the end user in accordance with national law and procurement rules

CIVILIAN & COMMERCIAL APPLICATIONS

For rescue services, utilities, research teams and professional integrators, the M18ZD1 turns a small drone into a precise aerial smoke marker and light payload release system.

• • Search and rescue: marking a casualty or missing-person location for ground teams

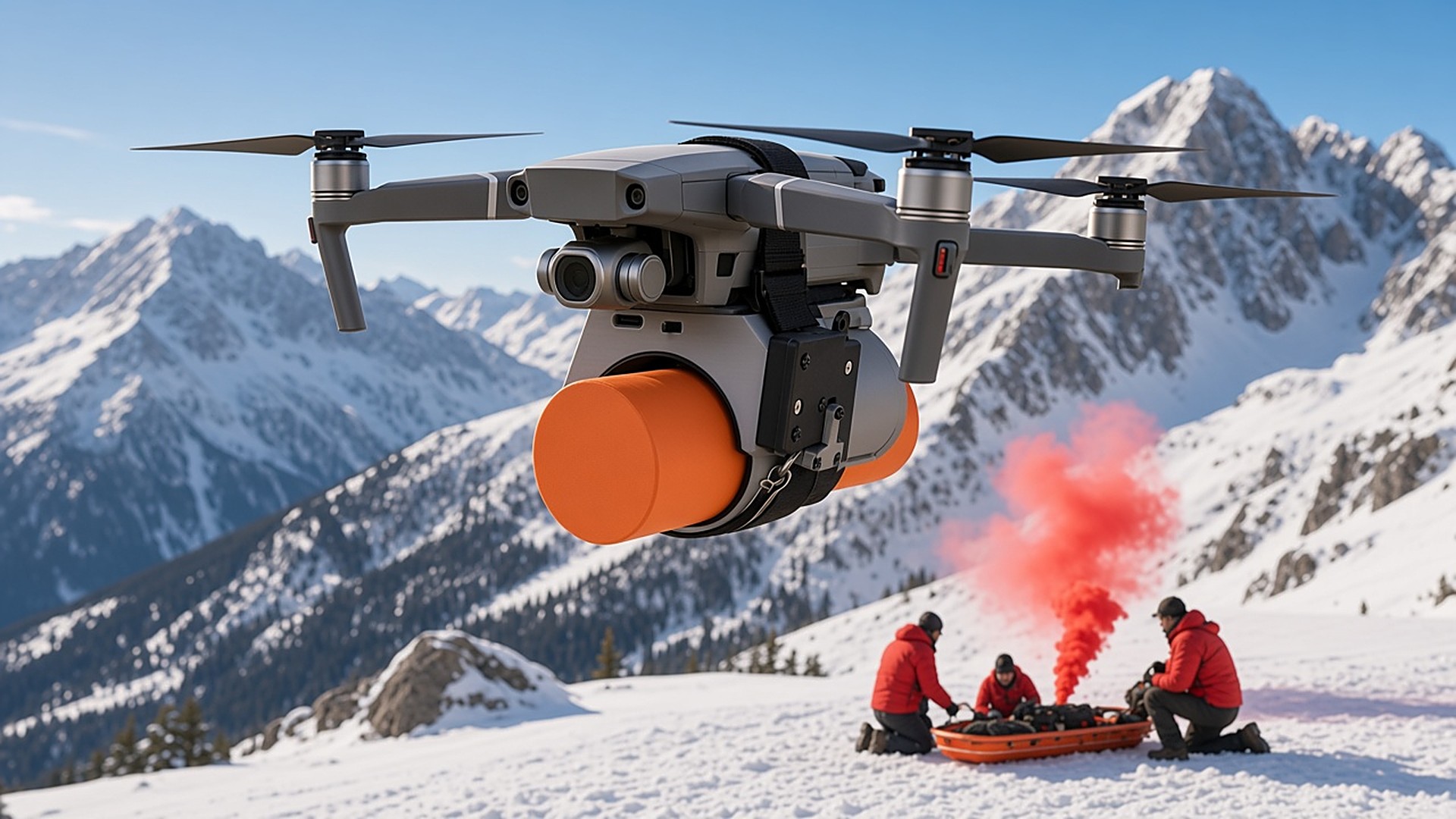

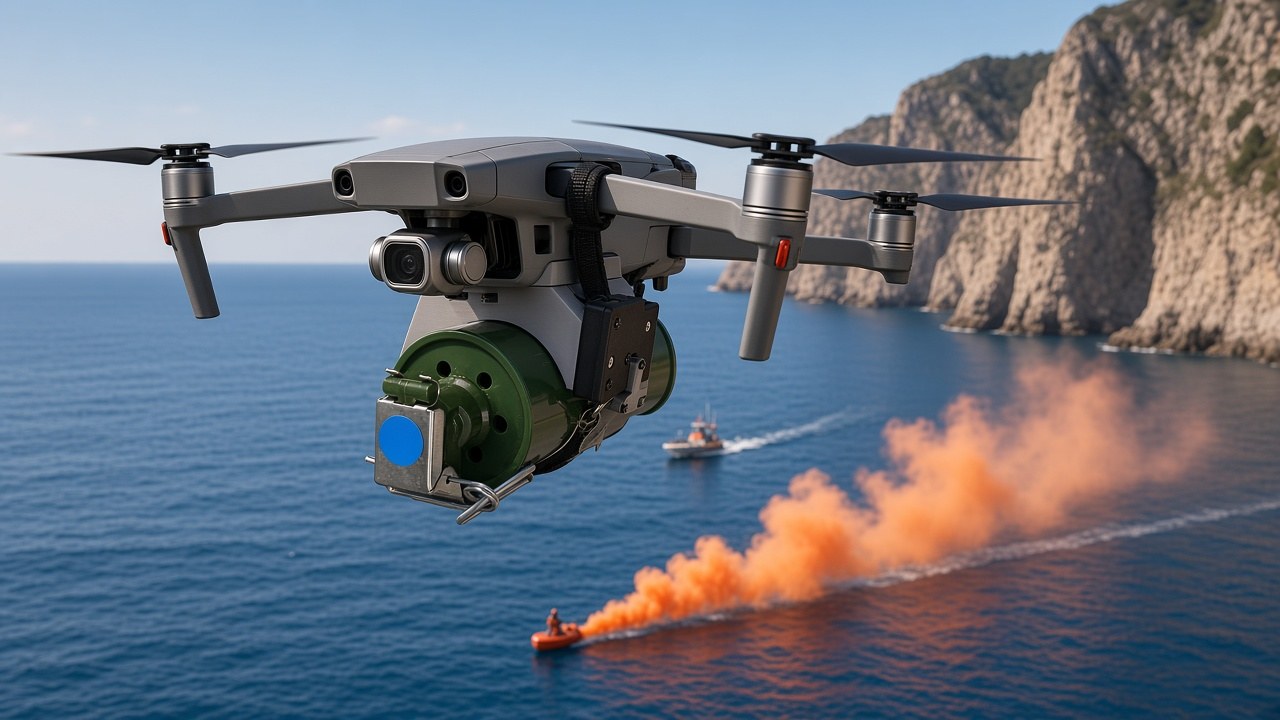

• • Mountain and maritime rescue: smoke marking for boats and helicopters
• • Utility work: light pilot-line drops for power-line stringing
• • Firefighting: wind-direction smoke for pilots and incident commanders
• • Agriculture: seed balls and bio-control capsules of suitable size
• • Fishing bait drops
• • Wildlife research: marker and small sensor drops
• • Events and film production: coloured smoke effects where permitted
• • University and institute research on drone payload release

COMPARE THE FLYSPARK DROPPER RANGE

The M18ZD1 is the single-channel choice for M18-class smoke canisters. For more payloads per sortie, a multi-channel or parallel-rack dropper fits better, while the SMOKER2 produces smoke without releasing anything from the aircraft.

• • FlySpark ZD1-V3 – single-channel dropper with a curved cradle, 50 × 50 × 70mm, approx. 50g
• • FlySpark ZD2-V3 – dual-channel dropper with two independently controlled releases, 90 × 34 × 48mm
• • FlySpark SMOKER2 – on-board smoke generator for in-flight smoke trails, 110 × 48 × 73mm
• • FlySpark M18SD – 2/4/6/8-channel parallel-rack dropper for several M18-class smoke canisters
• • FlySpark ZD4 – 4-channel CRSF dropper, 90 × 146 × 48mm, approx. 120g
• • FlySpark XD2-V2 – dual-channel safety-pin dropper for DJI Mavic 3 and PWM drones

STANDARD SUPPLY

• • FlySpark M18ZD1 dropper in the selected version (LED-V1, PWM-V1 or SQ-V1)
• • Mounting strap (LED version) or strap / zip-ties
• • PWM signal lead (PWM-V1 and SQ-V1)
• • Quick-start and safety guide
• • Smoke canisters are not included

IMPORTANT USE NOTE

The M18ZD1 is supplied only to verified end users. The buyer is responsible for using only lawful payloads, obtaining all airspace and operating permissions, and complying with applicable export controls. Payload fit is confirmed by FlySpark for the end user’s approved payload. Never fly over people, and always ground-test the release with no payload fitted before flight.

FREQUENTLY ASKED QUESTIONS

Q: What is a drone smoke canister dropper? A: A drone smoke canister dropper is a small release mechanism fitted under a drone that holds a smoke canister and lets the pilot release it on command. It is used to mark landing zones, drop zones, wind direction and casualty or search positions from the air.

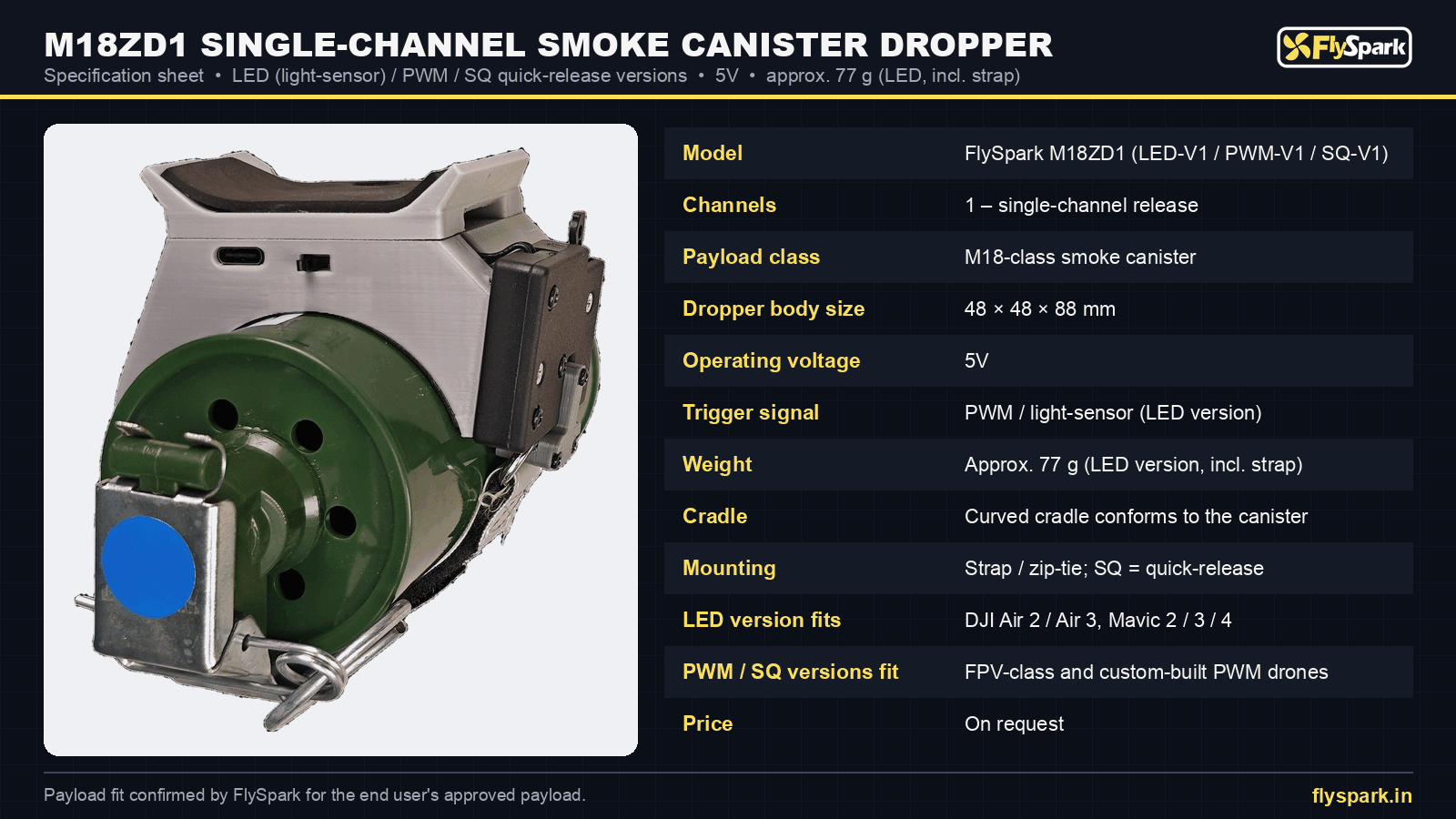

Q: What is the FlySpark M18ZD1? A: The FlySpark M18ZD1 is a single-channel drone payload dropper sized for one M18-class smoke canister. The dropper body measures 48 × 48 × 88mm, runs on 5V and weighs approx. 77g in the LED version including its strap.

Q: Which payloads does the M18ZD1 carry? A: It is designed for M18-class smoke canisters, held in a curved cradle that conforms to the canister body. Payload fit is confirmed by FlySpark for the end user’s approved payload before supply.

Q: What is the difference between the LED, PWM and SQ versions? A: M18ZD1-LED-V1 is triggered by a light sensor over the drone’s bottom auxiliary light and needs no wiring. M18ZD1-PWM-V1 takes a PWM servo signal from the flight controller or receiver. M18ZD1-SQ-V1 uses the same PWM release with a quick-release mount for fast swaps.

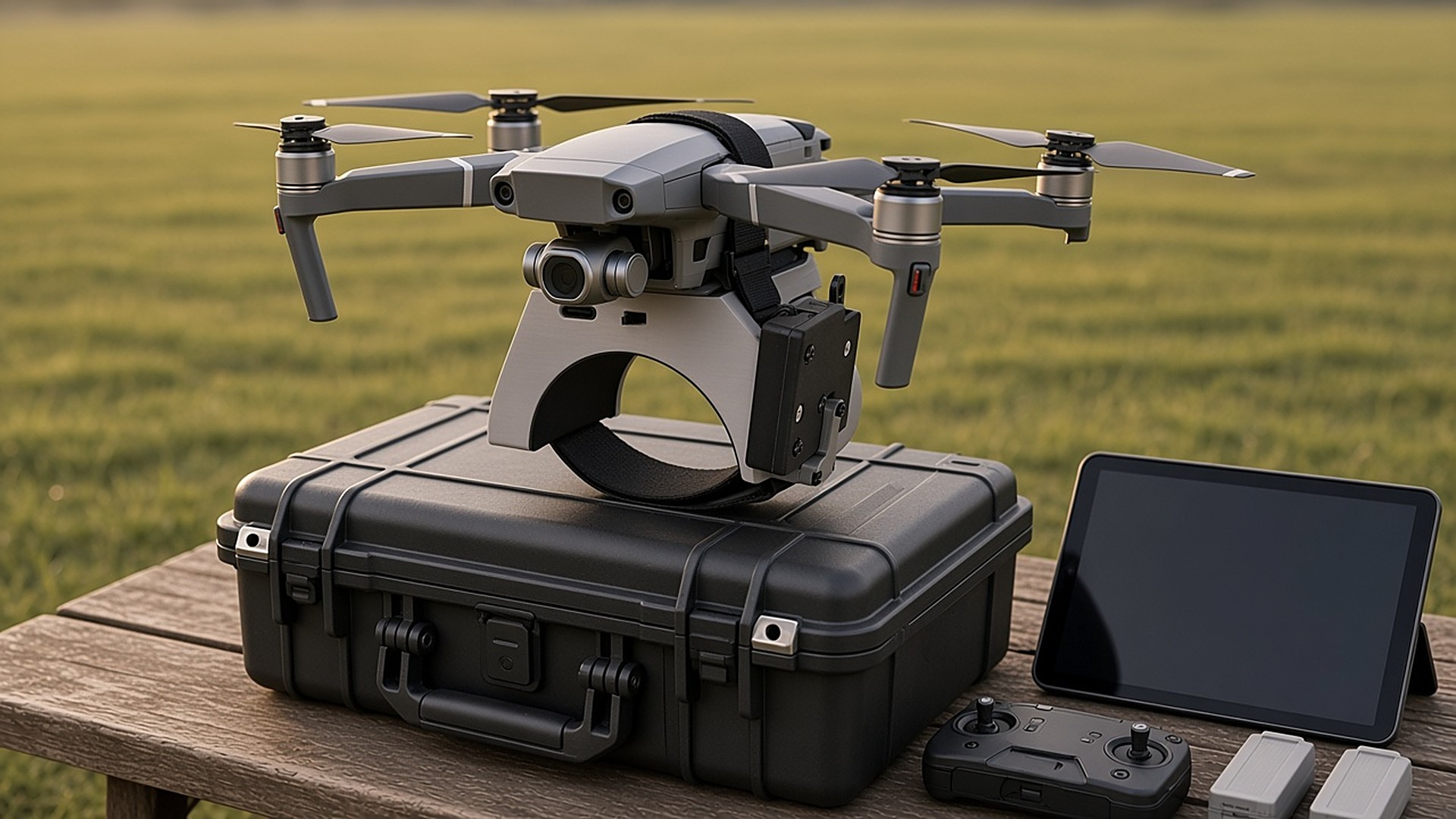

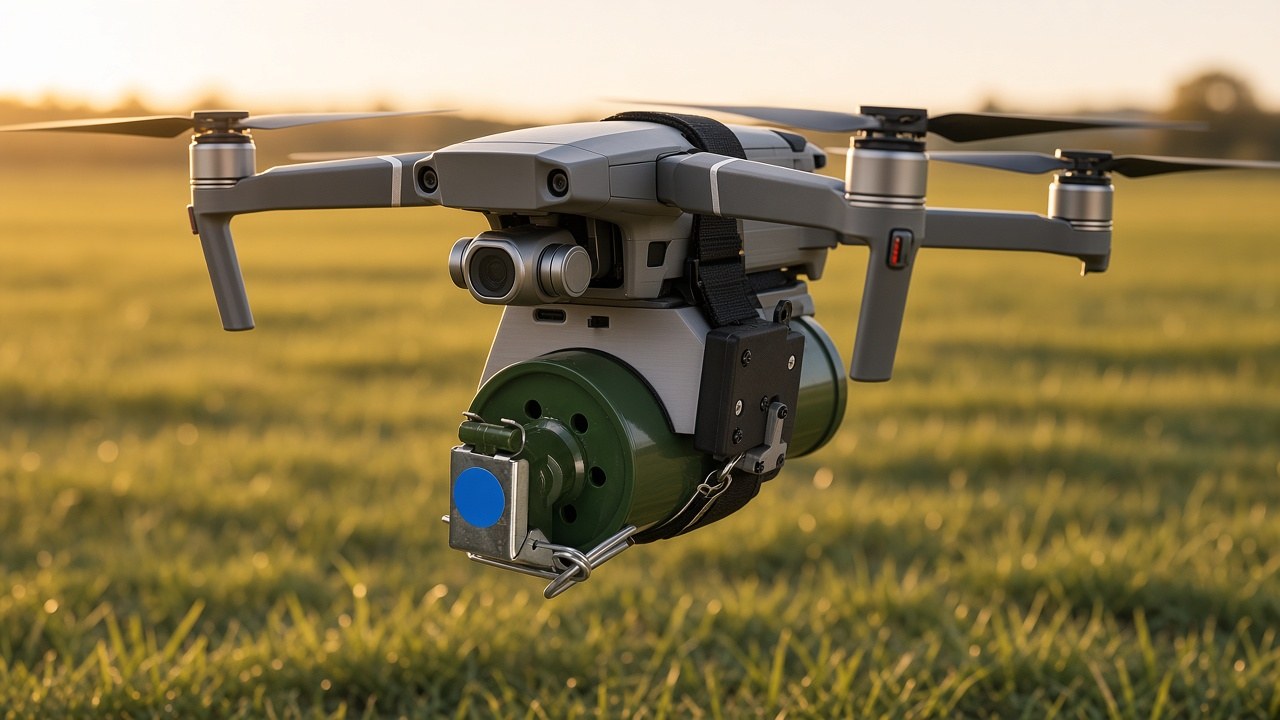

Q: Which DJI drones does the LED version fit? A: The M18ZD1-LED-V1 is listed for DJI Air 2 / Air 3 and DJI Mavic 2 / 3 / 4 folding camera drones. It straps under the aircraft body and the optical sensor is taped over the bottom auxiliary light.

Q: How does the light-sensor (LED) trigger work? A: The pilot switches the aircraft’s bottom auxiliary light on from the flight app. The M18ZD1 sensor detects the light and opens the latch, releasing the canister. No connection to the drone’s electronics is required.

Q: Which drones suit the PWM and SQ versions? A: FPV-class quadcopters and custom-built multirotors that have a free PWM output on the flight controller or receiver. The release is mapped to a transmitter switch.

Q: What are the dimensions and weight? A: The dropper body is 48 × 48 × 88mm. The LED version weighs approx. 77g including the strap. Weights for the PWM-V1 and SQ-V1 versions are confirmed with the quotation.

• Q: What voltage does the M18ZD1 need?
• A: All three versions operate at 5V. The PWM versions take 5V and signal from the aircraft’s servo output.

• Q: How many canisters can it carry?
• A: One. The M18ZD1 is a single-channel dropper. For several canisters on one aircraft, FlySpark offers the multi-channel M18SD parallel-rack dropper series.

Q: How is the M18ZD1 mounted on the drone? A: A foam saddle on top seats against the aircraft belly and the unit is held with a strap or zip-ties. The SQ version mounts on a quick-release base; the aircraft-side quick-release module is supplied to order.

Q: Does the dropper affect flight performance? A: Yes, any payload reduces flight time and changes the centre of gravity. Check the aircraft’s take-off weight limit and balance with the canister fitted, and test hover before a mission.

Q: Can the M18ZD1 drop items other than smoke canisters? A: The cradle is shaped for M18-class canisters. Other light items of similar size, such as marker beacons or small rescue packs, may fit; FlySpark confirms payload fit for the end user’s approved payload.

Q: Is the M18ZD1 suitable for military and police use? A: Yes, for non-destructive tasks such as marker and screening smoke, landing-zone and drop-zone marking, signalling and training. Supply is limited to verified end users.

Q: Can it be used to carry weapons? A: The M18ZD1 is supplied as a smoke canister and light payload release device. Integration of any other payload must be lawful, comply with national law, procurement rules and export controls, and is the responsibility of the authorised end user.

• Q: What is the drone smoke dropper price in India?
• A: Price is on request and depends on version and quantity. Contact FlySpark on WhatsApp or email for a quotation in INR or for export.

Q: What is the lead time, and do you export? A: Lead time is confirmed with the quotation. FlySpark supplies across India and handles export enquiries subject to end-user documentation and applicable export controls.

• Q: Is a smoke canister included?
• A: No. Smoke canisters are not supplied with the dropper and must be sourced by the end user through lawful channels.

Q: How should I test the dropper before flight? A: Power the dropper with no canister fitted, trigger the release from the ground several times, then load the canister and do a low hover test over a clear area before the mission.

Q: How does the M18ZD1 compare with the SMOKER2? A: The M18ZD1 releases a complete M18-class canister to the ground. The SMOKER2 is a smoke generator that stays on the aircraft and produces a smoke trail in flight.

• Q: Does FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. helps with version selection, mounting, PWM channel setup, ground testing and operator briefing.

Q: What warranty is included? A: Warranty covers manufacturing defects for 1 year under approved use and normal operating conditions. Crash damage, water ingress, wrong voltage or unauthorised modification may not be covered.
