FlySpark QD60 Heavy-Lift Multi-Tube Drone Dropper | 2/4/6/8 Tubes, Ø60 mm-Class Payloads, Aluminium + Carbon Fibre, 5 V PWM & Single or Half-Load Salvo

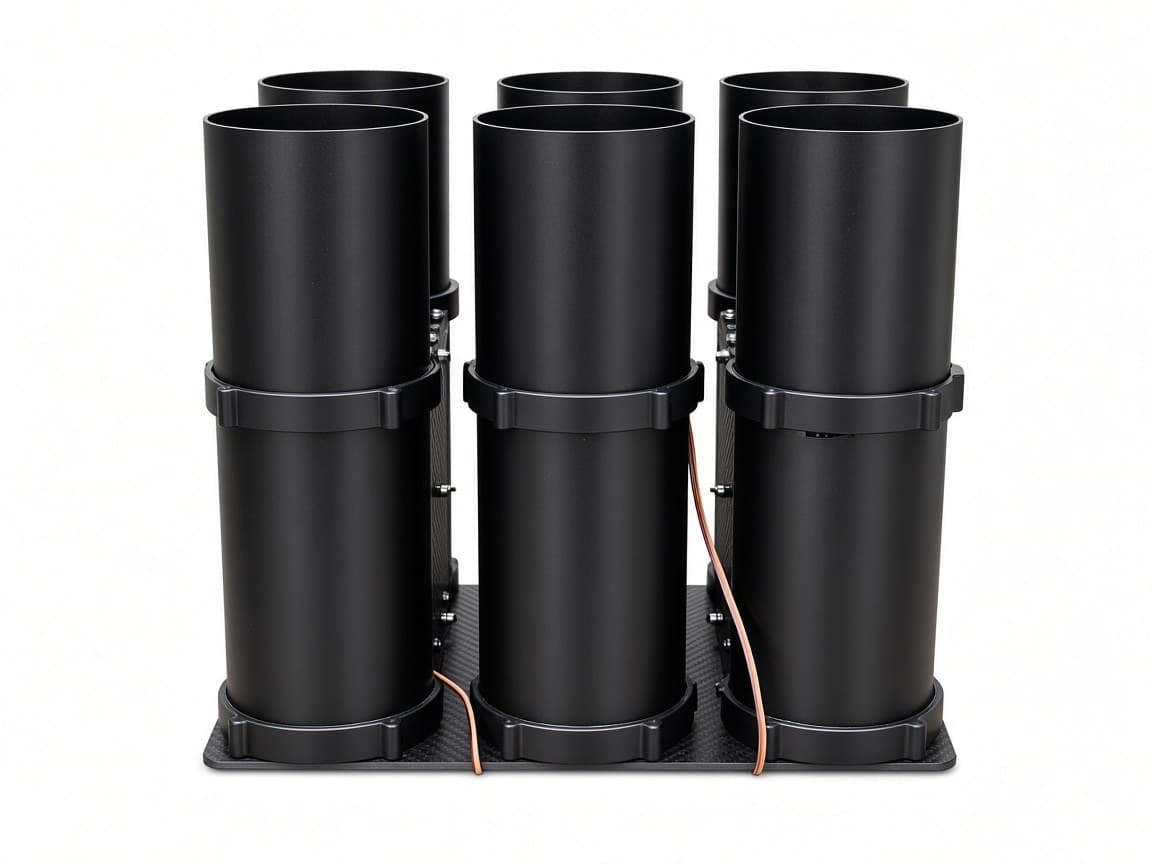

FlySpark QD60 Heavy-Lift Multi-Tube Drone Dropper is a parallel tube-rack payload release system for large multirotors, carrying 2, 4, 6 or 8 Ø60 mm-class cylindrical payloads in two parallel rows. Built from aluminium alloy and carbon fibre, it runs on 5 V, is triggered by a standard PWM servo signal and releases payloads one at a time or as a half-load salvo.

The QD60 is the heavy-lift Ø60 mm-class tube rack in the FlySpark UAV Payload Droppers & Release Systems range, supplied and supported in India by AnuShakti Infotech Pvt. Ltd., with export enquiries welcome. It is offered in four sizes that share the same 183 mm depth and 184 mm height: QD60-2 (183 × 89 × 184 mm, approx. 500 g), QD60-4 (183 × 139 × 184 mm, approx. 1000 g), QD60-6 (183 × 209 × 184 mm, approx. 1500 g) and QD60-8 (183 × 279 × 184 mm, approx. 2000 g).

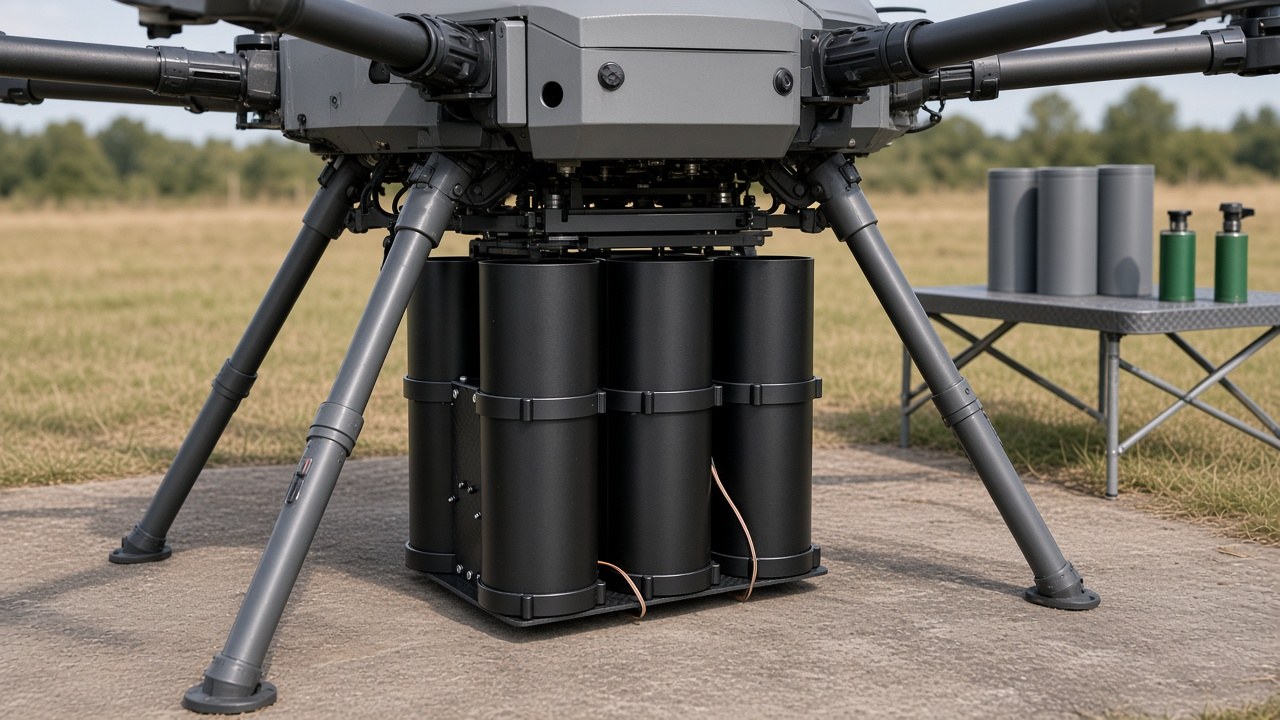

The dropper is designed for M300 / M350-class enterprise airframes and custom heavy-lift hexacopters and quadcopters. The user fits their own mounting rack between the airframe and the dropper, so the QD60 can be adapted to almost any heavy-lift payload interface, and an SQ quick-release version is available for fast swaps between sorties.

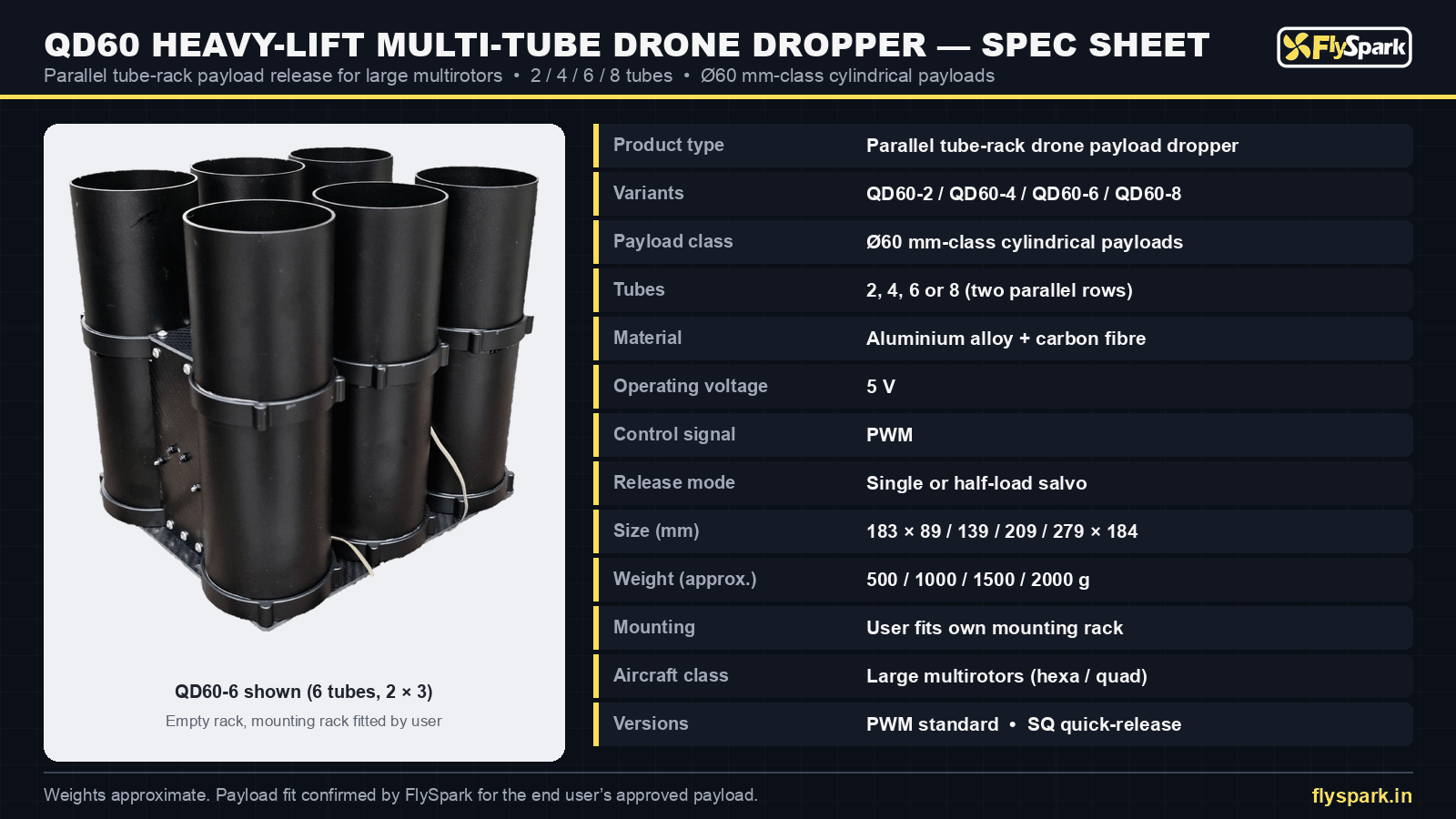

QD60 DRONE DROPPER TECHNICAL SPECIFICATIONS AT A GLANCE

Every QD60 variant uses the same tube depth, height, voltage and control signal, so crews trained on one size can operate all four. Only the tube count, overall length and weight change.

WHY CHOOSE THE QD60 HEAVY-LIFT DRONE DROPPER

Large multirotors can lift far more than a single-channel release can use. The QD60 turns that lift into capacity: up to eight Ø60 mm-class payloads per sortie in a compact, rigid aluminium and carbon-fibre rack, with a simple PWM interface that any mainstream flight controller or receiver can drive. Single release gives precise, one-at-a-time placement; half-load salvo puts half of the load-out down together when a wider pattern or faster delivery is needed.

• QD60 MULTI-TUBE DROPPER KEY FEATURES:
• • Heavy-lift parallel tube-rack drone dropper
• • Four sizes: 2, 4, 6 or 8 tubes in two parallel rows
• • For Ø60 mm-class cylindrical payloads
• • Aluminium alloy + carbon-fibre construction
• • 5 V operating voltage
• • PWM servo-signal trigger from flight controller or receiver
• • Release mode: single or half-load salvo
• • Common 183 mm depth and 184 mm height across all sizes
• • Approx. 500 / 1000 / 1500 / 2000 g by variant
• • PWM standard and SQ quick-release versions
• • User-fitted mounting rack for any large multirotor interface
• • Built for M300 / M350-class and custom heavy-lift airframes

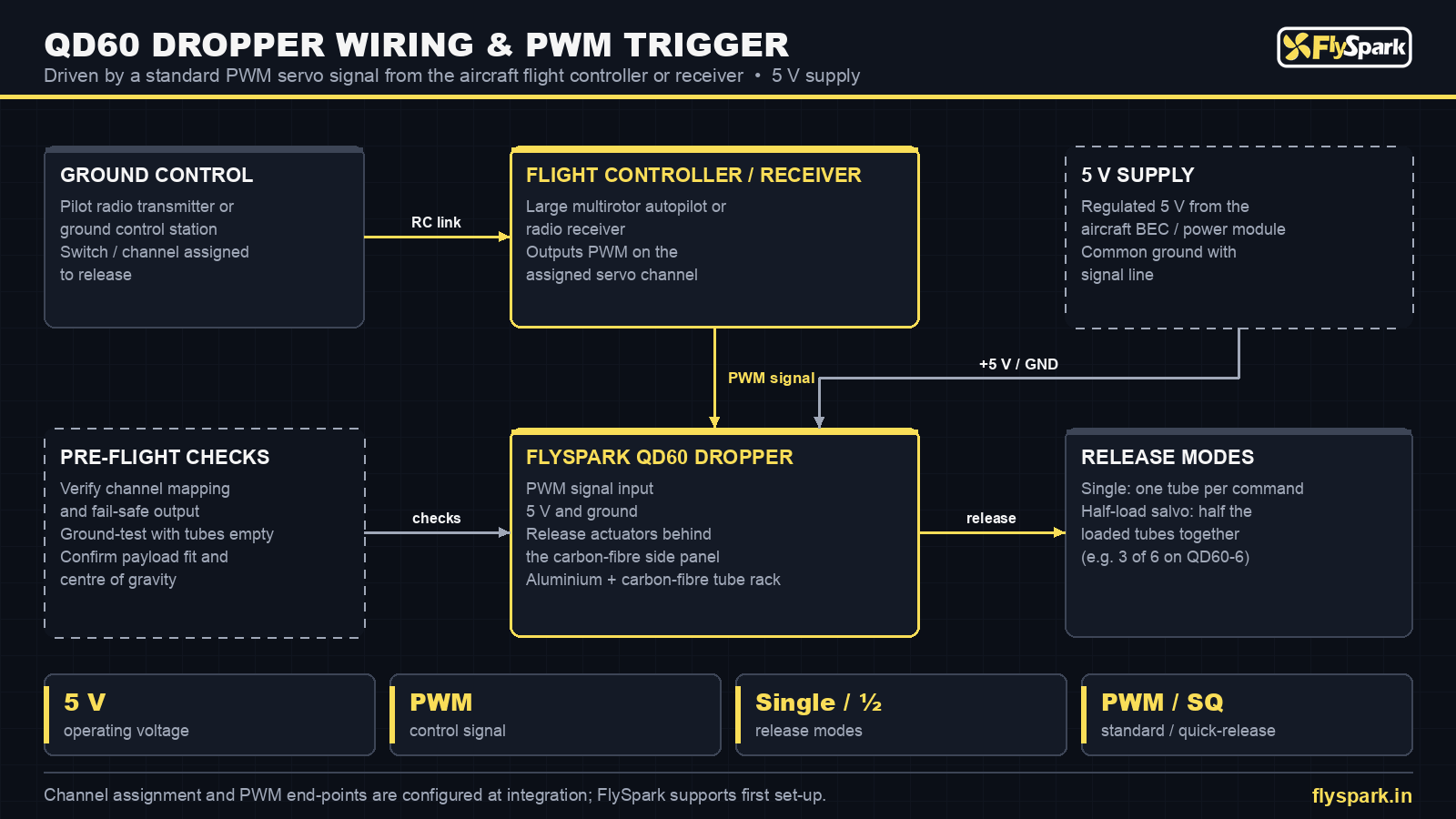

HOW IT WORKS

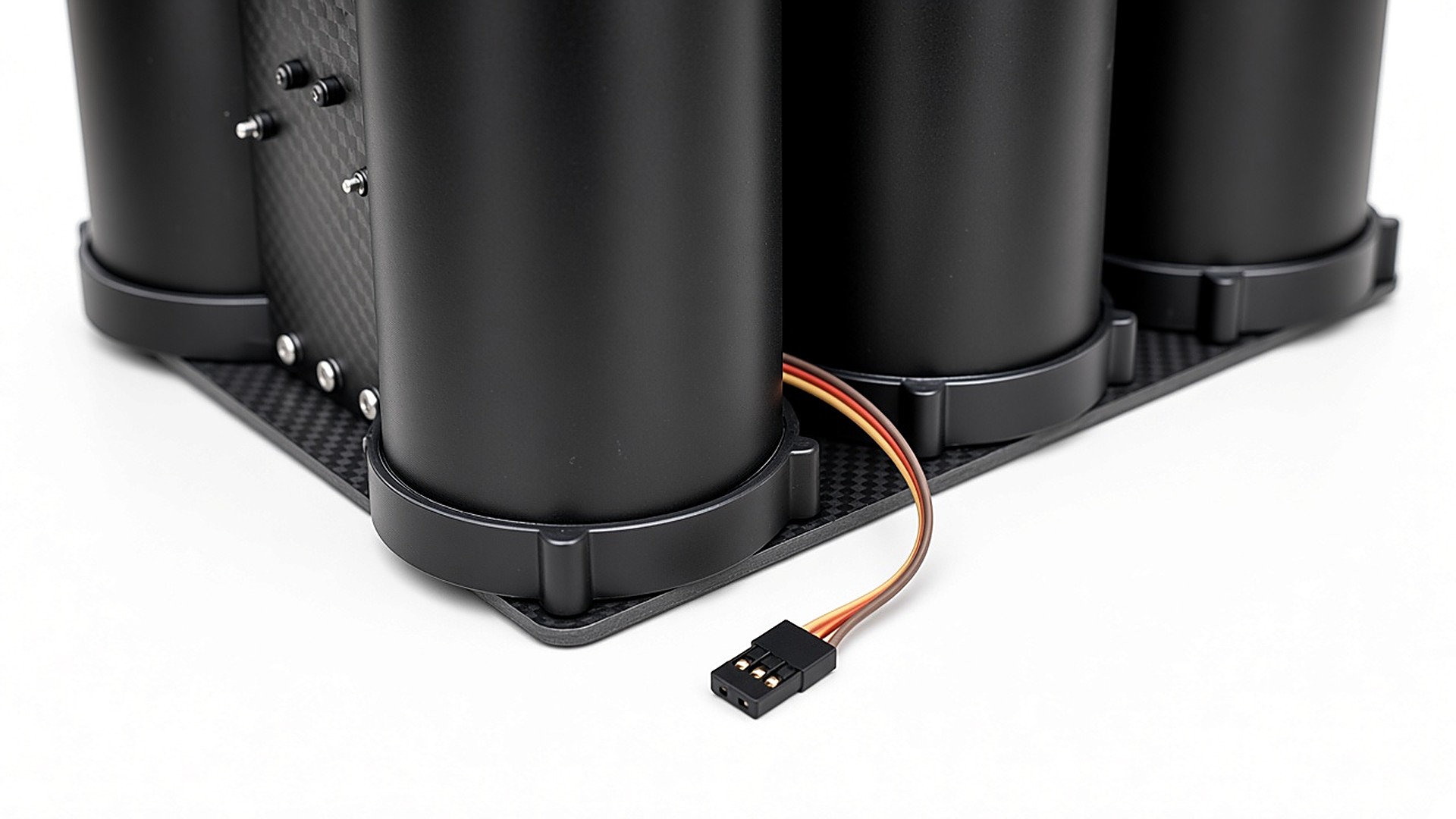

The QD60 takes a standard PWM servo signal from the aircraft’s flight controller or radio receiver and a regulated 5 V supply. The pilot assigns a transmitter switch or ground-station command to the release channel; the dropper’s release actuators then open one tube per command in single mode, or half of the loaded tubes together in half-load salvo mode. Channel mapping, PWM end-points and fail-safe output are configured and ground-tested with empty tubes during integration.

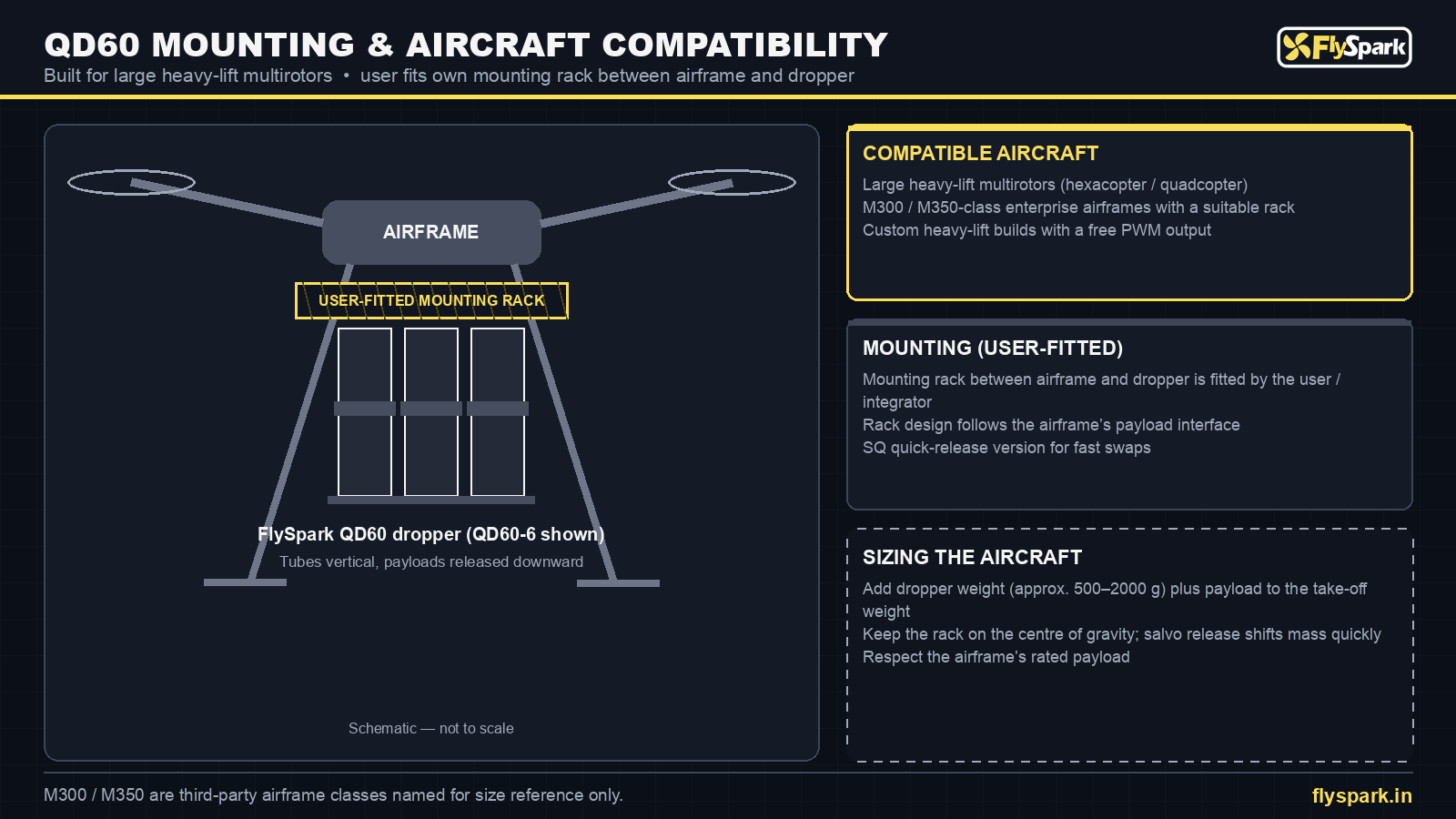

COMPATIBLE AIRCRAFT & MOUNTING

The QD60 is intended for large heavy-lift multirotors only. When sizing the aircraft, add the dropper weight (approx. 500–2000 g by variant), the mounting rack and the full payload load-out to the take-off weight and stay within the manufacturer’s rated payload. Mount the rack on the centre of gravity, because a half-load salvo changes the aircraft’s mass in a single step.

• • Large heavy-lift hexacopters and quadcopters
• • M300 / M350-class enterprise airframes with a suitable rack
• • Custom heavy-lift builds with a free PWM output and 5 V supply
• • Mounting rack between airframe and dropper fitted by the user / integrator
• • SQ quick-release version for fast fitting and removal

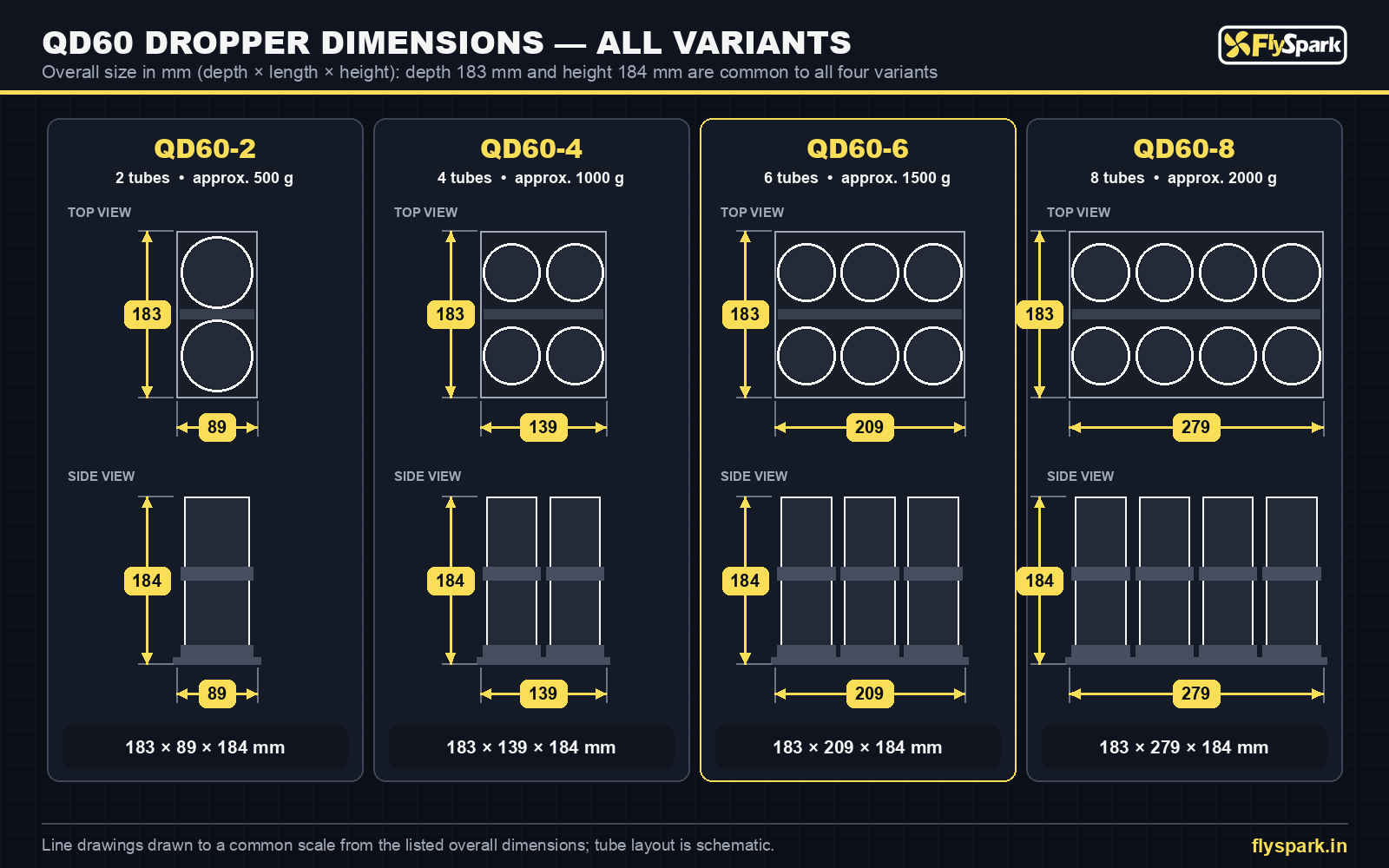

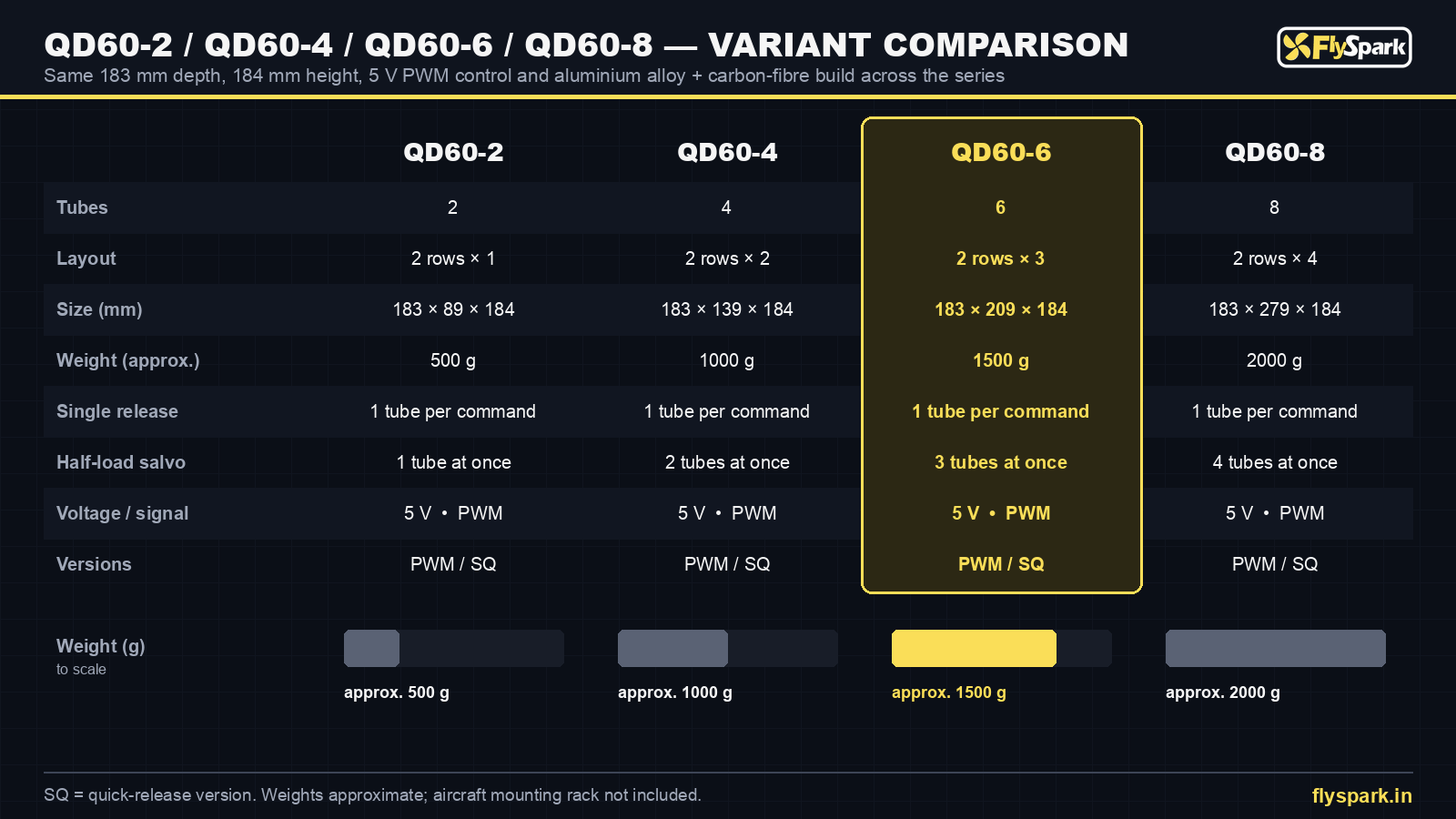

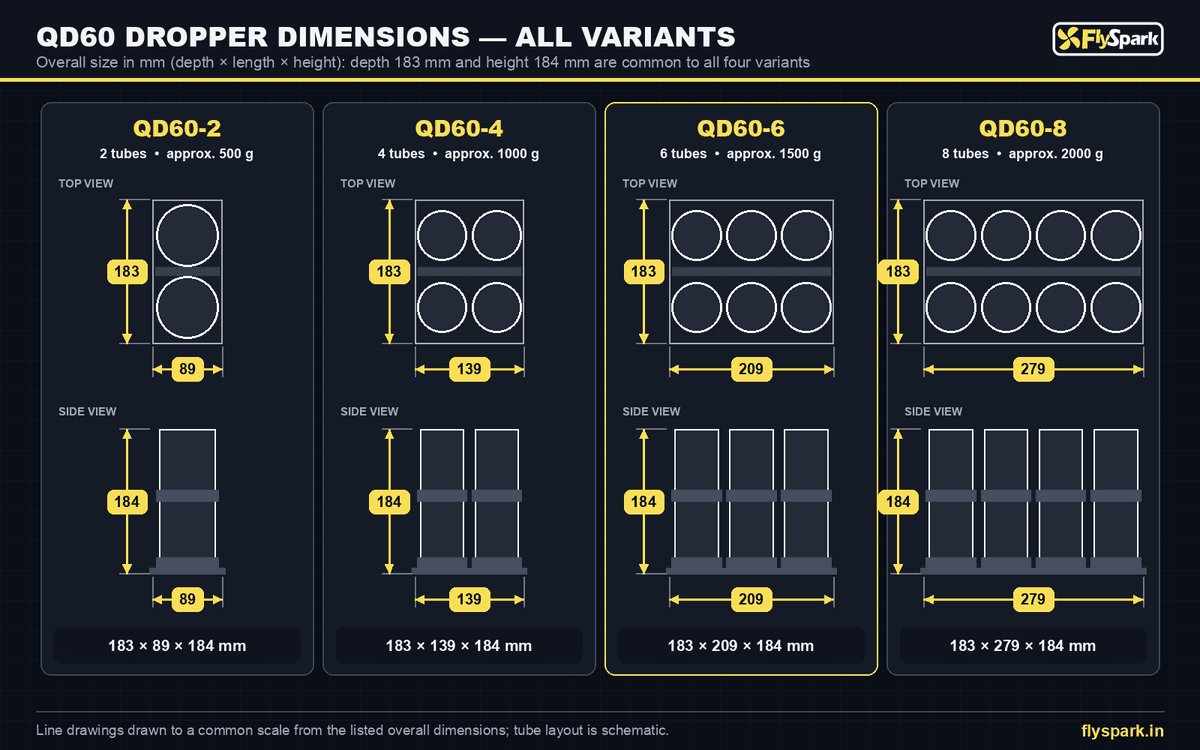

VARIANTS

• • QD60-2 – 2 tubes (2 rows × 1), 183 × 89 × 184 mm, approx. 500 g
• • QD60-4 – 4 tubes (2 rows × 2), 183 × 139 × 184 mm, approx. 1000 g
• • QD60-6 – 6 tubes (2 rows × 3), 183 × 209 × 184 mm, approx. 1500 g
• • QD60-8 – 8 tubes (2 rows × 4), 183 × 279 × 184 mm, approx. 2000 g
• • Each size is available as a PWM standard version or an SQ quick-release version

DEFENCE & MILITARY APPLICATIONS

For armed forces, paramilitary units and government security agencies, the QD60 adds multi-payload capacity to existing heavy-lift drones for marking, sensing, resupply and training missions without putting personnel at risk.

• • Marker and screening smoke deployment with Ø60 mm-class smoke canisters
• • Signalling and drop-zone marking for ground teams
• • Inert training payload drops for drop-accuracy and crew training
• • Sensor, beacon and radio-relay emplacement in remote or denied terrain
• • Emergency resupply: tourniquet kits, batteries, radios and water purification tabs
• • Decoy and reflector release for training and evaluation
• • EOD and CBRN team training with inert and marker payloads
• • Perimeter-sensor seeding along borders and installations
• • Search and rescue of personnel in mountain, jungle and flood areas
• • Integration of other authorised payloads by the end user in accordance with national law and procurement rules

CIVILIAN & COMMERCIAL APPLICATIONS

For public-safety services, utilities, agriculture and research teams, the QD60 lets one heavy-lift sortie place several Ø60 mm-class canisters exactly where they are needed.

• • Search and rescue drops of radios, flotation aids and medical kits
• • Mountain and maritime rescue with Ø60 mm-class rescue canisters
• • Utility pilot-line drops for power-line stringing
• • Firefighting extinguisher-ball drops where the payload size fits
• • Agriculture: seed balls and bio-control capsules
• • Fishing bait release
• • Wildlife research: tags, sensors and sampling kits
• • Events and demonstrations with approved, safe payloads
• • University and drone R&D projects on payload release

COMPARE THE FLYSPARK DROPPER RANGE

The QD60 is the choice when a large multirotor must carry several Ø60 mm-class cylindrical payloads in one sortie. Smaller droppers in the range suit FPV-class and camera drones, and the QD82 series covers larger payloads.

• • FlySpark QD60-2 / 4 / 6 / 8 – heavy-lift parallel tube rack for Ø60 mm-class cylindrical payloads on large multirotors
• • FlySpark QD82 series – larger heavy-lift tube rack for Ø82 mm-class payloads on large multirotors
• • FlySpark 60WD2 / 60WD3 – mechanical-latch Ø60 mm-class droppers with TPU damping for custom-built drones
• • FlySpark ZD8 – lightweight 8-channel CRSF dropper for FPV-class and custom-built drones
• • FlySpark M18SD series – parallel rack for M18-class smoke canisters on FPV-class drones up to M350-class aircraft
• • FlySpark ZD1-V3 – 50 g single-channel dropper for DJI Mavic / Air camera drones and FPV-class drones

• STANDARD SUPPLY:
• • FlySpark QD60 dropper in the selected size (QD60-2, QD60-4, QD60-6 or QD60-8)
• • PWM standard or SQ quick-release version as ordered
• • PWM signal and 5 V power lead
• • Set-up guide for channel mapping and ground testing
• • FlySpark integration and operator-training support
• • Aircraft mounting rack not included (fitted by the user)

IMPORTANT USE NOTE: The FlySpark QD60 is supplied only to verified end users. The buyer is responsible for using only lawful payloads, obtaining all airspace permissions and complying with export-control and end-use rules. Payload fit is confirmed by FlySpark for the end user’s approved payload. Never fly over people, release only over a cleared and controlled drop zone, and respect the aircraft’s rated payload.

FREQUENTLY ASKED QUESTIONS:

Q: What is a multi-tube drone dropper? A: A multi-tube drone dropper is a payload release system that holds several cylindrical payloads in parallel tubes under a drone and releases them on command. The FlySpark QD60 carries 2, 4, 6 or 8 Ø60 mm-class cylindrical payloads in two parallel rows.

Q: What is the FlySpark QD60? A: The FlySpark QD60 is a heavy-lift parallel tube-rack drone dropper built from aluminium alloy and carbon fibre for large multirotors. It runs on 5 V, is triggered by a PWM servo signal and releases payloads one at a time or as a half-load salvo.

Q: Which QD60 variants are available? A: Four: QD60-2 (2 tubes, 183 × 89 × 184 mm, approx. 500 g), QD60-4 (4 tubes, 183 × 139 × 184 mm, approx. 1000 g), QD60-6 (6 tubes, 183 × 209 × 184 mm, approx. 1500 g) and QD60-8 (8 tubes, 183 × 279 × 184 mm, approx. 2000 g).

Q: What payloads does the QD60 carry? A: It is sized for Ø60 mm-class cylindrical payloads such as inert training cylinders, marker and smoke canisters, beacons and compact rescue or resupply canisters. Payload fit is confirmed by FlySpark for the end user’s approved payload.

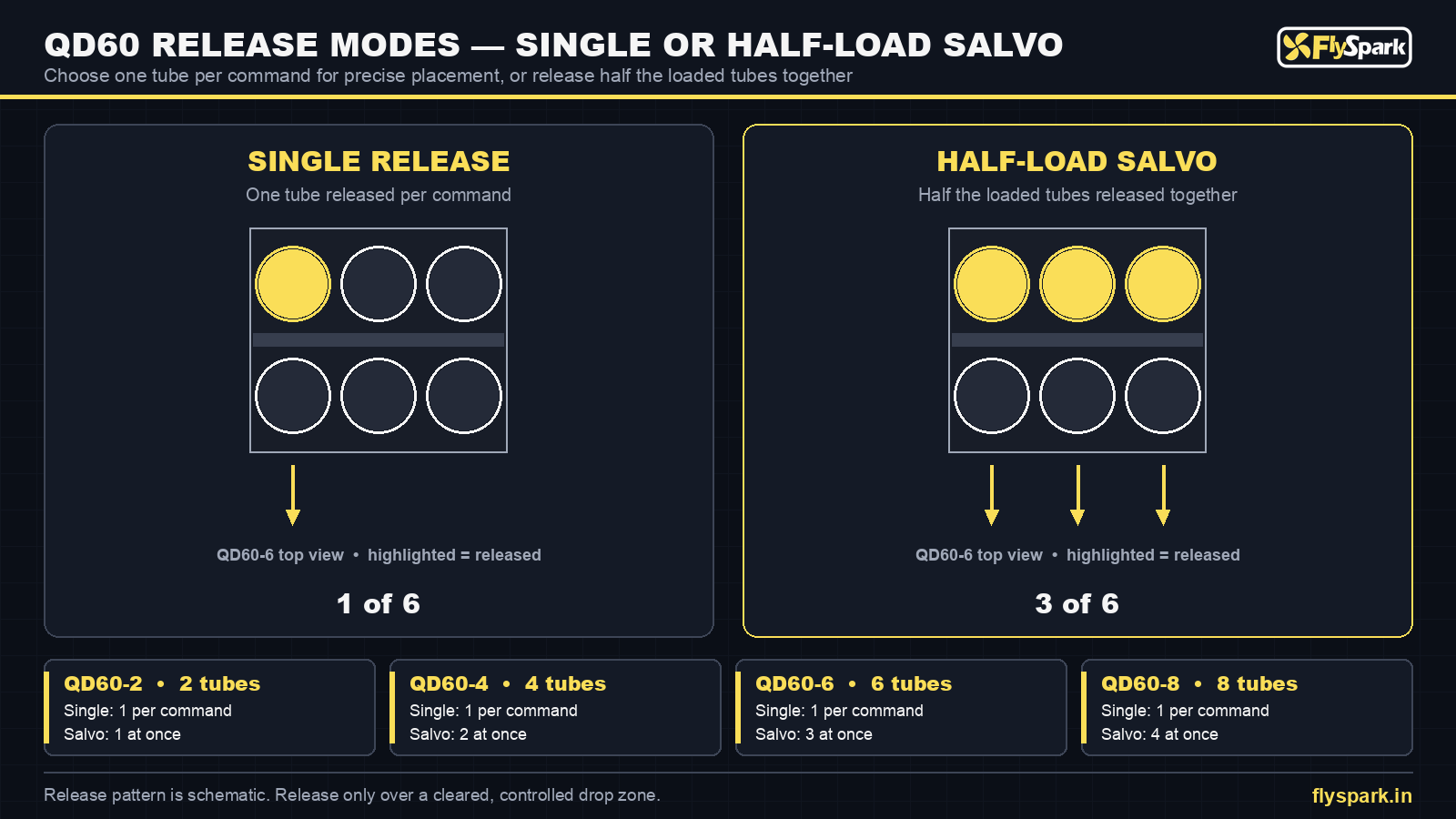

Q: What release modes does the QD60 support? A: Two: single release, where one tube is released per command, and half-load salvo, where half of the loaded tubes are released together (for example 3 of 6 on the QD60-6 or 4 of 8 on the QD60-8).

Q: How is the QD60 triggered? A: By a standard PWM servo signal from the aircraft’s flight controller or radio receiver, mapped to a switch or channel on the pilot’s transmitter or ground control station. Operating voltage is 5 V.

Q: Does the QD60 support CRSF or a light-sensor trigger? A: No. The QD60 is a PWM-triggered dropper. For CRSF / ELRS serial control or a no-wiring light-sensor trigger, look at other droppers in the FlySpark range or use a receiver-to-PWM converter.

Q: What is the difference between the PWM and SQ versions? A: Both use PWM triggering. The SQ version is the quick-release build for faster fitting and removal between sorties; the standard PWM version is fixed to the user’s mounting rack.

Q: Which drones can carry the QD60? A: Large heavy-lift multirotors: enterprise hexacopters and quadcopters in the M300 / M350 class, or custom heavy-lift builds with a free PWM output and enough payload margin for the dropper plus its payloads.

Q: Is a mounting rack included? A: No. The user fits their own mounting rack between the airframe and the dropper, because each heavy-lift airframe has a different payload interface. FlySpark can advise on rack design during integration.

• Q: How much does the QD60 weigh?
• A: Approximately 500 g (QD60-2), 1000 g (QD60-4), 1500 g (QD60-6) and 2000 g (QD60-8), without payloads and without the user-fitted mounting rack.

• Q: What is the QD60 made of?
• A: Aluminium alloy tubes and fittings with a carbon-fibre structure, combining stiffness for heavy loads with low weight.

Q: How do I size the aircraft for a QD60? A: Add the dropper weight, the mounting rack and the full payload load-out to the aircraft’s take-off weight and stay inside the manufacturer’s rated payload. Mount the rack on the centre of gravity, because a half-load salvo shifts mass quickly.

Q: Can the QD60 be used for search and rescue? A: Yes. Rescue and resupply canisters, flotation aids, radios and first-aid items packed in Ø60 mm-class canisters can be released to people in difficulty in mountain, flood and maritime incidents.

Q: Can the QD60 be armed? A: The QD60 is supplied as a payload release system for lawful marking, sensing, resupply, rescue and training missions. Integration of any other authorised payload is the responsibility of the end user in accordance with national law, export controls and procurement rules.

Q: Who can buy the QD60? A: It is supplied only to verified end users such as defence and government security agencies, public-safety organisations and professional integrators. End-user documentation may be requested before supply.

Q: What is the QD60 drone dropper price in India? A: Price is on request because each order is configured by variant, version (PWM or SQ) and integration support. Contact FlySpark on WhatsApp or email for a quotation in INR or for export.

Q: What is the lead time, and do you export? A: Lead time is confirmed with the quotation. FlySpark supplies across India and handles export enquiries subject to applicable export-control and end-user documentation.

Q: How does the QD60 compare with other FlySpark droppers? A: It is the heavy-lift tube rack for Ø60 mm-class cylindrical payloads on large multirotors. Lighter single-, dual- and multi-channel droppers suit FPV-class and camera drones, while the QD82 series covers larger Ø82 mm-class payloads.

Q: Does FlySpark provide integration support? A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. supports channel mapping, PWM set-up, mounting-rack advice, payload-fit confirmation, ground testing and operator training.

Q: What warranty is included? A: Warranty covers manufacturing defects for 1 year under approved use and normal operating conditions. Damage from crashes, overload, wrong wiring or voltage, or unauthorised modification may not be covered.
