The FlySpark ZD4 is a 4-channel drone payload dropper of about 120 g (90 × 146 × 48 mm) with four curved cradles, each held by a strap whose end is caught by its own release latch. Channels are controlled independently over CRSF from a Crossfire or ELRS receiver at 5 V, so payloads can be released singly, in sequence or in groups on one switch. It comes as the strap-mounted ZD4-CRSF or the quick-release ZD4-SQ-V2; price is on request.
Single channel, sequential, or grouped channels on one switch
Dimensions
90 × 146 × 48 mm
Weight
≈120 g
Operating voltage
5 V
Control signal
CRSF (Crossfire / ELRS serial) from the aircraft receiver
Payload retention
Four curved cradles; hook-and-loop strap per cradle held by the release latch
Versions
ZD4-CRSF (strap / zip-tie mount); ZD4-SQ-V2 (quick-release base; aircraft-side mount sold separately)
Compatible aircraft
FPV-class and custom multirotors with Crossfire / ELRS receiver
Price
On request
Warranty
1 year (manufacturing defects)
Use cases
Delivering up to four small items in one sortie from an FPV-class drone
Search and rescue drops by authorized teams
Training drops with inert payloads
Standards & references
Drone Rules, 2021 (India, G.S.R. 589(E)) — The Rules classify drones by all-up weight including payload, so the 120 g dropper plus payloads counts toward the host drone's weight class.
The FlySpark ZD4 4-Channel Drone Payload Dropper is a compact payload release system that carries four payloads under a small drone and releases each one independently on command. It measures 90 × 146 × 48 mm, weighs approximately 120 g, runs on 5 V and is controlled over a CRSF (Crossfire / ELRS) serial link, so four separate drops can be made on a single sortie without landing to reload.
FlySpark ZD4 4-channel drone payload dropper product overview videoFlySpark ZD4 4-channel drone payload dropper with four curved cradles and hook-and-loop strap latches
The ZD4 is part of the FlySpark UAV Payload Droppers & Release Systems range, supplied and supported in India by AnuShakti Infotech Pvt. Ltd. to verified defence, government security, public-safety and professional integrator customers, with export enquiries welcome.

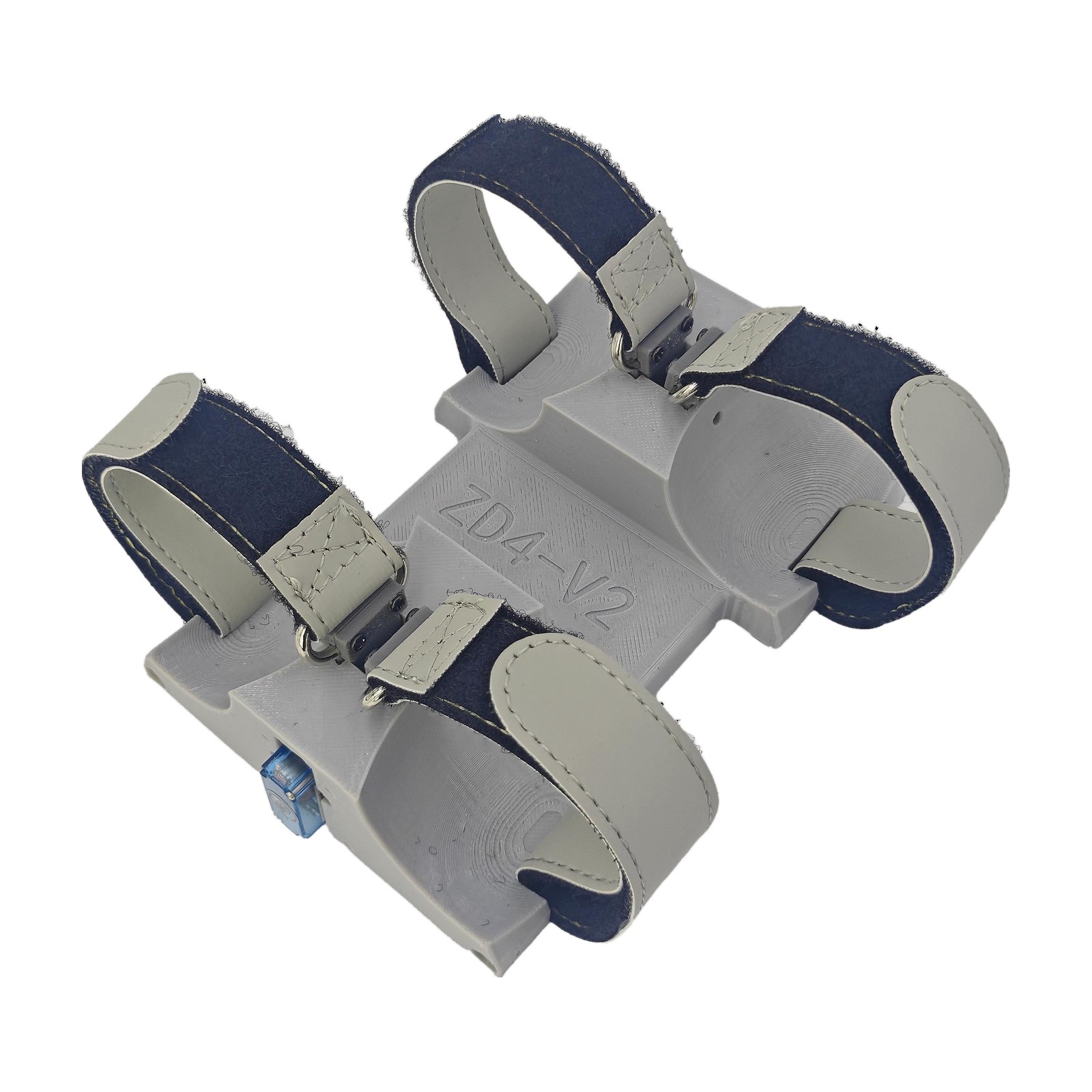

Four curved cradles, arranged in two pairs either side of a central spine, conform to the payload so it sits low and secure under the aircraft. Each cradle is closed by a hook-and-loop strap whose end is held by its own release latch. The unit is lightweight, highly reliable and simple to operate, and is offered in two versions: the standard ZD4-CRSF and the ZD4-SQ-V2 quick-release version.
Most small droppers carry one or two payloads. The ZD4 doubles that to four while staying at approximately 120 g and on a 5 V supply, which keeps it within the payload margin of typical FPV-class and custom-built multirotors. Independent control per channel means each payload can be placed at a different point on the same flight, a practical advantage for rescue, signalling, sensor emplacement and training missions where every sortie counts.

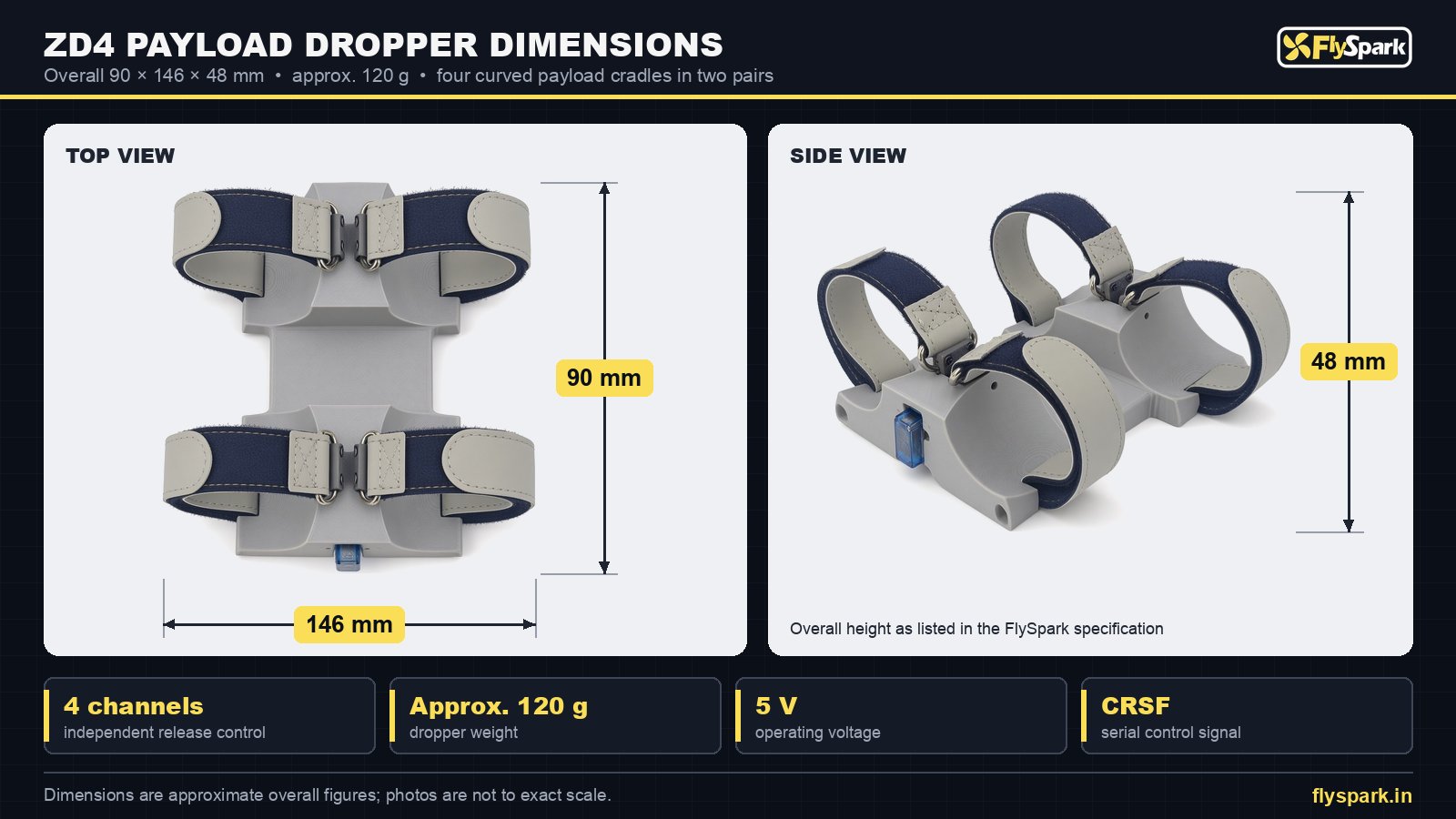

FlySpark ZD4 drone payload dropper dimensions drawing – 90 × 146 × 48 mm, approx. 120 g
ZD4 PAYLOAD DROPPER KEY FEATURES:
• Four release channels with independent control per channel
• Release one payload, step through all four, or group channels on one switch
• CRSF (Crossfire / ELRS) serial control from the aircraft receiver
• 5 V operating voltage
• Approximately 120 g dropper weight
• Compact 90 × 146 × 48 mm footprint
• Curved cradles that conform to the payload for a secure, low-drag fit

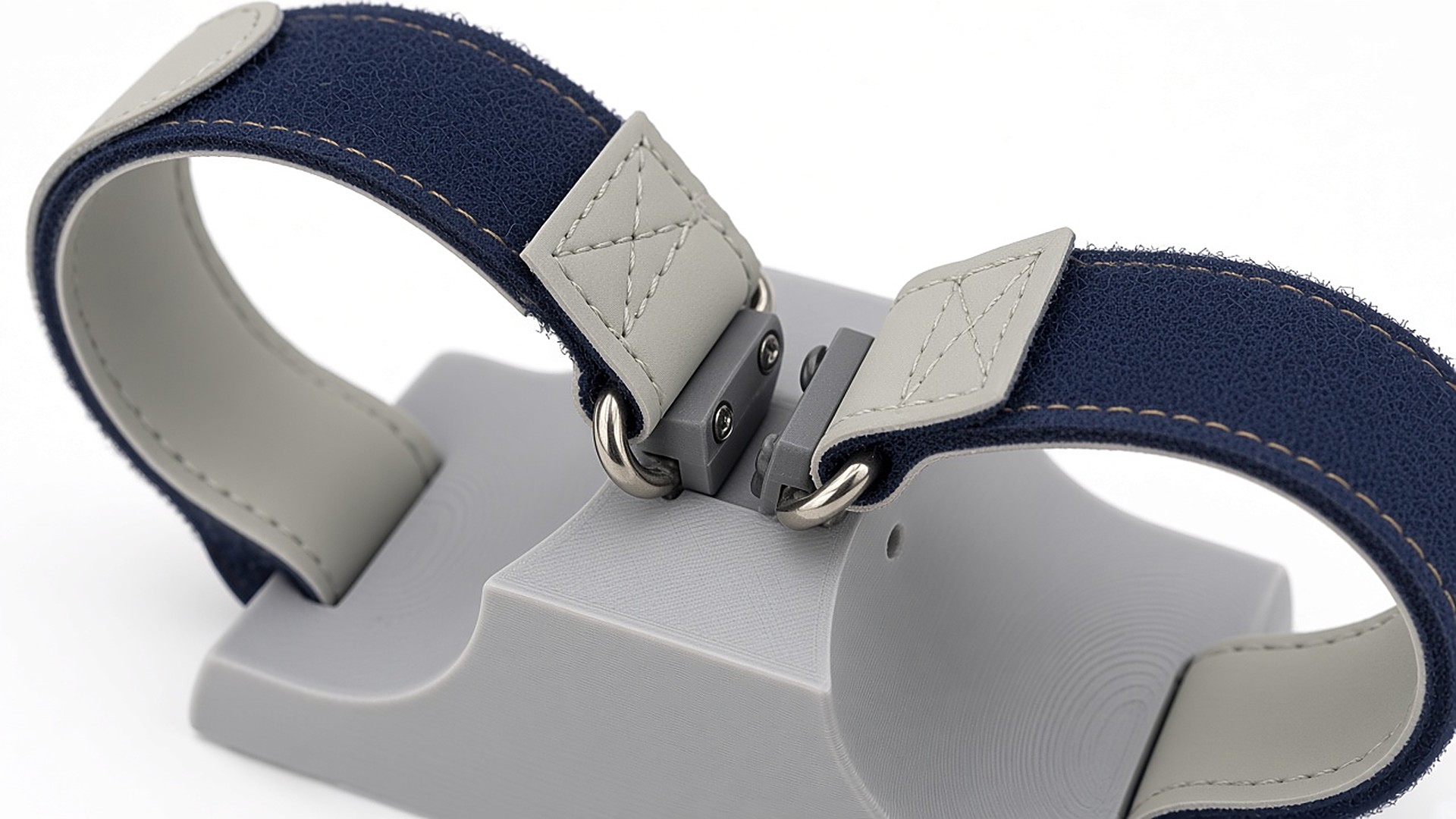

• Hook-and-loop strap retention on each cradle with D-ring latch ends
• Lightweight, high-reliability construction with simple operation
• ZD4-SQ-V2 quick-release version for fast swapping between aircraft
• Fits FPV-class drones, custom-built multirotors and other small aircraft
• Payload fit confirmed by FlySpark for the end user’s approved payload

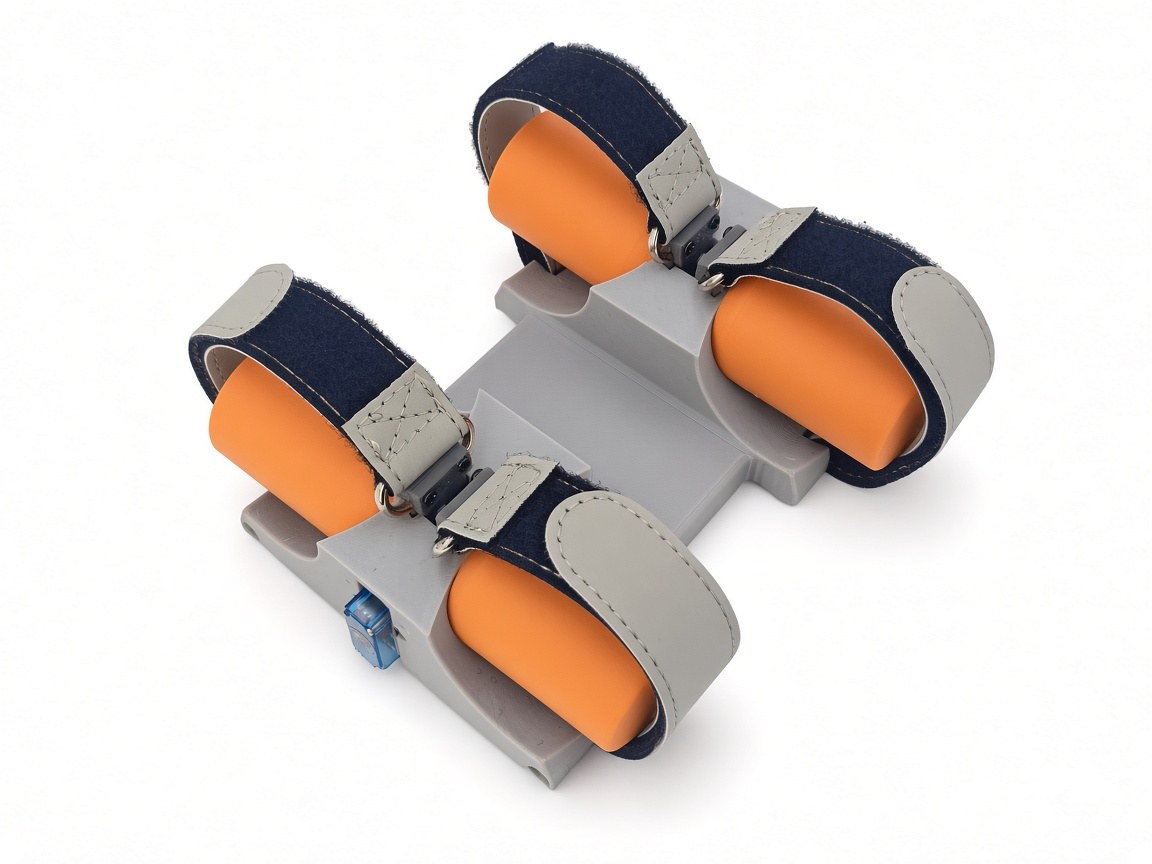

FlySpark ZD4 payload dropper with four plain orange inert training cylinders strapped in its cradles
HOW IT WORKS: TRIGGER AND RELEASE
The ZD4 connects to the CRSF serial output of the aircraft’s Crossfire or ExpressLRS (ELRS) receiver. The operator assigns four switches or buttons on the radio, one per release channel. When a channel is commanded, its latch frees the strap end and the payload in that cradle drops clear while the other three remain secured.

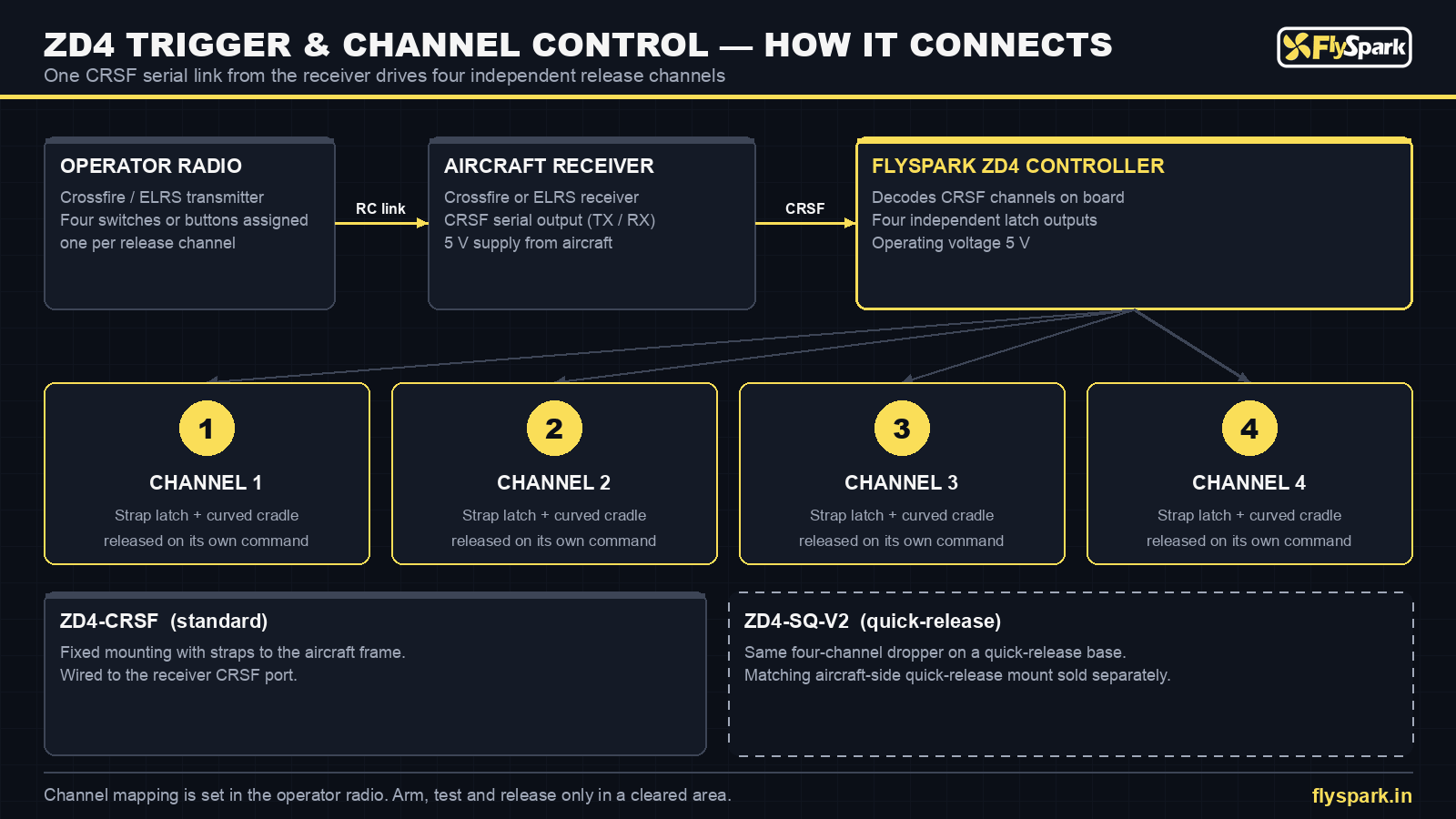

FlySpark ZD4 drone dropper trigger and wiring diagram – CRSF receiver link to four independent release channelsFlySpark ZD4 4-channel drone payload dropper release latch close-up – hook-and-loop strap D-rings held by the central metal latch pins
Because every channel is independent, the operator can release a single payload, step through all four at separate drop points, or map two or more channels to one switch for a grouped release.

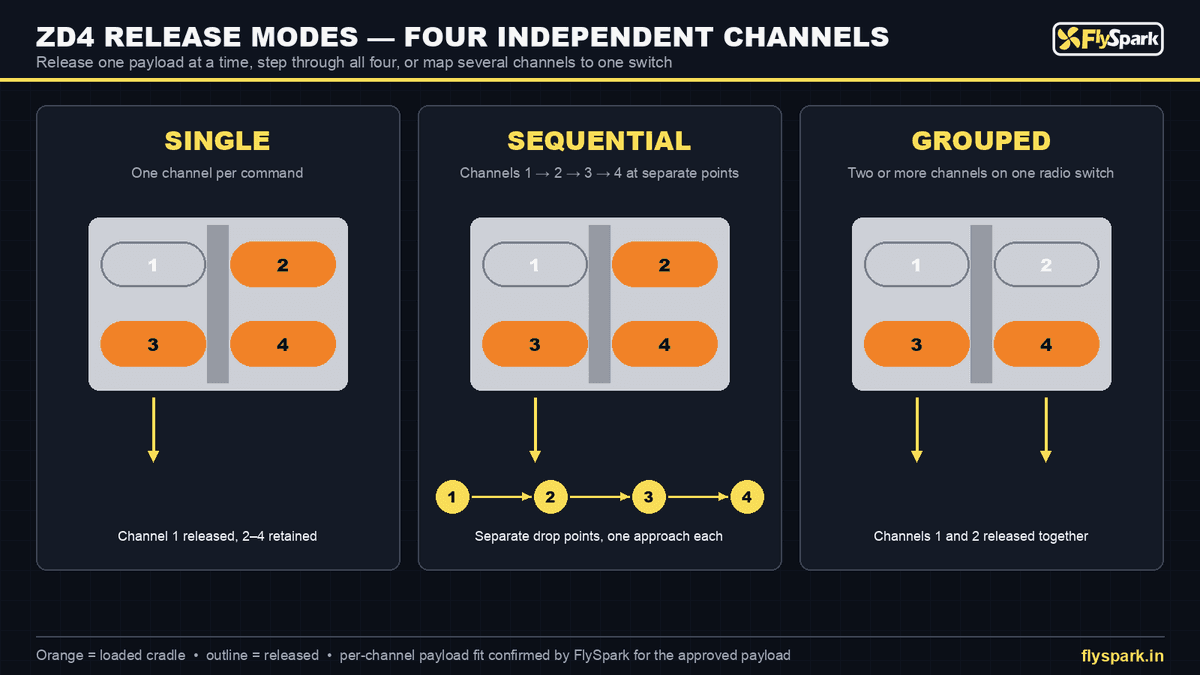

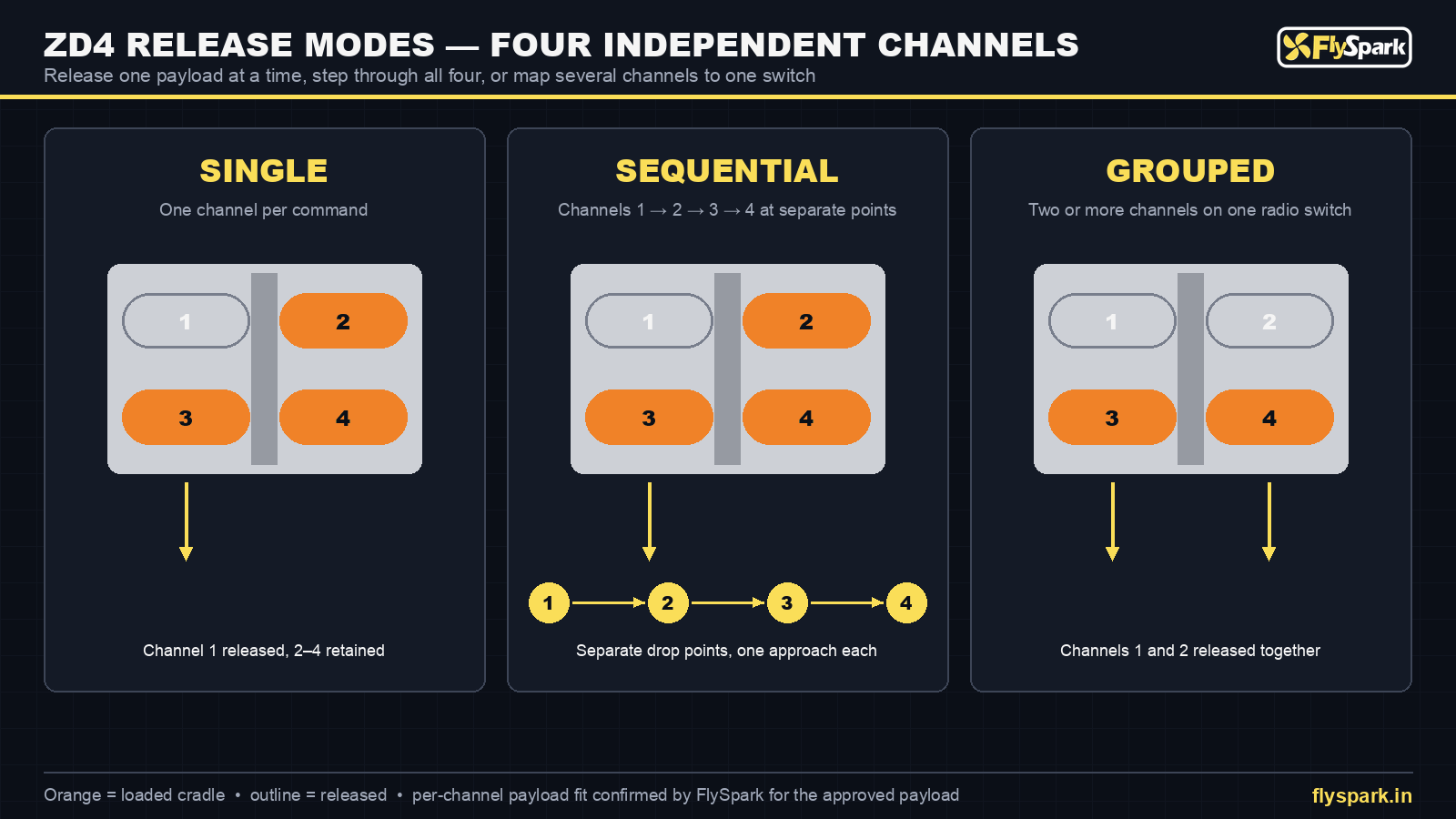

FlySpark ZD4 4-channel payload dropper release modes – single, sequential and grouped release
COMPATIBLE AIRCRAFT & MOUNTING
The ZD4 is designed for FPV-class drones and custom-built multirotors with a Crossfire or ELRS receiver, and can be fitted to camera drones and other small aircraft that have a suitable mounting point and spare payload capacity. The standard ZD4-CRSF is strapped or tied flat under the aircraft’s bottom plate and centred under the centre of gravity. The ZD4-SQ-V2 sits on a quick-release base so the dropper can be removed or moved between aircraft in seconds; the aircraft-side quick-release mount is sold separately. Always check all-up weight against the aircraft’s rated payload before flight.

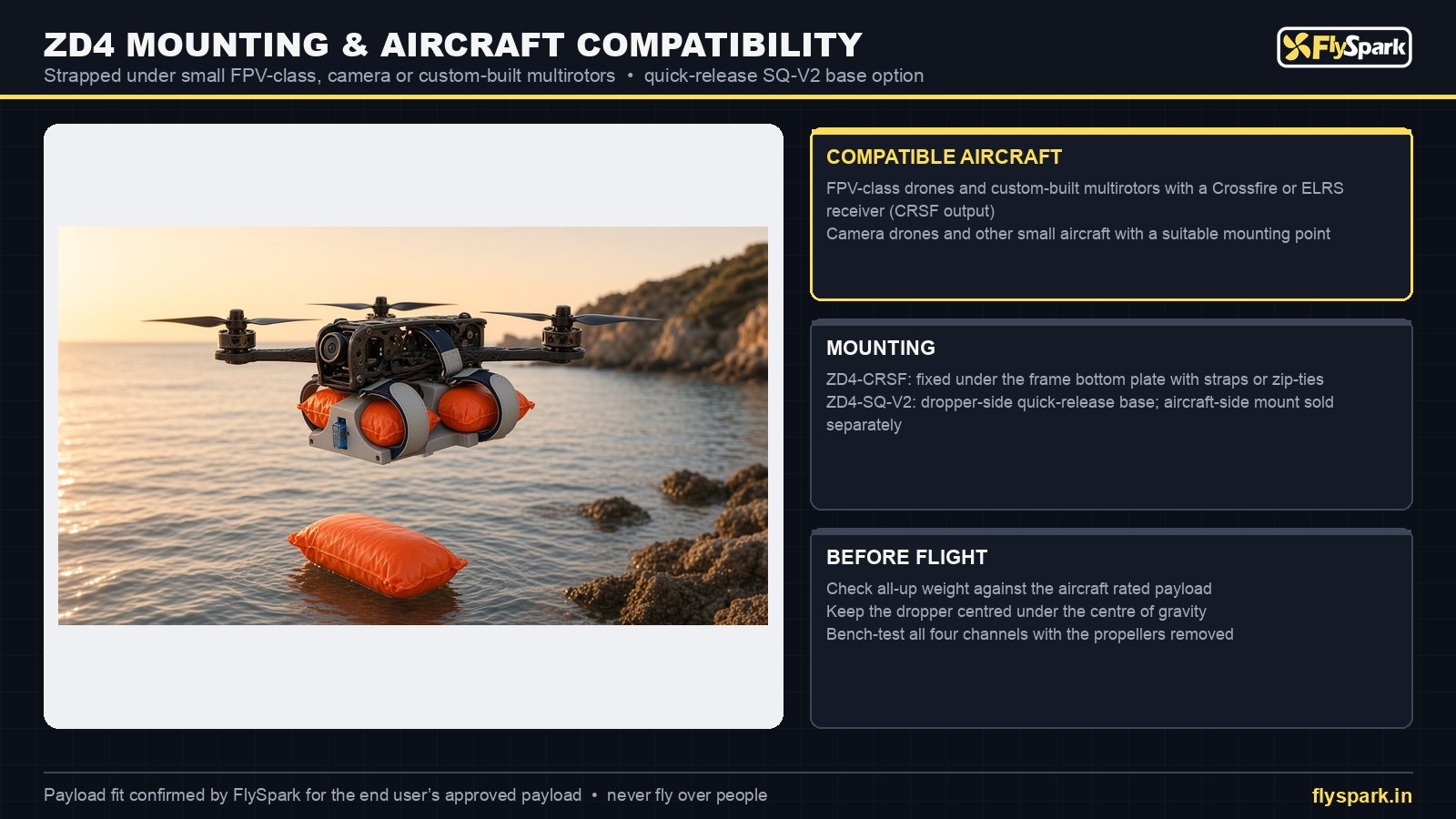

FlySpark ZD4 drone payload dropper mounting and aircraft compatibility guideFlySpark ZD4 4-channel payload dropper mounted under an FPV-class quadcopter on a rugged field case with radio and tablet during pre-flight checksFlySpark ZD4 4-channel dropper under an FPV-class quadcopter releasing an orange inert training cylinder on a field training ground
VARIANTS
• ZD4-CRSF – standard 4-channel dropper, 90 × 146 × 48 mm, approx. 120 g, 5 V, CRSF control, strap or zip-tie mounting
• ZD4-SQ-V2 – quick-release 4-channel dropper, 90 × 146 × 48 mm, approx. 120 g, 5 V, dropper-side quick-release base; aircraft-side mount sold separately

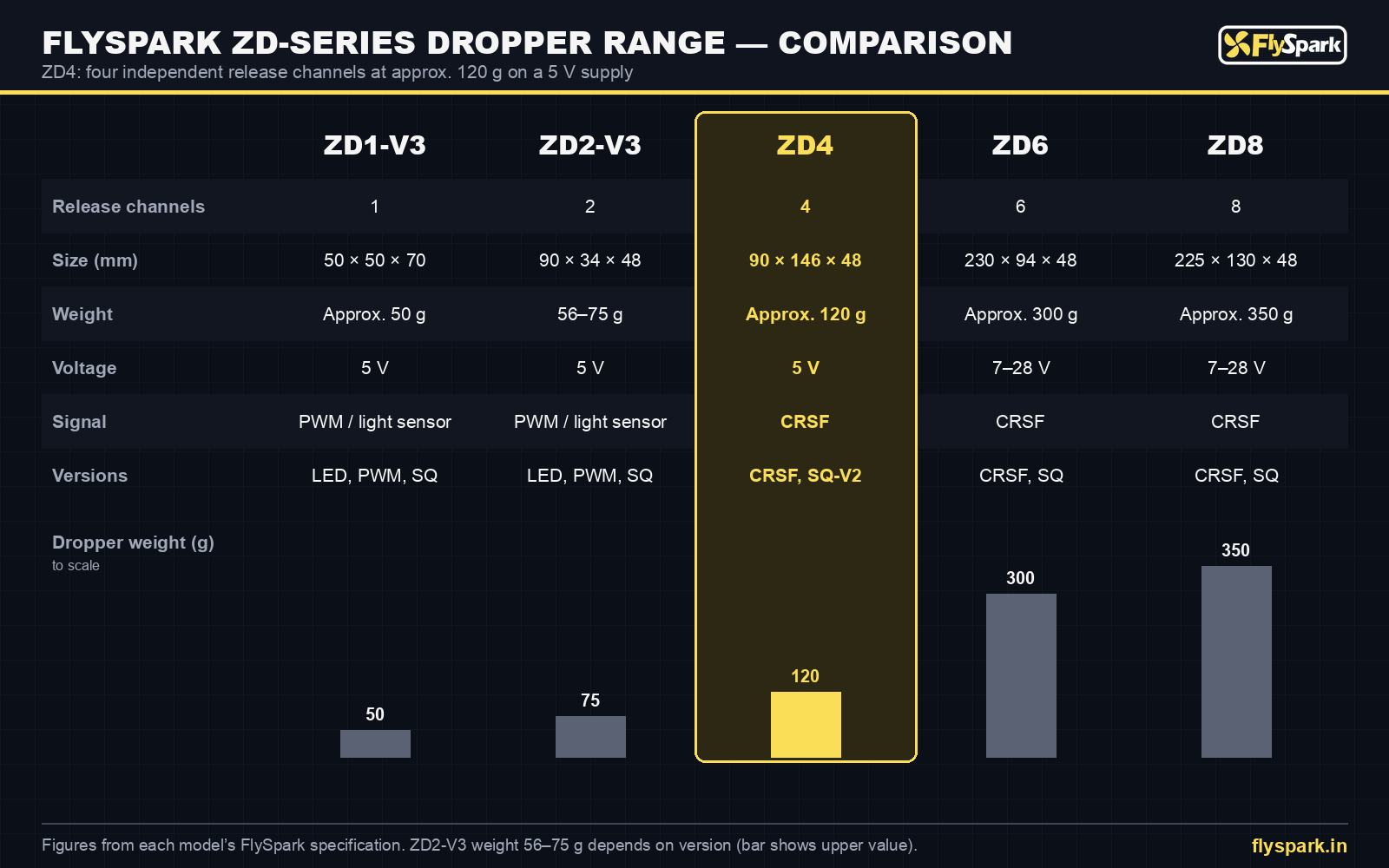

FlySpark ZD4 vs ZD1-V3, ZD2-V3, ZD6 and ZD8 drone payload dropper comparison chart
DEFENCE & MILITARY APPLICATIONS
For defence, border, police and government security users, the ZD4 adds four independent delivery channels to a small multirotor for signalling, resupply, sensor emplacement and training.
• Marker and screening smoke deployment for training and signalling
• Signalling payloads: light sticks, panels and marker pouches
• Inert training payload drops for operator qualification and accuracy drills
• Sensor, beacon and radio-relay emplacement on terrain that is hard to reach on foot
• Perimeter-sensor seeding along routes and boundaries
• Emergency resupply of tourniquet kits, batteries, small radios and water purification tablets
• Decoy and radar-reflector release for exercises
• EOD and CBRN team training with inert dummies and sampling kits
• Search and rescue of personnel: flotation, radios and first-aid pouches
• Integration of other authorised payloads by the end user in accordance with national law and procurement rules

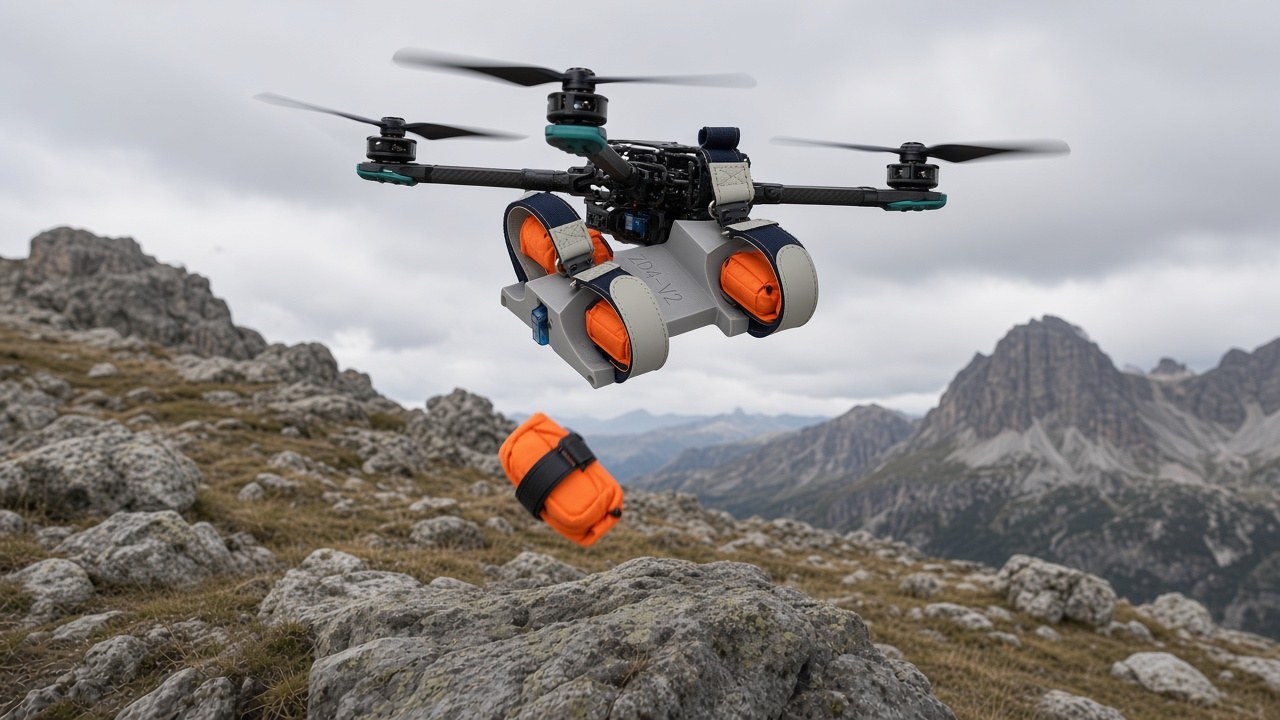

FlySpark ZD4 drone payload dropper releasing an orange rescue pouch over a rocky mountain hillside
CIVILIAN & COMMERCIAL APPLICATIONS
For emergency services, utilities, agriculture and research teams, the ZD4 delivers four separate small payloads on one flight where reaching the site on foot is slow or unsafe.
• Search and rescue drops of radios, flotation aids and medical kits

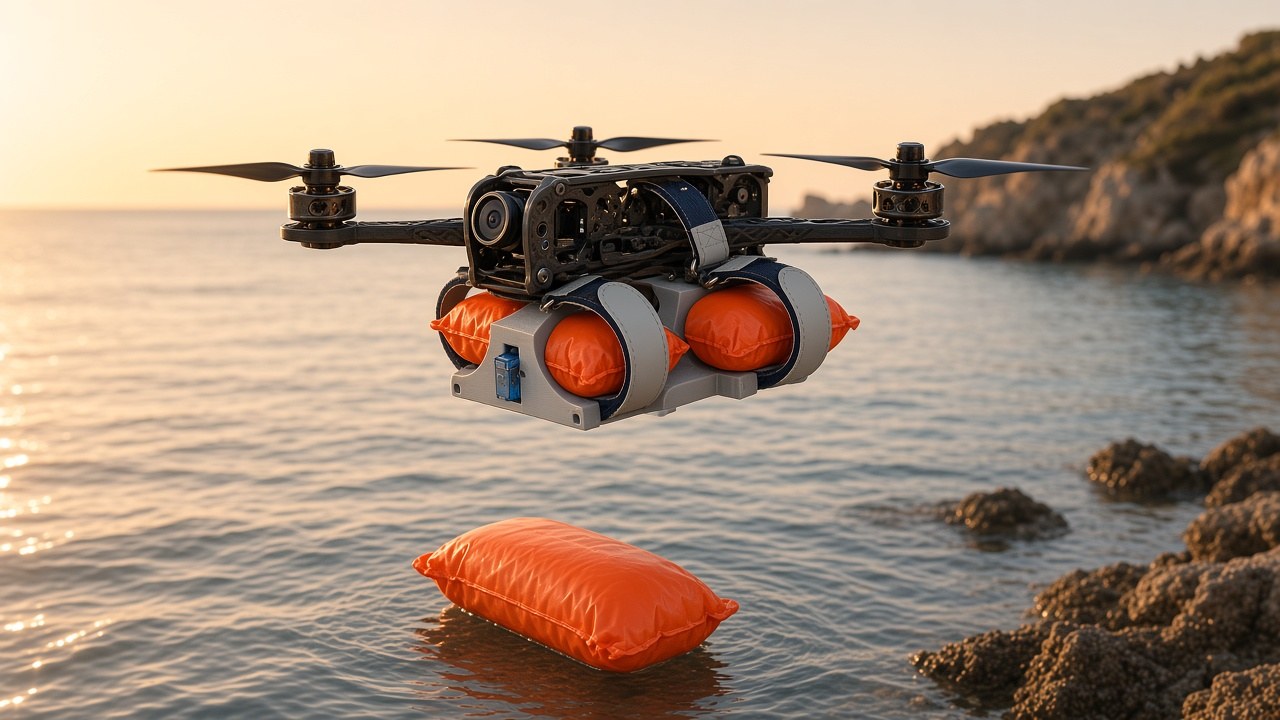

• Mountain and maritime rescue: four separate drops on one sortie
• Utility pilot-line drops for power-line stringing
• Firefighting extinguisher-ball drops where the payload size fits the cradle
• Agriculture: seed balls and bio-control capsules
• Fishing bait and line drops
• Wildlife research: tags, sample containers and feed
• Events, demonstrations and confetti or marker drops in cleared areas
• University and research projects in payload release and autonomy

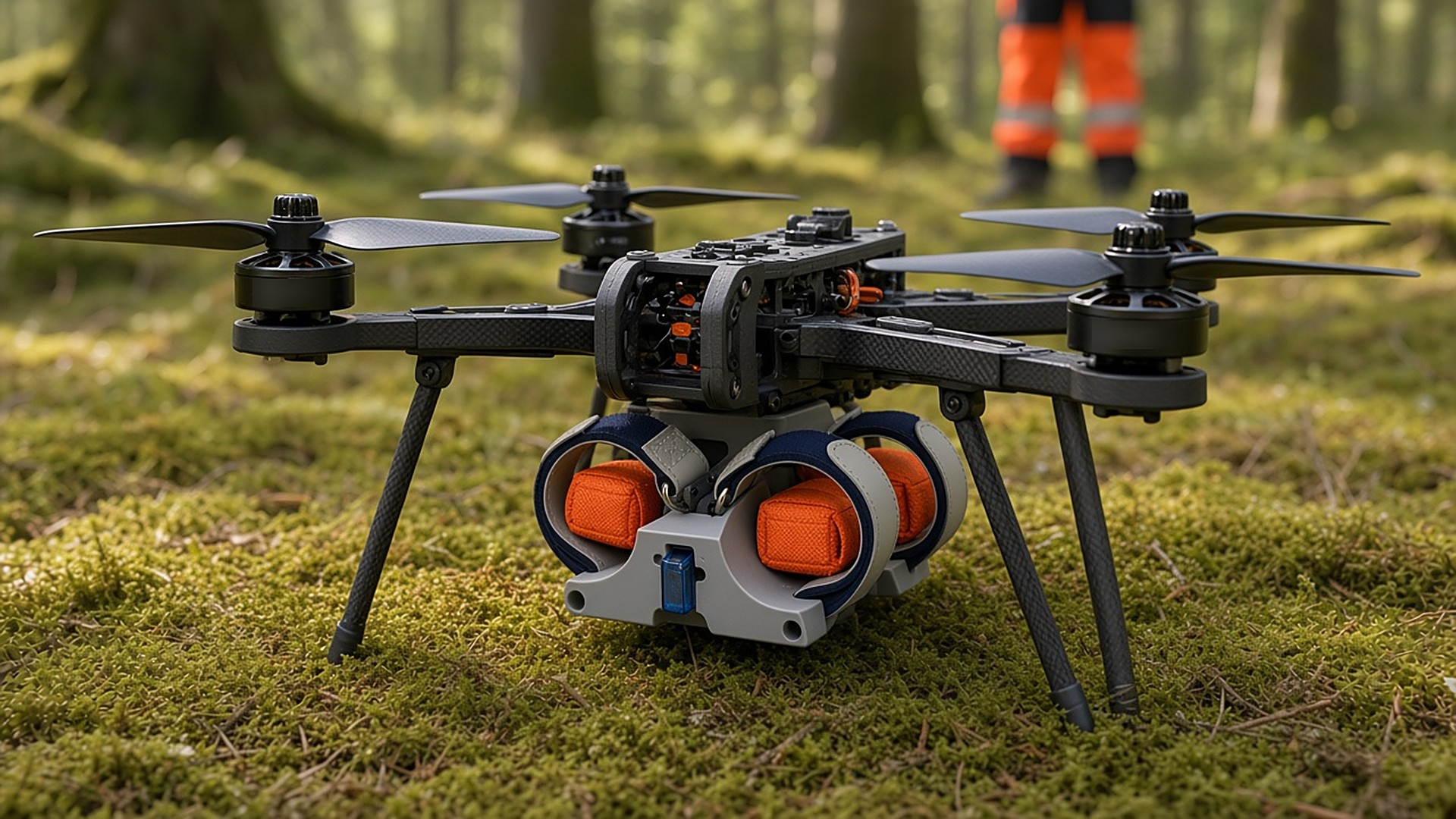

FlySpark ZD4 drone payload dropper loaded with four orange rescue pouches under an FPV-class quadcopter in a forest clearing before a search-and-rescue sortieFlySpark ZD4 4-channel dropper carrying orange flotation-aid pouches over the sea during a maritime rescue drop
COMPARE THE FLYSPARK DROPPER RANGE
The ZD4 sits in the middle of the FlySpark ZD series: more payloads than the single and dual-channel units, while staying lighter and on a 5 V supply compared with the six and eight-channel models. Choose by the number of drops per sortie, the aircraft’s payload margin and the control interface it offers.
• FlySpark ZD1-V3 – single-channel 50 g dropper with LED light-sensor, PWM and quick-release versions
• FlySpark ZD2-V3 – dual-channel 56–75 g dropper with independent control, for Mavic/Air-class and FPV-class drones
• FlySpark ZD4 – four independent channels at approx. 120 g on a 5 V CRSF interface
• FlySpark ZD4 4-channel payload dropper (ZD4-CRSF or ZD4-SQ-V2 as ordered)
• Four hook-and-loop payload retention straps fitted to the cradles
• Wiring and radio channel-mapping guidance from FlySpark
• Aircraft-side quick-release mount for ZD4-SQ-V2 sold separately
IMPORTANT USE NOTE:
The ZD4 is supplied only to verified end users. The buyer is responsible for using only lawful, authorised payloads, for obtaining all airspace permissions and for complying with export controls and procurement rules. Payload fit is confirmed by FlySpark for the end user’s approved payload. Never fly over people, release only over a cleared area, and keep the all-up weight within the aircraft’s rated payload.
FREQUENTLY ASKED QUESTIONS:
Q: What is a drone payload dropper?
A: A drone payload dropper (payload release system) is a small latch unit fitted under a drone that holds one or more payloads in flight and releases them on command from the operator’s radio. It is used for rescue drops, marker and signalling payloads, sensor emplacement and training.
Q: What is the FlySpark ZD4?
A: The FlySpark ZD4 is a 4-channel drone payload dropper with independent control of each channel. It measures 90 × 146 × 48 mm, weighs approximately 120 g, runs on 5 V and is controlled over a CRSF (Crossfire / ELRS) serial link.
Q: How many payloads can the ZD4 carry?
A: Four, one in each curved cradle. Each cradle has its own strap latch and release channel, so the four payloads can be released one at a time or together.
Q: Can each channel be released independently?
A: Yes. Each of the four channels is controlled independently from the operator radio, so you can drop one payload, step through all four at separate points, or map several channels to one switch for a grouped release.
Q: What control signal does the ZD4 use?
A: The ZD4 is listed with a CRSF signal: it connects to the CRSF serial output of a Crossfire or ExpressLRS (ELRS) receiver, and the release channels are assigned to switches on the operator radio.
Q: What is the operating voltage?
A: The ZD4 operates on 5 V, which is normally available from the flight controller or receiver supply on FPV-class and custom-built drones.
Q: What is the difference between ZD4-CRSF and ZD4-SQ-V2?
A: ZD4-CRSF is the standard version that is strapped or tied directly under the aircraft. ZD4-SQ-V2 is the quick-release version: the dropper sits on a quick-release base so it can be removed or swapped between aircraft quickly. The aircraft-side quick-release mount is sold separately.
Q: Which drones is the ZD4 compatible with?
A: The ZD4 is intended for FPV-class drones and custom-built multirotors with a Crossfire or ELRS receiver, and can also be fitted to camera drones and other small aircraft that have a suitable mounting point and spare payload capacity.
Q: Does the ZD4 fit DJI Mavic or Air drones?
A: DJI Mavic and Air camera drones do not provide a CRSF receiver output, so the light-sensor (LED) versions of the single-channel ZD1-V3 and dual-channel ZD2-V3 are usually the better choice for those aircraft. Contact FlySpark to confirm the right model for your aircraft.
Q: How heavy a payload can each channel hold?
A: Payload mass and diameter per cradle are confirmed by FlySpark for the end user’s approved payload. The total of dropper, payloads and mounting must stay within the aircraft’s rated payload and keep the centre of gravity under the aircraft.
Q: How is the ZD4 mounted?
A: The standard ZD4-CRSF is fixed flat under the aircraft’s bottom plate with straps or zip-ties and centred under the centre of gravity. The ZD4-SQ-V2 uses a quick-release base that mates with a separately purchased aircraft-side mount.
Q: What are the ZD4 dimensions and weight?
A: Overall size is 90 × 146 × 48 mm and the dropper weighs approximately 120 g.
Q: What are typical uses of a 4-channel drone dropper?
A: Search-and-rescue drops of radios, flotation aids and first-aid kits, marker and signalling smoke, sensor and beacon emplacement, inert training payload drops, utility pilot-line drops, agricultural seed-ball and bio-control capsule drops, and university research.
Q: Who decides which payloads may be carried?
A: The ZD4 is supplied as a general-purpose payload release unit to verified end users. The buyer is responsible for using only lawful, authorised payloads in accordance with national law, airspace permissions, procurement rules and export controls.
Q: What is the ZD4 drone dropper price in India?
A: Price is on request. Contact FlySpark on WhatsApp or email with the variant, quantity and aircraft type for a quotation in INR or for export.
Q: What is the lead time, and do you export?
A: Lead time is confirmed with the quotation and depends on quantity and variant. FlySpark supplies across India and handles export enquiries subject to end-user verification and applicable export-control documentation.
Q: Is a PWM version of the ZD4 available?
A: The ZD4 is listed with CRSF control. For aircraft that only provide PWM servo outputs, FlySpark can advise on a PWM-triggered sibling model or a receiver-to-PWM output module; confirm your aircraft’s interface when ordering.
Q: How do I test the ZD4 before flight?
A: Bench-test all four channels with the propellers removed, confirm each switch on the radio opens the correct latch, check strap tension on every cradle and verify all-up weight and balance before the first flight.
Q: How does the ZD4 compare with the ZD6 and ZD8?
A: The ZD4 is the compact 5 V, four-channel model at approximately 120 g. The ZD6 (6 channels, approx. 300 g) and ZD8 (8 channels, approx. 350 g) carry more payloads but are larger and need a 7–28 V supply.
A: Warranty covers manufacturing defects for 1 year under approved use and normal operating conditions. Crash damage, overload, wrong wiring or voltage, and unauthorised modification may not be covered.
Mission configurations
Configuration (2)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Standard ZD4 with four independently controlled release channels, CRSF control from a Crossfire / ELRS receiver, strap or zip-tie mounting.
SKU: FSP-DRP-ZD4-CRSF
Unit Price (excl. GST)POAAvailable
ZD4 on a dropper-side quick-release base for fast fitting and swapping between aircraft. Aircraft-side quick-release mount sold separately.
Standard ZD4 with four independently controlled release channels, CRSF control from a Crossfire / ELRS receiver, strap or zip-tie mounting.
POA
Excl. GST
SKU: FSP-DRP-ZD4-CRSF
Configuration matrix
Compare all variants
Side-by-side specifications — click a column to select
Parameter
Unit Price (excl. GST)
POA
POA
Stock
Available
Available
SKU
FSP-DRP-ZD4-CRSF
FSP-DRP-ZD4-SQ-V2

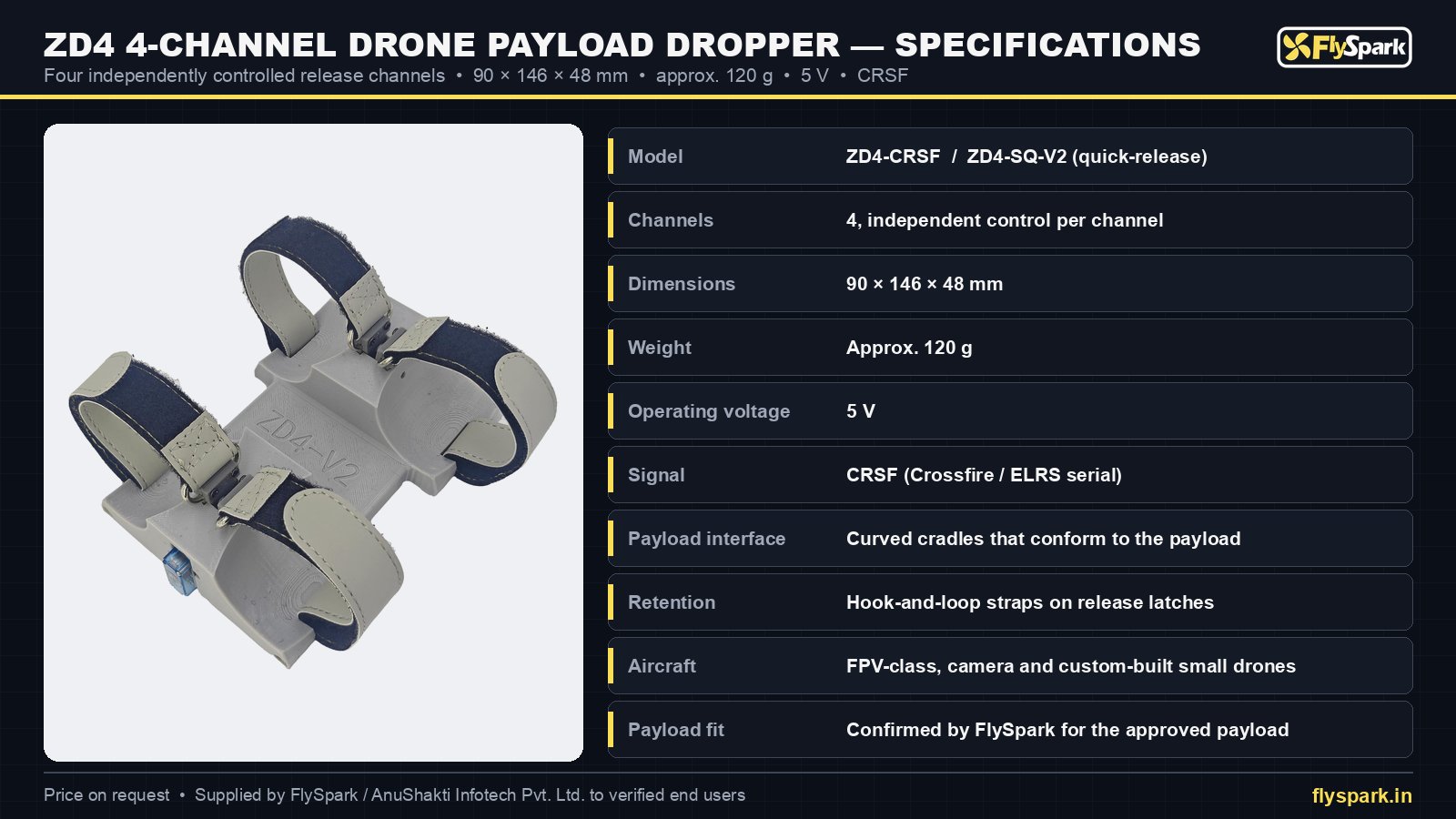

Technical Data Sheet
System Specifications
32 parameters across 7 categories
search
settingsGeneral7 fields
Product Type
4-channel drone payload dropper / payload release system
Model Name
FlySpark ZD4 4-Channel Drone Payload Dropper
Model Codes
ZD4-CRSF, ZD4-SQ-V2
Product Category
UAV Payload Droppers & Release Systems
Price
On request
SKU
FSP-DRP-ZD4-CRSF
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
Complete specification index
settingsGeneral 7
Product Type
4-channel drone payload dropper / payload release system
Model Name
FlySpark ZD4 4-Channel Drone Payload Dropper
Model Codes
ZD4-CRSF, ZD4-SQ-V2
Product Category
UAV Payload Droppers & Release Systems
Price
On request
SKU
FSP-DRP-ZD4-CRSF
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
straightenPhysical 5
Dimensions
90 × 146 × 48mm
Weight
Approx. 120g
Payload Interface
Four curved cradles that conform to the payload
Payload Retention
Hook-and-loop strap per cradle, end held by the release latch
Construction
Lightweight, high-reliability design
settingsRelease System 4
Release Channels
4
Channel Control
Independent control per channel
Release Modes
Single channel, sequential, or grouped channels on one switch
Payload Fit
Confirmed by FlySpark for the end user’s approved payload
settingsElectrical & Control 4
Operating Voltage
5V
Control Signal
CRSF (Crossfire / ELRS serial)
Trigger Source
Operator radio switches via aircraft receiver
Operation
Simple operation, channels mapped on the operator radio
settingsCompatibility & Mounting 4
Compatible Aircraft
FPV-class drones and custom-built multirotors (Crossfire / ELRS receiver); camera drones and other small aircraft with a suitable mount
ZD4-CRSF Mounting
Strap or zip-tie mount under the aircraft bottom plate
ZD4-SQ-V2 Mounting
Dropper-side quick-release base
Sold Separately
Aircraft-side quick-release mount (for ZD4-SQ-V2)
settingsVariants 2
ZD4-CRSF
Standard, 90 × 146 × 48mm, approx. 120g, 5V, CRSF
ZD4-SQ-V2
Quick-release, 90 × 146 × 48mm, approx. 120g, 5V
settingsSafety & Compliance 6
Supply
Verified end users only
Lawful use
Buyer responsible for lawful, authorised payloads and airspace permissions
Export control
Subject to applicable export-control and end-user documentation
Flight safety
Never fly over people; release only over a cleared area
Warranty
1 Year manufacturing defect support under approved use and normal operating conditions
Supplier
FlySpark / AnuShakti Infotech Pvt. Ltd.
Frequently asked questions
Can the FlySpark ZD4 release each payload separately?
Yes. All four channels are controlled independently, and can be released one at a time, in sequence or grouped on one radio switch.
What receiver does the ZD4 dropper need?
A Crossfire or ELRS receiver; the ZD4 is controlled by a CRSF serial signal and runs on 5 V.
How big and heavy is the ZD4?
90 × 146 × 48 mm and about 120 g.
What is the difference between the ZD4-CRSF and ZD4-SQ-V2?
The ZD4-CRSF is strapped or zip-tied under the aircraft bottom plate; the ZD4-SQ-V2 sits on a dropper-side quick-release base for swapping between aircraft, with the aircraft-side mount sold separately.
Can FlySpark export the FlySpark ZD4 4-Channel Drone Payload Dropper internationally?
Yes. The FlySpark ZD4 4-Channel Drone Payload Dropper ships to defense, security, and critical-infrastructure buyers in our 10 export markets and other authorized destinations, with full export documentation — end-user certification, dual-use classification, and destination-specific compliance handled before dispatch.
What configurations of the FlySpark ZD4 4-Channel Drone Payload Dropper are available?
The FlySpark ZD4 4-Channel Drone Payload Dropper is offered in 2 configurations so you can match range, payload, and integration requirements. Custom builds are available for volume orders.
Do you provide technical support and documentation for the FlySpark ZD4 4-Channel Drone Payload Dropper?
Every FlySpark ZD4 4-Channel Drone Payload Dropper order includes datasheets, integration guidance, and compliance paperwork. Our engineering team supports commissioning, spares, and field deployment.
How do I request a quote for the FlySpark ZD4 4-Channel Drone Payload Dropper?
Pricing for the FlySpark ZD4 4-Channel Drone Payload Dropper is quoted on request. Contact the export desk with your quantity and destination for a formal quote that includes export documentation, compliance handling, and freight.
FlySpark exports this system worldwide with end-user certification, dual-use classification, and destination-specific compliance. Open your country edition for indicative local pricing; the binding quote is issued on WhatsApp in your currency.
