FlySpark AI Vision FlyCube ST Pro - Scout Thermal Pro AI Visual Tracking Module | Short-Focus Visible Camera + 640 Thermal Imaging
Buy this AI vision cube s / FlyCube S scout AI tracker — from ₹48,000. Compare FlyCube D for dual-view ~1200 m. Soft DT thermal → wearable detector.
FlyCube ST Pro scout thermal AI tracker with 640×512 thermal imaging for higher-resolution day/night FPV tracking.
Base Price
₹2,10,000
Excl. GST · Final pricing subject to configuration & quantity
Military-grade quality assured
Export compliant documentation
24/7 engineering support
System Tags
flycube-st-pro640-thermal-aiscout-thermal-profpv-thermal-tracking
Mission Configurations
Configuration(7)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | |||||||
|---|---|---|---|---|---|---|---|
| Unit Price (excl. GST) | ₹2,10,000 | ₹2,10,000 | ₹2,10,000 | ₹2,10,000 | ₹2,10,000 | ₹2,10,000 | ₹2,10,000 |
| Stock | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units |
| SKU | FSP-FLYCUBE-STPRO-SCOUT-THERMAL-PRO | FSP-FLYCUBE-STPRO-FPV-INTEGRATION | FSP-FLYCUBE-STPRO-DAY-NIGHT | FSP-FLYCUBE-STPRO-INSPECTION | FSP-FLYCUBE-STPRO-RD | FSP-FLYCUBE-STPRO-TRAINING | FSP-FLYCUBE-STPRO-UPGRADE-PATH |
Intelligence Brief
Mission Overview
FlySpark AI Vision FlyCube ST Pro - Scout Thermal Pro | AI Visual Tracking Module with 640 Thermal Imaging

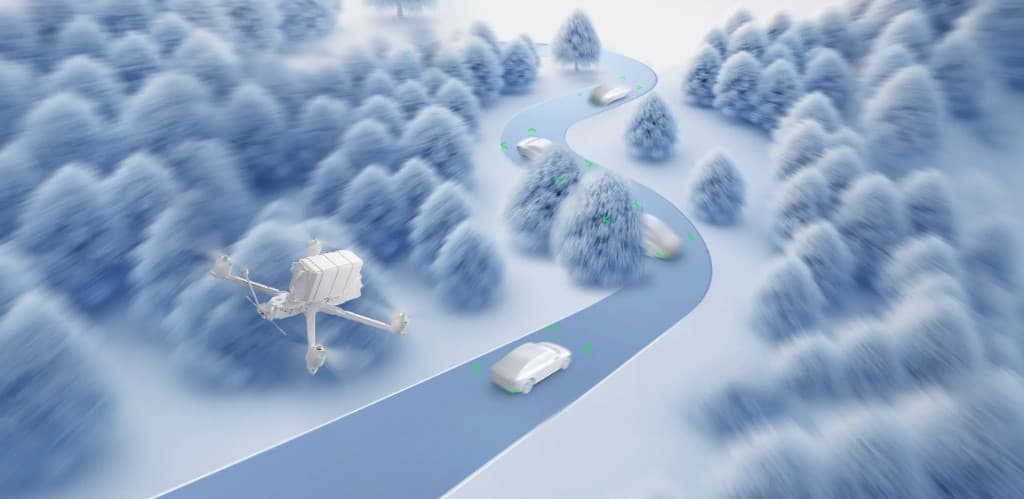

The FlySpark AI Vision FlyCube ST Pro - Scout Thermal Pro is a compact professional AI visual tracking module designed for FPV drones, UAV development platforms, inspection drones, surveillance drones and air-to-ground recognition systems requiring high-resolution thermal-assisted operation. This Scout Thermal Pro variant combines a short-focus visible-light camera with an upgraded 640×512 thermal imaging camera and a 1 TOPS AI image processing board.

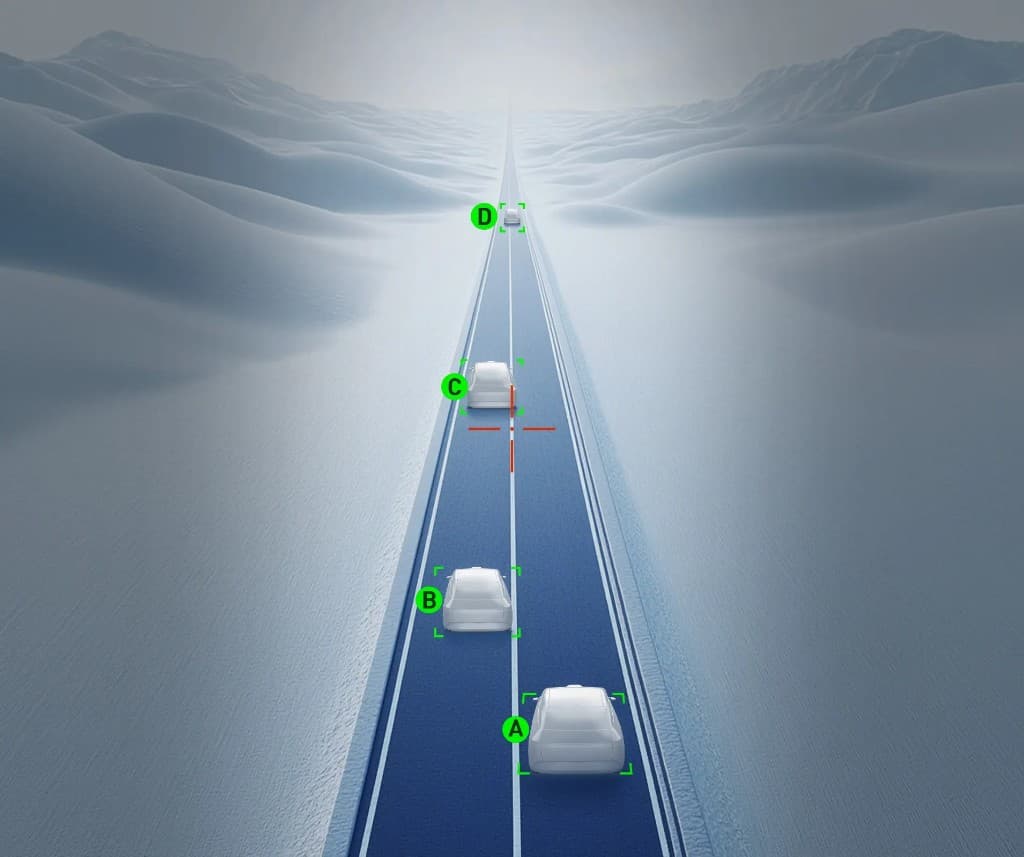

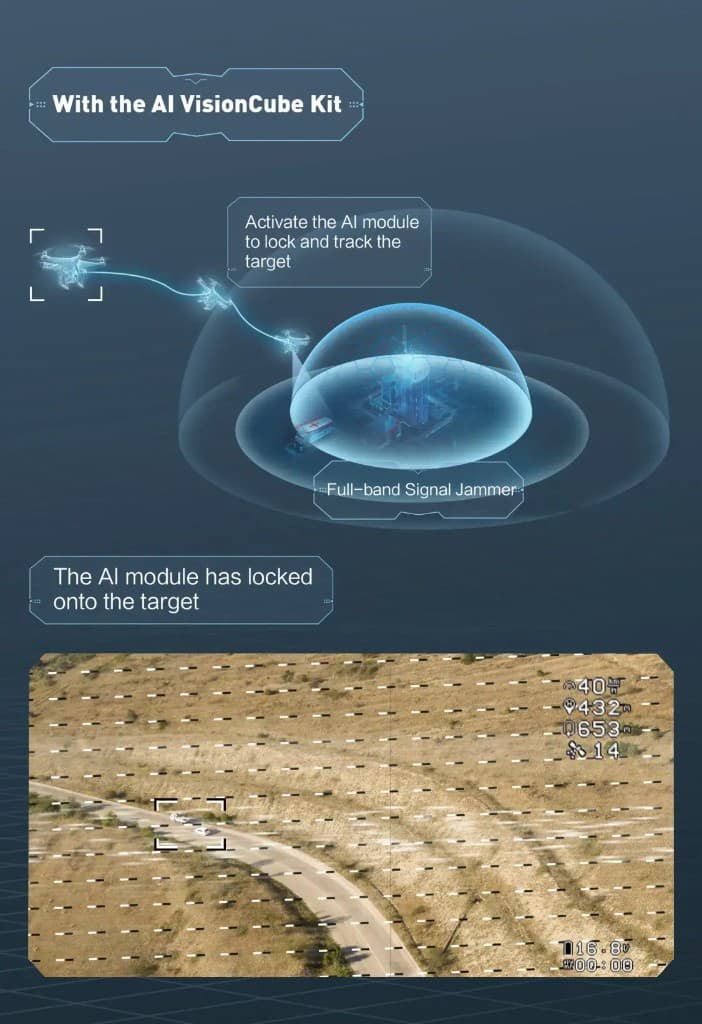

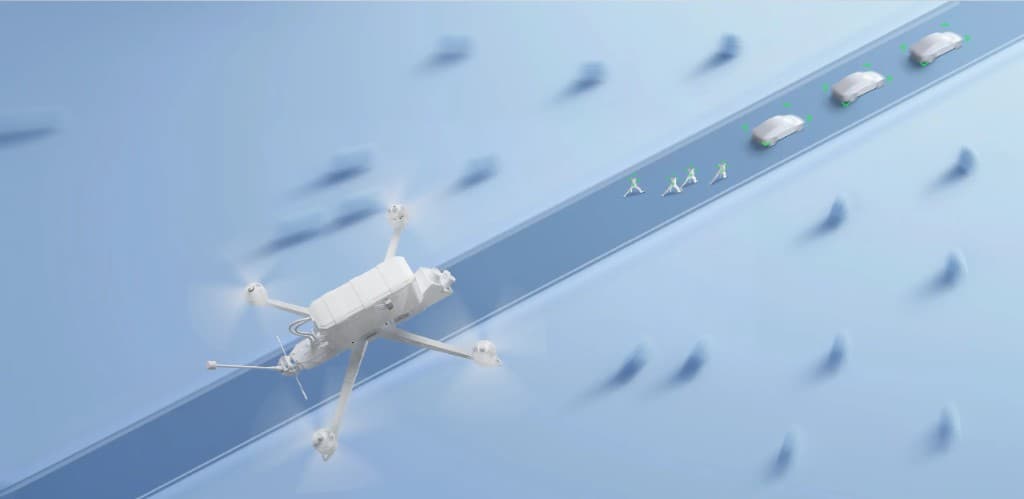

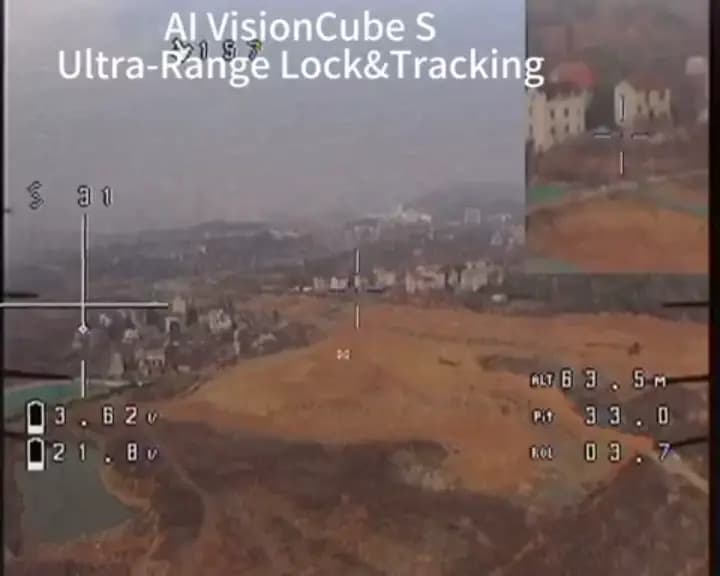

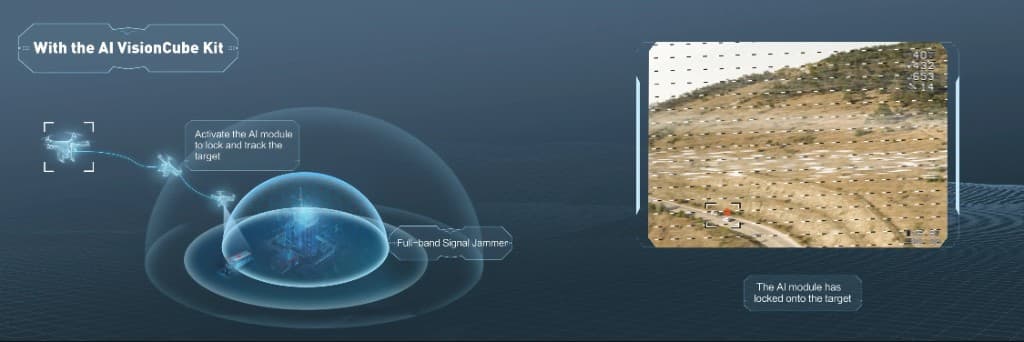

FlyCube ST Pro supports default human and vehicle recognition, with vehicle recognition up to 450m and human recognition up to 170m under suitable conditions. It includes intelligent adhesive tracking, trajectory prediction, feature memory tracking, Picture-in-Picture support and recognition of up to 50 targets within the field of view.
KEY FEATURES & BENEFITS:
- Scout Thermal Pro Compact Variant:
- • Short-focus visible-light camera + 640×512 thermal imaging (no long-focus camera)
- • Vehicle recognition up to 450m | Human recognition up to 170m
- • 1 TOPS AI board | CRSF | BetaFlight | Analog VTX | PiP supported
- • Higher thermal clarity than 384 thermal FlyCube ST variant
- 640 Thermal Imaging Advantage:
- • 640×512 @ 50Hz | 12μm pitch | 45.9°×36.9° FOV | 8–14μm LWIR
- • Clearer heat-signature detail for low-light, night and inspection workflows
IMPORTANT USE NOTE: This AI vision module is for lawful visual recognition, thermal-assisted observation, tracking assistance, inspection, training, research and authorized surveillance only. Drone operation must follow DGCA/local aviation rules and privacy laws.
FREQUENTLY ASKED QUESTIONS:
- Q: What is the FlySpark AI Vision FlyCube ST Pro - Scout Thermal Pro?
- A: A compact AI visual tracking module with short-focus visible camera, 640×512 thermal imaging and 1 TOPS AI processing.
- Q: What is the price of FlyCube ST Pro - Scout Thermal Pro?
- A: The listed price is ₹2,10,000.
- Q: What does ST Pro mean in FlyCube ST Pro?
- A: ST Pro stands for Scout Thermal Pro — a compact Scout variant with upgraded 640×512 thermal imaging.
- Q: What is the advantage over FlyCube ST?
- A: FlyCube ST Pro upgrades thermal from 384×288 to 640×512 for clearer thermal detail and wider thermal FOV.
- Q: Does FlyCube ST Pro include a long-focus visible camera?
- A: No. For dual visible-light with 640 thermal, use FlyCube DT Pro.

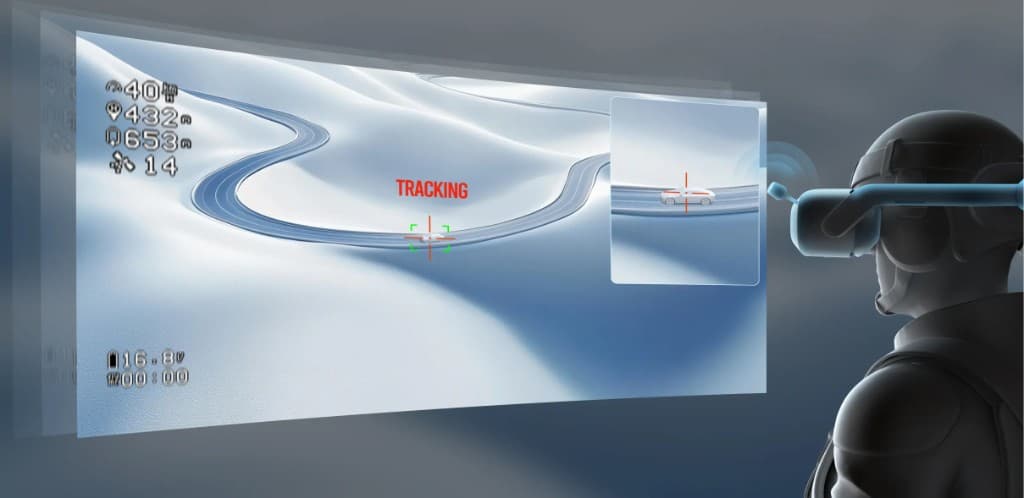

- Q: Does FlyCube ST Pro support Picture-in-Picture?
- A: Yes. PiP combines scene awareness with high-resolution thermal-assisted target detail.

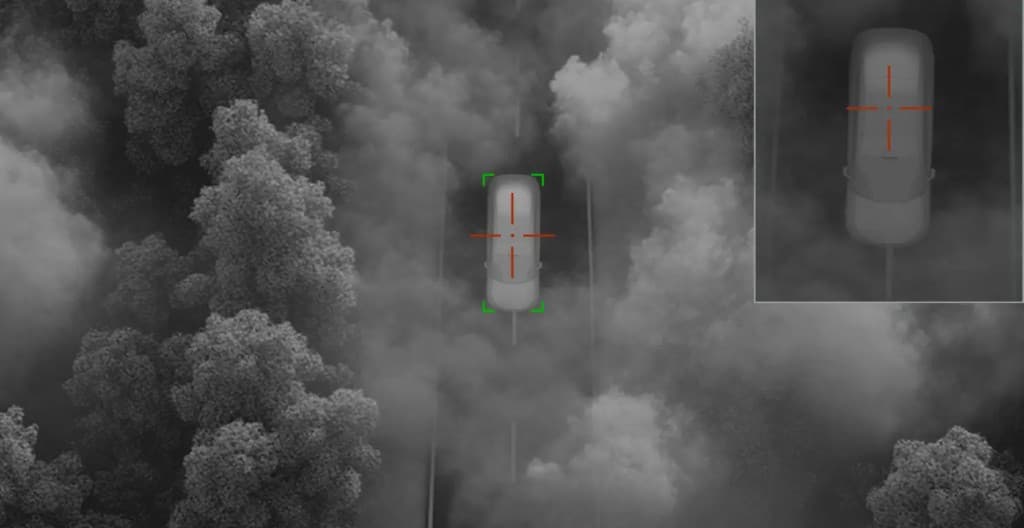

- Q: Is FlyCube ST Pro suitable for night operation?
- A: Yes. The 640×512 thermal camera supports thermal-assisted night and low-light operation.
- Q: What firmware is supported?
- A: BetaFlight integration with CRSF communication protocol.
- Q: Is this a complete drone?
- A: No. It is an AI vision tracking component for drone integration.
- Q: What warranty is included?
- A: 1 Year manufacturing defect support under approved integration and normal operating conditions.

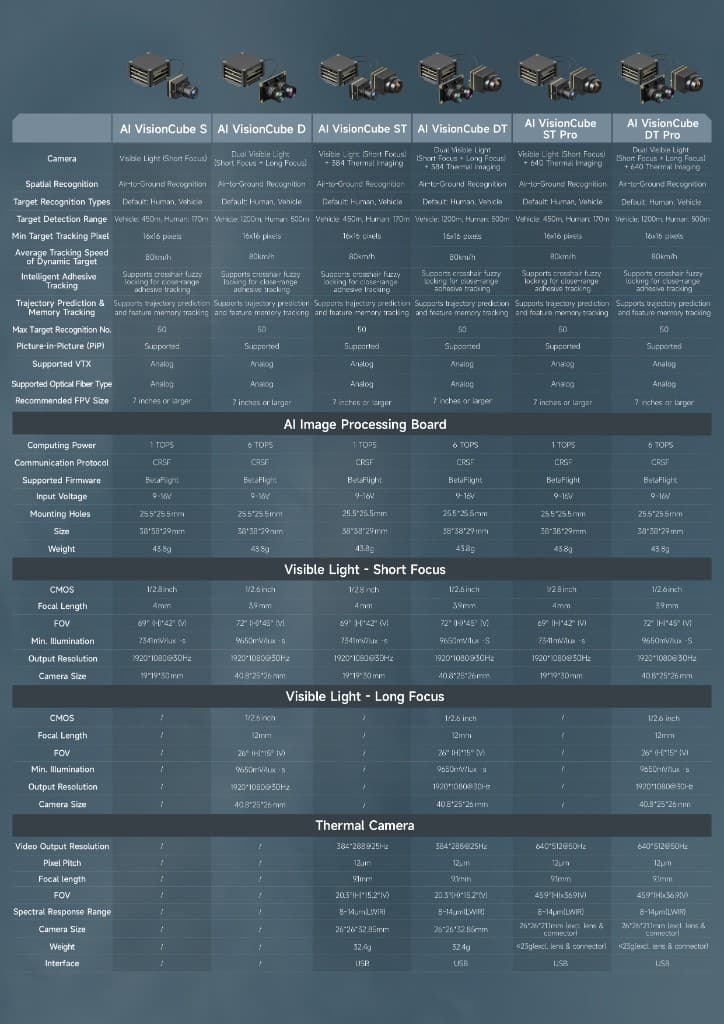

Technical Data Sheet
System Specifications
20 parameters across 2 categories
General
19 fieldsProduct Type
AI visual tracking module with high-resolution thermal imaging for drones
Model Name
FlySpark AI Vision FlyCube ST Pro - Scout Thermal Pro
Variant Meaning
ST Pro = Scout Thermal Pro compact visible + 640 thermal AI module
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
Variant Positioning
Short-focus visible + 640 thermal, no long-focus camera, pro thermal clarity

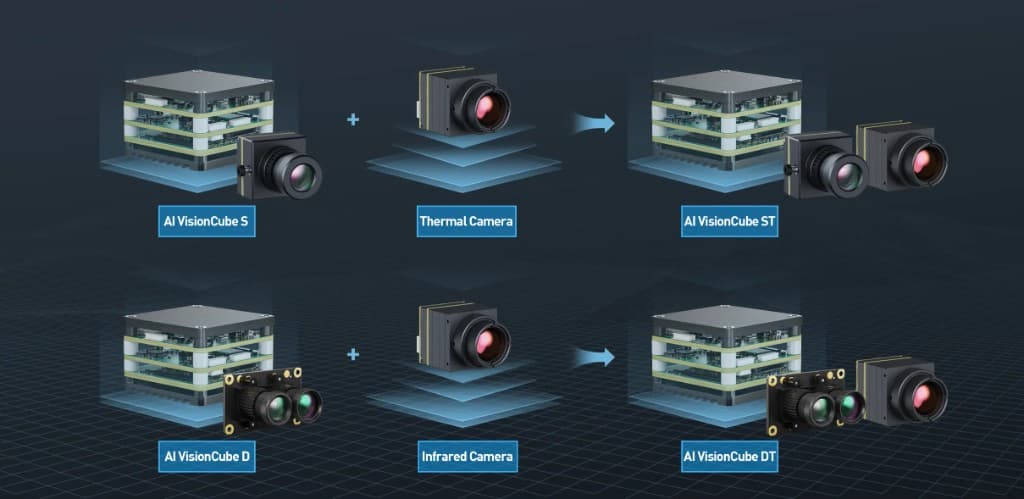

Camera Configuration
Visible Light Short Focus + 640 Thermal Imaging
Short-Focus Visible Camera
1/2.8" CMOS, 4mm, 69°×42° FOV, 1920×1080@30Hz, 19×19×30mm
640 Thermal Camera
640×512@50Hz, 12μm pitch, 9.1mm, 45.9°×36.9° FOV, 8–14μm LWIR, 26×26×21.1mm, ≤23g, USB
AI Image Processing Board
CRSF | BetaFlight | 9–16V | 38×38×29mm | 43.8g
Mounting Holes
25.5×25.5mm
Spatial Recognition
Human and Vehicle default classes

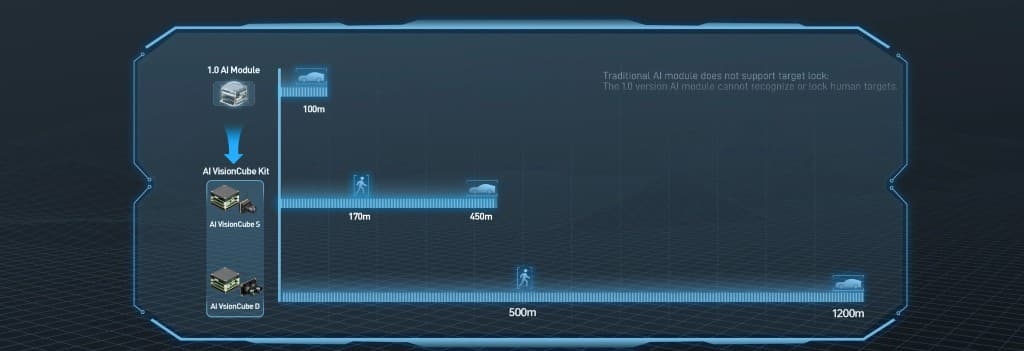

Vehicle Recognition Range
Up to 450m
Human Recognition Range
Up to 170m
Max Dynamic Tracking Speed
Up to 50 targets | Min 16×16 pixel target

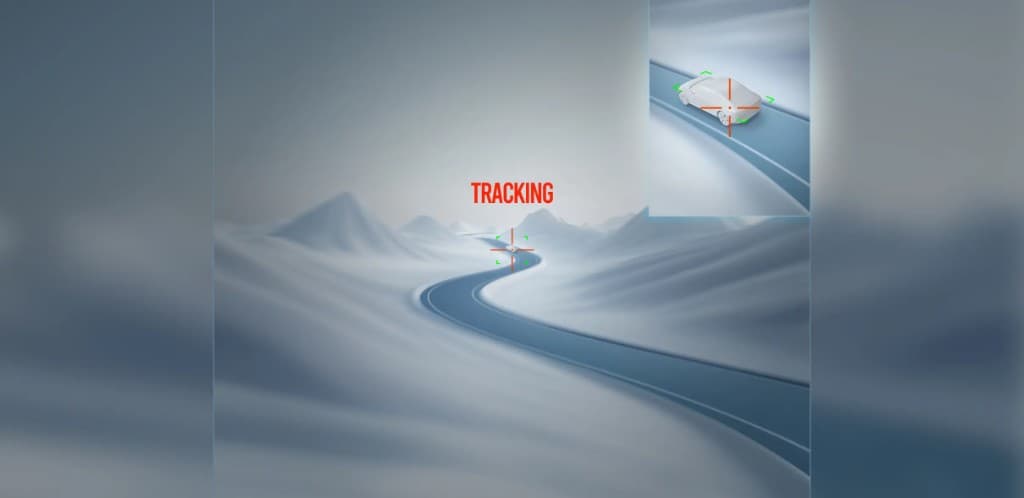

Intelligent Adhesive Tracking
Crosshair fuzzy locking for close-range adhesive tracking

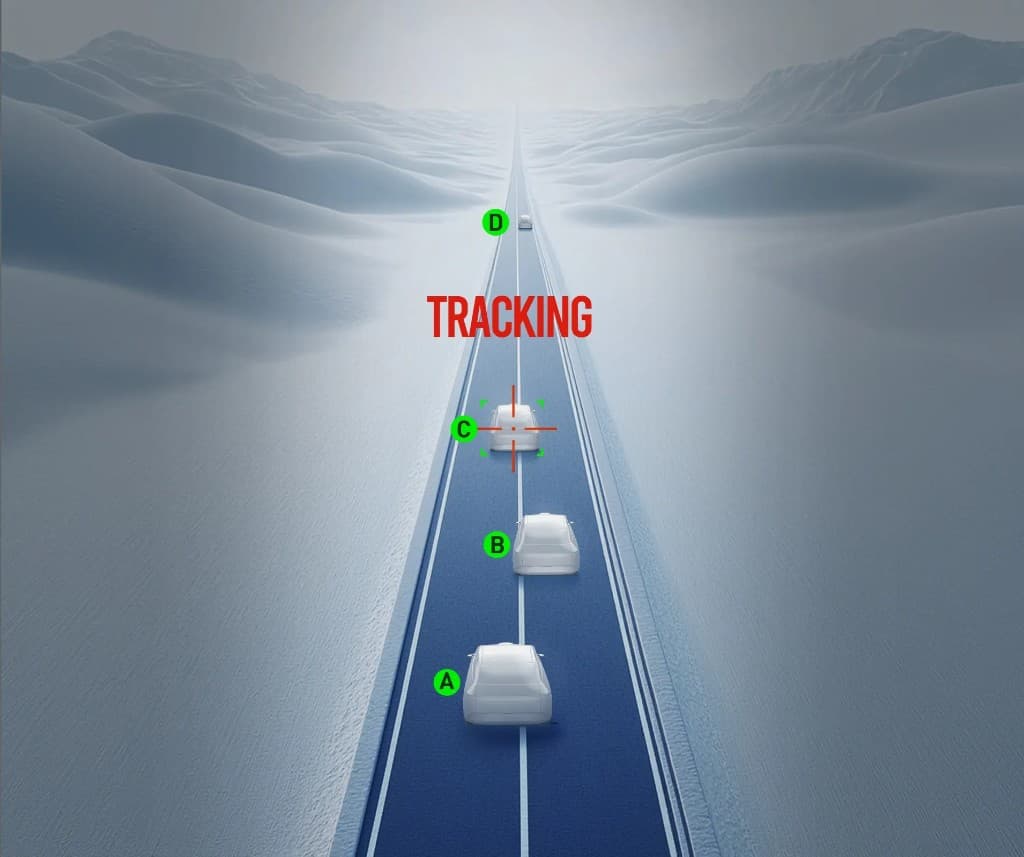

Trajectory Prediction & Memory Tracking
Supported

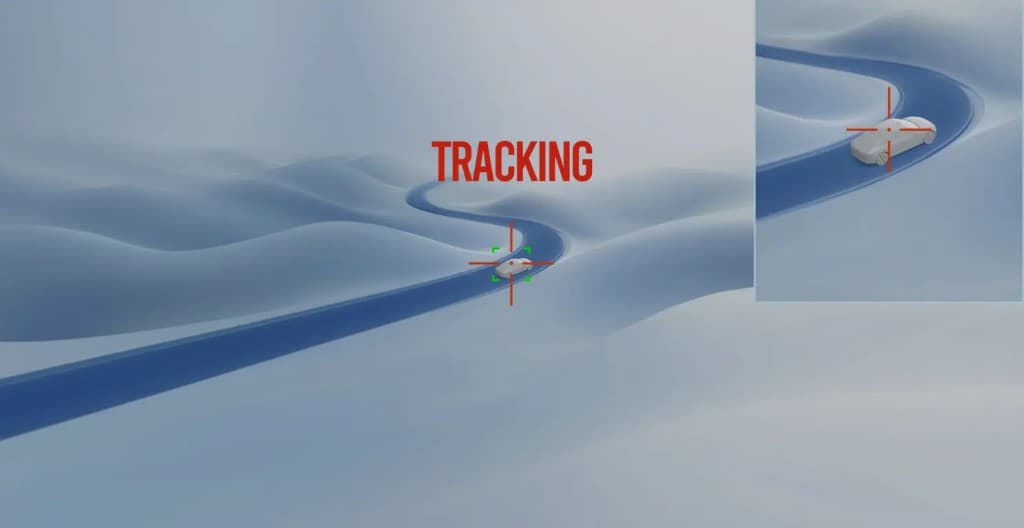

Picture-in-Picture
Analog VTX | Recommended FPV screen 7 inches or larger
Recommended Platform
7-inch or larger FPV drone, inspection, surveillance and R&D platforms
Compliance
DGCA/local rules apply | 1 Year warranty
Complete specification index
Global export
FlySpark AI Vision FlyCube ST Pro - Scout Thermal Pro AI Visual Tracking Module | Short-Focus Visible Camera + 640 Thermal Imaging — available in 52+ countries
FlySpark exports this system worldwide with end-user certification, dual-use classification, and destination-specific compliance. Select your country for regional pricing, documentation, and lead times.
Same category
Related systems
Command, Control & Robotics

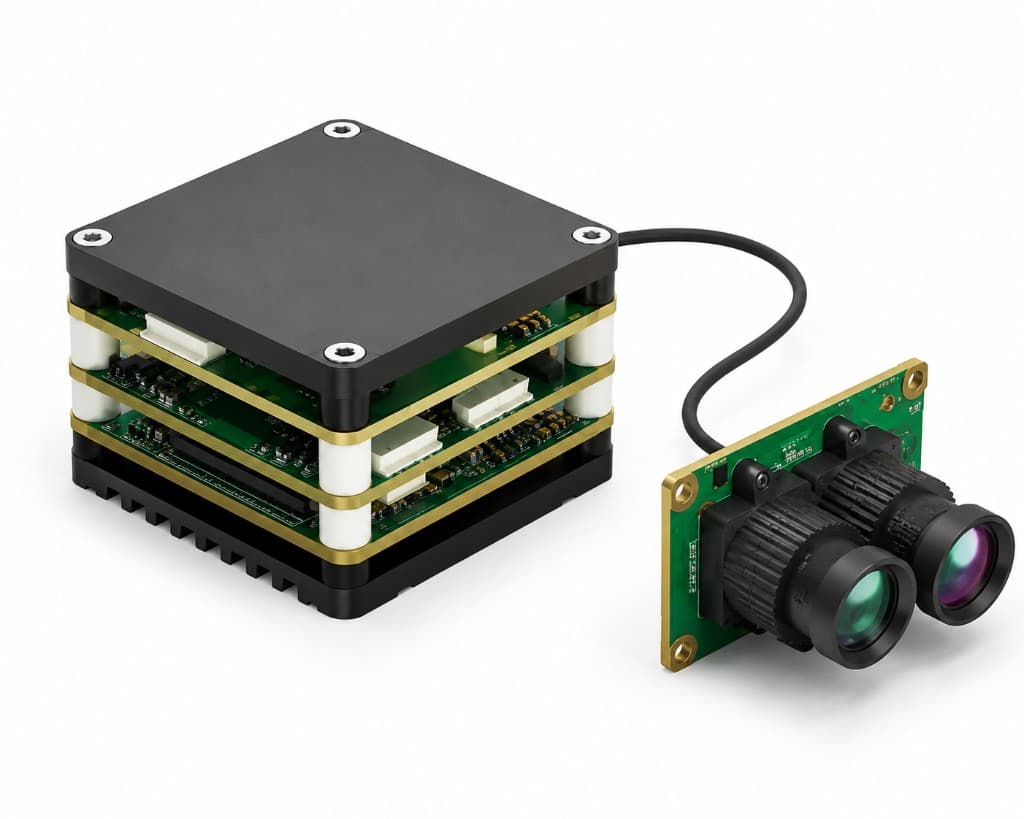

FlySpark AI Vision FlyCube D - DualView AI Visual Tracking Module | Dual Visible Camera | 1.2km Vehicle Recognition
