FlySpark AI Vision FlyCube S - Scout AI Visual Tracking Module | Short-Focus Visible Camera | 450m Vehicle Recognition
FlyCube S Scout AI tracking module with short-focus visible camera, 450m vehicle recognition, 170m human recognition, PiP, CRSF and BetaFlight support.
Base Price
₹48,000
Final pricing subject to configuration & quantity
System Tags
Mission Configurations
Configuration(5)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | |||||
|---|---|---|---|---|---|
| Unit Price | ₹48,000 | POA | POA | POA | POA |
| Stock | 10 units | 10 units | 10 units | 10 units | 10 units |
| SKU | FSP-FLYCUBE-S-SCOUT | FSP-FLYCUBE-S-FPV-INTEGRATION | FSP-FLYCUBE-S-RD | FSP-FLYCUBE-S-TRAINING | FSP-FLYCUBE-S-UPGRADE-PATH |
Intelligence Brief
Mission Overview

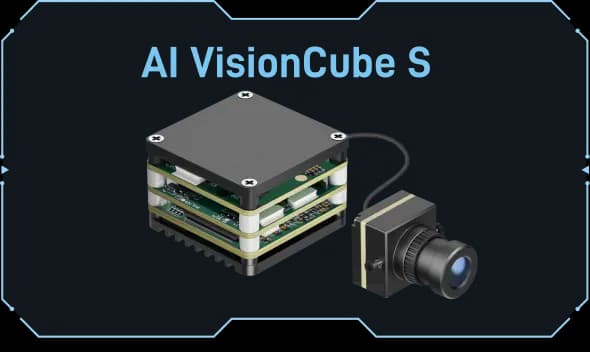

FlySpark AI Vision FlyCube S - Scout | Entry-Level AI Visual Tracking Module for FPV Drones

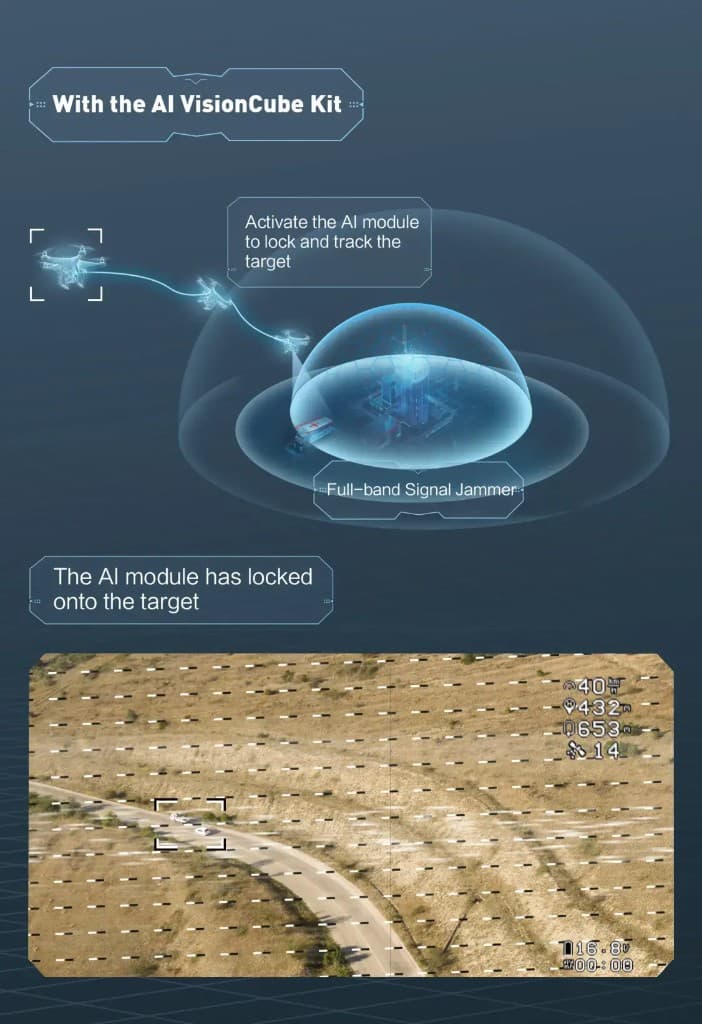

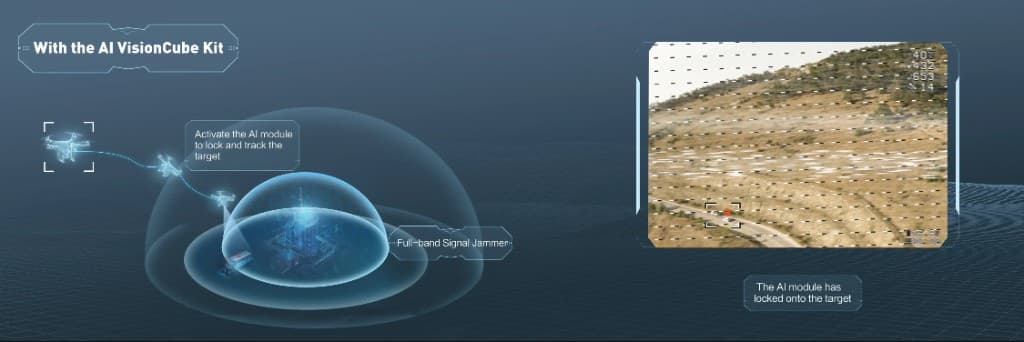

The FlySpark AI Vision FlyCube S - Scout is a compact AI visual tracking module designed for FPV drones, UAV development platforms, autonomous visual-assist systems, training drones, inspection drones and air-to-ground recognition applications. This Scout variant uses a short-focus visible-light camera with a 1 TOPS AI image processing board to provide real-time target detection, intelligent adhesive tracking, trajectory prediction, memory tracking and Picture-in-Picture support through an analog FPV video workflow.

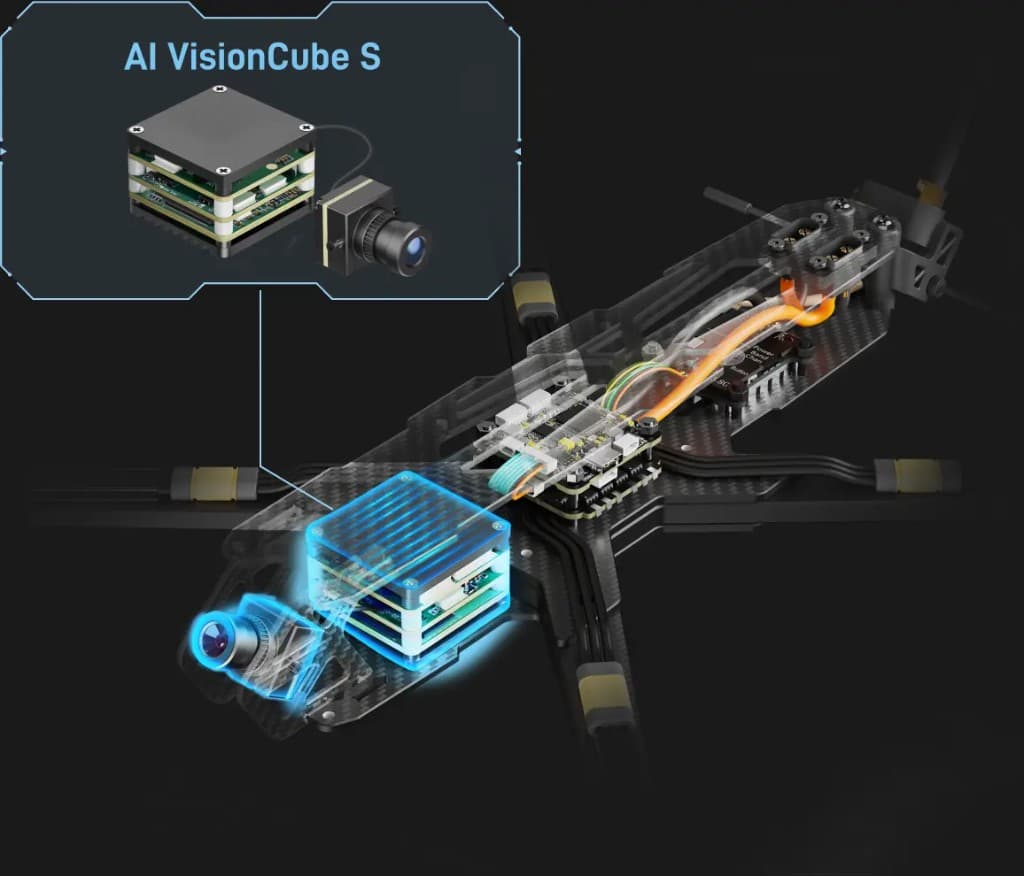

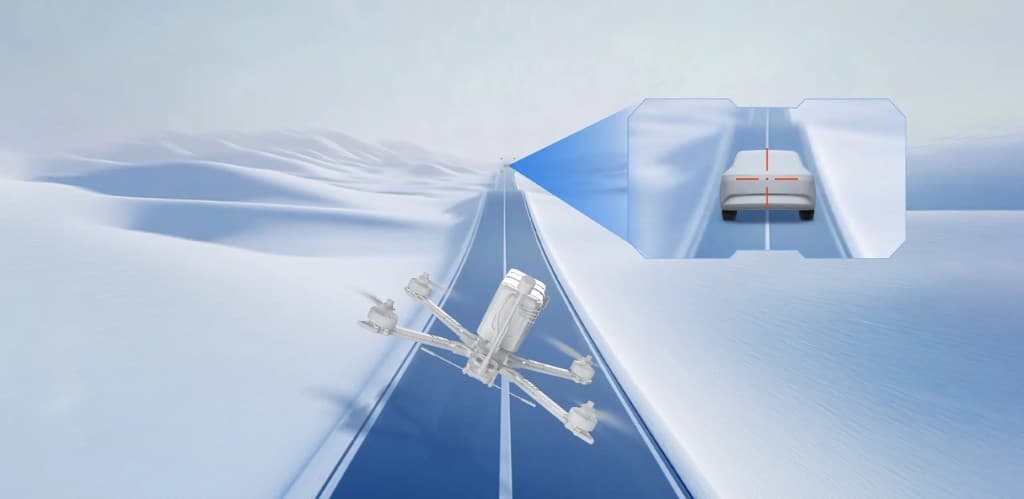

Built for lightweight drone integration, the FlyCube S supports default human and vehicle recognition, with vehicle recognition up to 450m and human recognition up to 170m under suitable visibility and environmental conditions.
KEY FEATURES & BENEFITS:
- Scout Entry Variant:
- • Short-focus visible-light camera (no thermal, no long-focus secondary camera)

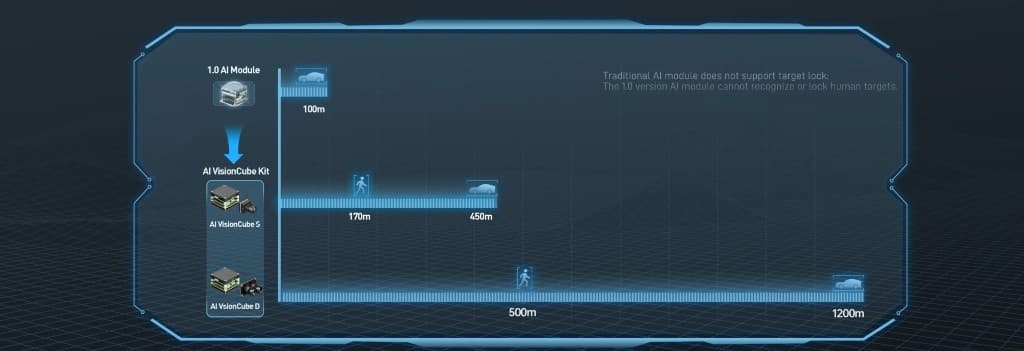

- • Vehicle recognition up to 450m | Human recognition up to 170m
- • 1 TOPS AI board | CRSF protocol | BetaFlight support | Analog VTX

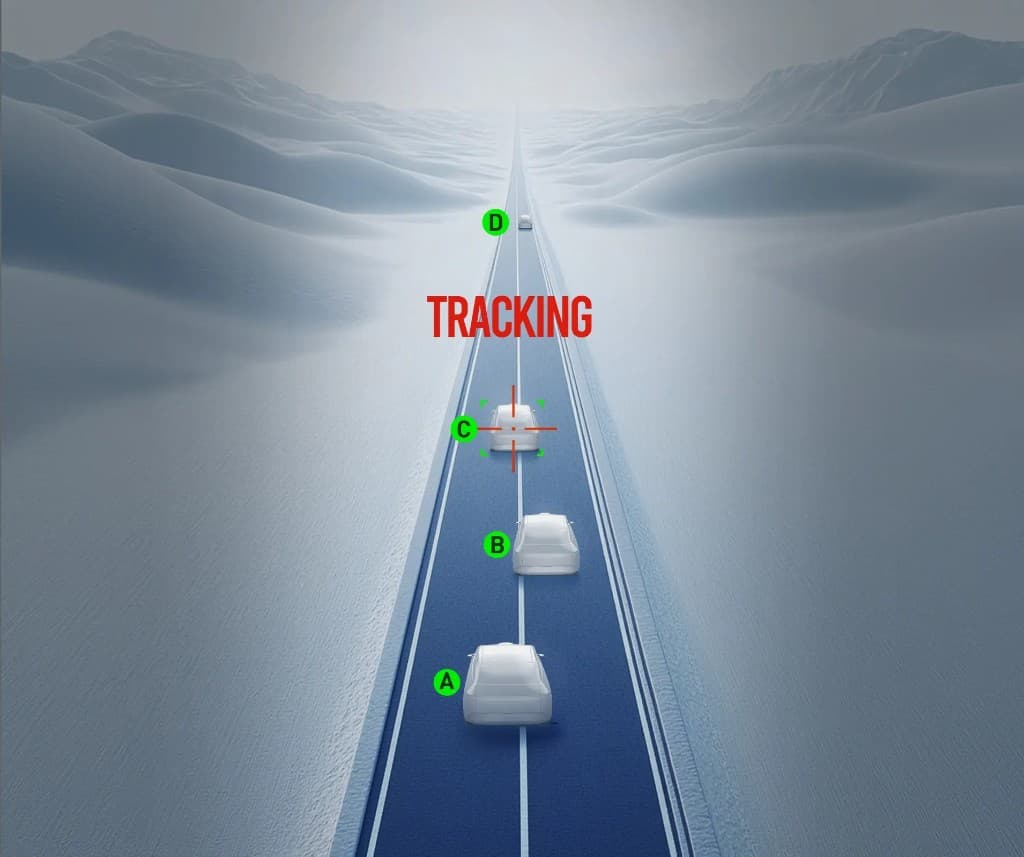

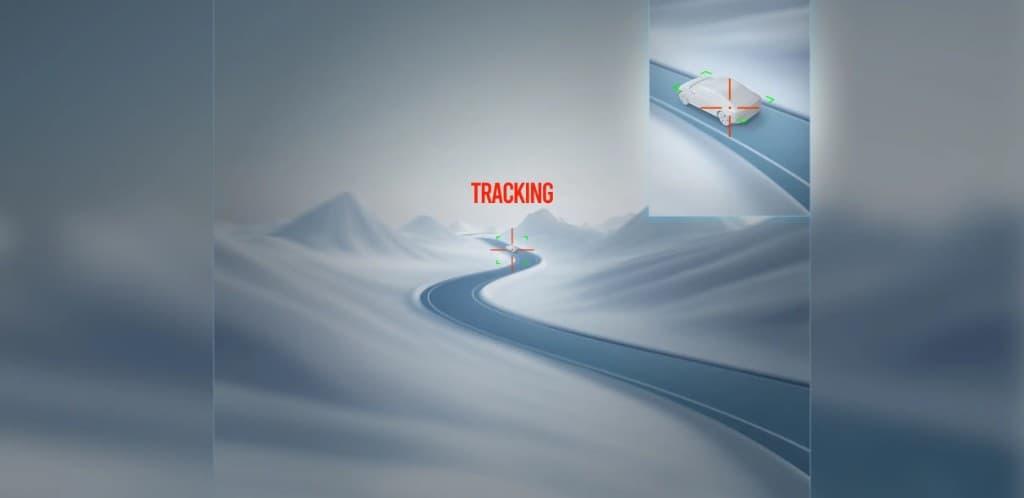

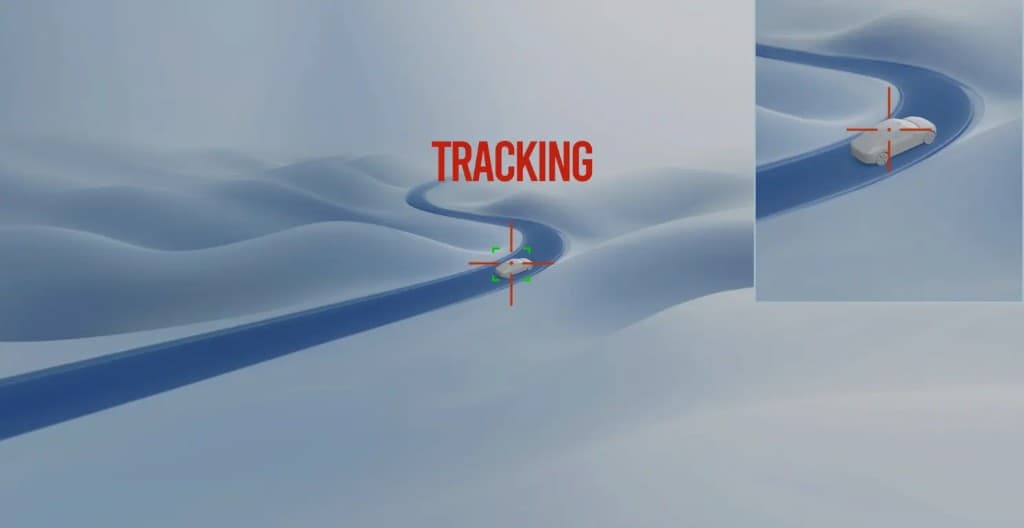

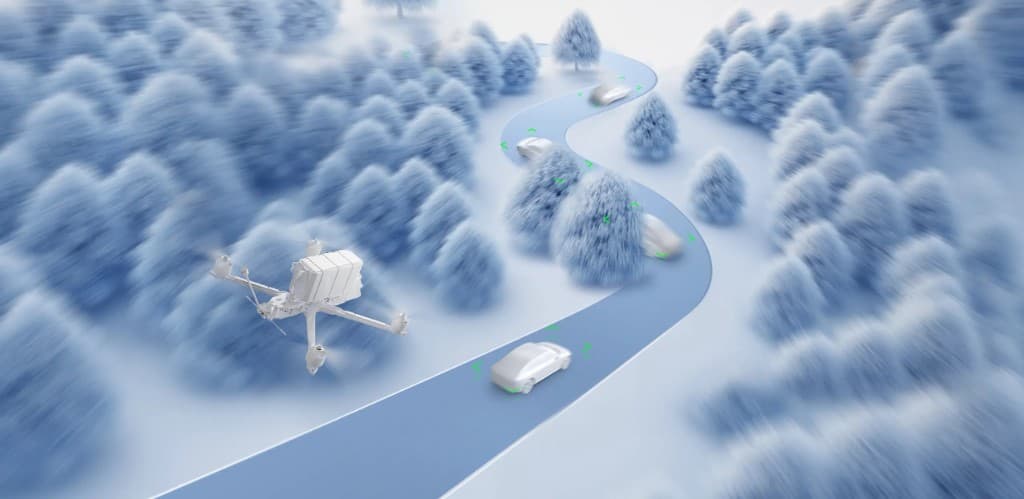

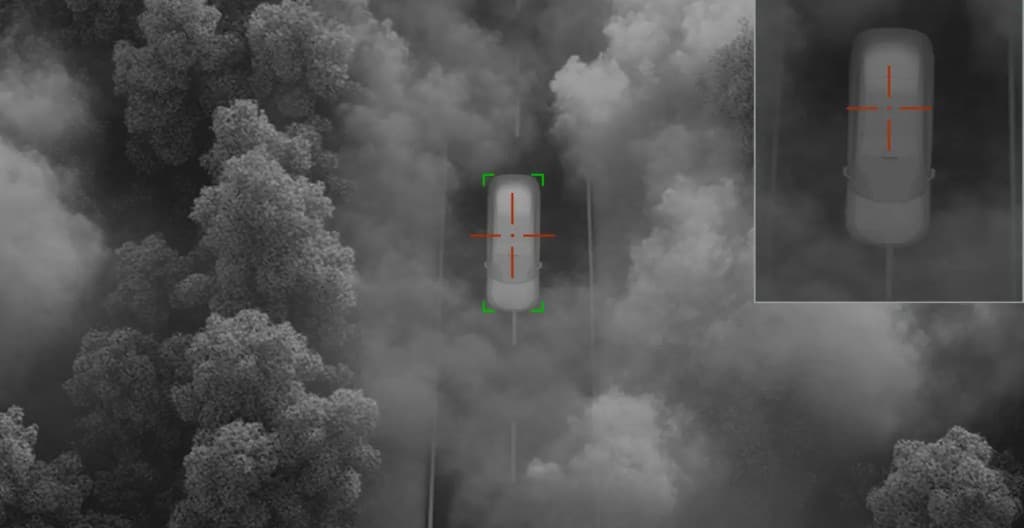

- • Intelligent adhesive tracking, trajectory prediction and memory tracking

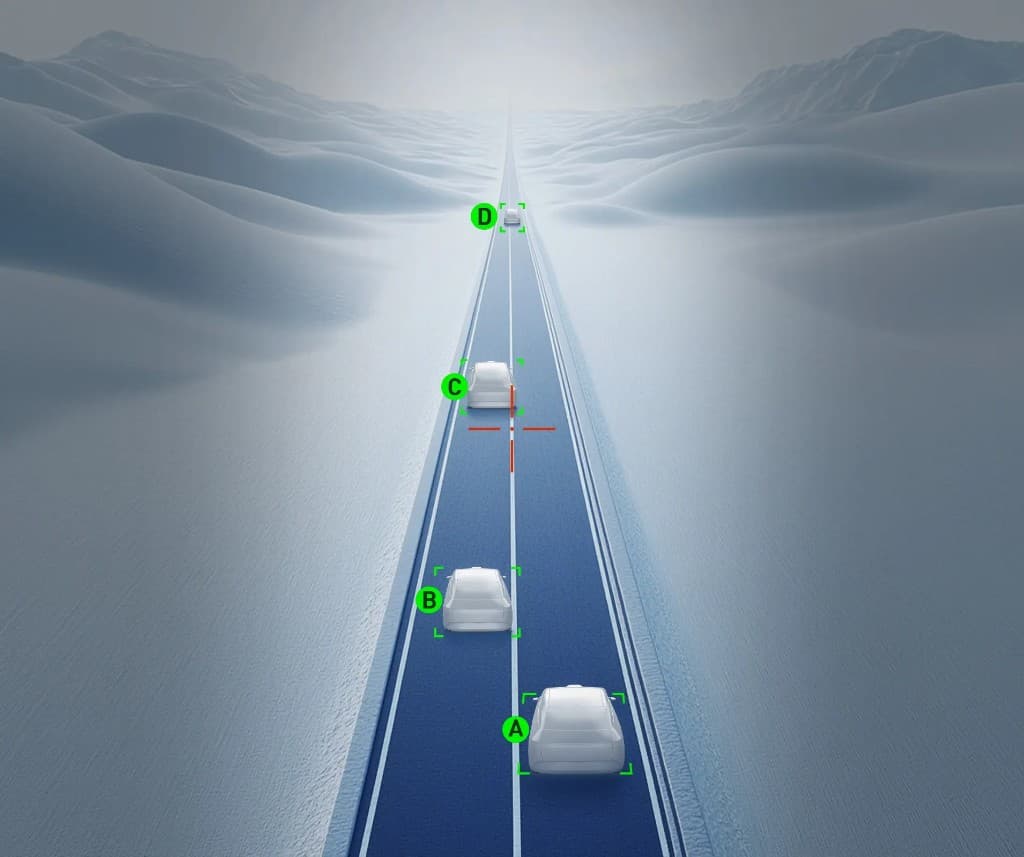

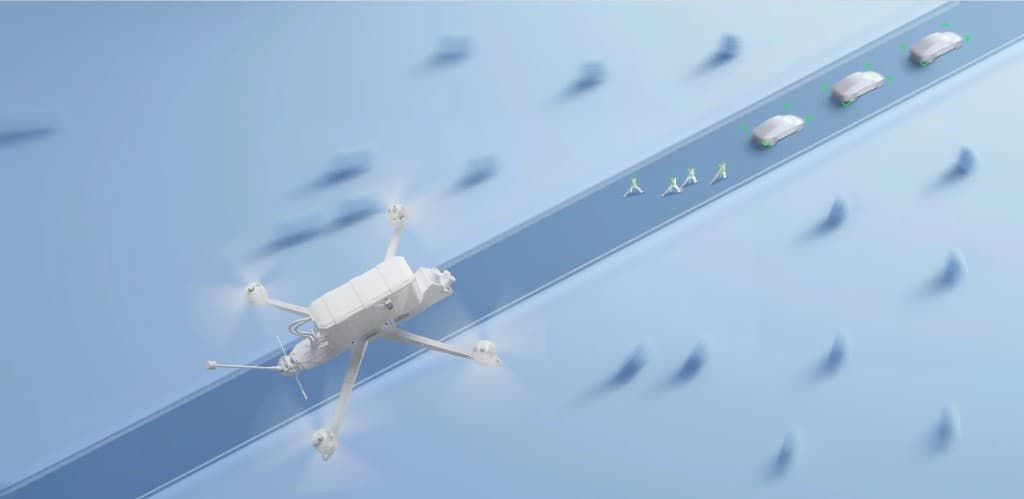

- • Up to 50 targets | 80km/h dynamic tracking | PiP supported
IMPORTANT USE NOTE: This AI vision module is a drone component for lawful visual recognition, tracking assistance, inspection, training, research and authorized surveillance applications. Drone operation must follow DGCA/local aviation rules, privacy laws and operator safety procedures.
FREQUENTLY ASKED QUESTIONS:
- Q: What is the FlySpark AI Vision FlyCube S - Scout?
- A: An entry-level AI visual tracking module for drones with short-focus visible-light camera and air-to-ground target recognition.
- Q: What is the price of FlyCube S - Scout?
- A: The listed price is ₹48,000.
- Q: What is the vehicle recognition range?
- A: Up to 450m under suitable conditions.
- Q: What is the human recognition range?
- A: Up to 170m under suitable conditions.
- Q: Does FlyCube S include thermal imaging?

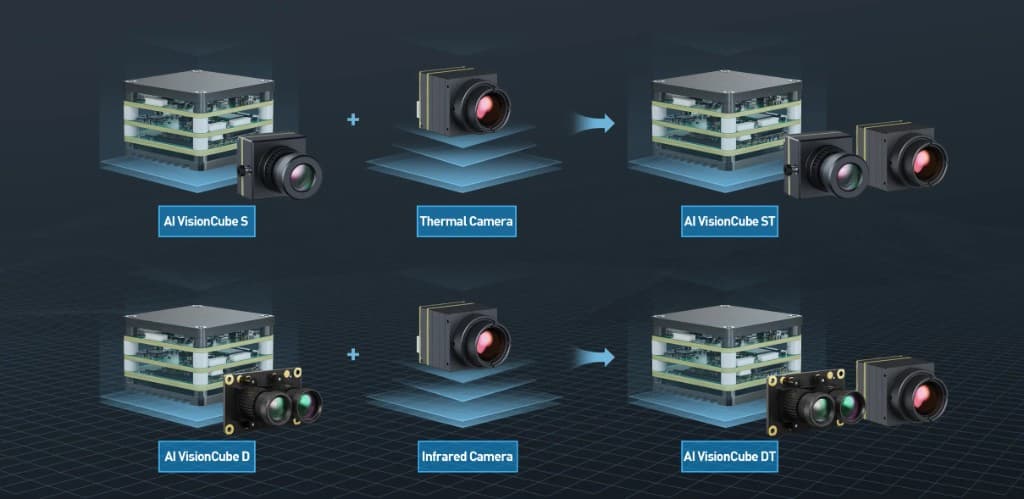

- A: No. For thermal options, use FlyCube ST, DT, ST Pro or DT Pro.
- Q: Does FlyCube S support Picture-in-Picture?
- A: Yes. Picture-in-Picture is supported with analog VTX workflow.
- Q: What firmware is supported?
- A: BetaFlight integration with CRSF communication protocol.
- Q: What is the input voltage?
- A: 9–16V.
- Q: Is this a complete drone?
- A: No. It is an AI vision tracking component for integration into drones.
- Q: What warranty is included?
- A: 1 Year manufacturing defect support under approved integration and normal operating conditions.

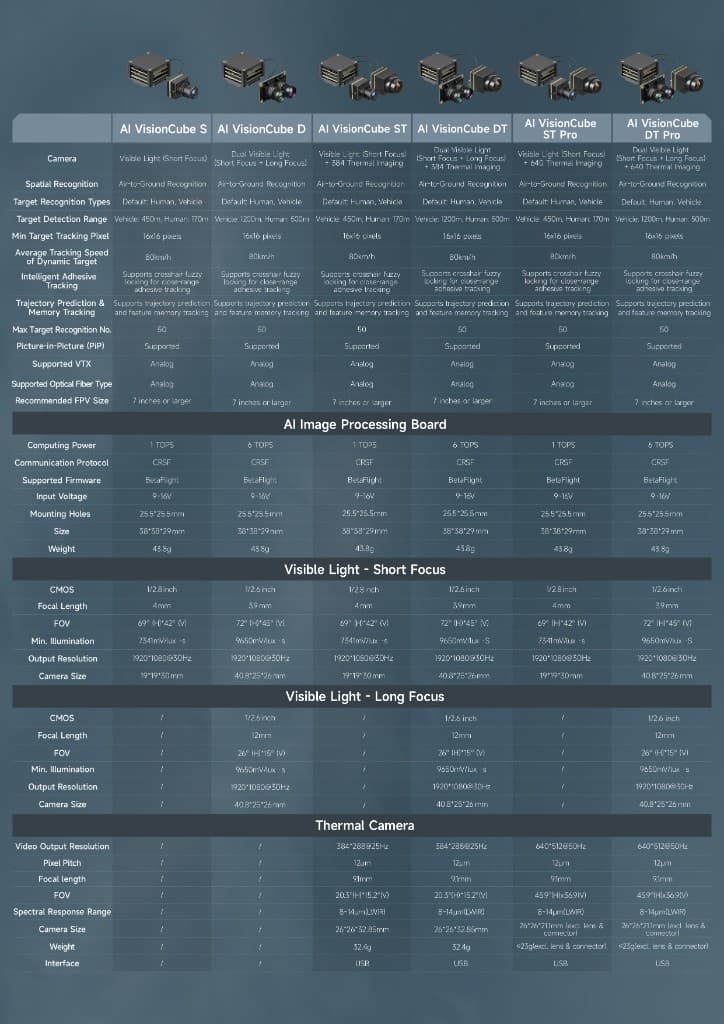

Technical Data Sheet
System Specifications
19 parameters across 2 categories
General
18 fieldsProduct Type
AI visual tracking module for drones
Model Name
FlySpark AI Vision FlyCube S - Scout
Variant Meaning
S = Scout entry-level visible-light AI tracking module
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
Variant Positioning
Short-focus camera, no thermal, no long-focus secondary camera

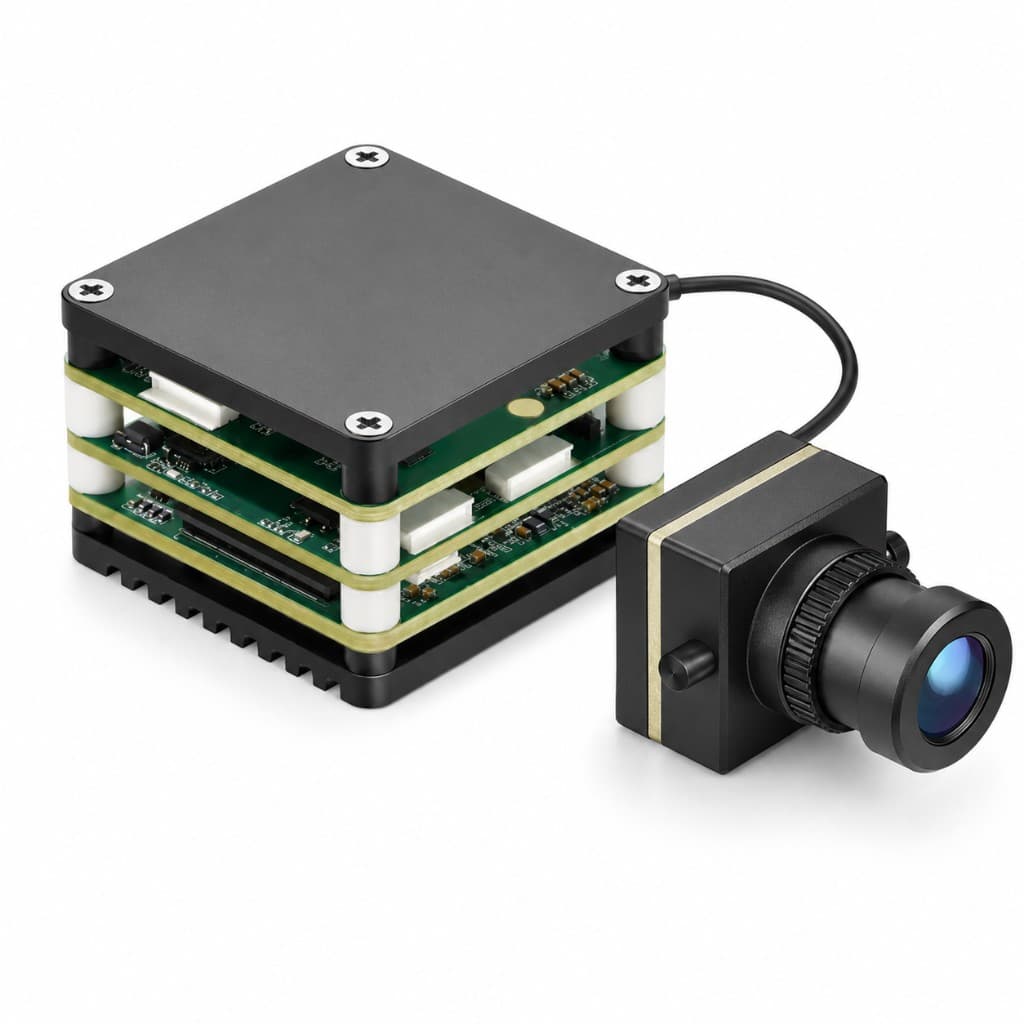

Camera Type
1/2.8 inch CMOS, 4mm, 69°×42° FOV, 1920×1080@30Hz
Camera Size
19×19×30mm
AI Image Processing Board
CRSF | BetaFlight | 9–16V | 38×38×29mm | 43.8g
Mounting Holes
25.5×25.5mm
Spatial Recognition
Human and Vehicle default classes
Vehicle Recognition Range
Up to 450m
Human Recognition Range
Up to 170m
Max Dynamic Tracking Speed
Up to 50 targets | Min 16×16 pixel target
Intelligent Adhesive Tracking
Crosshair fuzzy locking for close-range adhesive tracking
Trajectory Prediction & Memory Tracking
Supported

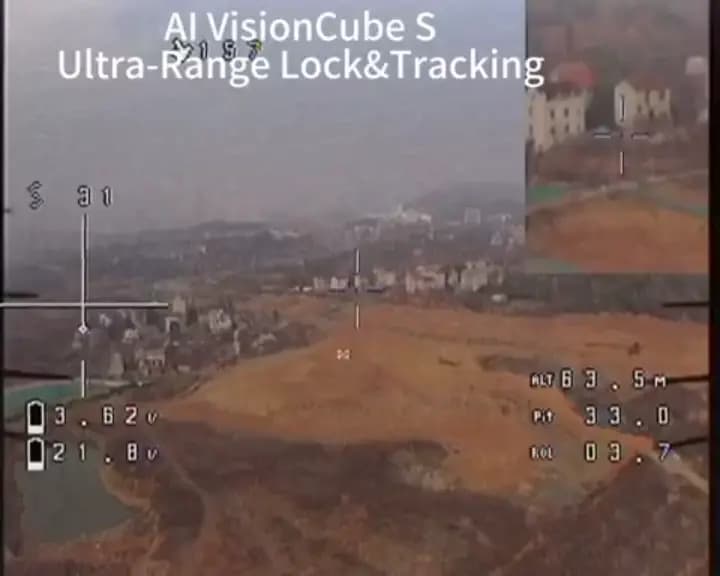

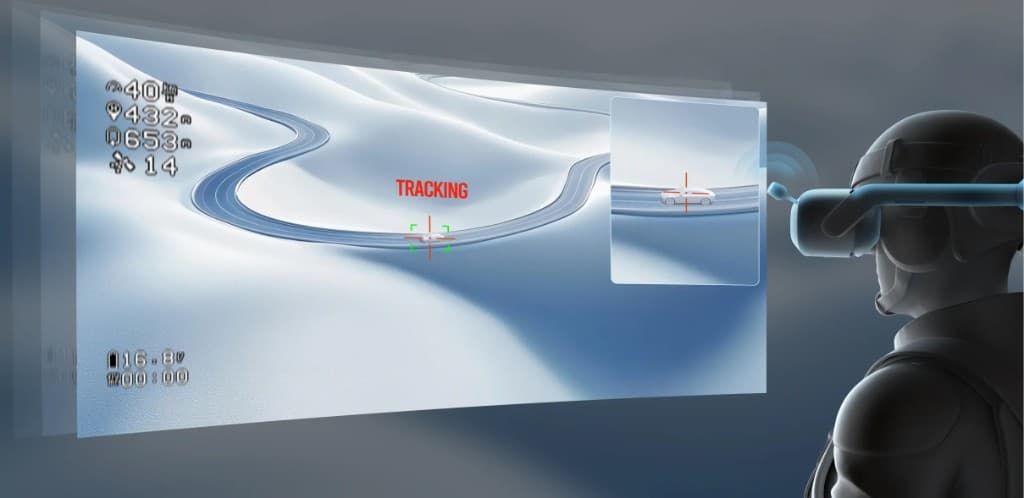

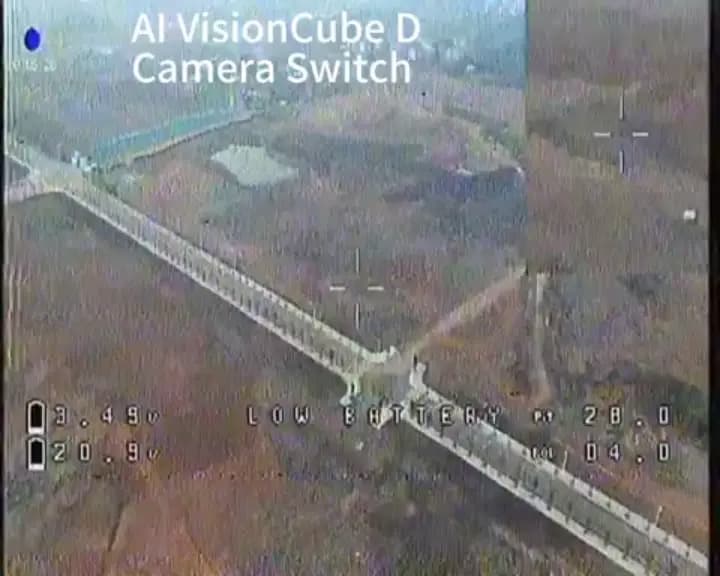

Picture-in-Picture
Analog VTX | Recommended FPV screen 7 inches or larger
AI Board Weight
Board size 38×38×29mm
Compliance
DGCA/local rules apply | 1 Year warranty
Complete specification index
