FlySpark AI Vision FlyCube D - DualView AI Visual Tracking Module | Dual Visible Camera | 1.2km Vehicle Recognition
FlyCube D DualView AI tracking module with dual visible cameras, 1.2km vehicle recognition, 500m human recognition, 6 TOPS, PiP and CRSF.
Base Price
₹79,00,000
Final pricing subject to configuration & quantity
System Tags
Mission Configurations
Configuration(6)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | ||||||
|---|---|---|---|---|---|---|
| Unit Price | POA | ₹79,00,000 | POA | POA | POA | POA |
| Stock | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units |
| SKU | FSP-FLYCUBE-D-RD | FSP-FLYCUBE-D-DUALVIEW | FSP-FLYCUBE-D-FPV-INTEGRATION | FSP-FLYCUBE-D-LR-RECOGNITION | FSP-FLYCUBE-D-TRAINING | FSP-FLYCUBE-D-UPGRADE-PATH |
Intelligence Brief
Mission Overview
FlySpark AI Vision FlyCube D - DualView | Dual Visible-Light AI Visual Tracking Module for FPV Drones
The FlySpark AI Vision FlyCube D - DualView is a professional dual-camera AI visual tracking module designed for FPV drones, UAV development platforms, air-to-ground recognition systems, surveillance drones, inspection drones and autonomous pilot-assist vision workflows. This DualView variant combines a short-focus visible-light camera and a long-focus visible-light camera with a 6 TOPS AI image processing board to deliver longer recognition range and stronger real-time visual tracking than the entry Scout version.

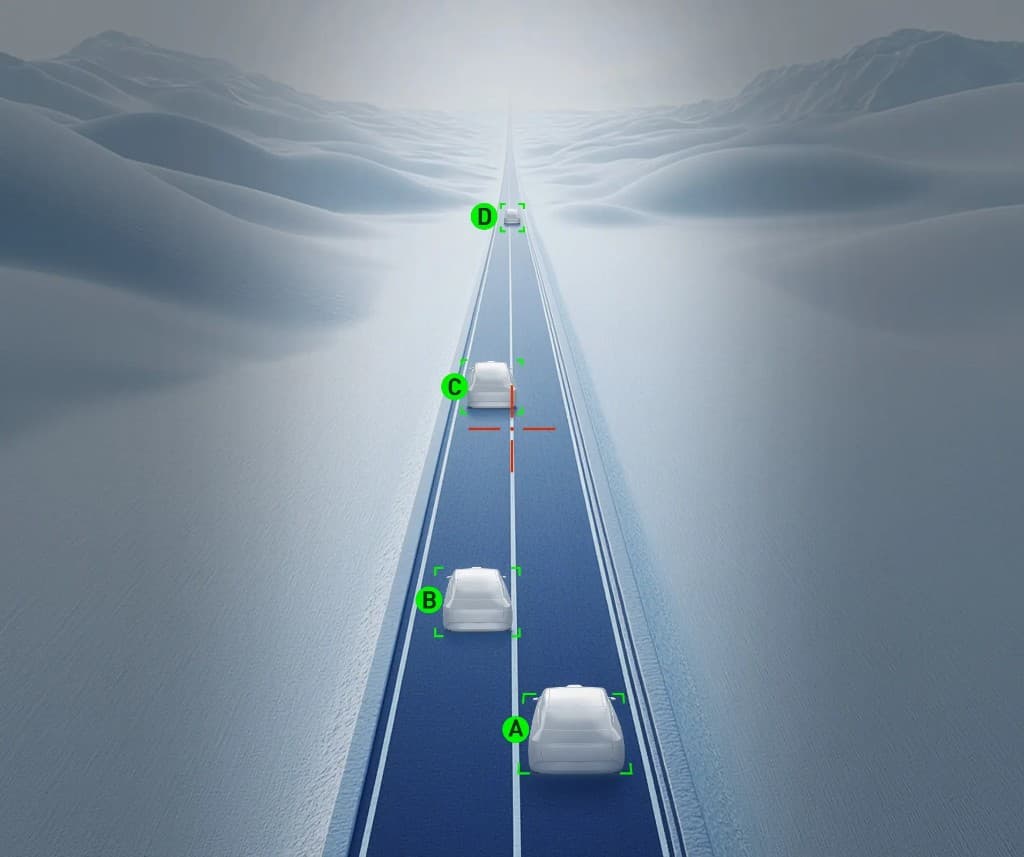

FlyCube D supports default human and vehicle recognition, with vehicle recognition up to 1200m and human recognition up to 500m under suitable conditions. It supports intelligent adhesive tracking, trajectory prediction, feature memory tracking, Picture-in-Picture display and recognition of up to 50 targets within the field of view.
KEY FEATURES & BENEFITS:
- DualView Long-Range Visible Variant:
- • Short-focus + long-focus dual visible-light cameras (no thermal)
- • Vehicle recognition up to 1200m | Human recognition up to 500m
- • 6 TOPS AI board | CRSF | BetaFlight | Analog VTX | PiP supported

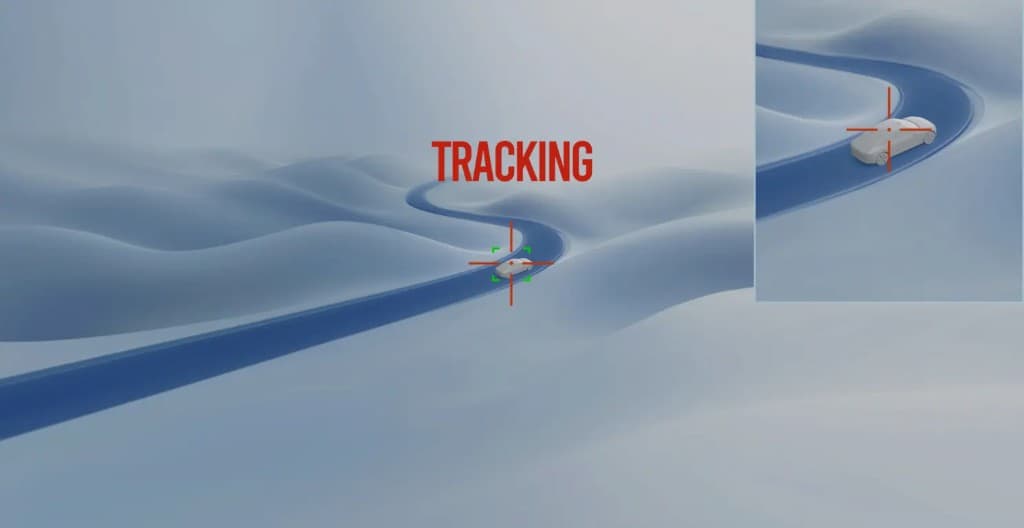

- • Intelligent adhesive tracking, trajectory prediction and memory tracking
- Dual Visible Camera System:
- • Short-focus: 1/2.6" CMOS, 3.9mm, 72°×45° FOV, 1920×1080@30Hz
- • Long-focus: 1/2.6" CMOS, 12mm, 26°×15° FOV, 1920×1080@30Hz
IMPORTANT USE NOTE: This AI vision module is for lawful visual recognition, tracking assistance, inspection, training, research and authorized surveillance only. Drone operation must follow DGCA/local aviation rules and privacy laws.
FREQUENTLY ASKED QUESTIONS:
- Q: What is the FlySpark AI Vision FlyCube D - DualView?
- A: A professional dual visible-light AI visual tracking module with short-focus and long-focus cameras and 6 TOPS AI processing.
- Q: What is the price of FlyCube D - DualView?
- A: The listed price is ₹79,00,000.
- Q: What is the advantage over FlyCube S?

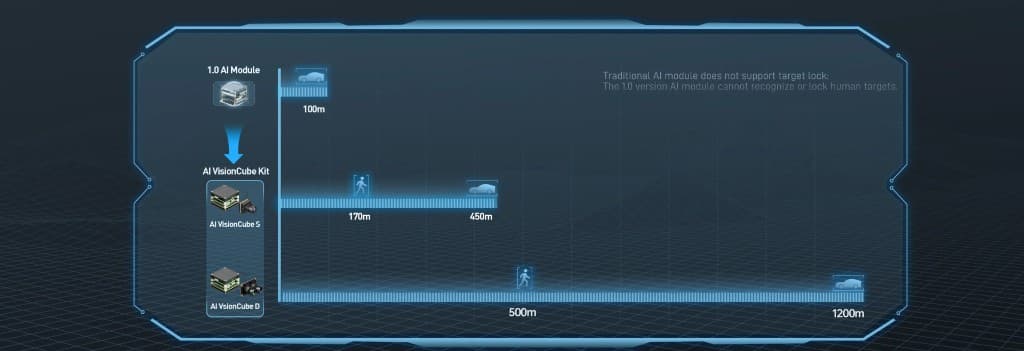

- A: FlyCube D adds a long-focus camera and 6 TOPS computing for 1200m vehicle and 500m human recognition vs 450m/170m on Scout.
- Q: Does FlyCube D include thermal imaging?

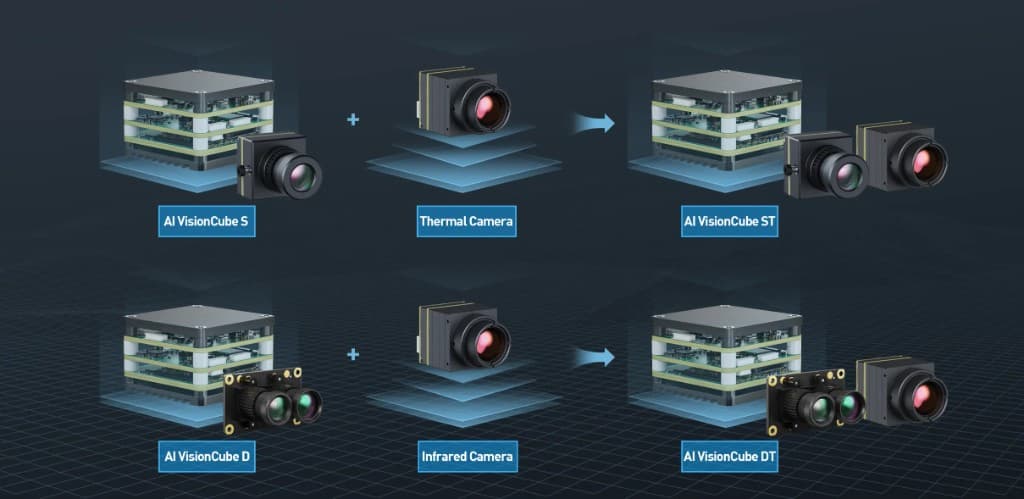

- A: No. For thermal options, use FlyCube ST, DT, ST Pro or DT Pro.

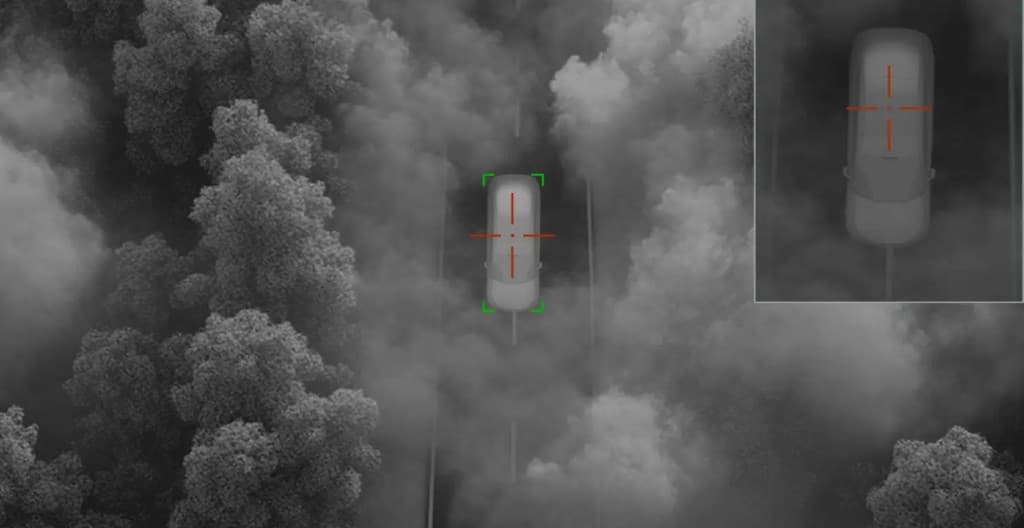

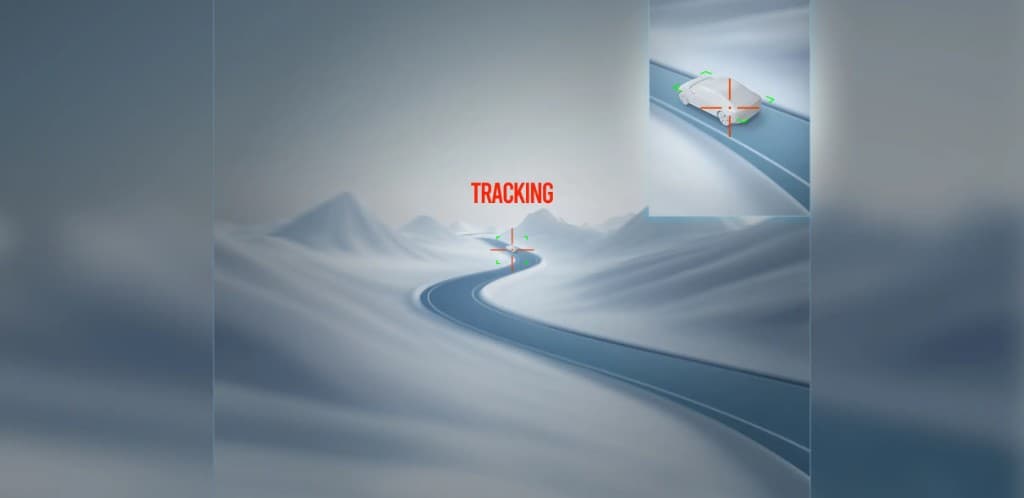

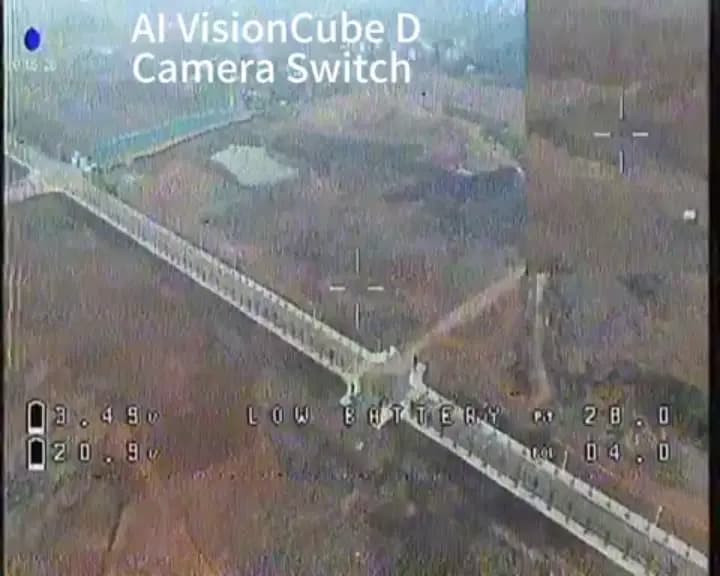

- Q: Does FlyCube D support Picture-in-Picture?
- A: Yes. PiP combines broad scene awareness with long-focus target detail.
- Q: What firmware is supported?
- A: BetaFlight integration with CRSF communication protocol.
- Q: Is this a complete drone?
- A: No. It is an AI vision tracking component for drone integration.
- Q: What warranty is included?
- A: 1 Year manufacturing defect support under approved integration and normal operating conditions.

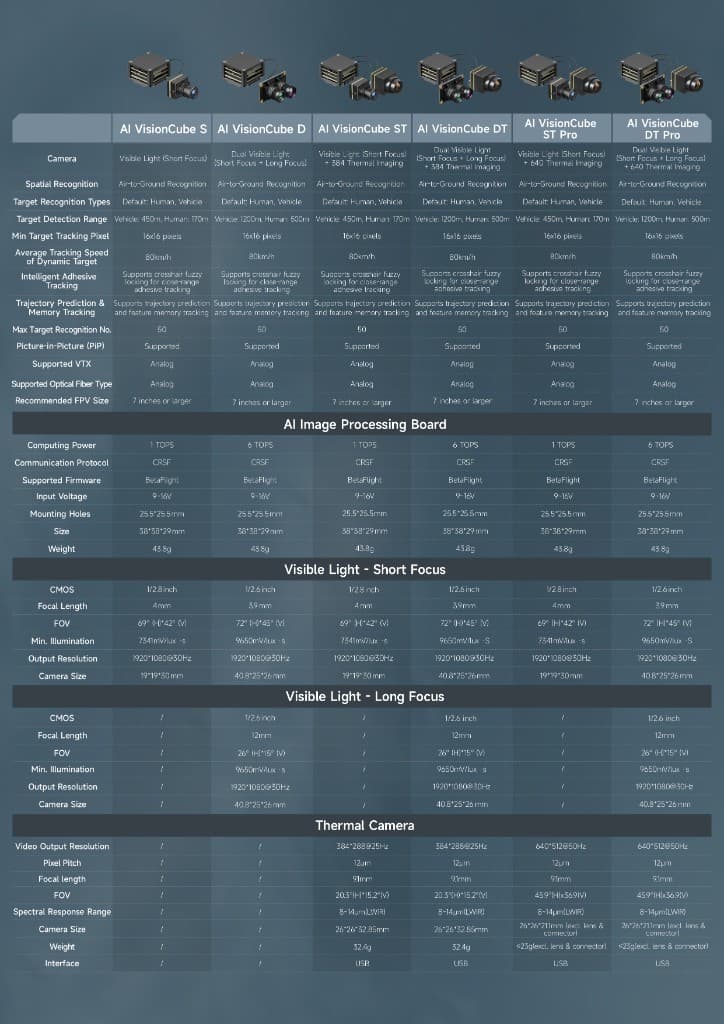

Technical Data Sheet
System Specifications
20 parameters across 2 categories
General
19 fieldsProduct Type
Dual visible-light AI visual tracking module for drones
Model Name
FlySpark AI Vision FlyCube D - DualView
Variant Meaning
D = DualView professional dual-camera AI tracking module
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
Variant Positioning
Short-focus + long-focus visible cameras, no thermal, longer range than Scout
Camera Configuration
Dual Visible Light — Short Focus + Long Focus
Short-Focus Camera
1/2.6" CMOS, 3.9mm, 72°×45° FOV, 1920×1080@30Hz, 40.8×25×26mm
Long-Focus Camera
1/2.6" CMOS, 12mm, 26°×15° FOV, 1920×1080@30Hz, 40.8×25×26mm
AI Image Processing Board
CRSF | BetaFlight | 9–16V | 38×38×29mm | 43.8g
Mounting Holes
25.5×25.5mm
Spatial Recognition

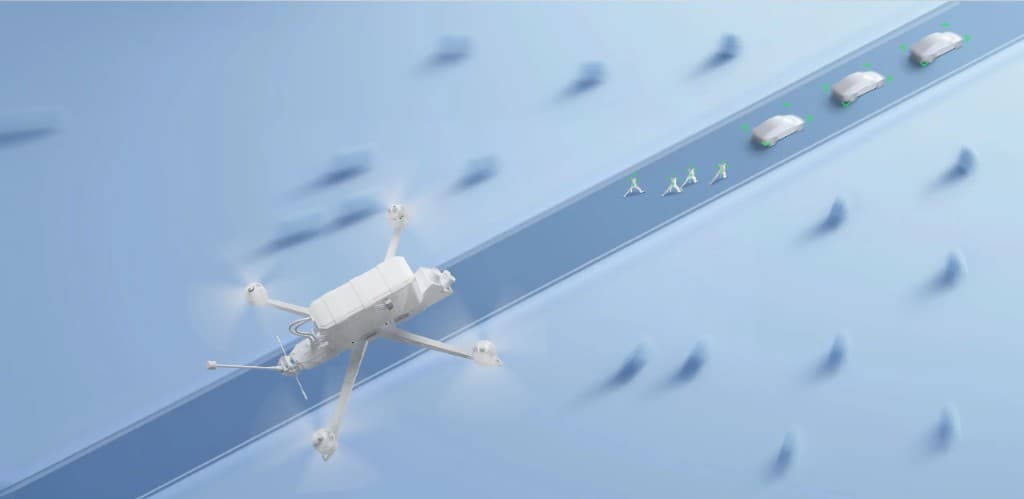

Human and Vehicle default classes

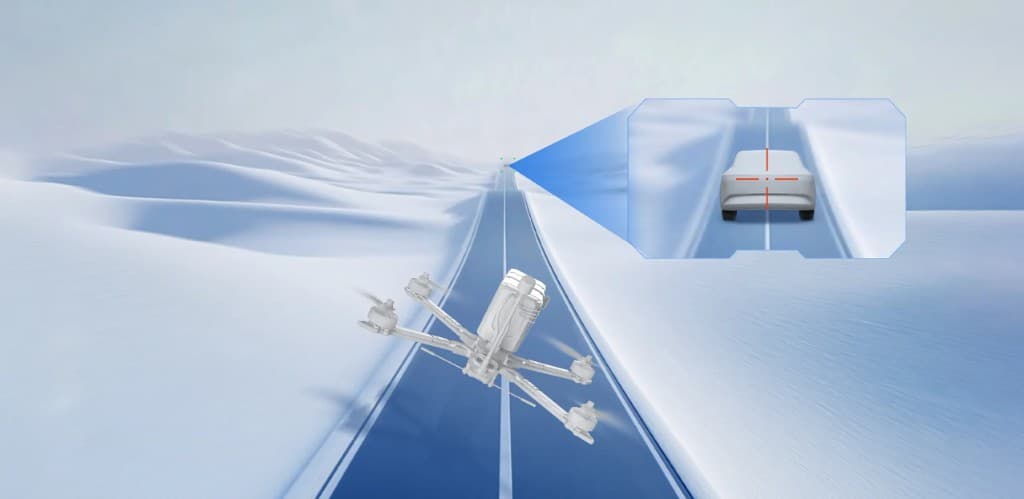

Vehicle Recognition Range
Up to 1200m
Human Recognition Range
Up to 500m
Max Dynamic Tracking Speed
Up to 50 targets | Min 16×16 pixel target

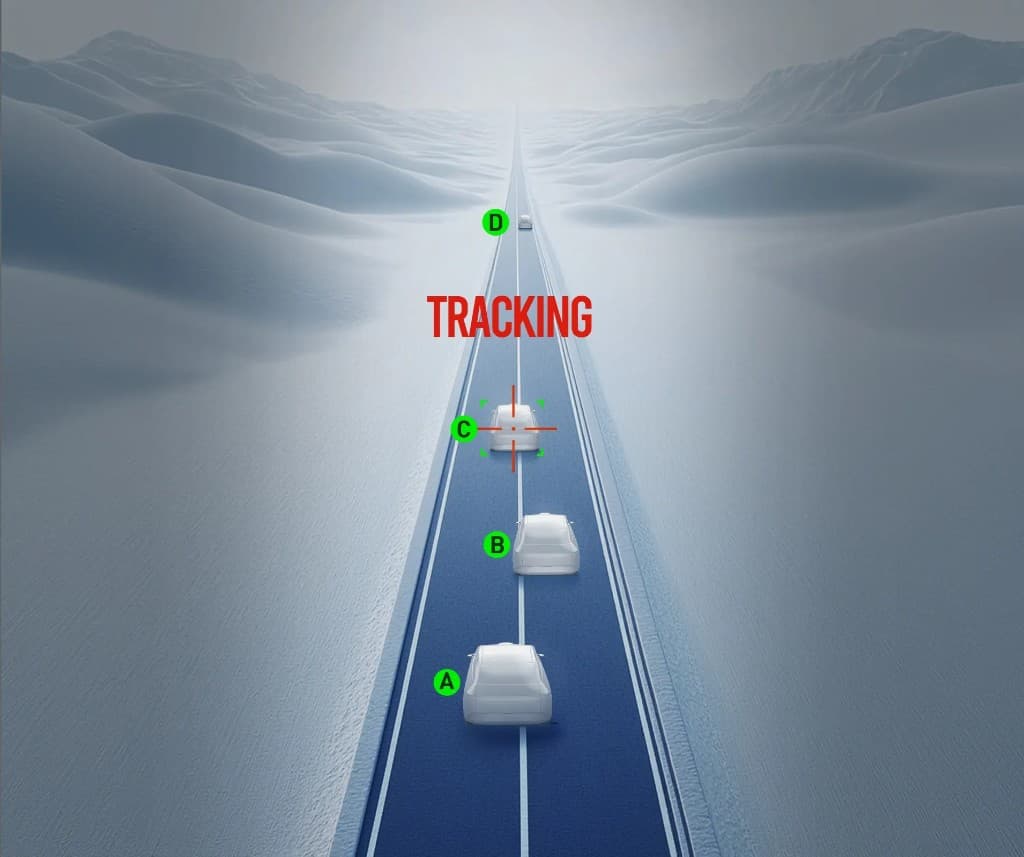

Intelligent Adhesive Tracking
Crosshair fuzzy locking for close-range adhesive tracking

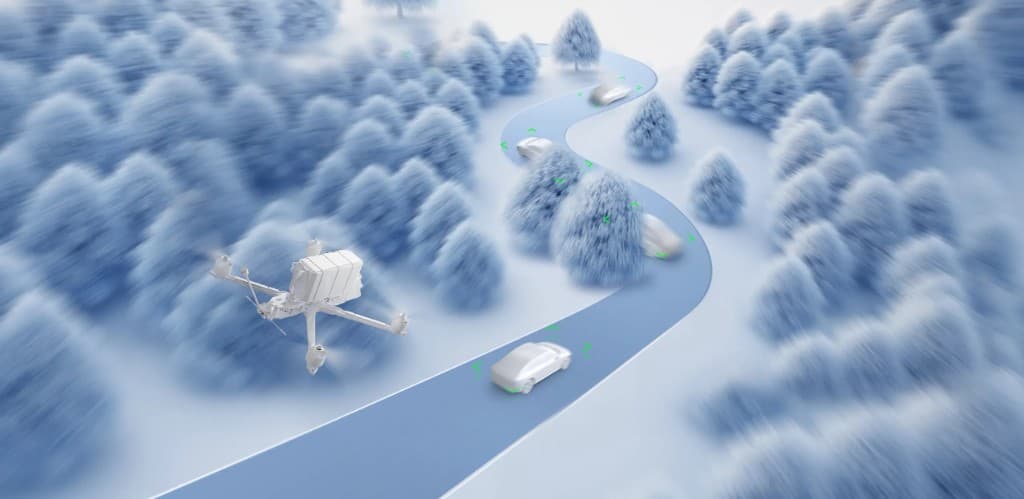

Trajectory Prediction & Memory Tracking
Supported

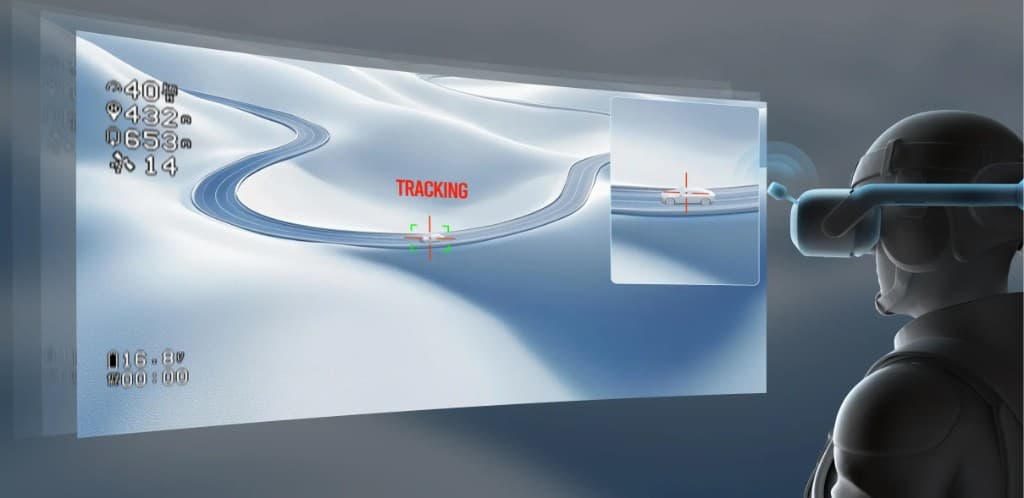

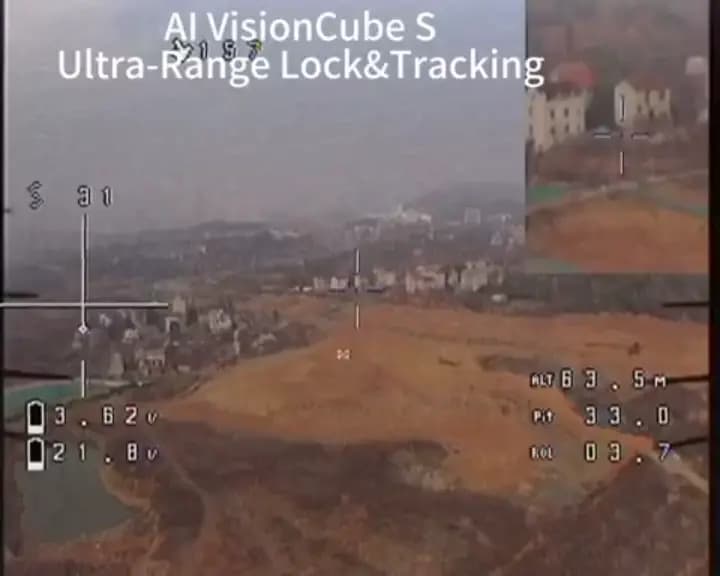

Picture-in-Picture
Analog VTX | Recommended FPV screen 7 inches or larger
Recommended Platform
7-inch or larger FPV drone, long-range FPV, UAV inspection and R&D platforms
Compliance
DGCA/local rules apply | 1 Year warranty
