24 inch FPV drone heavy-lift platform from ₹4,81,296: 1000 mm wheelbase, 15 kg rated load, 12S power. Need a more compact 15 kg platform? See the MX15-6 15 inch FPV from ₹3,37,238.
Base price — FlySpark 24-Inch Heavy-Lift FPV Drone - Standard Build
₹4,81,296
Excl. GST · Final pricing subject to configuration & quantity

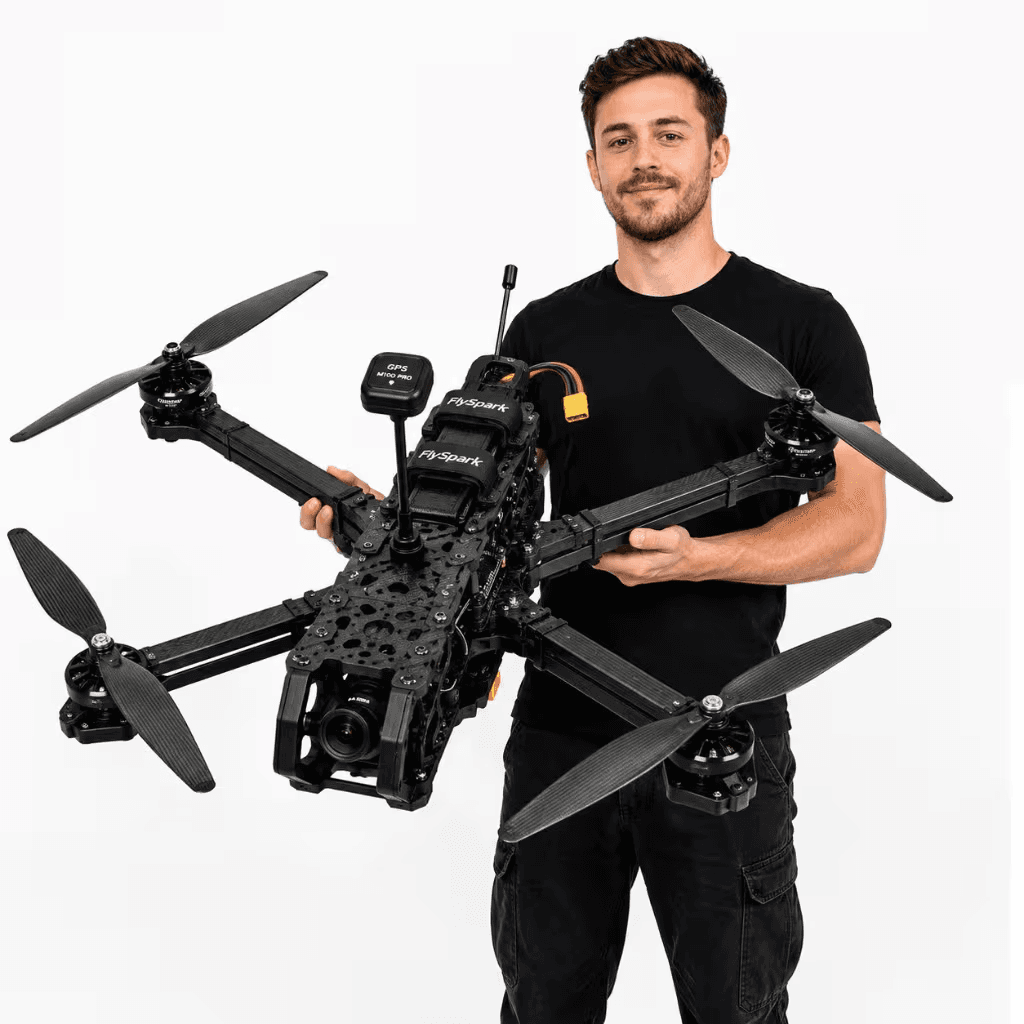

The FlySpark 24-Inch Heavy-Lift FPV Drone is a foldable X-frame multirotor with a 1000 mm wheelbase for payload integration, industrial testing, training and R&D. It weighs 6 kg without battery, is rated for a 15 kg payload (16 kg maximum, 26 kg maximum takeoff weight) and flies about 15 minutes at rated load or about 60 minutes without load on a 12S 33000 mAh battery. The standard build is listed at ₹4,81,296.
800 × 800 × 580 mm expanded; 450 × 550 × 580 mm folded
Drone weight (without battery)
6 kg
Payload
15 kg rated; 16 kg maximum
Maximum takeoff weight
26 kg
Flight time
≈15 min at rated load; ≈60 min no load (12S 33000 mAh)
Maximum speed
100 km/h
Battery
12S 33000 mAh recommended (≈4 kg), XT90 / QS80 connector
Propulsion
6215-250KV motors, 2480 propellers, 4 × 100 A 12S ESC
Flight controller / receiver
H743 flight controller; ELRS 915 MHz receiver
FPV video
5.8 GHz 2.5 W analog VTX; 151 mm 3.5 dBi antenna; 1500TVL 165° camera
List price (standard build, excl. GST)
₹4,81,296
Warranty
1 year (manufacturing defects)
Use cases
Heavy-lift FPV flight testing and payload integration trials
Camera and sensor payload testing
Lawful non-hazardous payload transport trials in approved areas
Industrial inspection support and remote-area UAV evaluation
Professional FPV training and academic UAV research
Standards & references
Drone Rules, 2021 (India, G.S.R. 589(E)) — With a 26 kg maximum takeoff weight the drone falls in the Rules' medium class (more than 25 kg up to 150 kg), which governs type certification, registration (UIN) and remote-pilot requirements for civil operation in India.
FlySpark 24-Inch Heavy-Lift FPV Drone is a professional large-format FPV UAV platform designed for high-payload FPV operations, industrial field testing, payload integration, long-endurance no-load flight, training, inspection support, logistics trials, R&D projects and custom UAV development. Built on a 24-inch X-type frame with 1000mm wheelbase, this platform offers a strong combination of carrying capacity, FPV control, 12S power architecture and high-speed flight capability.
The drone uses an H743 flight controller, 100A 12S ESC setup, 6215-250KV motors, 2480 propellers, ELRS915 receiver, 5.8GHz 2.5W video transmitter, 5.8GHz 151mm 3.5dBi antenna and 1500TVL 165-degree wide-angle FPV camera. The airframe has an expanded size of 800mm × 800mm × 580mm and folds down to 450mm × 550mm × 580mm for easier transport and storage.
The platform weight is 6kg without the recommended battery. The recommended battery is 12S 33000mAh, approximately 4kg, with XT90 / QS80 connector support. The drone is rated for a 15kg payload, supports up to 16kg maximum load, and has a maximum takeoff weight of 26kg. With rated load and 33000mAh battery, flight time is approximately 15 minutes. With no load, flight time can reach approximately 60 minutes depending on battery condition, setup, flying style and environment.
This drone is best suited for professional users who need a large FPV platform with heavy-lift ability, strong propulsion, long-range control hardware, high-power analog video link and custom payload integration support. Final payload mounting, flight tuning, battery selection and mission setup should be performed by trained UAV operators.
PRODUCT POSITIONING:
• 24-inch heavy-lift FPV drone
• 1000mm wheelbase UAV platform
• X-type frame design
• 15kg rated load
• 16kg maximum load
• 26kg maximum takeoff weight
• 12S 33000mAh recommended battery
• H743 flight controller
• 100A 12S ESC setup
• 6215-250KV motors
• 2480 propellers
• ELRS915 receiver
• 5.8GHz 2.5W analog VTX
• 5.8GHz 151mm 3.5dBi antenna
• 1500TVL wide-angle FPV camera
• Up to 100km/h maximum flight speed
• Foldable for field transport
• Suitable for professional FPV payload integration
BEST USE CASES:
• Heavy-lift FPV flight testing
• Industrial UAV R&D
• Payload integration trials
• Long-range FPV platform development
• Camera and sensor payload testing
• Utility drone development
• Professional FPV training
• Field inspection support
• Custom UAV engineering
• Non-hazardous payload transport trials
• Search and observation payload testing where lawful
• Agriculture field monitoring payload testing
• Remote-area UAV evaluation
• Industrial site UAV testing
• Academic and institutional UAV research
STANDARD BUILD INCLUDED:
• FlySpark 24-inch X-type heavy-lift FPV airframe
• H743 flight controller
• 100A ESC 12S × 4
• 6215-250KV motors
• 2480 propellers
• ELRS915 receiver
• 5.8GHz 2.5W analog VTX
• 5.8GHz 151mm 3.5dBi antenna
• 1500TVL 165-degree wide-angle FPV camera
IMPORTANT USE NOTE:
This FlySpark FPV drone is intended for lawful professional UAV operation, industrial testing, training, inspection, logistics trials, payload integration and R&D use only. It must not be used for unlawful surveillance, unsafe autonomous operation, weaponized payloads, harmful payload delivery, public-risk flights or violation of aviation rules. Operate only under DGCA/local aviation rules, RF regulations, site permissions, privacy laws and safe UAV procedures. The 5.8GHz VTX must be used only on legally permitted frequencies and power levels. Always connect a suitable antenna before powering the VTX.
FREQUENTLY ASKED QUESTIONS:
Q: What is the FlySpark 24-Inch Heavy-Lift FPV Drone?
A: It is a professional 24-inch FPV UAV platform with 1000mm wheelbase, 15kg rated payload, 12S power architecture, H743 flight controller, ELRS915 receiver and 5.8GHz FPV video system.
Q: What is the selling price of this drone?
A: The listed selling price of the standard build is ₹4,81,296.
Q: What is the frame size?
A: The frame size is 24 inch.
Q: What is the wheelbase?
A: The wheelbase is 1000mm.
Q: What is the frame type?
A: The frame type is X Type.
Q: What is the expanded size?
A: The expanded size is 800mm × 800mm × 580mm.
Q: What is the folded size?
A: The folded size is 450mm × 550mm × 580mm.
Q: What flight controller is used?
A: The drone uses an H743 flight controller.
Q: What ESC is used?
A: The drone uses 100A ESC 12S × 4.
Q: What motors are used?
A: The drone uses 6215-250KV motors.
Q: What propellers are used?
A: The propeller specification is 2480.
Q: What receiver is used?
A: The drone uses an ELRS915 receiver.
Q: What VTX is included?
A: The drone uses a 5.8GHz 2.5W analog video transmitter.
Q: What antenna is included?
A: The antenna is 5.8GHz, 151mm length, 3.5dBi gain.
Q: What FPV camera is used?
A: The camera is 1500TVL with 165-degree wide-angle view.
Q: What is the drone weight?
A: The drone weight is 6kg.
Q: What is the rated load?
A: The rated load is 15kg.
Q: What is the maximum load?
A: The maximum load is 16kg.
Q: What is the maximum takeoff weight?
A: The maximum takeoff weight is 26kg.
Q: What battery is recommended?
A: The recommended battery is 12S 33000mAh, approximately 4kg, with XT90 / QS80 connector support.
Q: What is the maximum flight speed?
A: The maximum flight speed is 100km/h.
Q: What is the flight time with rated load?
A: With rated load and 12S 33000mAh battery, the flight time is approximately 15 minutes.
Q: What is the no-load flight time?
A: No-load flight time is approximately 60 minutes, depending on battery condition, tuning, weather and flying style.
Q: Is this a racing drone?
A: It is a large FPV UAV platform. It uses FPV-style control and video hardware but is designed for heavy-lift professional use rather than small racing-class operation.
Q: Is this suitable for payload testing?
A: Yes. It is suitable for non-hazardous payload testing, sensor payloads, camera payloads, R&D payloads and industrial UAV development.
Q: Can it be used for industrial inspection?
A: Yes, with a suitable lawful camera or sensor payload and proper flight permissions.
Q: Can it be used for logistics trials?
A: Yes, for lawful non-hazardous payload transport trials in approved areas with proper safety planning and aviation compliance.
Q: Does FlySpark provide integration support?
A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support payload integration, configuration review, training and deployment planning.
Q: What legal rules must be followed?
A: Operators must follow DGCA/local aviation rules, RF regulations, payload permissions, site authorization, privacy laws and safe flight procedures.
Q: Can the 5.8GHz VTX be powered without antenna?
A: No. Always connect a suitable antenna before powering the VTX to prevent damage.
Q: What warranty is included?
A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, wrong wiring, wrong battery, VTX damage from no antenna, water ingress, overload, unsafe operation and unauthorized modifications may not be covered.
Mission configurations
Configuration (5)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Complete FlySpark 24-inch heavy-lift FPV drone build for payload testing, FPV operations, R&D and industrial UAV development.
SKU: FSP-24FPV-HL-STANDARD
Unit Price (excl. GST)₹4,81,29610 units
Standard drone with payload-mounting review, center-of-gravity planning, payload wiring guidance and test-flight checklist.
SKU: FSP-24FPV-HL-PAYLOAD
Unit Price (excl. GST)POAAvailable
Standard drone with battery planning, propeller check, no-load endurance workflow, flight tuning review and safe test plan.
SKU: FSP-24FPV-HL-ENDURANCE
Unit Price (excl. GST)POAAvailable
Standard drone with operator orientation, safety checklist, battery handling guidance, VTX handling guidance, payload limit explanation and flight readiness review.
SKU: FSP-24FPV-HL-TRAINING
Unit Price (excl. GST)POAAvailable
Standard platform with engineering support, wiring review, mounting plan, flight log review, payload test procedure and integration guidance.
SKU: FSP-24FPV-HL-RD
Unit Price (excl. GST)POAAvailable
Active configuration
FlySpark 24-Inch Heavy-Lift FPV Drone - Standard Build
Complete FlySpark 24-inch heavy-lift FPV drone build for payload testing, FPV operations, R&D and industrial UAV development.
₹4,81,296
Excl. GST
SKU: FSP-24FPV-HL-STANDARD
Configuration matrix
Compare all variants
Side-by-side specifications — click a column to select
Parameter
Unit Price (excl. GST)
₹4,81,296
POA
POA
POA
POA
Stock
10 units
Available
Available
Available
Available
SKU
FSP-24FPV-HL-STANDARD
FSP-24FPV-HL-PAYLOAD
FSP-24FPV-HL-ENDURANCE
FSP-24FPV-HL-TRAINING
FSP-24FPV-HL-RD
Technical Data Sheet
System Specifications
49 parameters across 7 categories
search
settingsPower System6 fields
Motor KV
250KV
Propellers
2480
Voltage Class
12S
Recommended Battery
12S 33000mAh, approximately 4kg
Battery Connector
XT90 / QS80
Motor Model
6215-250KV
Complete specification index
settingsPower System 6
Motor KV
250KV
Propellers
2480
Voltage Class
12S
Recommended Battery
12S 33000mAh, approximately 4kg
Battery Connector
XT90 / QS80
Motor Model
6215-250KV
settingsFPV Video System 6
VTX Frequency
5.8GHz
VTX Output Power
2.5W
Antenna Band
5.8GHz
Antenna Length
151mm
Antenna Gain
3.5dBi
FPV Camera
1500TVL, 165-degree wide-angle
settingsPayload & Performance 6
Rated Load
15kg
Maximum Load
16kg
Maximum Takeoff Weight
26kg
Maximum Flight Speed
100km/h
Rated Load Flight Time
Approximately 15 minutes with 12S 33000mAh battery
No-Load Flight Time
Approximately 60 minutes
settingsSafety & Compliance 6
Lawful use only
Use only for lawful professional UAV operation, industrial testing, training, inspection, logistics trials, payload integration and R&D
Aviation rules
Follow DGCA/local aviation rules, UAV registration and site permissions
RF rules
Use ELRS915 and 5.8GHz VTX only where legally permitted; always connect antenna before powering VTX
Payload restriction
Not for weaponized, explosive or harmful payloads
Warranty
1 Year manufacturing defect support under approved use and normal operating conditions
Supplier
FlySpark / AnuShakti Infotech Pvt. Ltd.
settingsGeneral 7
Product Type
Heavy-lift FPV drone / professional large-format UAV platform
Model Name
FlySpark 24-Inch Heavy-Lift FPV Drone
Product Category
Tactical UAV & FPV Drone Systems
Product Testing Category
Field-Tested
Base Price
₹4,81,296
SKU
FSP-24FPV-HL-STANDARD
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
settingsAirframe & Structure 11
Frame Size
24 inch
Frame Type
X Type
Wheelbase
1000mm
Expanded Dimensions
800mm × 800mm × 580mm
Folded Dimensions
450mm × 550mm × 580mm
Foldable Design
Yes
Drone Weight
6kg
Rated Payload
15kg
Maximum Payload
16kg
Maximum Takeoff Weight
26kg
Structure Purpose
Heavy-lift FPV operation, payload integration and long-range professional flight
settingsFlight Controller & Electronics 7
Flight Controller
H743
ESC Rating
100A
ESC Voltage Class
12S
ESC Quantity
4
ESC Configuration
100A ESC 12S × 4
Receiver
ELRS915
Control Link Class
915MHz ExpressLRS receiver
Frequently asked questions
How much payload can the FlySpark 24-inch heavy-lift FPV drone carry?
It is rated for 15 kg with a 16 kg maximum load and a 26 kg maximum takeoff weight. The airframe itself weighs 6 kg without battery.
What flight time does the 24-inch heavy-lift drone get?
About 15 minutes with the rated 15 kg load and about 60 minutes with no load, using the recommended 12S 33000 mAh battery. Actual time depends on battery condition, tuning, weather and flying style.
What electronics come in the 24-inch FPV drone standard build?
An H743 flight controller, four 100 A 12S ESCs, 6215-250KV motors, 2480 propellers, an ELRS 915 MHz receiver, a 5.8 GHz 2.5 W analog VTX with a 3.5 dBi antenna and a 1500TVL 165° FPV camera.
Is the battery included with the 24-inch heavy-lift FPV drone?
The standard build list does not include the battery. The recommended battery is 12S 33000 mAh (about 4 kg) with an XT90 or QS80 connector.
Which Drone Rules category does the 24-inch FPV drone fall under in India?
At 26 kg maximum takeoff weight it is a medium drone (over 25 kg up to 150 kg) under India's Drone Rules, 2021. Operators must follow DGCA rules, registration and site permissions; the catalog prohibits weaponized, explosive or harmful payloads.
Can FlySpark export the FlySpark 24-Inch Heavy-Lift FPV Drone internationally?
Yes. The FlySpark 24-Inch Heavy-Lift FPV Drone ships to defense, security, and critical-infrastructure buyers in our 10 export markets and other authorized destinations, with full export documentation — end-user certification, dual-use classification, and destination-specific compliance handled before dispatch.
What configurations of the FlySpark 24-Inch Heavy-Lift FPV Drone are available?
The FlySpark 24-Inch Heavy-Lift FPV Drone is offered in 5 configurations so you can match range, payload, and integration requirements. Custom builds are available for volume orders.
Do you provide technical support and documentation for the FlySpark 24-Inch Heavy-Lift FPV Drone?
Every FlySpark 24-Inch Heavy-Lift FPV Drone order includes datasheets, integration guidance, and compliance paperwork. Our engineering team supports commissioning, spares, and field deployment.
How do I request a quote for the FlySpark 24-Inch Heavy-Lift FPV Drone?
Published prices are ex-works. Send an inquiry with your quantity and destination for a formal export quote that includes compliance handling and freight.
