FlySpark Fiber Optics Spool V2 | 1KM–30KM UAV Fiber Communication Spool — view 1

FlySpark Fiber Optics Spool V2 | 1KM–30KM UAV Fiber Communication Spool

In stock
FlySpark

Fiber optic spools of g657a2 (G.657.A2) bend-insensitive fiber in 1–60 km lengths — fiber optic drone cable for jam-resistant FPV and UAV links. Each OFC spool for drone missions is priced per kilometer; WhatsApp your mission range for a formal quote. Pair with tethered power when the mission needs ground power.

Base price — FlySpark Fiber Optics Spool V2 - 1KM
₹60,900
Excl. GST · Final pricing subject to configuration & quantity

UAV fiber spool V2 carbon shell kit — companion length options to the G.657.A2 OFC spool for drone. Not the primary OFC listing.

Configuration : FlySpark Fiber Optics Spool V2 - 1KM

Orders are confirmed by our sales desk on WhatsApp. Reply usually within 1 hour (IST).

Qty
verified_user

Military-grade quality assured

lock

Export-compliant documentation

headset_mic

24/7 engineering support

Talk to sales

Mon – Sun · 19:30 – 03:30 IST · [email protected]

FSP-FIBER-SPOOL-V2-1KM
Active
9
50
  • flyspark
  • flyspark-fiber-spool
  • fiber-optics-spool
  • fiber-optic-spool-v2
  • uav-fiber-spool
  • drone-fiber-spool
  • fiber-guided-drone-spool
  • fiber-optic-communication
  • uav-communication-system
  • defense-fiber-spool
  • industrial-fiber-spool
  • long-range-data-transmission

Key facts

At a glance

The FlySpark Fiber Optics Spool V2 is a carbon-fiber-shell payout spool of G.657.A2 bend-insensitive optical fiber, for fiber-guided UAV links, robotics and field data transmission where an RF link is unwanted. It comes in nine lengths from 1 km to 30 km. Listed fiber tensile strength is over 50 N, and prices run from ₹60,900 (1 km) to ₹2,62,000 (30 km).

FlySpark Fiber Optics Spool V2 | 1KM–30KM UAV Fiber Communication Spool — key specifications
Fiber typeG.657.A2 single-mode, bend-insensitive

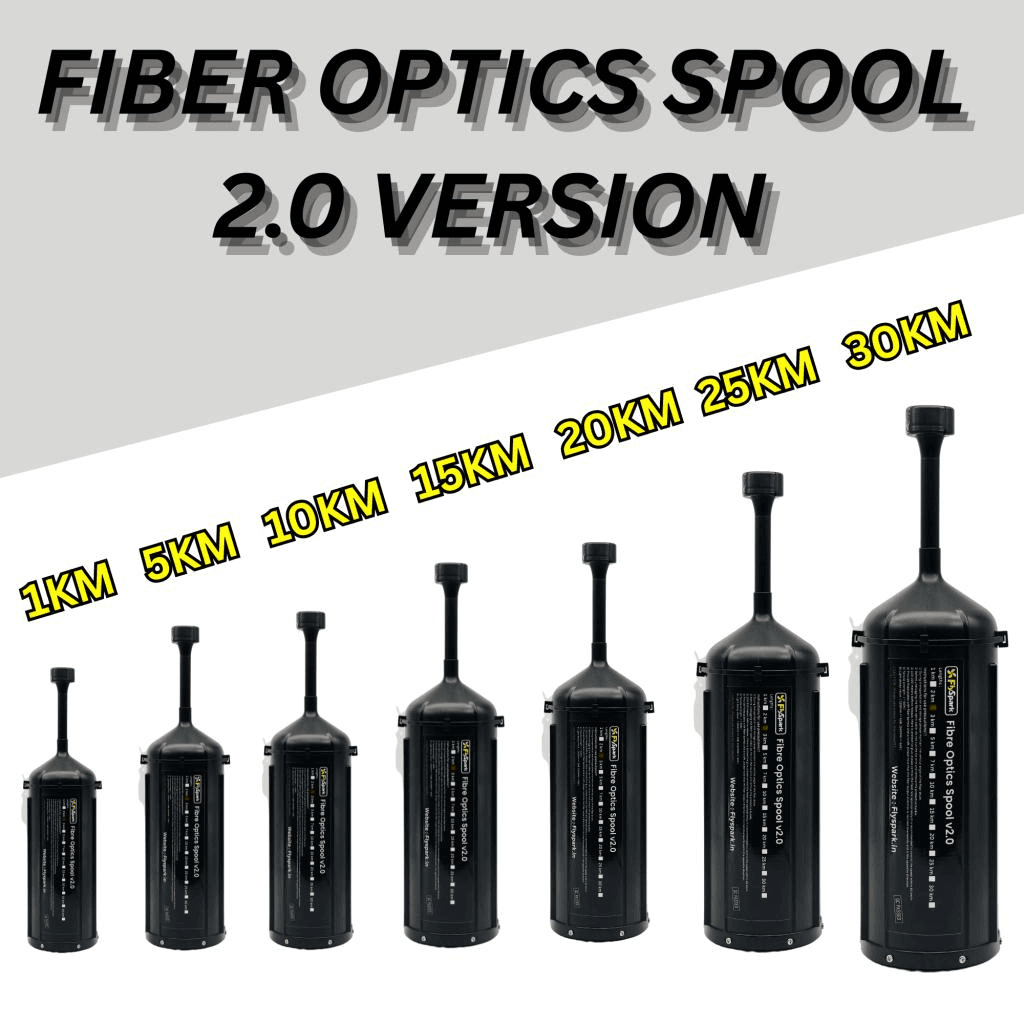

Lengths1, 2, 3, 5, 10, 15, 20, 25, 30 km
Tensile strength>50 N
Shell / outletCarbon-fiber shell; aluminium-alloy outlet nozzle
ArchitectureBuilt-in air unit design
Price 1 / 2 / 3 km₹60,900 / ₹69,600 / ₹85,500
Price 5 / 10 / 15 km₹1,05,850 / ₹1,56,000 / ₹1,79,000
Price 20 / 25 / 30 km₹1,98,000 / ₹2,36,000 / ₹2,62,000
Package1 spool of the selected length; battery and ground unit not included

Use cases

  • Fiber-guided UAV control and video links that do not radiate RF
  • Operations in RF-congested or jammed environments
  • Robotics and tethered ground-vehicle data links
  • Temporary long-distance field data transmission

Standards & references

Sources: FlySpark catalog data; FlySpark product page; ITU-T Recommendation G.657. Updated .

Intelligence Brief

Mission overview

FlySpark Fiber Optics Spool V2 | 1KM–30KM UAV Fiber Communication Spool

The FlySpark Fiber Optics Spool V2 is a professional-grade fiber optic spool engineered for UAV, defense, industrial communication, robotics, surveillance and long-range data transmission applications. Built with premium G657A2 optical fiber, a rugged carbon fiber housing and an aluminum alloy outlet nozzle, this spool is designed for reliable field performance in demanding environments.

Designed with an integrated Built-In Air Unit architecture, the spool provides stable, low-loss communication while maintaining a lightweight and durable structure suitable for field deployment. It is available in multiple length options from 1KM to 30KM, with only the fiber length, spool weight and price changing between variants.

  • IMPORTANT NOTE:
  • Battery and ground unit are not included in this package. The ground unit must be purchased separately.

KEY FEATURES & BENEFITS:

  • Professional UAV Fiber Communication Spool:
  • • Available from 1KM to 30KM length options
  • • Premium G657A2 optical fiber
  • • Carbon fiber shell construction
  • • Aluminum alloy outlet nozzle
  • • Built-In Air Unit architecture
  • • Lightweight and portable field-ready design
  • • Low-loss optical fiber transmission
  • • Tensile strength greater than 50N
  • • Long service life and reliable communication support
  • Field-Ready Construction:
  • • Rugged carbon fiber housing for durability
  • • Compact spool format for UAV and robotics integration
  • • Lightweight options for different mission profiles
  • • Suitable for fiber-guided drone systems and long-range optical communication
  • • Designed for stable, low-loss data transmission
  • Package Note:
  • • This package includes only the selected FlySpark Fiber Optics Spool V2 length variant
  • • Battery is not included
  • • Ground unit is not included
  • • Ground unit must be purchased separately
  • • Compatible communication hardware, mounting hardware and integration accessories may be required depending on the project

APPLICATIONS: UAV fiber optic communication, fiber-guided drone systems, defense and security operations, industrial data transmission, robotics and automation, surveillance systems, research and development, long-range field communication, tethered and fiber-linked unmanned systems, professional drone communication projects.

FREQUENTLY ASKED QUESTIONS:

Mission configurations

Configuration (9)

Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.

1KM lightweight fiber optic spool for compact UAV, robotics, surveillance and short-range fiber communication projects.

SKU: FSP-FIBER-SPOOL-V2-1KM

Unit Price (excl. GST)₹60,90010 units

2KM fiber optic spool for medium-short range UAV communication, robotics and field data-transmission applications.

SKU: FSP-FIBER-SPOOL-V2-2KM

Unit Price (excl. GST)₹69,60010 units

3KM fiber optic spool for extended short-range UAV communication, surveillance and industrial data-link projects.

SKU: FSP-FIBER-SPOOL-V2-3KM

Unit Price (excl. GST)₹85,50010 units

5KM fiber optic spool for longer UAV fiber communication, field deployment, robotics and surveillance applications.

SKU: FSP-FIBER-SPOOL-V2-5KM

Unit Price (excl. GST)₹1,05,85010 units

10KM long-range fiber optic spool for UAV communication, defense field operations, industrial data transmission and R&D use.

SKU: FSP-FIBER-SPOOL-V2-10KM

Unit Price (excl. GST)₹1,56,00010 units

15KM extended-range fiber optic spool for professional UAV fiber link, long-distance surveillance and industrial communication projects.

SKU: FSP-FIBER-SPOOL-V2-15KM

Unit Price (excl. GST)₹1,79,00010 units

20KM high-capacity fiber optic spool for long-range UAV communication, fiber-guided drone systems and field communication networks.

SKU: FSP-FIBER-SPOOL-V2-20KM

Unit Price (excl. GST)₹1,98,00010 units

25KM extended long-range fiber optic spool for demanding UAV communication, surveillance, robotics and industrial data transmission.

SKU: FSP-FIBER-SPOOL-V2-25KM

Unit Price (excl. GST)₹2,36,00010 units

30KM maximum-range fiber optic spool for professional long-range UAV communication, defense field deployment and high-capacity optical data-link systems.

SKU: FSP-FIBER-SPOOL-V2-30KM

Unit Price (excl. GST)₹2,62,00010 units

Active configuration

FlySpark Fiber Optics Spool V2 - 1KM

1KM lightweight fiber optic spool for compact UAV, robotics, surveillance and short-range fiber communication projects.

₹60,900

Excl. GST

SKU: FSP-FIBER-SPOOL-V2-1KM

Configuration matrix

Compare all variants

Side-by-side specifications — click a column to select

Parameter
Unit Price (excl. GST)₹60,900₹69,600₹85,500₹1,05,850₹1,56,000₹1,79,000₹1,98,000₹2,36,000₹2,62,000
Stock10 units10 units10 units10 units10 units10 units10 units10 units10 units
SKUFSP-FIBER-SPOOL-V2-1KMFSP-FIBER-SPOOL-V2-2KMFSP-FIBER-SPOOL-V2-3KMFSP-FIBER-SPOOL-V2-5KMFSP-FIBER-SPOOL-V2-10KMFSP-FIBER-SPOOL-V2-15KMFSP-FIBER-SPOOL-V2-20KMFSP-FIBER-SPOOL-V2-25KMFSP-FIBER-SPOOL-V2-30KM

Technical Data Sheet

System Specifications

50 parameters across 3 categories

General48 fields

Product Type
UAV and industrial communication component
Model Series
1KM to 30KM options
Version
Updated field-ready spool design
Fiber Type
Premium bend-insensitive optical fiber
Fiber Length Options
Multiple mission-range options
Tensile Strength
Strong field-use optical fiber
Transmission Type
Stable data transmission support
Built-In Air Unit
Integrated air-unit architecture
Shell Material
Lightweight and durable spool housing
Outlet Nozzle Material
Durable fiber outlet protection
Structure
Suitable for UAV and outdoor communication work
Portability
Easy to carry and deploy
Reliability
Professional operation support
Deployment Class
Field-use category
1KM Spool Weight
Lightweight short-range option
2KM Spool Weight
Compact medium-short range option
3KM Spool Weight
Lightweight extended short-range option
5KM Spool Weight
Longer communication range option
10KM Spool Weight
Long-range field communication option
15KM Spool Weight
Extended-range UAV communication option
20KM Spool Weight
High-capacity long-range option
25KM Spool Weight
Extended long-range deployment option
30KM Spool Weight
Maximum range spool option
Communication Use
Drone and unmanned-system data link support
Signal Quality
Stable long-range data transfer
Field Use
Rugged deployment applications
Robotics Use
Optical data transmission support
Surveillance Use
Reliable communication link
R&D Use
Experimental communication system support
Package Contents
Selected length variant
Battery Included
Battery is not included
Ground Unit Included
Ground unit is not included
Ground Unit Purchase
Ground unit must be purchased separately
Air Unit
Integrated spool-side architecture
Required Separately
Project dependent
Packaging Note
All other product details remain same
Use Class
UAV and industrial use
Compatibility
Integration dependent
Installation Requirement
Professional installation recommended
Handling Note
Operator responsibility
Safety Note
Prevents fiber damage
Warranty
Manufacturing defects under approved use and normal operating conditions
Brand
UAV and communication system brand
Manufacturer
Made in India
Product
FlySpark Fiber Optics Spool V2 | 1KM–30KM UAV Fiber Communication Spool
Category
Secure Communication, Fiber Optic & Tethered Systems
Availability
Contact FlySpark sales for lead time
Overview
FlySpark Fiber Optics Spool V2 with G657A2 fiber, carbon fiber shell, aluminum alloy outlet nozzle and 1KM–30KM options for UAV communication.
