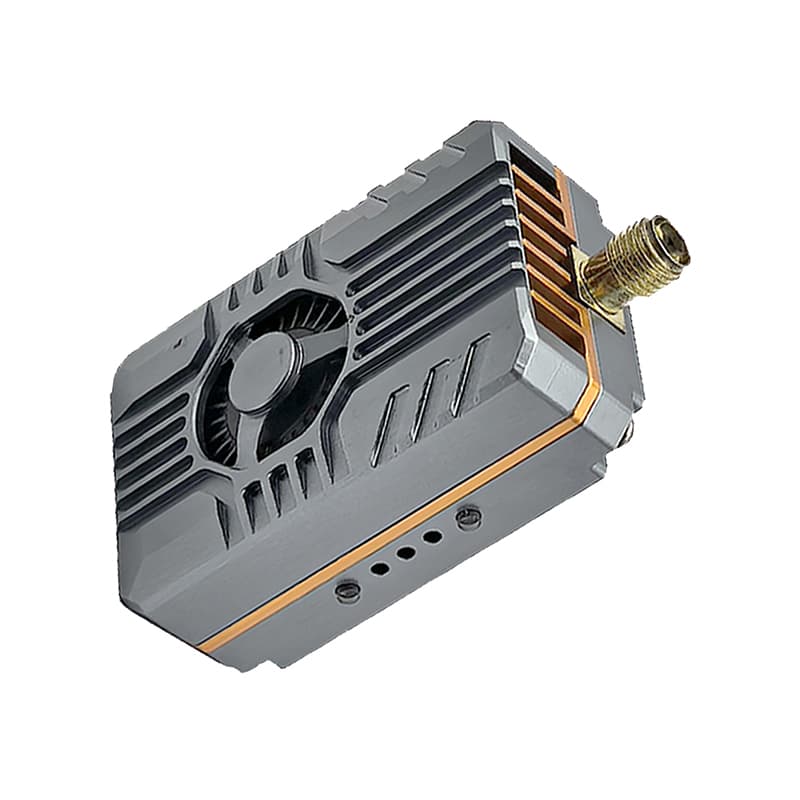

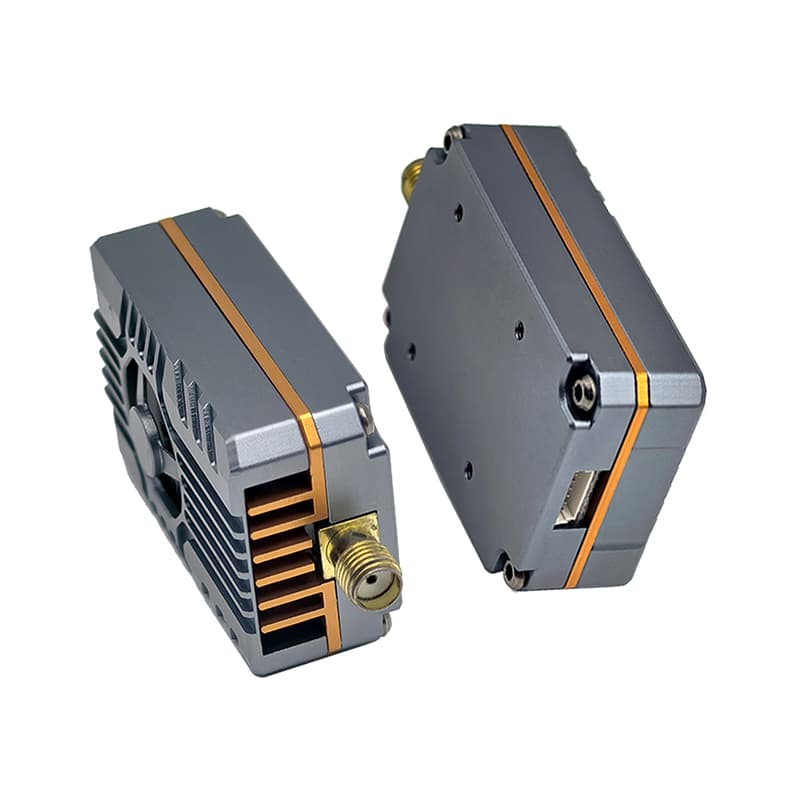

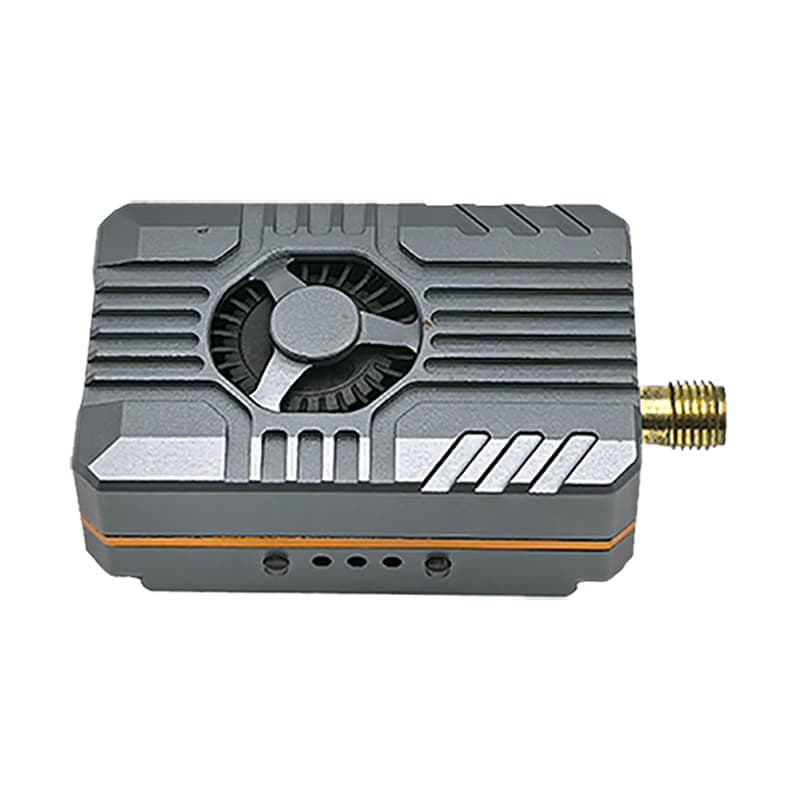

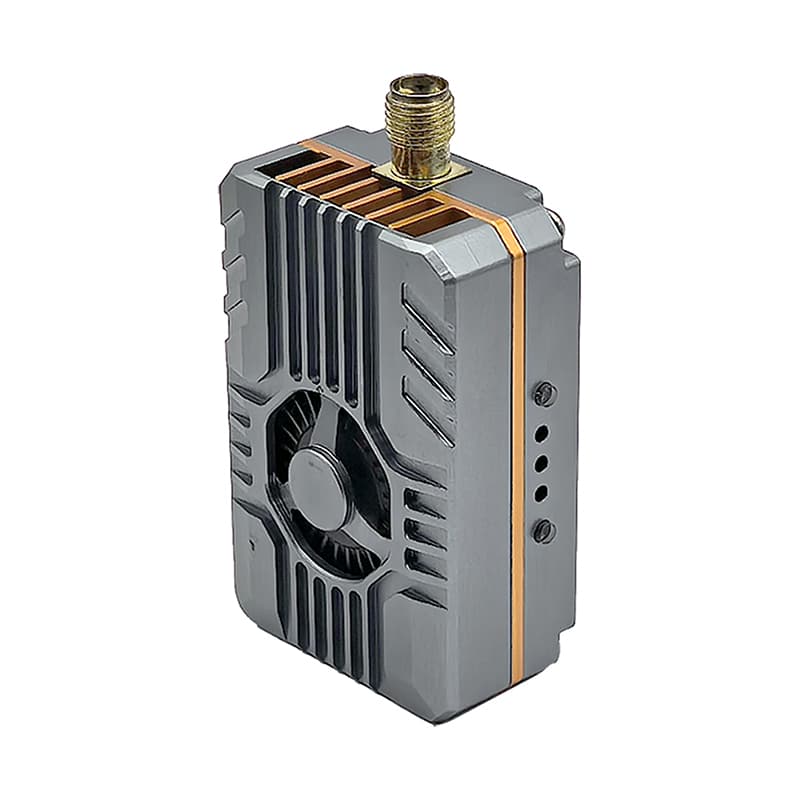

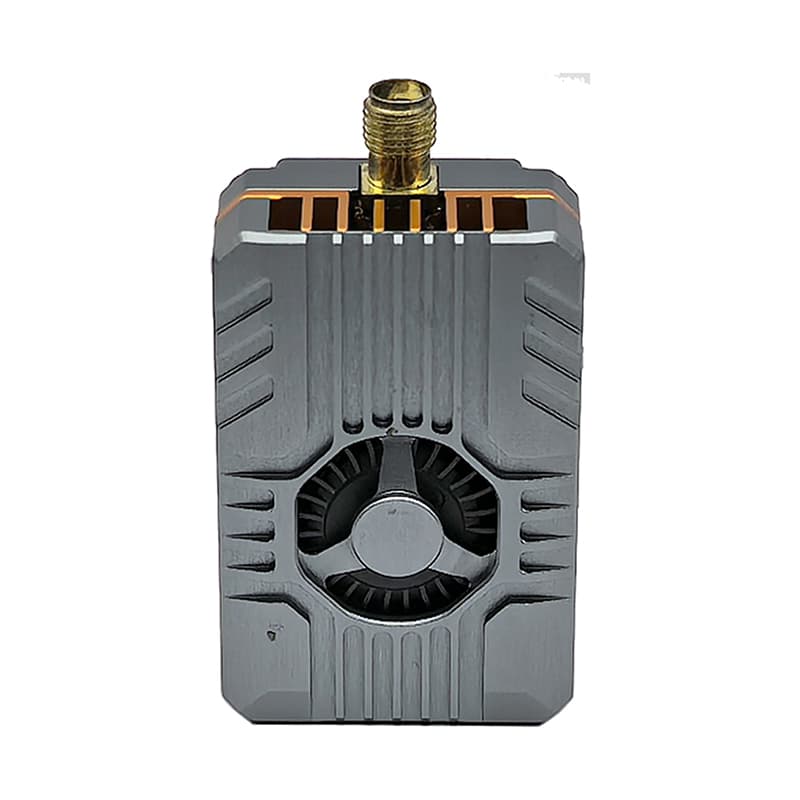

FlySpark 8G Long-Range FPV VTX-F17 | 3W Analog Video Transmitter Module | 7260MHz–8200MHz
FlySpark 8G VTX-F17 3W analog FPV video transmitter with 7260–8200MHz range, 48CH support, SMA antenna, IRC control and 7–36V input.
Base Price
₹26,460
Final pricing subject to configuration & quantity
System Tags
Mission Configurations
Configuration(4)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | ||||
|---|---|---|---|---|
| Unit Price | ₹26,460 | POA | POA | POA |
| Stock | 10 units | 10 units | 10 units | 10 units |
| SKU | FSP-VTX-8G-F17-3W | FSP-VTX-8G-F17-FPV-INTEGRATION | FSP-VTX-8G-F17-HF-LINK | FSP-VTX-8G-F17-RD |
Intelligence Brief
Mission Overview
FlySpark 8G Long-Range FPV VTX-F17 | 3W Analog Video Transmitter Module
The FlySpark 8G Long-Range FPV VTX-F17 is a high-frequency analog FPV video transmitter module designed for FPV drones, fixed-wing UAVs, long-range UAV platforms, inspection drones, surveillance UAVs, RF testing systems and professional drone communication builds that require specialized video transmission in the 7.2G–8.2G frequency class.
The VTX-F17 supports 48-channel operation from 7260MHz to 8200MHz and provides adjustable RF output modes including PIT Mode, 25mW, 500mW, 2000mW and 3000mW. With up to 3W output power, SMA antenna interface, IRC control protocol, OSD parameter adjustment, DC 7V–36V input and DC 5V output, it is suitable for professional UAV video-link integration where specialized high-frequency analog video transmission is required.
- KEY FEATURES:
- • 7.2G–8.2G analog FPV video transmitter | 7260MHz–8200MHz | 48CH
- • Up to 3W RF output | PIT/25mW/500mW/2000mW/3000mW modes
- • IRC control | OSD parameter adjustment | DC 7V–36V input | DC 5V output
- • SMA antenna | 20×20mm M3 mounting | 48.5×35×18.2mm body
IMPORTANT USE NOTE: This product is a high-power RF video transmitter module. Use only on legally permitted frequencies, power levels and operating locations. Users must follow WPC/DoT/local spectrum regulations, aviation rules, RF safety requirements, site permissions and lawful drone operation practices. Always connect a suitable antenna or RF load before powering the VTX to prevent RF power-stage damage.
FREQUENTLY ASKED QUESTIONS:
- Q: What is the FlySpark 8G VTX-F17?
- A: A 3W high-frequency analog FPV video transmitter module for drones and UAVs, operating in the 7260MHz–8200MHz frequency range.
- Q: What is the price of the FlySpark 8G VTX-F17?
- A: The listed price is ₹26,460.
- Q: What frequency range does VTX-F17 support?
- A: 7260MHz–8200MHz with 48 channels.
- Q: What is the maximum RF output power?
- A: 3W (3000mW).
- Q: What power modes are available?
- A: PIT Mode, 25mW, 500mW, 2000mW and 3000mW.
- Q: Does VTX-F17 support OSD parameter adjustment?
- A: Yes. IRC control protocol and OSD parameter adjustment are supported.
- Q: What input voltage is supported?
- A: DC 7V–36V.
- Q: What antenna connector does it use?
- A: SMA.
- Q: What mounting pattern does VTX-F17 use?
- A: 20mm × 20mm spacing with M3 mounting holes.
- Q: Can the VTX be powered without antenna?
- A: No. Do not power without a properly connected antenna or dummy load.
- Q: What warranty is included?
- A: 1 Year manufacturing defect support under approved integration and normal operating conditions.
Technical Data Sheet
System Specifications
14 parameters across 2 categories
General
12 fieldsProduct Type
High-frequency analog FPV video transmitter module
Model Name
FlySpark 8G VTX-F17
Frequency Class
7.2G–8.2G analog FPV VTX
Max RF Output Power
7260MHz–8200MHz | 48CH
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
Video Link Type
8GHz frequency class | High-frequency drone video
Core Features
OSD parameter adjustment | PIT mode | SMA antenna | DC 5V output
Frequency Coverage
7260MHz–8200MHz | 48 channels
Physical Specifications
20×20mm M3 mount | SMA interface
Thermal & Installation Notes
Do not power without antenna
Recommended Platform
Fixed-wing FPV | UAV inspection | RF testing platforms
Safety & Compliance
Antenna required before power-on | 1 Year warranty
