FlySpark Tethered Power System – 100 Meter Series | 1.5kW to 30kW Regulated DC UAV Power System

FlySpark Tethered Power System – 100 Meter Series | 1.5kW to 30kW

The FlySpark Tethered Power System – 100 Meter Series is a professional UAV power-supply solution designed for long-endurance drone operations where battery-only flight time is not enough. Each system combines a ground power station, high-voltage DC tether transmission and an airborne power module to deliver regulated DC output to compatible multirotor, helicopter, industrial UAV and special-purpose aerial platforms.

This series is available from 1.5kW to 30kW, covering compact 6S UAVs, 12S/14S industrial drones, heavy-lift platforms and high-power 18S/24S custom systems. It is suitable for surveillance, lighting, emergency response, relay communication, inspection, industrial monitoring, cleaning, firefighting support, R&D and long-duration hovering applications.

IMPORTANT ORDER & PRICE ESTIMATE NOTE: These tethered power systems are estimated and configured on order. Final price and configuration may change depending on electrical/electronic component cost, cable requirement, output voltage customization, optical-fiber option, supplier availability, import/logistics cost, exchange-rate variation and project-specific integration requirements.

KEY FEATURES & BENEFITS:

• Professional 100 Meter Tethered UAV Power System:
• • 100 Meter tether cable configuration
• • 1.5kW to 30kW system power options

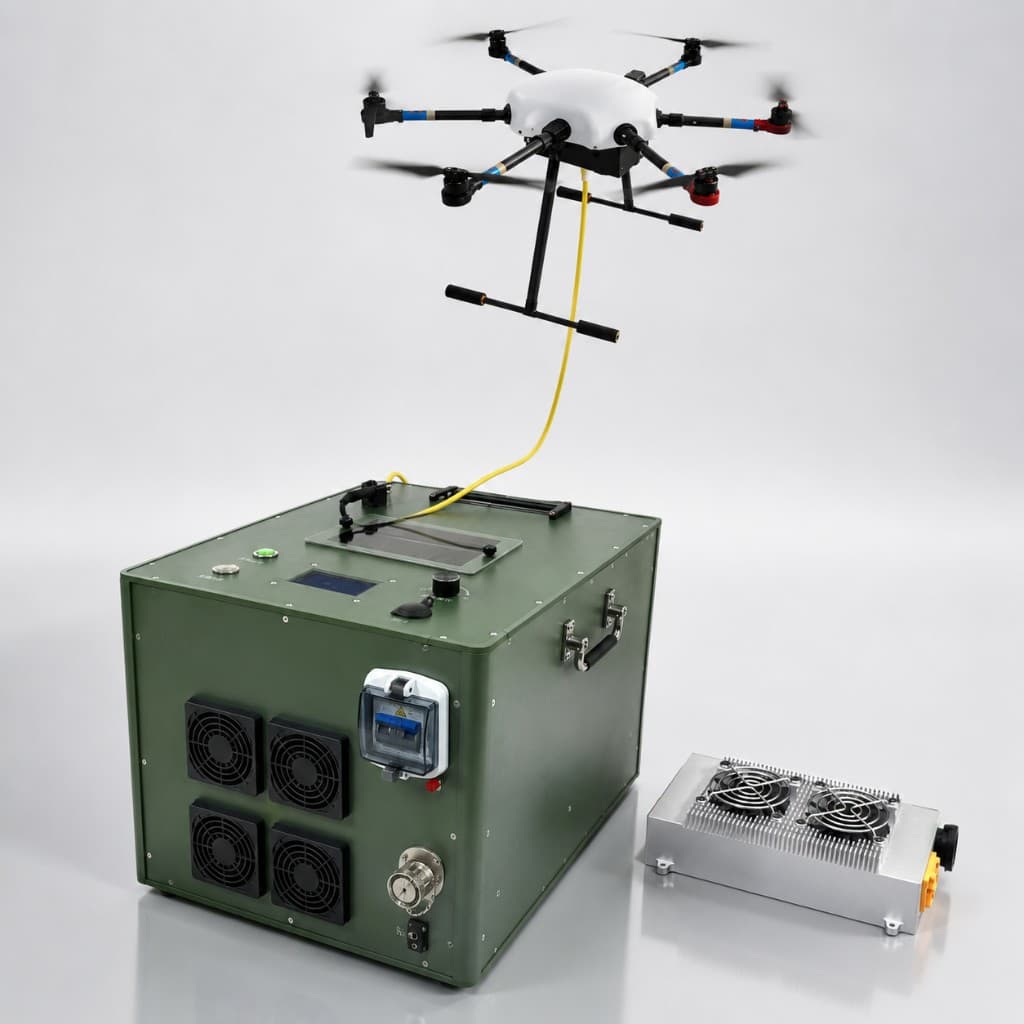

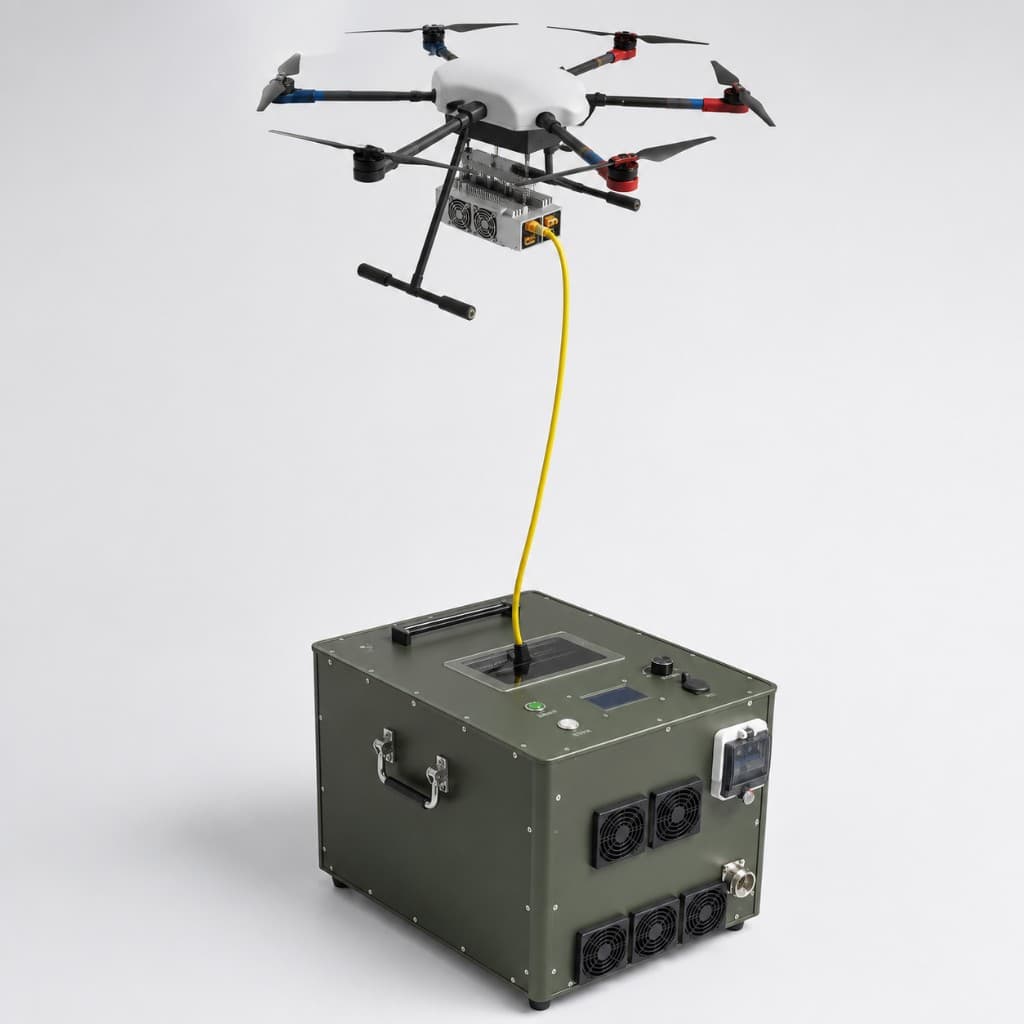

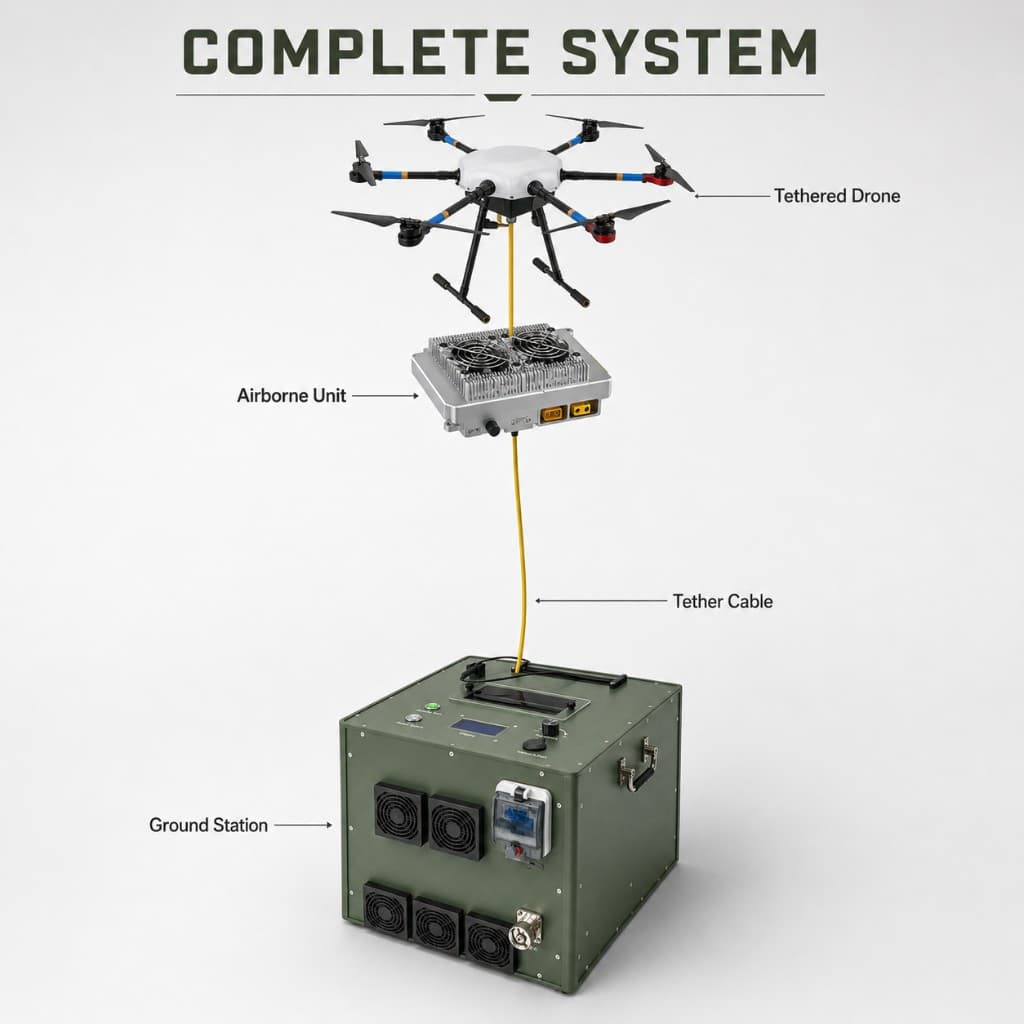

• • Ground power station + airborne power module architecture
• • High-voltage DC transmission for reduced tether loss
• • Regulated DC output for UAV power bus integration
• • Custom output support for 6S, 12S, 14S, 16S, 18S and 24S battery-class platforms
• • Designed for long-endurance UAV operations
• • Suitable for industrial, defense, emergency and commercial drone applications

• Regulated DC Architecture:
• • Converts AC input into high-voltage DC transmission

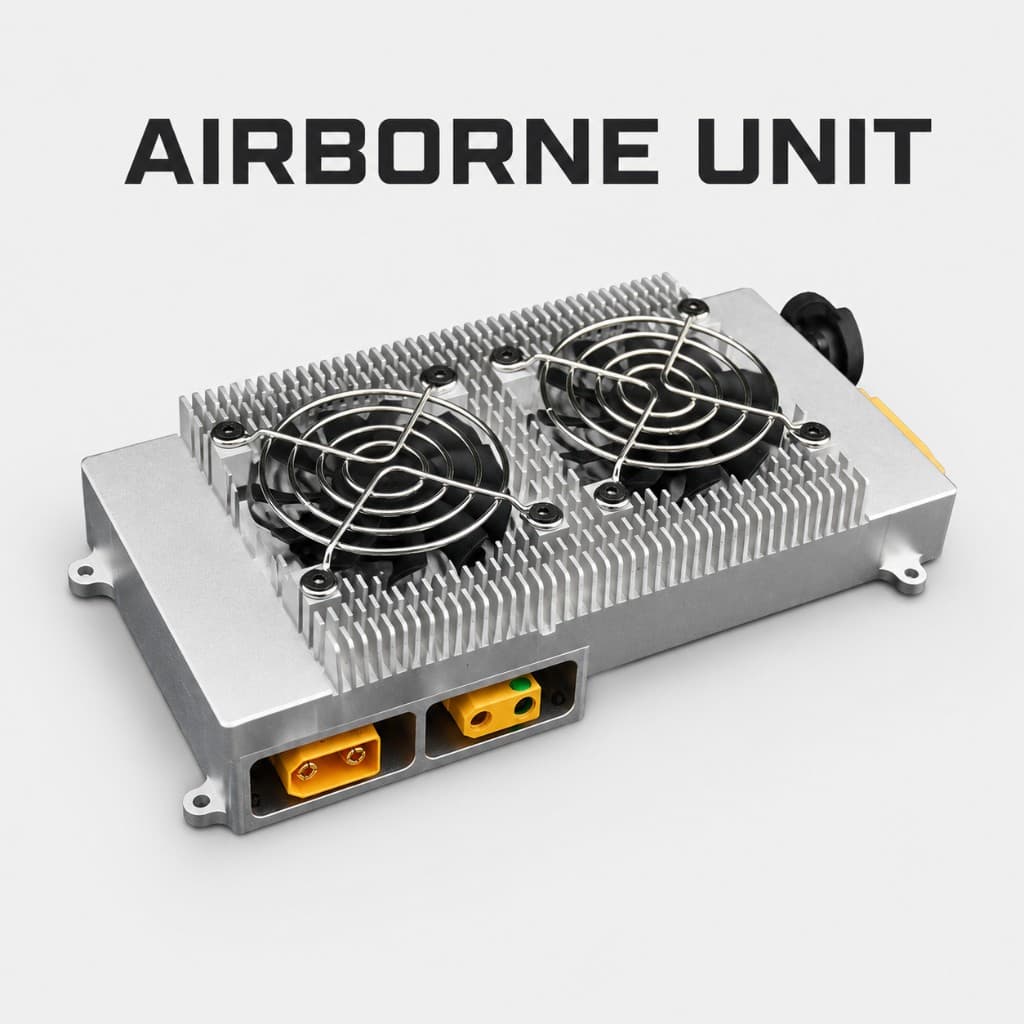

• • Airborne power module converts tether voltage to UAV bus voltage
• • Helps reduce onboard battery dependency
• • Supports stable power delivery for long hover missions
• • Reduces downtime caused by battery swapping
• • Enables continuous aerial operation when properly integrated

• Ground Station + Airborne Module Configuration:

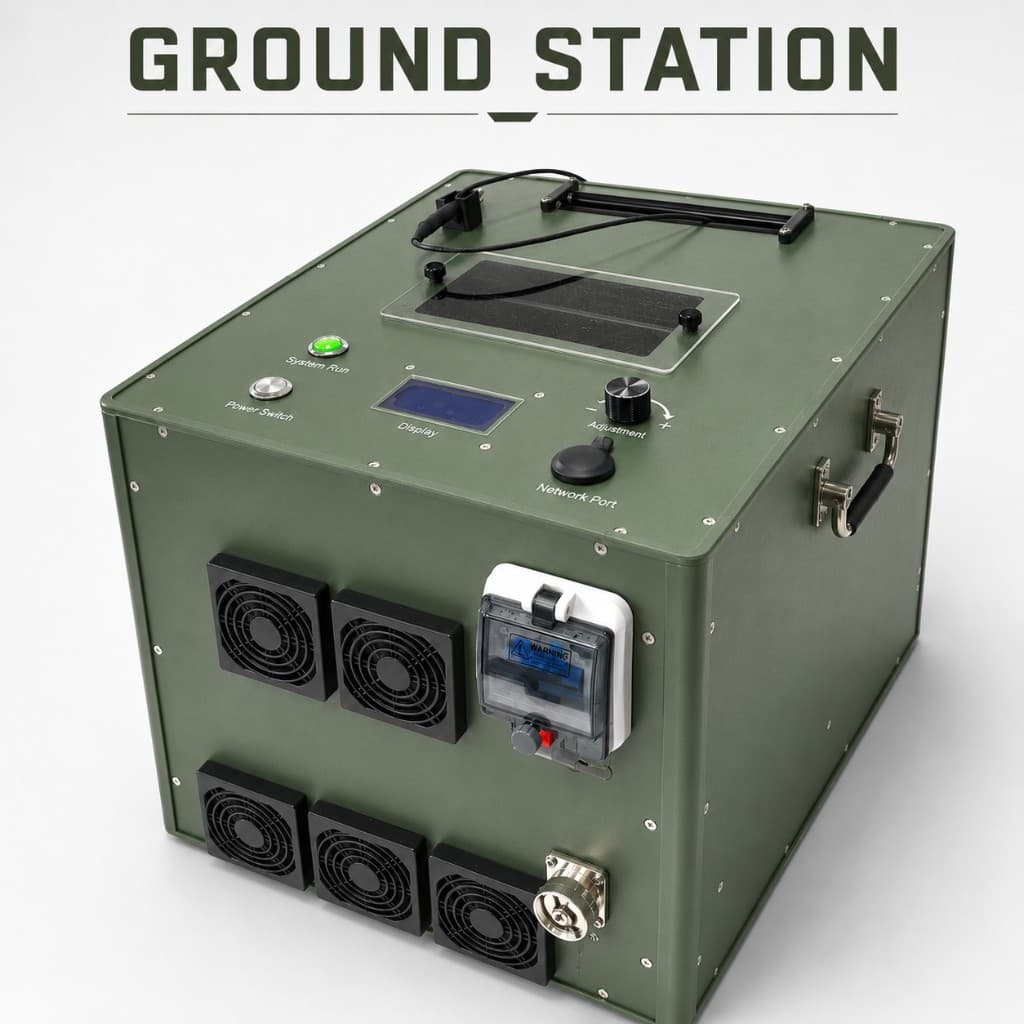

• • NG3 / G4 / G7 / G15 / G30 / G40 / SG50 ground station options
• • A1.5 / A2.5 / A4 airborne module options for lower-power systems
• • WF6 / WF8 / WF12 / WF16 / WF24 / WF30 regulated airborne modules for higher-power systems
• • 220VAC single-phase input for lower-power models
• • 380VAC three-phase input for high-power models
• • 400VDC, 750VDC, 1000VDC and 1400VDC transmission classes
• • Customizable UAV-side output voltage

APPLICATIONS: Surveillance and monitoring drones, lighting and emergency illumination drones, relay communication platforms, industrial inspection drones, firefighting support UAVs, high-altitude cleaning and maintenance systems, eVTOL and heavy-lift UAV test platforms, long-duration research and development missions.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark Tethered Power System – 100 Meter Series? A: It is a professional tethered UAV power system series that supplies continuous regulated DC power from a ground power station to an airborne power module through a 100 Meter tether cable.

• Q: What power ratings are available?
• A: The available power ratings are 1.5kW, 2.5kW, 4kW, 6kW, 8kW, 12kW, 16kW, 24kW and 30kW.

• Q: What is the starting price?
• A: The starting price is 11,59,000 ₹ for the 1.5kW 100 Meter system.

• Q: Is the drone included?
• A: No. The drone is not included unless specifically mentioned in a custom quotation.

• Q: Can the output voltage be customized?
• A: Yes. Output voltage is customizable depending on selected system, airborne module, UAV battery class and integration requirement.

• Q: Can optical fiber be added?
• A: Optical-fiber integration may be available for compatible models and can be added for command, data or video transmission requirements.

Q: Does the system provide unlimited flight time? A: It can greatly extend flight endurance compared with battery-only operation, but actual continuous operation depends on UAV thermal limits, motor/ESC capacity, payload, weather, cooling, tether management and operating conditions.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Damage from wrong input power, wiring error, overload, crash, water ingress, overheating, over-pulling tether cable, unauthorized modification or misuse may not be covered.
