FlySpark 2.2G Long-Range FPV VTX-F10 | 4.5W Analog Video Transmitter Module

The FlySpark 2.2G Long-Range FPV VTX-F10 is a high-power analog FPV video transmitter designed for FPV drones, fixed-wing UAVs, long-range drone platforms, inspection UAVs, surveillance drone systems, testing rigs and custom unmanned aircraft builds that require a 2.0GHz–2.2GHz video transmission link. With up to 4.5W RF output power and 8-channel frequency support from 2000MHz to 2200MHz, the VTX-F10 is built for professional long-range analog video-link integration.

The module supports IRC control protocol and OSD parameter adjustment, allowing supported flight-controller / OSD systems to configure VTX parameters more conveniently. It supports PIT Mode, 25mW, 800mW and 4500mW power levels, making it useful for bench setup, short-range testing and high-power long-range operation. The wide DC 7V–36V input voltage range and DC 5V output make it compatible with multiple UAV power-system layouts.

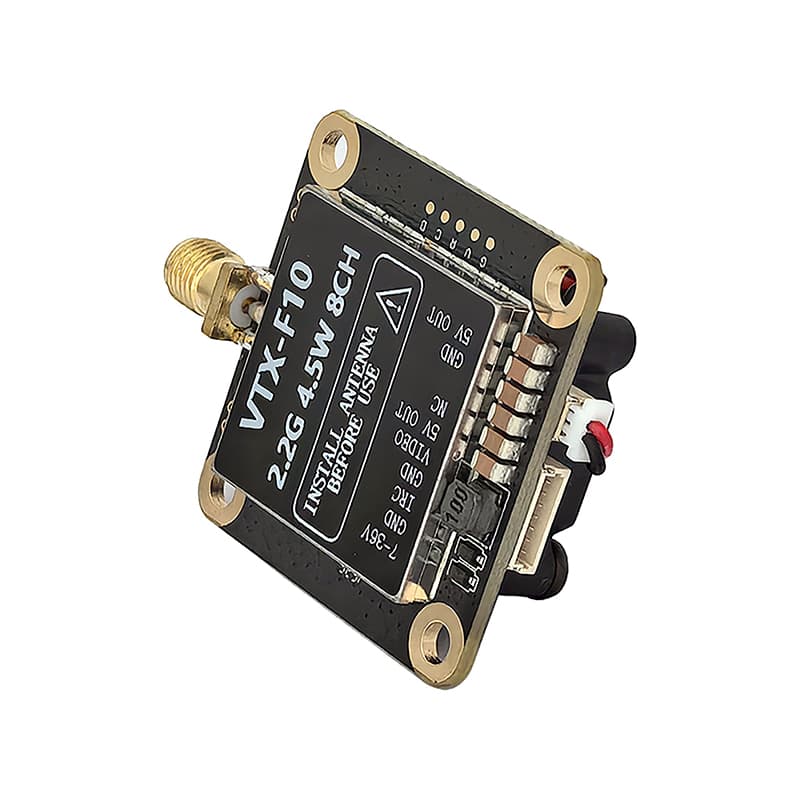

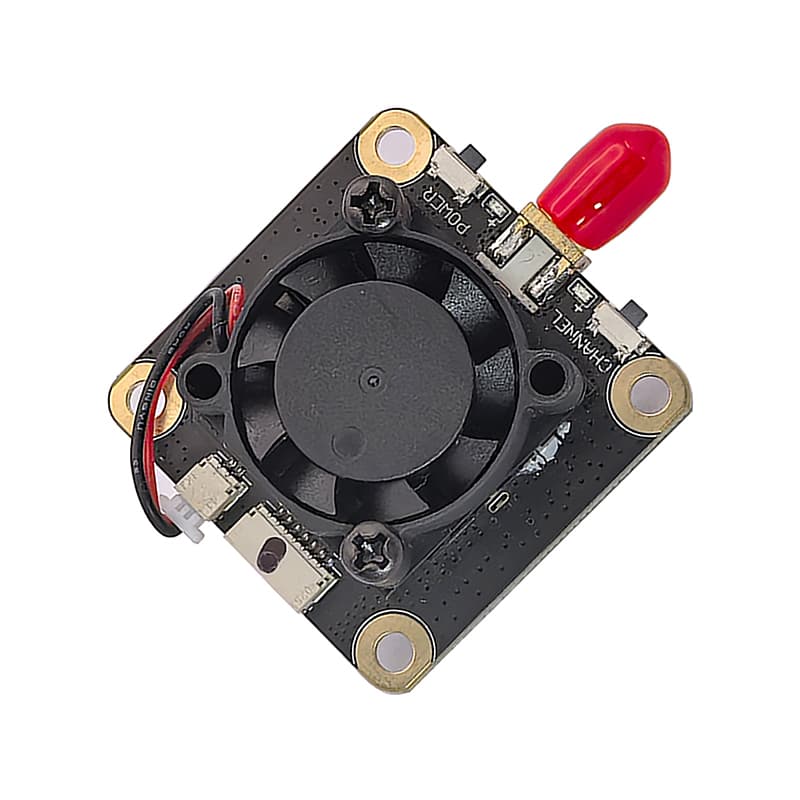

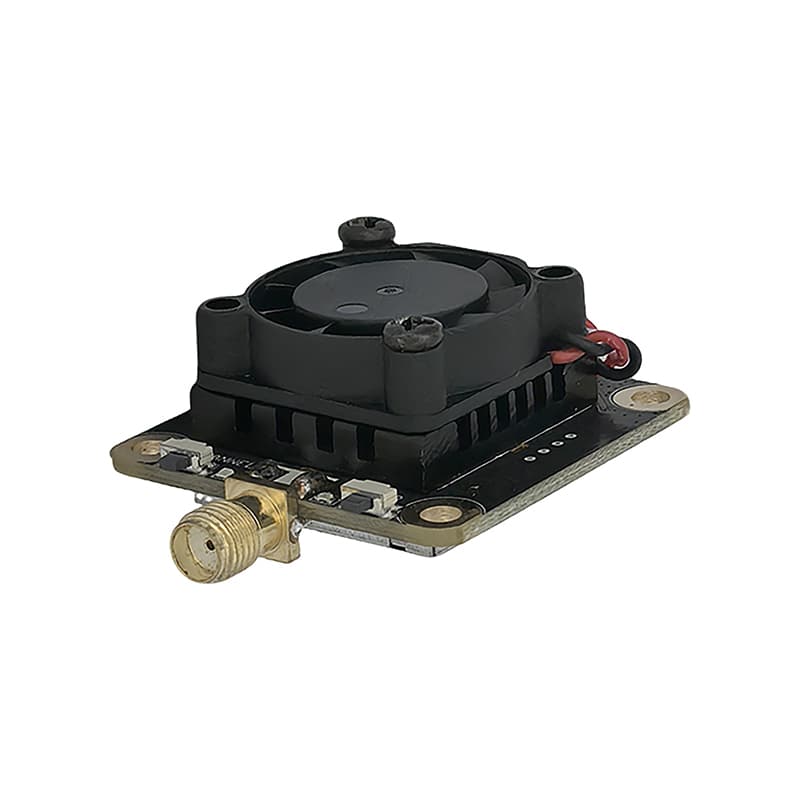

The VTX-F10 uses a standard SMA antenna interface, 30.5mm × 30.5mm M3 mounting pattern and compact 37mm × 37mm × 19mm body size excluding SMA head.

• KEY FEATURES:
• • 2.0G–2.2G analog FPV video transmitter | 2000MHz–2200MHz | 8CH
• • Up to 4.5W RF output | PIT/25mW/800mW/4500mW modes
• • IRC control | OSD parameter adjustment | DC 7V–36V input | DC 5V output
• • SMA antenna | 30.5×30.5mm M3 mounting | 37×37×19mm body

IMPORTANT USE NOTE: This product is a high-power RF video transmitter module. Use only on legally permitted frequencies, power levels and operating locations. Users must follow WPC/DoT/local spectrum regulations, aviation rules, RF safety requirements, site permissions and lawful drone operation practices. Always connect a suitable antenna or RF load before powering the VTX to prevent RF power-stage damage.
