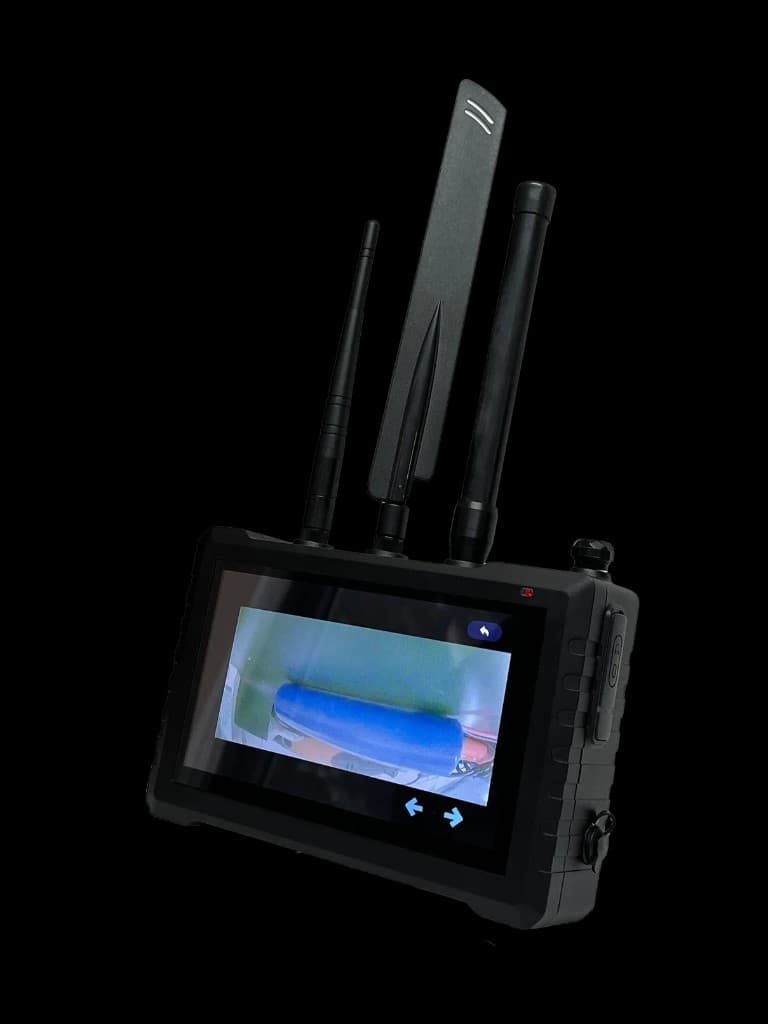

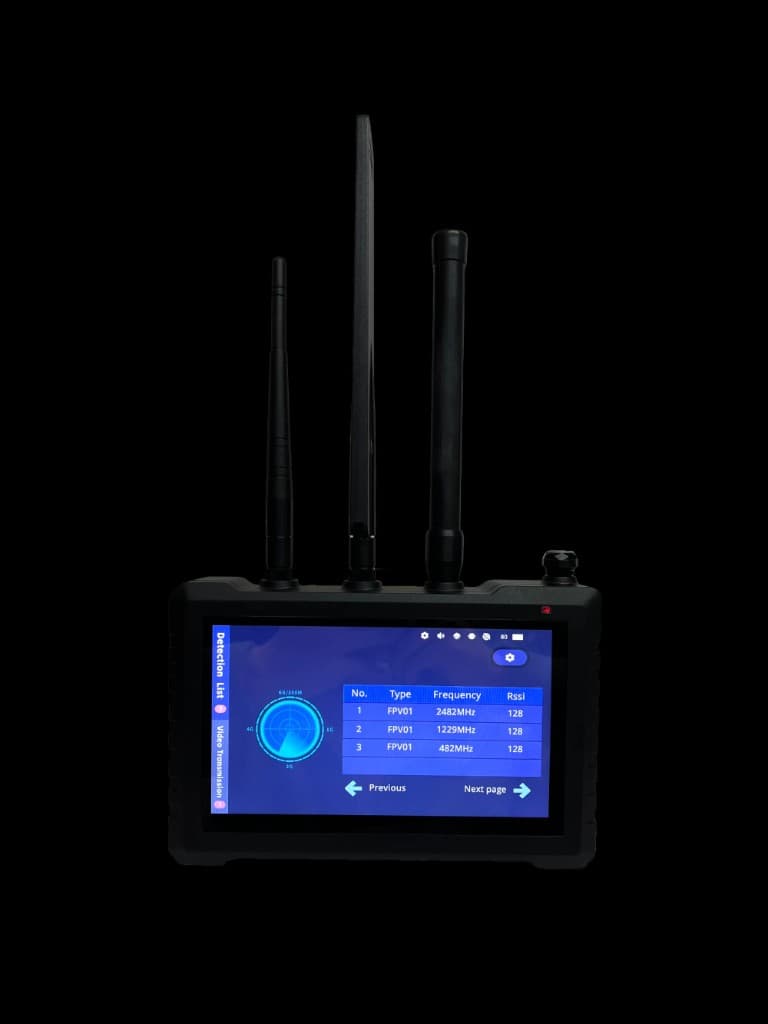

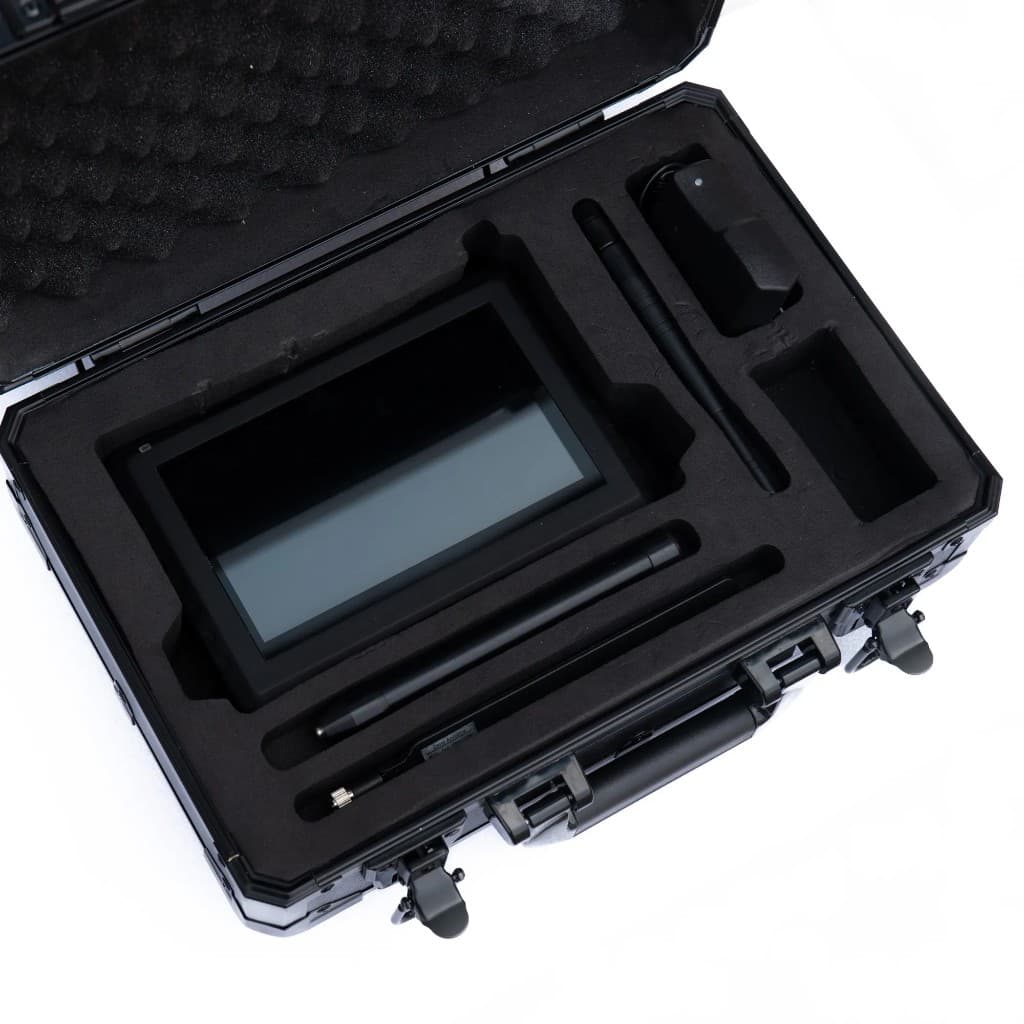

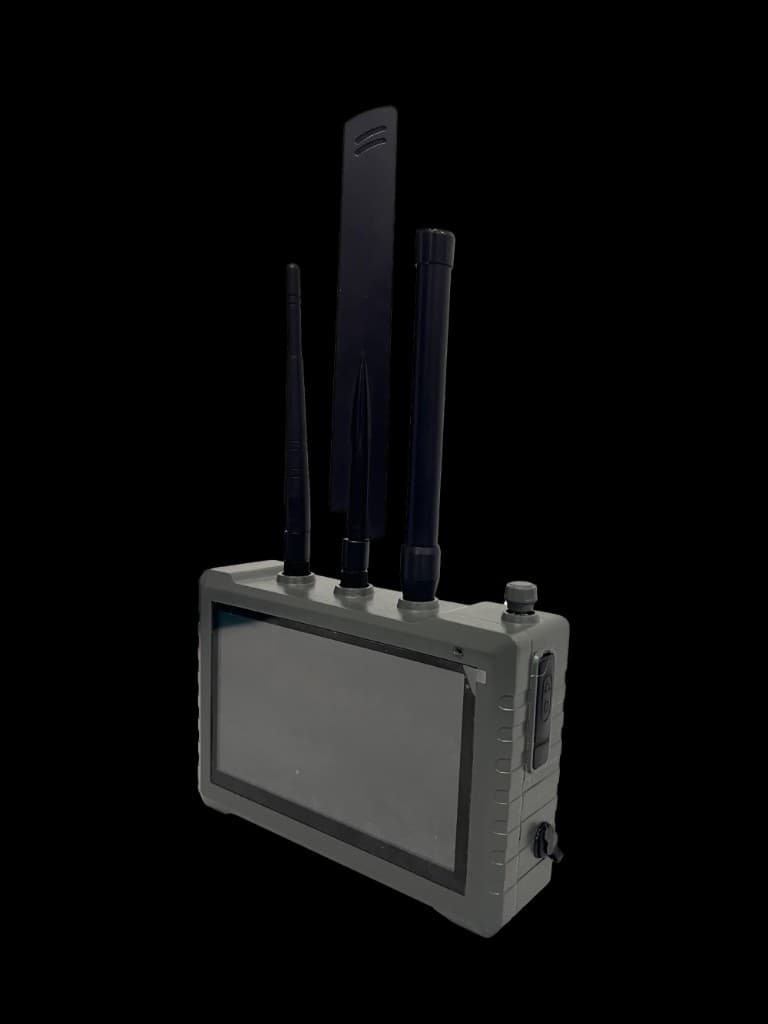

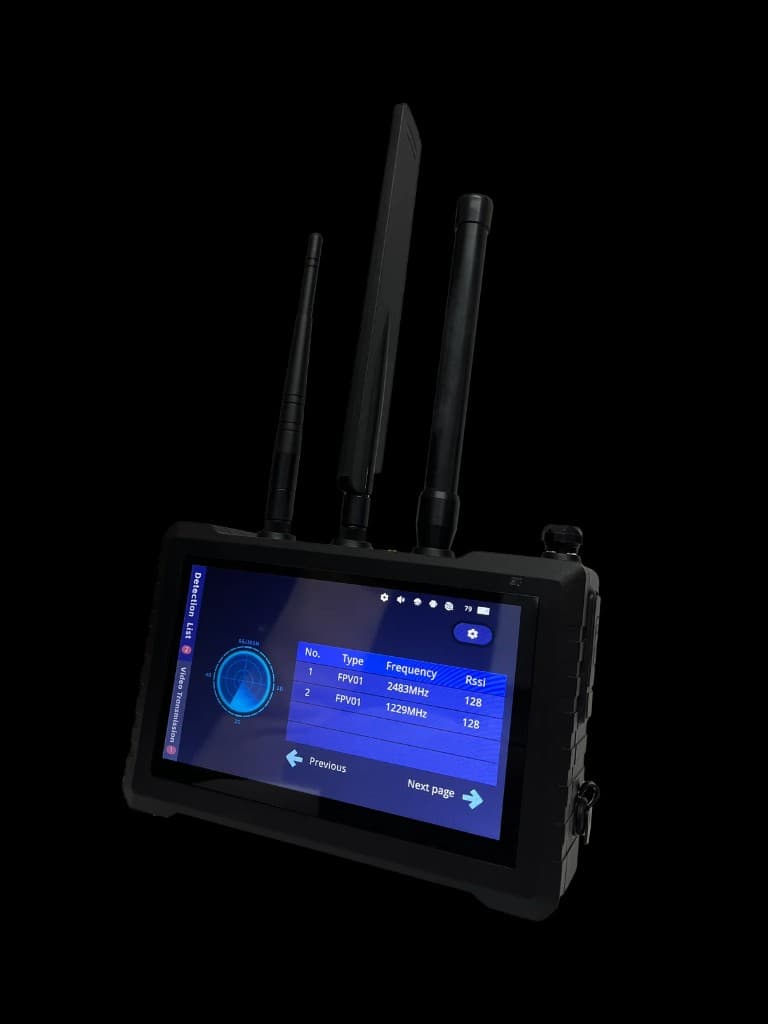

FlySpark Wearable Drone Detector Video Capture | 70MHz–6.2GHz Passive UAV & FPV Video Detection System — view 1

FlySpark Wearable Drone Detector Video Capture | 70MHz–6.2GHz Passive UAV & FPV Video Detection System

In stock
FlySpark

A wearable drone detector that also works as a handheld drone detector (hand held drone detector) for patrols, from ₹8,25,000. For visual tracking, the FlyCube D AI vision module is a separate product. For full kits see the HD-2 portable anti-drone kit.

Base price — FlySpark Wearable Drone Detector Video Capture - Standard Package
₹4,19,000
Excl. GST · Final pricing subject to configuration & quantity

70MHz–6.2GHz wearable drone detector with FPV analog video capture, 7-inch touchscreen, ≥1.5km detection, 32GB storage and sound/vibration/light alarms.

Configuration : FlySpark Wearable Drone Detector Video Capture - Standard Package

Defense & export systems — get a formal quote with lead time and end-user documentation on WhatsApp.

Qty
verified_user

Military-grade quality assured

lock

Export-compliant documentation

headset_mic

24/7 engineering support

Talk to sales

Mon – Sun · 19:30 – 03:30 IST · [email protected]

FSP-WEARABLE-VIDEO-DRONE-DETECTOR-70M-6G2
Active
6
32
  • flyspark
  • field-tested
  • wearable-drone-detector
  • drone-detector-video-capture
  • video-cutter-drone-detector
  • fpv-video-detector
  • fpv-video-capture-device
  • portable-drone-detector
  • passive-uav-detector
  • uav-detection-device
  • drone-rf-detector
  • 70mhz-6-2ghz-drone-detector

Key facts

At a glance

The FlySpark Wearable Drone Detector Video Capture is a passive RF detector that scans 70 MHz–6.2 GHz for drones and can capture and record analog FPV video transmitted in the 300 MHz–6 GHz band. FlySpark lists a detection radius and video capture distance of ≥1.5 km in line of sight in a clean RF environment, response within 3 s for 8 bands, a 7-inch touchscreen and 32 GB storage for evidence. It weighs 2 kg, does not jam, and is listed at ₹4,19,000.

FlySpark Wearable Drone Detector Video Capture | 70MHz–6.2GHz Passive UAV & FPV Video Detection System — key specifications
Scanning range70 MHz–6.2 GHz
Default detection bands400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
Detection radius≥1.5 km (line of sight, clean electromagnetic environment)
Response time≤3 s for 8 bands; ≤5 s for 12 bands
Analog video capture300 MHz–6 GHz band; capture distance ≥1.5 km (line of sight)
Identified dronesDJI, Autel, Hubsan and other mainstream models; FPV racing and DIY drones
Storage32 GB memory card
Display7-inch touchscreen
AlarmsSound, vibration and light; optional wrist-watch alert
Team mode1+N master-slave collaboration
Size200 × 130 × 40 mm
Weight2 kg
JammingNone (passive detection and video monitoring)
Price₹4,19,000 (excl. GST), standard package; 5 package configurations at the same price

Use cases

  • FPV drone early warning on patrol
  • Recording FPV video as evidence of unauthorised intrusion
  • Event and perimeter security
  • Industrial and critical infrastructure drone monitoring

Standards & references

  • ITU Radio Regulations — Defines the international allocations of the 70 MHz–6.2 GHz bands monitored; the device is receive-only.

Sources: FlySpark catalog data (product description and specifications); ITU Radio Regulations. Updated .

Intelligence Brief

Mission overview

FlySpark Wearable Drone Detector Video Capture | 70MHz–6.2GHz Passive UAV & FPV Video Detection System

The FlySpark Wearable Drone Detector Video Capture system is a professional passive UAV detection device designed for drone early warning, FPV video monitoring, security patrol, perimeter protection, event security, industrial site surveillance and counter-UAV detection support. It covers a wide 70MHz–6.2GHz scanning range and supports default drone detection bands including 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz and 5.8GHz.

Unlike simple alarm-only drone detectors, this system supports analog FPV image transmission detection and real-time video capture. It can help operators understand FPV intrusion targets from a first-person-view perspective, store captured video as evidence and respond with better situational awareness. The device includes a 7-inch touchscreen, 32GB video storage, sound/vibration/light alarms and optional 1+N master-slave team collaboration mode.

KEY FEATURES & BENEFITS:

  • Full-Band Drone Detection:
  • • 70MHz–6.2GHz wide frequency scanning support
  • • Default detection bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz and 5.8GHz
  • • Supports mainstream drones such as DJI, Autel and Hubbleson
  • • Supports FPV racing drones and DIY drones
  • • Detection radius ≥1.5km in line-of-sight clean electromagnetic environment
  • • Fast detection response time: ≤3s for 8 frequency bands, ≤5s for 12 frequency bands
  • FPV Video Capture & Evidence Recording:
  • • Supports analog image transmission detection within the 300MHz–6GHz band
  • • Real-time FPV analog video capture support
  • • Video capture distance ≥1.5km in line-of-sight clean electromagnetic environment
  • • 32GB memory card storage for evidence recording
  • Professional Field Operation:
  • • 7-inch touchscreen display
  • • Sound, vibration and light alarm modes
  • • Equipment size: 200mm × 130mm × 40mm
  • • Equipment weight: 2kg
  • • Supports team collaboration through 1+N master-slave device mode

IMPORTANT USE NOTE: This product is a passive drone detection and RF/video monitoring device. It is not a jammer and does not disable, block, spoof, hijack or interfere with drones by itself. FPV video capture and RF monitoring must be used only for lawful, authorized security operations.

APPLICATIONS: FPV drone detection and video monitoring, drone early-warning patrol, event security, industrial facility drone monitoring, critical infrastructure protection, perimeter security and authorized evidence recording for unauthorized FPV intrusion.

FREQUENTLY ASKED QUESTIONS:

Mission configurations

Configuration (6)

Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.

Standard video-capture drone detector for security teams, event protection, industrial facilities, perimeter monitoring and FPV intrusion awareness.

SKU: FSP-WEARABLE-VIDEO-DRONE-DETECTOR-70M-6G2

Unit Price (excl. GST)₹4,19,00010 units

Suitable for large venues, industrial plants, border/perimeter zones, campuses, stadiums and critical infrastructure teams requiring coordinated multi-device monitoring.

SKU: FSP-WEARABLE-VIDEO-DRONE-DETECTOR-TEAM

Unit Price (excl. GST)₹4,19,00010 units

Recommended for field teams that need mobile alert notifications while the main detector is used by a command operator or fixed observation team.

SKU: FSP-WEARABLE-VIDEO-DRONE-DETECTOR-WATCH

Unit Price (excl. GST)₹4,19,00010 units

Suitable for customers monitoring special RF environments, custom FPV bands, DIY drone activity or non-standard analog image transmission ranges.

SKU: FSP-WEARABLE-VIDEO-DRONE-DETECTOR-CUSTOM-BAND

Unit Price (excl. GST)₹4,19,00010 units

Suitable for police training units, security teams, industrial guards, drone detection service providers and C-UAS awareness programs.

SKU: FSP-WEARABLE-VIDEO-DRONE-DETECTOR-TRAINING

Unit Price (excl. GST)₹4,19,00010 units

Recommended for security agencies and industrial operators who need structured video capture and post-event review for unauthorized FPV drone activity.

SKU: FSP-WEARABLE-VIDEO-DRONE-DETECTOR-EVIDENCE

Unit Price (excl. GST)₹4,19,00010 units

Active configuration

FlySpark Wearable Drone Detector Video Capture - Standard Package

Standard video-capture drone detector for security teams, event protection, industrial facilities, perimeter monitoring and FPV intrusion awareness.

₹4,19,000

Excl. GST

SKU: FSP-WEARABLE-VIDEO-DRONE-DETECTOR-70M-6G2

Configuration matrix

Compare all variants

Side-by-side specifications — click a column to select

Parameter
Unit Price (excl. GST)₹4,19,000₹4,19,000₹4,19,000₹4,19,000₹4,19,000₹4,19,000
Stock10 units10 units10 units10 units10 units10 units
SKUFSP-WEARABLE-VIDEO-DRONE-DETECTOR-70M-6G2FSP-WEARABLE-VIDEO-DRONE-DETECTOR-TEAMFSP-WEARABLE-VIDEO-DRONE-DETECTOR-WATCHFSP-WEARABLE-VIDEO-DRONE-DETECTOR-CUSTOM-BANDFSP-WEARABLE-VIDEO-DRONE-DETECTOR-TRAININGFSP-WEARABLE-VIDEO-DRONE-DETECTOR-EVIDENCE

Technical Data Sheet

System Specifications

32 parameters across 3 categories

General30 fields

Product Type
Passive UAV and FPV monitoring system
Detection Method
Detection-focused equipment
Frequency Range
Customizable scanning support
Default Detection Bands
Main drone and FPV bands
FPV Image Transmission Detection
User-customizable
FPV Band Coverage
FPV racing drone monitoring
Recognition Types
Signal dependent
Detection Radius
Line-of-sight and clean electromagnetic environment reference
Video Capture Distance
Line-of-sight and clean electromagnetic environment reference
Detection Response Time
Fast scan mode reference
Video Capture Function
FPV image transmission monitoring
Evidence Storage
32GB storage support
Storage Space
Video and evidence file storage
Alarm Methods
Triple alert modes
Team Alarm Linkage
Coordinated operation support
Wrist Watch Alarm
Mobile alert extension
Screen Size
Large field display
Video Display
Real-time image monitoring
Team Collaboration
Multiple detector coordination
Customization
Project dependent
Equipment Size
Main device body
Equipment Weight
Field equipment weight
Safety Class
No jamming by default
Legal Use
User responsibility
Warranty
Manufacturing defect support under approved use
Supplier / Integration Support
India support available
Product
FlySpark Wearable Drone Detector Video Capture | 70MHz–6.2GHz Passive UAV & FPV Video Detection System
Category
Drone Detection, Radar & Surveillance
Availability
Contact FlySpark sales for lead time
Overview
70MHz–6.2GHz wearable drone detector with FPV analog video capture, 7-inch touchscreen, ≥1.5km detection, 32GB storage and sound/vibration/light alarms.
