HomeSecure Communication, Fiber Optic & Tethered SystemsFlySpark 1.7G Long-Range FPV VTX Series | 4.5W & 6W Analog Video Transmitter Modules | 1680MHz–1960MHz
1 / 5
Category
Communication System
Status
ACTIVE
Variants
2
Spec Fields
14
Communication SystemIn Stock
FlySpark 1.7G Long-Range FPV VTX Series | 4.5W & 6W Analog Video Transmitter Modules | 1680MHz–1960MHz
FlySpark 1.7G FPV VTX series with 4.5W and 6W options, 1680–1960MHz range, SMA antenna, IRC control, OSD adjustment and 7–36V input.
Base Price
₹22,680
Excl. GST · Final pricing subject to configuration & quantity
Military-grade quality assured
Export compliant documentation
24/7 engineering support
System Tags
flyspark1.7g-vtx1.7ghz-vtx1680mhz-1960mhz-vtxlong-range-fpv-vtxanalog-video-transmitterfpv-video-transmitterdrone-vtxuav-video-link4.5w-vtx6w-vtxsk-vtx06
Mission Configurations
Configuration(2)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | ||
|---|---|---|
| Unit Price (excl. GST) | ₹22,680 | ₹22,940 |
| Stock | 10 units | 10 units |
| SKU | FSP-VTX-17G-F9-6W | FSP-VTX-17G-SKVTX06-45W |
Intelligence Brief
Mission Overview
FlySpark 1.7G Long-Range FPV VTX Series | 4.5W & 6W Analog Video Transmitter Modules

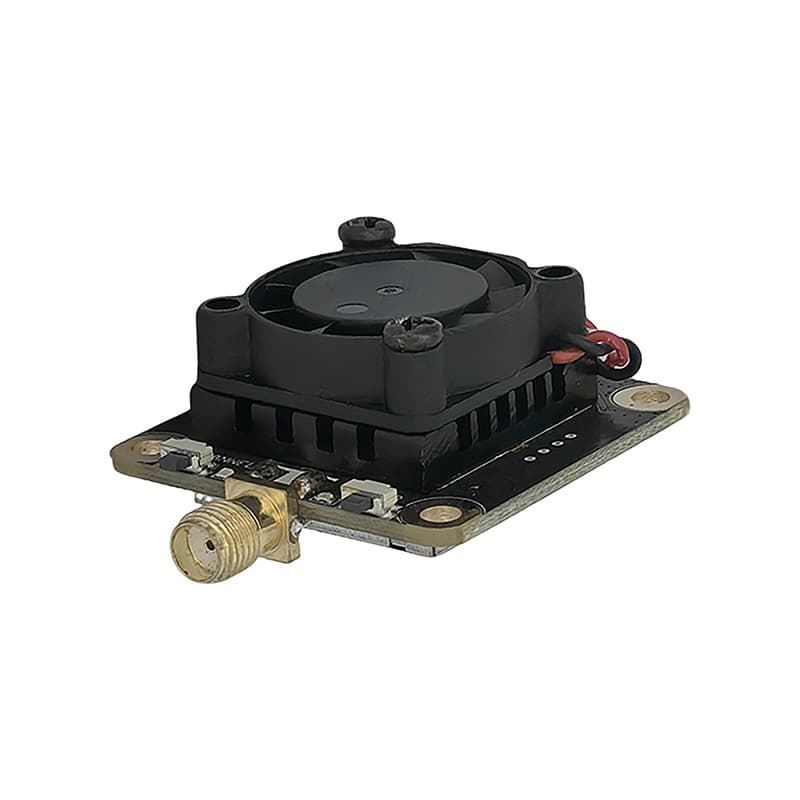

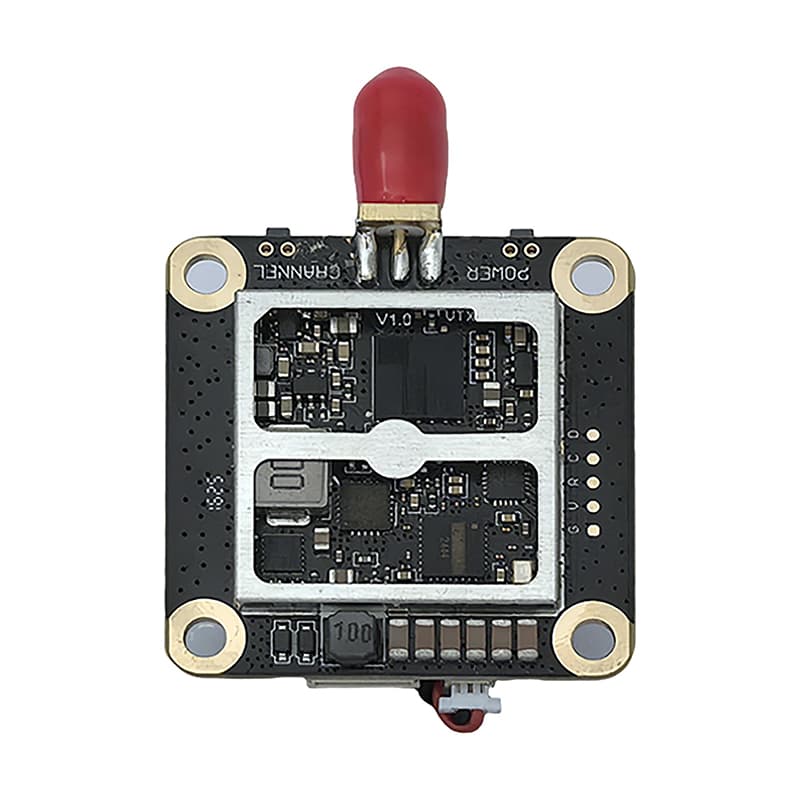

The FlySpark 1.7G Long-Range FPV VTX Series is designed for FPV drones, fixed-wing UAVs, long-range drone platforms, inspection UAVs, surveillance drones, testing systems and custom unmanned aircraft builds that require powerful analog video transmission in the 1680MHz–1960MHz frequency range. This series is available in 4.5W and 6W output-power variants, allowing drone builders to select the correct VTX according to range requirement, antenna setup, available mounting space, thermal management and power-system design.
The series includes two main variants: 1.7G 4.5W SK-VTX06 and 1.7G 6W VTX-F9. Both variants support IRC control protocol and OSD parameter adjustment, making configuration easier through supported FPV/OSD workflows. Both modules support DC 7V–36V wide input voltage, DC 5V output voltage, SMA antenna interface and PIT Mode for safe low-power setup.
The SK-VTX06 is a 4.5W 16-channel VTX with 20×20mm M2 mounting, suitable for compact high-power builds requiring more channel flexibility. The VTX-F9 is a 6W 8-channel VTX with 30.5×30.5mm M3 mounting, suitable for users who need maximum listed RF output power in the 1.7G VTX class.
- AVAILABLE VARIANTS:
- • 1.7G 6W VTX-F9 — ₹22,680
- • 1.7G 4.5W SK-VTX06 — ₹22,940
IMPORTANT USE NOTE: This product is a high-power RF video transmitter module. Use only on legally permitted frequencies, power levels and operating locations. Users must follow WPC/DoT/local spectrum regulations, aviation rules, RF safety requirements, site permissions and lawful drone operation practices. Always connect a suitable antenna or RF load before powering the VTX to prevent RF power-stage damage.
FREQUENTLY ASKED QUESTIONS:
- Q: What is the FlySpark 1.7G Long-Range FPV VTX Series?
- A: A high-power analog FPV video transmitter series for drones and UAVs, available in 4.5W and 6W output-power variants.
- Q: What is the starting price?
- A: The starting price is ₹22,680 for the 1.7G 6W VTX-F9 variant.
- Q: What is the price of 1.7G 6W VTX-F9?
- A: ₹22,680.
- Q: What is the price of 1.7G 4.5W SK-VTX06?
- A: ₹22,940.
- Q: What frequency range does this VTX series support?
- A: Both variants operate in the 1680MHz–1960MHz frequency range.
- Q: Which is the highest-power variant?
- A: The 1.7G 6W VTX-F9 with up to 6000mW RF output.
- Q: Which variant has more channels?
- A: SK-VTX06 supports 16 channels; VTX-F9 supports 8 channels.
- Q: Does this VTX support PIT Mode?
- A: Yes. Both listed variants support PIT Mode.
- Q: Does this VTX support OSD parameter adjustment?
- A: Yes. IRC control protocol and OSD parameter adjustment are supported.
- Q: What input voltage is supported?
- A: DC 7V–36V on both variants.
- Q: What antenna connector is used?
- A: SMA on both variants.
- Q: Can the VTX be powered without antenna?
- A: No. Do not power without a properly connected antenna or dummy load.
- Q: What warranty is included?
- A: 1 Year manufacturing defect support under approved integration and normal operating conditions.
Technical Data Sheet
System Specifications
14 parameters across 2 categories
General
13 fieldsProduct Type
Long-range analog FPV video transmitter series
Series Name
FlySpark 1.7G Long-Range FPV VTX Series
Product Category
Communication System
Available Power Options
4.5W and 6W
Frequency Range
1680MHz–1960MHz
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
Video Link Type
1.7G / 1.8G / 1.9G class | Long-range drone video
Common Features
OSD parameter adjustment | PIT mode | SMA antenna | DC 5V output
Frequency Coverage
SK-VTX06 & VTX-F9 both 1680MHz–1960MHz

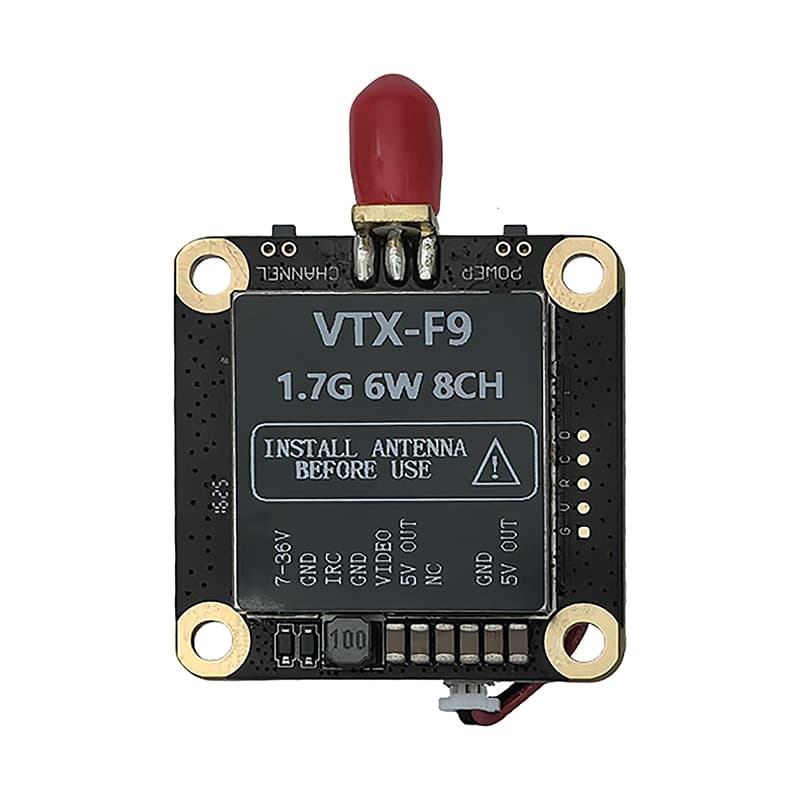

VTX-F9 6W
PIT/25mW/800mW/6000mW | 30.5×30.5mm M3 mount | 37×37×19mm | SMA
SK-VTX06 4.5W
PIT/25mW/200mW/2000mW/4500mW | 20×20mm M2 mount | 48.5×35×18.2mm | SMA
Thermal & Installation Notes
Do not power without antenna | Use proper airflow
Compliance
Antenna required before power-on | 1 Year warranty
