FlySpark 1.2G / 1.3G Long-Range FPV VTX Series | 2W, 4.5W & 5.5W Analog Video Transmitter Modules
Analog 1.2G / 1.3G FPV VTX module series (2W–5.5W) for long-range FPV builds. Integrator quote — companion to tactical FPV platforms.
Base Price
₹11,970
Excl. GST · Final pricing subject to configuration & quantity
Military-grade quality assured
Export compliant documentation
24/7 engineering support
System Tags
flyspark1.2g-vtx1.3g-vtxlong-range-fpv-vtxanalog-video-transmitterfpv-video-transmitterdrone-vtxuav-video-link2w-vtx4.5w-vtx5.5w-vtxvtx-f3
Mission Configurations
Configuration(3)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | |||
|---|---|---|---|
| Unit Price (excl. GST) | ₹11,970 | ₹20,160 | ₹24,570 |
| Stock | 10 units | 10 units | 10 units |
| SKU | FSP-VTX-12G-F3-2W | FSP-VTX-12G-SKVTX05-45W | FSP-VTX-12G-F11-55W |
Intelligence Brief
Mission Overview
FlySpark 1.2G / 1.3G Long-Range FPV VTX Series | 2W, 4.5W & 5.5W Analog Video Transmitter Modules
The FlySpark 1.2G / 1.3G Long-Range FPV VTX Series is designed for FPV drones, long-range UAV platforms, fixed-wing drones, surveillance drones, inspection UAVs, testing platforms and custom drone builds that require stable analog video transmission in the 1.2GHz / 1.3GHz frequency class. This series includes multiple output-power options, allowing users to select the correct VTX based on range requirement, power budget, antenna configuration, mounting space and mission profile.
The series includes three variants: VTX-F3 2W, SK-VTX05 4.5W and VTX-F11 5.5W. All variants support IRC control protocol and OSD parameter adjustment, allowing convenient configuration through supported flight-controller / OSD workflows. These modules support wide DC input power from 7V to 36V and provide DC 5V output, making them suitable for multiple UAV power-system layouts.

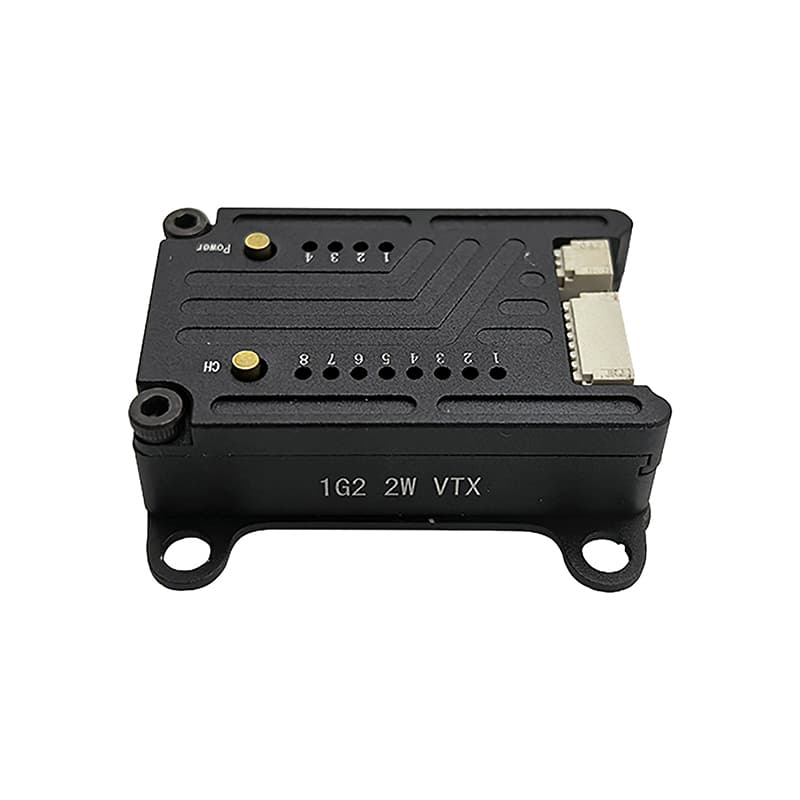

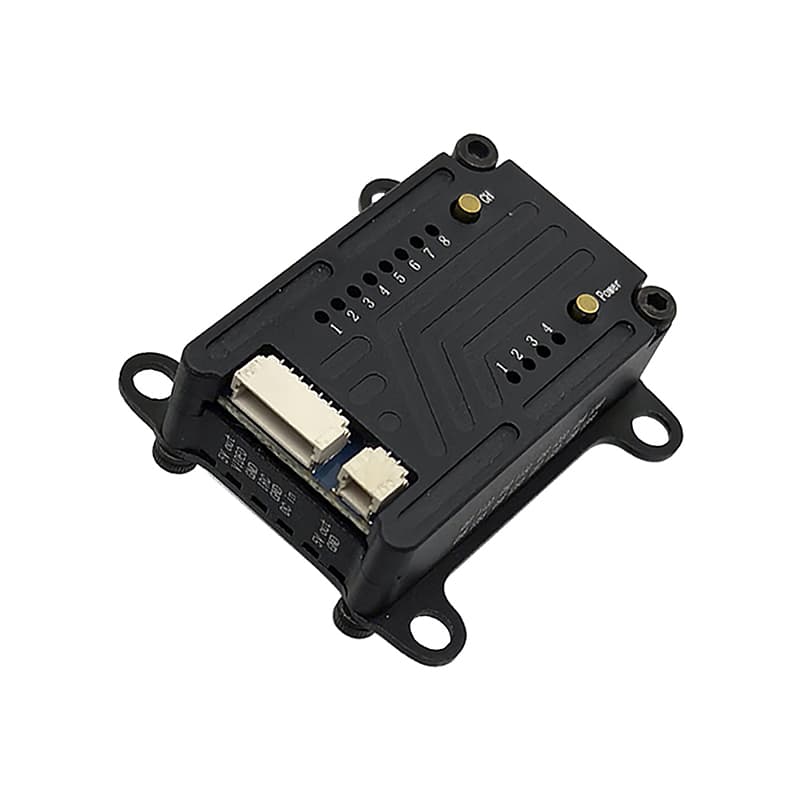

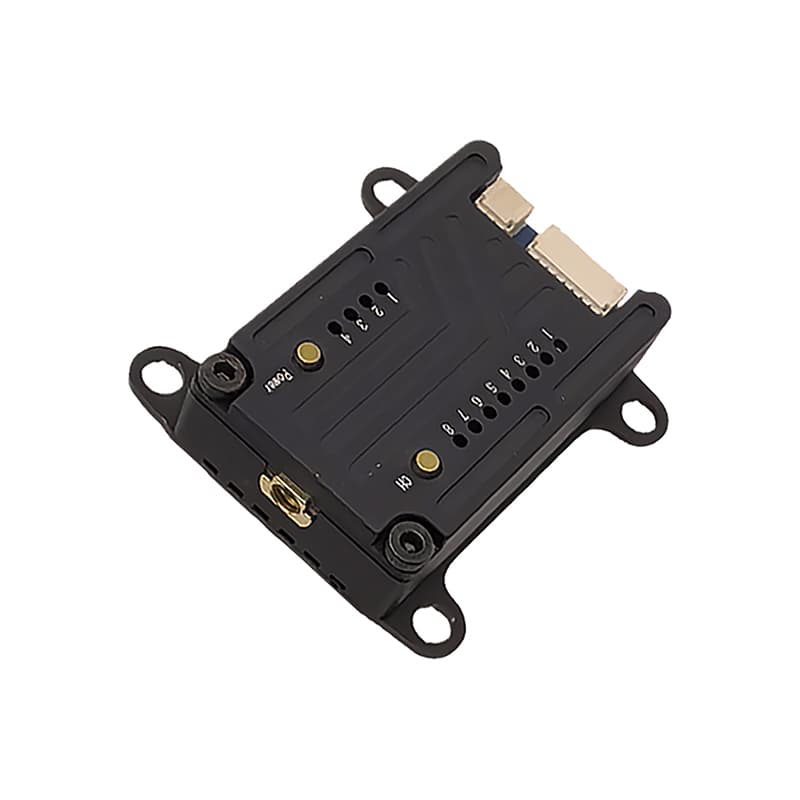

The 2W VTX-F3 is a compact 30.5mm mounting option with MMCX antenna connector. The 4.5W SK-VTX05 and 5.5W VTX-F11 are higher-power modules with SMA antenna interface and 20×20mm mounting pattern.
- AVAILABLE VARIANTS:
- • 1.2G 2W VTX-F3 — ₹11,970
- • 1.2G / 1.3G 4.5W SK-VTX05 — ₹20,160
- • 1.2G 5.5W VTX-F11 — ₹24,570
IMPORTANT USE NOTE: This product is an RF video transmitter module. Use only on legally permitted frequencies, power levels and operating locations. Users must follow WPC/DoT/local spectrum regulations, aviation rules, site permissions, RF safety requirements and lawful drone operation practices. Antenna must be connected before powering the VTX to avoid RF power-stage damage.
FREQUENTLY ASKED QUESTIONS:
- Q: What is the FlySpark 1.2G / 1.3G Long-Range FPV VTX Series?
- A: A series of analog FPV video transmitter modules for drones and UAVs, available in 2W, 4.5W and 5.5W output-power variants.
- Q: What is the starting price?
- A: The starting price is ₹11,970 for the 1.2G 2W VTX-F3 variant.
- Q: What is the price of 1.2G 2W VTX-F3?
- A: ₹11,970.
- Q: What is the price of 1.2G / 1.3G 4.5W SK-VTX05?
- A: ₹20,160.
- Q: What is the price of 1.2G 5.5W VTX-F11?
- A: ₹24,570.
- Q: Which is the most compact variant?
- A: The 1.2G 2W VTX-F3 with 38×36×11mm outline and 30.5mm M3 mounting.
- Q: Which is the highest-power variant?
- A: The 1.2G 5.5W VTX-F11 with up to 5500mW RF output.
- Q: Does this VTX support PIT Mode?
- A: Yes. All listed variants support PIT Mode.
- Q: Does this VTX support OSD parameter adjustment?
- A: Yes. IRC control protocol and OSD parameter adjustment are supported.
- Q: What input voltage is supported?
- A: DC 7V–36V on all listed variants.
- Q: What antenna connector does VTX-F3 use?
- A: MMCX.
- Q: What antenna connector do SK-VTX05 and VTX-F11 use?
- A: SMA.
- Q: Can the VTX be powered without antenna?
- A: No. Do not power without a properly connected antenna or dummy load.
- Q: What warranty is included?
- A: 1 Year manufacturing defect support under approved integration and normal operating conditions.
Technical Data Sheet
System Specifications
13 parameters across 2 categories
General
12 fieldsProduct Type
Long-range analog FPV video transmitter series
Series Name
FlySpark 1.2G / 1.3G Long-Range FPV VTX Series
Product Category
Communication System
Available Power Options
2W, 4.5W and 5.5W
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
Video Link Type
1.2GHz / 1.3GHz frequency class
Common Features
OSD parameter adjustment | DC 5V output | PIT mode supported
Frequency Coverage

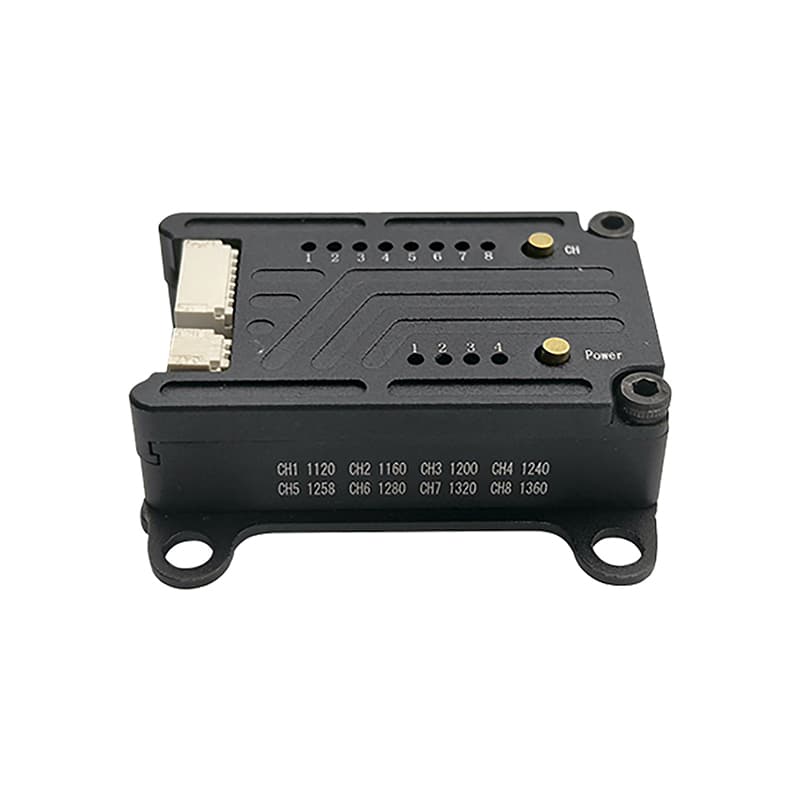

SK-VTX05 & VTX-F11 1080–1360MHz
VTX-F3 2W
PIT/25mW/200mW/2000mW | 30.5mm M3 mount | 38×36×11mm | MMCX
SK-VTX05 4.5W
PIT/25mW/200mW/2000mW/4500mW | 20×20mm M2 mount | 48.5×35×18.2mm | SMA
VTX-F11 5.5W
PIT/25mW/800mW/5500mW | 20×20mm M2 mount | 48.5×35×21.5mm | SMA
Compliance
Antenna required before power-on | 1 Year warranty
