FlySpark SFGT-RMDF-P RF Monitoring & Direction-Finding System | Up to 18 GHz

FlySpark SFGT-RMDF-P RF Monitoring & Direction-Finding System - Up to 18 GHz

The FlySpark SFGT-RMDF-P is a professional portable RF spectrum monitoring and direction-finding system designed for anti-drone RF detection, low-altitude security, interference hunting, spectrum security, electromagnetic situational awareness and authorized field monitoring operations. The system integrates a wideband receiver, real-time spectrum engine and correlation-interferometer direction-finding array to detect, analyze, record, classify and locate RF signals in complex electromagnetic environments.

KEY FEATURES & BENEFITS:

• Wideband RF Monitoring Platform:
• • Monitoring frequency options from 1.5MHz to 3GHz, 8GHz or 18GHz depending on selected configuration
• • Receiver extension option up to 26.5GHz for advanced spectrum-security projects
• • Real-time RF monitoring with signal analysis, alerts, recording, storage and playback
• • Supports communication, data link, radar, IFF, frequency-hopping, spread-spectrum and burst signals
• • Suitable for spectrum security, low-altitude monitoring and anti-drone RF cueing

• Correlation-Interferometer Direction Finding:
• • Direction-finding operating frequency options from 30MHz to 3GHz, 8GHz or 18GHz
• • CI direction-finding array for accurate RF bearing estimation
• • Direction-finding accuracy up to ≤1.5° RMS, ≤2° RMS or ≤2.5° RMS depending on frequency configuration
• • Direction-finding sensitivity suitable for professional field RF location tasks

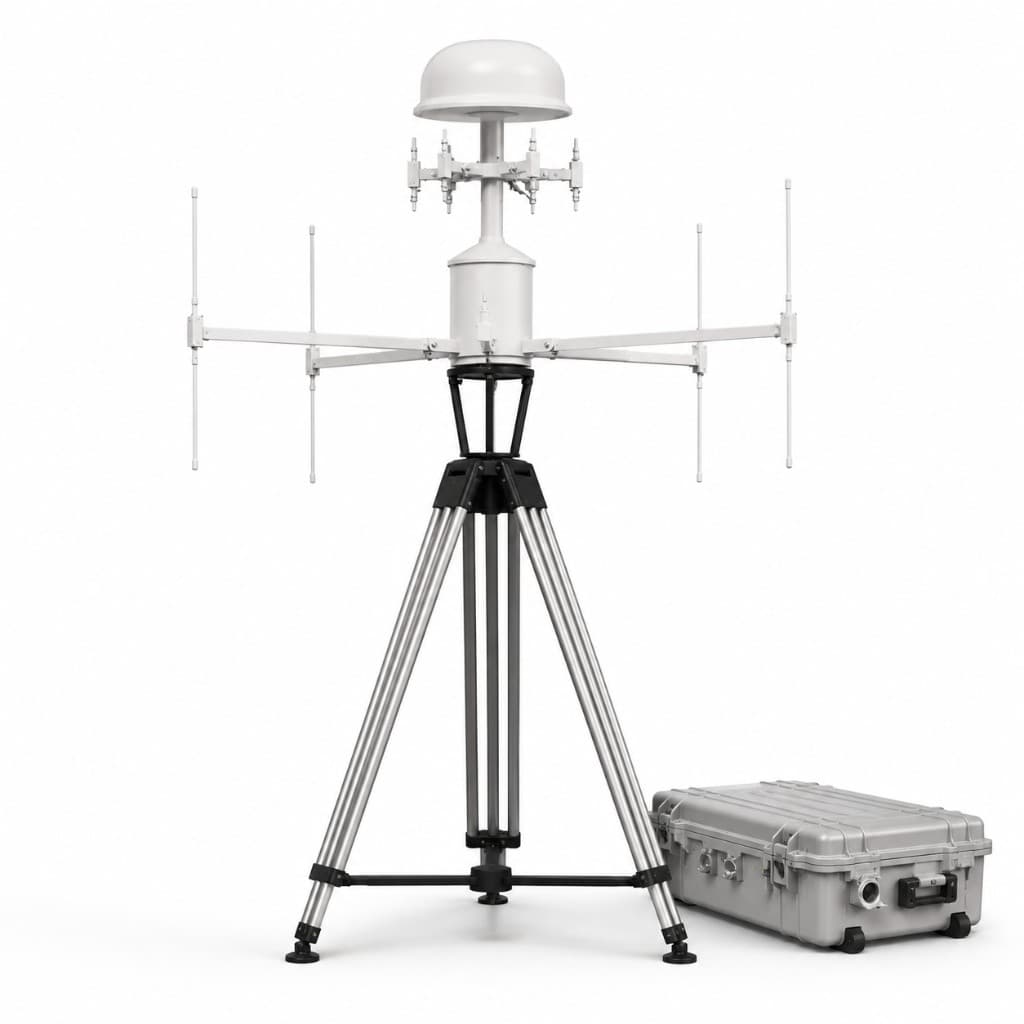

• • Portable DF antenna design with minimal cabling for quick setup and retrieval

• High-Speed Signal Analysis:
• • Fast frequency-hopping signal capture up to 5000 hops/s
• • Real-time bandwidth options of 80MHz or 300MHz depending on model
• • Fast scanning speed across HF, VHF, UHF and microwave frequency ranges
• • Instantaneous dynamic range ≥60dB
• • Visual operation interface with on-demand spectrum data display

APPLICATIONS: Anti-drone RF detection and cueing, low-altitude security monitoring, spectrum monitoring and signal intelligence support, RF interference hunting, critical infrastructure RF security, event and temporary-site monitoring, airport/border/energy/city security networks, communication and radar signal sorting, field spectrum analysis and direction finding, authorized electromagnetic environment monitoring.

AUTHORIZED USE ONLY: The SFGT-RMDF-P is a professional RF monitoring and direction-finding system intended for authorized government, defence, law-enforcement, spectrum-management, airport security, critical infrastructure, research, institutional and licensed RF/security users. Operation must follow applicable radio monitoring, privacy, aviation, site-security, spectrum and export-control regulations.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark SFGT-RMDF-P? A: The FlySpark SFGT-RMDF-P is a portable RF spectrum monitoring and direction-finding system designed for anti-drone RF detection, interference hunting, spectrum security, electromagnetic situational awareness and authorized field monitoring operations.

Q: What is the price of the SFGT-RMDF-P? A: The listed price is 7,00,00,000 ₹ for the SFGT-RMDF-P Up to 18GHz Standard Package. Final pricing may vary if extended receiver options, command-room integration, training, deployment support or custom RF architecture planning is added.

Q: What frequency range does it monitor? A: The system supports monitoring frequency configurations from 1.5MHz to 3GHz, 1.5MHz to 8GHz or 1.5MHz to 18GHz depending on the selected package. An extended receiver option up to 26.5GHz may be available for specialized projects.

• Q: What direction-finding frequency range is supported?
• A: Direction finding is available in configuration ranges from 30MHz to 3GHz, 30MHz to 8GHz or 30MHz to 18GHz depending on selected model and antenna system.

Q: What direction-finding method does it use? A: The system uses a correlation-interferometer direction-finding array. This approach supports accurate RF bearing estimation for authorized signal-location and electromagnetic monitoring tasks.

Q: What is the direction-finding accuracy? A: Direction-finding accuracy is listed as ≤1.5° RMS, ≤2° RMS or ≤2.5° RMS depending on frequency configuration. Real-world accuracy depends on signal strength, antenna setup, reflections, multipath, terrain and electromagnetic environment.

Q: What is the direction-finding sensitivity? A: DF sensitivity is listed as ≤20dBμV/m from 30MHz to 1GHz, with higher-frequency sensitivity values listed as ≤25dBμV/m, ≤30dBμV/m or ≤35dBμV/m depending on configuration.

Q: What real-time bandwidth is available? A: Real-time bandwidth is listed as 80MHz or 300MHz depending on model configuration. Maximum instantaneous analysis bandwidth includes ≥2MHz from 1.5MHz to 30MHz and ≥80MHz from 30MHz to 8GHz.

Q: Can it detect frequency-hopping signals? A: Yes, the system supports fast frequency-hopping signal capture up to 5000 hops/s. This is useful for complex RF environments where signals may use FHSS, burst or spread-spectrum behavior.

Q: What types of signals can it monitor? A: The system supports communication signals, data links, radar, IFF, frequency-hopping signals, spread-spectrum signals, burst signals and other RF signal classes depending on configuration and operating environment.

• Q: Which modulation types are supported?
• A: Supported modulation types include AM, FM, CW, ASK, 2FSK, 4FSK, BPSK, QPSK, 8PSK, 16QAM, MSK and other signal formats depending on configuration.

• Q: What is the scanning speed?
• A: Scanning speed is listed as ≥100MHz/s from 1.5MHz to 30MHz at 1kHz resolution and ≥100GHz/s from 30MHz to 8GHz at 25kHz resolution.

• Q: What is the instantaneous dynamic range?
• A: The instantaneous dynamic range is listed as ≥60dB, supporting analysis of complex RF environments with different signal strengths.

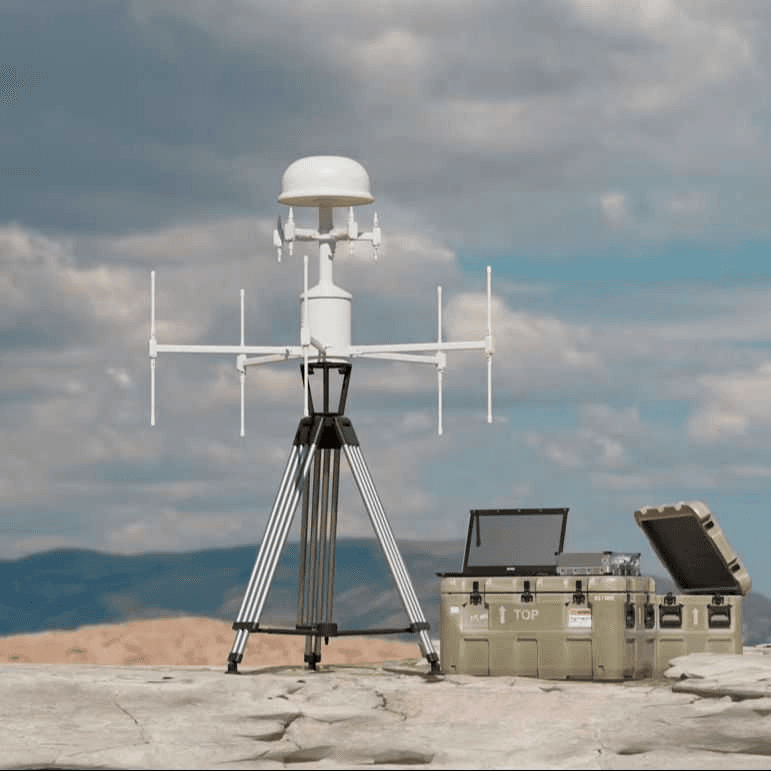

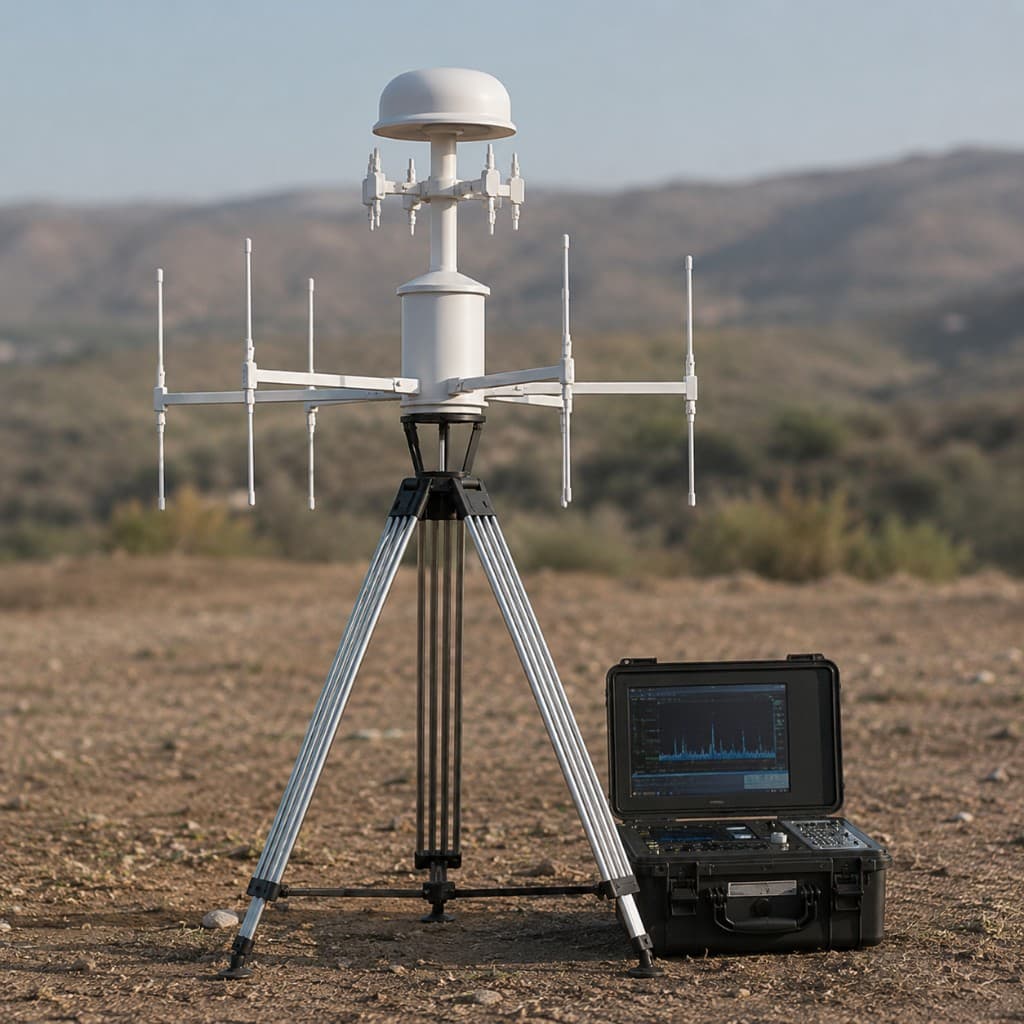

Q: Is the SFGT-RMDF-P portable? A: Yes, the system is designed as a portable and quick-deploy RF monitoring and direction-finding platform. It uses a compact DF antenna design, minimal cabling and rapid setup/retrieval workflow.

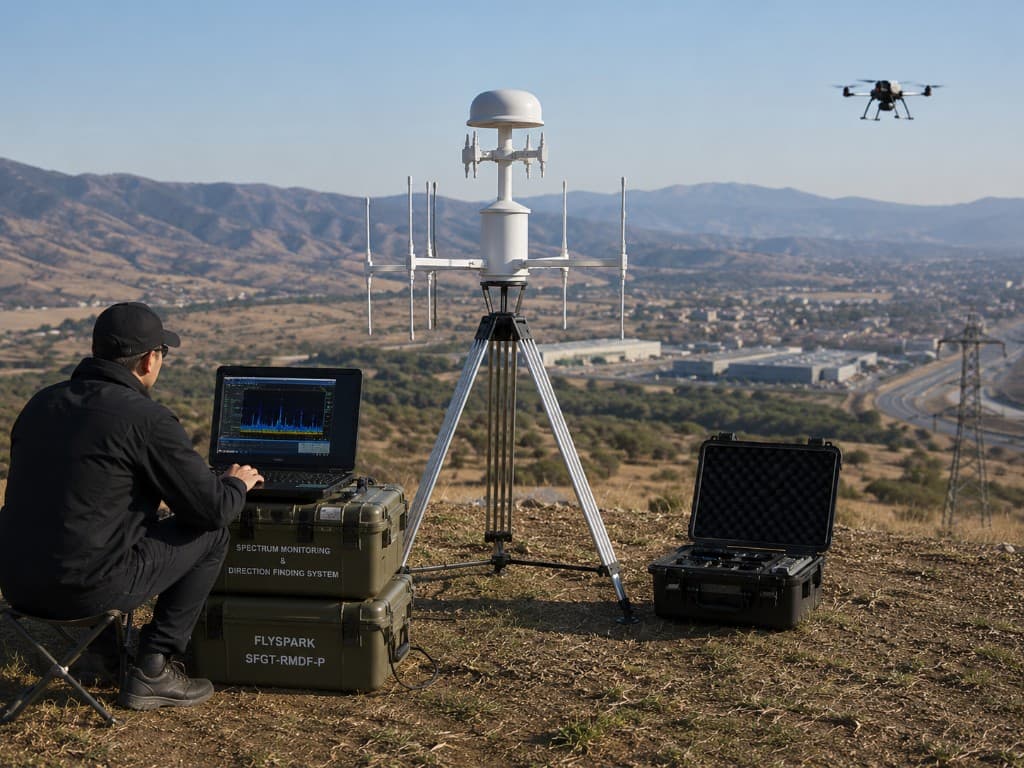

Q: Can this system be used for anti-drone detection? A: Yes, the SFGT-RMDF-P can support anti-drone RF detection and cueing by monitoring RF environments and detecting relevant communication, data-link or control-signal activity. It is a detection and direction-finding system, not a jammer.

• Q: Is this product an RF jammer?
• A: No. The SFGT-RMDF-P is an RF monitoring, signal analysis and direction-finding system. It does not jam or interfere with signals by itself.

Q: Can it be used for interference hunting? A: Yes, it is suitable for authorized interference hunting and RF source localization. The portable DF architecture helps field teams monitor signals and estimate their direction in complex electromagnetic environments.

• Q: Can it record and replay spectrum data?
• A: Yes, the system supports signal analysis, alerts, recording, storage and playback functions, enabling post-mission review and RF evidence workflow support.

Q: What power supply does it require? A: The listed power supply is AC 220V ±10%, 50Hz ±5%. Portable power planning, UPS or generator support can be considered for field deployments depending on mission requirement.

Q: What is the operating temperature range? A: The listed operating temperature range is -40°C to +55°C. This makes the system suitable for demanding field and outdoor security environments when properly deployed.

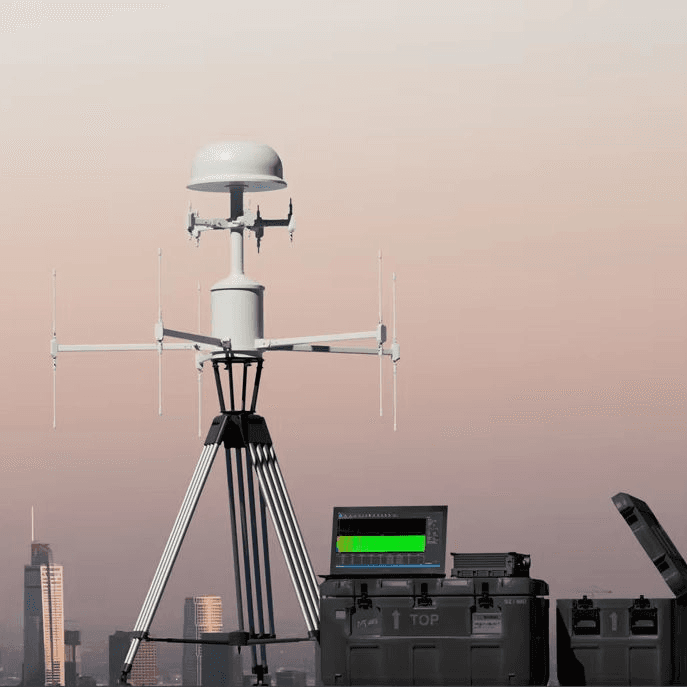

Q: Where can this system be deployed? A: It can be deployed for events, airports, energy sites, city security networks, border monitoring, critical infrastructure, spectrum-management tasks, defence facilities and authorized RF monitoring sites.

Q: Who can purchase this product? A: Suitable buyers include government agencies, defence organizations, law-enforcement bodies, spectrum-management authorities, airport security teams, critical infrastructure operators, telecom/RF engineering teams, approved institutions and licensed RF/security integrators.

Q: Is civilian use allowed? A: The system is intended for authorized professional and institutional RF monitoring use. Buyers must comply with applicable spectrum, privacy, security, aviation and site-operation laws. Unauthorized monitoring or misuse is not permitted.

Q: Can it integrate with a larger C-UAS system? A: Yes, it can be integrated into a layered C-UAS architecture with radar, EO/IR, RF detection, command-room software, alert systems and approved response workflows depending on project requirements.

Q: What maintenance is required? A: Maintenance should include inspection of the DF antenna, receiver, cables, connectors, power input, storage system, software status, mounting hardware and calibration status. Professional scheduled maintenance is recommended.

Q: What warranty is included? A: Warranty support generally covers manufacturing defects under approved use and normal operating conditions. Damage from incorrect power input, mishandling, unauthorized modification, water exposure, cable damage or misuse may not be covered.
