FlySpark Kamikaze Impact Fuze for FPV Drone Explosive Delivery — view 1

FlySpark Kamikaze Impact Fuze for FPV Drone Explosive Delivery

In stock
FlySpark
Base price — FlySpark Kamikaze Impact Fuze - Drone Crash Sensor (Standard)
₹14,900
Excl. GST · Final pricing subject to configuration & quantity

High-reliability Kamikaze impact fuze for FPV drones. Instant hit-trigger detonation for precise explosive delivery. Field-tested for defense.

Configuration : FlySpark Kamikaze Impact Fuze - Drone Crash Sensor (Standard)

Orders are confirmed by our sales desk on WhatsApp. Reply usually within 1 hour (IST).

Qty
verified_user

Military-grade quality assured

lock

Export-compliant documentation

headset_mic

24/7 engineering support

Talk to sales

Mon – Sun · 19:30 – 03:30 IST · [email protected]

FSP-KAMIKAZE-FUZE-CRASH-29G
Active
5
46
  • flyspark
  • fpv-drone
  • kamikaze
  • impact-fuze
  • kamikaze-impact-fuze
  • crash-sensor
  • fpv-impact-trigger
  • explosive
  • ordnance
  • military
  • defense
  • hit-and-trigger

Key facts

At a glance

The FlySpark Kamikaze Impact Fuze is a spring-type impact (crash-sensor) trigger for FPV drone payloads, offered to authorized defence users. The standard unit weighs 29 g, measures about 30 × 28 × 115 mm, has a 200 mAh battery, and ignores touch or impact for about 30 seconds after power-on. 41 mm delay, 44 mm remote-unlock and 60 mm delayed versions weigh 90–140 g.

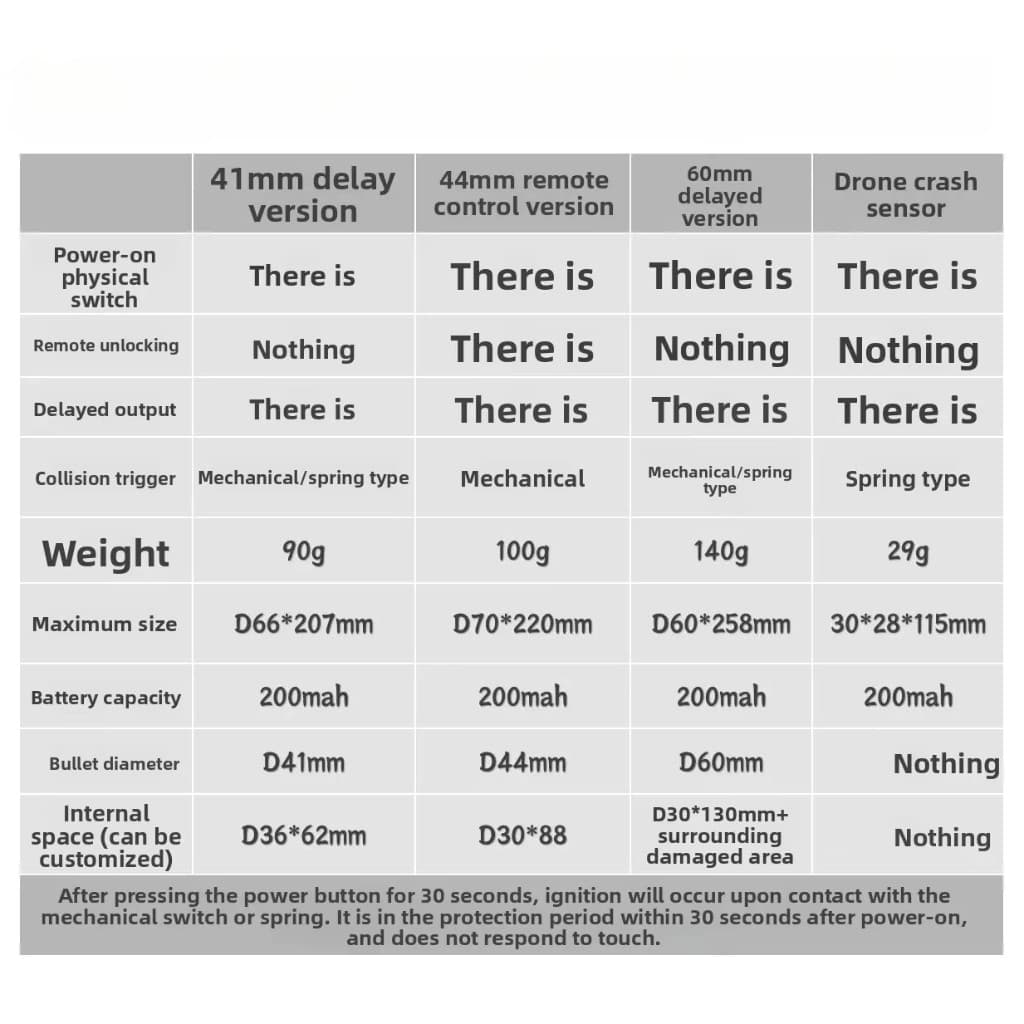

FlySpark Kamikaze Impact Fuze for FPV Drone Explosive Delivery — key specifications
Trigger typeMechanical / spring impact (crash sensor)
Standard unit weight29 g
Standard unit sizeAbout 30 × 28 × 115 mm (housing 28 mm × 20 mm; spring D28 mm)
Battery200 mAh
Power-on protection periodApprox. 30 s with no response to touch or impact
41 mm delay version≈90 g; about D66 × 207 mm; internal space D36 × 62 mm
44 mm remote-control version≈100 g; about D70 × 220 mm; internal space D30 × 88 mm; remote unlocking
60 mm delayed version≈140 g; about D60 × 258 mm; internal space D30 × 130 mm
Price (standard unit)₹14,900

Use cases

  • Authorized defence FPV payload integration and training
  • Evaluation of impact-trigger safety timing in controlled test programs

Standards & references

  • India Drone Rules, 2021 (G.S.R. 589(E)) — Rule 27 prohibits carrying arms, ammunition, explosives or military stores on any unmanned aircraft in India without written permission of the Central Government.

Sources: FlySpark catalog data; FlySpark product page; India Drone Rules, 2021 (Ministry of Civil Aviation). Updated .

Intelligence Brief

Mission overview

FlySpark Kamikaze Impact Fuze for FPV Drone Explosive Delivery

The FlySpark Kamikaze Impact Fuze is a compact impact / crash-trigger module for authorized FPV and tactical UAV payload systems. The standard unit uses a front spring-type mechanical collision sensor with a grey electronics housing that includes an LED indicator, side power switch, power-supply port and rear output port.

After power-on, the unit enters an approximate 30-second protection period so it will not respond to touch or impact. Once that protection window ends, contact with the mechanical spring/switch path can trigger the delayed output according to the selected version.

The catalog covers four compared configurations: a compact drone crash-sensor style unit (standard listing), a 41mm delay version, a 44mm remote-control version with remote unlocking, and a 60mm delayed version. Exact diameter, weight, battery and internal cavity differ by version — see specifications and variants.

  • PRODUCT POSITIONING:
  • • Spring-type mechanical collision / impact trigger
  • • Power-on physical switch with LED status indication
  • • Approx. 30-second power-on protection period before arming
  • • Delayed output support (version dependent)
  • • Compact crash-sensor form factor for FPV mounting
  • • Power-supply port and output port for payload interface
  • • Multiple diameter / remote versions available
  • • Field-oriented tactical FPV integration component

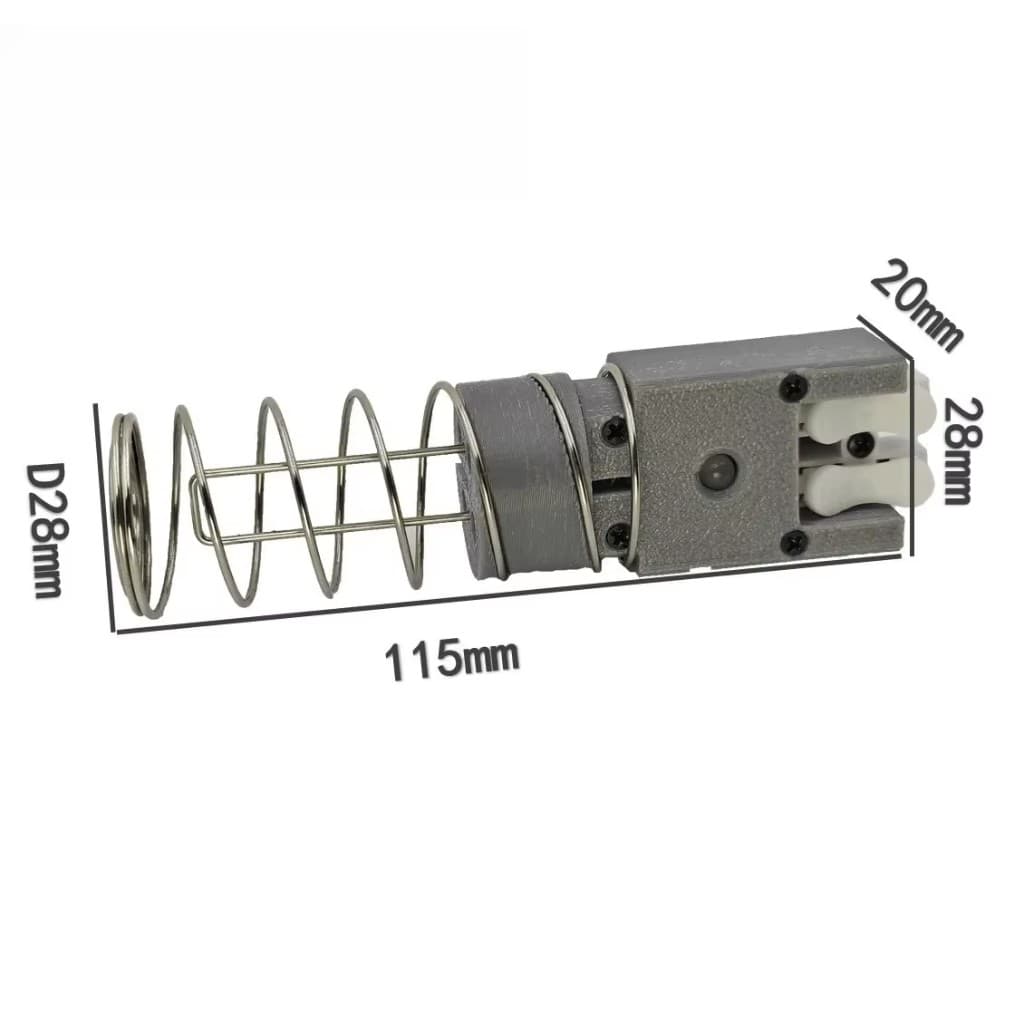

  • STANDARD UNIT (DRONE CRASH SENSOR STYLE):
  • • Collision trigger: spring type
  • • Weight: 29g
  • • Maximum size: about 30 × 28 × 115mm
  • • Spring diameter: about D28mm
  • • Housing: about 28mm wide × 20mm thick
  • • Battery capacity: 200mAh
  • • Power-on physical switch: yes
  • • Remote unlocking: no
  • • Delayed output: yes
  • OTHER VERSIONS (SEE VARIANTS):
  • • 41mm delay version — ~90g, max size about D66 × 207mm, bullet diameter D41mm, internal space about D36 × 62mm
  • • 44mm remote-control version — ~100g, max size about D70 × 220mm, remote unlocking, bullet diameter D44mm, internal space about D30 × 88mm
  • • 60mm delayed version — ~140g, max size about D60 × 258mm, bullet diameter D60mm, internal space about D30 × 130mm + surrounding damaged area
  • BEST USE CASES:
  • • Authorized defense FPV impact-trigger integration
  • • Tactical UAV payload arming research under permit
  • • Approved training and evaluation of impact-fuze timing
  • • Authorized engineering / demolition UAV programs
  • • Professional FPV platform integration for approved end users

IMPORTANT USE NOTE: This is restricted tactical / defense hardware. It is intended only for authorized government, defense, institutional or approved professional programs under applicable Indian and international law, including explosives, weapons, aviation and export-control rules. It must not be used for unlawful surveillance, unlawful explosive devices, civilian harm, terrorism, harassment or any aviation-rule violation. Buyer KYC, end-use declaration and lawful authorization may be required. FlySpark / AnuShakti Infotech Pvt. Ltd. does not supply or advise illegal payload loading.

FREQUENTLY ASKED QUESTIONS:

Mission configurations

Configuration (5)

Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.

Standard spring-type drone crash-sensor impact fuze: ~29g, about 30×28×115mm, 200mAh, physical power switch, delayed output, ~30s power-on protection. Matches the compact annotated unit.

SKU: FSP-KAMIKAZE-FUZE-CRASH-29G

Unit Price (excl. GST)₹14,90010 units

41mm delay version: mechanical/spring collision trigger, ~90g, max size about D66×207mm, bullet diameter D41mm, internal space about D36×62mm, 200mAh, physical switch, delayed output, no remote unlocking.

SKU: FSP-KAMIKAZE-FUZE-41MM-DELAY

Unit Price (excl. GST)POAAvailable

44mm remote-control version with remote unlocking: mechanical collision trigger, ~100g, max size about D70×220mm, bullet diameter D44mm, internal space about D30×88mm, 200mAh, physical switch and delayed output.

SKU: FSP-KAMIKAZE-FUZE-44MM-REMOTE

Unit Price (excl. GST)POAAvailable

60mm delayed version: mechanical/spring collision trigger, ~140g, max size about D60×258mm, bullet diameter D60mm, internal space about D30×130mm + surrounding damaged area, 200mAh, physical switch, delayed output.

SKU: FSP-KAMIKAZE-FUZE-60MM-DELAY

Unit Price (excl. GST)POAAvailable

Standard unit with authorized-user orientation, power-on protection explanation, mounting/wiring checklist and lawful-use / SOP guidance for approved programs.

SKU: FSP-KAMIKAZE-FUZE-TRAINING

Unit Price (excl. GST)POAAvailable

Active configuration

FlySpark Kamikaze Impact Fuze - Drone Crash Sensor (Standard)

Standard spring-type drone crash-sensor impact fuze: ~29g, about 30×28×115mm, 200mAh, physical power switch, delayed output, ~30s power-on protection. Matches the compact annotated unit.

₹14,900

Excl. GST

SKU: FSP-KAMIKAZE-FUZE-CRASH-29G

Configuration matrix

Compare all variants

Side-by-side specifications — click a column to select

Parameter
Unit Price (excl. GST)₹14,900POAPOAPOAPOA
Stock10 unitsAvailableAvailableAvailableAvailable
SKUFSP-KAMIKAZE-FUZE-CRASH-29GFSP-KAMIKAZE-FUZE-41MM-DELAYFSP-KAMIKAZE-FUZE-44MM-REMOTEFSP-KAMIKAZE-FUZE-60MM-DELAYFSP-KAMIKAZE-FUZE-TRAINING
