HomeCounter-UAS & Anti-Drone DefenseFlySpark Guardian-X11 Military Grade 11-Band Anti-Drone Jamming System (400MHz–6GHz)
1 / 4
Category
Counter-UAS & Anti-Drone Defense
Status
ACTIVE
Variants
9
Spec Fields
36
Counter-UAS & Anti-Drone DefenseIn Stock

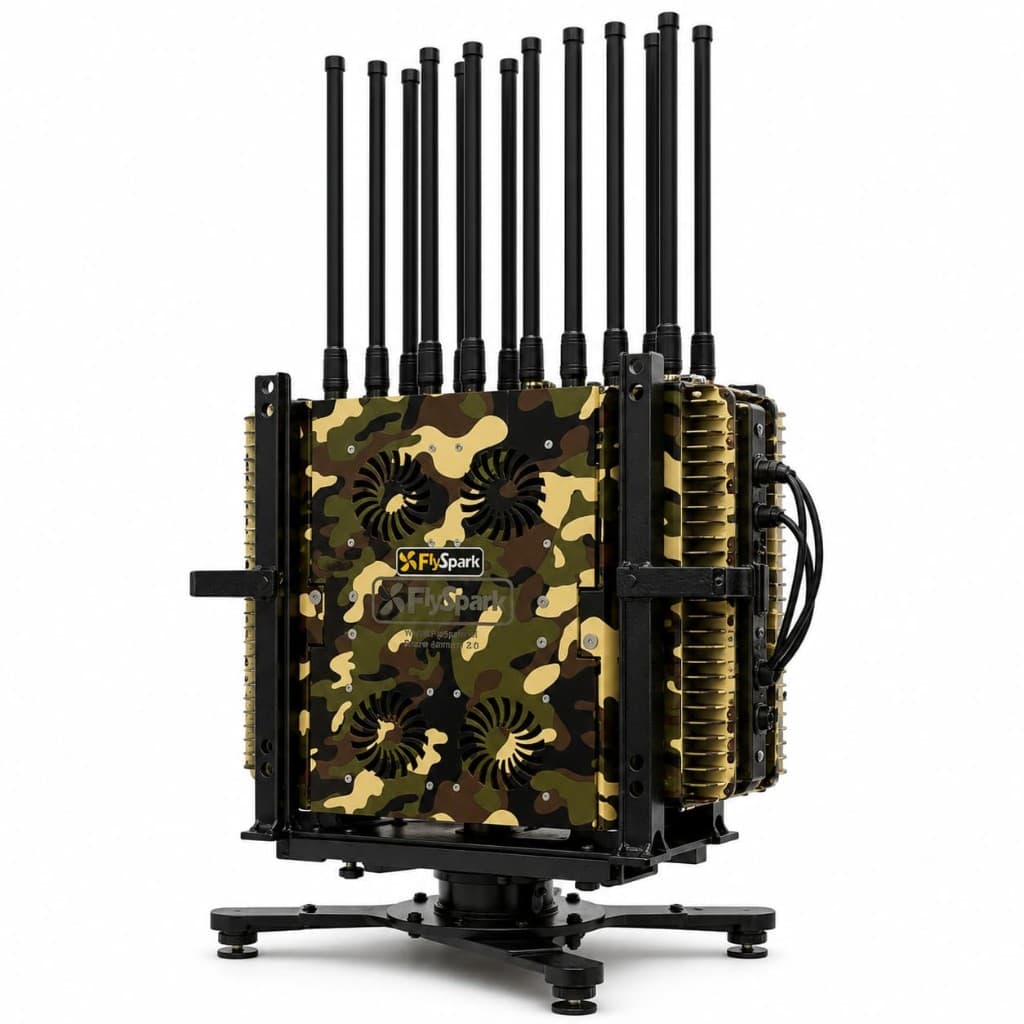

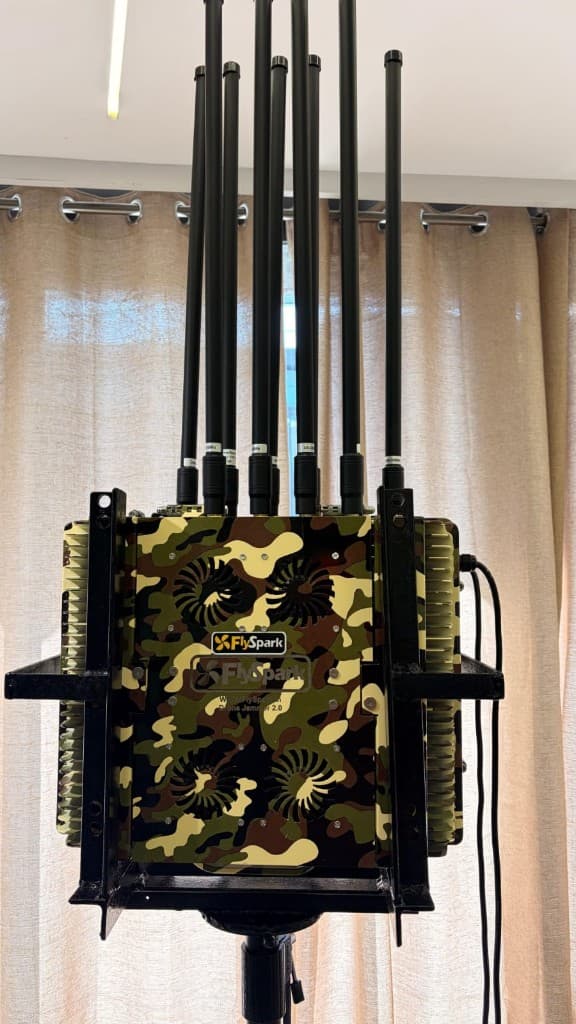

FlySpark Guardian-X11 Military Grade 11-Band Anti-Drone Jamming System (400MHz–6GHz)
Military-grade 11-band anti-drone jamming system (Guardian X11) covering 400MHz–6GHz. Fixed / vehicle Counter-UAS RF denial for authorized operators.
Base Price
₹8,45,000
Excl. GST · Final pricing subject to configuration & quantity
Defense & export systems — request a quote for pricing, lead time, and end-user documentation.
Request QuoteWhatsApp ConnectView 11-Band Frequency ListQty1
Military-grade quality assured
Export compliant documentation
24/7 engineering support
System Tags
flysparkguardian-x11anti-drone-jamming-systemdrone-jammeruav-jammerrf-jammercounter-uav-systemc-uas-system11-band-drone-jammer400mhz-6ghz-jammermilitary-grade-anti-drone-systemvehicle-mounted-drone-jammer
Mission Configurations
Configuration(9)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Unit Price (excl. GST) | ₹8,45,000 | ₹8,45,000 | ₹8,45,000 | ₹8,45,000 | ₹8,45,000 | ₹8,45,000 | ₹8,45,000 | ₹8,45,000 | ₹8,45,000 |
| Stock | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units |
| SKU | FSP-GUARDIAN-X11-400M-6G | FSP-GUARDIAN-X11-VEHICLE | FSP-GUARDIAN-X11-ROOFTOP | FSP-GUARDIAN-X11-BORDER-POST | FSP-GUARDIAN-X11-CRITICAL-INFRA | FSP-GUARDIAN-X11-VIP-EVENT | FSP-GUARDIAN-X11-CUSTOM-BANDS | FSP-GUARDIAN-X11-TRAINING-COMPLIANCE | FSP-GUARDIAN-X11-INSTALL-COMMISSION |
Shared RF channel map · 400 MHz – 6 GHz
11-Band Frequency List
All Guardian-X11 models use this same 11-band plan. Center frequency, operating range and target links are listed below. RF power per band depends on the model you select — wattage is not shown here.
11 channels
- 01
450 MHz
Center
450 MHz
Operating range
350–550 MHz
Primary targets
UHF, IoT, Smart Home, Long-Range Drones
- 02
900 MHz
Center
900 MHz
Operating range
800–1000 MHz
Primary targets
FPV Drone Links, ISM, Older Cellular
- 03
1200 MHz
Center
1200 MHz
Operating range
1100–1300 MHz
Primary targets
GNSS L2/L5, GLONASS (Backup Navigation)
- 04
1400 MHz
Center
1400 MHz
Operating range
1300–1500 MHz
Primary targets
Satellite Communications, L-Band
- 05
1600 MHz
Center
1600 MHz
Operating range
1500–1700 MHz
Primary targets
Primary GPS L1 (Core Navigation at 1575 MHz)
- 06
2400 MHz
Center
2400 MHz
Operating range
2300–2500 MHz
Primary targets
DJI Drone Control, Bluetooth, 2.4GHz Wi-Fi
- 07
3300 MHz
Center
3300 MHz
Operating range
3200–3400 MHz
Primary targets
5G C-Band (Low)
- 08
3900 MHz
Center
3900 MHz
Operating range
3800–4000 MHz
Primary targets
5G High-Speed Broadband
- 09
4900 MHz
Center
4900 MHz
Operating range
4800–5000 MHz
Primary targets
Custom/Military Drone Links
- 10
5200 MHz
Center
5200 MHz
Operating range
5100–5300 MHz
Primary targets
5GHz Wi-Fi (Lower Channels)
- 11
5800 MHz
Center
5800 MHz
Operating range
5700–5900 MHz
Primary targets
FPV Video Downlinks, 5.8GHz Wi-Fi
11 independent bands · same frequency plan across Guardian-X11 models · power is model-specific
Intelligence Brief
Mission Overview
FlySpark Guardian-X11 Military Grade 11-Band Anti-Drone Jamming System | 400MHz–6GHz
The FlySpark Guardian-X11 is a professional military-grade anti-drone RF jamming platform designed and manufactured by FlySpark for authorized defense, government, law-enforcement, critical infrastructure, industrial security, border security, VIP protection and high-risk facility protection applications. It is engineered to protect sensitive sites against unauthorized UAV activity by using configured RF suppression channels across the 400MHz–6GHz drone communication spectrum.
Built as a complete plug-and-play deployment solution, the Guardian-X11 integrates 11 independent jamming channels, high-gain antennas, rugged aluminum construction, industrial cooling architecture, vehicle-mount support and rapid deployment hardware into a single field-ready anti-drone platform. It supports fixed-site, rooftop, vehicle-mounted, tower, command vehicle, tactical vehicle and mobile security deployment workflows for legally authorized users.
KEY FEATURES & BENEFITS:
- Military Grade Anti-Drone Platform:
- • 11 independent RF jamming channels
- • Wide-spectrum drone defense coverage from 400MHz–6GHz
- • Plug-and-play system architecture
- • Heavy-duty aluminum chassis with industrial cooling
- • Continuous 24/7 operation support
- • High-gain antenna system included
- • Rapid deployment capability
- • Made in India by FlySpark / AnuShakti Infotech Pvt. Ltd.
- Field-Tested Coverage Performance:
- • Omnidirectional coverage: approx. 150–200 meters
- • Directional coverage: approx. 400–500 meters
- • Coverage depends on antenna placement, installation height, terrain, RF environment and target drone system
IMPORTANT RESTRICTED-USE NOTICE: This product includes RF jamming capability and is restricted to legally authorized users only. Purchase, possession, import, installation, testing and operation may require KYC, end-use verification, WPC/DoT/spectrum permissions, aviation/site approvals and trained operators.
FREQUENTLY ASKED QUESTIONS:
- Q: What is the FlySpark Guardian-X11?
- A: The FlySpark Guardian-X11 is a military-grade 11-band anti-drone RF jamming system designed for authorized counter-UAV protection across 400MHz–6GHz.
- Q: What is the price of the Guardian-X11?
- A: The listed price is ₹8,45,000 for the standard Guardian-X11 package.
- Q: What frequency range does the Guardian-X11 cover?
- A: The system covers 400MHz–6GHz through configured RF suppression channels.
- Q: How many jamming channels does it have?
- A: The Guardian-X11 uses 11 independent RF jamming channels.
- Q: What is the omnidirectional coverage?
- A: Real-world field-tested omnidirectional coverage is approximately 150–200 meters, depending on environment and installation.
- Q: What is the directional coverage?
- A: Real-world field-tested directional coverage is approximately 400–500 meters, depending on environment and installation.
- Q: Is the system plug-and-play?
- A: Yes. It includes the main unit, high-gain antennas, cooling system, vehicle mount frame, power interface and ready-to-deploy hardware.
- Q: Is it suitable for vehicle mounting?
- A: Yes. The Guardian-X11 is vehicle-mount ready for authorized mobile security operations.
- Q: Is it suitable for rooftop deployment?
- A: Yes. It supports rooftop and elevated fixed-site deployment when legally authorized and properly installed.
Q: What is included in the package? A: The Guardian-X11 main unit, high-gain antenna set, integrated cooling system, vehicle mount frame, power interface assembly, ready-to-deploy hardware and user documentation.
- Q: Is Guardian-X11 made in India?
- A: Yes. It is designed and manufactured by FlySpark / AnuShakti Infotech Pvt. Ltd. in India.
- Q: Is this system legal for private civilian use?
- A: RF jamming equipment is restricted. Use is limited to legally authorized users with required approvals and permissions.
- Q: What warranty is included?
- A: Warranty support is 1 Year for manufacturing defects under approved installation and lawful operation.
Technical Data Sheet
System Specifications
36 parameters across 3 categories
General
24 fieldsProduct Type
Fixed / vehicle-mounted counter-UAV platform
Model
FlySpark Guardian-X11
System Class
11-band anti-drone jamming platform
Frequency Coverage
400MHz–6GHz configured coverage range
Channel Architecture
11 independent RF suppression channels
Deployment Type
Fixed-site, rooftop, vehicle-mounted, mobile and tactical deployment support
Build Origin
Made in India
Supplier / Manufacturer
FlySpark / AnuShakti Infotech Pvt. Ltd.
Total Coverage Range
400MHz–6GHz
RF Function
Configured RF suppression for authorized anti-drone operation
Independent Band Control
Supported
Custom Frequency Support
Available according to project requirement
Omnidirectional Coverage
Approx. 150–200 meters field-tested reference
Directional Coverage
Approx. 400–500 meters field-tested reference
Coverage Type
Field-tested practical deployment range
Coverage Depends On
Antenna placement, installation height, terrain, RF environment, obstructions, weather and target drone system
Deployment Options
Vehicle-mounted, rooftop, border post, military base, prison, airport, critical infrastructure, VIP security and event security
System Features
11 independent jamming channels, industrial cooling, high-gain antenna array, modular serviceable architecture, plug-and-play structure
Construction
Heavy-duty aluminum chassis, ruggedized mechanical design, industrial cooling for continuous operation
Package Contents
Main unit, high-gain antenna set, cooling system, vehicle mount frame, power interface, documentation
Serviceability
Modular architecture, serviceable RF module design, custom configuration support
Compliance Status
Restricted RF jamming equipment — authorized buyers only
KYC / End-Use Verification
Required
Warranty
1 Year manufacturing defect support under approved installation and lawful operation
