HomeCounter-UAS & Anti-Drone DefenseFlySpark Guardian-X11 Military Grade 11-Band Anti-Drone 50W Jamming System | 550W Total RF Output | 400MHz–6GHz
1 / 3
Category
Counter-UAS & Anti-Drone Defense
Status
ACTIVE
Variants
9
Spec Fields
36
Counter-UAS & Anti-Drone DefenseIn Stock

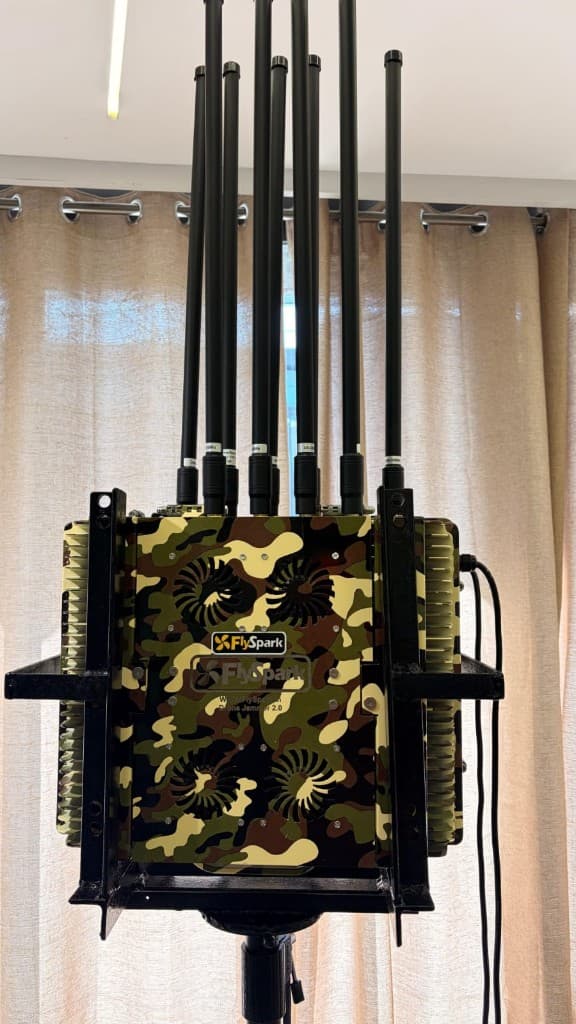

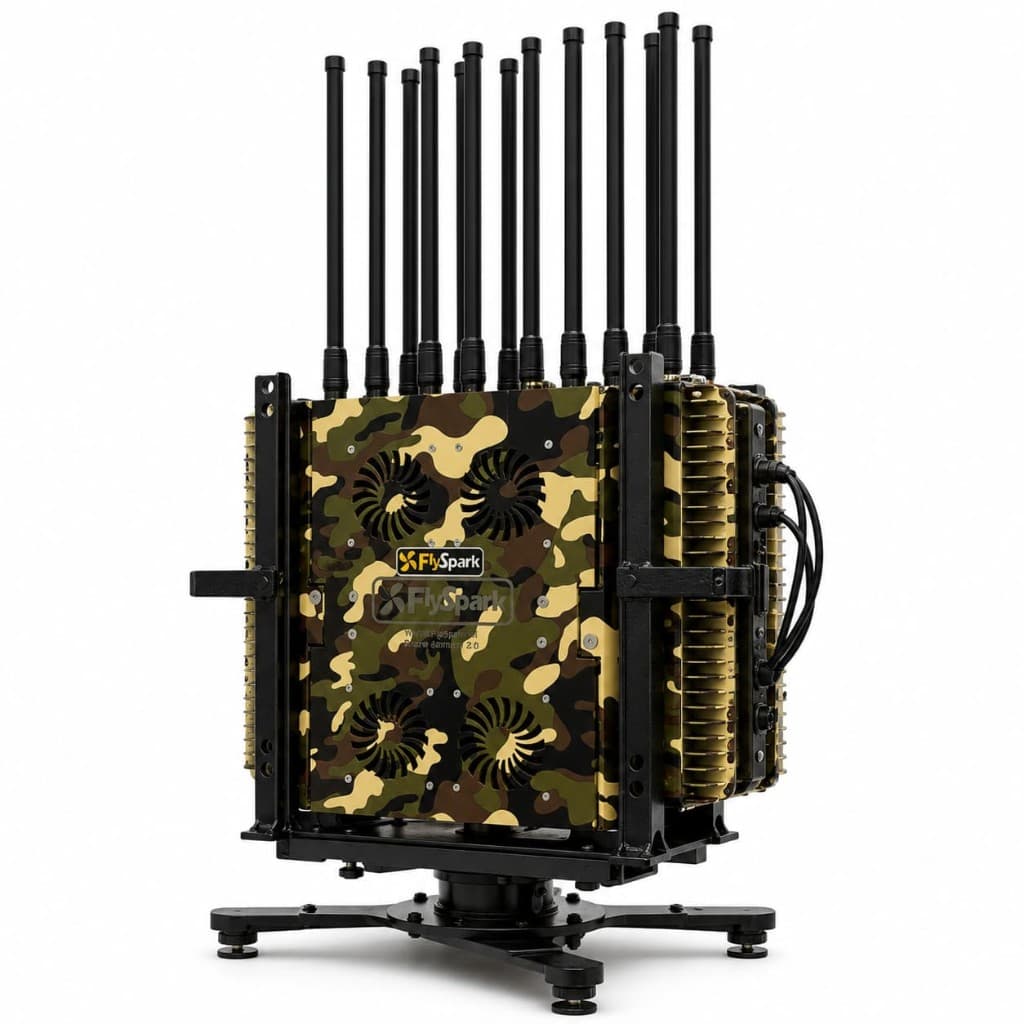

FlySpark Guardian-X11 Military Grade 11-Band Anti-Drone 50W Jamming System | 550W Total RF Output | 400MHz–6GHz
Guardian-X11 550W anti-drone RF jamming system with 11×50W bands, 400MHz–6GHz coverage, high-gain antennas and vehicle/rooftop deployment.
Base Price
₹11,89,000
Excl. GST · Final pricing subject to configuration & quantity
Defense & export systems — request a quote for pricing, lead time, and end-user documentation.
Request QuoteWhatsApp ConnectView 11-Band Frequency ListQty1
Military-grade quality assured
Export compliant documentation
24/7 engineering support
System Tags
flysparkguardian-x11-550wanti-drone-jamming-system50w-drone-jammer550w-drone-jammer11-band-drone-jammermilitary-grade-drone-jammeruav-jammerrf-jammercounter-uav-systemc-uas-system400mhz-6ghz-jammer
Mission Configurations
Configuration(9)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Unit Price (excl. GST) | ₹11,89,000 | ₹11,89,000 | ₹11,89,000 | ₹11,89,000 | ₹11,89,000 | ₹11,89,000 | ₹11,89,000 | ₹11,89,000 | ₹11,89,000 |
| Stock | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units |
| SKU | FSP-GUARDIAN-X11-550W-400M-6G | FSP-GUARDIAN-X11-550W-VEHICLE | FSP-GUARDIAN-X11-550W-ROOFTOP | FSP-GUARDIAN-X11-550W-BORDER-POST | FSP-GUARDIAN-X11-550W-CRITICAL-INFRA | FSP-GUARDIAN-X11-550W-VIP-EVENT | FSP-GUARDIAN-X11-550W-CUSTOM-BANDS | FSP-GUARDIAN-X11-550W-TRAINING-COMPLIANCE | FSP-GUARDIAN-X11-550W-INSTALL-COMMISSION |
Shared RF channel map · 400 MHz – 6 GHz
11-Band Frequency List
All Guardian-X11 models use this same 11-band plan. Center frequency, operating range and target links are listed below. RF power per band depends on the model you select — wattage is not shown here.
11 channels
- 01
450 MHz
Center
450 MHz
Operating range
350–550 MHz
Primary targets
UHF, IoT, Smart Home, Long-Range Drones
- 02
900 MHz
Center
900 MHz
Operating range
800–1000 MHz
Primary targets
FPV Drone Links, ISM, Older Cellular
- 03
1200 MHz
Center
1200 MHz
Operating range
1100–1300 MHz
Primary targets
GNSS L2/L5, GLONASS (Backup Navigation)
- 04
1400 MHz
Center
1400 MHz
Operating range
1300–1500 MHz
Primary targets
Satellite Communications, L-Band
- 05
1600 MHz
Center
1600 MHz
Operating range
1500–1700 MHz
Primary targets
Primary GPS L1 (Core Navigation at 1575 MHz)
- 06
2400 MHz
Center
2400 MHz
Operating range
2300–2500 MHz
Primary targets
DJI Drone Control, Bluetooth, 2.4GHz Wi-Fi
- 07
3300 MHz
Center
3300 MHz
Operating range
3200–3400 MHz
Primary targets
5G C-Band (Low)
- 08
3900 MHz
Center
3900 MHz
Operating range
3800–4000 MHz
Primary targets
5G High-Speed Broadband
- 09
4900 MHz
Center
4900 MHz
Operating range
4800–5000 MHz
Primary targets
Custom/Military Drone Links
- 10
5200 MHz
Center
5200 MHz
Operating range
5100–5300 MHz
Primary targets
5GHz Wi-Fi (Lower Channels)
- 11
5800 MHz
Center
5800 MHz
Operating range
5700–5900 MHz
Primary targets
FPV Video Downlinks, 5.8GHz Wi-Fi
11 independent bands · same frequency plan across Guardian-X11 models · power is model-specific
Intelligence Brief
Mission Overview
FlySpark Guardian-X11 Military Grade 11-Band Anti-Drone 50W Jamming System | 550W Total RF Output
The FlySpark Guardian-X11 550W is a high-performance military-grade anti-drone RF jamming platform designed and manufactured by FlySpark for authorized counter-UAS operations, critical infrastructure protection, defense facilities, border security, VIP protection, prison security, airport protection and tactical field deployment. Built around eleven independent 50W RF jamming modules, the system delivers approximately 550W combined RF output power across configured drone communication bands from 400MHz to 6GHz.
The Guardian-X11 550W is supplied as a complete ready-to-use package including the jammer unit, high-gain antenna set, integrated cooling system, vehicle mounting structure, power interface assembly, deployment hardware and user documentation.
KEY FEATURES & BENEFITS:
- High-Power 550W RF Output:
- • 11 independent RF bands with 50W output per band
- • Approx. 550W combined RF output
- • 400MHz–6GHz configured frequency coverage
- • Continuous-duty operation with industrial cooling
- • Higher coverage than standard low-power systems
- Real-World Tested Coverage:
- • Omnidirectional antenna coverage: approx. 350–450 meters
- • Directional antenna coverage: approx. 600–750 meters
- • Coverage depends on antenna gain, installation height, terrain and target drone system
IMPORTANT RESTRICTED-USE NOTICE: This product includes RF jamming capability and is restricted to legally authorized users only. KYC, end-use verification, WPC/DoT/spectrum permissions and trained operators may be required.
FREQUENTLY ASKED QUESTIONS:
- Q: What is the FlySpark Guardian-X11 550W?
- A: A military-grade 11-band anti-drone RF jamming system with eleven independent 50W RF modules and approximately 550W total combined RF output.
- Q: What is the price of the Guardian-X11 550W?
- A: The listed price is ₹11,89,000 for the standard Guardian-X11 550W package.
- Q: What is the total RF output power?
- A: Approximately 550W combined power from 11 × 50W bands.
- Q: What is the omnidirectional coverage?
- A: Real-world tested omnidirectional coverage is approximately 350–450 meters.
- Q: What is the directional coverage?
- A: Real-world tested directional coverage is approximately 600–750 meters.
- Q: How is this different from the standard Guardian-X11?
- A: The 550W version uses 11 independent 50W RF modules for higher power and stronger field-tested coverage.
- Q: Is it suitable for vehicle mounting?
- A: Yes. It supports vehicle-mounted deployment for authorized mobile security operations.
- Q: What is included in the package?
- A: Main unit, high-gain antenna set, vehicle mount assembly, integrated cooling system, power interface, deployment hardware and documentation.
- Q: Is Guardian-X11 550W made in India?
- A: Yes. Designed and manufactured by FlySpark / AnuShakti Infotech Pvt. Ltd. in India.
- Q: What warranty is included?
- A: 1 Year manufacturing defect support under approved installation and lawful operation.
Technical Data Sheet
System Specifications
36 parameters across 3 categories
General
24 fieldsProduct Type
High-power counter-UAV RF defense platform
Model
FlySpark Guardian-X11 550W
System Class
11-band anti-drone jamming platform
Total RF Output
Approx. 550W combined RF output
RF Module Configuration
11 independent 50W RF jamming modules
Output Per Band
50W per band
Frequency Coverage
400MHz–6GHz configured coverage range
Channel Architecture
11 independent RF suppression channels
Deployment Type
Fixed-site, rooftop, vehicle-mounted, mobile and tactical deployment support
Build Origin
Made in India
Supplier / Manufacturer
FlySpark / AnuShakti Infotech Pvt. Ltd.
Total Coverage Range
400MHz–6GHz
High-Power Architecture
50W per band with 550W total combined RF output
Independent Band Control
Supported
Omnidirectional Antenna Coverage
Approx. 350–450 meters field-tested reference
Directional Antenna Coverage
Approx. 600–750 meters field-tested reference
Coverage Depends On
Antenna gain, installation height, terrain, RF interference, weather and target drone system
Deployment Options
Vehicle-mounted, rooftop, border posts, military bases, prisons, airports, critical infrastructure, VIP security
System Features
11×50W bands, industrial aluminum chassis, advanced cooling, high-gain antennas, plug-and-play, 24/7 operation
Construction
Industrial aluminum chassis, ruggedized design, vehicle mounting structure included
Package Contents
Main unit, antenna set, vehicle mount, cooling system, power interface, deployment hardware, documentation
Serviceability
Modular RF architecture, custom band configuration support
Compliance Status
Restricted RF jamming equipment — authorized buyers only
Warranty
1 Year manufacturing defect support under approved installation and lawful operation
Complete specification index
Global export
FlySpark Guardian-X11 Military Grade 11-Band Anti-Drone 50W Jamming System | 550W Total RF Output | 400MHz–6GHz — available in 52+ countries
FlySpark exports this system worldwide with end-user certification, dual-use classification, and destination-specific compliance. Select your country for regional pricing, documentation, and lead times.
