Drone Detection, Radar & Surveillance
ACTIVE
7
27
FlySpark Fixed Drone Detection & Positioning Equipment | 70MHz–6.2GHz Long-Range UAV Monitoring System
Fixed 70MHz–6.2GHz drone detection system with 1–10km positioning, ≤10m accuracy, ≥95% success rate, trajectory tracking and alarms.
Base Price
₹32,45,000
Final pricing subject to configuration & quantity
System Tags
Mission Configurations
Configuration(7)
Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.
Configuration Matrix
Compare All Variants
Side-by-side specs from product_variants — click a column to select
| Parameter | |||||||
|---|---|---|---|---|---|---|---|
| Unit Price | ₹32,45,000 | POA | POA | POA | POA | POA | POA |
| Stock | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units | 10 units |
| SKU | FSP-FIXED-DRONE-DETECTION-70M-6G2 | FSP-FIXED-DRONE-DETECTION-BACKEND | FSP-FIXED-DRONE-DETECTION-MULTI-UNIT | FSP-FIXED-DRONE-DETECTION-TRACK-DATA | FSP-FIXED-DRONE-DETECTION-LINKAGE | FSP-FIXED-DRONE-DETECTION-SITE-INSTALL | FSP-FIXED-DRONE-DETECTION-TRAINING |
Intelligence Brief
Mission Overview
FlySpark Fixed Drone Detection & Positioning Equipment | 70MHz–6.2GHz Long-Range UAV Monitoring System

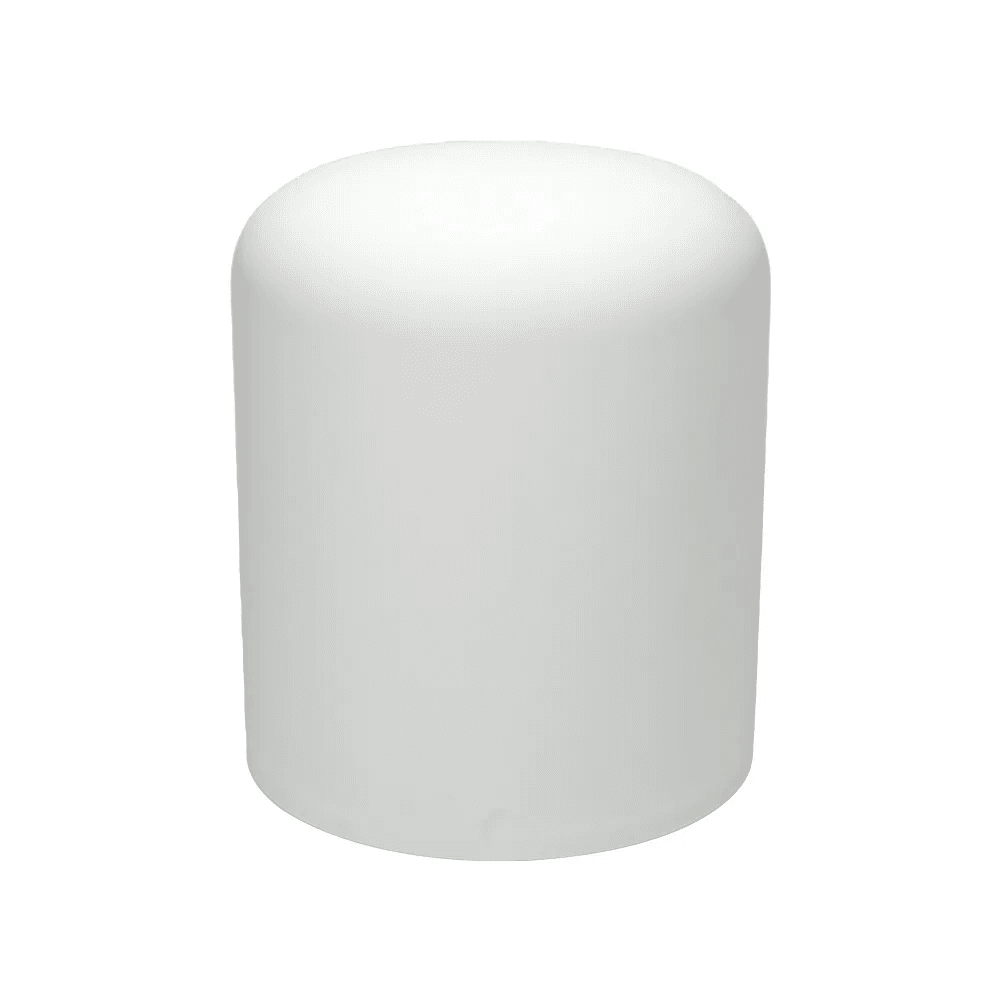

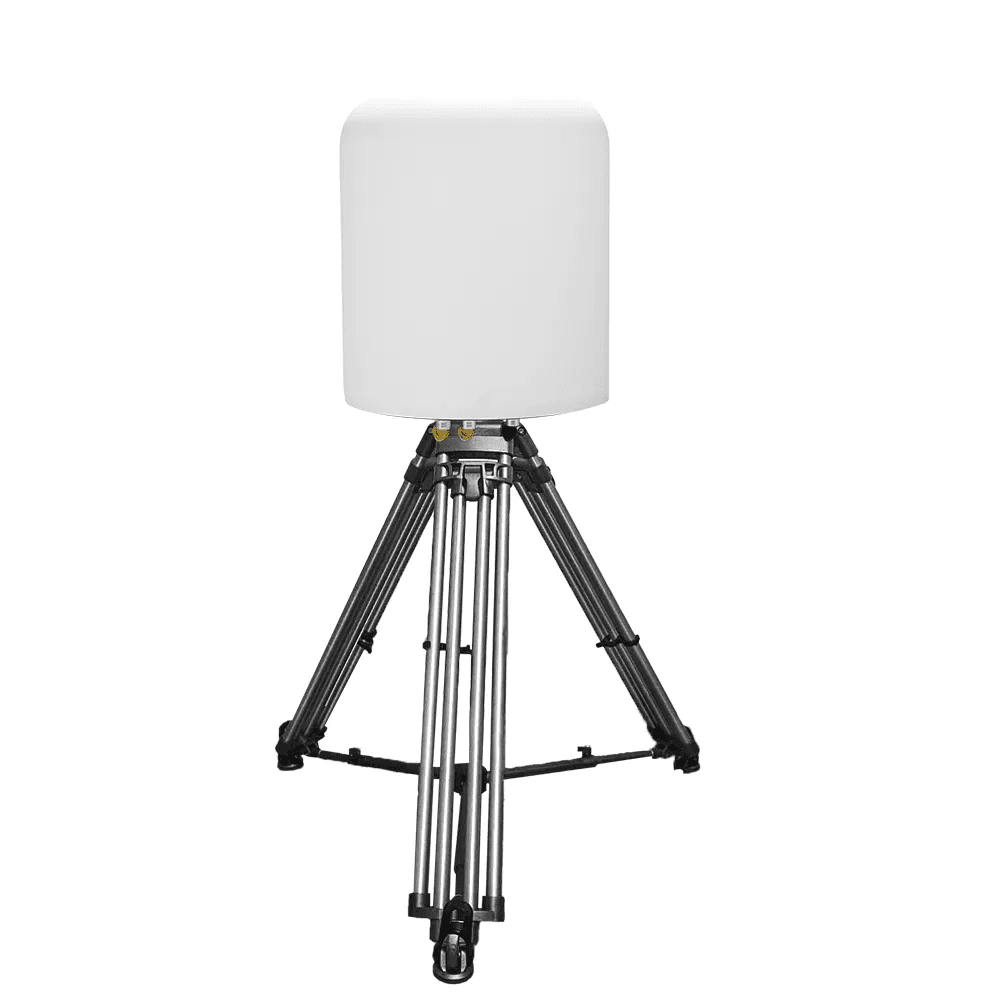

The FlySpark Fixed Drone Detection & Positioning Equipment is a professional fixed-site UAV monitoring and positioning system designed for critical infrastructure, airports, industrial facilities, refineries, power plants, prisons, defense sites, campuses, stadiums and large-area security environments.
The system supports wide-spectrum drone detection across the 70MHz–6.2GHz class, with detection frequency coverage from 100MHz to 6000MHz. It can detect, identify, position, track and display multiple drones within the monitoring range.
KEY FEATURES & BENEFITS:
- Fixed-Site Long-Range Drone Monitoring:
- • Frequency range class: 70MHz–6.2GHz
- • Detection and positioning distance: 1–10km
- • Detection height: 0m–1000m
- • Detection success rate ≥95% under suitable conditions
- • Identification response time ≤5 seconds
- Accurate Drone Positioning & Identification:
- • Positioning accuracy ≤10m
- • Azimuth error ≤1.5° RMS
- • Unique drone serial number identification
- • Drone and pilot/remote-controller position display where supported
- Multi-Target Tracking:
- • Detects ≥5 drone targets simultaneously
- • Tracks and displays ≥5 drone trajectories simultaneously
- • Track playback for historical flight path review
- Backend Platform & Multi-Unit Network:
- • Supports backend control-platform connection
- • Multi-unit network deployment for large-area coverage
- Alarm & Authorized Linkage:
- • Audible and visual intrusion alarms
- • Supports authorized countermeasure/deception-device linkage
IMPORTANT USE NOTE: This product is a fixed drone detection, identification, positioning and tracking system. It is not a standalone jammer and does not disable, block, spoof, hijack or interfere with drones by itself.

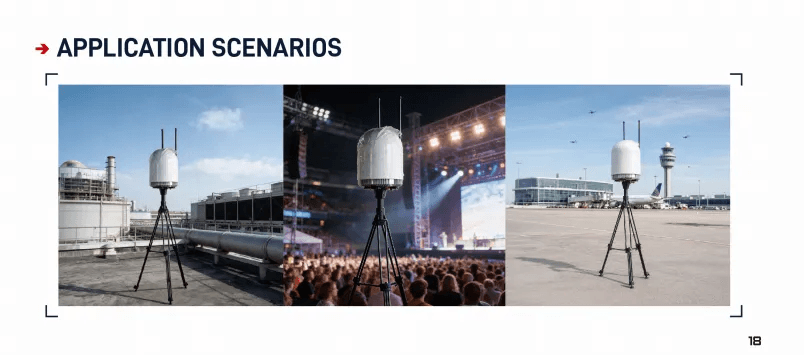

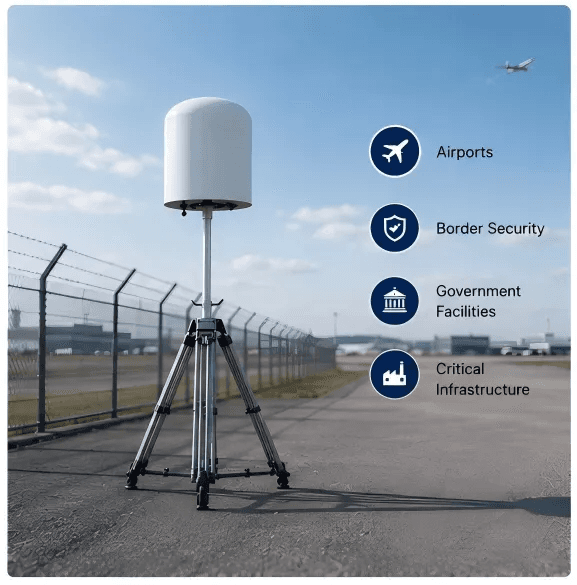

APPLICATIONS: Airport perimeter drone detection, critical infrastructure protection, power plant and refinery monitoring, industrial zone security, prison perimeter monitoring and fixed-site counter-UAV detection support.
FREQUENTLY ASKED QUESTIONS:
Q: What is the FlySpark Fixed Drone Detection & Positioning Equipment? A: It is a fixed-site UAV detection, identification, positioning and tracking system designed for long-range drone monitoring and large-area security applications.
- Q: What is the price?
- A: The listed price is 32,45,000 ₹ for the standard package.
- Q: What is the detection and positioning distance?
- A: The detection and positioning distance is 1–10km, depending on drone type, signal condition, antenna placement and environment.
- Q: How many targets can it detect at the same time?
- A: It can detect ≥5 drone targets simultaneously.
- Q: What is the positioning accuracy?
- A: The listed positioning accuracy is ≤10m.
- Q: Does it support track playback?
- A: Yes. It supports drone flight trajectory playback for historical analysis.
- Q: Is this device a jammer?
- A: No. This is a detection, identification, positioning and tracking system only.
- Q: What warranty is included?
- A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions.
Technical Data Sheet
System Specifications
27 parameters across 1 category
General
27 fieldsProduct Type
Long-range UAV monitoring system
Deployment Type
Permanent or semi-permanent security monitoring
Frequency Range Class
Wide-spectrum UAV monitoring class
Detection Frequency Band
Supported detection band reference
Detection and Positioning Distance
Long-range fixed-site monitoring reference
Detection Height
Low-altitude UAV monitoring range
Detection Success Rate
Suitable-condition reference
Identification Response Time
Fast drone recognition workflow
Positioning Accuracy
Target position reference
Azimuth Error
Direction accuracy reference
UAV Positioning
Real-time UAV longitude, latitude and azimuth display
Pilot / Remote Controller Positioning
Authorized-use operator position awareness
Drone Information Monitoring
Supported drone dependent
Flight Data Monitoring
Supported drone dependent
Multi-Target Detection
Multi-drone monitoring
Multi-Target Trajectory Display
Drone swarm tracking support
Track Playback
Historical drone flight trajectory review
Intrusion Alarm
Audible and visual alert
Multi-Unit Network
Multiple devices connected through networking
Backend Control Platform
Centralized monitoring and management
Inspection and Authorized Linkage
Authorized use only
Equipment Size
Main equipment size
Equipment Weight
Fixed-site professional unit class
Safety Class
No jamming by default
Legal Use
User responsibility
Warranty
Manufacturing defect support under approved use
Supplier / Integration Support
India support available
Complete specification index
