FlySpark F4 V1 BLS 60A Stack | Flight Controller | 4 in 1 ESC — view 1

FlySpark F4 V1 BLS 60A Stack | Flight Controller | 4 in 1 ESC

In stock
FlySpark

The FlySpark 4 in 1 ESC (also listed as 4-in-1 ESC, 4 in one ESC or 4in 1 esc) is a 60A ESC board — four 60 amp ESC channels — from ₹8,000. WhatsApp for 4 in 1 ESC price, and pair it with the F4 flight controller.

Base price — FlySpark F4 V1 BLS 60A Stack — Standard Package
₹8,200
Excl. GST · Final pricing subject to configuration & quantity

F4 flight controller + BLS 60A 4-in-1 ESC stack combo. Prefer the bare F4 board or 4 in 1 ESC listings when you need parts separately.

Configuration : FlySpark F4 V1 BLS 60A Stack — Standard Package

Orders are confirmed by our sales desk on WhatsApp. Reply usually within 1 hour (IST).

Qty
verified_user

Military-grade quality assured

lock

Export-compliant documentation

headset_mic

24/7 engineering support

Talk to sales

Mon – Sun · 19:30 – 03:30 IST · [email protected]

FSP-F4-V1-BLS60A-STACK
Active
2
23
  • flyspark
  • f4-flight-controller
  • bls-60a-esc
  • fc-esc-stack
  • 4-in-1-esc
  • fpv-stack
  • drone-stack
  • racing-drone
  • freestyle-drone
  • drone-show
  • betaflight
  • inav

Key facts

At a glance

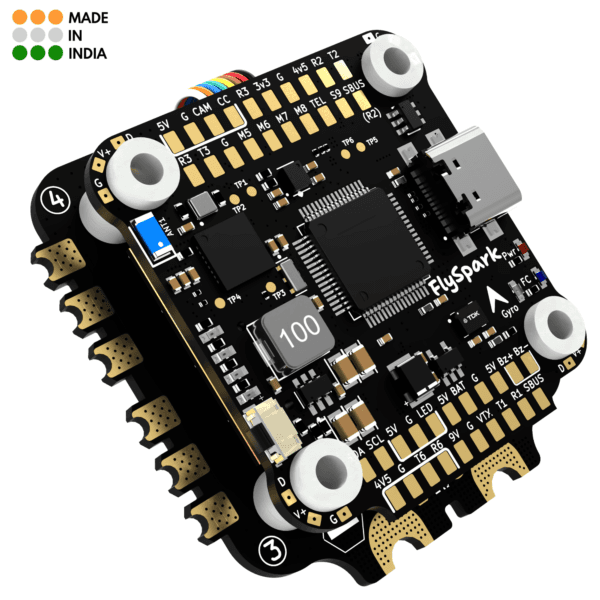

The FlySpark F4 V1 BLS 60A Stack combines an STM32F405 flight controller with a 60 A × 4 BLHeli_S 4-in-1 ESC on a 30.5 × 30.5 mm mount, for 3–6S FPV racing, freestyle and custom multirotor builds. The ESC handles 80 A bursts and DSHOT300/600. The FC has an ICM-42688-P IMU, DPS310 barometer, OSD and Bluetooth, plus DJI O3 / Vista / RunCam Link connectivity. The stack weighs about 34 g and costs ₹8,200.

FlySpark F4 V1 BLS 60A Stack | Flight Controller | 4 in 1 ESC — key specifications
Flight controller MCUSTM32F405
IMUICM-42688-P
IMU gyroscope full-scale rangeProgrammable up to ±2000 dps
Barometer / OSDDPS310 / MAX7456
ESC continuous / burst current60 A × 4 / 80 A (10 s)
ESC firmware / protocolBLHeli_S J-H-40 / DSHOT300, DSHOT600
Power input3–6S LiPo
Mounting30.5 × 30.5 mm, 4 mm holes
Stack weightApproximately 34 g
Digital videoDJI O3, Caddx Vista, RunCam Link via 6-pin connector or solder
BluetoothMSP on UART4 at 115200 baud
IncludedFC, 4-in-1 ESC, 1000 µF low-ESR capacitor
Price₹8,200

Use cases

  • FPV racing and freestyle quadcopters on 3–6S
  • DJI O3 / Vista digital FPV builds
  • Custom multirotor and training-lab builds

Sources: FlySpark catalog data; FlySpark product page; TDK InvenSense ICM-42688-P product page; Infineon DPS310 product page. Updated .

Intelligence Brief

Mission overview

FlySpark F4 V1 BLS 60A Stack | Flight Controller + 4-in-1 ESC

The FlySpark F4 V1 BLS 60A Stack combines the FlySpark F4 V1 Flight Controller and FlySpark BLS 60A 4-in-1 ESC into one complete FPV power-and-control stack. Designed for high-performance FPV racing, freestyle drones, drone shows and professional UAV builds, it delivers stable control, fast response and reliable 60A × 4 motor power in a compact 30.5 × 30.5 mm mounting format.

  • INCLUDES:
  • • FlySpark F4 V1 Flight Controller (STM32F405, ICM-42688-P, Type-C, Bluetooth, DJI O3 ready)
  • • FlySpark BLS 60A 4-in-1 ESC (60A × 4 continuous, 80A burst, BLHeli_S, DSHOT300/600)
  • • 1000µF low-ESR external capacitor

KEY FEATURES & BENEFITS:

  • High-Performance Flight Control:
  • • STM32F405 MCU for responsive flight processing
  • • ICM-42688-P IMU for accurate motion sensing
  • • Built-in DPS310 barometer for altitude-related functions
  • • MAX7456EUI+ OSD chip for on-screen flight data display
  • • Type-C USB port for convenient configuration and updates
  • Powerful ESC Stack:
  • • BLS 60A 4-in-1 ESC for demanding FPV builds
  • • 60A × 4 continuous current output for high-power motors
  • • 80A burst current for short peak-load moments
  • • DSHOT300/600 protocol support for modern digital throttle control
  • • 1000uF low ESR capacitor included for voltage filtering
  • Modern FPV Integration:
  • • Bluetooth support for configuration through MSP on UART4
  • • DJI Air Unit compatibility through 6-pin connector or direct soldering
  • • Supports DJI O3, RunCam Link, Caddx Vista and similar digital video systems
  • • Compatible with BetaFlight, INAV, EMU-Flight, ArduPilot and SkyBrush
  • • Made in India for local FPV pilots, system builders and drone teams

APPLICATIONS: FPV racing drone builds, freestyle quadcopters, drone show aircraft, professional FPV training platforms, research and development UAVs, digital FPV builds using DJI O3, Caddx Vista or RunCam Link, compact 5-inch, 6-inch and high-power custom drone builds.

FREQUENTLY ASKED QUESTIONS:

Mission configurations

Configuration (2)

Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.

Complete stack: F4 V1 flight controller + BLS 60A 4-in-1 ESC + 1000µF low-ESR capacitor.

SKU: FSP-F4-V1-BLS60A-STACK

Unit Price (excl. GST)₹8,20010 units

Standard stack with project-level integration support for drone teams, institutions and custom UAV builders.

SKU: FSP-F4-V1-BLS60A-STACK-INT

Unit Price (excl. GST)₹8,20010 units

Active configuration

FlySpark F4 V1 BLS 60A Stack — Standard Package

Complete stack: F4 V1 flight controller + BLS 60A 4-in-1 ESC + 1000µF low-ESR capacitor.

₹8,200

Excl. GST

SKU: FSP-F4-V1-BLS60A-STACK

Configuration matrix

Compare all variants

Side-by-side specifications — click a column to select

Parameter
Unit Price (excl. GST)₹8,200₹8,200
Stock10 units10 units
SKUFSP-F4-V1-BLS60A-STACKFSP-F4-V1-BLS60A-STACK-INT

Technical Data Sheet

System Specifications

23 parameters across 12 categories

Stack Overview1 fields

Stack Type
FlySpark F4 V1 Flight Controller + BLS 60A 4-in-1 ESC

Complete specification index

Frequently asked questions
