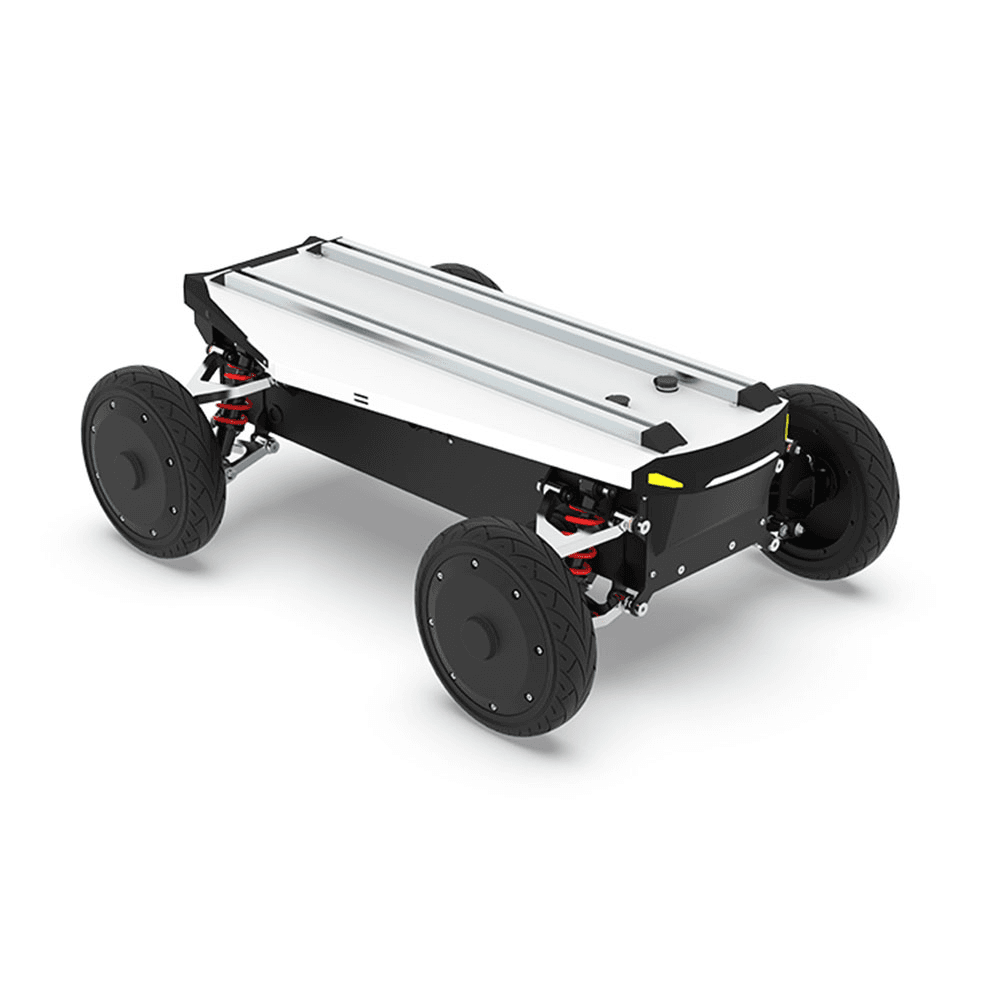

FlySpark AM600 Ackermann-Steering Wheeled UGV Robot Chassis | 50kg Payload, 9.7km/h, 60km Range, Independent Suspension, IP44 & CAN 2.0B ROS1/ROS2 SDK — view 1

FlySpark AM600 Ackermann-Steering Wheeled UGV Robot Chassis | 50kg Payload, 9.7km/h, 60km Range, Independent Suspension, IP44 & CAN 2.0B ROS1/ROS2 SDK

In stock
FlySpark
Base price — FlySpark AM600 Ackermann UGV Chassis - Standard (48V 20Ah)
POA
Excl. GST · Final pricing subject to configuration & quantity

FlySpark AM600 wheeled

Configuration : FlySpark AM600 Ackermann UGV Chassis - Standard (48V 20Ah)

Orders are confirmed by our sales desk on WhatsApp. Reply usually within 1 hour (IST).

Qty

Price on application — WhatsApp us for pricing and lead time.

verified_user

Military-grade quality assured

lock

Export-compliant documentation

headset_mic

24/7 engineering support

Talk to sales

Mon – Sun · 19:30 – 03:30 IST · [email protected]

FSP-AM600-UGV-STANDARD
Active
5
51
  • flyspark
  • am600
  • wheeled-ugv-robot-chassis
  • wheeled-ugv
  • ugv-robot-chassis
  • ugv-chassis
  • ackermann-steering-ugv
  • ackermann-steering-robot-chassis
  • wheeled-robot-chassis
  • wheeled-robot-platform
  • unmanned-ground-vehicle
  • unmanned-ground-vehicles

Key facts

At a glance

The FlySpark AM600 is a drive-by-wire wheeled UGV chassis with front Ackermann steering and rear hub-motor drive, for robotics developers and integrators building indoor/outdoor autonomous platforms. It carries 50 kg on level ground, reaches 9.7 km/h and covers up to 60 km unladen (40 km laden) on a 48 V 20 Ah battery. Control is over CAN 2.0B with a ROS1/ROS2 SDK, and the chassis is rated IP44.

FlySpark AM600 Ackermann-Steering Wheeled UGV Robot Chassis | 50kg Payload, 9.7km/h, 60km Range, Independent Suspension, IP44 & CAN 2.0B ROS1/ROS2 SDK — key specifications
Dimensions (L × W × H)900 × 600 × 310 mm
Weight / payload55 kg / 50 kg (level ground)
DriveFront Ackermann steering, rear drive; 2 × 350 W in-wheel hub servo motors, 1024-line encoders
Maximum speed9.7 km/h
Range60 km unladen; 40 km laden
Climbing / obstacle / gap20° unladen, 10° laden / 50 mm / 160 mm unladen, 140 mm laden
Ground clearance / wading93 mm / 100 mm
SuspensionDouble-wishbone independent, all four wheels
Battery / charging48 V 20 Ah (48 V 40 Ah optional); 2–3 h with 48 V 10 A charger
Payload power outputs48 V 10 A, 24 V 15 A, 12 V 15 A
Control interfaceCAN 2.0B, VCU drive-by-wire; ROS1/ROS2 SDK
Protection ratingIP44
Operating temperature−20 °C to 50 °C
Safety protections20 strategies incl. emergency stop, heartbeat, timeout, overtemperature, overload, short circuit
PriceOn request

Use cases

  • Autonomous navigation research on a car-like (Ackermann) base
  • Indoor/outdoor patrol, inspection and logistics robot development
  • University and lab ROS1/ROS2 robotics projects
  • Sensor-payload carrier with lidar, depth camera and RTK GNSS (navigation package)

Standards & references

Sources: FlySpark catalog data; FlySpark product page; ROS 2 documentation. Updated .

Intelligence Brief

Mission overview

FlySpark AM600 is a modular wheeled UGV robot chassis with front Ackermann steering, built for developers and integrators who need a car-like, drive-by-wire base that works both indoors and outdoors. It carries a 50kg payload on level ground, reaches 9.7km/h and covers up to 60km unladen (40km laden) on a single charge, all in a compact 900 × 600 × 310mm, 55kg package.

FlySpark AM600 product overview video

The AM600 is part of the FlySpark Unmanned Ground & Surface Vehicles (UGV / USV) range. Unlike skid-steer robots, it uses front Ackermann steering with rear motor drive, so the wheels roll around a common turning centre just like a car. That means less tyre scrub, smoother trajectories, lower energy use and kinder treatment of finished floors — ideal for autonomous navigation where predictable motion matters. Two 350W in-wheel hub servo motors with 1024-line magnetic encoders give fast torque response and mm-level control precision, while double-wishbone independent suspension on all four wheels filters vibration from paving, ramps, gravel and grass.

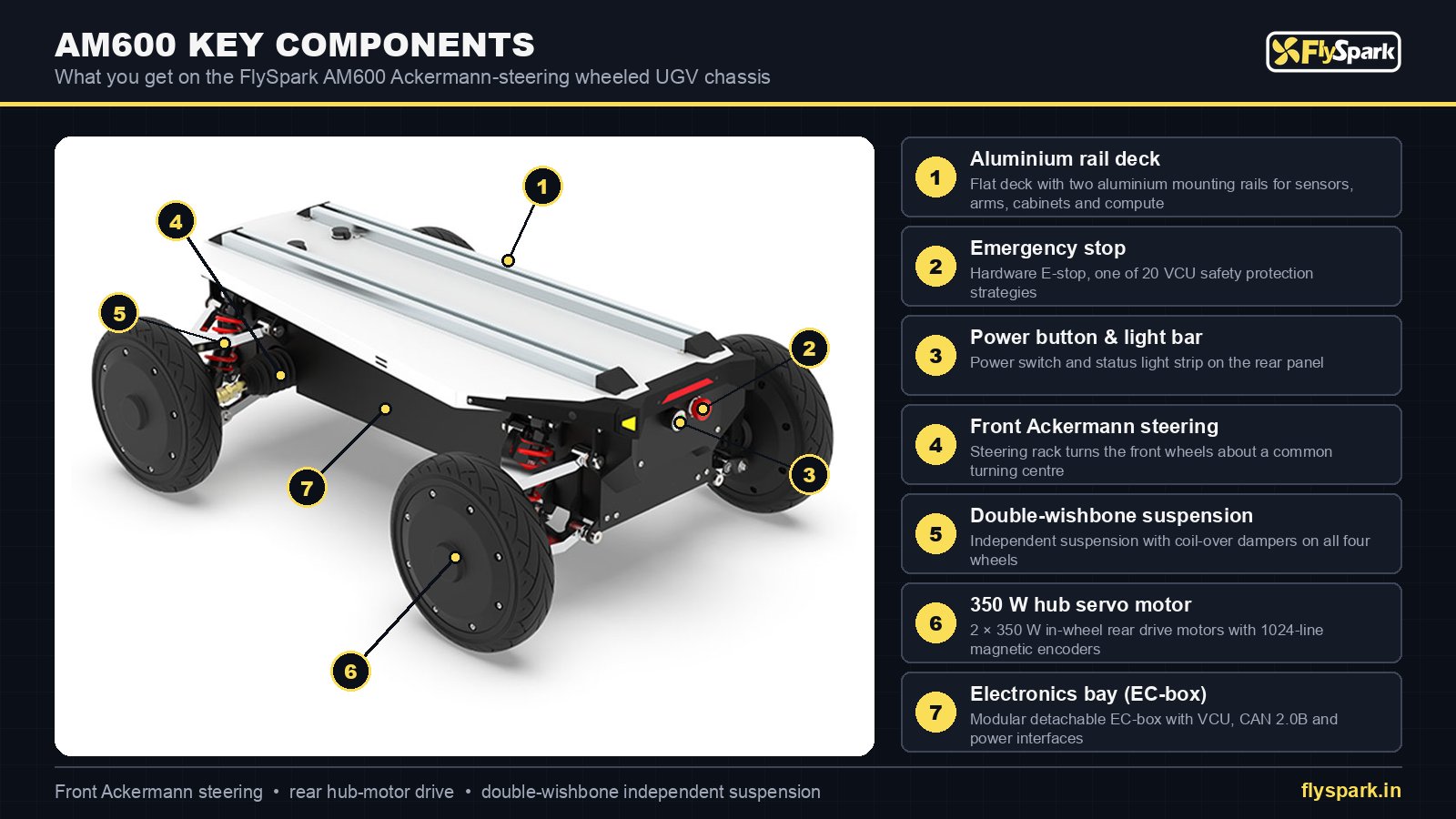

FlySpark AM600 wheeled UGV robot chassis key components – rail deck, emergency stop, Ackermann steering, double-wishbone suspension, 350W hub motors and EC-box
FlySpark AM600 wheeled UGV robot chassis key components – rail deck, emergency stop, Ackermann steering, double-wishbone suspension, 350W hub motors and EC-box

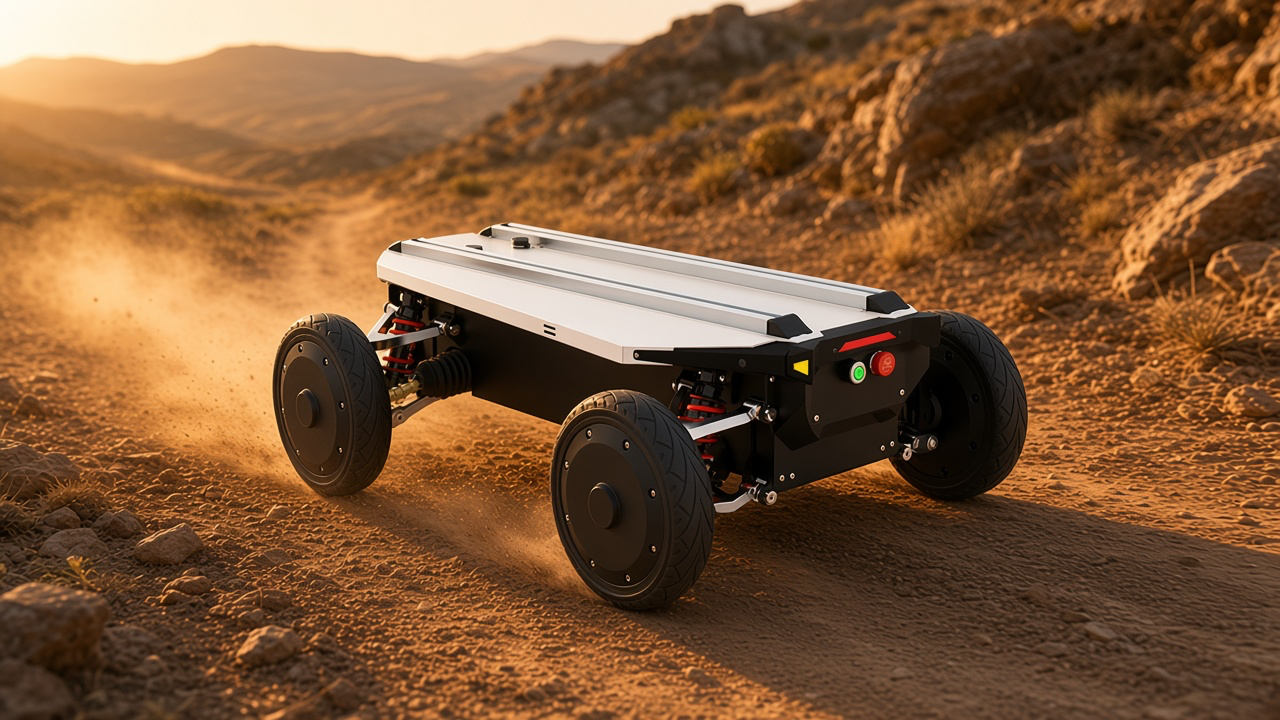

FlySpark AM600 Ackermann-steering UGV driving along a rocky dirt trail at golden hour
FlySpark AM600 Ackermann-steering UGV driving along a rocky dirt trail at golden hour

The AM600 climbs 20° slopes unladen (10° laden), surmounts 50mm obstacles, crosses 160mm gaps unladen (140mm laden) and wades through 100mm of water. It is rated IP44 and operates from -20°C to 50°C in high temperature, night, light rain, wind, light snow and light fog. Power comes from a 48V 20Ah battery as standard, with a 48V 40Ah pack available for longer missions, and recharges in about 2–3 hours.

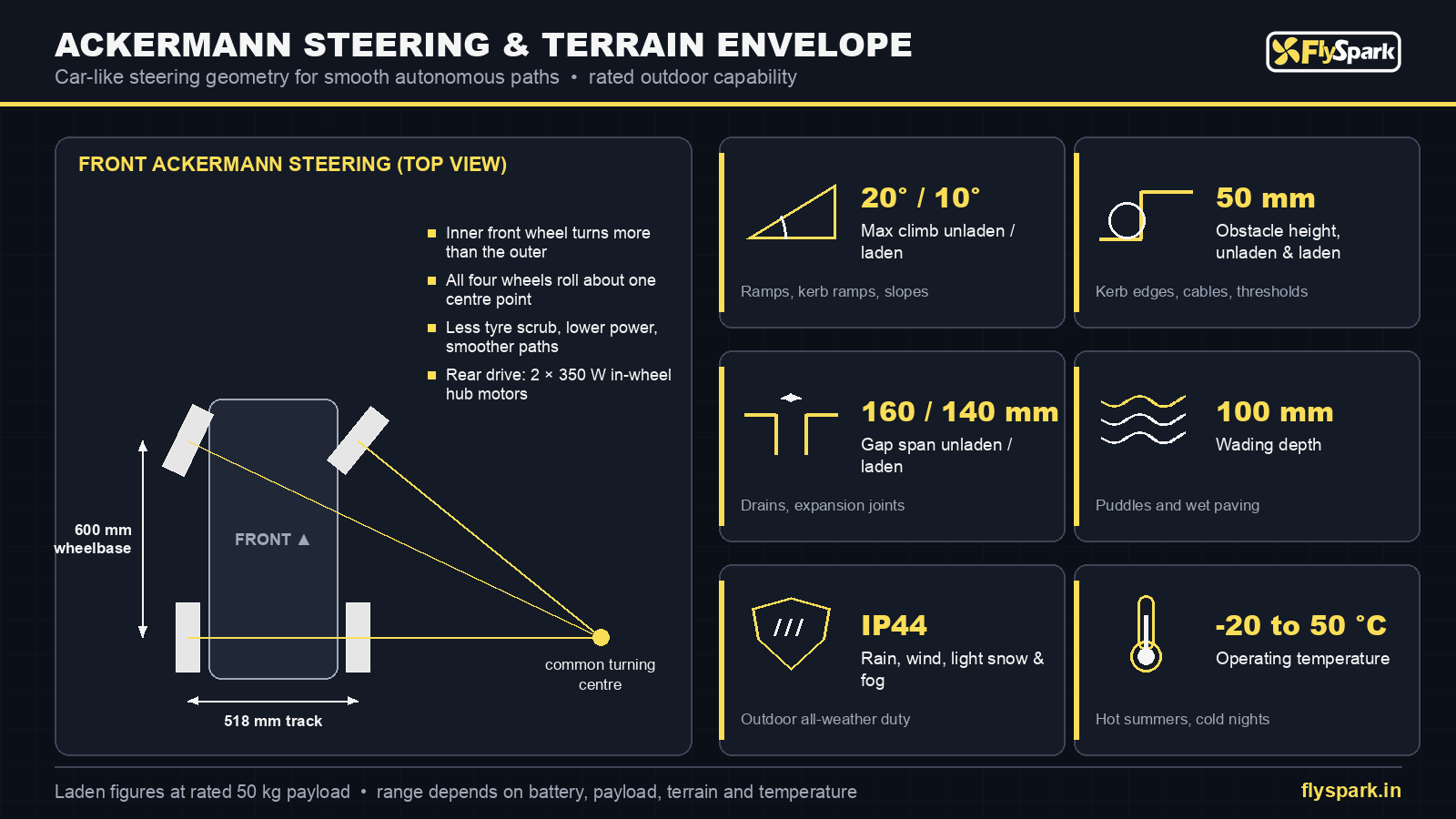

FlySpark AM600 Ackermann steering UGV geometry and terrain envelope – 20° climb, 50mm obstacles, 160mm gap, 100mm wading, IP44, -20 to 50°C
FlySpark AM600 Ackermann steering UGV geometry and terrain envelope – 20° climb, 50mm obstacles, 160mm gap, 100mm wading, IP44, -20 to 50°C

WHY CHOOSE THE AM600 ACKERMANN STEERING UGV

The AM600 is designed as an open, vehicle-grade drive-by-wire platform. It switches between remote control and host-computer command control, runs its own kinematics algorithm with acceleration and deceleration planning, and exposes a standard CAN 2.0B protocol with a ROS1 / ROS2 drive package (SDK) for rapid secondary development. Your autonomy computer simply sends motion commands — the chassis handles Ackermann geometry, speed control and safety.

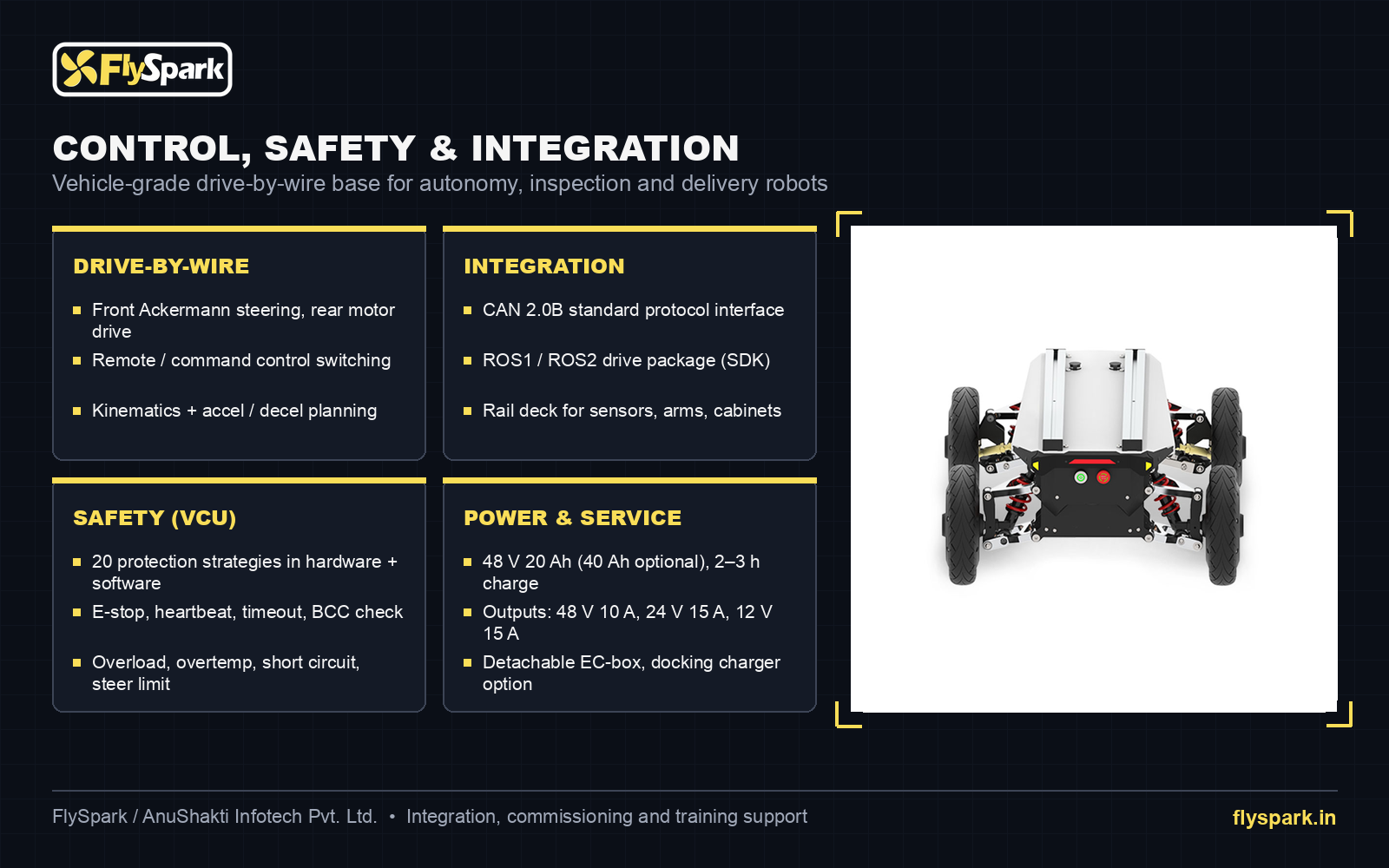

FlySpark AM600 control, safety and integration overview: CAN 2.0B, ROS1/ROS2 SDK, 20 VCU safety strategies and payload power outputs
FlySpark AM600 control, safety and integration overview: CAN 2.0B, ROS1/ROS2 SDK, 20 VCU safety strategies and payload power outputs

Safety is built into the vehicle control unit (VCU), which runs 20 protection strategies across hardware and software: emergency stop, communication heartbeat, communication timeout, BCC checksum, overtemperature, overload, short-circuit and steering-limit protection, plus motor braking and motor parking. Electronics live in a modular, detachable EC-box protected against high and low temperature, water pressure, vibration and salt spray, so servicing or upgrading takes minutes instead of hours.

COMPARE THE FLYSPARK RANGE

The AM600 sits in the middle of the FlySpark wheeled UGV family: it carries more and travels further than the AM400 while keeping efficient, car-like Ackermann steering for long outdoor routes on paving and gravel. Choose a tracked TK model when soft ground, stairs or deeper water dominate the mission, or the OM600 when you need omnidirectional motion with heavy loads.

  • • FlySpark AM400 – lightweight Ackermann-steering wheeled UGV with 20kg payload and 40km range for indoor research and light delivery
  • • FlySpark AM600 – mid-size Ackermann wheeled UGV with 50kg payload, 9.7km/h, 60km range and IP44 for outdoor delivery, patrol and inspection
  • • FlySpark OM600 – omnidirectional 4WD/4WS swerve-drive chassis carrying 250kg with zero-turn and lateral moves for tight logistics spaces
  • • FlySpark TK650 – compact tracked UGV chassis with 30kg payload and 35° climb for rough ground
  • • FlySpark TK990 – heavy-duty tracked UGV with 80kg payload, 35° stair climbing and 180mm obstacles
  • • FlySpark TK1000 – stair-climbing tracked robot chassis with 100kg payload, 40° climb and IP65
  • • FlySpark TK2100 – large all-terrain tracked UGV with 300kg payload, 500mm wading and IP65

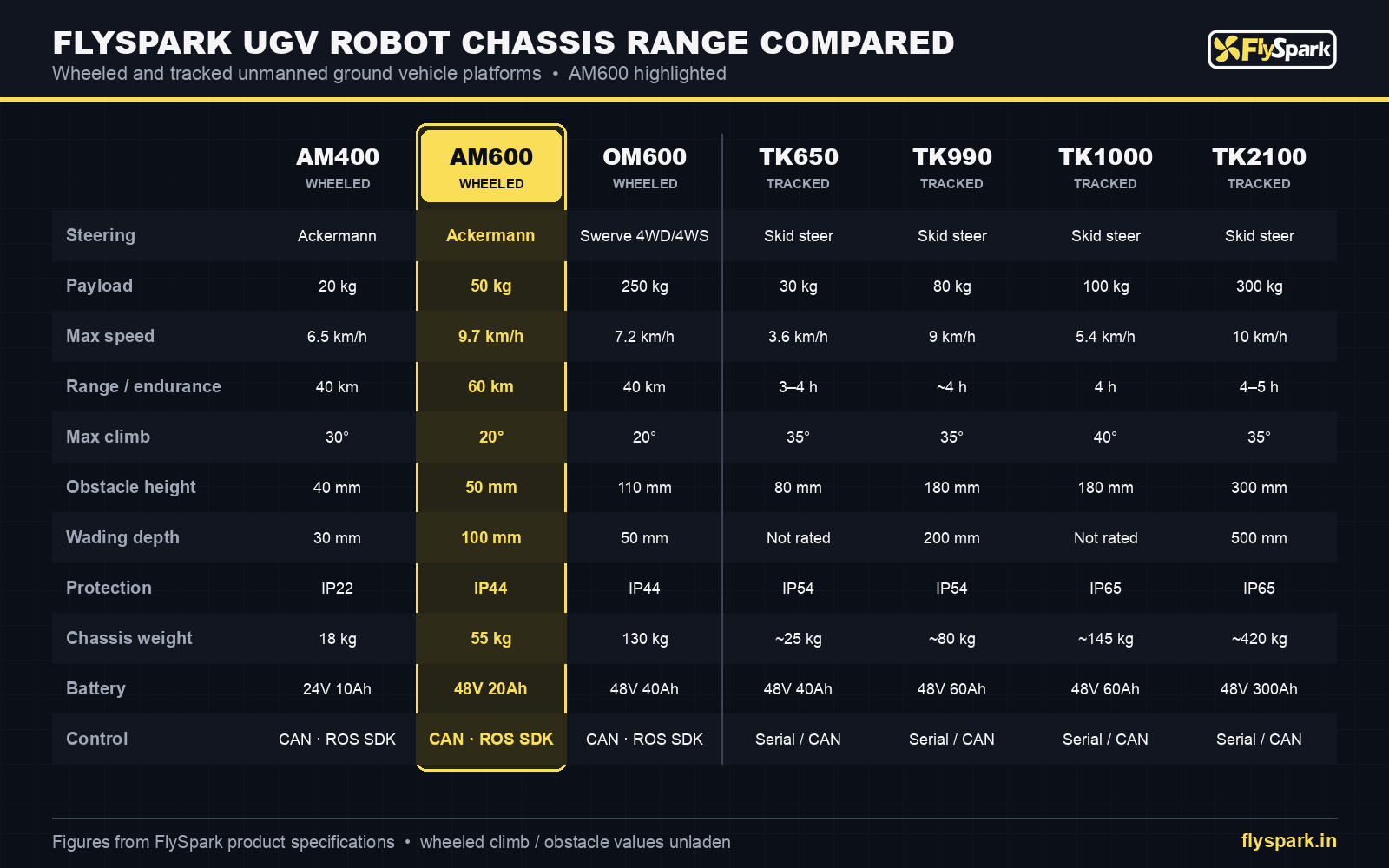

FlySpark AM600 wheeled UGV robot chassis compared with the FlySpark AM400, OM600, TK650, TK990, TK1000 and TK2100 UGV range – payload, speed, range, climb and IP rating
FlySpark AM600 wheeled UGV robot chassis compared with the FlySpark AM400, OM600, TK650, TK990, TK1000 and TK2100 UGV range – payload, speed, range, climb and IP rating

AM600 ROS2 ROBOT CHASSIS INTEGRATION & AUTONOMY

The flat deck with two aluminium mounting rails accepts sensors, robot arms, gimbal cameras, delivery cabinets and AI compute modules, powered directly from 48V 10A, 24V 15A and 12V 15A outputs. An optional navigation configuration adds 16-channel 3D lidar, depth camera, RTK GNSS, IMU, industrial computer, display and router for 2D/3D map building, centimetre-level positioning, autonomous path planning, intelligent obstacle avoidance, multi-sensor fusion, app-based path drawing, virtual walls and autonomous docking-station charging.

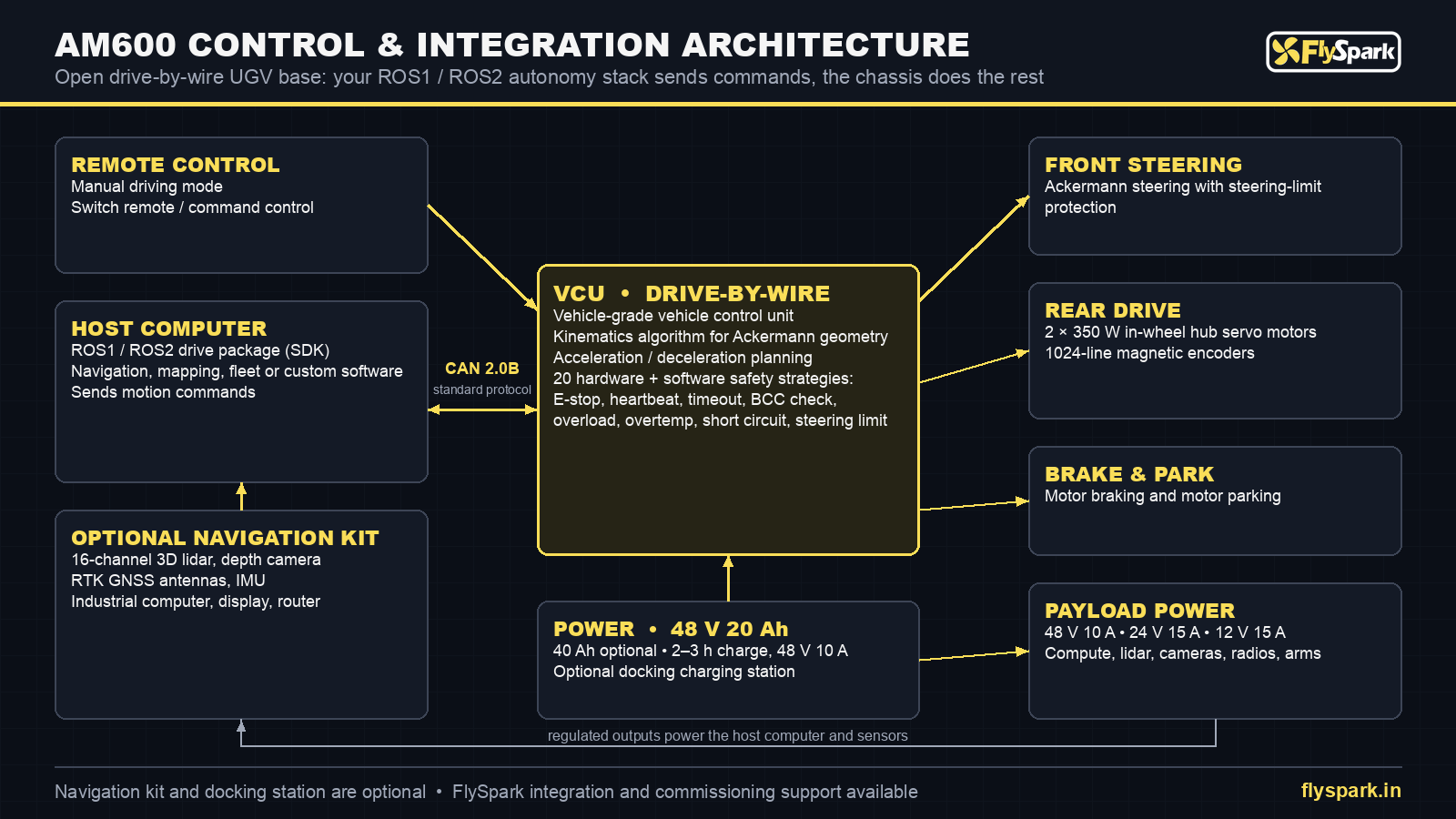

FlySpark AM600 ROS2 robot chassis control architecture – remote control, ROS1/ROS2 host computer over CAN 2.0B, VCU drive-by-wire, hub motors and 48V/24V/12V payload power
FlySpark AM600 ROS2 robot chassis control architecture – remote control, ROS1/ROS2 host computer over CAN 2.0B, VCU drive-by-wire, hub motors and 48V/24V/12V payload power

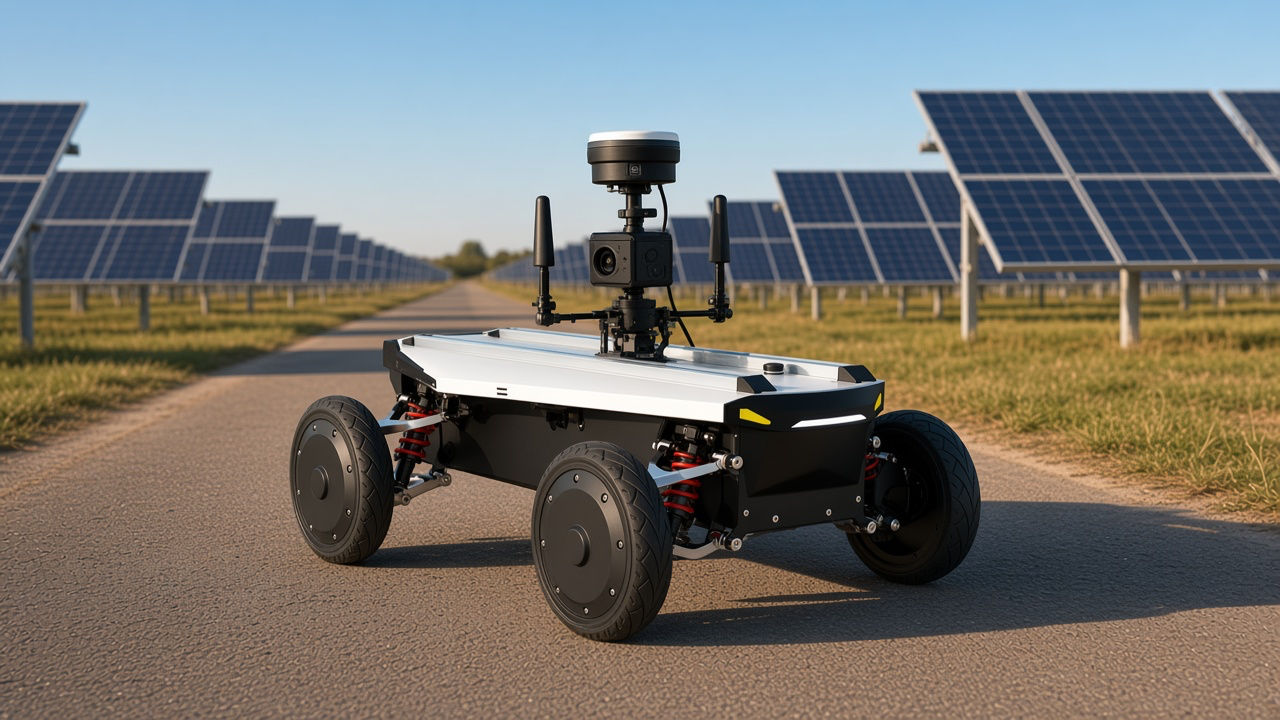

FlySpark AM600 UGV fitted with a lidar, camera and GNSS sensor mast inspecting a solar farm
FlySpark AM600 UGV fitted with a lidar, camera and GNSS sensor mast inspecting a solar farm
  • KEY FEATURES OF THE AM600 WHEELED ROBOT CHASSIS:
  • • Modular lightweight Ackermann-steering UGV chassis
  • • Front Ackermann steering with rear motor drive
  • • 50kg payload on level ground
  • • 9.7km/h maximum speed
  • • Up to 60km range unladen, 40km laden
  • • 2 × 350W in-wheel hub servo motors
  • • 1024-line magnetic encoders for precise control
  • • Double-wishbone independent suspension on all four wheels
  • • 20° climbing unladen, 10° laden
  • • 50mm obstacle surmounting height
  • • 100mm wading depth
  • • IP44 protection, -20°C to 50°C operation
  • • 48V 20Ah battery (48V 40Ah optional), 2–3h charging
  • • 48V 10A, 24V 15A, 12V 15A payload power outputs
  • • CAN 2.0B with ROS1 / ROS2 drive package (SDK)
  • • Remote and command control switching
  • • VCU with 20 hardware and software safety strategies
  • • Motor braking and motor parking
  • • Detachable modular EC-box for fast maintenance
  • • Aluminium rail deck for sensors, arms and cabinets
  • • Optional navigation kit and docking charging station

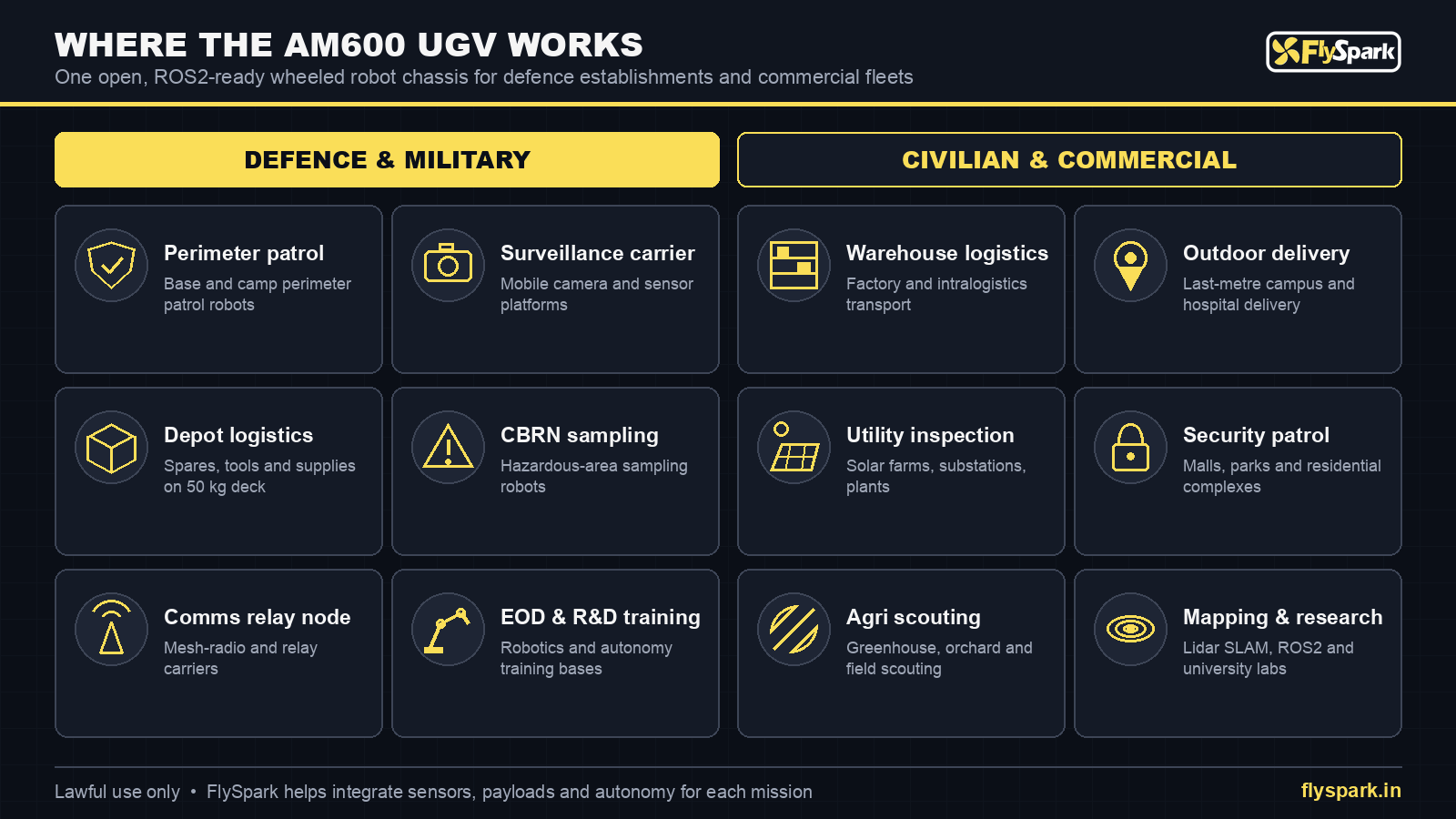

FlySpark AM600 UGV applications – defence perimeter patrol, surveillance and depot logistics alongside outdoor delivery, utility inspection and security patrol
FlySpark AM600 UGV applications – defence perimeter patrol, surveillance and depot logistics alongside outdoor delivery, utility inspection and security patrol

DEFENCE & MILITARY APPLICATIONS

For defence and security establishments, the AM600 provides a quiet, electric, open-protocol base for patrol, surveillance and logistics robots inside bases, depots and training facilities.

  • • Base and camp perimeter patrol robots
  • • Mobile surveillance sensor and camera carriers
  • • Depot logistics robots for spares, tools and supplies
  • • CBRN and hazardous-area sampling robot platforms
  • • Autonomous navigation and robotics training for defence R&D labs
  • • Indoor facility security rounds for hangars and warehouses
  • • Communications relay and mesh-radio node carriers
  • • Explosive ordnance disposal (EOD) robot training platforms

CIVILIAN & COMMERCIAL APPLICATIONS

In industry and research, the AM600 is a fast way to build reliable delivery, inspection and mapping robots without designing a drive system from scratch.

  • • Warehouse, factory and intralogistics transport
  • • Last-metre delivery across campuses, hospitals and communities
  • • Solar farm, substation and utility inspection robots
  • • Chemical warehouse and process plant monitoring
  • • Security patrol robots for malls, parks and residential complexes
  • • Agriculture, greenhouse and orchard scouting
  • • Mobile mapping, lidar SLAM and digital twin capture
  • • University, ROS and autonomous driving research
  • • Robot arm and mobile manipulator bases

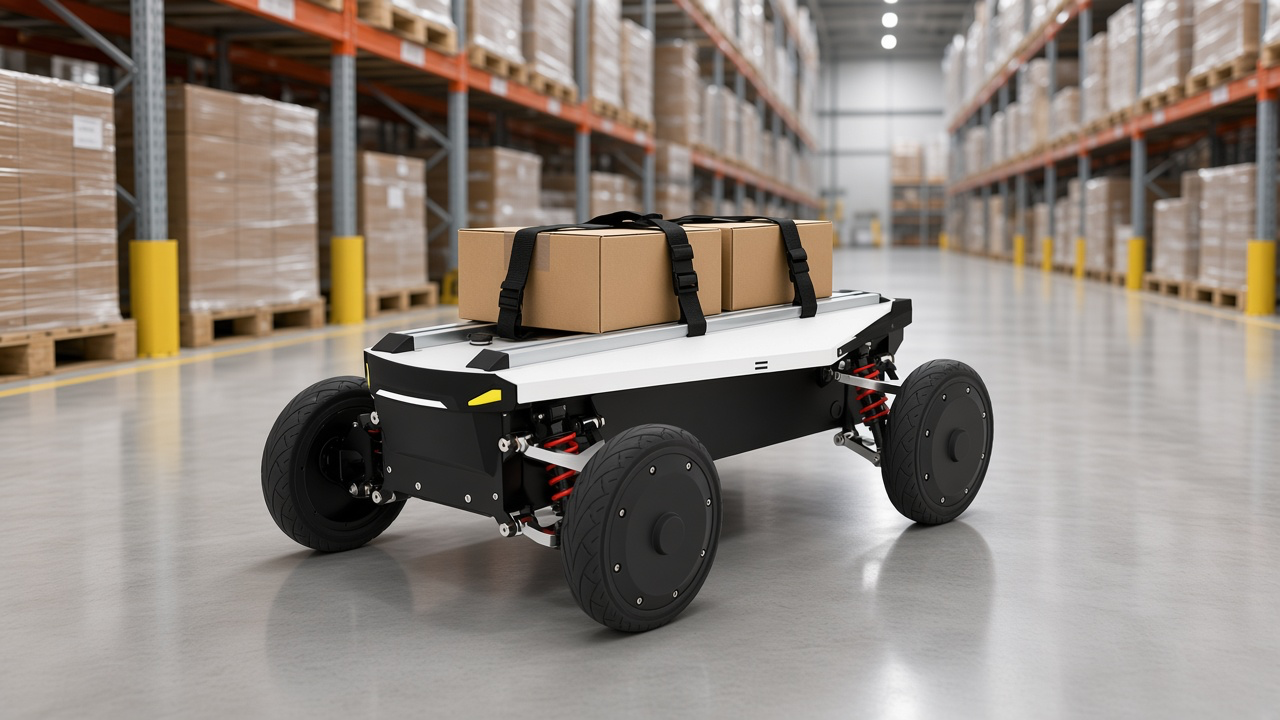

FlySpark AM600 robot chassis carrying parcels down a logistics warehouse aisle
FlySpark AM600 robot chassis carrying parcels down a logistics warehouse aisle

AM600 UGV TECHNICAL SPECIFICATIONS AT A GLANCE

The AM600 measures 900 × 600 × 310mm with a 600mm wheelbase, 518mm wheel track, 240mm tyres and 93mm ground clearance, and weighs 55kg. Full specifications are listed in the specifications table on this page.

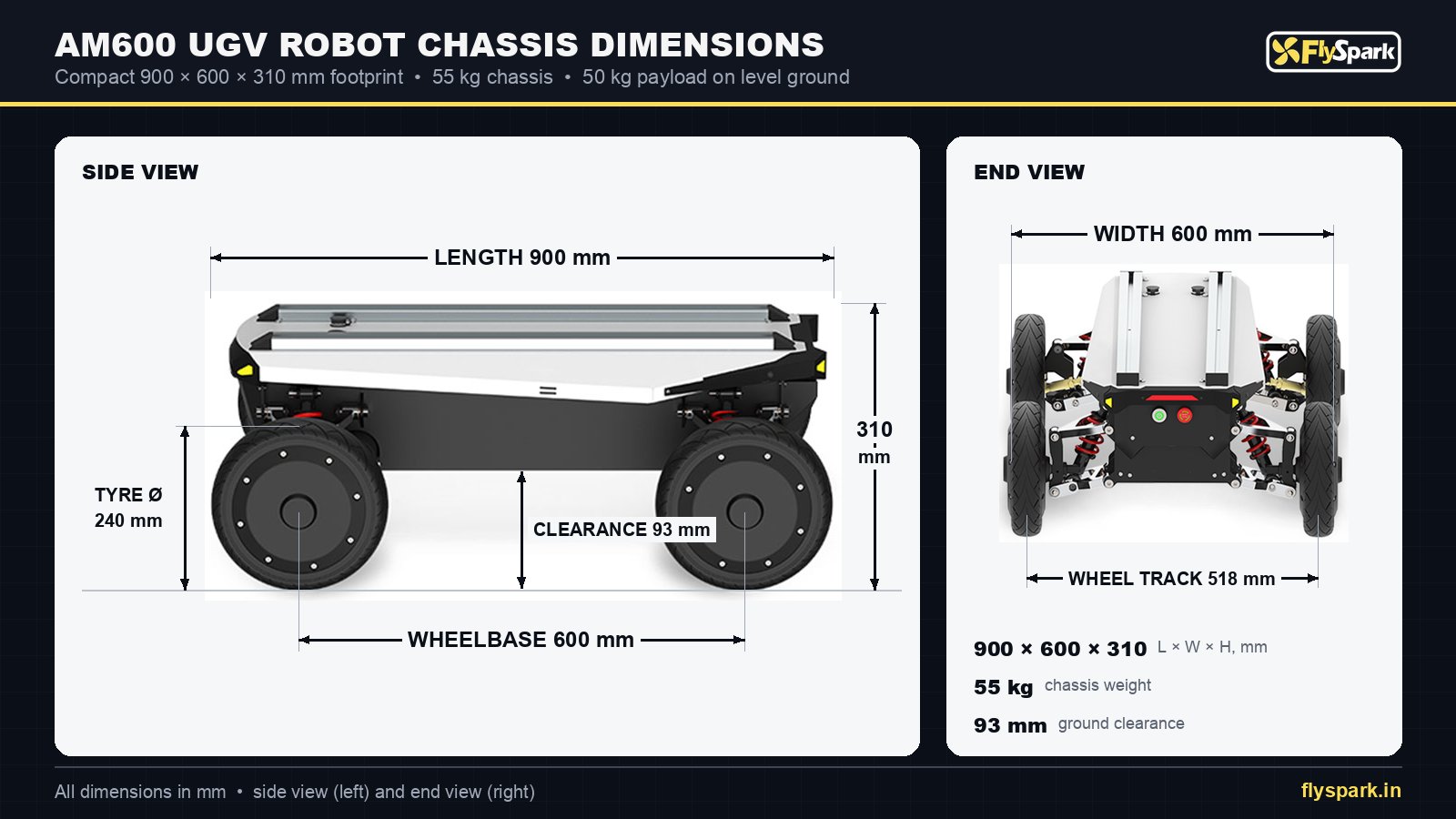

FlySpark AM600 wheeled UGV robot chassis dimensions drawing – 900 × 600 × 310 mm, 600 mm wheelbase, 518 mm track, 240 mm tyres, 93 mm clearance
FlySpark AM600 wheeled UGV robot chassis dimensions drawing – 900 × 600 × 310 mm, 600 mm wheelbase, 518 mm track, 240 mm tyres, 93 mm clearance

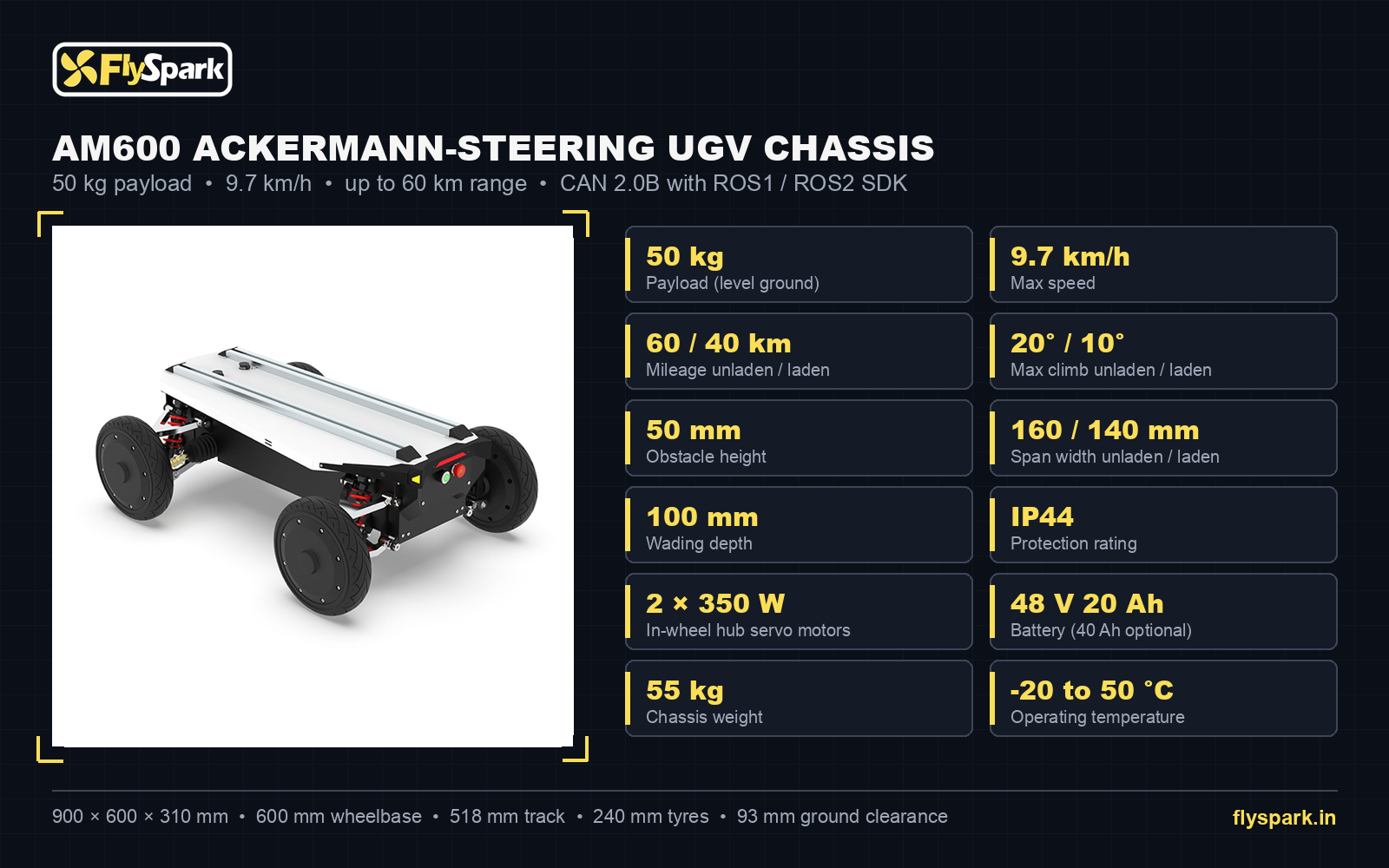

FlySpark AM600 specification sheet: 50kg payload, 9.7km/h, 60km range, 20° climb, IP44, 2 × 350W hub motors
FlySpark AM600 specification sheet: 50kg payload, 9.7km/h, 60km range, 20° climb, IP44, 2 × 350W hub motors
  • STANDARD SUPPLY:
  • • FlySpark AM600 Ackermann-steering chassis with 2 × 350W in-wheel hub servo motors and encoders
  • • 48V 20Ah lithium battery (48V 40Ah optional)
  • • 48V 10A charging adapter
  • • Modular EC-box with VCU and CAN 2.0B interface
  • • ROS1 / ROS2 drive package (SDK) and communication protocol documentation
  • • Operator manual and commissioning support

IMPORTANT USE NOTE: The AM600 is a mobile robot chassis for lawful industrial, security, research, inspection and logistics applications. Operate it only on sites where you have permission, keep people clear during autonomous operation, respect the 50kg rated payload, IP44 rating and 100mm wading limit, and follow local safety, RF and site regulations. Any radio links added for remote operation must use legally permitted frequencies and power levels.

FREQUENTLY ASKED QUESTIONS:

Mission configurations

Configuration (5)

Select your operational configuration. Pricing may vary — request a formal quote for deployment quantities.

Standard AM600 chassis with 48V 20Ah battery, 48V 10A charger, CAN 2.0B VCU and ROS1/ROS2 SDK.

SKU: FSP-AM600-UGV-STANDARD

Unit Price (excl. GST)POAAvailable

AM600 with the optional 48V 40Ah battery for longer working shifts.

SKU: FSP-AM600-UGV-40AH

Unit Price (excl. GST)POAAvailable

AM600 with 16-channel 3D lidar, depth camera, RTK GNSS, IMU, industrial computer, display and router for mapping, path planning and obstacle avoidance.

SKU: FSP-AM600-UGV-NAV

Unit Price (excl. GST)POAAvailable

Navigation package plus docking charging station for fully autonomous recharging.

SKU: FSP-AM600-UGV-NAV-DOCK

Unit Price (excl. GST)POAAvailable

AM600 with onboard computer starter kit, ROS1/ROS2 bring-up support, CAN protocol onboarding and commissioning for research projects.

SKU: FSP-AM600-UGV-DEV

Unit Price (excl. GST)POAAvailable

Active configuration

FlySpark AM600 Ackermann UGV Chassis - Standard (48V 20Ah)

Standard AM600 chassis with 48V 20Ah battery, 48V 10A charger, CAN 2.0B VCU and ROS1/ROS2 SDK.

POA

Excl. GST

SKU: FSP-AM600-UGV-STANDARD

Configuration matrix

Compare all variants

Side-by-side specifications — click a column to select

Parameter
Unit Price (excl. GST)POAPOAPOAPOAPOA
StockAvailableAvailableAvailableAvailableAvailable
SKUFSP-AM600-UGV-STANDARDFSP-AM600-UGV-40AHFSP-AM600-UGV-NAVFSP-AM600-UGV-NAV-DOCKFSP-AM600-UGV-DEV

Technical Data Sheet

System Specifications

51 parameters across 8 categories

General6 fields

Product Type
Modular Ackermann-steering wheeled UGV robot chassis
Model Name
FlySpark AM600 Modular Ackermann-Steering UGV
Product Category
Unmanned Ground & Surface Vehicles (UGV / USV)
Price
On request
SKU
FSP-AM600-UGV-STANDARD
Supplier / Integration Support
FlySpark / AnuShakti Infotech Pvt. Ltd.
