FlySpark AGT-3D-RD5000X Ku-Band 3D Radar | 360° Anti-Drone Detection & Tracking System

FlySpark AGT-3D-RD5000X Ku-Band 3D Radar - 360° Anti-Drone Detection & Tracking System

The FlySpark AGT-3D-RD5000X is a portable high-accuracy Ku-band 3D radar designed for low-altitude airspace monitoring, anti-drone detection, perimeter security and professional counter-UAS surveillance. Operating in the 10.4–10.6GHz Ku-band range, the RD5000X provides full 360° azimuth coverage with -5° to 30° elevation coverage, enabling reliable detection and tracking of drones, personnel and vehicles in complex security environments.

KEY FEATURES & BENEFITS:

• 360° Anti-Drone Situational Awareness:
• • Full 360° azimuth coverage for all-direction monitoring
• • -5° to 30° elevation coverage for low-altitude and perimeter security
• • Typical detection range of ≥5km for Phantom-class UAVs
• • Typical detection range of ≥8km for personnel and ≥10km for vehicles
• • Extended configuration support from 7–20km depending on environment and target RCS

• High-Accuracy 3D Tracking:
• • Ku-band radar operation at 10.4–10.6GHz
• • Azimuth and elevation accuracy ≤0.4° RMS
• • Range accuracy ≤5m RMS
• • Fast antenna rotation speed of 180°/s
• • Typical update rate of approximately 1.2 seconds
• • Tracks ≥150 targets with radial velocity from 0.4–100m/s

• Rugged Field Deployment:
• • IP67 ingress protection for demanding outdoor environments
• • Operating temperature from -40°C to +55°C
• • Compact radar head size of 425 × 300 × 48mm
• • Power input support for DC 48V or AC 220V
• • Power consumption ≤200W

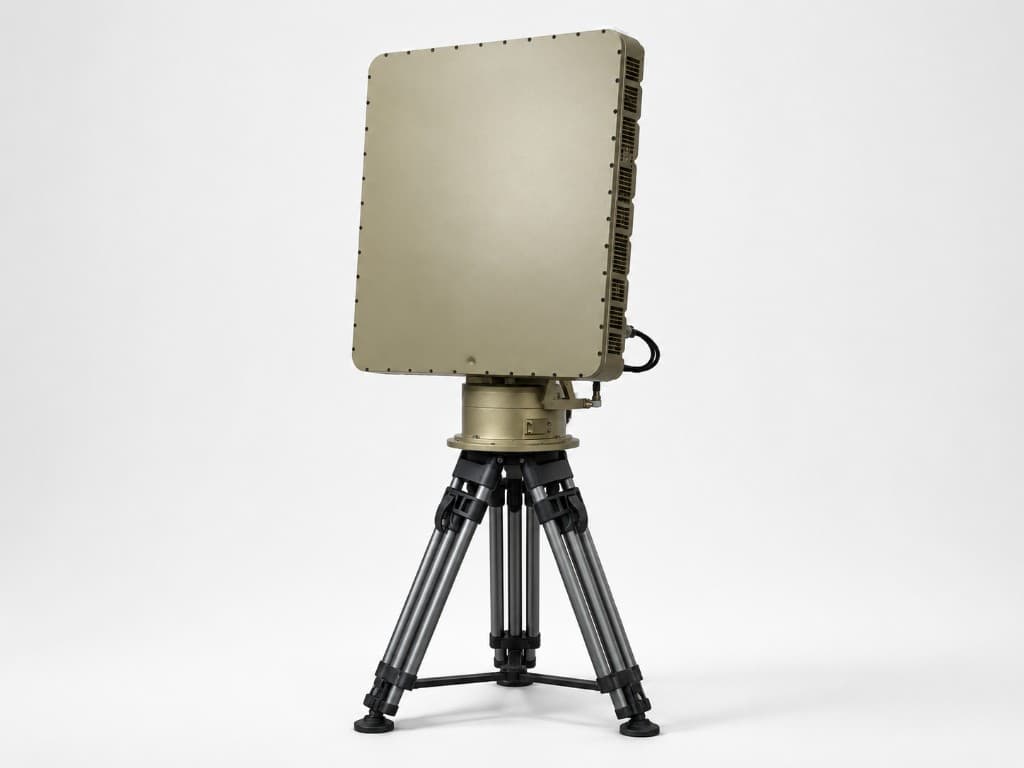

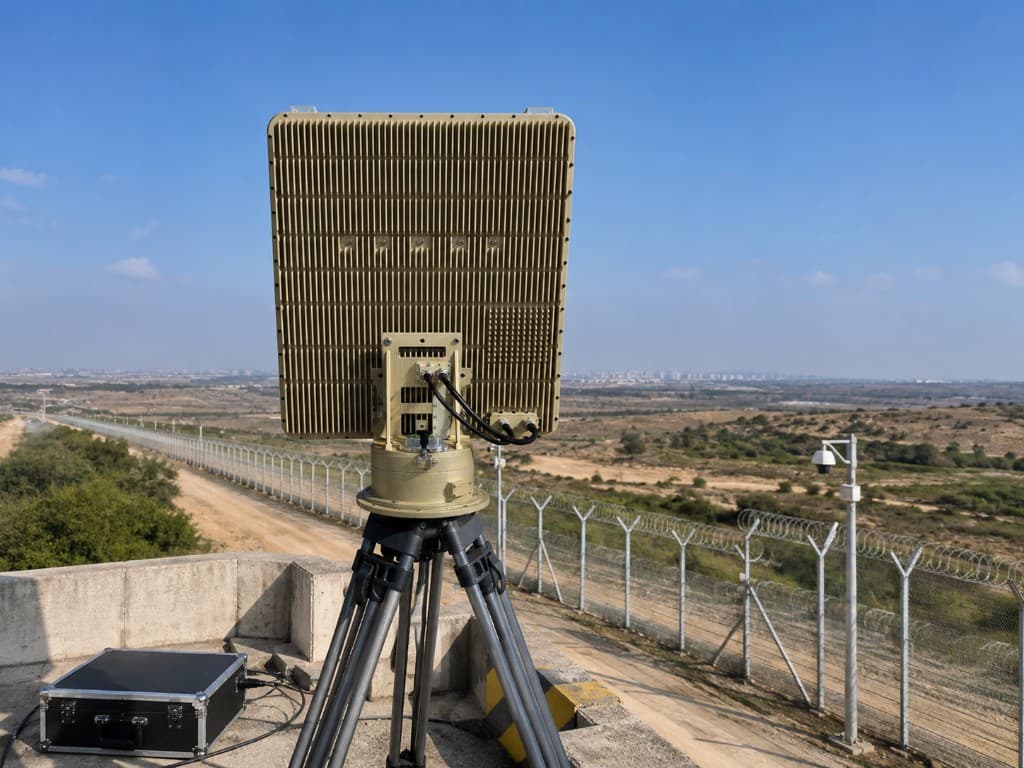

• • Supports tripod mounting and fixed-site installation

• Optional EO Integration:
• • Optional integrated EO/day camera module available
• • H.265 video compression support
• • 2–3MP camera option with f/2.0 and 10mm lens
• • Human motion tracking, face detection, pan-tilt and alarm I/O support depending on configuration
• • Cloud, memory card or micro-SD storage options depending on module configuration

AUTHORIZED USE ONLY: The FlySpark AGT-3D-RD5000X is a professional security and counter-UAS detection system intended for authorized government, defence, law-enforcement, airport security, critical infrastructure, industrial security and approved institutional users. Deployment should follow applicable aviation, security, spectrum, privacy and site-operation regulations.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark AGT-3D-RD5000X? A: The FlySpark AGT-3D-RD5000X is a portable high-accuracy Ku-band 3D radar system designed for anti-drone detection, low-altitude surveillance, perimeter security and professional counter-UAS monitoring.

Q: What is the price of the AGT-3D-RD5000X radar? A: The listed price is 65,00,000 ₹ for the AGT-3D-RD5000X Ku-Band 3D Radar Standard Package. Final pricing may vary if EO camera integration, fixed-site installation, command-room integration or custom C-UAS architecture support is added.

• Q: What frequency band does the radar use?
• A: The radar operates in the 10.4–10.6GHz Ku-band range. Ku-band radar is commonly used for compact high-resolution detection and tracking applications.

Q: Does the radar provide 360° coverage? A: Yes, the AGT-3D-RD5000X provides full 360° azimuth coverage. This enables all-direction monitoring for perimeter security and low-altitude airspace surveillance.

• Q: What is the elevation coverage?
• A: The radar provides -5° to 30° elevation coverage, supporting low-altitude target tracking and perimeter-security monitoring.

Q: What is the drone detection range? A: The typical detection range is ≥5km for Phantom-class UAVs. Actual detection distance depends on target size, radar cross-section, altitude, environment, weather and installation conditions.

Q: What is the detection range for people and vehicles? A: The listed typical detection range is ≥8km for personnel and ≥10km for vehicles. Actual range depends on target characteristics, terrain, line of sight and site conditions.

Q: What is the extended detection configuration? A: Extended configuration support is listed as 7–20km depending on environment and target RCS. Final performance should be validated for the selected site and target profile.

Q: How many targets can it track? A: The radar can track ≥150 targets. This makes it suitable for multi-target environments such as airports, industrial zones, perimeter sites and low-altitude surveillance areas.

Q: What target speed range can it detect? A: The radar supports target radial velocity detection from 0.4–100m/s. This supports monitoring of drones, personnel, vehicles and other moving targets within radar performance limits.

• Q: What is the angle accuracy?
• A: The radar provides azimuth accuracy ≤0.4° RMS and elevation accuracy ≤0.4° RMS. This supports accurate directional tracking and target localization.

• Q: What is the range accuracy?
• A: The listed range accuracy is ≤5m RMS. Final accuracy may depend on radar setup, target characteristics and operating environment.

• Q: What is the radar update rate?
• A: The radar uses 180°/s antenna rotation and has a typical update rate of approximately 1.2 seconds, enabling fast target-refresh performance.

• Q: What is the blind area?
• A: The radar blind area is listed as ≤50m. Site planning should consider this close-zone blind area when designing perimeter coverage.

Q: Is the AGT-3D-RD5000X weatherproof? A: Yes, the radar has IP67 ingress protection, making it suitable for demanding outdoor security deployments. Professional mounting and cable protection are still recommended.

• Q: What is the operating temperature range?
• A: The radar operates from -40°C to +55°C, making it suitable for harsh outdoor environments, fixed installations and field deployment.

• Q: What power supply does the radar require?
• A: The radar supports DC 48V or AC 220V power input. Final power setup should be installed by qualified personnel according to site electrical requirements.

• Q: What is the power consumption?
• A: The listed power consumption is ≤200W. This makes the radar efficient for fixed-site and portable security deployments.

• Q: Can the radar be tripod-mounted?

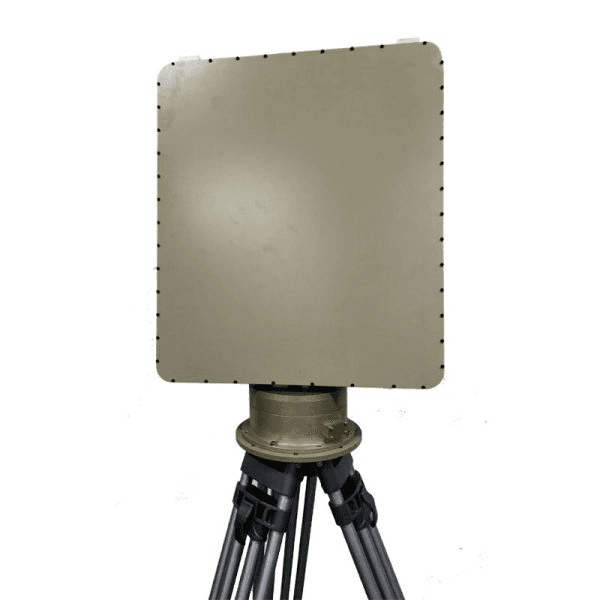

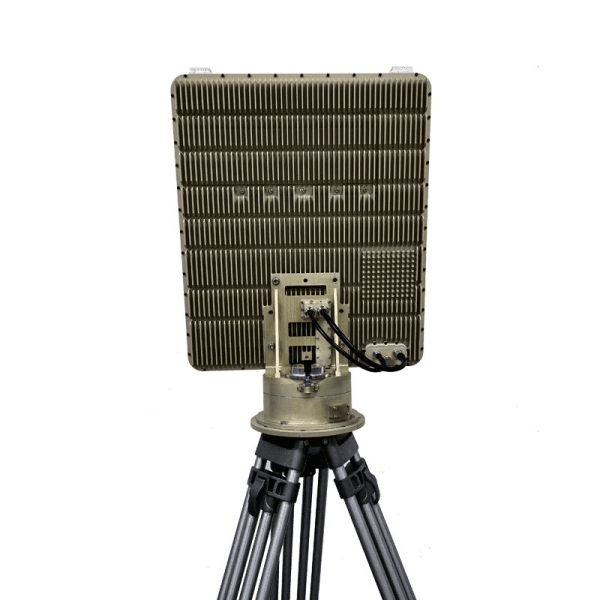

• A: Yes, the compact radar head supports tripod deployment. It can also be used in fixed-site mounting configurations depending on the security architecture.

• Q: What are the dimensions of the radar head?
• A: The radar head measures 425 × 300 × 48mm. Its compact size supports portable deployment and fixed-site installation.

Q: Is an EO camera included? A: The EO module is optional. Available EO module features may include H.265 video, 2–3MP camera, f/2.0 lens, 10mm lens, pan-tilt, human motion tracking, face detection, alarm I/O and storage options depending on configuration.

Q: Is this system a jammer? A: No. The AGT-3D-RD5000X is a detection and tracking radar, not an RF jammer. It is used to detect, track and support situational awareness for drones, vehicles and personnel.

Q: Where can this radar be used? A: It is suitable for airports, defence sites, border posts, prisons, industrial facilities, power plants, refineries, communication sites, government facilities, event security and critical infrastructure protection.

Q: Who can purchase this product? A: The system is intended for authorized government agencies, defence organizations, law-enforcement bodies, airport security teams, critical infrastructure operators, licensed system integrators and approved institutional customers.

Q: Can it be part of a complete C-UAS system? A: Yes, the AGT-3D-RD5000X can be integrated into a layered C-UAS architecture with visual verification, command workflows, operator alerts and other authorized detection or response systems.

Q: What maintenance is required? A: Maintenance should include inspection of the radar head, mounting hardware, power supply, connectors, protective seals, network links, software status and optional EO module. Professional scheduled maintenance is recommended.

Q: What warranty is included? A: Warranty support generally covers manufacturing defects under approved use and normal operating conditions. Damage from incorrect installation, water ingress due to poor cabling, physical impact, unauthorized modification or improper power supply may not be covered.
