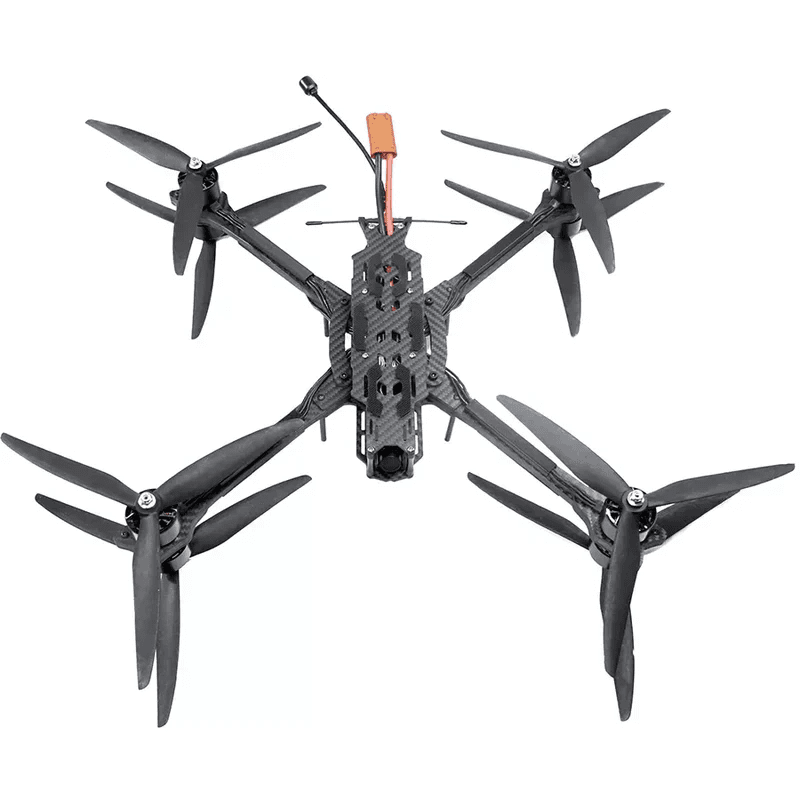

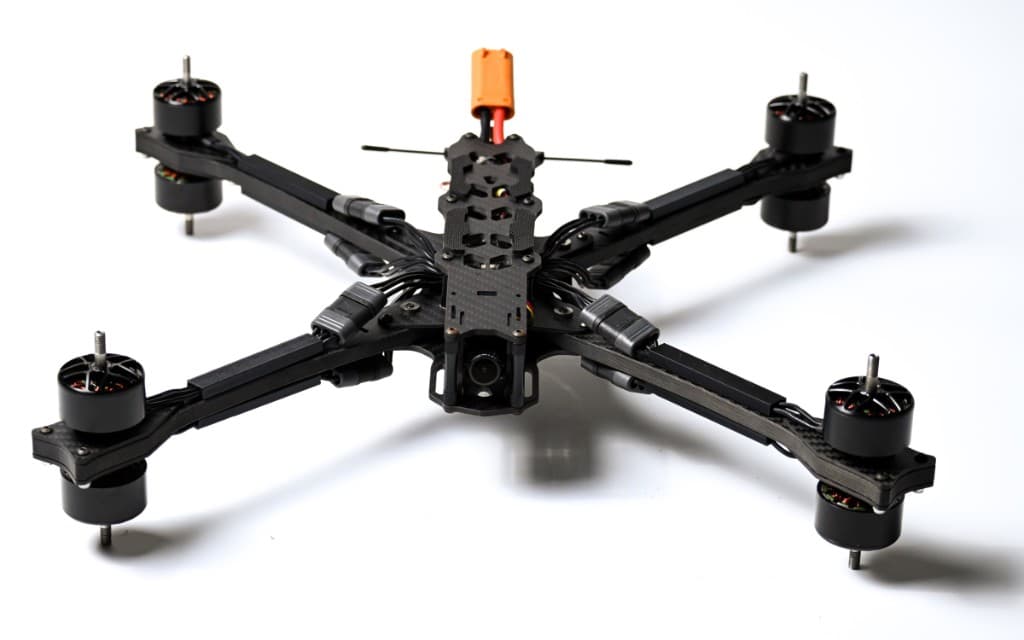

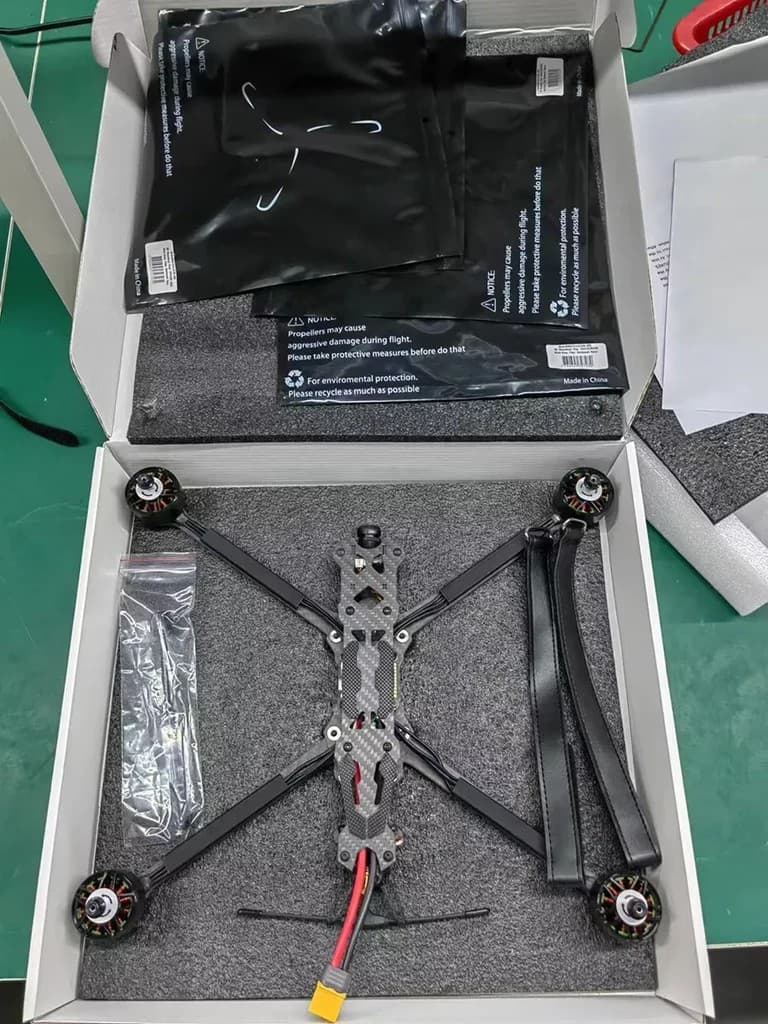

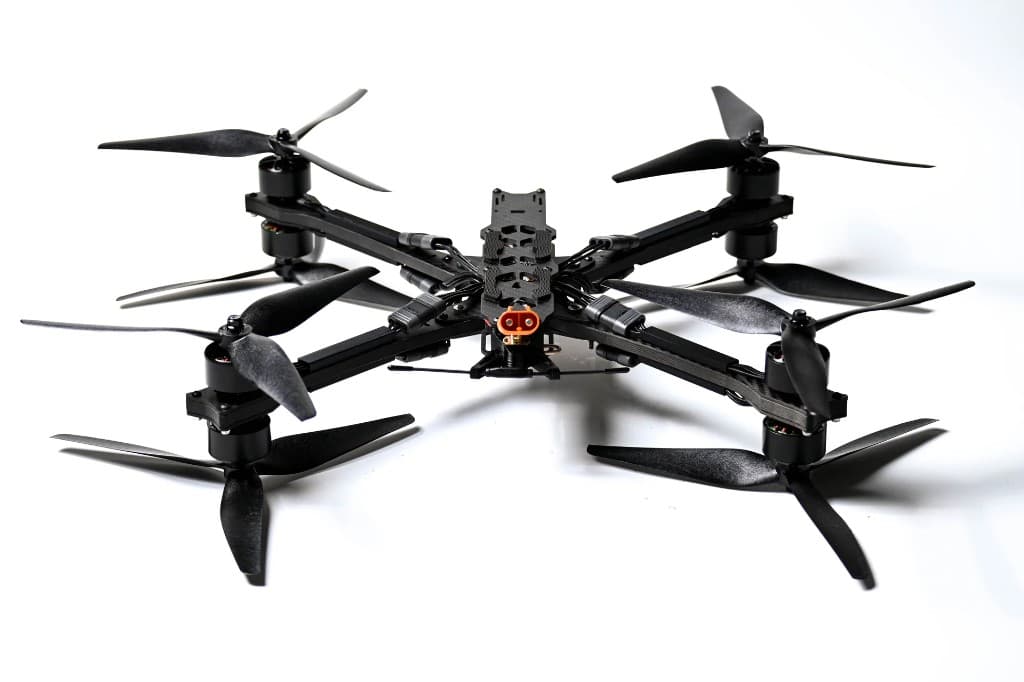

FlySpark 10-Inch LY10-X8 Heavy-Lift FPV Drone | 430mm Wheelbase, 4.5kg Rated Load, 6S Power, 5.8G 2.5W VTX & ELRS915 Control

FlySpark 10-Inch LY10-X8 Heavy-Lift FPV Drone is a compact professional FPV UAV platform designed for payload testing, fast FPV operation, industrial training, compact field inspection support, drone R&D, utility payload trials and custom UAV integration. Built on a 10-inch LY10-X8 X-type frame with 430mm wheelbase, this drone is smaller and easier to handle than 15-inch and 24-inch heavy-lift FPV platforms while still offering a strong 4.5kg rated payload and 5.0kg maximum load.

The platform uses an F405 flight controller, dual 60A 4-in-1 ESC setup for 6S operation, EM3115 900KV motors, HQ1053 propellers, ELRS915 receiver, 5.8GHz 2.5W video transmitter, 5.8GHz 151mm 3.5dBi antenna and optional 1500TVL FPV camera. The drone weight is approximately 1580g, maximum takeoff weight is 8.0kg and the maximum flight speed is listed at 153km/h.

The recommended battery is 6S 10000mAh 50C with LCB50 plug. With rated load and 10000mAh battery, listed flight time is approximately 9 minutes. With rated load and 16000mAh battery, listed flight time is approximately 12 minutes. This makes the LY10-X8 suitable for customers who need a compact, high-speed, high-payload FPV drone for professional non-hazardous payload work, FPV testing and UAV development.

• PRODUCT POSITIONING:
• • 10-inch heavy-lift FPV drone
• • LY10-X8 frame platform
• • 430mm wheelbase
• • X Type frame
• • 4.5kg rated load
• • 5.0kg maximum load
• • 8.0kg maximum takeoff weight
• • 6S 10000mAh 50C recommended battery
• • 6S 16000mAh endurance option
• • F405 flight controller
• • 60A 4-in-1 ESC 6S × 2
• • EM3115 900KV motors
• • HQ1053 propellers
• • ELRS915 receiver
• • 5.8GHz 2.5W analog VTX
• • 5.8GHz 151mm 3.5dBi antenna
• • Optional 1500TVL FPV camera
• • 153km/h maximum flight speed
• • Rated-load flight time up to 12 minutes with 16000mAh battery

• BEST USE CASES:
• • Compact heavy-lift FPV flight testing
• • Industrial UAV R&D
• • Payload integration trials
• • Sensor payload testing
• • Camera payload testing
• • High-speed FPV platform development
• • Professional FPV training
• • Field inspection support
• • Utility drone development
• • Non-hazardous payload transport testing
• • Engineering validation
• • Agriculture monitoring payload testing
• • Industrial site UAV testing
• • Academic drone research
• • Custom UAV development

• STANDARD BUILD INCLUDED:
• • FlySpark 10-inch LY10-X8 X-type heavy-lift FPV airframe
• • F405 flight controller
• • 60A ESC 4-in-1 6S × 2
• • EM3115 900KV motors
• • HQ1053 propellers
• • ELRS915 receiver
• • 5.8GHz 2.5W analog VTX
• • 5.8GHz 151mm 3.5dBi antenna
• • Optional 1500TVL FPV camera

IMPORTANT USE NOTE: This product is intended for lawful professional UAV operation, payload testing, training, industrial inspection support and R&D use only. It must not be used for unlawful surveillance, unsafe public-area operation, weaponized payloads, harmful payload delivery or aviation-rule violations. Operate only under DGCA/local aviation rules, RF regulations, site permissions, privacy laws and safe UAV procedures. Use the 5.8GHz VTX and ELRS915 receiver only on legally permitted frequencies and power levels. Always connect a suitable antenna before powering the VTX.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark LY10-X8 Heavy-Lift FPV Drone? A: It is a 10-inch compact professional FPV UAV platform with 430mm wheelbase, 4.5kg rated payload, 5.0kg maximum load, 6S power architecture, F405 flight controller, ELRS915 receiver and 5.8GHz 2.5W VTX.

• Q: What is the selling price of this drone?
• A: The listed selling price of the standard build is ₹1,42,441.

• Q: What is the frame size?
• A: The frame size is 10 inch.

• Q: What is the frame model?
• A: The frame model is LY10-X8.

• Q: What is the wheelbase?
• A: The wheelbase is 430mm.

• Q: What is the frame type?
• A: The frame type is X Type.

• Q: What flight controller is used?
• A: The drone uses an F405 flight controller.

• Q: What ESC is used?
• A: The drone uses 60A ESC 4-in-1 6S × 2.

• Q: What motors are used?
• A: The drone uses EM3115 900KV motors.

• Q: What propellers are used?
• A: The propeller specification is HQ1053.

• Q: What receiver is used?
• A: The drone uses an ELRS915 receiver.

• Q: What VTX is included?
• A: The drone uses a 5.8GHz 2.5W analog video transmitter.

• Q: What antenna is included?
• A: The antenna is 5.8GHz, 151mm, 3.5dBi.

• Q: Is the camera included?
• A: The 1500TVL camera is listed as optional.

• Q: What is the drone weight?
• A: The drone weight is 1580g.

• Q: What is the rated load?
• A: The rated load is 4.5kg.

• Q: What is the maximum load?
• A: The maximum load is 5.0kg.

• Q: What is the maximum takeoff weight?
• A: The maximum takeoff weight is 8.0kg.

• Q: What battery is recommended?
• A: The recommended battery is 6S 10000mAh 50C with LCB50 plug.

• Q: What is the maximum flight speed?
• A: The maximum flight speed is 153km/h.

• Q: What is the flight time with rated load?
• A: With rated load and 10000mAh battery, the listed flight time is about 9 minutes. With rated load and 16000mAh battery, it is about 12 minutes.

• Q: Is this drone suitable for payload testing?
• A: Yes. It is suitable for non-hazardous payload testing, sensor payloads, camera payloads, R&D payloads and compact industrial UAV development.

• Q: Is this smaller than the MX15-6?
• A: Yes. This is a 10-inch 430mm wheelbase platform, making it more compact than the 15-inch MX15-6.

• Q: Is this the same as the FlySpark 10-inch long-range FPV drone?
• A: No. LY10-X8 is an X8 coaxial heavy-lift platform with 4.5kg rated load. The 10-inch long-range FPV is a separate 6S GPS recon platform.

• Q: Is this suitable for high-speed FPV flight?
• A: Yes, the listed maximum flight speed is 153km/h, but high-speed operation should only be done by trained pilots in approved open areas.

• Q: Can it be used for industrial inspection?
• A: Yes, with suitable lawful camera or sensor payload and proper flight permissions.

• Q: Can it carry 5kg payload?
• A: The listed maximum load is 5.0kg. For regular work, the rated load of 4.5kg should be treated as the normal working payload.

• Q: Does FlySpark provide integration support?
• A: Yes. FlySpark / AnuShakti Infotech Pvt. Ltd. can support payload integration, configuration review, training and deployment planning.

• Q: What legal rules must be followed?
• A: Operators must follow DGCA/local aviation rules, RF regulations, payload permissions, site authorization, privacy laws and safe flight procedures.

• Q: Can the 5.8GHz VTX be powered without antenna?
• A: No. Always connect a suitable antenna before powering the VTX to prevent RF power-stage damage.

Q: What warranty is included? A: Warranty support is 1 Year for manufacturing defects under approved use and normal operating conditions. Crash damage, wrong wiring, wrong battery, VTX damage from no antenna, water ingress, overload, unsafe operation and unauthorized modifications may not be covered.
