FlySpark HD-1 Small Anti-Drone System | Multi-Layer C-UAS

FlySpark HD-1 Small Anti-Drone System - Multi-Layer C-UAS

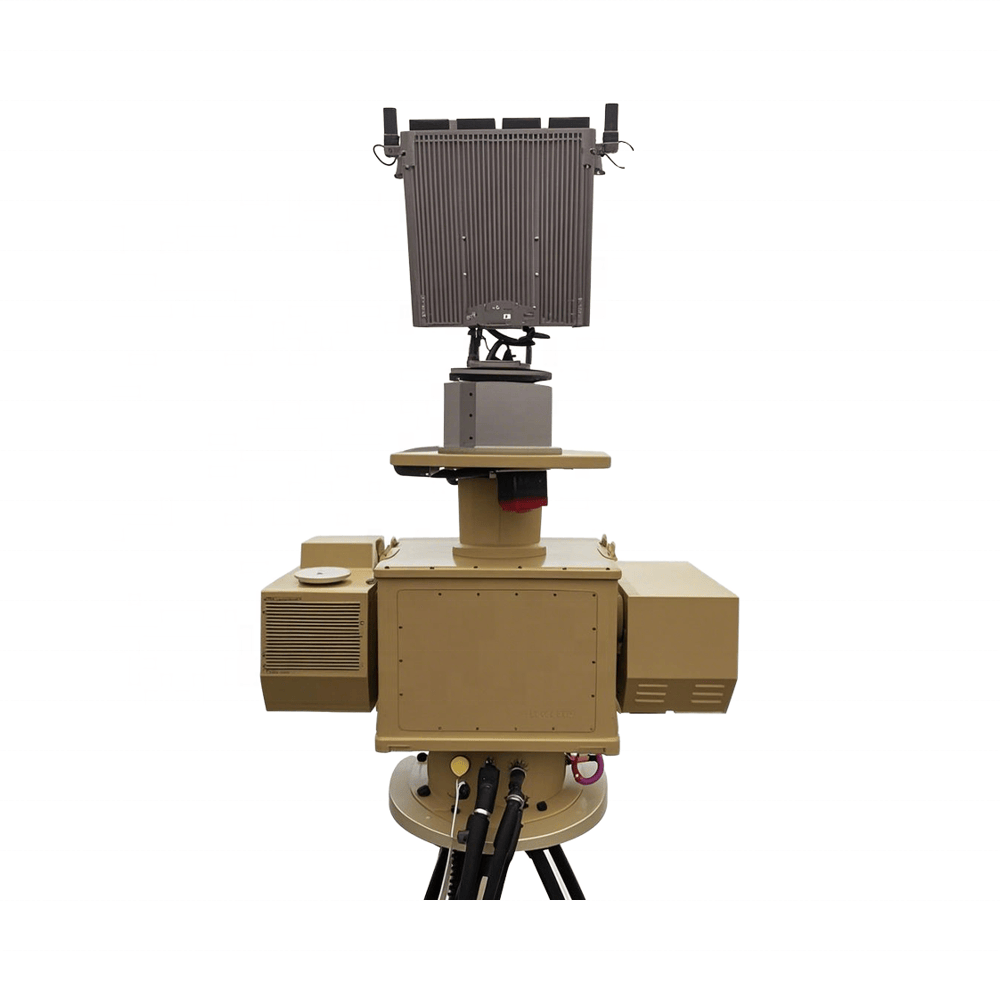

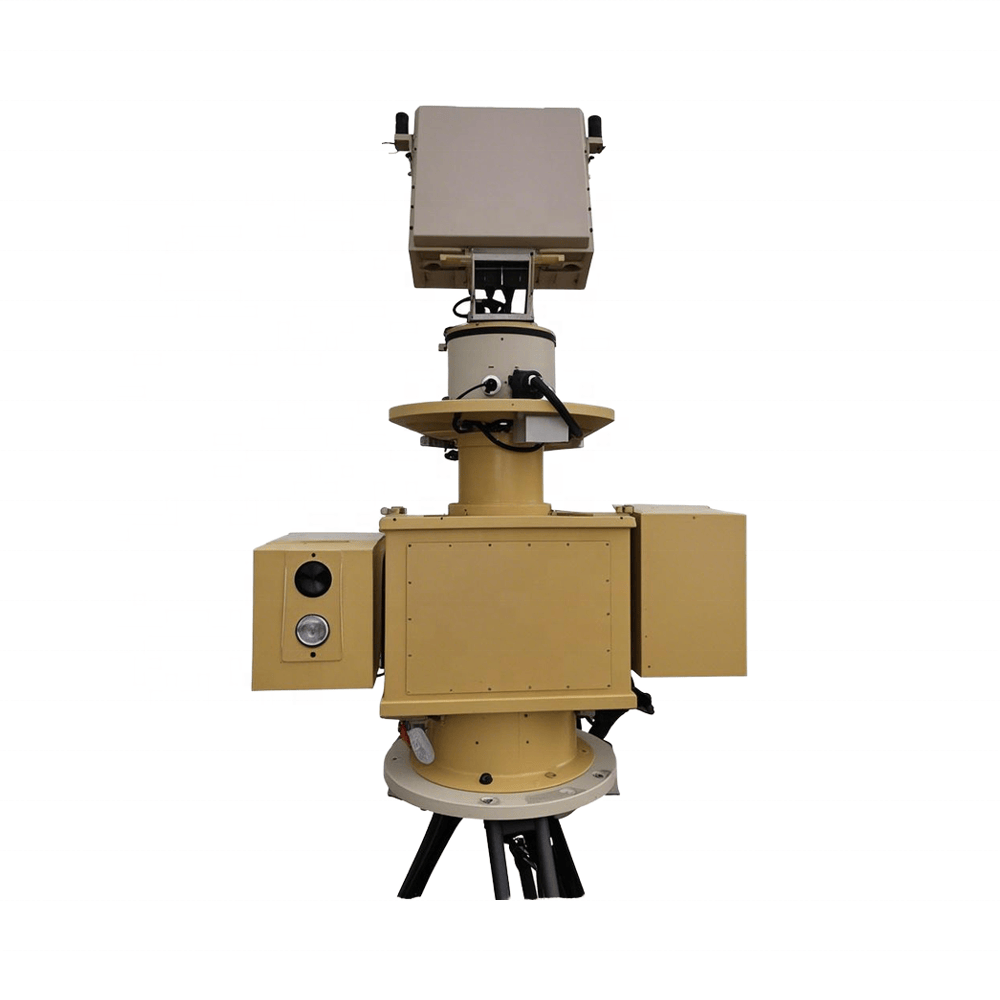

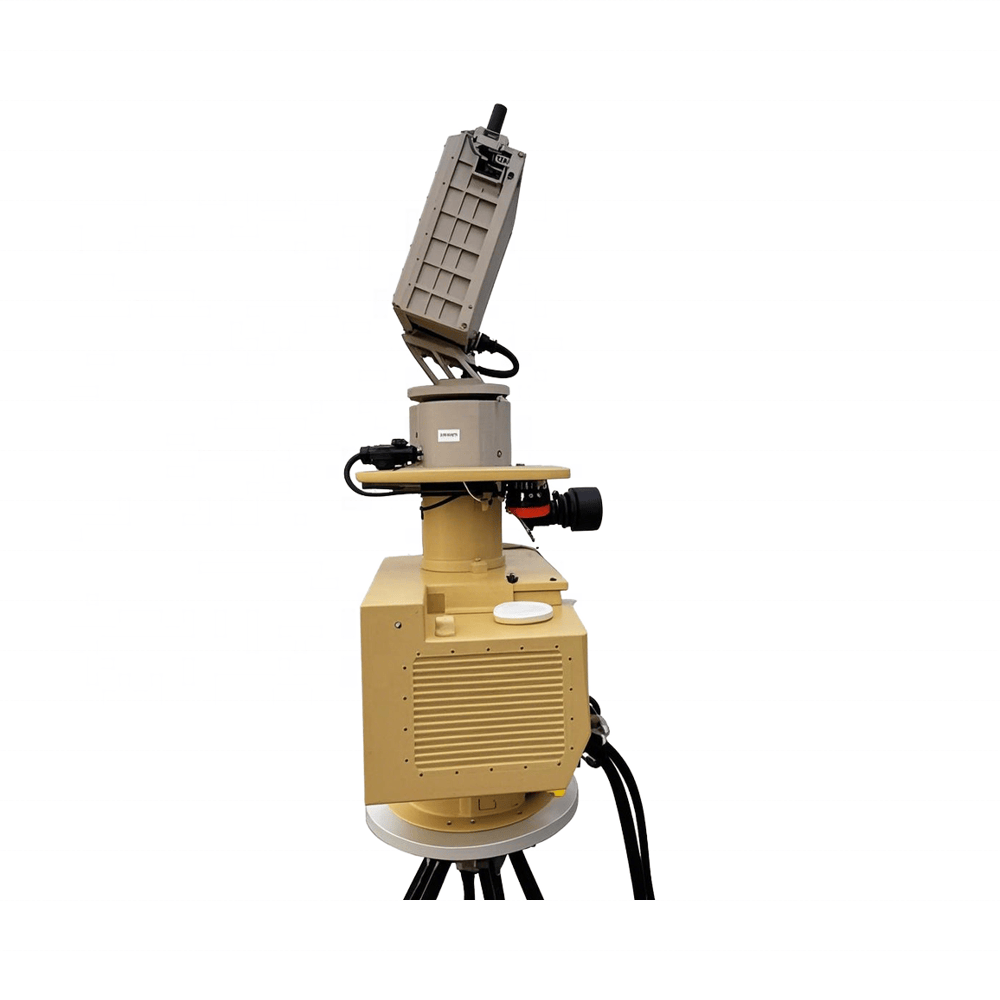

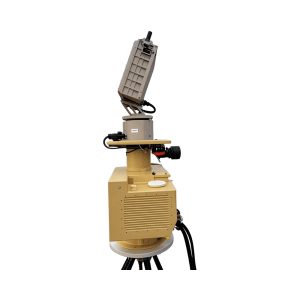

The FlySpark HD-1 is a compact modular counter-UAS platform designed for authorized protection against consumer drone threats in airports, energy facilities, event venues, industrial campuses, intelligent city security networks and important restricted sites. Built as a multi-layer anti-drone system, HD-1 combines drone detection, tracking, RF mitigation, laser drive-off and close-range interception capability in a flexible architecture that can be deployed as individual modules or combined according to site risk, regulatory approval and operational requirements.

KEY FEATURES & BENEFITS:

• Multi-Layer Counter-UAS Architecture:
• • Modular defence layers for detection, tracking, RF mitigation, laser drive-off and close-range interception
• • Modules can be deployed independently or combined into a complete site-security system
• • Designed for consumer drone threat monitoring and response

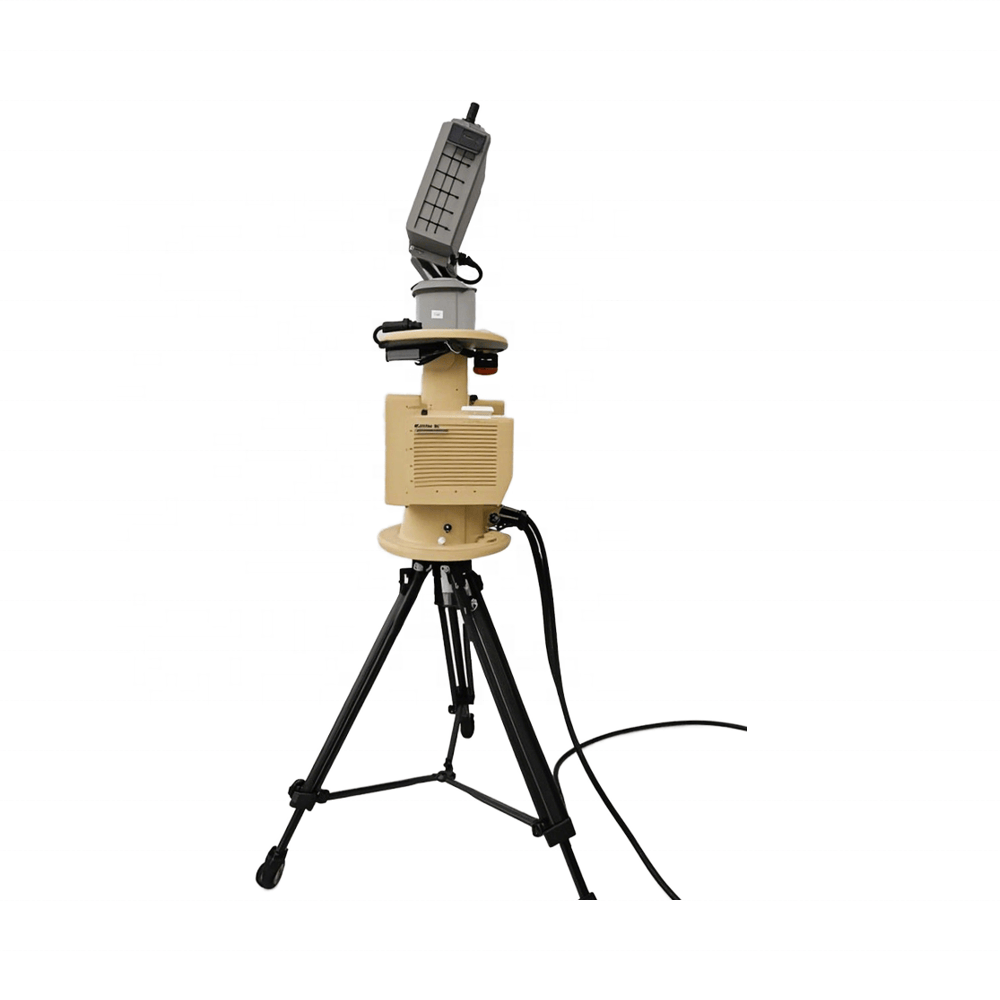

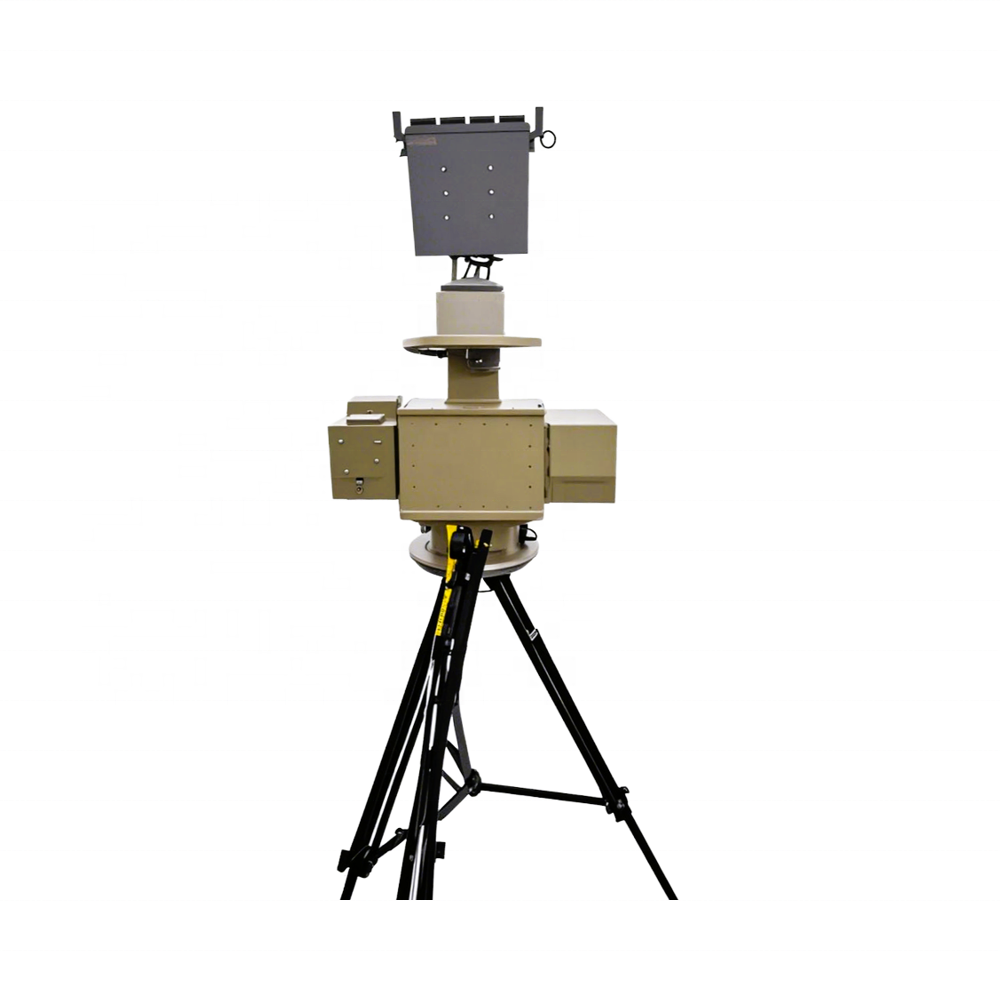

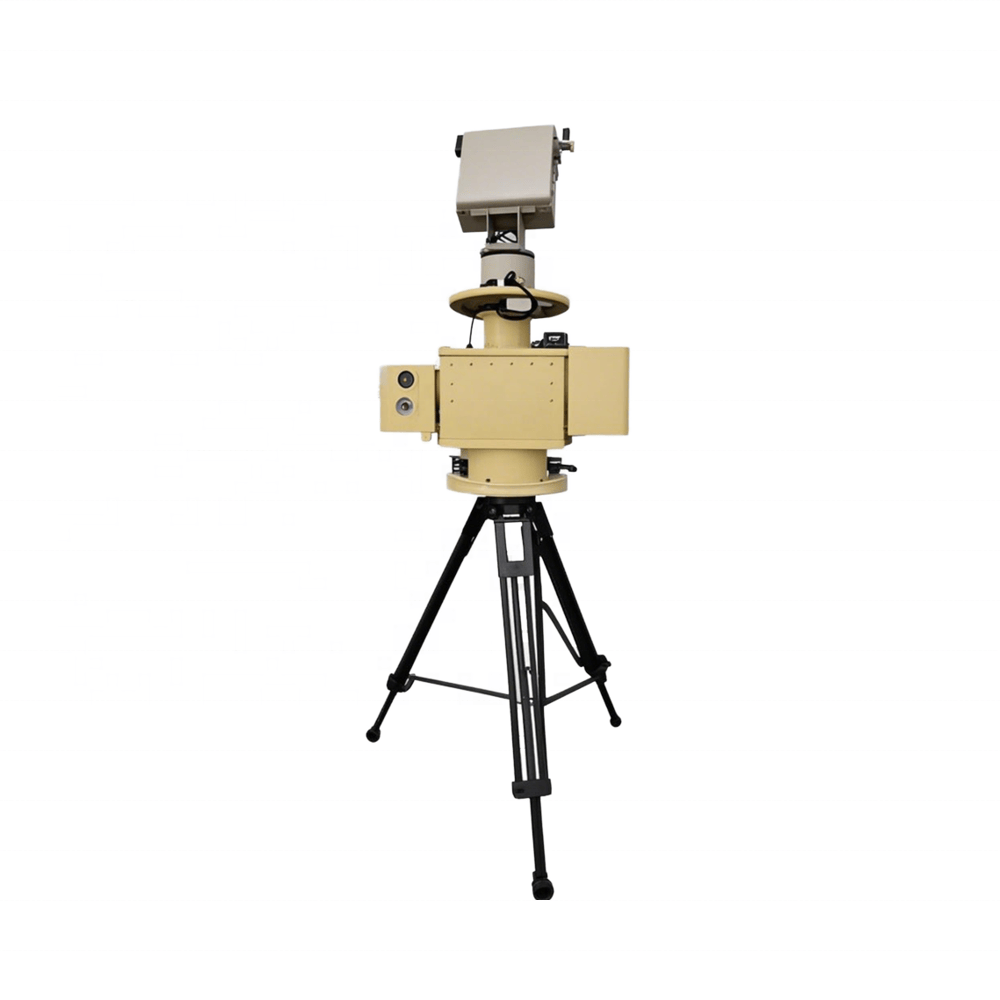

• • Supports fixed deployment and tripod-based deployment
• • Compact system design for easy disassembly, relocation and rapid site readiness

• Detection & Tracking Capability:
• • Detection range up to 3 km with 150 m blind-area reference
• • Tracking distance up to 2 km
• • Detection angle coverage of azimuth 0–360° and pitch 0–30°
• • Tracking angle coverage of azimuth 0–360° and pitch 0–60°
• • Visual operation interface with target and system status display

• Rapid Deployment Security Platform:
• • Startup time ≤2 minutes
• • Small, modular and easy to move
• • Suitable for energy facilities, airports, train stations, stadiums, concerts, private estates, high-end communities and low-altitude city security networks
• • Customizable configurations available from FlySpark
• • Designed for authorized professional, institutional and government security users

AUTHORIZED USE ONLY: The FlySpark HD-1 is a restricted C-UAS security system intended only for authorized government agencies, defence organizations, law-enforcement bodies, airport security, critical infrastructure operators, approved security agencies and licensed entities. RF mitigation, laser drive-off and interception functions may require KYC, end-use documentation, site approval, aviation permissions, RF/spectrum permissions, laser-safety controls and applicable legal authorization. Unauthorized civilian use, unlawful RF interference, unsafe laser use or unapproved interception is strictly not permitted.

FREQUENTLY ASKED QUESTIONS:

Q: What is the FlySpark HD-1 Small Anti-Drone System? A: The FlySpark HD-1 is a compact modular counter-UAS system designed for consumer drone threats. It supports detection, tracking, RF mitigation, laser drive-off and close-range interception in a multi-layer C-UAS architecture.

Q: What is the price of the FlySpark HD-1? A: The listed price is POA (WhatsApp quote) for the HD-1 Small Anti-Drone System Standard Multi-Layer Package. Final pricing may vary depending on selected modules, site integration, command workflow, training and compliance documentation.

Q: What does multi-layer C-UAS mean? A: Multi-layer C-UAS means the system can combine multiple security layers such as detection, tracking, RF mitigation, laser drive-off and close-range interception. These modules can be deployed separately or together depending on site risk and authorization.

Q: What drone threats is the HD-1 designed for? A: The HD-1 is designed for consumer drone threats. It is suitable for monitoring and response planning against small low-altitude UAV activity in authorized security environments.

Q: What is the detection range? A: The detection range is listed as up to 3 km with a 150 m blind-area reference. Real-world detection depends on drone type, altitude, environment, weather, site layout and module configuration.

Q: What is the tracking range? A: The tracking distance is listed as up to 2 km. Actual tracking performance depends on the target drone, terrain, line of sight, weather, sensor positioning and electromagnetic environment.

• Q: What is the detection angle?
• A: The detection angle is listed as azimuth 0–360° and pitch 0–30°, supporting all-round detection coverage for low-altitude drone monitoring.

• Q: What is the tracking angle?
• A: The tracking angle is listed as azimuth 0–360° and pitch 0–60°, providing wide-angle tracking support for detected drone targets.

• Q: What is the startup time?
• A: The system startup time is listed as ≤2 minutes, enabling rapid readiness for authorized security teams.

• Q: Is HD-1 portable?
• A: Yes, HD-1 is small, modular and easy to disassemble and move. It supports tripod deployment as well as fixed deployment depending on site requirements.

Q: Can the modules be used individually? A: Yes, the HD-1 architecture allows modules to be deployed individually or combined. This lets customers select detection-only, tracking, RF mitigation, laser drive-off, close interception or complete multi-layer configurations.

Q: Does the HD-1 include RF mitigation? A: Yes, RF mitigation is part of the HD-1 multi-layer architecture. RF mitigation functions are restricted and require lawful authorization, RF/spectrum permissions and approved operating procedures.

Q: Is HD-1 an RF jammer? A: HD-1 is a multi-layer C-UAS system that can include RF mitigation as one layer. It should be treated as a restricted counter-drone system and used only by authorized entities under applicable law.

Q: Does HD-1 include laser drive-off? A: Laser drive-off is supported as part of the multi-layer architecture depending on configuration. Laser operation requires trained personnel, safety controls, site approval and compliance with applicable regulations.

Q: Does HD-1 support close-range interception? A: Yes, close-range interception is supported as part of the HD-1 architecture depending on the selected configuration. Interception use must be authorized, safety-controlled and compliant with all applicable rules.

Q: What is the typical RF effect range? A: The FlySpark page lists RF effect reference performance in the 500–2000 m range. Actual performance depends on selected configuration, authorization, terrain, RF environment and target drone system.

Q: What is the typical laser drive-off range? A: The FlySpark page lists laser drive-off reference performance in the 150–600 m range. Actual results depend on configuration, site conditions, safety controls, environmental factors and target behavior.

Q: What is the close interception reference distance? A: The FlySpark page lists close interception reference performance at ≤100 m. Final use depends on configuration, site-risk assessment, operator training and lawful authorization.

Q: What applications is HD-1 suitable for? A: HD-1 is suitable for energy facilities, airports, train stations, stadiums, concerts, private estates, high-end communities, industrial campuses and intelligent city low-altitude security networks.

Q: Can HD-1 be used at airports? A: Yes, HD-1 can support airport drone-protection workflows for authorized airport security teams. Deployment must follow aviation authority approvals, site procedures and applicable safety requirements.

Q: Can HD-1 be used for event security? A: Yes, HD-1 can support large-scale event security at stadiums, concerts and temporary restricted areas. Deployment must be handled by authorized security teams with appropriate permissions.

Q: Can it be used for energy facilities? A: Yes, HD-1 is suitable for energy facilities such as power stations, factories and industrial sites requiring low-altitude drone security and perimeter protection.

Q: What is the operating temperature range? A: The operating temperature range is listed as -20°C to +60°C, with humidity below 90%. Field deployment should still include appropriate protection for cables, power, electronics and mounting hardware.

Q: Who can purchase the HD-1 system? A: Suitable buyers include government agencies, defence organizations, law-enforcement bodies, airport security teams, energy facility operators, critical infrastructure security teams, approved security agencies and licensed C-UAS integrators.

Q: Is HD-1 available for civilian hobby use? A: No. HD-1 is a restricted C-UAS platform and is not intended for hobby, recreational, private or unauthorized use. RF mitigation, laser drive-off and interception functions require lawful authorization and trained operation.

Q: Can FlySpark customize the HD-1 configuration? A: Yes, FlySpark offers customizable configurations. Customers can select modules and deployment architecture based on site risk, target threat profile, operational requirements and compliance approvals.

Q: What maintenance is required? A: Maintenance should include inspection of detection sensors, tracking module, RF module, laser module, interception module, tripod/fixed mounts, cables, connectors, power systems, software status and operator interface. Professional scheduled maintenance is recommended.

Q: What warranty is included? A: Warranty support generally covers manufacturing defects under approved use and normal operating conditions. Damage from unauthorized operation, incorrect installation, unsafe laser use, RF misuse, physical impact, water ingress, tampering or unapproved modification may not be covered.
