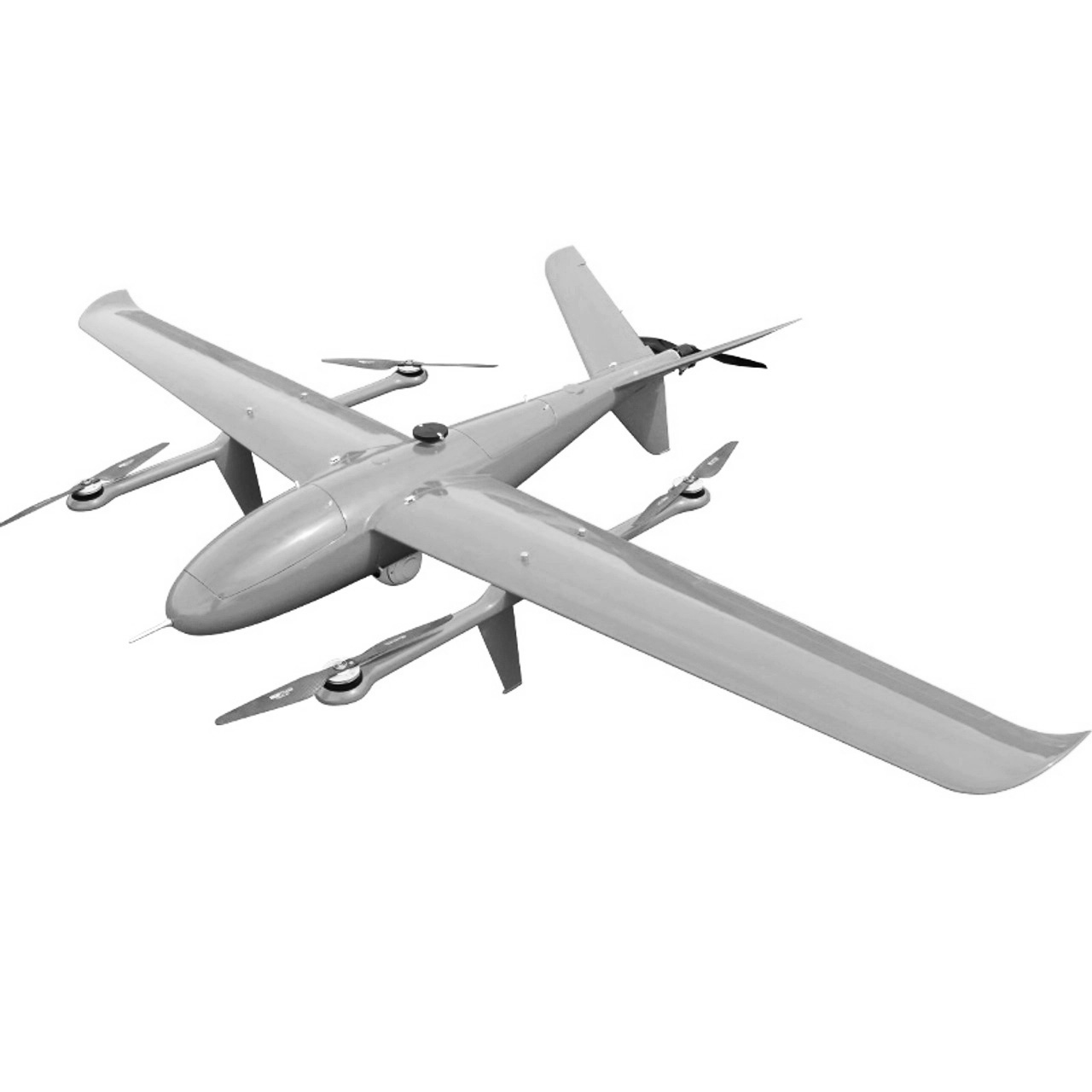

FlySpark VTOL-25 Full Electric Long-Endurance VTOL Drone for Survey, Mapping & Inspection
₹1,900,000.00

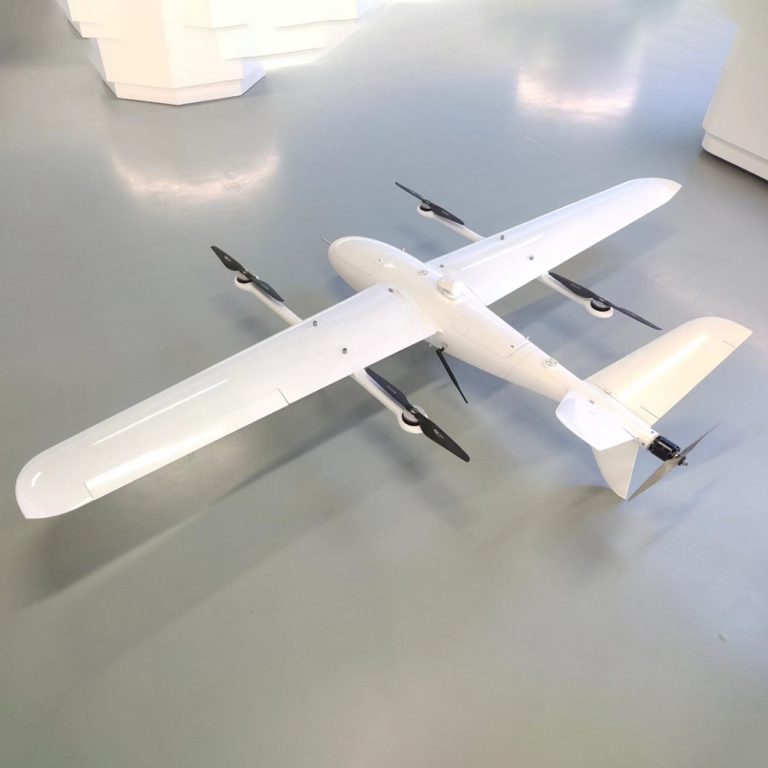

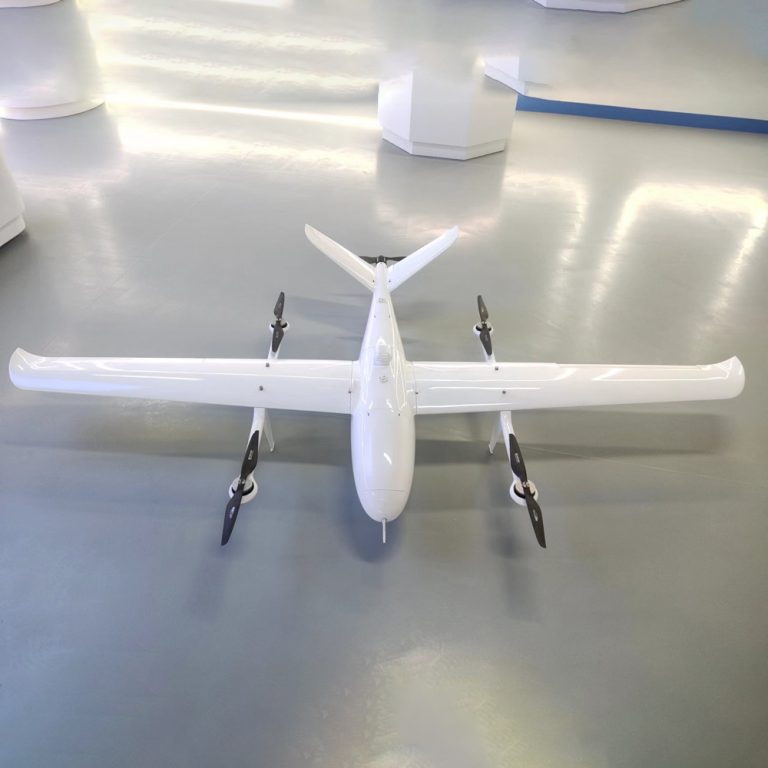

The FlySpark VTOL-25 Full Electric VTOL Drone is a professional long-endurance UAV platform designed for efficient vertical takeoff, stable fixed-wing cruising, and reliable field operation.

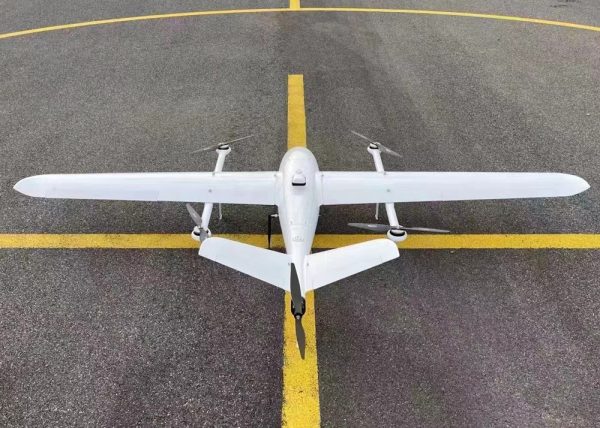

With its hybrid VTOL design, the drone can take off and land vertically like a multirotor and then transition into fixed-wing flight for longer range and higher efficiency. This makes it suitable for areas where runway takeoff is not possible.
The VTOL-25 is built for professional applications such as aerial survey, land mapping, infrastructure inspection, environmental monitoring, agriculture assessment, search support, and long-range industrial observation.

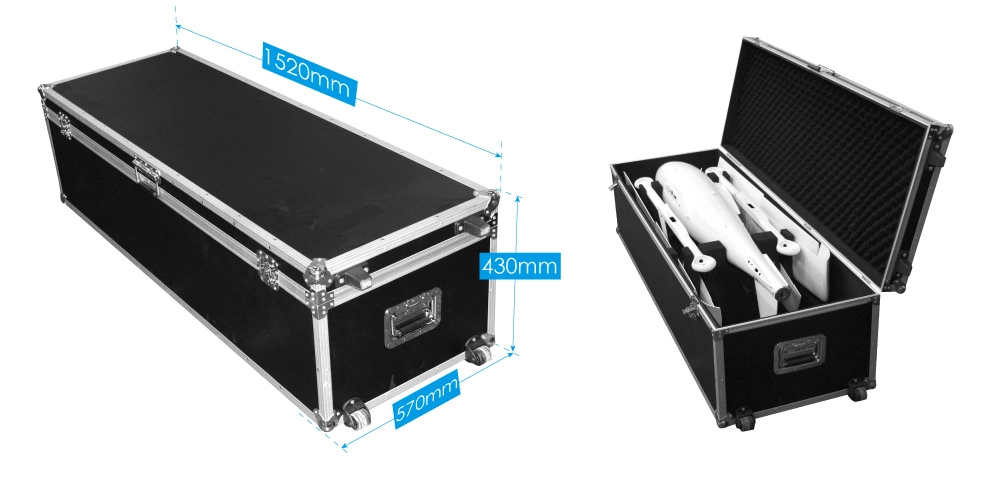

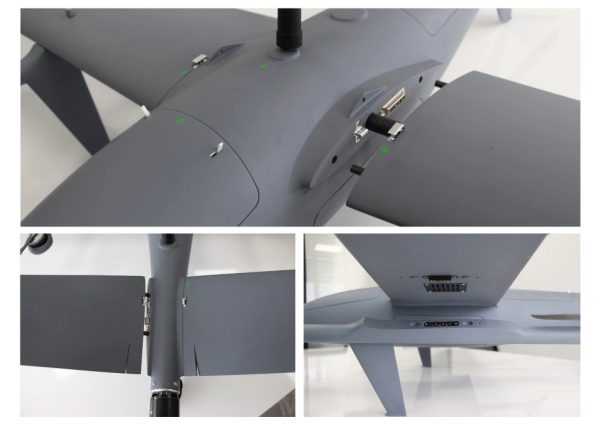

Its carbon-fiber and composite airframe provides a strong yet lightweight structure for extended flight performance. The modular design allows easier assembly, maintenance, and transport, making it suitable for field teams and professional UAV operators.
With long flight endurance, payload flexibility, and electric operation, the FlySpark VTOL-25 is a dependable UAV solution for organizations that need efficient aerial data collection and professional monitoring capability.
Material: Carbon fiber and composite materials
Empty Weight: 3.45 kg
Maximum Takeoff Weight: 14 kg
Maximum Payload Capacity: Up to 2.5 kg
Standard Payload: 1.2 kg
Flight Endurance: Up to 260 minutes unloaded
Flight Endurance with 1.2 kg Payload: Up to 210 minutes
Flight Endurance with 2 kg Payload: Up to 3 hours
Flight Endurance with 2.5 kg Payload: Up to 2 hours
Standard Cruising Speed: 20 m/s
Maximum Cruising Speed: 93.6 km/h
Maximum Speed: 122 km/h
Maximum Flight Altitude: 4800 m
Operating Temperature: -20°C to +45°C
Takeoff / Landing Method: Vertical takeoff and landing
Standard Battery Configuration: 22.8V / 25Ah x 2
Airframe Type: VTOL fixed-wing UAV
Empty Weight: 3.45 kg
Maximum Takeoff Weight: 14 kg
Maximum Payload Capacity: Up to 2.5 kg
Standard Payload: 1.2 kg
Flight Endurance: Up to 260 minutes unloaded
Flight Endurance with 1.2 kg Payload: Up to 210 minutes
Flight Endurance with 2 kg Payload: Up to 3 hours
Flight Endurance with 2.5 kg Payload: Up to 2 hours
Standard Cruising Speed: 20 m/s
Maximum Cruising Speed: 93.6 km/h
Maximum Speed: 122 km/h
Maximum Flight Altitude: 4800 m
Operating Temperature: -20°C to +45°C
Takeoff / Landing Method: Vertical takeoff and landing
Standard Battery Configuration: 22.8V / 25Ah x 2
Airframe Type: VTOL fixed-wing UAV
Operation Guide:
1. Minimum turning radius: 120m@19m/s (roll 18°) (minimum safe turn radius on plateau is not less than 200m).
2. Maximum flight altitude: 4800m.
3. Wind resistance in fixed-wing mode: Not less than wind grade 6 (gust grade 7).
4. Wind resistance in rotor take-off and landing mode: Not less than wind grade 4 (gust grade 6).
5. Operating temperature: -20℃~45℃;
6. Waterproof function: It is able to fly in light rain (safe operating time greater than 10min).
7. Emergency operation time of rotor: Not less than 6.5min (when rotor battery is independently powered, non-standard propulsion configuration).
8. Take-off and landing mode: Vertical take-off and landing.
9. Rotor blade size for vertical take-off: 16/17 inches (recommended).
10. Fixed-wing tail pusher propeller blade: 15~18 inches (recommended).
11. Maximum thrust-to-weight ratio for fixed-wing: 0.6 (standard configuration).
12. Plateau performance: Passed plateau test (for high-altitude standard propulsion configuration, please contact the manufacturer).
13. Standard empty takeoff weight: Approximately 11kg.
14. Safe voltage when entering landing approach: Not less than 44V (for Gens Ace high-voltage battery).
15. Wing installation angle: 2°.
16. Number of airspeed tubes installed: 2 (standard with a single airspeed tube hole).
17. Whether to support the system for uninterrupted power switching of power battery packs: Yes (non-standard equipment).
