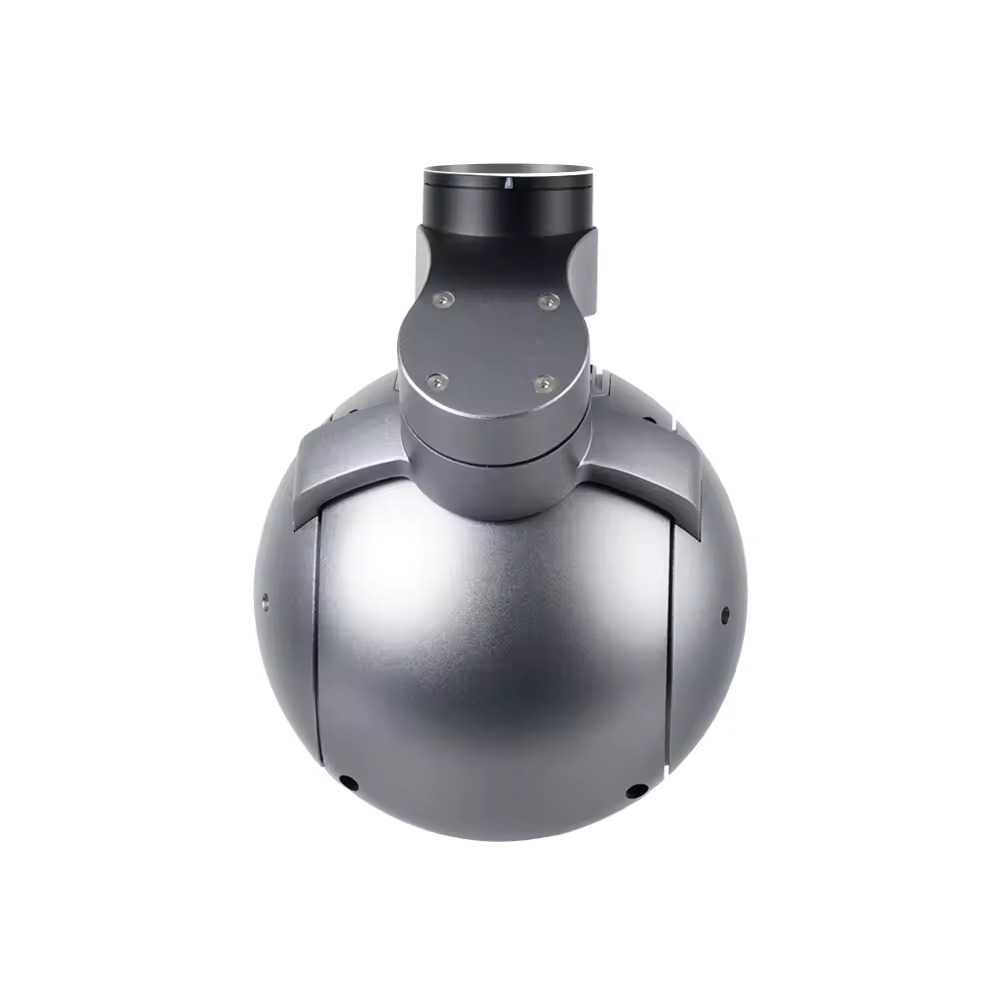

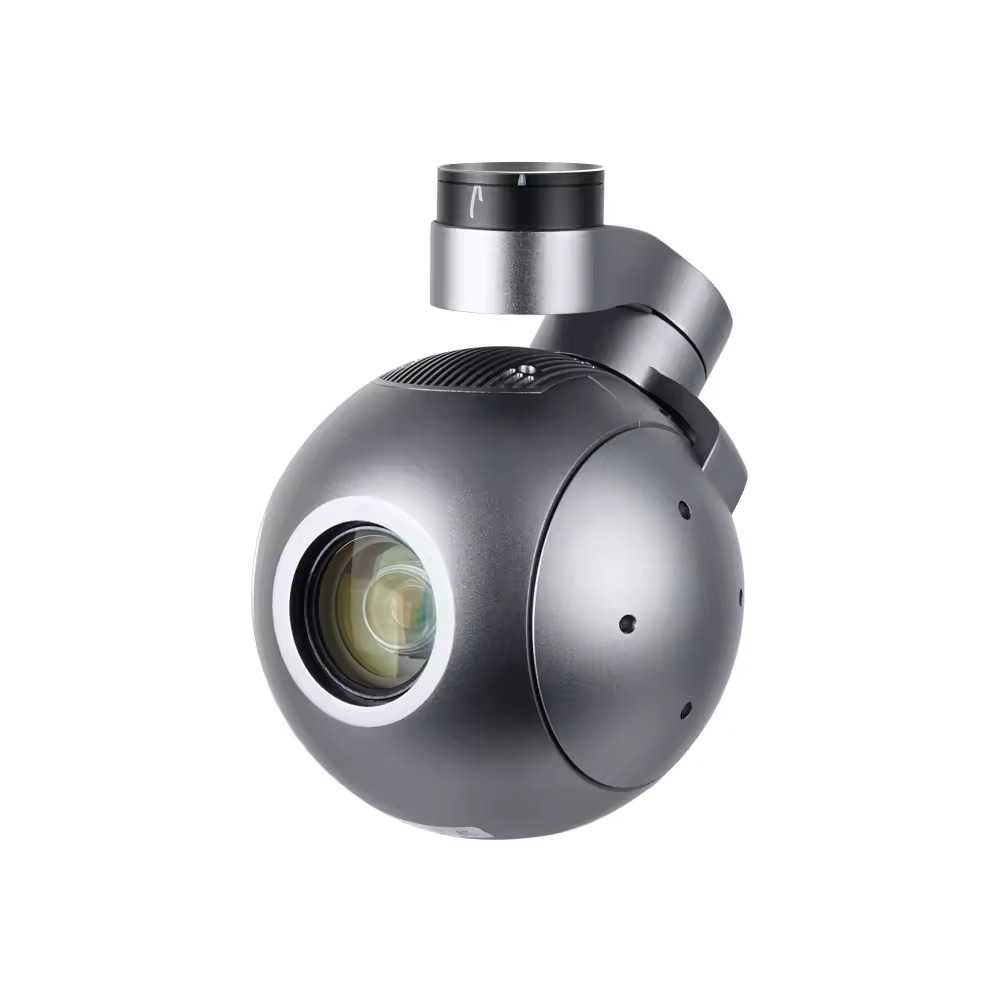

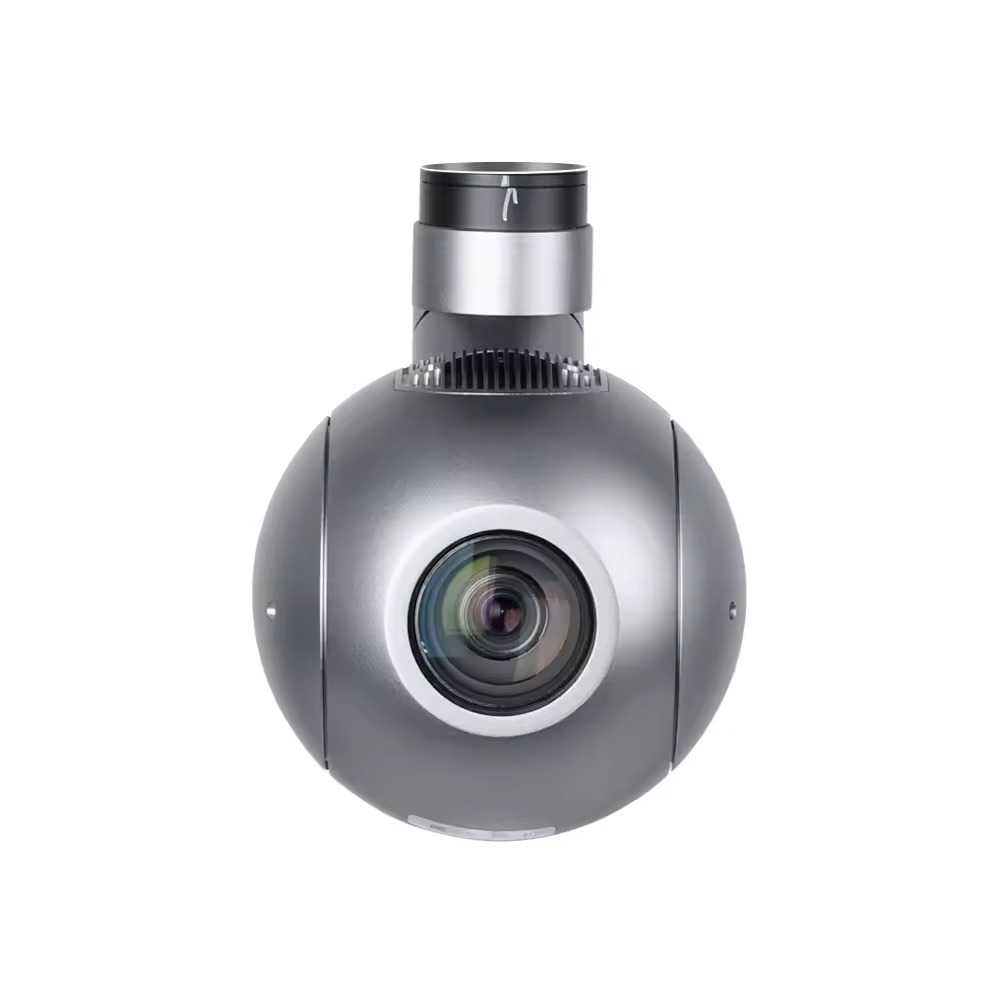

The FlySpark VisionZoom-40 Pro 40x Optical Zoom AI Tracking 3-Axis Gimbal Camera is a professional UAV imaging payload designed for drones, VTOL platforms, fixed-wing UAVs, multirotor systems, ground vehicles, and industrial monitoring applications.

This advanced gimbal camera combines a 40x optical zoom EO camera, AI object detection and tracking, 3-axis gyro stabilization, onboard recording, and multiple control interfaces in a compact aerial imaging payload.

The 40x optical zoom camera provides detailed long-distance visual observation, making it suitable for infrastructure inspection, industrial monitoring, aerial survey, search support, perimeter observation where legally permitted, and professional drone imaging applications.

Its 3-axis stabilized gimbal helps deliver smooth and stable video from moving UAV platforms, while 360° continuous yaw support allows wide-area coverage and flexible camera movement during flight. AI detection and tracking support helps identify and follow objects such as vehicles and humans for approved civil, industrial, emergency response, and security monitoring use cases.

The camera supports Micro HDMI and IP video output, onboard TF card recording up to 128GB, HTTP card access, KLV metadata output, geotagging, and multiple control options including PWM, TTL, S.BUS, TCP, and UDP. It can also integrate with compatible ground control software for map-based camera pointing and professional mission workflows.

Key Features:

• 40x optical zoom EO camera for long-range visual observation
• AI detection and object tracking support
• 3-axis gyro-stabilized gimbal for smooth aerial imaging
• 360° continuous yaw support depending on output version
• Sony 1/2.8 inch CMOS imaging sensor
• Full HD 1080P image and video output
• Micro HDMI and IP video output support
• TF card local storage up to 128GB
• HTTP access for onboard image and video retrieval
• KLV metadata output support for professional video workflows
• Geotagging support with time and GPS coordinate data
• Defog, image stabilization, autofocus, backlight compensation, and OSD support
• Multiple control methods including PWM, TTL, S.BUS, TCP, and UDP
• Suitable for multirotor drones, VTOL UAVs, fixed-wing UAVs, vehicles, and fixed installations

Specifications:

Product Type: Optical Zoom AI Tracking Gimbal Camera
Brand: FlySpark
Model Name: VisionZoom-40 Pro
Camera Type: EO optical zoom camera
Image Sensor: Sony 1/2.8 inch CMOS
Image Quality: Full HD 1080P, 1920×1080
Effective Pixels: 2.13 MP
Optical Zoom: 40x
Digital Zoom: 32x
Lens Focal Length: 4.25 mm wide to 170 mm tele
Aperture: F1.6 to F4.95
Horizontal Field of View: 66.35° wide to 1.9° tele
Minimum Object Distance: 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Focus Mode: Auto / One Push / Manual
Exposure Control: Auto / Manual / Shutter Priority / Iris Priority
White Balance: Auto / Indoor / Outdoor / One Push / Manual
Shutter Speed: 1/1s to 1/30,000s
Supported Camera Functions: Auto ICR, image stabilization, progressive scan, backlight compensation, defog, OSD
Video Output: Micro HDMI 1080P 30fps/60fps, IP RTSP/UDP 720P or 1080P 30fps
Photo Format: JPG 1920×1080
Video Format: MP4 1080P 30fps
Local Storage: TF card up to 128GB, Class 10, FAT32 or exFAT
Online Card Reading: HTTP access supported
Working Voltage: 16V
Input Voltage: 4S to 6S
Output Voltage: 5V via PWM
Dynamic Current: 500–1500mA at 16V
Operating Temperature: -20°C to +60°C
Control Methods: PWM / TTL / S.BUS / TCP / UDP
Geotagging: Supports time and GPS coordinates in EXIF data
Gimbal Stabilization: 3-axis gyro-stabilized gimbal
Mechanical Range: Tilt -60° to 130°, Roll ±40°, Pan ±300° / ±360° continuous depending on version
Software Range: Tilt -45° to 125°, Pan ±290° / ±360° continuous depending on version
Vibration Angle: ±0.02°
One-Key Centering: Supported
AI Target Types: Vehicles and humans
AI Object Tracking Update Rate: 30Hz
AI Output Delay: <30ms
Minimum Object Contrast: 5%
Object Size Range: 16×16 to 256×256 pixels
Tracking Speed: ±48 pixels/frame
Object Memory: 100 frames
AI Auto-Zoom: Supported

Applications:

• UAV aerial monitoring
• Industrial inspection
• Infrastructure inspection
• Pipeline and powerline inspection
• Search and rescue support
• Environmental monitoring
• Wildlife monitoring
• Disaster response support
• Long-range visual observation
• Survey and mapping support
• Perimeter monitoring where legally permitted
• Professional aerial imaging
• Research and development UAV projects

The FlySpark VisionZoom-40 Pro is suitable for UAV operators, drone integrators, inspection teams, emergency response teams, research groups, and industrial users who need long-range optical zoom, AI-assisted tracking, stable gimbal performance, and professional aerial imaging capability.
