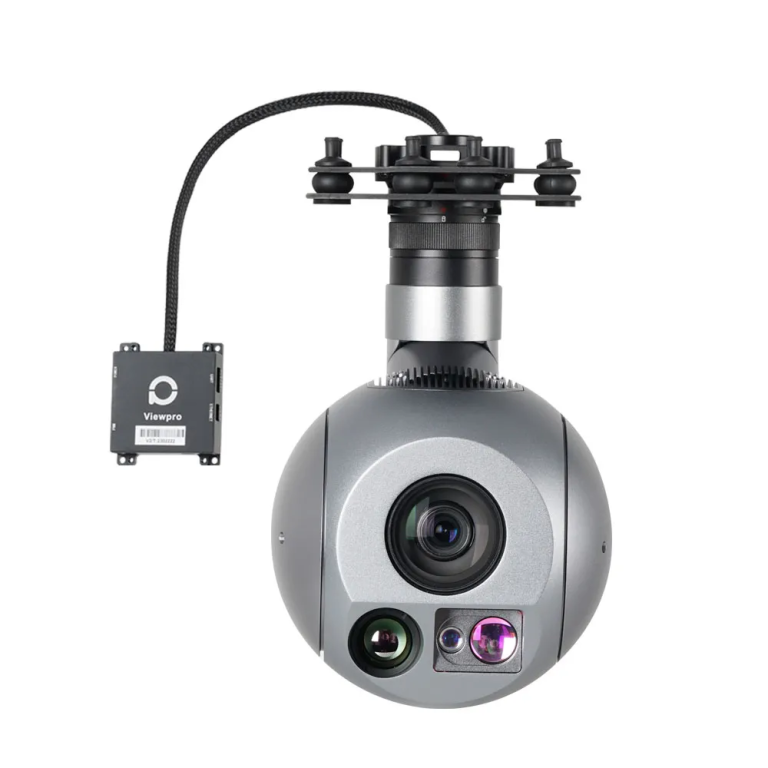

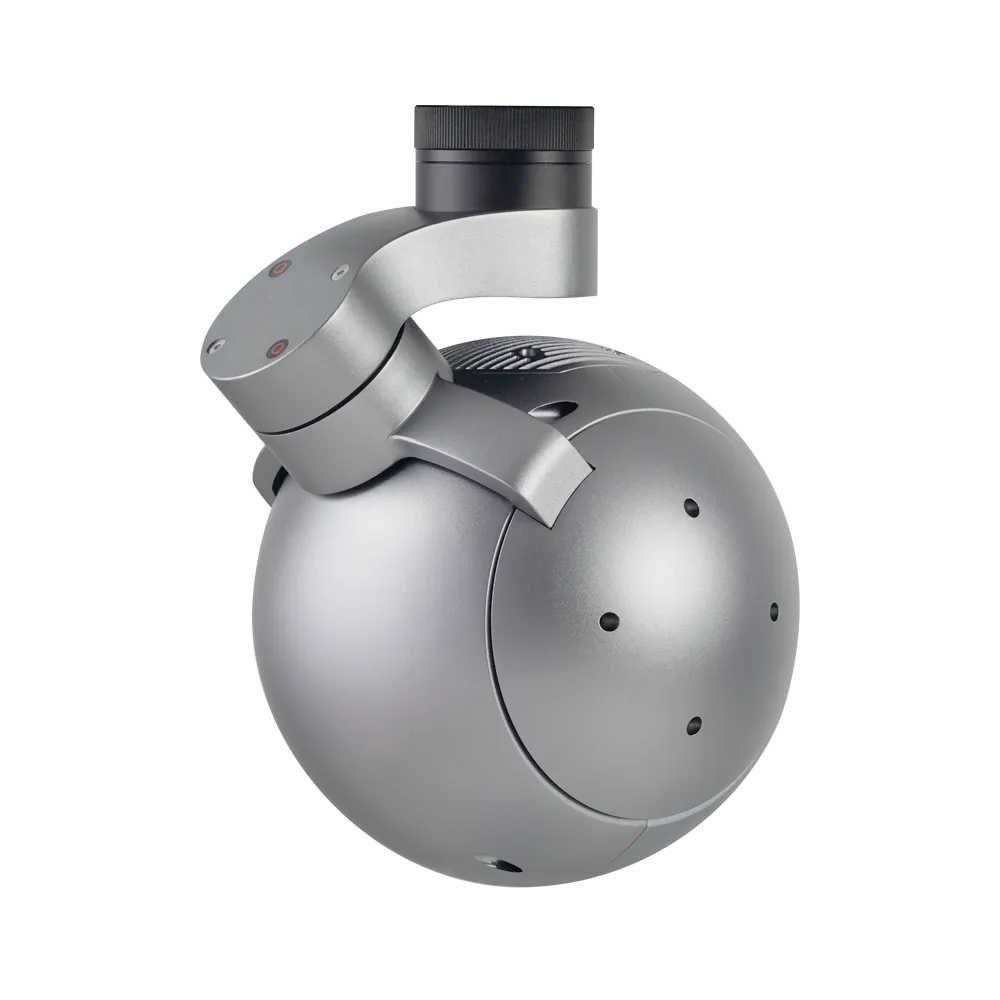

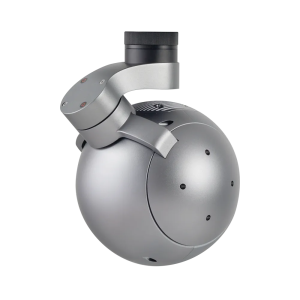

The FlySpark VisionTrack-40TR Pro EO/IR AI Tracking Gimbal Camera with Laser Rangefinder is a professional multi-sensor imaging payload designed for UAVs, VTOL drones, fixed-wing platforms, ground vehicles, and industrial monitoring systems.

This advanced gimbal camera integrates a 40x continuous zoom electro-optical camera, uncooled long-wave infrared thermal imager, laser rangefinder, and AI object tracking system into a compact gyro-stabilized payload. It is designed for day and night observation, long-range inspection, search support, perimeter monitoring, wildlife monitoring, infrastructure inspection, and professional aerial surveillance applications.

The 40x EO zoom camera provides detailed visual imaging for long-distance observation, while the 640×512 thermal sensor helps detect heat signatures in low-light, night-time, foggy, or low-visibility environments. The integrated laser rangefinder supports accurate distance measurement, and the AI recognition system can detect and track objects such as vehicles and humans for approved civil, industrial, and security applications.

With multiple control interfaces including PWM, S.BUS, TTL, TCP, and UDP, the VisionTrack-40TR Pro can be integrated with different UAV platforms and ground control systems. Video output options include micro HDMI and IP RTSP, making it suitable for real-time monitoring and recording workflows.

Key Features:

• 40x continuous zoom EO camera for long-range visual observation
• EO + IR dual-sensor imaging for day and night operation
• 640×512 uncooled LWIR thermal imager
• Integrated laser rangefinder for distance measurement
• AI object recognition and tracking support
• Detects multiple targets including vehicles and humans
• 3-axis stabilized gimbal for smooth aerial imaging
• Micro HDMI and IP RTSP video output support
• PWM, S.BUS, TTL, TCP, and UDP control options
• SD card local storage up to 128GB
• Defog mode, image stabilizer, auto focus, and backlight compensation
• Suitable for UAVs, VTOL drones, fixed-wing platforms, vehicles, and fixed installations

Specifications:

Product Type: EO/IR AI Tracking Gimbal Camera with Laser Rangefinder
Brand: FlySpark
Model Name: VisionTrack-40TR Pro
EO Camera Sensor: 1/2.8 inch Sony CMOS
Effective Pixels: 5.13 MP
Optical Zoom: 40x
Digital Zoom: 32x
Lens Focal Length: 4.25 mm wide to 170 mm tele
Aperture: F1.6 to F4.95
Horizontal Field of View: 66.35° wide to 1.9° tele
Focus Mode: Auto / one-click autofocus / manual
Video Output: Micro HDMI 1080P 30/60fps, IP RTSP 720P / 1080P 30fps
Photo Format: JPG 1920×1080
Video Format: MP4 1080P 30fps
Local Storage: SD card up to 128GB
Thermal Sensor Type: Uncooled long-wave infrared thermal imager
Thermal Resolution: 640×512
Thermal Pixel Size: 12μm
Thermal Lens: 19mm athermal prime lens
Thermal Spectral Range: 8μm–14μm
Thermal NETD: ≤50mK
Thermal Digital Zoom: 1x to 8x
Thermal Color Palette: White hot, black hot, pseudo color
Laser Rangefinder Range: Vehicle ≥3000m, human ≥2000m
Minimum Measurement Range: 15m
Range Accuracy: ±1m
Range Frequency: 1–10Hz
Laser Wavelength: 1535±5nm
AI Target Type: Vehicle and human
Simultaneous Detection: ≥10 targets
Vehicle Detection Ratio: ≥85%
False Alarm Ratio: ≤10%
Object Tracking Delay: <30ms
Tracking Update Rate: 30Hz
Gimbal Stabilization: 3-axis stabilized platform
Mechanical Range: Tilt -60° to 130°, Roll ±40°, Pan ±300° / continuous pan depending on version
Controllable Range: Tilt -45° to 90°, Pan ±290° / continuous pan depending on version
Vibration Angle: ±0.02°
Working Voltage: 16V
Input Voltage: 4S to 6S
Dynamic Current: 1200–2500mA at 16V
Operating Temperature: -20°C to +60°C
Control Methods: PWM / S.BUS / TTL / TCP / UDP
Net Weight: Approx. 1136g
Product Size: 134.2 × 125 × 210.4 mm

Applications:

• UAV aerial surveillance and monitoring
• Search and rescue support
• Industrial inspection
• Border and perimeter observation where legally permitted
• Wildlife monitoring
• Environmental monitoring
• Infrastructure inspection
• Pipeline and powerline inspection
• Disaster response and night-time observation
• Maritime and coastal monitoring
• Security patrol systems
• Research and development UAV projects

The FlySpark VisionTrack-40TR Pro is suitable for professional UAV operators, drone integrators, security teams, inspection agencies, research teams, and industrial users who require long-range EO/IR imaging, AI tracking, thermal observation, and stabilized aerial video performance.
