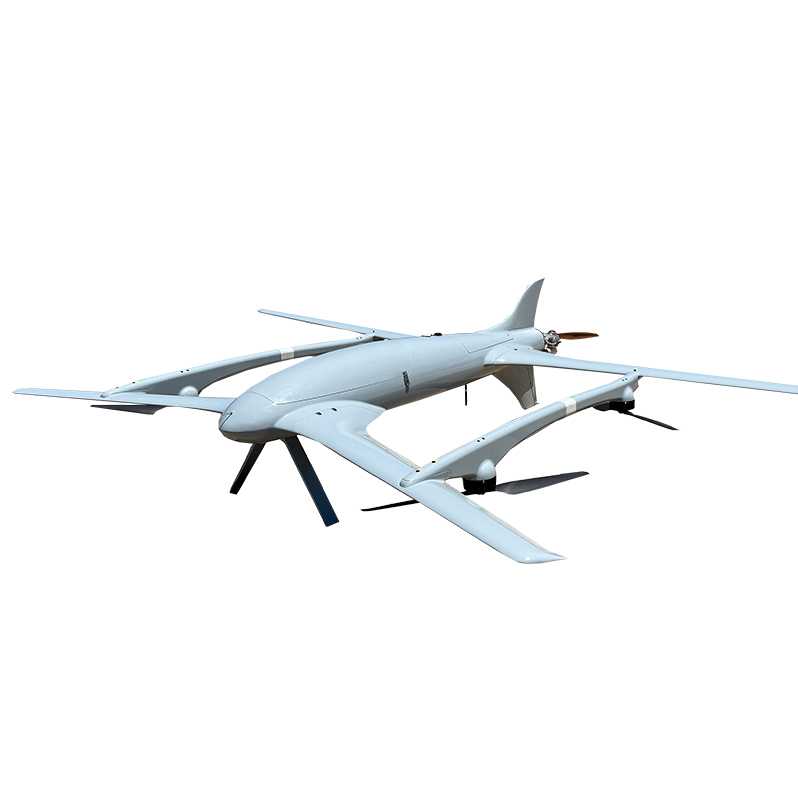

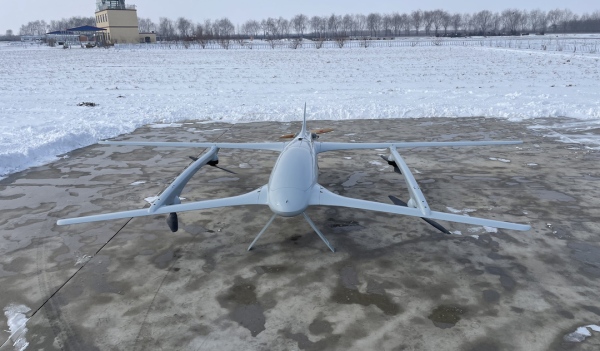

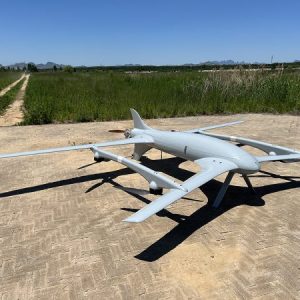

The FlySpark TitanLift-510 Heavy-Payload Long-Endurance VTOL UAV Platform is a professional tandem-wing VTOL drone system designed for demanding industrial missions that require strong payload capacity, long endurance, and reliable field performance.

Built with a carbon-fiber composite airframe, the TitanLift-510 combines high structural strength with reduced weight, making it suitable for large-area aerial survey, mapping, industrial inspection, logistics support, environmental monitoring, and emergency response operations.

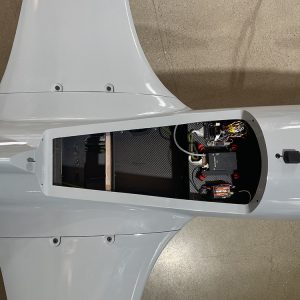

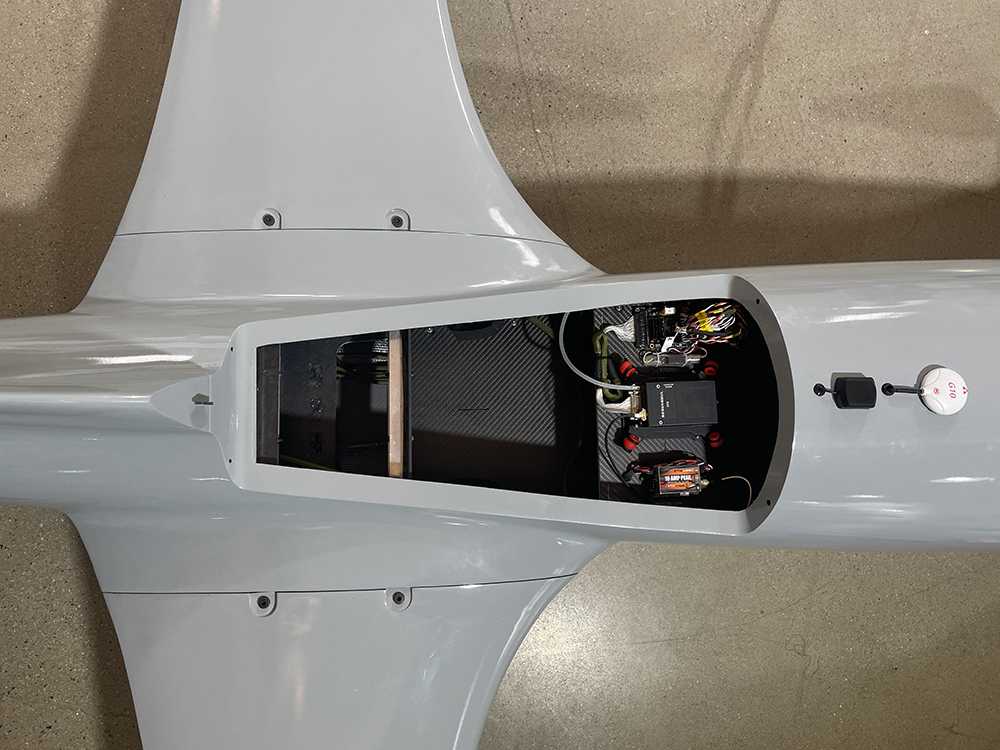

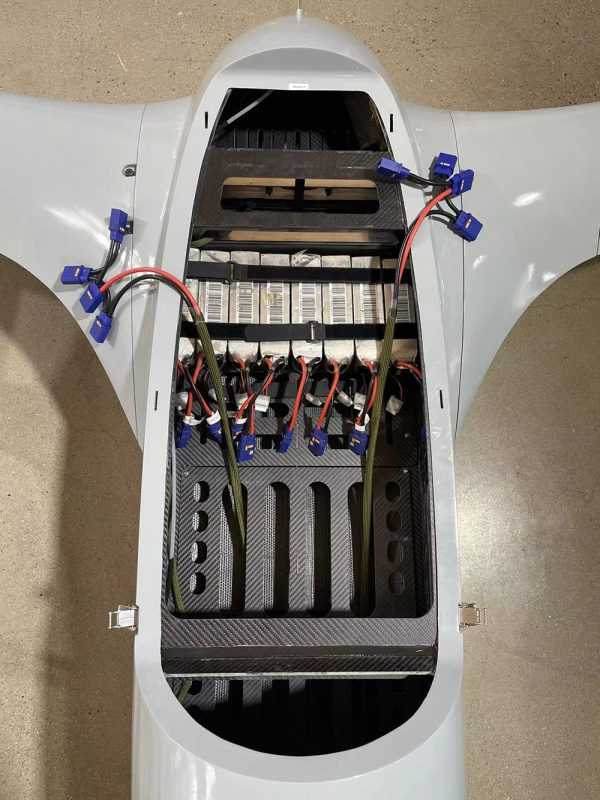

Its tandem-wing layout improves aerodynamic efficiency while providing a compact structure for vertical lift rotor installation. The spacious fuselage and internal mounting area allow flexible payload integration for approved civil and industrial systems such as mapping cameras, inspection sensors, monitoring equipment, logistics payloads, and research instruments.

The FlySpark TitanLift-510 supports vertical takeoff and landing, allowing operation from confined spaces without requiring a runway. Its modular propulsion system can support gasoline piston or heavy-oil engine configurations depending on project requirements.

With heavy-payload capacity, long-endurance performance, and a quick-assembly plug-in structure, the TitanLift-510 is suitable for professional UAV operators, industrial teams, research organizations, emergency response groups, and logistics-focused UAV applications.

Key Features

• Heavy-payload tandem-wing VTOL UAV platform
• Supports up to 45 kg maximum load including fuel and payload
• 100 kg maximum takeoff weight
• Vertical takeoff and landing without runway requirement
• Carbon-fiber composite airframe for strength and reduced weight
• Tandem-wing aerodynamic design for improved efficiency

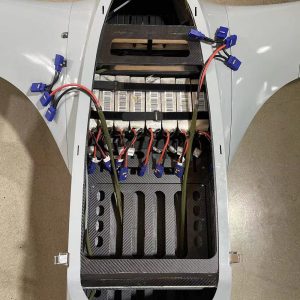

• Spacious fuselage with payload mounting brackets
• Modular propulsion system with gasoline piston or heavy-oil engine options
• Quick plug-in assembly structure
• Can be assembled in under 10 minutes depending on configuration
• Suitable for survey, mapping, inspection, monitoring, logistics, and research
• Designed for professional industrial UAV field operations.

Specifications

Product Type: Heavy-Payload Tandem-Wing VTOL UAV Platform
Airframe Type: Fixed-Wing VTOL UAV
New Product Name: FlySpark TitanLift-510
Material: Carbon Fiber Composite
Length Without Engine: 2566 mm
Length With Engine: 2905 mm
Height: 930 mm
Wingspan: 5100 mm
Engine Type: Gasoline piston or heavy-oil engine options
Fuel Tank Capacity: 25 L
Maximum Payload: Up to 45 kg including fuel and mission payload
Maximum Takeoff Weight: 100 kg
Typical Endurance: 4 hours with 30 kg load
Typical Endurance: 6 hours with 20 kg load
Level Speed: 28–50 m/s
Cruising Speed: 30 m/s
Gasoline Fuel Consumption: 4–5.5 L/h
Heavy-Oil Fuel Consumption: 1.8–2.5 L/h under suitable conditions
Stall Speed: 25 m/s
Climb Rate: 4–6 m/s
Operational Altitude: Up to 5000 m
Operating Temperature: -30°C to +50°C
Wind Resistance: Level 5 for takeoff/landing, Level 6 during cruise
Protection Rating: IPX4
Transport Box Size: 3050 mm x 800 mm x 950 mm
Transport Box Weight: 107 kg
Takeoff / Landing Method: Vertical takeoff and landing.

Applications

• Heavy-payload aerial survey
• High-accuracy mapping
• Infrastructure inspection
• Industrial site monitoring
• Environmental monitoring
• Agriculture and land assessment
• Emergency response support
• Disaster assessment
• Logistics and material transport
• Research and development
• Long-range field operations
• Remote-area UAV missions
