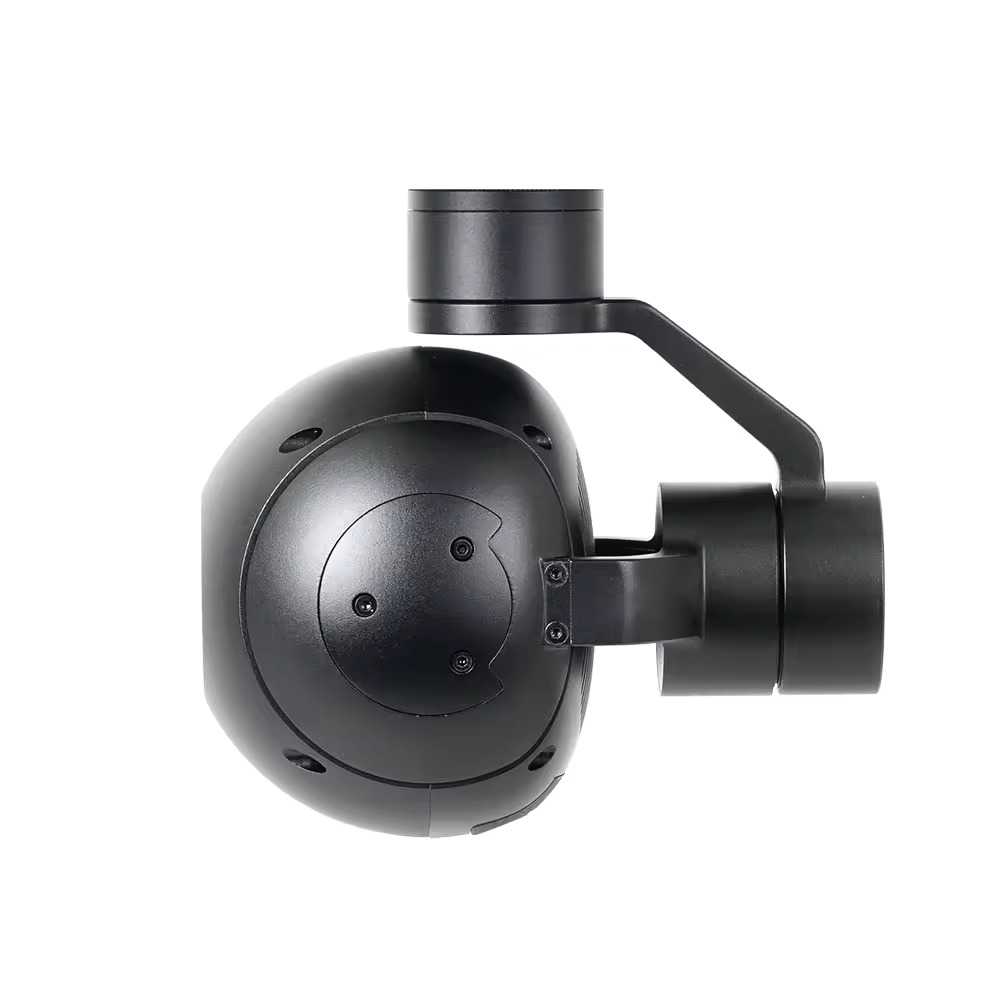

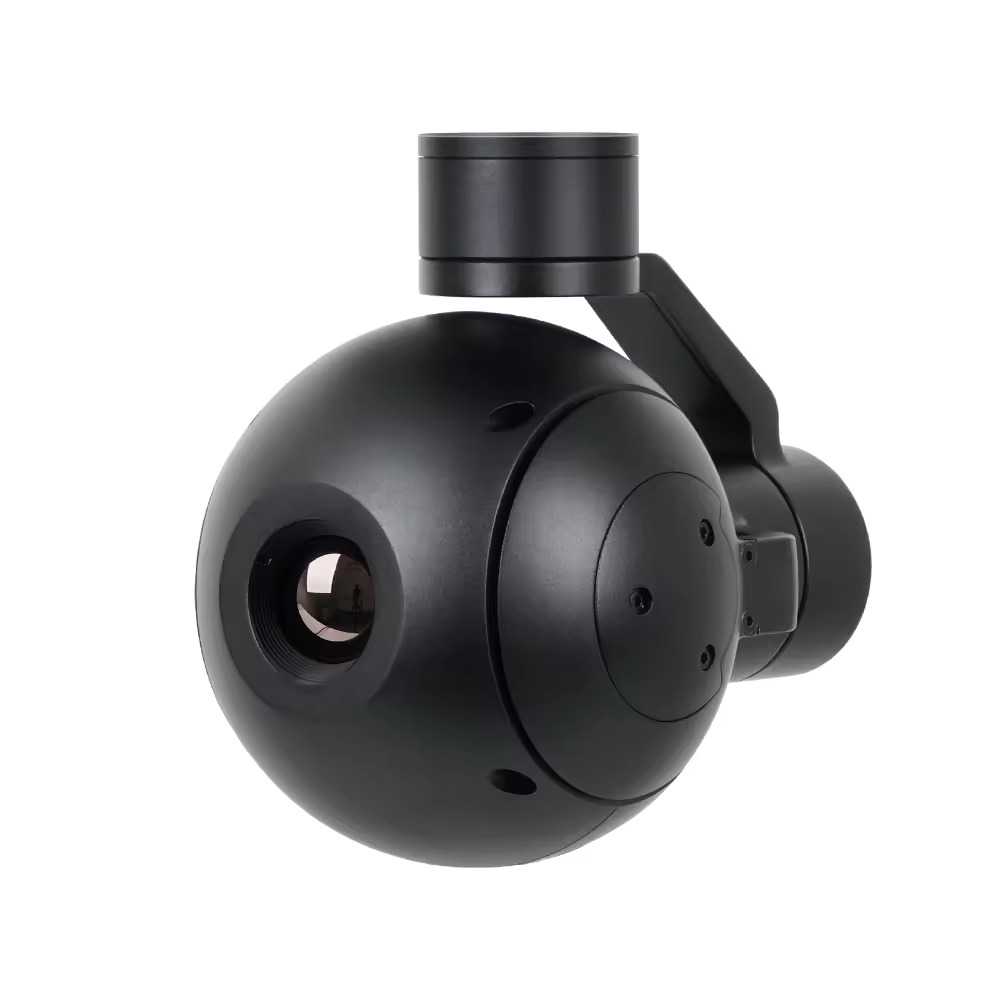

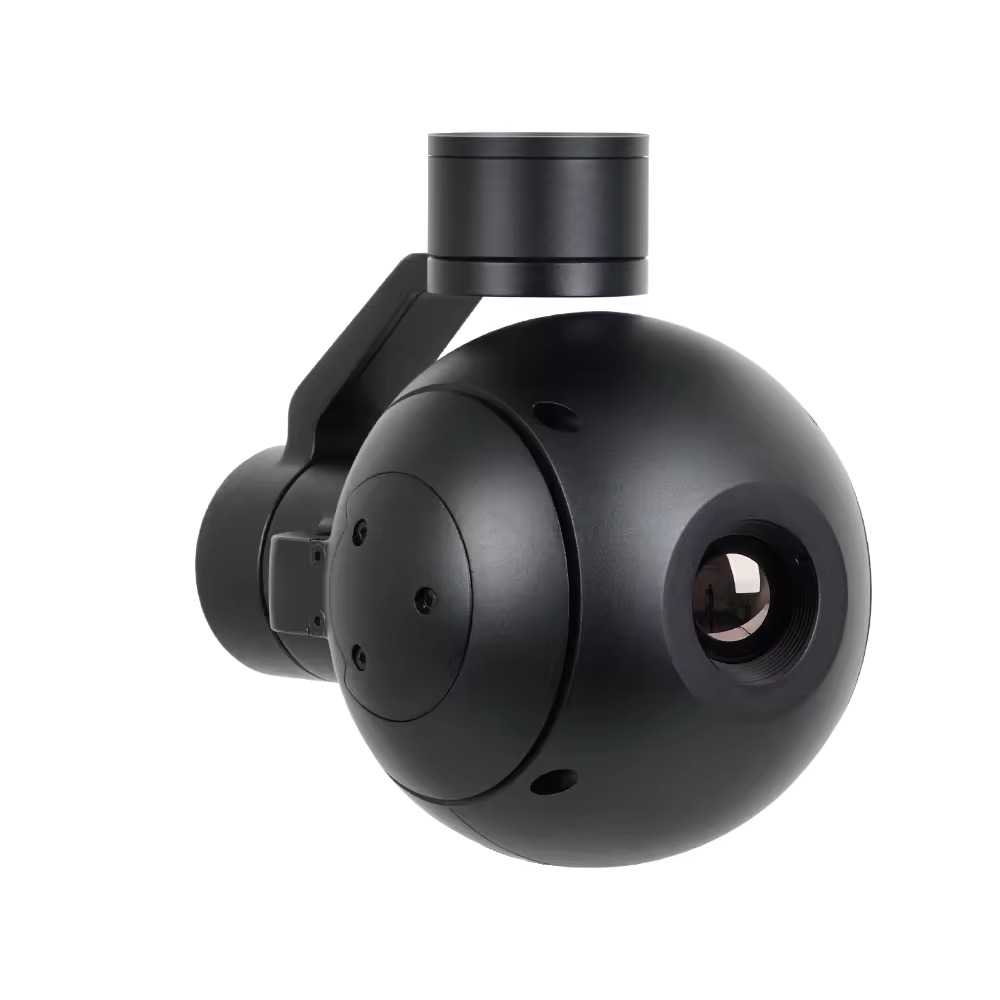

The FlySpark ThermoTrack-19 19mm AI Thermal Object Tracking Gimbal Camera is a compact professional thermal imaging payload designed for UAVs, VTOL drones, fixed-wing platforms, robotics, ground vehicles, and industrial monitoring systems.

This advanced thermal gimbal camera combines a 640×512 uncooled long-wave infrared thermal sensor, 19mm athermal lens, AI object tracking, 3-axis stabilized gimbal control, onboard recording, and multiple control interfaces in a lightweight UAV-ready design.

The 19mm thermal lens provides balanced long-range thermal observation with a practical field of view, making it suitable for industrial inspection, thermal diagnostics, wildlife monitoring, emergency response support, search and rescue support, night-time monitoring, and professional drone-based thermal imaging.

With AI object tracking support, the FlySpark ThermoTrack-19 can detect and follow moving objects such as vehicles and humans for approved civil, industrial, emergency response, and security monitoring applications. Its thermal imaging performance helps operators observe heat signatures in darkness, smoke, low-light, and reduced-visibility environments.

The camera supports micro HDMI output, IP video output, SD card recording up to 128GB, geotagging, and control through PWM, TTL, S.BUS, TCP, and UDP interfaces. This makes it easy to integrate with professional UAV platforms, ground control systems, and custom drone payload setups.

Key Features:

• 640×512 high-resolution thermal imaging
• 19mm thermal lens for practical long-range observation
• AI object detection and tracking support
• Supports vehicle and human detection
• 3-axis stabilized gimbal for smooth thermal imaging
• Uncooled VOx long-wave infrared thermal imager
• 8μm–14μm spectral range
• Digital zoom support from 1x to 8x
• White, iron red, and pseudo color thermal palettes
• micro HDMI and IP video output support
• SD card local storage up to 128GB
• Geotagging support with time and GPS coordinates
• Lightweight UAV-ready payload design
• Suitable for UAVs, VTOL drones, robotics, ground vehicles, and fixed installations

Specifications:

Product Type: AI Thermal Object Tracking Gimbal Camera
Brand: FlySpark
Model Name: ThermoTrack-19
Camera Type: Single thermal gimbal camera
Thermal Sensor Type: Uncooled VOx long-wave infrared thermal imager
Thermal Resolution: 640×512
Thermal Lens: 19mm athermal prime lens
Pixel Size: 12μm
Spectral Range: 8μm–14μm
NETD: ≤50mK
Horizontal Field of View: 22.9°
Vertical Field of View: 18.4°
Diagonal Field of View: 29.0°
Digital Zoom: 1x to 8x
Color Palette: White, iron red, pseudo color
Human Detection Distance: Approx. 792m
Human Recognition Distance: Approx. 198m
Human Verification Distance: Approx. 99m
Vehicle Detection Distance: Approx. 2428m
Vehicle Recognition Distance: Approx. 607m
Vehicle Verification Distance: Approx. 303m
Video Output: micro HDMI 1080P 30/60fps, IP RTSP/UDP 720P or 1080P 30fps
Photo Format: JPG 1920×1080
Video Format: MP4 1080P 30fps
Local Storage: SD card up to 128GB, Class 10, FAT32 or exFAT
Online Card Reading: HTTP access supported
Working Voltage: 16V
Input Voltage: 4S to 6S
Output Voltage: 5V through PWM connection
Dynamic Current: 400–1000mA at 16V
Operating Temperature: -20°C to +60°C
Control Methods: PWM / TTL / S.BUS / TCP / UDP
Geotagging: Supports time and GPS coordinates in EXIF data
Gimbal Stabilization: 3-axis stabilized gimbal
Mechanical Range: Pitch/Tilt -45° to 103°, Roll ±70°, Yaw/Pan ±300° / ±360° continuous depending on version
Software Range: Pitch/Tilt -40° to 100°, Yaw/Pan ±290° / ±360° continuous depending on version
Vibration Angle: Pitch/Roll ±0.02°, Yaw ±0.02°
One-Key Centering: Supported
AI Target Types: Vehicles and humans
Simultaneous Detection: ≥10 targets
Vehicle Detection Rate: ≥85%
False Alarm Rate: ≤10%
Object Tracking Update Rate: 30Hz
Object Tracking Output Delay: <30ms
Minimum Object Contrast: 5%
Minimum Object Size: 16×16 pixels
Maximum Object Size: 256×256 pixels
Tracking Speed: ±48 pixels/frame
Object Memory Time: 100 frames
Net Weight: Approx. 612g
Product Size: 118.2 × 86 × 147.1mm / 118.2 × 86 × 152.8mm depending on version
Package Weight: Approx. 1770g
Package Size: 300 × 250 × 200mm

Applications:

• UAV thermal monitoring
• Industrial inspection
• Electrical and mechanical thermal diagnostics
• Pipeline and powerline inspection
• Search and rescue support
• Firefighting support
• Wildlife monitoring
• Environmental monitoring
• Night-time observation
• Disaster response support
• Security and perimeter monitoring where legally permitted
• Robotics and ground vehicle thermal imaging
• Research and development UAV projects

The FlySpark ThermoTrack-19 is suitable for UAV operators, drone integrators, inspection teams, emergency response groups, research teams, and industrial users who need compact thermal imaging, AI-assisted object tracking, stable gimbal performance, and professional aerial thermal monitoring capability.
