The FlySpark SkySense-2 DroneCAN Intelligent De-Icing & Rainproof Airspeed Sensor is a professional UAV airspeed measurement module designed for fixed-wing drones, VTOL UAVs, mapping aircraft, industrial drones, and autopilot-based aerial platforms.

This advanced sensor integrates a pitot tube, airspeed sensor, temperature and humidity sensing, STM32F4 processor, and intelligent heating system into one compact unit. It is designed to provide reliable airspeed data in challenging environments such as rain, cold weather, high humidity, and low-temperature flight conditions.

With DroneCAN protocol support, the FlySpark SkySense-2 can integrate with compatible ArduPilot, PX4, Pixhawk, and professional UAV flight control systems. Its intelligent de-icing system automatically adjusts heating based on ambient temperature and humidity, helping prevent ice buildup and improving airspeed measurement reliability during demanding flights.

The rainproof structure includes drainage support to reduce water accumulation, while dual temperature compensation helps reduce measurement drift and improve data consistency. This makes the SkySense-2 suitable for long-endurance UAVs, VTOL platforms, survey drones, mapping aircraft, and industrial inspection systems that require accurate and stable airspeed feedback.

Key Features:

• DroneCAN intelligent airspeed sensor for UAVs
• Integrated pitot tube, airspeed sensor, temperature sensor, humidity sensor, and processor
• Intelligent de-icing technology for cold-weather operation
• 35W high-power pitot tube heating system
• Rainproof structure with drainage design
• Dual temperature control for stable airspeed measurement
• STM32F4 industrial-grade processor
• MS5525 airspeed sensor
• Supports ArduPilot, PX4, Pixhawk, and DroneCAN-compatible platforms
• Helps improve flight safety and autopilot performance
• Compact and lightweight 22g design
• Suitable for fixed-wing UAVs, VTOL drones, mapping drones, and industrial UAV platforms

Specifications:

Product Type: DroneCAN Airspeed Sensor
Brand: FlySpark
Model Name: SkySense-2
Processor: STM32F4
Protocol: DroneCAN
Airspeed Sensor: MS5525
Airspeed Measurement Range: ±500 km/h
Airspeed Accuracy: ±0.69 Pa
Total Error Band: ±2.5% FS
Temperature Measurement Range: -20°C to +125°C
Humidity Measurement Range: 0% to 100%
Pitot Tube Heating Power: 35W
Power Input: 12V–36V DC
Operating Temperature: -20°C to +75°C
Size: 82.5 × 30.4 × 28.2 mm
Weight: 22g
Protection Level: IP44 optional upgrade
Heating Type: Resistance heating
Compatible Platforms: Fixed-wing UAVs, VTOL UAVs, Pixhawk, PX4, ArduPilot, DroneCAN systems

Applications:

• Fixed-wing UAV airspeed measurement
• VTOL UAV airspeed sensing
• Cold-weather UAV operations
• Rain-condition UAV flights
• Survey and mapping drones
• Industrial inspection UAVs
• Long-endurance UAV platforms
• Autonomous flight control systems
• Pixhawk / PX4 / ArduPilot drone integration
• Research and development UAV projects
• Professional UAV navigation and flight safety systems

The FlySpark SkySense-2 is suitable for UAV manufacturers, drone integrators, mapping teams, research labs, industrial inspection operators, and professional drone users who need reliable airspeed measurement in rain, cold weather, and demanding flight environments.

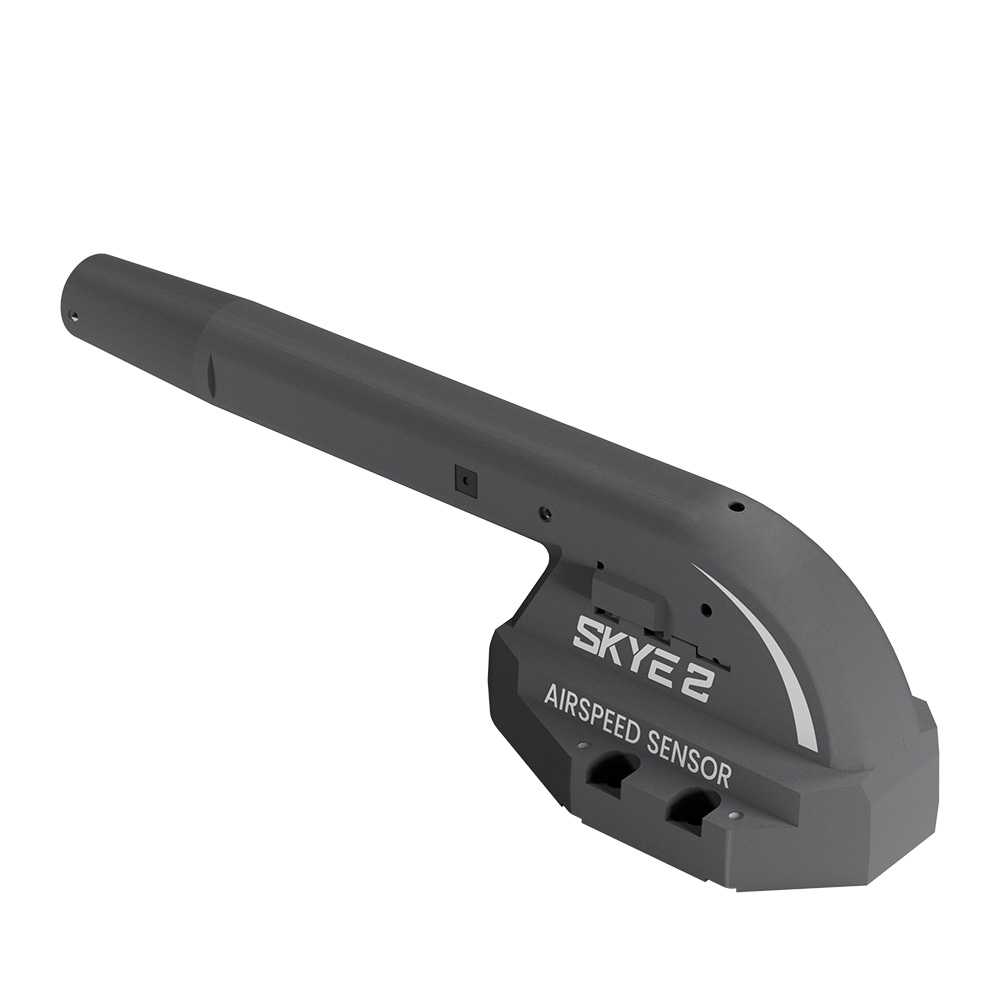

 Upgrade your UAV with the CUAV SKYE 2 Airspeed Sensor for superior flight safety and performance!
