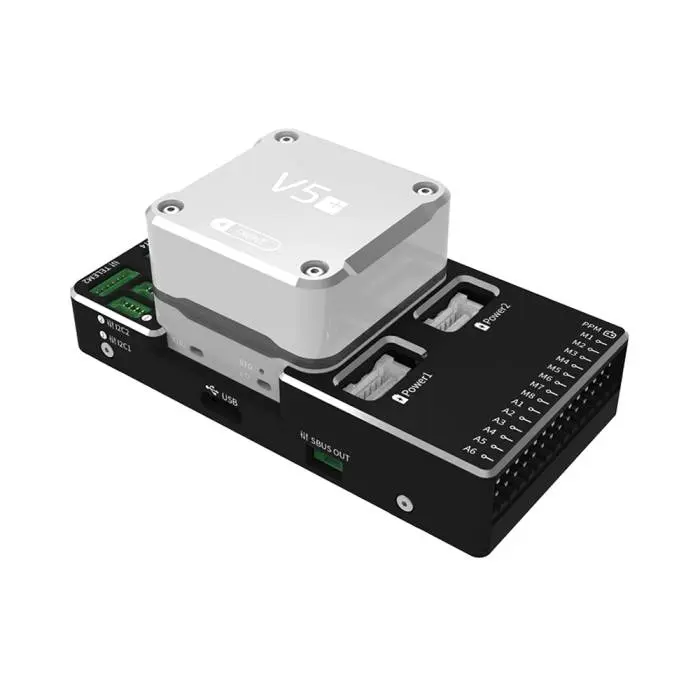

The FlySpark PilotCore-V5+ Advanced Autopilot Flight Controller is a professional UAV flight management system designed for fixed-wing drones, VTOL aircraft, multirotor platforms, mapping UAVs, agriculture drones, research aircraft, and autonomous aerial systems.

Built on the proven FMUv5 hardware design standard, the PilotCore-V5+ provides powerful processing performance, multiple sensor redundancy, wide interface support, and flexible integration for professional UAV projects. It is suitable for PX4 and ArduPilot-based platforms, giving drone builders and UAV integrators a reliable control core for advanced autonomous flight.

The flight controller is powered by an STM32F765 32-bit ARM Cortex-M7 processor with DPFPU running at 216 MHz, providing fast real-time flight control processing for complex UAV operations. Integrated IMU sensors, barometer, magnetometer, CAN Bus, I2C, SPI, serial ports, PWM outputs, and dual battery monitoring make it suitable for demanding professional drone applications.

Its detachable CORE architecture and FMUv5-compatible design allow flexible system integration, while the built-in damping structure helps reduce vibration influence on flight data. The FlySpark PilotCore-V5+ is suitable for mapping, survey, inspection, VTOL development, fixed-wing autonomous missions, multirotor control, and industrial UAV research.

Key Features:

• Advanced UAV autopilot flight controller for PX4 and ArduPilot systems
• Based on FMUv5 hardware design architecture
• STM32F765 32-bit ARM Cortex-M7 processor with DPFPU
• 216 MHz high-performance flight control processing
• Multi-sensor integration for reliable flight data
• Built-in vibration damping design
• Detachable CORE architecture for flexible integration
• Supports 8–14 PWM servo outputs
• Includes 3 dedicated PWM/Capture inputs
• Supports S.Bus servo output
• Multiple serial ports, I2C ports, SPI bus, and CAN Bus ports
• Dual battery voltage/current monitor inputs for redundancy
• Suitable for fixed-wing, VTOL, multirotor, mapping, and industrial UAV platforms

Specifications:

Product Type: UAV Autopilot Flight Controller
Brand: FlySpark
Model Name: PilotCore-V5+
Architecture: FMUv5-compatible autopilot design
Main Processor: STM32F765 32-bit ARM Cortex-M7 with DPFPU
Processor Speed: 216 MHz
IMU Sensors: InvenSense ICM20689, ICM20602, Bosch BMI055
Barometer: MS5611
Magnetometer: IST8310
PWM Outputs: 8–14 PWM servo outputs
PWM / Capture Inputs: 3 dedicated inputs
Servo Output: S.Bus servo output supported
Communication Interfaces: Multiple serial ports, I2C, SPI, CAN Bus
Battery Monitoring: Dual voltage/current monitor inputs
RTK Support: Compatible with RTK positioning systems depending on GNSS setup
Design Type: Detachable CORE architecture
Vibration Protection: Built-in damping system
Dimensions: 85.5 mm × 42 mm × 33 mm
Weight: Approx. 90 g
Operating Temperature: -20°C to +80°C
Compatible Firmware: PX4 and ArduPilot / APM-compatible firmware
Compatible Platforms: Fixed-wing UAVs, VTOL UAVs, multirotor drones, mapping drones, industrial UAV systems

Package Includes:

• FlySpark PilotCore-V5+ Autopilot Flight Controller
• CAN extension board
• HV PM power cable
• 16GB memory card
• Assorted connection and interface cables

Applications:

• Fixed-wing UAV autopilot systems
• VTOL drone flight control
• Multirotor UAV control
• Survey and mapping drones
• Agriculture UAV platforms
• Infrastructure inspection drones
• Industrial monitoring UAVs
• Research and development aircraft
• Autonomous flight projects
• PX4 and ArduPilot-based drone systems
• Professional UAV integration projects

The FlySpark PilotCore-V5+ is suitable for UAV manufacturers, drone integrators, mapping teams, research labs, agriculture drone builders, and professional operators who need a reliable autopilot flight controller for autonomous drone platforms.

Package Contents:

• CUAV V5+ Elite Autopilot Flight Controller (for PX4/APM)
• CAN Extension Board
• HV PM Power Cable
• 16G Memory Card
• Assorted cables for connectivity and interfacing.
