The FlySpark NavPro-M9N GNSS GPS Module with CAN BUS is a professional UAV navigation module designed for fixed-wing drones, VTOL UAVs, multirotor platforms, mapping drones, agriculture UAVs, and autopilot-based aerial systems.

Built around the u-blox NEO M9N GNSS module, the NavPro-M9N supports multiple global satellite navigation systems including GPS, GLONASS, Galileo, and BeiDou. This multi-constellation support improves satellite availability, positioning stability, and navigation reliability during UAV operation.

The module is designed for professional drone flight controllers and supports CAN BUS communication for cleaner wiring, improved reliability, and easier integration with compatible autopilot systems. It is suitable for ArduPilot-based systems and PX4-compatible platforms depending on firmware support.

With built-in safety switch, audible buzzer, RGB indicator light, industrial-grade compass, and barometer, the FlySpark NavPro-M9N provides a compact all-in-one navigation accessory for drone builders and UAV integrators.

Key Features:

• High-precision GNSS GPS module for UAVs
• Built-in u-blox NEO M9N GNSS receiver
• Supports GPS, GLONASS, Galileo, and BeiDou satellite systems
• Up to 0.7 m horizontal positioning accuracy
• CAN BUS support for professional autopilot integration
• Built-in industrial-grade compass
• Built-in barometer support
• Integrated safety switch for safer UAV operation
• Built-in audible buzzer
• RGB indicator light for flight controller status display
• EMI/RFI protection for improved signal reliability
• Supports SBAS, WAAS, EGNOS, MSAS, QZSS, and RTCM3.3 injection
• Supports up to 4 GNSS systems simultaneously
• Suitable for ArduPilot and PX4-based UAV platforms

Specifications:

Product Type: GNSS GPS Module for UAVs
Brand: FlySpark
Model Name: NavPro-M9N
GNSS Chipset: u-blox NEO M9N
Communication Interface: CAN BUS
Supported Satellite Systems: GPS, GLONASS, Galileo, BeiDou
Concurrent GNSS Support: Up to 4 GNSS systems simultaneously
Horizontal Positioning Accuracy: Up to 0.7 m
Supported Augmentation Systems: SBAS, WAAS, EGNOS, MSAS, QZSS, RTCM3.3 injection
RTCM Note: Supports RTCM3.3 injection, does not support RTCM output
RTK Carrier Phase Differential: Not supported
Compass: Industrial-grade electronic compass
Barometer: Supported
Safety Features: Safety switch, buzzer, RGB indicator light
Supported Flight Controls: ArduPilot and PX4-compatible platforms depending on firmware support
Input Voltage: 5V
Dimensions: 60 × 60 × 16 mm
Module Weight: 33 g
Listed Package Weight: Approx. 0.3 kg
Package Includes: GNSS GPS module, CAN connection cable, GPS stand

Applications:

• UAV GPS navigation
• Fixed-wing drone positioning
• VTOL UAV navigation
• Multirotor drone GPS integration
• Mapping and survey drones
• Agriculture UAV systems
• Industrial inspection drones
• Autonomous flight systems
• ArduPilot and PX4 autopilot platforms
• UAV research and development projects
• Professional drone integration projects

The FlySpark NavPro-M9N is suitable for drone manufacturers, UAV integrators, mapping teams, agriculture drone users, research teams, and professional operators who need a reliable GNSS GPS module with CAN BUS support and integrated flight safety features.

Package Contents:

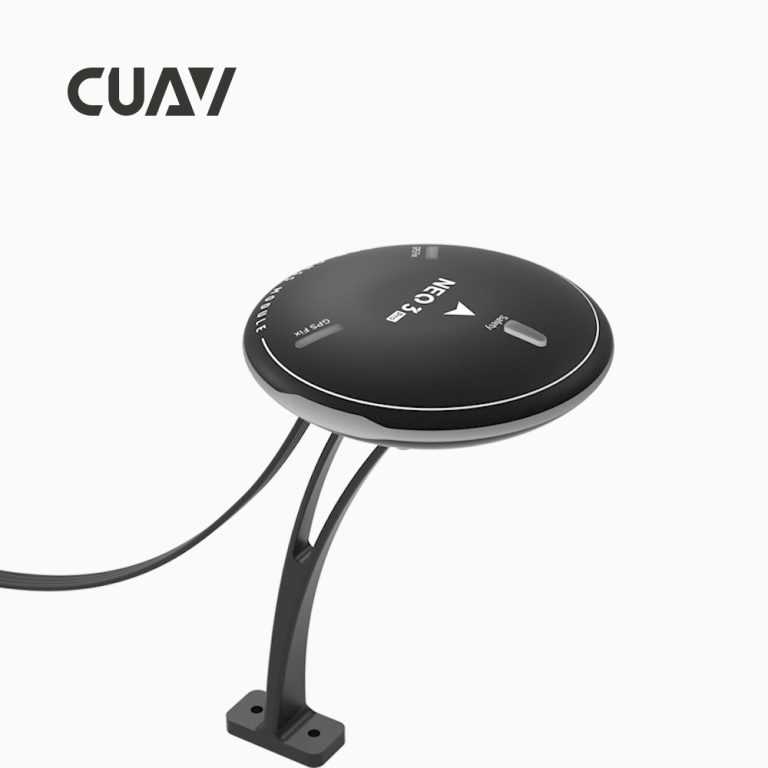

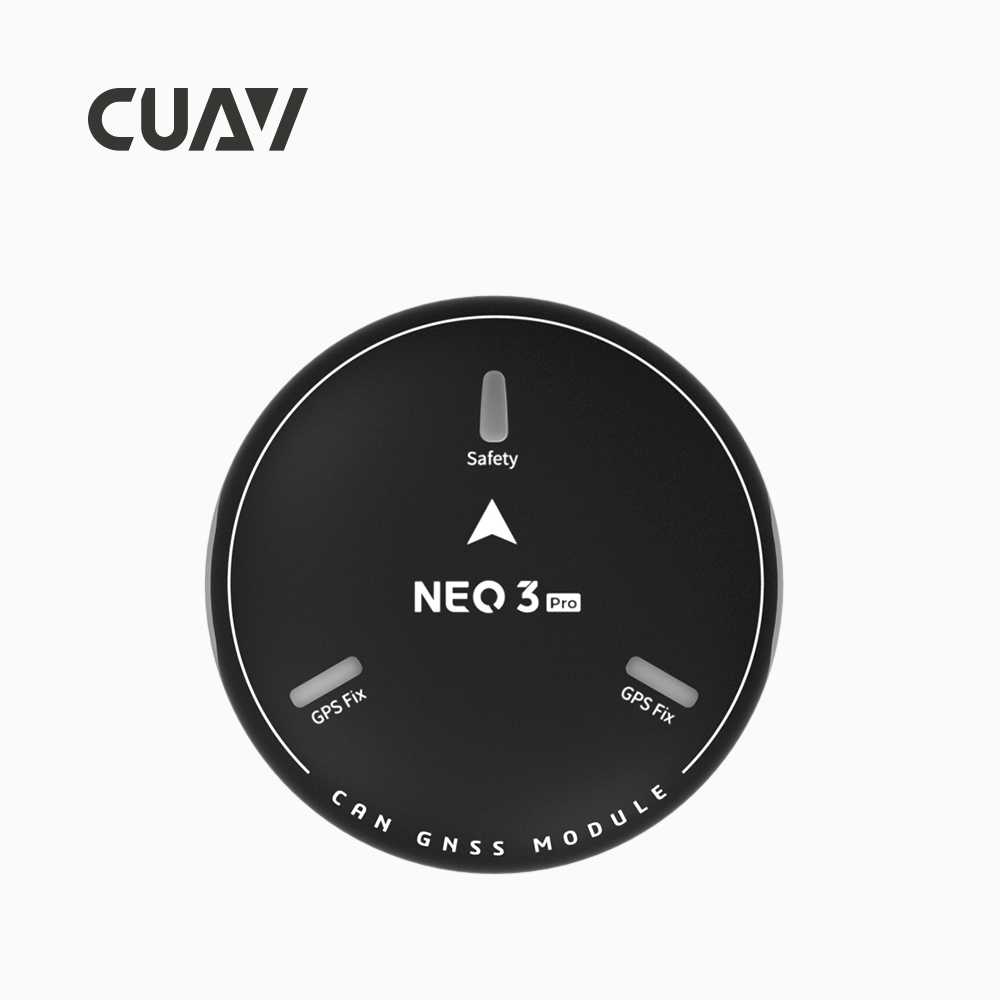

• CUAV NEO 3 Pro Precision GPS Module
• CAN Connection Cable
• GPS Stand
