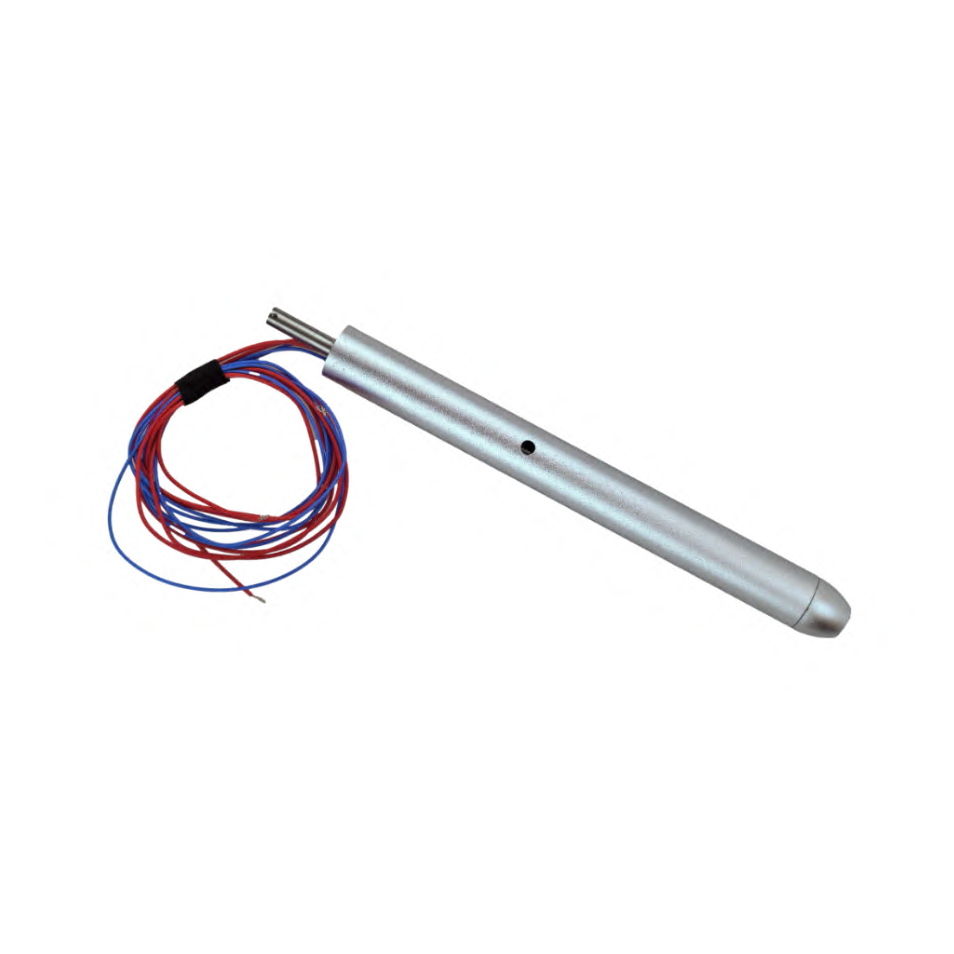

The FlySpark IceGuard UAV Pitot Tube with Rainproof & De-Icing Airspeed Protection is a professional airspeed measurement component designed for fixed-wing UAVs, VTOL drones, composite-wing aircraft, and industrial autopilot-based aerial platforms.

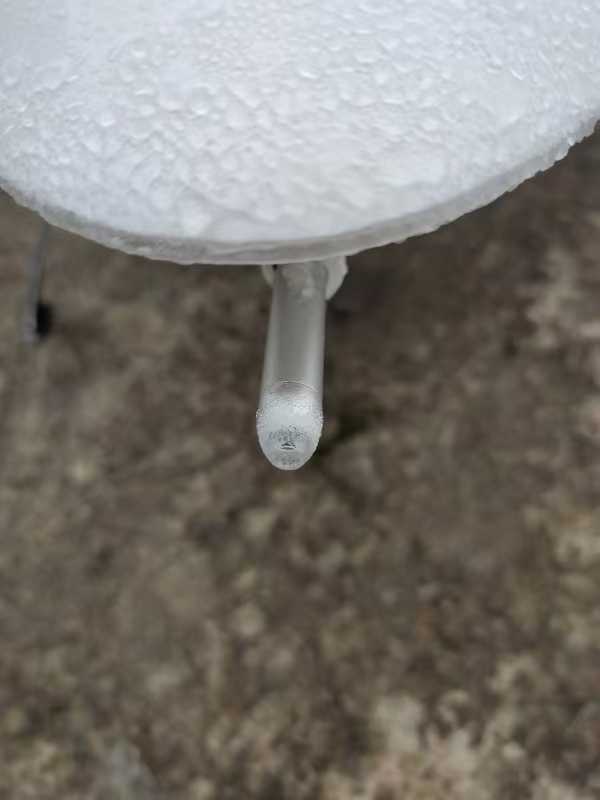

This pitot tube is designed to help UAVs collect reliable dynamic airspeed data in challenging weather conditions such as rain, snow, frost, cold climates, and high-altitude environments. Its rainproof and de-icing design helps reduce the risk of water, frost, or ice blocking the airspeed tube during flight.

The built-in heating function can be powered directly using DC power or controlled through temperature sensor feedback for constant-temperature operation. When used with compatible autopilot and airspeed sensor systems, the FlySpark IceGuard Pitot Tube helps support stable flight control, autonomous navigation, and safer UAV operation in difficult environments.

Built for professional UAV integration, this pitot tube is suitable for survey drones, mapping UAVs, long-endurance fixed-wing aircraft, VTOL platforms, industrial inspection drones, and research UAV systems that require dependable airspeed feedback during field operation.

Key Features:

• Rainproof and de-icing UAV pitot tube
• Designed for dynamic airspeed data collection
• Helps prevent rain, frost, and ice blockage
• Suitable for rain, snow, cold weather, and high-altitude environments
• Built-in heating function for de-icing support
• Can use direct DC power or temperature sensor feedback control
• NTC Thermistor 50K3950 sensor support
• Compact Φ12mm mounting design
• Lightweight 20g structure for UAV integration
• Suitable for fixed-wing UAVs, VTOL drones, and industrial autopilot systems
• Helps improve airspeed reliability for autonomous flight control
• Designed for professional UAV survey, mapping, inspection, and monitoring platforms

Specifications:

Product Type: Rainproof & De-Icing UAV Pitot Tube / Airspeed Tube
Brand: FlySpark
Model Name: IceGuard UAV Pitot Tube
Measurement Function: Dynamic airspeed data collection
Type: Rainproof & De-Icing

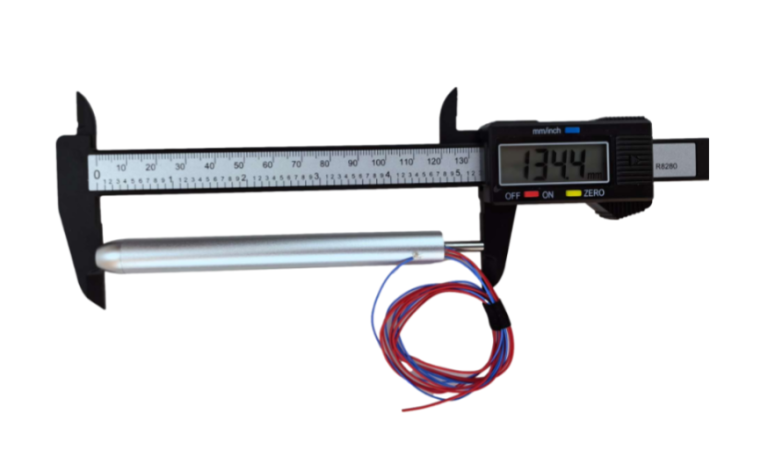

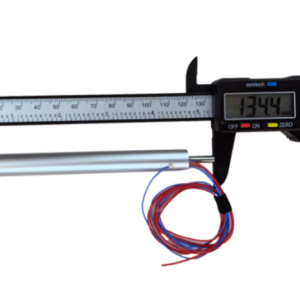

Dimensions: Φ12 × 134 mm
Mounting Diameter: Φ12 mm
Hose Mounting Position: Φ4 mm
Weight: 20 g
Supply Voltage: 18V–26V DC
Maximum Power Consumption: 15W
Heating Current at 24V: Approx. 0.5A
Operating Temperature: -40°C to +80°C
Cable Length: 380 mm
Sensor Type: NTC Thermistor 50K3950
Installation Note: Drain hole should face downward to prevent water accumulation
Compatible Platforms: Fixed-wing UAVs, VTOL UAVs, composite-wing UAVs
Main Use: Airspeed measurement support in rainproof and de-icing conditions

Applications:

• Fixed-wing UAV airspeed measurement
• VTOL UAV airspeed sensing
• Cold-weather UAV operations
• Rain and snow environment UAV flights
• High-altitude UAV platforms
• Mapping and survey drones
• Industrial inspection drones
• Long-endurance UAV systems
• Research and development UAV projects
• Autonomous flight control systems
• Professional UAV navigation and flight safety systems

Important Usage Notes:

• Avoid touching the pitot tube during heating operation
• Do not use heating when the dust cap is covered
• Avoid long-term direct DC heating on the ground in high-temperature environments without airflow
• Install the drain hole facing downward to prevent water accumulation
• Regularly check the tube and heating system to ensure there is no blockage

The FlySpark IceGuard UAV Pitot Tube is suitable for UAV manufacturers, drone integrators, research teams, and professional operators who need reliable airspeed measurement support in cold, wet, and high-altitude flight environments.
