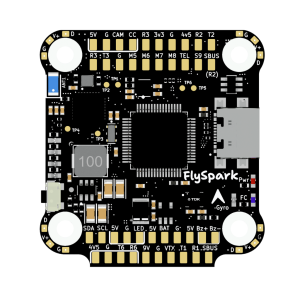

FlySpark F4 V1 Flight Controller

Original price was: $71.00.Current price is: $50.00.

SKU: #fs-f4-v1-fc Categories:
or

The FlySpark F4 V1 BLS 60A Stack is a complete flight controller and ESC solution for high-performance drones. Featuring the FlySpark F4 V1 Flight Controller with AI-powered capabilities and broad firmware compatibility (BetaFlight, INAV, Ardupilot, EMU-Flight), paired with the BLS 60A 4-in-1 ESC, it offers unmatched control and power efficiency. Designed with Bluetooth connectivity, robust hardware, and seamless DJI Air Unit support, this stack is perfect for drone shows, racing, and professional builds. Proudly made in India, it combines innovation, durability, and precision.

Reviews

There are no reviews yet.

Be the first to review “FlySpark F4 V1 Flight Controller”

Your email address will not be published. Required fields are marked

CategoryDetails
Product NameFlySpark F4 V1 Flight Controller
MCUSTM32F405
IMU (Gyro)ICM-42688-P
USB Port TypeType-C
BarometerBuilt-in DPS310XTSA1
OSD ChipMAX7456EUI+

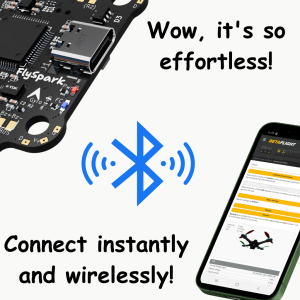

BluetoothSupported for configuration (MSP enabled at Baud rate 115200 on UART4)
Wi-FiNot supported
DJI Air Unit Connection6-pin connector or direct soldering (compatible with DJI O3/RunCam Link/Caddx Vista)

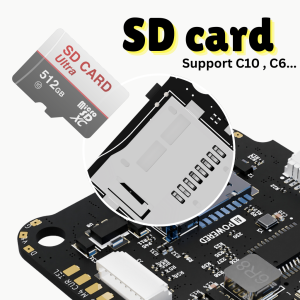

Blackbox MicroSD Card SlotSupports SDSC/SDHC cards (up to 32GB, Betaflight recognizes 4GB max, formatted as FAT16/FAT32)
Current Sensor InputSupported (set scale = 400 and Offset = 0 for FlySpark BLS 60A 4-in-1 ESC)
Power Input3S - 6S LiPo
Power Outputs- 5V (9 groups, 3A max load) - 9V (2 groups, 3A max load) - 3.3V (500mA max load) - 4.5V (1A max load, supports GPS/receiver powered via USB)
ESC SignalM1-M4 (bottom), M5-M8 (front side)
UARTs6 sets (UART1, UART2, UART3, UART4 [Bluetooth], UART5 [ESC telemetry], UART6)
I2CSupported (SDA & SCL pads on front side, for magnetometer/sonar)
BuzzerBZ+ and BZ- pads (supports 5V buzzers)
BOOT ButtonSupported (forces DFU mode for firmware flashing)
RSSI InputSupported (RS pad on the front side)

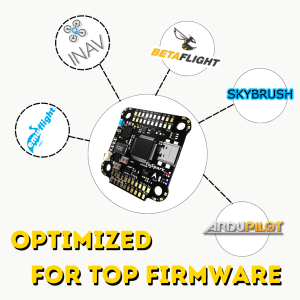

Firmware SupportBetaFlight (default), INAV, EMU-Flight, Ardupilot, SkyBrush
Mounting Dimensions30.5 x 30.5mm (4mm hole diameter)
Dimensions41.6mm (L) x 39.4mm (W) x 7.8mm (H)
Weight10.5g

The FlySpark F4 V1 BLS 60A Stack is a complete flight controller and ESC solution for high-performance drones. Featuring the FlySpark F4 V1 Flight Controller with AI-powered capabilities and broad firmware compatibility (BetaFlight, INAV, Ardupilot, EMU-Flight), paired with the BLS 60A 4-in-1 ESC, it offers unmatched control and power efficiency. Designed with Bluetooth connectivity, robust hardware, and seamless DJI Air Unit support, this stack is perfect for drone shows, racing, and professional builds. Proudly made in India, it combines innovation, durability, and precision.
