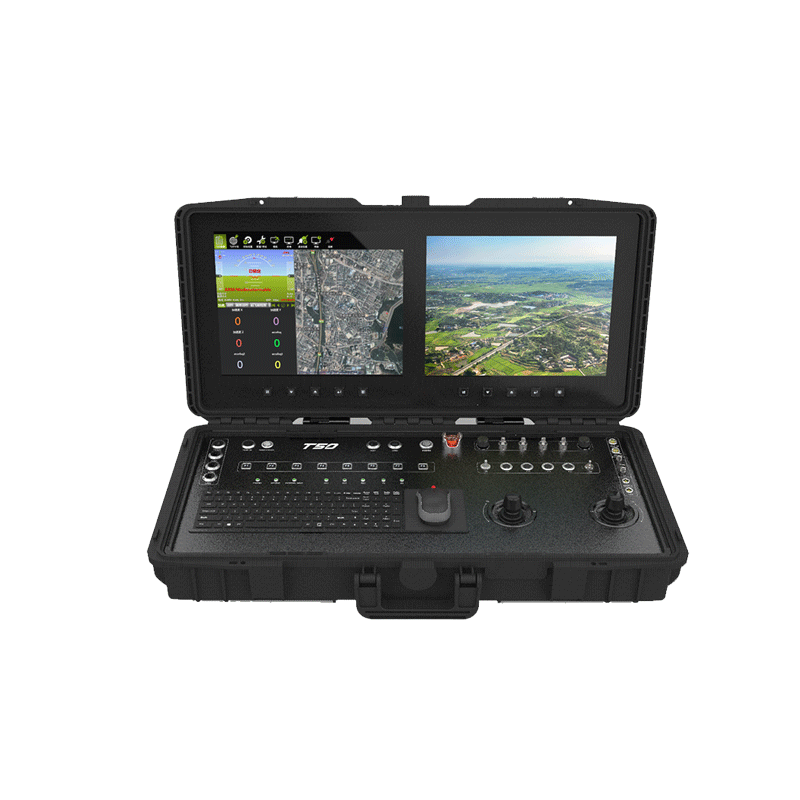

The FlySpark CommandStation-T50 Dual-Screen UAV Ground Control Station is a professional field-ready control system designed for UAV operators, drone integrators, VTOL platforms, fixed-wing drones, mapping aircraft, inspection systems, and industrial aerial operations.

Built with dual high-brightness displays, powerful onboard computing, physical control interfaces, and long-duration battery support, the CommandStation-T50 provides a complete control environment for mission planning, real-time video monitoring, telemetry display, payload operation, and UAV command workflows.

The dual-screen design allows operators to view flight telemetry, live video, maps, mission planning software, payload controls, and system data at the same time. This improves situational awareness and makes the station suitable for professional field operations where multiple data views are required.

Powered by an Intel i7 processor, 32GB RAM, and 1TB SSD storage, the FlySpark CommandStation-T50 can run Windows or Linux-based ground control software, mapping tools, mission planning software, video monitoring systems, and UAV integration utilities. It supports Wi-Fi 6, Bluetooth, Ethernet, HDMI, USB, Type-C, SBUS output, and external communication modules for flexible integration.

The physical control layout includes dual joysticks, knobs, switches, key buttons, and emergency stop control, allowing the operator to manage both UAV flight and payload functions. Dual SBUS independent output supports simultaneous UAV and payload control with low latency.

Key Features:

• Dual-screen UAV ground control station
• Dual high-brightness displays for outdoor field use
• Designed for UAV mission planning, video monitoring, and payload control
• Intel i7 processing platform for professional ground control software
• 32GB RAM and 1TB SSD standard configuration
• Supports Windows 10 and Linux operating systems
• Dual joystick control for UAV and payload operation
• Multiple knobs, switches, buttons, and emergency stop control
• Dual SBUS independent output for UAV and payload control
• Low-latency control response around 40ms
• Wi-Fi 6, Bluetooth, HDMI, USB, LAN, and Type-C interfaces
• Up to 8 hours battery endurance depending on configuration
• Compatible with third-party communication modules
• Optional integrated video/data link versions from 20km to 150km+
• Rugged folding chassis for field deployment and transport

Specifications:

Product Type: UAV Ground Control Station
Brand: FlySpark
Model Name: CommandStation-T50
Display: Dual 17-inch high-brightness screens
Display Resolution: 1280 × 1024
Display Brightness: 1000 nits
Processor: Intel i7-1260P standard
Touch Function: Capacitive 10-finger touchscreen
Operating System: Windows 10 / Linux
RAM: 32GB standard
SSD Storage: 1TB standard, up to 2TB maximum
Network: Wi-Fi 6, Bluetooth, AX211 NIC
Interfaces: HDMI input, USB 3.0 ×2, LAN ×3, Type-C
Physical Controls: 2 main joysticks, 6 knobs, 12 key buttons, 4 three-position switches, 2 two-position switches, 1 emergency stop button
Remote Control Output: Dual SBUS independent output
Control Function: Simultaneous UAV and payload control
Control Latency: Approx. 40ms
SBUS Ports: USB IN ×1, SBUS OUT ×2
Battery Capacity: 25.2V / 30,000mAh
Battery Endurance: Up to 8 hours with full battery
Charging Port: DC 25.2V
External Power: Supported
Integrated Link Option: V31 module, up to 150km+ range depending on configuration
Third-Party Link Support: Compatible with external communication modules
Overall Dimensions: 850 × 425 × 160mm
Overall Weight: Approx. 20,000g

Applications:

• UAV mission planning and control
• Real-time video monitoring
• Payload and camera operation
• VTOL drone ground control
• Fixed-wing UAV mission control
• Mapping and survey drone operations
• Industrial inspection drone control
• Agriculture UAV field operation
• Search and rescue support
• Disaster response support
• Research and development UAV projects
• Long-range UAV ground station integration
• Professional drone fleet and field operation

The FlySpark CommandStation-T50 is suitable for UAV manufacturers, drone integrators, mapping teams, inspection agencies, research organizations, emergency response teams, and professional drone operators who need a rugged dual-screen ground control system for advanced UAV operations.
