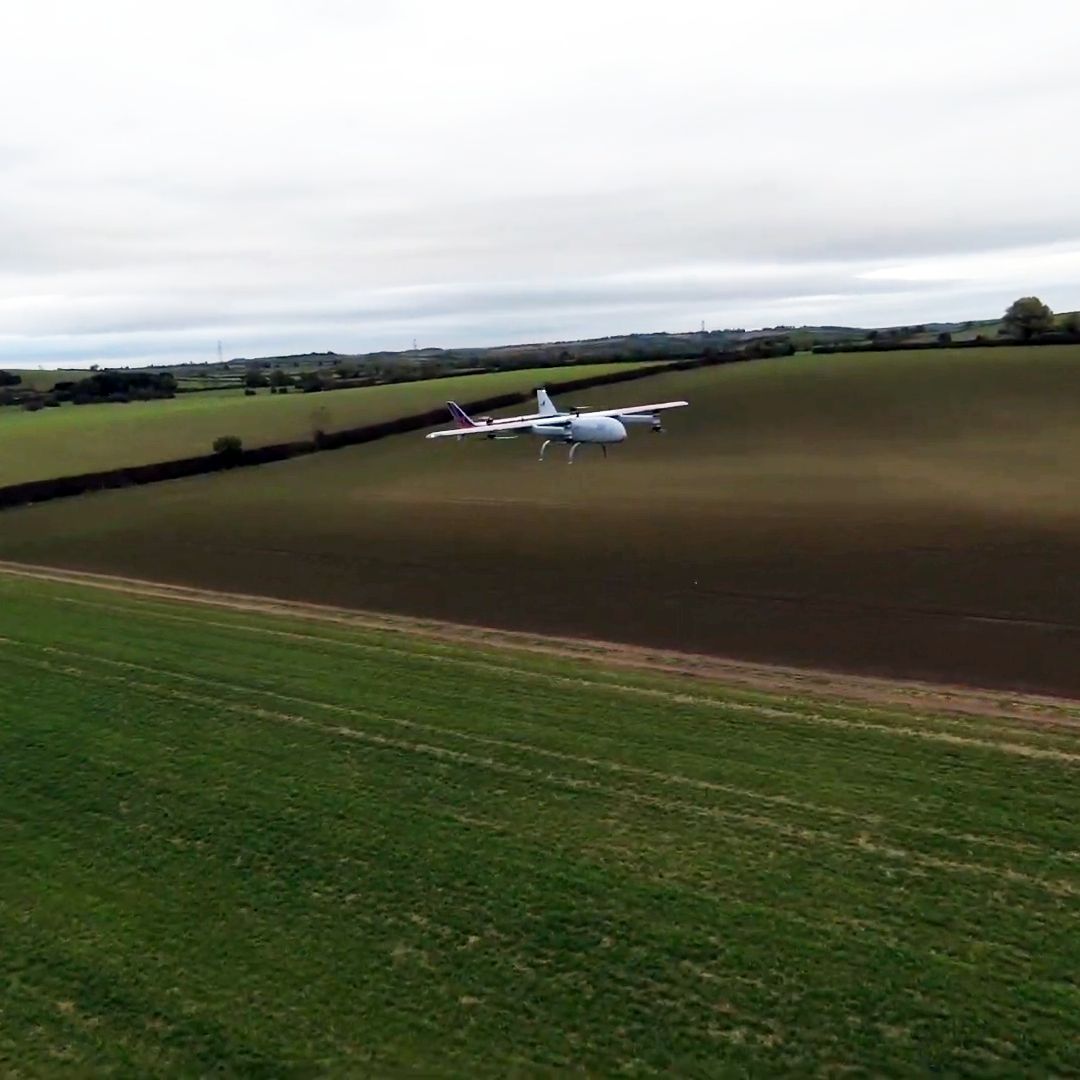

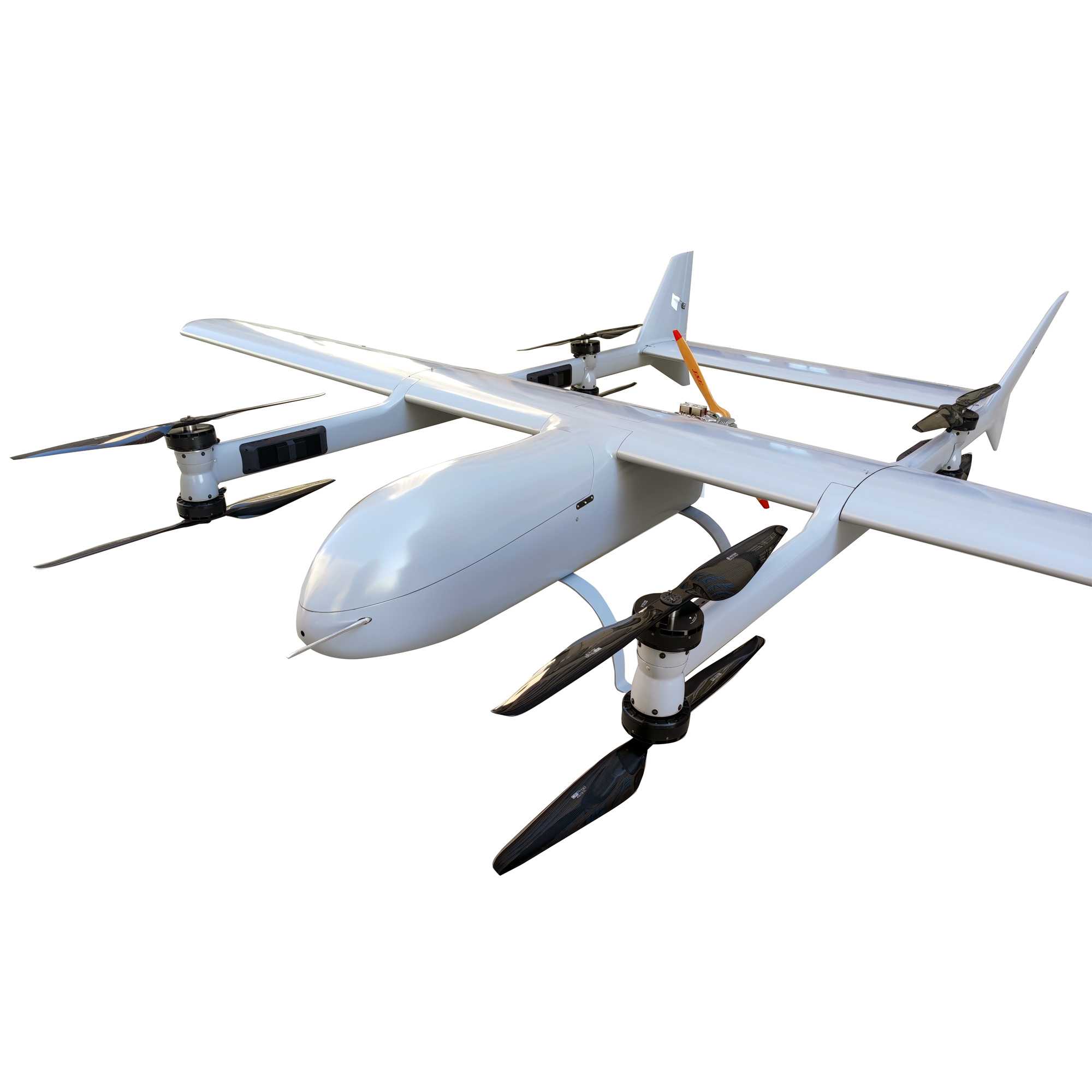

The FlySpark AeroLift-5000 Octa Heavy-Payload Long-Endurance VTOL UAV Platform is a professional fixed-wing VTOL drone system designed for large-area missions, stable vertical takeoff and landing, and reliable field operation.

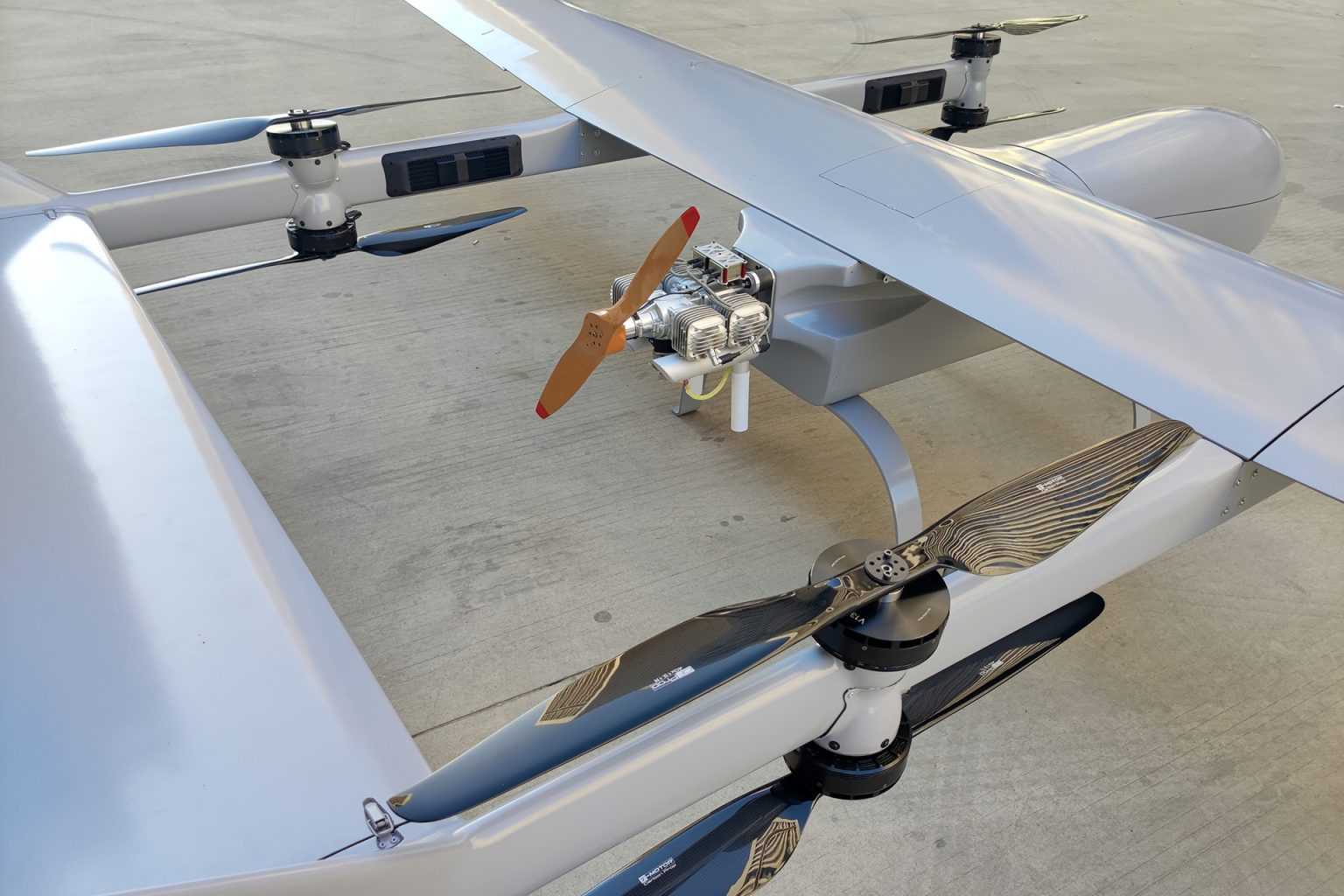

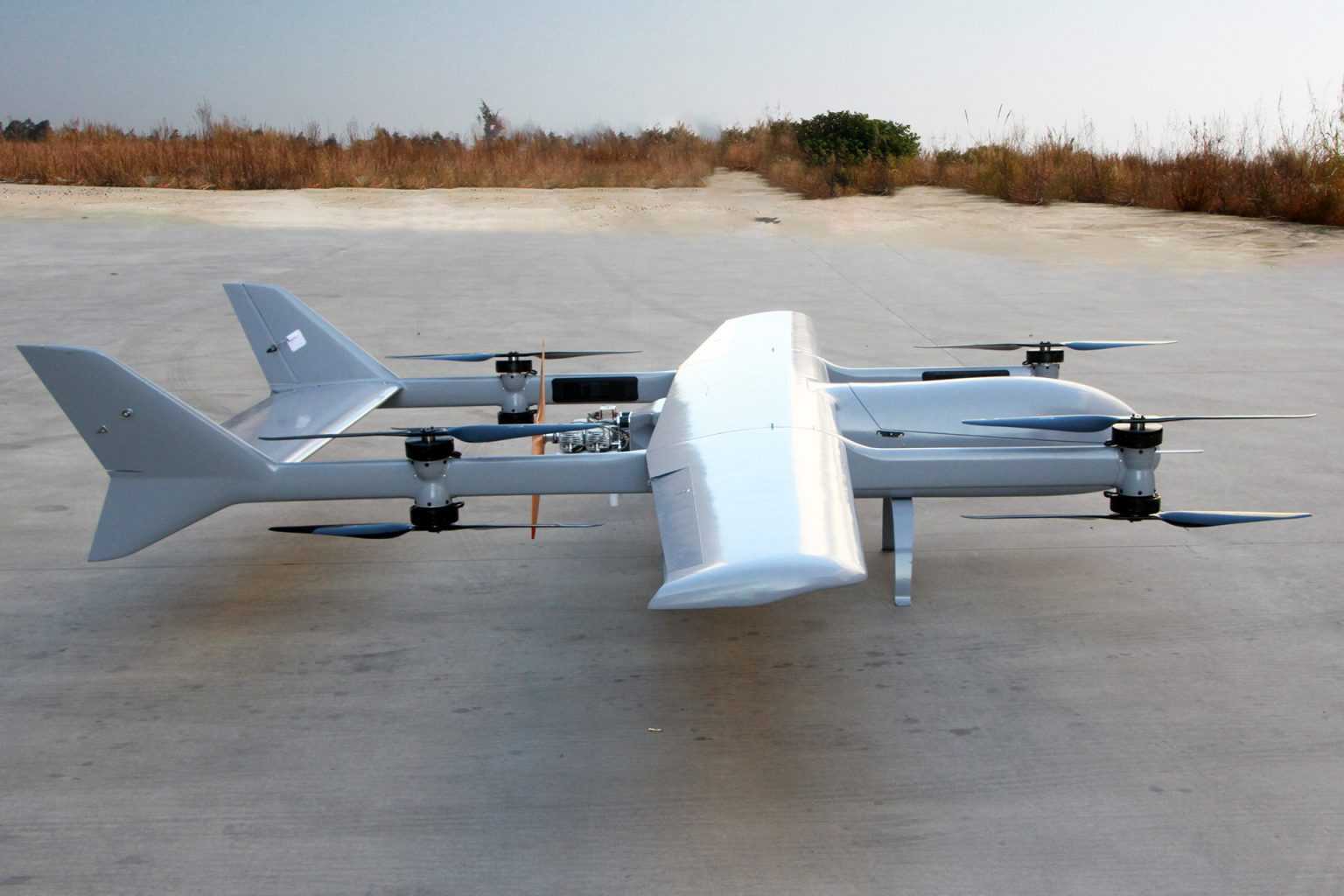

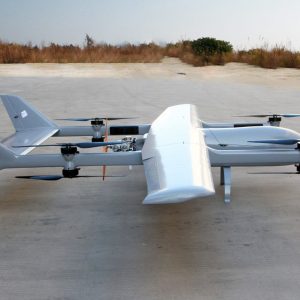

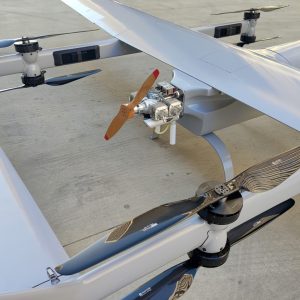

Built with an octa-lift VTOL configuration, the AeroLift-5000 Octa uses 8 vertical-lift motor mounts to improve flight stability during takeoff and landing. This design enhances operational safety and control, especially in demanding heavy-payload applications.

The platform features a carbon-fiber airframe that provides excellent structural strength while maintaining a lightweight design for efficient long-range operation. With a 5000 mm wingspan, 100 kg maximum takeoff weight, and up to 15 kg payload capacity, it is suitable for integrating mapping cameras, inspection payloads, environmental monitoring systems, industrial sensors, and logistics payloads for approved civil and industrial use.

The FlySpark AeroLift-5000 Octa is ideal for aerial mapping, long-range survey, infrastructure inspection, precision agriculture, environmental monitoring, disaster assessment, industrial logistics, and emergency response support.

Its combination of octa-VTOL stability, heavy-payload capability, long-endurance performance, and carbon-fiber construction makes it a dependable UAV platform for organizations that require high-performance aerial operations.

Key Features

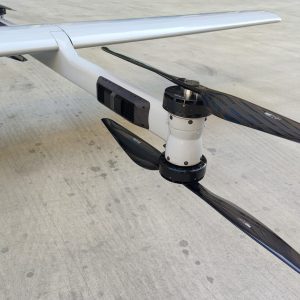

• Octa-lift VTOL design with 8 vertical-lift motor mounts
• Improved takeoff and landing stability
• Designed for safe and stable heavy-payload operation
• Up to 15 kg payload capacity depending on configuration
• Long-endurance flight performance over 8 hours
• 5000 mm wingspan for efficient fixed-wing cruising
• Carbon-fiber airframe construction

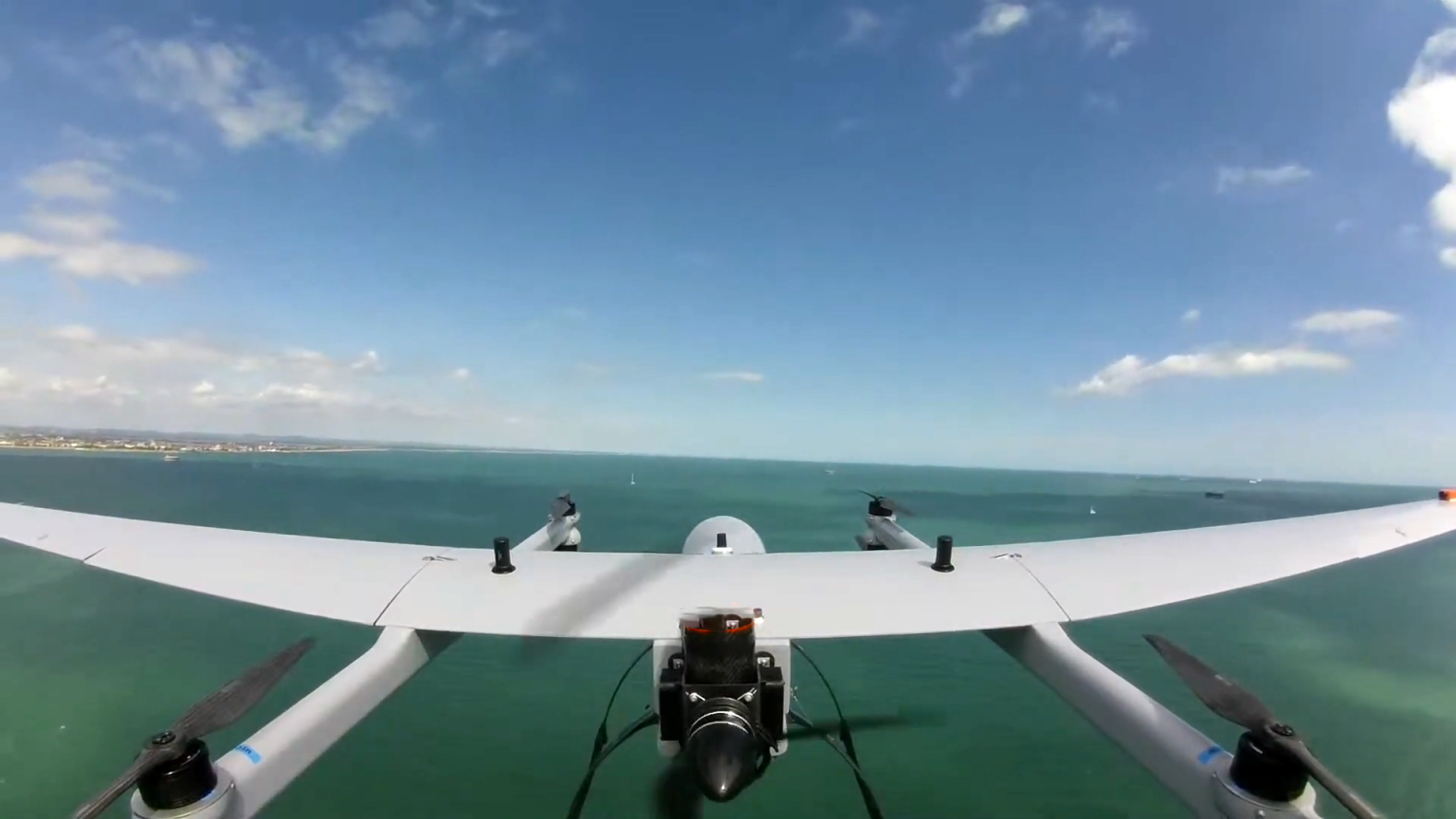

• Large equipment cabin for flexible payload integration
• Suitable for mapping, survey, inspection, monitoring, and logistics support
• Designed for industrial, research, and emergency-response missions
• Suitable for remote and field-based UAV operations.

Specifications

Product Type: Heavy Payload Octa VTOL UAV Platform
Airframe Type: Fixed-Wing VTOL UAV

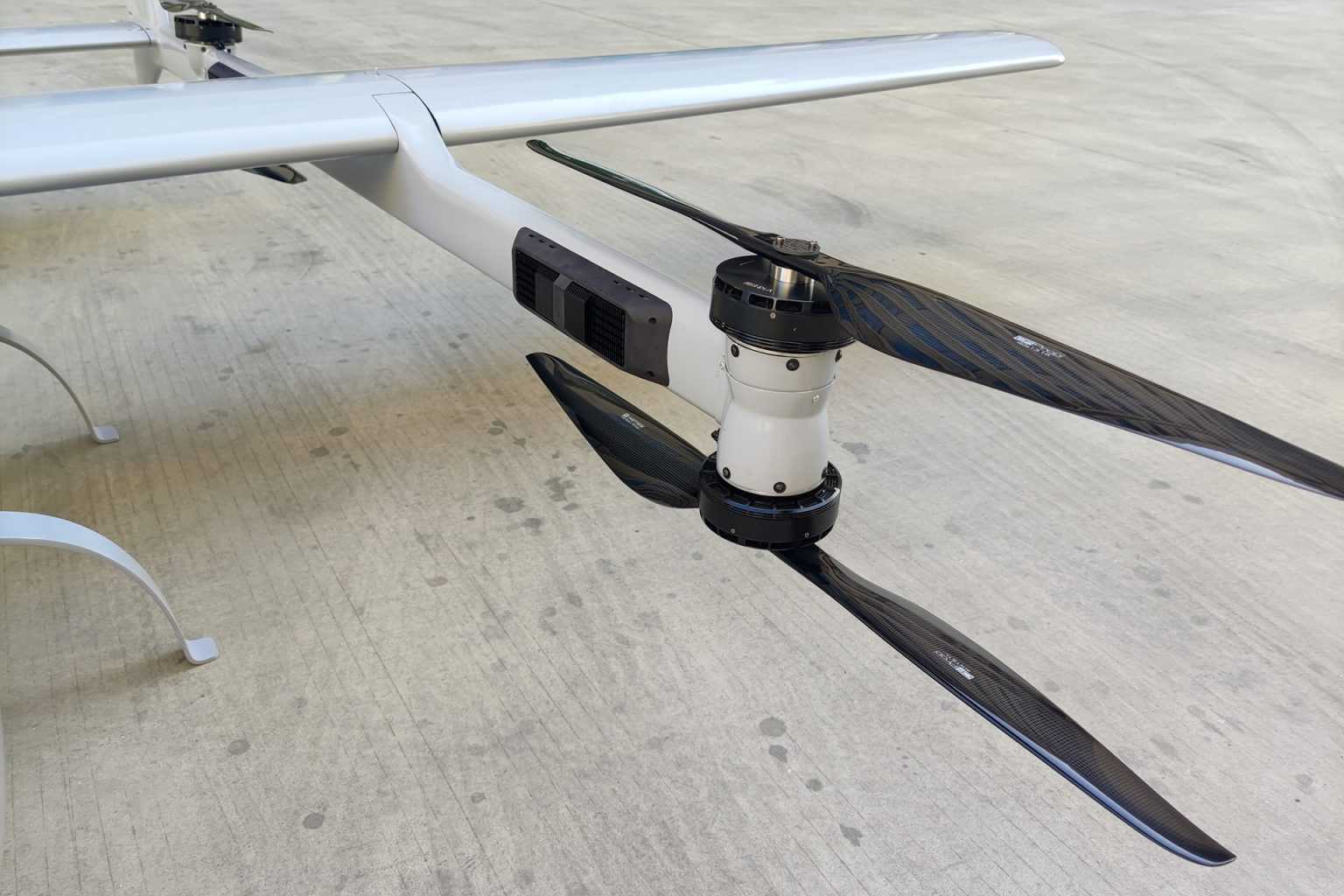

VTOL Configuration: Octa-lift VTOL with 8 vertical-lift motor mounts
Material: Carbon Fiber
Wingspan: 5000 mm
Length: 3500 mm
Fuselage Width: 375 mm
Wing Area: 261.5 dm²
Empty Weight: 35 kg
Maximum Takeoff Weight: 100 kg
Maximum Payload Capacity: 15 kg
Maximum Speed: 137 km/h
Cruise Speed: 126 km/h
Stall Speed: 86 km/h
Fuel Tank Volume: 28 L
Flight Time: Over 8 hours depending on configuration
Equipment Cabin Size: 920 mm x 340 mm x 350 mm
Takeoff / Landing Method: Vertical takeoff and landing.

Applications

• Large-area aerial survey
• High-accuracy mapping
• Infrastructure inspection
• Environmental monitoring
• Precision agriculture
• Search and rescue support
• Emergency response support
• Industrial logistics and material transport
• Disaster assessment
• Long-range monitoring
• Research and development
• Remote area field operations.
