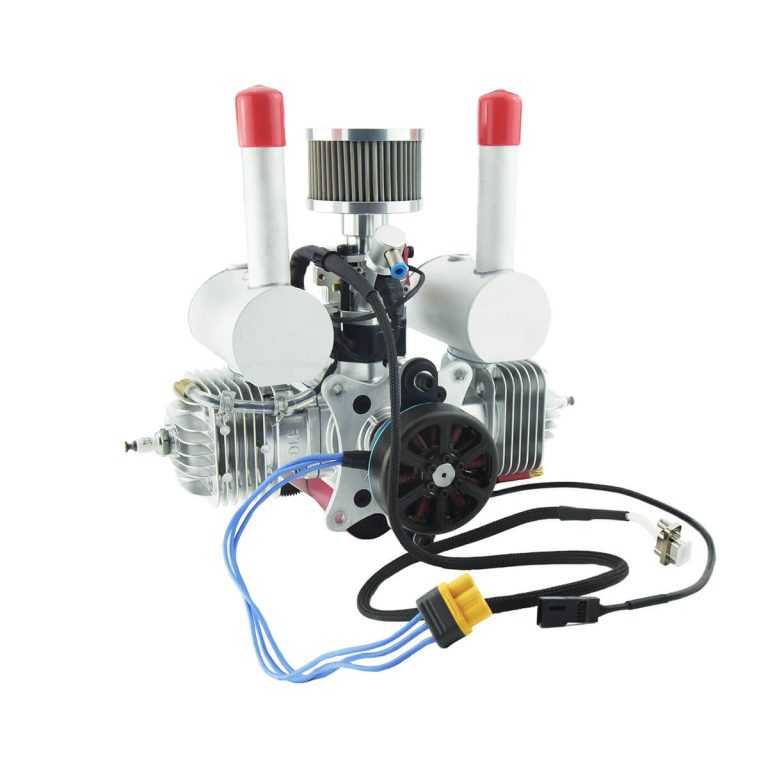

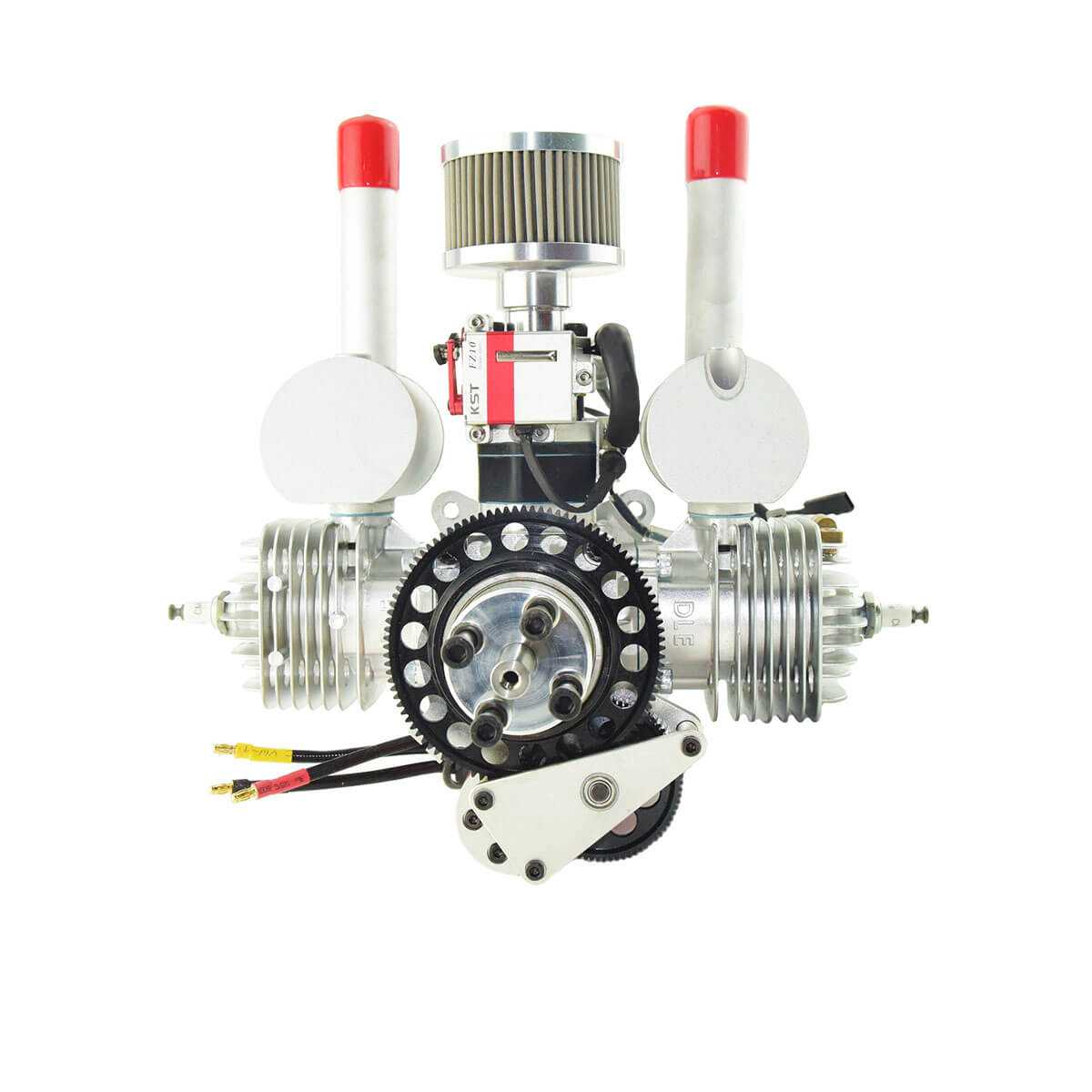

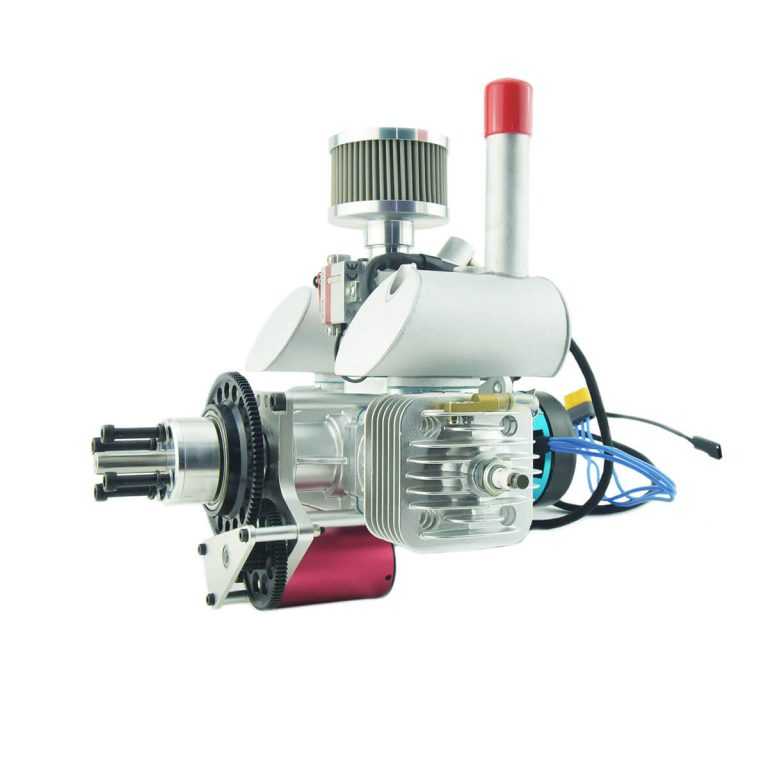

The FlySpark AeroEngine-60 EFI Gasoline UAV Engine with Electric Starter & Alternator is a compact professional propulsion system designed for industrial UAVs, fixed-wing drone platforms, hybrid VTOL aircraft, mapping drones, survey UAVs, and long-endurance aerial systems.

This EFI engine is designed to improve reliability, fuel control, and starting convenience compared to basic carbureted engine setups. The electronic fuel injection system uses an EFI ECU and self-priming fuel pump to maintain precise fuel pressure control, helping deliver stable engine operation across different field conditions.

The electric starter system makes engine startup faster and more convenient, while the alternator output supports onboard electrical power for UAV electronics. The split starter and alternator design helps improve reliability and reduces the chance of voltage-related engine issues during operation.

With 7HP output at 8500rpm, 61cm³ displacement, lightweight 2.94kg engine weight with air intake, and static thrust up to 15.2kg at 100m height, the FlySpark AeroEngine-60 EFI is suitable for small and medium UAV platforms requiring compact size, reliable power, and efficient operation.

Key Features:

• 61cc EFI gasoline UAV engine
• Electric starter for easy and convenient engine startup
• Built-in alternator system with up to 150W output
• EFI ECU for improved fuel control and stable operation
• Self-priming fuel pump for precise fuel pressure control
• Split starter and alternator design for improved reliability
• Lightweight engine body with strong power output
• 7HP output at 8500rpm
• Static thrust up to 15.2kg at 100m height
• Suitable for fixed-wing UAVs and hybrid VTOL platforms
• Designed for survey, mapping, inspection, monitoring, and industrial UAV applications

Specifications:

Product Type: EFI Gasoline UAV Engine with Electric Starter & Alternator
Brand: FlySpark
Model Name: AeroEngine-60 EFI
Engine Type: EFI gasoline UAV engine
Displacement: 61cm³
Power Output: 7HP at 8500rpm
Static Thrust at 100m Height: 15.2kg
Static Thrust at 1800m Height: 13.5kg
Recommended Propellers: 22×8 / 22×10 / 23×8 / 23×10
Lubrication Ratio: 40:1
Engine Weight with Air Intake: 2.94kg
AC-DC Module Weight: 300g
ECM Weight: 110g
Fuel Pump Weight: 170g
Voltage: 12V
Power Draw: 1 Amp peak, approx. 1 hour / 1000mAh
Temperature Range: -20°C to +50°C
Alternator Output: Up to 150W
Included Parts: EFI ECU, self-priming fuel pump, 12V voltage regulator module, starter ESC, wiring harness, CDI module, isolation rack
Installation Type: Fixed-wing UAV, VTOL UAV, and industrial drone platforms

Applications:

• Fixed-wing industrial UAVs
• Hybrid VTOL UAV platforms
• Survey and mapping drones
• Agriculture monitoring UAVs
• Infrastructure inspection drones
• Environmental monitoring UAVs
• Long-endurance aerial platforms
• Research and development UAV projects
• Professional small and medium UAV systems
• Drone platforms requiring onboard electrical power

The FlySpark AeroEngine-60 EFI is suitable for UAV manufacturers, drone integrators, research teams, and industrial operators who need a compact EFI gasoline engine with convenient electric starting and alternator support for professional UAV platforms.
