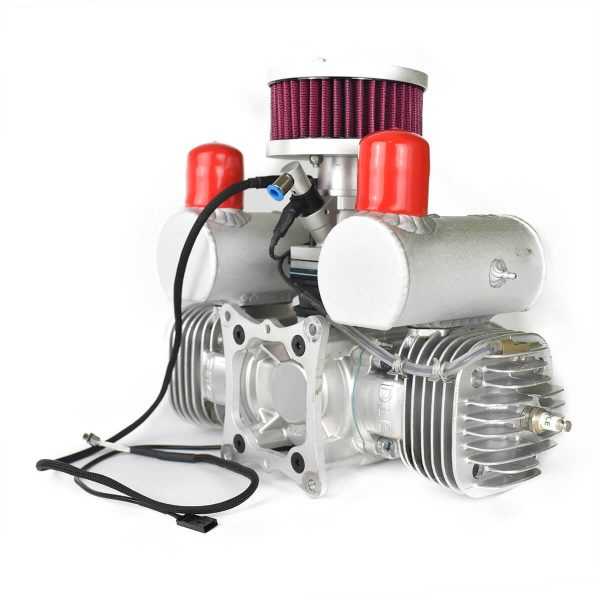

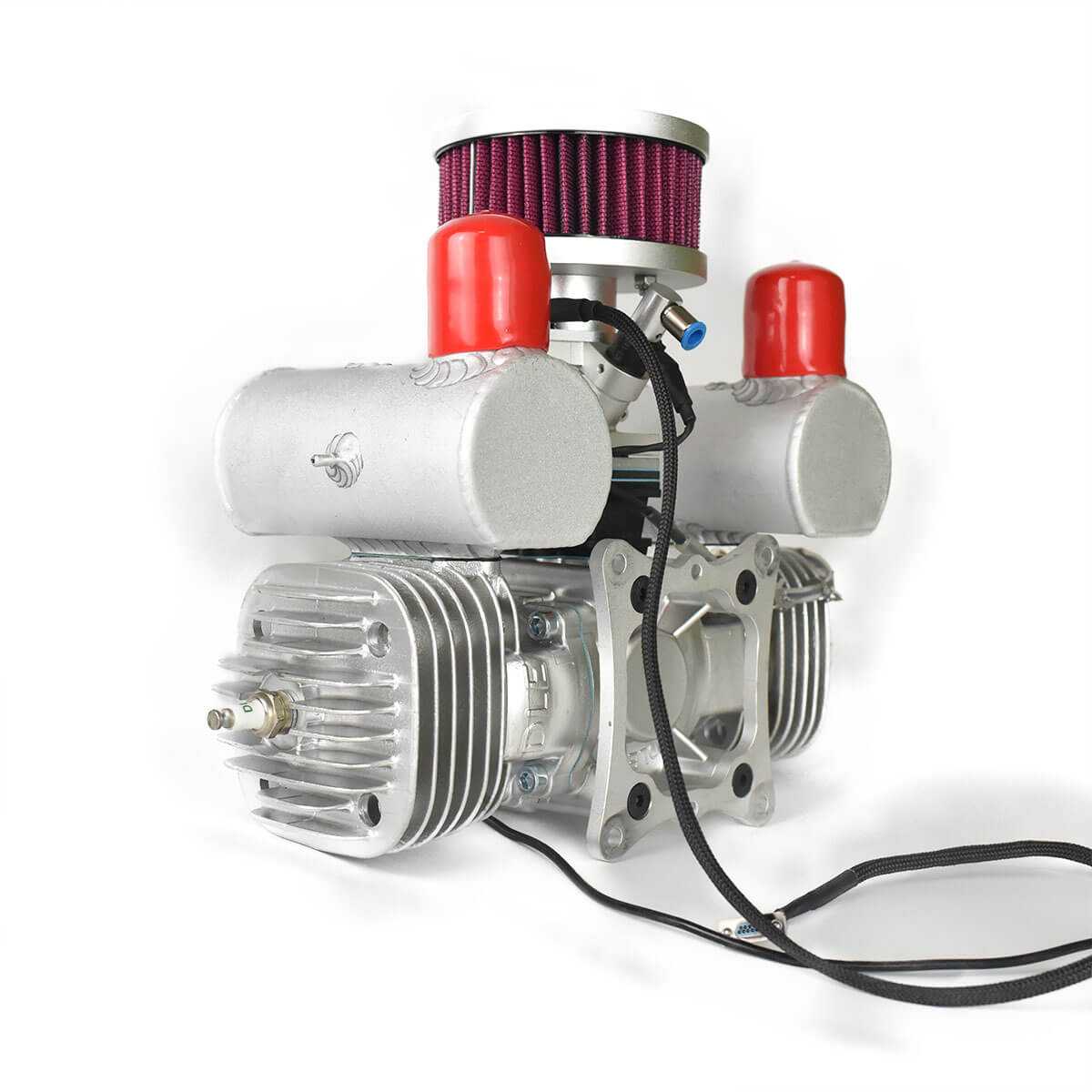

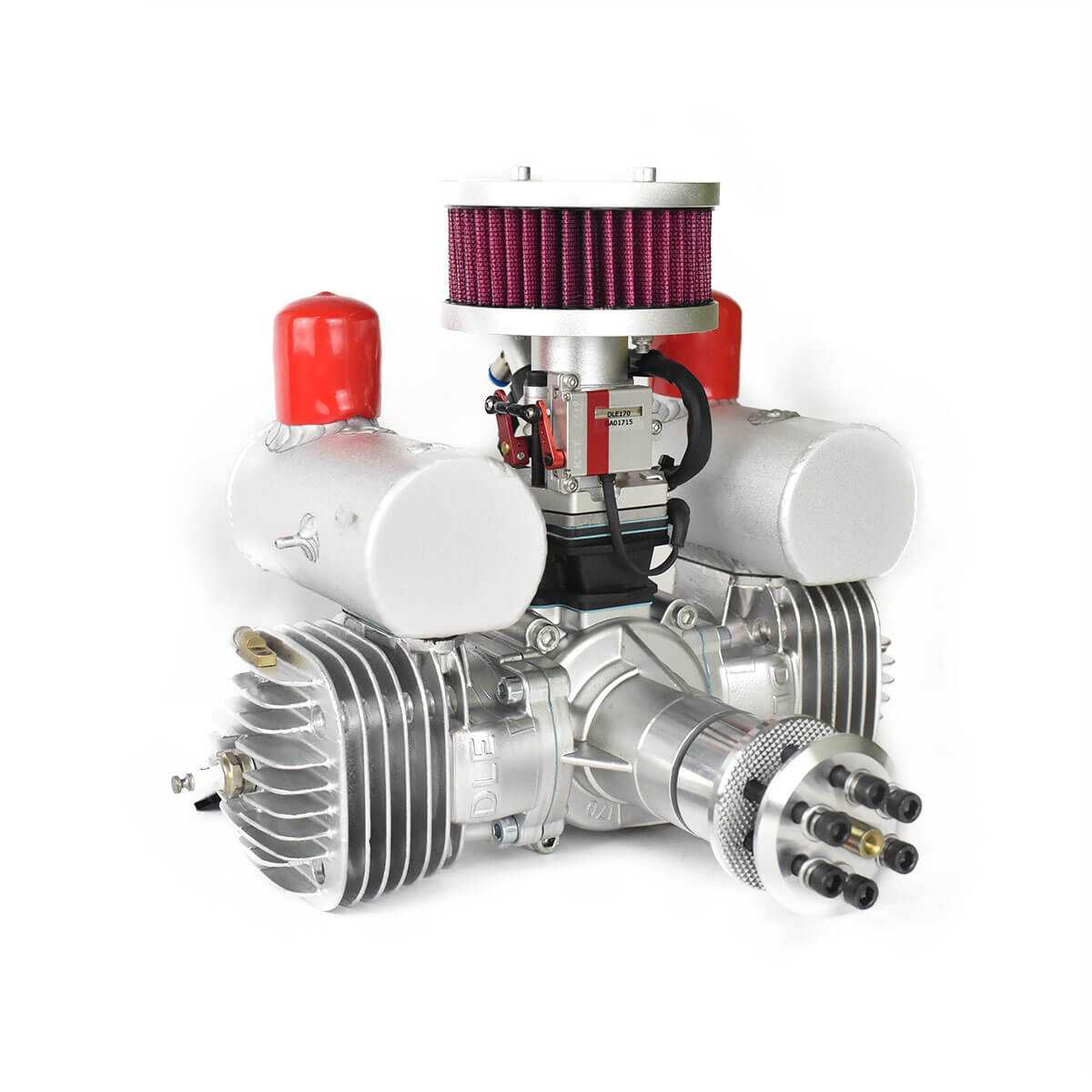

The FlySpark AeroEngine-170 EFI Twin-Cylinder Gasoline UAV Engine is a professional 170cc electronic fuel injection propulsion system designed for medium and large industrial UAV platforms that require stable power output, efficient fuel control, and reliable long-endurance operation.

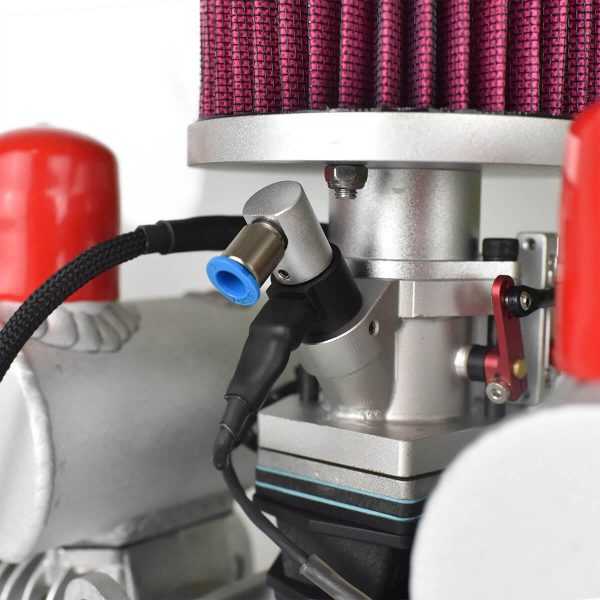

Built with an advanced EFI fuel injection system, the AeroEngine-170 EFI provides automatic fuel delivery and closed-loop pressure control for consistent combustion across changing altitude, temperature, and flight conditions. Compared to traditional carbureted engines, the EFI system improves fuel stability, throttle response, and operational reliability for professional UAV applications.

With up to 17.5 HP output at 8,500 RPM, 170cc displacement, and a lightweight 4.1 kg engine body with air intake, the FlySpark AeroEngine-170 EFI delivers strong power-to-weight performance for fixed-wing UAVs, hybrid VTOL systems, industrial mapping drones, inspection platforms, and long-range monitoring aircraft.

The engine supports real-time engine telemetry through RS232 protocol, allowing integration with advanced autopilot systems for monitoring fuel status, RPM, temperature, and engine health. This makes it suitable for professional UAV integrators and manufacturers who need better engine visibility during long-duration missions.

Key Features:

• 170cc electronic fuel injection gasoline UAV engine
• Advanced EFI system with automatic fuel delivery
• Closed-loop fuel pressure control for stable combustion
• Real-time engine telemetry through RS232 protocol
• Maximum output of 17.5 HP at 8,500 RPM
• Lightweight 4.1 kg engine body with air intake
• Stable operation across variable altitude and temperature conditions
• Better fuel control compared to carbureted engines
• Suitable for fixed-wing UAVs and hybrid VTOL platforms
• Supports high-altitude and extreme-environment UAV operations
• Designed for mapping, survey, inspection, monitoring, logistics, and industrial UAV applications

Specifications:

Product Type: EFI Gasoline UAV Engine
Brand: FlySpark
Model Name: AeroEngine-170 EFI
Engine Type: Two-stroke gasoline UAV engine with electronic fuel injection
Displacement: 170 cc
Engine Power: 17.5 HP at 8,500 RPM
Static Thrust: Approx. 35 kg at low altitude
Static Thrust at 1800 m: Approx. 31.5 kg
Recommended Propellers: 30×10 / 30×12 / 32×10
Lubrication Ratio: 40:1
EFI Power Supply: 12V
EFI Power Consumption: Approx. 1000 mAh per hour
Engine Weight with Air Intake: 4.1 kg
ECU Weight: 110 g
Fuel Pump Weight: 170 g x 2
Operating Temperature: -20°C to +50°C
Telemetry Output: RS232 protocol
Optional Alternator Output: 12V / 80W

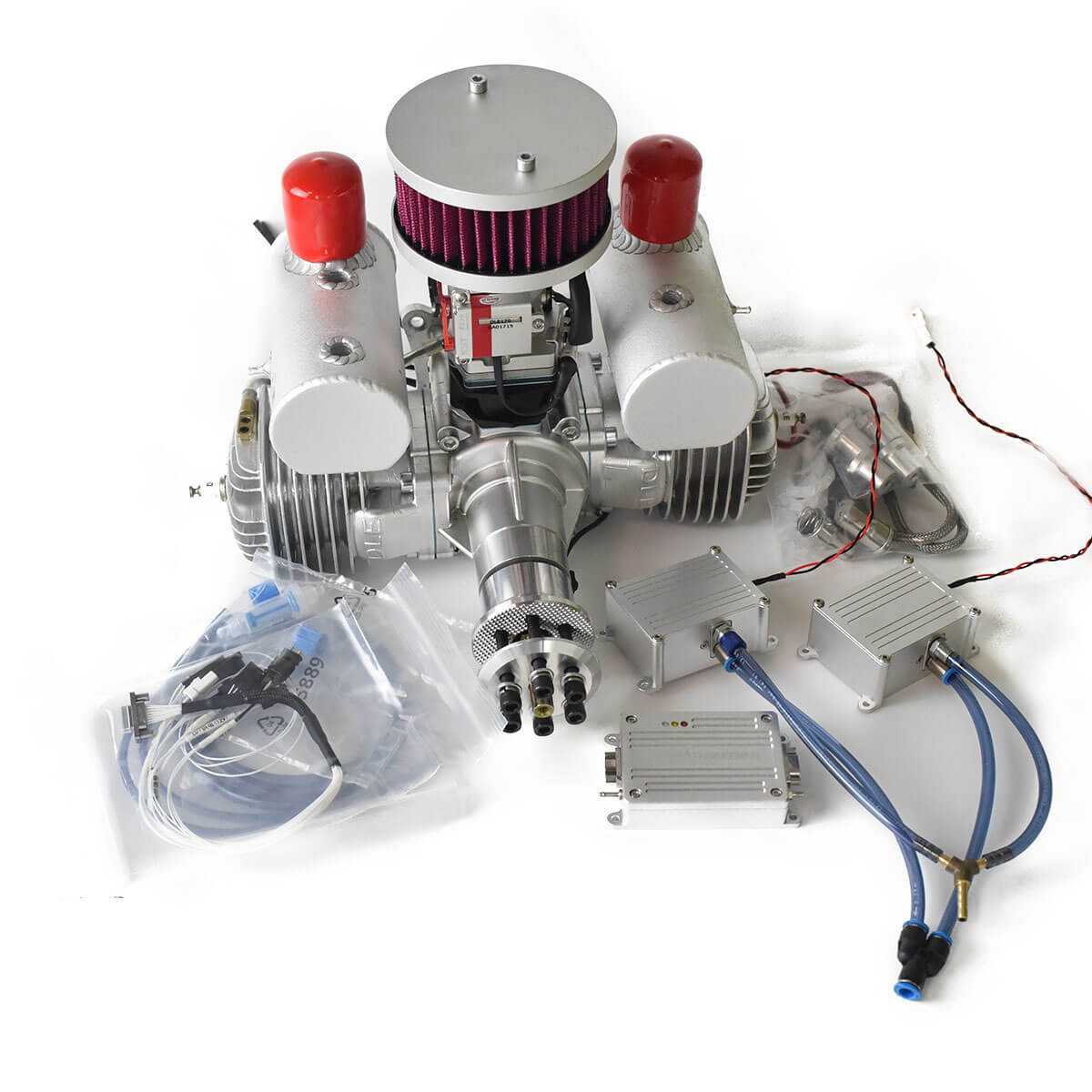

Optional System: Alternator and electric starter version available
Installation Type: Fixed-wing UAV, hybrid VTOL UAV, and industrial drone platforms

Applications:

• Long-endurance fixed-wing UAV platforms
• Hybrid VTOL UAV cruise engine applications
• Industrial mapping and surveying drones
• Infrastructure inspection UAVs
• Agriculture monitoring UAVs
• Long-range monitoring platforms
• Logistics and delivery UAV systems
• High-altitude UAV operations
• Extreme-environment UAV applications
• Research and development UAV projects
• Professional medium and large UAV platforms

The FlySpark AeroEngine-170 EFI is suitable for UAV manufacturers, drone integrators, industrial operators, research teams, and professional drone projects that require a reliable EFI gasoline engine with stable fuel control, telemetry support, and long-endurance performance.
