The FlySpark Terminator TOC Starter 80CC Engine is a high-performance two-cylinder gasoline engine engineered for professional UAVs, fixed-wing aircraft, and large-scale aerial systems requiring exceptional power, precision, and reliability.
With an advanced electronic starter system, this 80cc engine combines convenience, performance, and durability—eliminating manual starts and ensuring consistent ignition every time. Designed using aerospace-grade aluminum alloy and advanced machining technology, the TOC 80CC provides smooth power delivery, low vibration, and superior thermal stability, even under demanding operating conditions.
Optimized for aerial mapping, surveillance, agricultural, and long-endurance flight applications, this engine delivers 9.5 horsepower at 7200 RPM, with robust torque and steady performance across variable altitudes.
Built for professional-grade UAV platforms, the Terminator TOC Starter 80CC offers the perfect balance of weight, output, and dependability, making it a top choice for high-payload and endurance-driven missions.
✅ Key Highlights
Powerful Performance: Generates up to 9.5 HP at 7200 RPM, ensuring strong thrust and stable flight.

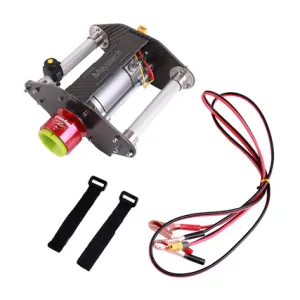

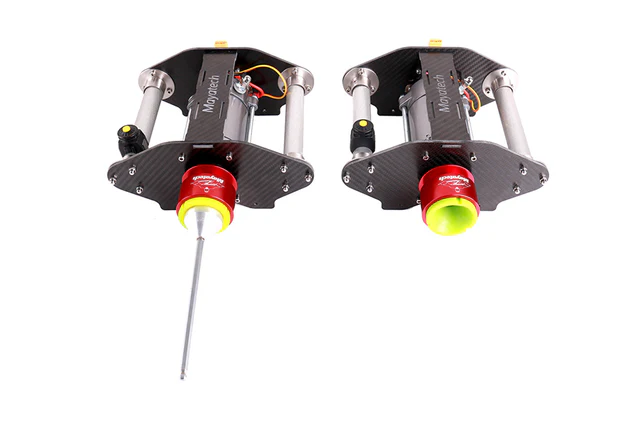

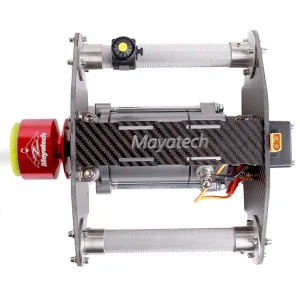

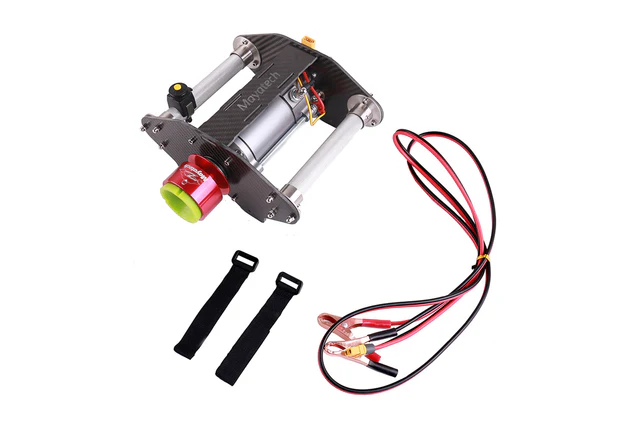

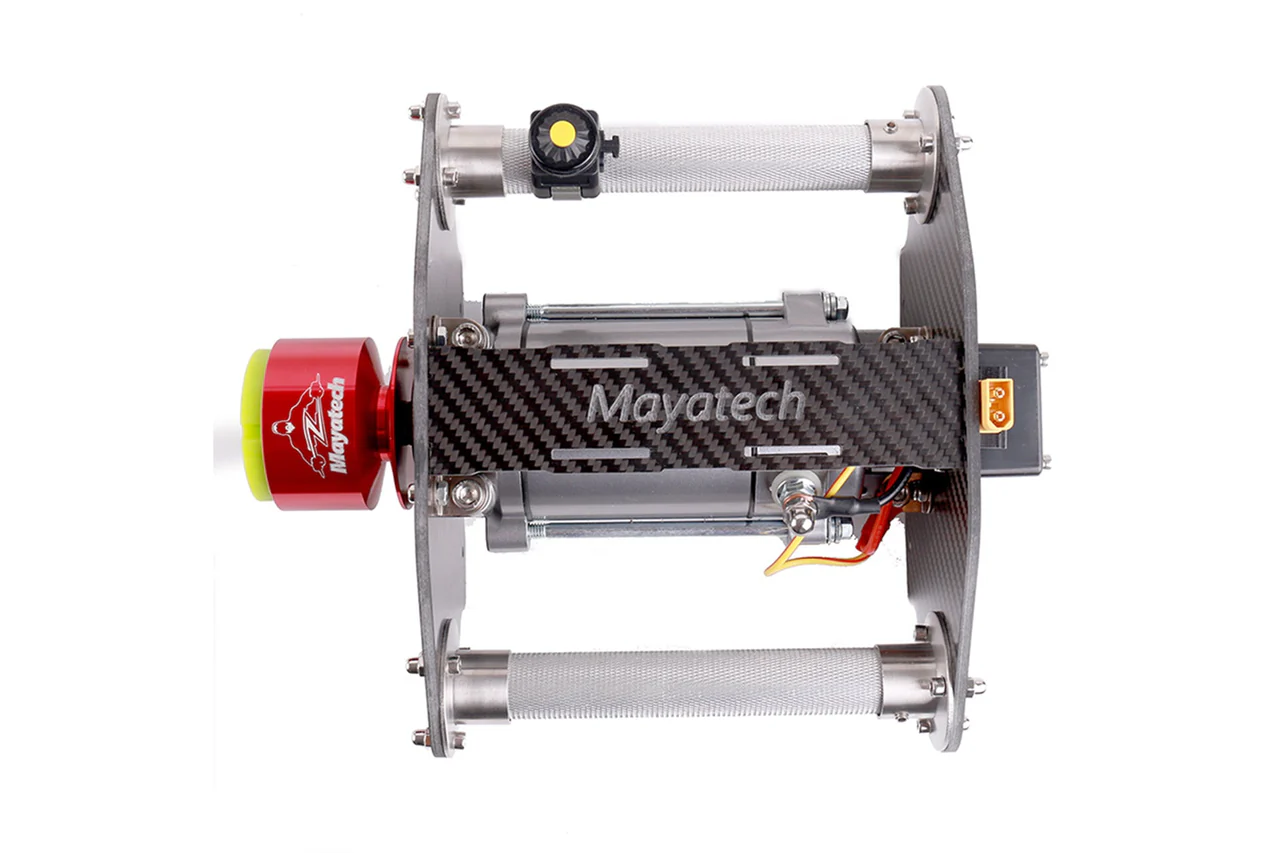

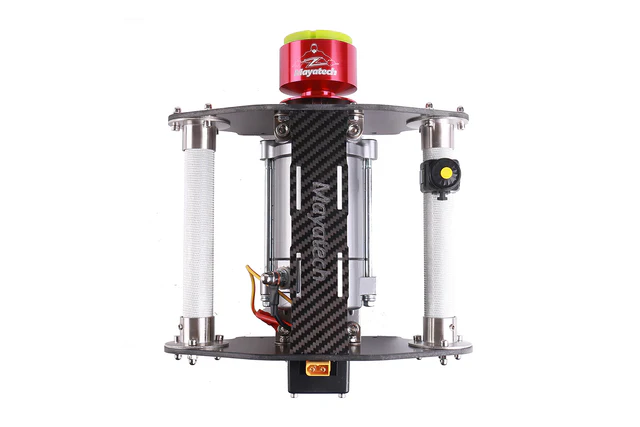

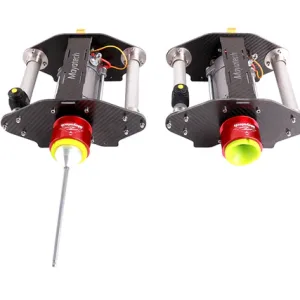

Electronic Starter System: Integrated TOC auto-start mechanism allows one-touch ignition and safer operation.
Precision Build: CNC-machined crankcase and dual-piston design reduce vibration and improve power balance.
Fuel Efficiency: Engineered for optimized fuel-to-air ratio, minimizing consumption during long missions.
Durable Construction: Built from aviation-grade aluminum alloy for strength, lightweight performance, and improved cooling.
Reliable Ignition System: Supports CM6 spark plugs and 4.8V–12V electronic ignition system.
Versatile Propeller Range: Ideal for two-blade 24×10 to 25×12 configurations.
Professional-Grade Adaptability: Compatible with fixed-wing, hybrid VTOL, and endurance UAV platforms.
⚙️ Technical Specifications
| Item | Specification |
|---|---|
| Model | Terminator TOC Starter 80CC |
| Engine Type | Two-Cylinder, Two-Stroke Gasoline Engine |
| Displacement | 80 cc |
| Power Output | 9.5 HP @ 7200 RPM |
| Idle Speed | 1300 RPM |
| Compression Ratio | 7.5 : 1 |
| Weight (Engine Only) | 2.5 kg |
| Ignition Weight | 200 g |
| Starting System | Electronic Auto Starter (TOC System) |
| Spark Plug Type | NGK CM6 |
| Fuel Type | Unleaded Gasoline (92# or Higher) |
| Fuel–Oil Ratio | 30:1 |
| Cooling System | Air-Cooled |
| Recommended Propellers | 24×10”, 25×10”, 25×12” |
| Ignition Voltage | 4.8–12V DC |
| Thrust Output | ~20–22 kgf (altitude dependent) |
| Cylinder Bore × Stroke | 34mm × 31mm |
| Material | CNC Aluminum Alloy + Magnesium Crankcase |
| Operating Altitude | ≤2000m |
| Operating Temperature | –10°C to 55°C |
⚙️ Performance & Reliability
Smooth and balanced thrust across all RPM ranges.
Optimized combustion chamber for consistent performance.
Low vibration ensures flight stability and longer UAV component lifespan.
Efficient cooling design for continuous operation.
Easy-to-maintain modular engine architecture.
Packaging & Logistics
| Item | Details |
|---|---|
| Engine Weight (Net) | 2.5 kg |
| Shipping Weight | ~3.2 kg (including accessories) |
| Production Lead Time | 7–10 working days |
| Shipping Duration | 7–14 additional days |
| Order Type | Made-to-Order (non-refundable after confirmation) |
| Price & Freight | Indicative only – confirm before checkout |
