FlySpark SFGT-RMDF-P Portable RF Monitoring & Direction-Finding System

The SFGT-RMDF-P integrates a wideband receiver, real-time spectrum engine and a
correlation-interferometer (CI) direction-finding array to deliver accurate,
efficient electromagnetic situational awareness for anti-drone, interference hunting
and spectrum security operations.

Key Features

• Integrated detection technology: high sensitivity, wideband and rapid reception for rich, accurate data
• Real-time monitoring of RF environments with signal analysis, alerts, recording, storage and playback
• Handles complex signals: communication, radar, FHSS, spread-spectrum, burst, IFF, data links
• Fast FHSS capture: up to 5000 hops/s
• Real-time bandwidth: 80 MHz / 300 MHz (model dependent)

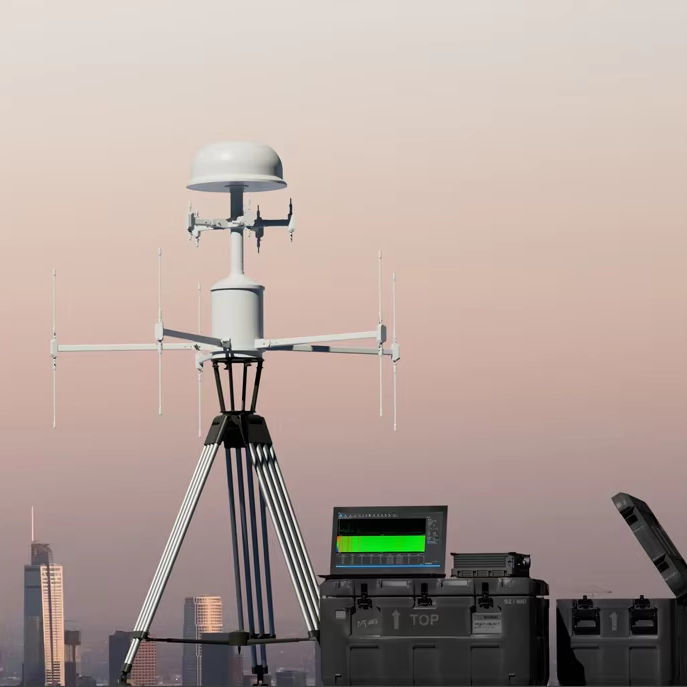

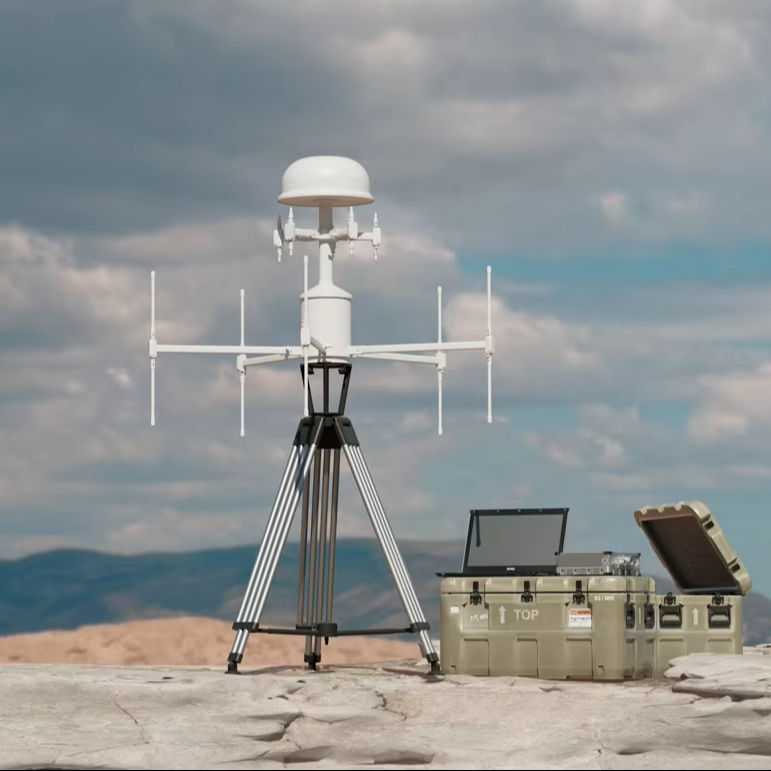

• Portable & quick-deploy: compact DF antenna, minimal cabling, rapid setup and retrieval
• Visual operation interface with on-demand spectrum data

Applications

• Low-altitude / anti-drone RF detection and cueing
• Spectrum monitorThe Portable Spectrum Monitoring and Direction Finding Device is designed to efficiently complete radio signal monitoring, direction finding, and specific communication or radar signal sorting and identification tasks in designated areas, based on mission requirements. The device features an ultra-wide frequency coverage and extremely fast scanning and direction-finding speeds, making it suitable for radio monitoring and direction finding in complex electromagnetic environments. Additionally, its portability makes it ideal for temporary setup and on-the-go support.

  Product Features

  1. Adopting integrated detection technology, it possesses capabilities such as high-sensitivity reception, wide-band reception, and rapid reception, ensuring rich, accurate, and efficient situational data.
  2. It features real-time monitoring of electromagnetic environments, critical signal analysis and alerts, on-demand provision of spectrum data, data storage and playback functions.

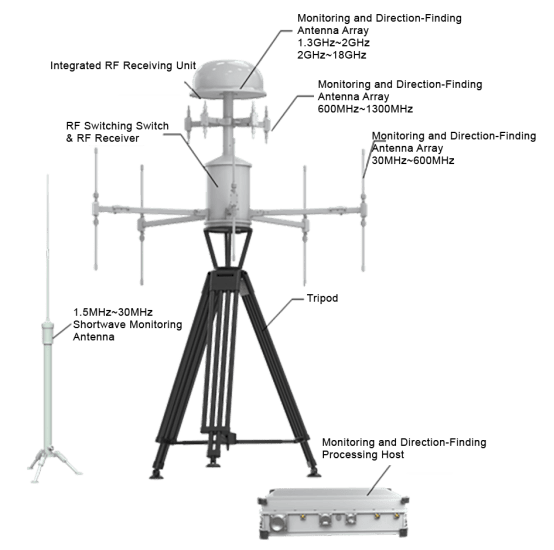

  3. Compact and lightweight, it enables rapid mobility. Integrated RF design with minimal front-end and back-end connections, offering a simple and efficient structure that facilitates quick deployment and retrieval.

  Product Paramenters

  Monitoring Frequency Range	1.5MHz～3GHz	1.5MHz～8GHz	1.5MHz～18GHz
  Scanning Speed	1.5MHz～30MHz：≥100MHz/s（resolution: 1kHz） 30MHz～8GHz：≥100GHz/s（resolution: 25kHz）
  Instantaneous Dynamic Range	≥60dB
  Max Instantaneous Analysis Bandwidth	1.5MHz～30MHz：≥2MHz 30MHz～8GHz：≥80MHz
  Max Hopping Rate Suitable for Frequency Hopping Signals	5000 hops/s
  Types of Signals	Communication, data links, radar, identification friend or foe (IFF), frequency hopping, spread spectrum, burst signals, and others.
  Supported Signal Modulation Types	AM,FM,CW,ASK,2FSK,4FSK,BPSK,QPSK, 8PSK,16QAM,MSK,etc.
  Direction Finding Operating Frequency	30MHz～3GHz	30MHz～8GHz	30MHz～18GHz
  Direction Finding Sensitivity	30MHZ~1GHz: ≤20dBμV/m 1GHz~3GHz：≤25dBμV/m	≤30dBμV/m	≤35dBμV/m
  Direction Finding Accuracy	≤1.5°(RMS)	≤2°(RMS)	≤2.5°(RMS)
  Power Supply	AC 220V±10%，50Hz±5%
  Operating Temperature	-40~+55°C
